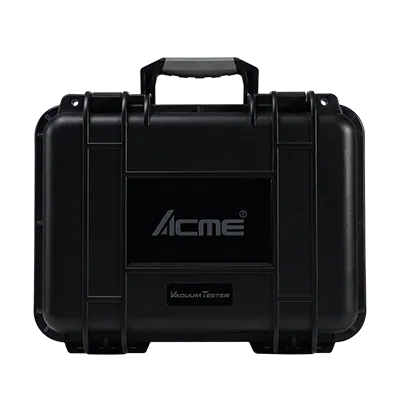

Vacuum Tester
- Power consumption
- 40W
- Power supply
- 100-240VAC, 50/60Hz
- Net weight
- 7 kg (15.4 lbs.)
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Functional Overview3
- The ACME Vacuum Tester is a portable testing device to check for leaks in IP6X-rated fixtures.
- This non-destructive tester is based on the principle of a fixture to maintain pressure in the fixture's chambers (the head or enclosure of the unit) that are sealed from moisture. The Vacuum Tester is a self-contained unit that injects air into the fixture's chamber and checks for any loss of pressure. Loss of pressure indicates a leak while maintaining pressure lets you know the fixture's seal in the area tested is intact.

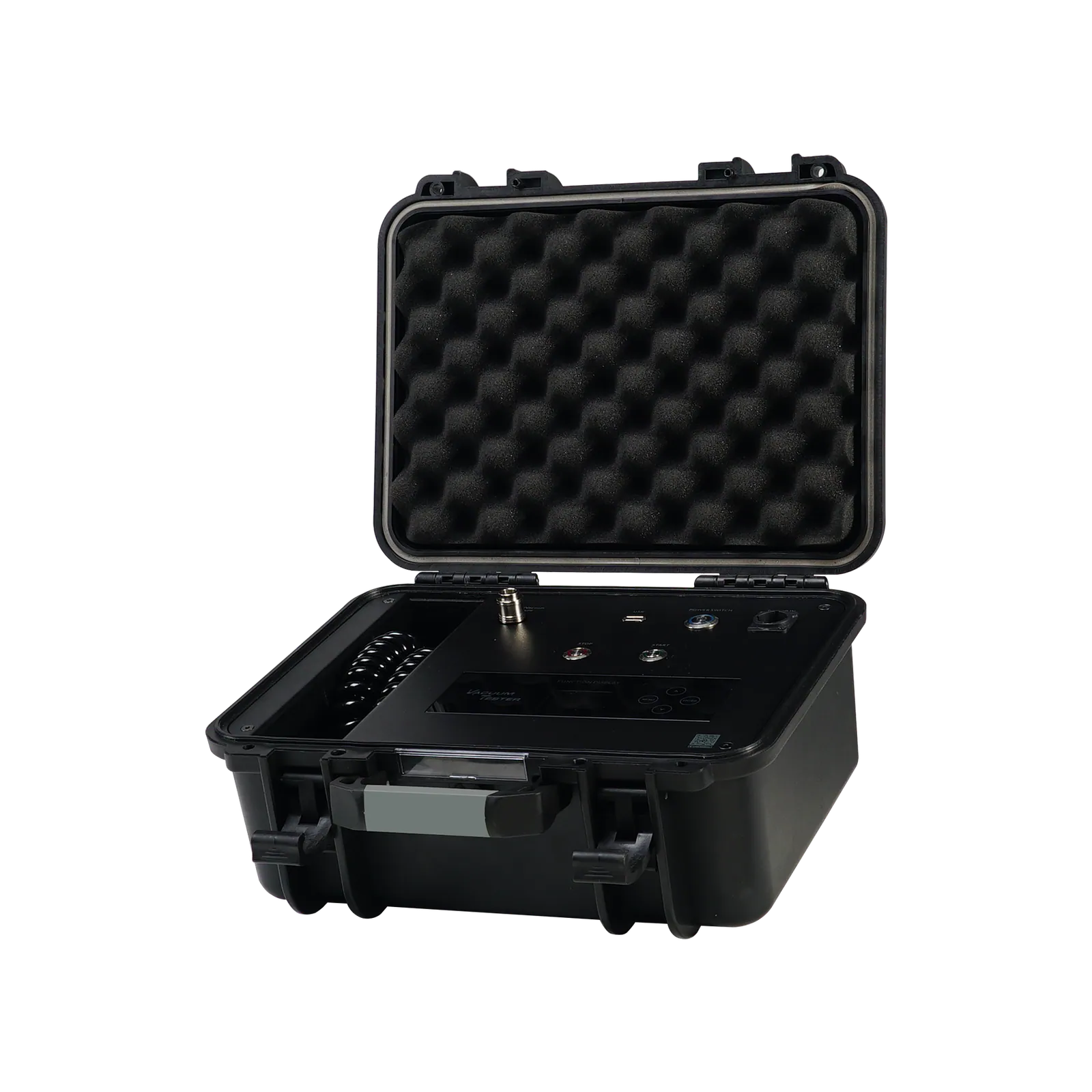

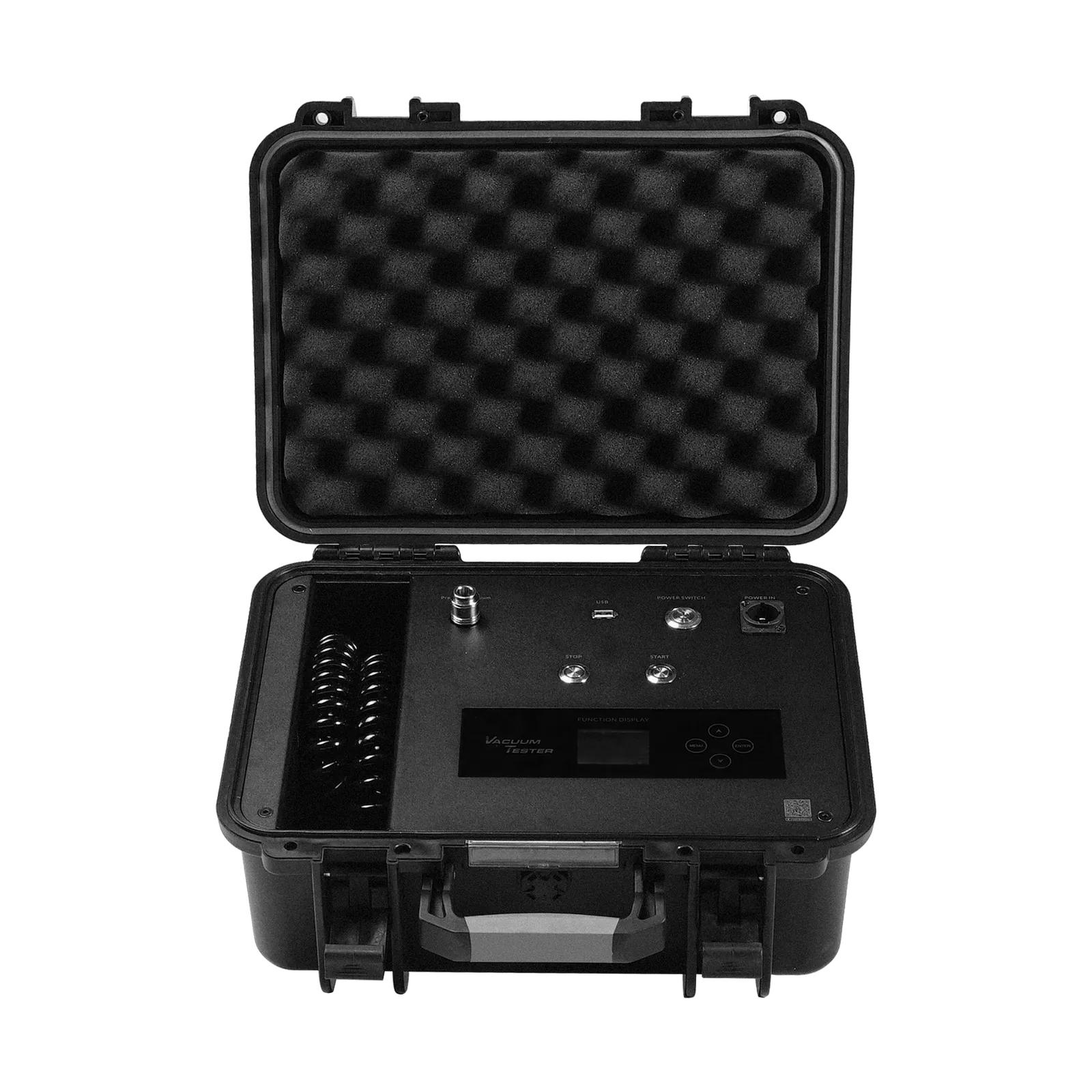

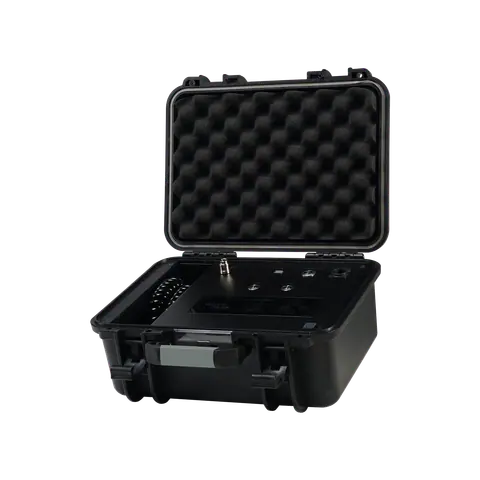

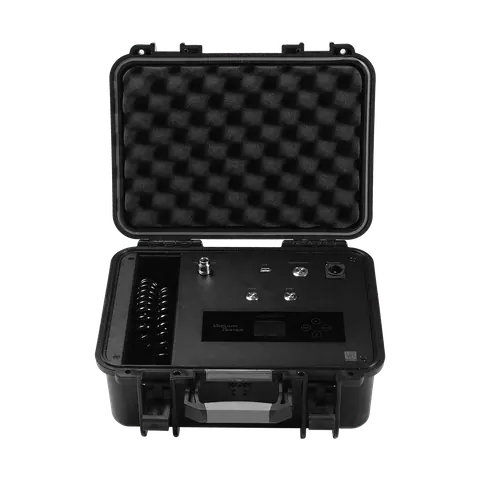

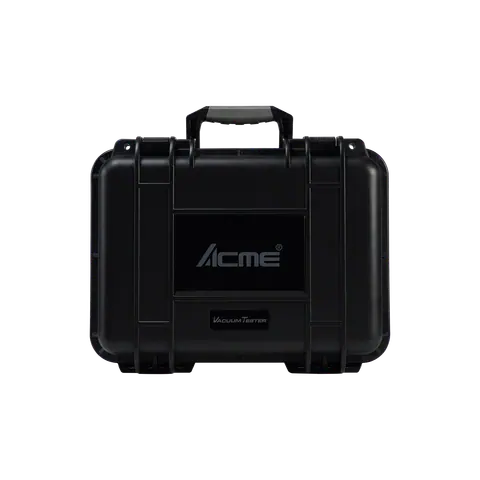

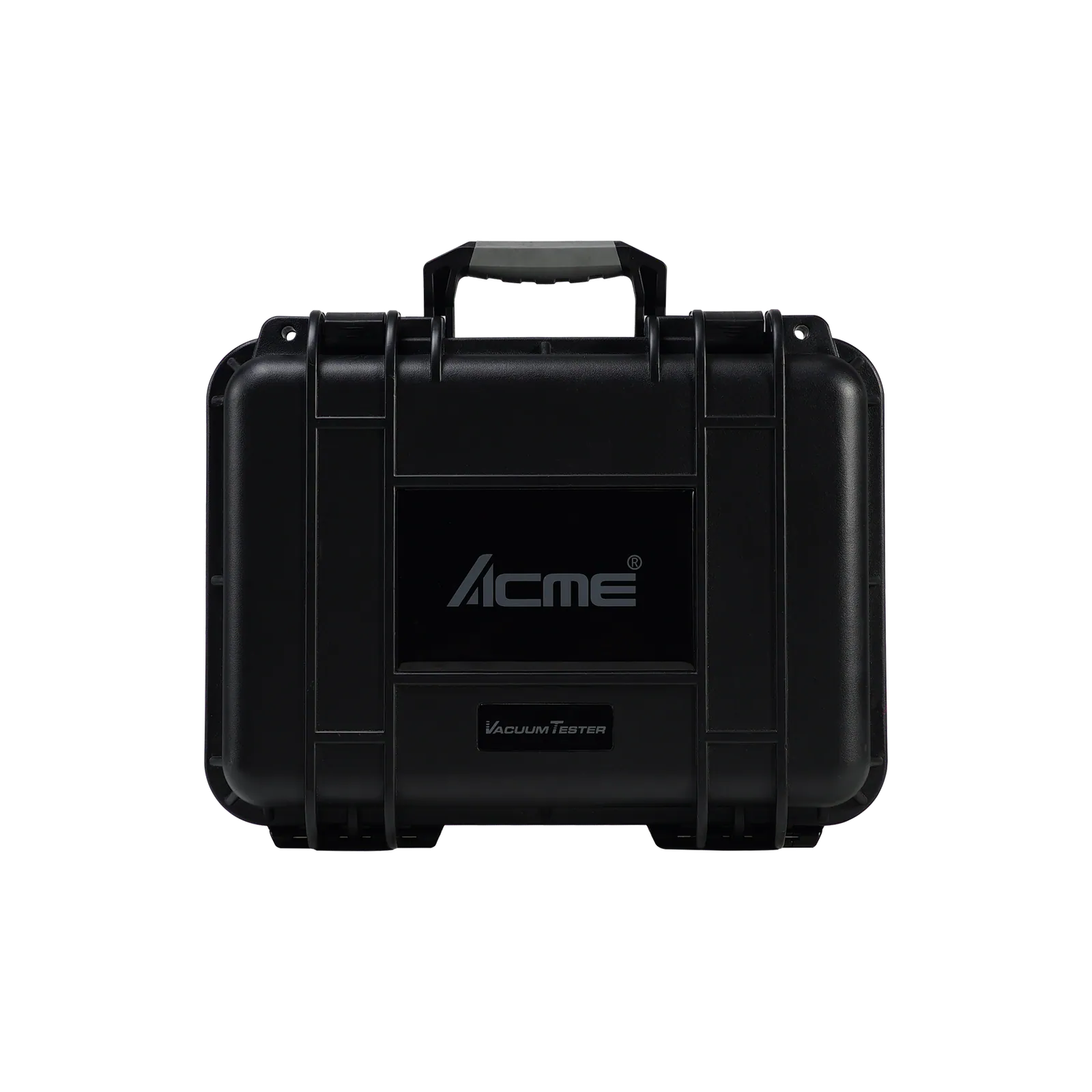

- The Vacuum Tester is easy to use and comes in its own carrying case with screw-in plugs needed to seal the various relief values on the fixture's head or enclosure. The unit's LCD display lets you know quickly if the fixture being tested passes or fails the pressure test.
02Control and Program3
- 3 push-buttons and 4 button touch control panel
- Display
- LCD display
- Upgrade the firmware via USB
03Electrical and Connectors3
- Auto-ranging power supply
- Input voltage range
- 100-240VAC, 50/60Hz
- Power consumption
- 40W
04Fixture Specification4
- Height
- 355 mm (14")
- Width
- 167 mm (6.6")
- Depth
- 354 mm (13.9")
- Weight
- 7 kg (15.4 lbs.)
05Work Environment1
- Tester to be used in dry environments only
06Approvals1
- CE Compliant
07Included items16
- Digital User Manual
- Power Cable (TRUE1 type connector)
- Four air pressure valve plugs
- Coiled air hose with connector
- Download
- Version
- Review
- Download
- Date
- Compliances & Declarations
- VACUUM TESTER (V-BOX) CE Certification (EMC)
- 2025-04-15
- VACUUM TESTER (V-BOX) CE Certification (LVD)
- 2025-04-15
- Show More
- Show Less
Show the full specificationHide the rest of the specification0 more groups · 0 values
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
In the same range.
EQ-4657ACMEUPLOADER IIAccessories and casesNet weight0.6kgPower supplyDC 9-12V 300mA min (External power supply 100-240V~ 50/60Hz)
EQ-4659ACMEWaterproof XLR Signal Cable3017013468(3PIN) / 3017013473(5PIN) · Accessories and cases
EQ-4656ACMETwo Loader FC THEATRE SPOT 300 WWAccessories and cases

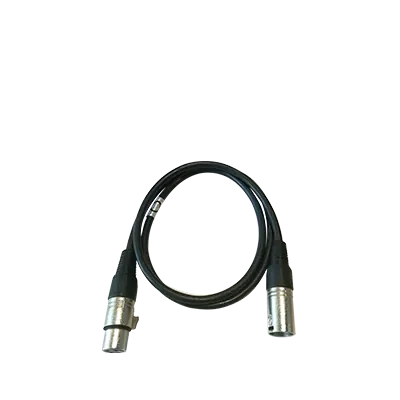

EQ-4660ACMEXLR Signal Cable3017002015 (1.5m), etc · Accessories and cases
