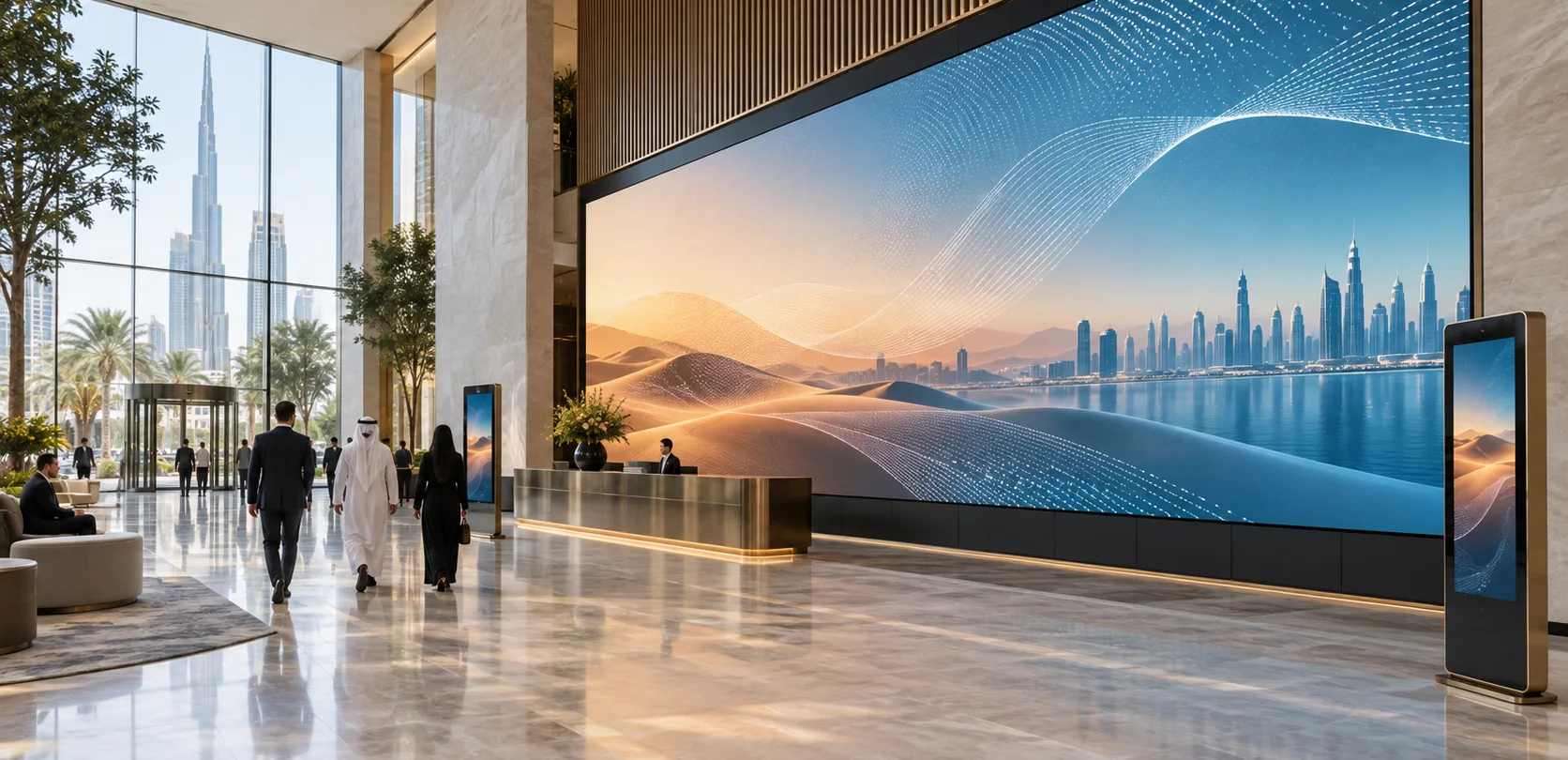

Concept visualisation of a fine-pitch LED wall integrated into a contemporary Dubai lobby
Solution 08 / 10

AV systems integration

LED & LCD video wall installationin Dubai & the UAE

A bigger picture, planned down to the pixel.

Build a readable display surface around the content and viewing distance.

  • Acceptance on your scenarios
  • Documentation and training
  • 12-month workmanship warranty
  • A readable pictureMatch pixels to content and viewing distance.

  • The right sourcesChoose one picture or composed windows.

  • Every cabinet mappedKeep data routes and pixel origins clear.

  • Access for serviceCoordinate the frame, power and maintenance.

01 What we deliver

Start with the content and the people viewing it.

We design and install LED screens and LCD video walls in Dubai and the UAE, coordinating the display surface, video processing, mounting, power and service access. The project covers the agreed equipment supply, installation, calibration and acceptance checks.

A welcome film, a presentation and a detailed dashboard place different demands on a wall. The closest viewer helps determine pixel pitch; the farthest viewer and the smallest important detail help determine image size. We review both before selecting the display technology.

The physical surface and the system that composes the image are separate decisions. LED cabinets determine size and native resolution; their sending controller maps video to the receiving electronics. An LCD wall has visible seams and needs an output for each panel. A compositor adds source windows and layouts when the brief requires them. Our CraftWall software can serve as that compositor: a Linux server with an NVIDIA GPU, managed from a browser.

These three reference configurations describe intended functions and example quantities. They are starting points for project design, not fixed purchase packages or completed installations. Component compatibility and complete-system performance still require project verification.

Intended outcomes: content sized for its viewers; a surface that can be serviced; documented source routes and operating settings.

For operator roles, KVM and shared operational workflows, see Control rooms & command centres. For publishing and scheduling across screens, see Digital signage & retail displays. Sound, conferencing and teaching workflows are developed under Meeting & conference rooms and Learning & presentation spaces.

Stage use needs a separate live-production and mounting brief. Studio use needs tests with the actual cameras, shutter settings, working light and content. These indoor reference walls do not establish suitability for outdoor, touring or camera-critical use.

For camera-critical LED, see TV studios. For stage sound, lighting and guest production, see Concert & event venues.

What shapes the video wall installation budget?

Display dimensions, pixel pitch or LCD panel count, brightness, the number of simultaneous sources and access for maintenance determine the system. The proposal also needs the mounting structure, signal routes, electrical and cooling interfaces, installation access and any agreed spares or redundancy. These items are defined with the project team before the final equipment schedule.

For a complete system, send your wall dimensions, sample content and viewing distances. For equipment selection, browse LED display panels and video wall processors. Software for source windows and layouts is covered separately under CraftWall video wall software.

Where it is used

Real spaces, the people in them and what matters.

Who works in each kind of led & lcd video walls space, what they work with, and which typical configuration it usually starts from.

Application register
No.EnvironmentWho uses itWork and contentWhat matters mostTypical systems
A01Interior lobbyVisitors and reception staffWelcome films and brand contentContent geometry, ambient light and daily operationVW-01 with one content source
A02Briefing or presentation spacePresenters and guestsSlides, demonstrations and source changesReadable text and a defined guest connectionVW-02 with two selectable sources
A03Large brand zoneVisitors and content teamA larger continuous imageExact cabinet grid, distribution and service accessVW-02 with a prepared canvas
A04Information roomStaff and supervisorsTwo information sources in saved layoutsWindow sizes and clear separation from panel seamsVW-03 with a compositor
A05Meeting or teaching roomParticipants and presentersShared material on a large surfaceViewing positions and the room AV interfaceA wall subsystem within the room design
A06Retail or exhibition interiorVisitors and content managersPromotions and directoriesLight levels, content production and approved schedulesA wall with separately specified content management

02 Typical configurations

Three starting points, side by side.

Choose the workflow closest to your brief. Compare its scope, interfaces and operating limits before selecting equipment.

AttributeVW-01Compact LED wallShow one prepared source on a 2.56 × 1.44 m LED surface.VW-02Large LED wallFill a 5.12 × 2.88 m LED surface and select between two agreed sources.VW-03LCD wall with source windowsPlace two captured sources in saved layouts across four LCD panels.
Intended useWelcome or presentation content from one sourceLarger brand or presentation surface with source selectionTwo information sources in saved layouts
Display surface4 × 3 indoor LED cabinets8 × 6 indoor LED cabinets2 × 2 landscape FHD LCD panels
Example size2.56 × 1.44 m5.12 × 2.88 mFour 55-inch panels; final envelope follows panel dimensions and installation gaps
Native pixels1376 × 774; 1,065,024 pixels2752 × 1548; 4,260,096 pixels3840 × 2160 across four panels; visible seams remain
Sources in the base exampleOne content PCOne content PC and one client presentation deviceTwo client PCs through two capture inputs
ProcessingOne combined scaler and LED sending controllerOne combined scaler and larger LED sending controllerOne compositor with capture, four display outputs and layout software
Display connectionsFour LED data runs, one per cabinet columnEight LED data runs, one per cabinet columnFour separate HDMI outputs, one per panel
Everyday operationLocal content operation and brightness adjustmentSelect either source and recall approved settingsRecall and adjust approved two-source layouts
Service provisionFront service and a project-specific spare-parts planFront service and a project-specific spare-parts planFour service mounts and a proposed spare panel
Base boundaryOne full-surface source; content scheduling is separateOne selected full-surface source; additional simultaneous windows require designTwo captured sources; IP decoding, KVM and resilience are separate

Reference configurations. Example quantities require project selection, compatibility checks and system acceptance tests. The LCD pixel total is the sum of four panel rasters. Bezel compensation changes image mapping and may hide content at the seams; it does not add physical pixels.

Starting points, not fixed packages: we confirm the room, the platform and the quantities with you, and run the acceptance checks in your space before handover. Not sure which fits? Describe your space →

03 How each option works

Every connection drawn before anything is installed.

Each option with its schematic: the devices and every link between them, the signal paths in plain words, what the system holds, what is agreed separately and how you accept it. Your project gets its own drawings from the site survey.

VW-01

Compact LED wall

One content PC presents a prepared welcome film, brand image or presentation on a compact indoor wall.

Reference design; receiver compatibility and power data pending

  • 12 LED cabinets · one source
  • 1376 × 774 example canvas
  • Receiver and power data pending

How it works · VW-01

One source. One continuous picture.

2.56 × 1.44 m 1376 × 774 px

Wall layout & signal flow

12 cabinets · front elevationData enters at the top ↓

← 2.56 m →Height 1.44 m

One full-surface source. No automatic backup. LED data bypasses the control LAN.

Control & power

Setup & supported status

Verify feedback with the supplied cabinet assembly.

Separate electrical supply

Power circuits are independent of the 4 data columns. Cabinet power, circuit count, receiver compatibility and supported feedback still require confirmation.

Port, cabinet & service schedule Engineering details

Reference design · not a tested system. Cabinets are logical receiver groups. Physical receiving-card model, count, scan and configuration revision remain TBD; the supplier must confirm them.

All active output rectangles start at y = 0. The selected mode is 60 Hz, 8 bit, 2D normal. Each port carries 266,256 pixels against a 650,000-pixel limit. P5 and P6 are unused, not backup outputs. There is no return cable or automatic backup in the baseline.

P1 · Column 1

Origin 0, 0 · 344 × 774 px
Load 266,256 / 650,000 px

  1. C01-01Origin 0, 0 · 344 × 258 px
    Next: C02-01
  2. C02-01Origin 0, 258 · 344 × 258 px
    Next: C03-01
  3. C03-01Origin 0, 516 · 344 × 258 px
    Next: END

P2 · Column 2

Origin 344, 0 · 344 × 774 px
Load 266,256 / 650,000 px

  1. C01-02Origin 344, 0 · 344 × 258 px
    Next: C02-02
  2. C02-02Origin 344, 258 · 344 × 258 px
    Next: C03-02
  3. C03-02Origin 344, 516 · 344 × 258 px
    Next: END

P3 · Column 3

Origin 688, 0 · 344 × 774 px
Load 266,256 / 650,000 px

  1. C01-03Origin 688, 0 · 344 × 258 px
    Next: C02-03
  2. C02-03Origin 688, 258 · 344 × 258 px
    Next: C03-03
  3. C03-03Origin 688, 516 · 344 × 258 px
    Next: END

P4 · Column 4

Origin 1032, 0 · 344 × 774 px
Load 266,256 / 650,000 px

  1. C01-04Origin 1032, 0 · 344 × 258 px
    Next: C02-04
  2. C02-04Origin 1032, 258 · 344 × 258 px
    Next: C03-04
  3. C03-04Origin 1032, 516 · 344 × 258 px
    Next: END

Devices & connections

source
Content PC × 1 HDMI 1920 × 1080p60 Prepared wall canvas
controller
Combined LED controller × 1 Scaler + sender; one selected source 4 loaded outputs; 60 Hz / 8 bit No automatic backup in baseline
wall
LED surface × 12 cabinets 4 × 3 · 2.56 × 1.44 m 1376 × 774 canvas 4 logical column chains 12 included receiver / PSU sets Physical card model / count TBD
service
Support laptop × 1 Setup and supported status Local authorised access
network
Control LAN switch × 1 INF: shared infrastructure LED DATA bypasses this switch
power
Power distribution × 1 set Protected supply: display + rack Cabinet power / circuits TBD
  1. L01 · Content PC × 1 → Combined LED controller × 1HDMI
  2. L02 · Combined LED controller × 1 → LED surface × 12 cabinetsLED DATA × 4
  3. L03 · LED surface × 12 cabinets → Combined LED controller × 1Supported receiver status; verify supplied assembly
  4. L04 · Support laptop × 1 ↔ Control LAN switch × 1IP
  5. L05 · Control LAN switch × 1 ↔ Combined LED controller × 1Control / status
  6. L06 · Power distribution × 1 set → LED surface × 12 cabinetsDisplay mains
  7. L07 · Power distribution × 1 set → Combined LED controller × 1Rack mains

Service & structure

Front removal paths, tools and clearance must be drawn for the chosen mounting system. Structural loads include the cabinets, frame, cabling and service loads. Power circuits are independent of the data columns. Cabinet power and circuit count depend on the supplied specification.

Open printable cabinet map ↗

In the system

Twelve LED cabinets with their receiving electronics and power supplies, one combined scaler/sending controller, one content PC and one support laptop. Four data home runs feed the four columns; eight inter-cabinet links continue those chains. A mounting assembly, site installation infrastructure and a matched-spares plan complete the example.

LED cabinets, including receivers and power supplies
12LED displays and controllers
Combined LED scaler/sending controller
1LED displays and controllers
Content PC supplied / client source PCs
1 / 0
Support laptop or control workstation
1
LED data home runs / inter-cabinet links
4 / 8
HDMI input / output cable assemblies
1 / 0
Surface support assembly
1
Shared installation infrastructure
1 allocation
Planned service spares
Matched LED parts; quantities agreed

Example quantities: makes, models and compatibility are confirmed in your BOQ.

Agreed separately

  • The base example uses one full-surface source.
  • It does not include a multi-source compositor, CMS, ambient-light sensor, sound system or backup signal path.
  • LED power demand remains subject to the selected cabinet specification.
  • The proposed receiver arrangement must be confirmed with the cabinet supplier.

How you accept it

Correct image orientation and crop on every cabinet; supported receiver status; approved brightness, gradients and real content; access to a service part. Structure and electrical sign-off by the responsible trades; thermal operation at agreed conditions; restart and settings restoration.

Handover record: Cabinet/port map, saved settings, visual and measurement records, replacement procedure. Approved drawings, sign-offs, test report and open-item register.

These are planned project checks. The reference configuration has not passed physical system acceptance.

Discuss VW-01 with an engineer

Intended result

Staff can start the agreed content, set the approved brightness and restore the documented configuration after maintenance.

Content path

The wall canvas is 1376 × 774. A standard HDMI source timing carries the prepared canvas, with agreed crop or scaling settings. Native canvas size and HDMI transport resolution are documented separately.

VW-02

Large LED wall

A larger indoor brand or presentation surface switches between a content PC and a client presentation device.

Reference design; receiver compatibility and power data pending

  • 48 LED cabinets · select one source
  • 2752 × 1548 example canvas
  • Eight loaded controller outputs

How it works · VW-02

One source at a time.

5.12 × 2.88 m 2752 × 1548 px

Wall layout & signal flow

48 cabinets · front elevationData enters at the top ↓

← 5.12 m →Row · columnHeight 2.88 m

One full-surface source at a time. No automatic backup. LED data bypasses the control LAN.

Control & power

Setup & supported status

Verify feedback with the supplied cabinet assembly.

Separate electrical supply

Power circuits are independent of the 8 data columns. Cabinet power, circuit count, receiver compatibility and supported feedback still require confirmation.

Port, cabinet & service schedule Engineering details

Reference design · not a tested system. Cabinets are logical receiver groups. Physical receiving-card model, count, scan and configuration revision remain TBD; the supplier must confirm them.

All active output rectangles start at y = 0. The selected mode is 60 Hz, 8 bit, 2D normal. Each port carries 532,512 pixels against a 650,000-pixel limit. P9 and P10 are unused, not backup outputs. There is no return cable or automatic backup in the baseline.

P1 · Column 1

Origin 0, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-01Origin 0, 0 · 344 × 258 px
    Next: C02-01
  2. C02-01Origin 0, 258 · 344 × 258 px
    Next: C03-01
  3. C03-01Origin 0, 516 · 344 × 258 px
    Next: C04-01
  4. C04-01Origin 0, 774 · 344 × 258 px
    Next: C05-01
  5. C05-01Origin 0, 1032 · 344 × 258 px
    Next: C06-01
  6. C06-01Origin 0, 1290 · 344 × 258 px
    Next: END

P2 · Column 2

Origin 344, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-02Origin 344, 0 · 344 × 258 px
    Next: C02-02
  2. C02-02Origin 344, 258 · 344 × 258 px
    Next: C03-02
  3. C03-02Origin 344, 516 · 344 × 258 px
    Next: C04-02
  4. C04-02Origin 344, 774 · 344 × 258 px
    Next: C05-02
  5. C05-02Origin 344, 1032 · 344 × 258 px
    Next: C06-02
  6. C06-02Origin 344, 1290 · 344 × 258 px
    Next: END

P3 · Column 3

Origin 688, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-03Origin 688, 0 · 344 × 258 px
    Next: C02-03
  2. C02-03Origin 688, 258 · 344 × 258 px
    Next: C03-03
  3. C03-03Origin 688, 516 · 344 × 258 px
    Next: C04-03
  4. C04-03Origin 688, 774 · 344 × 258 px
    Next: C05-03
  5. C05-03Origin 688, 1032 · 344 × 258 px
    Next: C06-03
  6. C06-03Origin 688, 1290 · 344 × 258 px
    Next: END

P4 · Column 4

Origin 1032, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-04Origin 1032, 0 · 344 × 258 px
    Next: C02-04
  2. C02-04Origin 1032, 258 · 344 × 258 px
    Next: C03-04
  3. C03-04Origin 1032, 516 · 344 × 258 px
    Next: C04-04
  4. C04-04Origin 1032, 774 · 344 × 258 px
    Next: C05-04
  5. C05-04Origin 1032, 1032 · 344 × 258 px
    Next: C06-04
  6. C06-04Origin 1032, 1290 · 344 × 258 px
    Next: END

P5 · Column 5

Origin 1376, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-05Origin 1376, 0 · 344 × 258 px
    Next: C02-05
  2. C02-05Origin 1376, 258 · 344 × 258 px
    Next: C03-05
  3. C03-05Origin 1376, 516 · 344 × 258 px
    Next: C04-05
  4. C04-05Origin 1376, 774 · 344 × 258 px
    Next: C05-05
  5. C05-05Origin 1376, 1032 · 344 × 258 px
    Next: C06-05
  6. C06-05Origin 1376, 1290 · 344 × 258 px
    Next: END

P6 · Column 6

Origin 1720, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-06Origin 1720, 0 · 344 × 258 px
    Next: C02-06
  2. C02-06Origin 1720, 258 · 344 × 258 px
    Next: C03-06
  3. C03-06Origin 1720, 516 · 344 × 258 px
    Next: C04-06
  4. C04-06Origin 1720, 774 · 344 × 258 px
    Next: C05-06
  5. C05-06Origin 1720, 1032 · 344 × 258 px
    Next: C06-06
  6. C06-06Origin 1720, 1290 · 344 × 258 px
    Next: END

P7 · Column 7

Origin 2064, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-07Origin 2064, 0 · 344 × 258 px
    Next: C02-07
  2. C02-07Origin 2064, 258 · 344 × 258 px
    Next: C03-07
  3. C03-07Origin 2064, 516 · 344 × 258 px
    Next: C04-07
  4. C04-07Origin 2064, 774 · 344 × 258 px
    Next: C05-07
  5. C05-07Origin 2064, 1032 · 344 × 258 px
    Next: C06-07
  6. C06-07Origin 2064, 1290 · 344 × 258 px
    Next: END

P8 · Column 8

Origin 2408, 0 · 344 × 1548 px
Load 532,512 / 650,000 px

  1. C01-08Origin 2408, 0 · 344 × 258 px
    Next: C02-08
  2. C02-08Origin 2408, 258 · 344 × 258 px
    Next: C03-08
  3. C03-08Origin 2408, 516 · 344 × 258 px
    Next: C04-08
  4. C04-08Origin 2408, 774 · 344 × 258 px
    Next: C05-08
  5. C05-08Origin 2408, 1032 · 344 × 258 px
    Next: C06-08
  6. C06-08Origin 2408, 1290 · 344 × 258 px
    Next: END

Devices & connections

source
Content PC × 1 HDMI 3840 × 2160p60 Prepared wall canvas
client
Client source × 1 HDMI 1920 × 1080p60
controller
Combined LED controller × 1 Scaler + sender; one selected source 8 loaded outputs; 60 Hz / 8 bit No automatic backup in baseline
wall
LED surface × 48 cabinets 8 × 6 · 5.12 × 2.88 m 2752 × 1548 canvas 8 logical column chains 48 included receiver / PSU sets Physical card model / count TBD
service
Support laptop × 1 Setup and supported status Local authorised access
network
Control LAN switch × 1 INF: shared infrastructure LED DATA bypasses this switch
power
Power distribution × 1 set Protected supply: display + rack Cabinet power / circuits TBD
  1. L01 · Content PC × 1 → Combined LED controller × 1HDMI
  2. L02 · Client source × 1 → Combined LED controller × 1HDMI
  3. L03 · Combined LED controller × 1 → LED surface × 48 cabinetsLED DATA × 8
  4. L04 · LED surface × 48 cabinets → Combined LED controller × 1Supported receiver status; verify supplied assembly
  5. L05 · Support laptop × 1 ↔ Control LAN switch × 1IP
  6. L06 · Control LAN switch × 1 ↔ Combined LED controller × 1Control / status
  7. L07 · Power distribution × 1 set → LED surface × 48 cabinetsDisplay mains
  8. L08 · Power distribution × 1 set → Combined LED controller × 1Rack mains

Service & structure

Front removal paths, tools and clearance must be drawn for the chosen mounting system. Structural loads include the cabinets, frame, cabling and service loads. Power circuits are independent of the data columns. Cabinet power and circuit count depend on the supplied specification.

Open printable cabinet map ↗

In the system

Forty-eight LED cabinets with receiving electronics and power supplies, one combined scaler/sending controller, one content PC, one client source and one support laptop. Eight data home runs feed eight cabinet columns, with forty inter-cabinet links. Mounting, site infrastructure and a matched-spares plan follow the larger load and service area.

LED cabinets, including receivers and power supplies
48LED displays and controllers
Combined LED scaler/sending controller
1, sized for the larger canvasLED displays and controllers
Content PC supplied / client source PCs
1 / 1
Support laptop or control workstation
1
LED data home runs / inter-cabinet links
8 / 40
HDMI input / output cable assemblies
2 / 0
Surface support assembly
1
Shared installation infrastructure
1 allocation
Planned service spares
Matched LED parts; quantities agreed

Example quantities: makes, models and compatibility are confirmed in your BOQ.

Agreed separately

  • This canvas exceeds a 3.9-million-pixel controller.
  • The example requires a larger controller and a separate check of all eight loaded outputs.
  • Spare outputs do not provide complete wall redundancy.
  • Additional source windows, fibre links, camera synchronisation and a resilient signal chain are separately designed options.

How you accept it

All VW-01 checks across eight loaded outputs; both HDMI sources and their scaling; full-surface operation at the agreed mode; documented effect of a disconnected chain. Structure and electrical sign-off by the responsible trades; thermal operation at agreed conditions; restart and settings restoration.

Handover record: Per-port loading report, two-source test record, calibration files, power and service documentation. Approved drawings, sign-offs, test report and open-item register.

These are planned project checks. The reference configuration has not passed physical system acceptance.

Discuss VW-02 with an engineer

Intended result

The approved content fills the larger surface with a documented pixel and port map, and staff can change between the two agreed sources.

Content path

The content PC uses a 3840 × 2160 HDMI transport with an agreed crop for the 2752 × 1548 wall canvas. The second source uses a tested presentation timing and scales to the wall. The base workflow selects one source at a time.

VW-03

LCD wall with source windows

Two client PCs provide information that staff place in saved layouts on a four-panel wall.

Reference design; final panel and compositor build pending

  • Four LCD panels in a 2 × 2 wall
  • Two captured PC sources
  • Saved layouts; source control is separate
VW-03 · system schematic

Signal flow

VW-03 signal flow: Reference VW-03 flow showing two HDMI capture inputs, four HDMI panel outputs, layout control, panel status and power.
  • Video / LED data

Typical architecture · not a project drawing

Connection schedule 5 links
  1. L01Client sources × 2 Compositor build × 1HDMI × 2
  2. L02Compositor build × 1 D1 · OUT1OUT1
  3. L03Compositor build × 1 D2 · OUT2OUT2
  4. L04Compositor build × 1 D3 · OUT3OUT3
  5. L05Compositor build × 1 D4 · OUT4OUT4

Control & power

VW-03 control & power: Reference VW-03 flow showing two HDMI capture inputs, four HDMI panel outputs, layout control, panel status and power.
  • Control / status
  • Power

Typical architecture · not a project drawing

Connection schedule 5 links
  1. L06Layout workstation × 1 Control LAN switch × 1IP
  2. L07Control LAN switch × 1 Compositor build × 1Layouts / status
  3. L08Control LAN switch × 1 D3 · OUT3Panel IP / status × 4
  4. L09Power distribution × 1 set D4 · OUT4Panel mains × 4
  5. L10Power distribution × 1 set Compositor build × 1Rack mains
Trace routes in the interactive drawing

How it works

Intended result. Staff can recall the approved layouts, see both sources and identify a missing input or disconnected panel through the agreed checks and supported diagnostics.

  1. Source windows
    1. Two client PCsTwo captured FHD sources.
    2. Compatible compositor buildCapture card, four-output graphics and layout licences.
    3. Four LCD panelsFour independent FHD outputs form the 2 × 2 wall.

Four outputs do not imply four captured sources or IP decoding. Layout control is separate from source-PC control. KVM, remote access, alarm integration and failover are separate scope.

In the system

Four identical FHD LCD panels, four service mounts, one compositor chassis with one capture card and one four-output graphics card, one layout-software licence set and one control workstation. Two HDMI input cables connect the client sources; four HDMI output cables connect the panels. Site infrastructure and one proposed matching spare panel are scheduled separately.

LCD video-wall panels / service mounts
4 / 4
Compositor chassis / capture card / four-output card
1 / 1 / 1Video wall processors
Layout software licence set
1
Content PC supplied / client source PCs
0 / 2
Support laptop or control workstation
1
HDMI input / output cable assemblies
2 / 4
Surface support assembly
1 plus four mounts
Shared installation infrastructure
1 allocation
Planned service spares
1 matching spare panel proposed

Example quantities: makes, models and compatibility are confirmed in your BOQ.

Agreed separately

  • Four display outputs do not imply four captured sources or a particular IP-stream capacity.
  • The chassis, cards, drivers and software licences must be specified as one compatible build.
  • KVM, alarm workflows, IP decoding, remote access and failover are separate requirements.
  • A spare panel is a service provision, not automatic recovery.

How you accept it

Both captured sources together; four unique output quadrants; saved-layout recall; seam-safe text; panel matching and single-panel replacement. Structure and electrical sign-off by the responsible trades; thermal operation at agreed conditions; restart and settings restoration.

Handover record: Output/capture schedule, driver and licence record, layout backup, colour checks and service demonstration. Approved drawings, sign-offs, test report and open-item register.

These are planned project checks. The reference configuration has not passed physical system acceptance.

Discuss VW-03 with an engineer

Content path

Each source is captured at the agreed 1920 × 1080/60 timing. Four independent 1920 × 1080/60 outputs form the 2 × 2 desktop. Layouts can show the two sources together or enlarge a selected source, with important text kept clear of the seams.

04 Project experience of our team

Rooms our team has equipped.

Project cases of this kind, photographed as installed; each had its own brief, not one of the typical configurations above.

All project cases

05 Engineering

What the design has to get right.

The checks behind every drawing. Rules of thumb are starting points; the project values are confirmed with the people named.

Design parameters
No.ParameterGuidanceRule of thumbConfirmed with
D01ReadabilityReview the smallest important text from the farthest viewing position.Use real content and an agreed image-size method; pitch alone cannot establish readability.Users and content owner
D02LED pitch and geometryCheck close viewing and the exact cabinet raster.Calculate from pixels per cabinet; a rounded model name is not a geometry input.Display supplier and AV designer
D03LCD envelope and seamsPlan panel bodies, installation gaps and clearance together.Do not turn bezel compensation into extra physical pixels or a gap-free image.Panel supplier and fit-out team
D04Processing capacityCount inputs, simultaneous windows and every loaded output.Check the selected frame rate, bit depth, topology and receiver configuration.Processor supplier and integrator
D05Source timingKeep content canvas, HDMI timing and panel outputs distinct.Save the approved EDID, crop, scale and output settings.Content and IT teams
D06Ambient lightReview brightness and reflections at the actual wall position.Test day and evening scenes; indoor examples do not establish direct-sun suitability.Client and lighting designer
D07Mounting and massAdd cabinets or panels, frame, cables and service loads.A display-only mass is not a structural design load.Structural engineer
D08Power and coolingObtain maximum input, normal operation, inrush and heat data.Size the complete installation from the supplied equipment; unknown data stays unknown.Supplier and MEP engineer
D09Service and sparesDemonstrate access to a module or panel.Match spare revision and calibration records; document the replacement procedure.Facilities team and supplier
D10AvailabilityIdentify what happens when an input, cable or controller fails.Specify the failure coverage and test it; unused ports and cold spares are not automatic redundancy.Client and integrator

Common mistakes

And how the design process prevents them.

  1. M01

    Mistake: Selecting a controller only from total pixels

    Prevention: Check every output and the actual receiver topology at the operating mode.

  2. M02

    Mistake: Calling any four-output device a multi-source compositor

    Prevention: Specify independent inputs, simultaneous windows, software and licences.

  3. M03

    Mistake: Publishing cabinet mass as the wall's total load

    Prevention: Add support, cabling and service loads through the structural design.

  4. M04

    Mistake: Guessing power from brightness or surface area

    Prevention: Obtain the power specification for the exact supplied cabinet.

  5. M05

    Mistake: Placing key text across LCD seams

    Prevention: Review the final window layouts and bezel compensation with real content.

  6. M06

    Mistake: Assuming a refresh-rate figure guarantees camera performance

    Prevention: Test the actual camera, shutter, working light and screen together.

How a typical system fits together

Four layers, from the sources to the people operating the system, and the interfaces between them.

  1. L1

    Sources

    Where the content comes from

    • Content PC over HDMI
    • Presentation device over HDMI
    • Two client PC outputs captured over HDMI

    One source for VW-01, two for VW-02; source operation belongs to the content owner VW-03; capture format and protected-content behaviour are tested

  2. L2

    Processing & transport

    How signals are routed and processed

    • Combined scaler/sending controller
    • Dedicated LED data links
    • Capture, compositor software and four HDMI display outputs

    VW-01/02; LED output sockets do not connect through the control-network switch VW-03; output count, input count and decoding capacity are separate checks

  3. L3

    Displays & audio

    What people see and hear

    • Indoor LED cabinet surface and support structure
    • Four FHD LCD panels on service mounts

    VW-01/02; cabinet size and raster set the wall geometry VW-03; one mapped output per panel, with visible seams

  4. L4

    Control & operation

    How the system is run every day

    • Separate IP management network and support computer
    • Local brightness settings or compositor layout client

    Commands and supported status return; no public internet access in the base scope Brightness and source controls for LED; saved layouts for LCD; scheduling requires an agreed interface

Connected to the building and its IT

The systems this solution exchanges signals or data with, and why. Each interface is agreed with the system owner.

  • I01

    Content production

    Canvas, safe-area and timing specification

    Deliver assets that match the wall and avoid LCD seams.

  • I02

    Client IT and sources

    HDMI, EDID and management IP

    Confirm device ownership, output timing and permitted support access.

  • I03

    Building structure

    Load schedule and mounting drawings

    Approve the support and fixings for the complete installation.

  • I04

    Fit-out and joinery

    Elevation, section and service-clearance drawings

    Keep ventilation and removal paths accessible after finishes are installed.

  • I05

    MEP services

    Circuit, inrush and heat schedules

    Design power distribution and cooling for the selected equipment.

  • I06

    Lighting and shades

    Agreed room scenes

    Check reflections and suitable display brightness in normal use.

  • I07

    Signage CMS

    Content-player interface; optional

    Scheduling and publication belong to the selected CMS, not the LED receiver.

  • I08

    Room controls or BMS

    Documented IP or serial interface; optional

    Agree commands, actual status, permissions and loss-of-connection behaviour.

The references we design to

Equipment documentation, industry guides and project requirements. Applicable editions and acceptance criteria are confirmed for the site.

Equipment documentation and industry guides04

  • ANSI/AVIXA V202.01Display Image Size for 2D Content in Audiovisual SystemsReadability and image sizingCheck current edition
  • AVIXA V201.01Image System Contrast RatioContrast under the agreed room lightingCheck current edition
  • ANSI/AVIXA D402.02Audiovisual Systems Performance VerificationAgree tests and retain their resultsCheck current edition
  • AVIXA F502.02Rack Design for AV SystemsProcessor rack planning and documentationCheck current edition

What a system of this kind is built from

The catalogue types this solution usually draws on. Makes and models are selected per project, against the confirmed specification.

06 From brief to handover

Six stages, with what you receive at each.

Start with the people, activities and operating conditions. You approve the design before procurement and accept the system on your own scenarios.

  1. Stage 01

    Scope and architecture

    Viewing and content brief; LED/LCD comparison; source, operation and service boundaries.

    • Viewing and content brief
    • LED or LCD comparison
    • Source and service boundaries
  2. Stage 02

    Design and approval

    Dimensioned elevation and section; pixel, port and input/output maps; structure, power and cooling requirements.

    • Surface and pixel layout
    • Input and output maps
    • Structure, power and cooling data
  3. Stage 03

    Selection and supply

    Agreed equipment and licence schedule; confirmed controller/receiver or compositor build; compatible spare-parts schedule.

    • Agreed display and processing set
    • Checked interface compatibility
    • Matched spare-parts schedule
  4. Stage 04

    Installation and programming

    Installed and labelled display system; configured source mapping and controls; saved calibration and operating settings.

    • Installed and labelled wall
    • Configured image mapping
    • Saved brightness and colour settings
  5. Stage 05

    Commissioning and tests

    Real-content readability and uniformity checks; input and output tests; service demonstration and agreed recovery tests.

    • Real-content and uniformity checks
    • Source and output test records
    • Service and recovery checks
  6. Stage 06

    Handover

    As-built drawings and configuration files; test records and spare inventory; operator and facilities training.

    • Pixel maps and configuration files
    • Spares and maintenance guide
    • Operator and facilities training

Ready to start? Send a plan, a brief or a BOQ — or just describe the space. AV design, programming and commissioning →

Request a project review

07 Questions

What people ask before a led & lcd video walls project.

Practical answers before the project starts. Anything else, ask an engineer.

Should we choose LED or LCD?

We compare content, viewing positions, ambient light, available dimensions and maintenance needs. LED forms a continuous pixel surface from cabinets. LCD uses a fixed panel grid with visible seams. The processing and control workflow is selected separately for either technology.

Is the larger LED example a 4K wall?

VW-02 has a native raster of 2752 × 1548. It can be fed through an agreed 4K HDMI timing, but accepting that signal does not turn the physical surface into a 3840 × 2160 display.

How do you choose pixel pitch?

We review the nearest viewer, the farthest viewer and the actual content together. Pixel pitch helps determine visible pixel structure, while text size and layout determine whether information is readable. A sample viewed at the intended distance is more useful than a universal distance-to-pitch promise.

Can the wall show several sources at once?

VW-03 is designed for two captured sources in approved layouts. VW-01 uses one full-surface source; VW-02 selects between two. Additional simultaneous windows require a defined compositor or a verified processing mode with sufficient input and layer capacity.

How much power and support does it need?

The answer follows the selected cabinet or panel specification, total quantity, operating mode and support design. The two LED examples have calculated cabinet counts and masses, but their cabinet power data still needs supplier confirmation. The estimate identifies that gap instead of substituting a guessed wattage.

Will it look right on camera?

That requires a test with the intended cameras, shutters, frame rates, working light and content. An LED refresh-rate specification alone cannot establish freedom from bands or moiré. Camera-critical use is a studio or live-production design task.

What happens if a part fails?

The effect depends on the failed part and the specified signal and power paths. The base examples have single controllers and no automatic backup route. A project can add defined resilience and compatible spares, with tests for each agreed failure case.

What should we send to start?

Send the wall dimensions, viewing positions, example content and source list, together with photographs or drawings showing the structure and service space. Tell us the operating hours and whether source windows, filming or automatic recovery matter to the project.

What helps us reply with substance

  1. Available wall width, height, location and a plan or photograph.
  2. Nearest and farthest viewing positions, smallest important text and example content.
  3. Day and evening lighting, including windows and direct sunlight.
  4. Source list, connection formats, protected content and simultaneous-window needs.
  5. Building structure information, finishes and available front or rear service space.
  6. Power, cooling, rack position and estimated signal-route lengths.
  7. Daily operating hours, failure tolerance and required recovery workflow.
  8. Content owner, IT interfaces, maintenance arrangements and budget priorities.

Request a project review

Share your video wall brief.

Send wall dimensions, viewing positions, example content and your source list. A floor plan or a short description is enough to start.

  1. 01
    We review your materials

    The system composition, links with adjacent trades and the scope of work.

  2. 02
    We come back with questions

    A preliminary approach to the system and the points that need closing.

  3. 03
    We propose the next step

    The scope of further design and the path to a commercial proposal.

Have a BOQ or tender drawings? Send an RFQ

LED & LCD video wallsReply from an engineer
