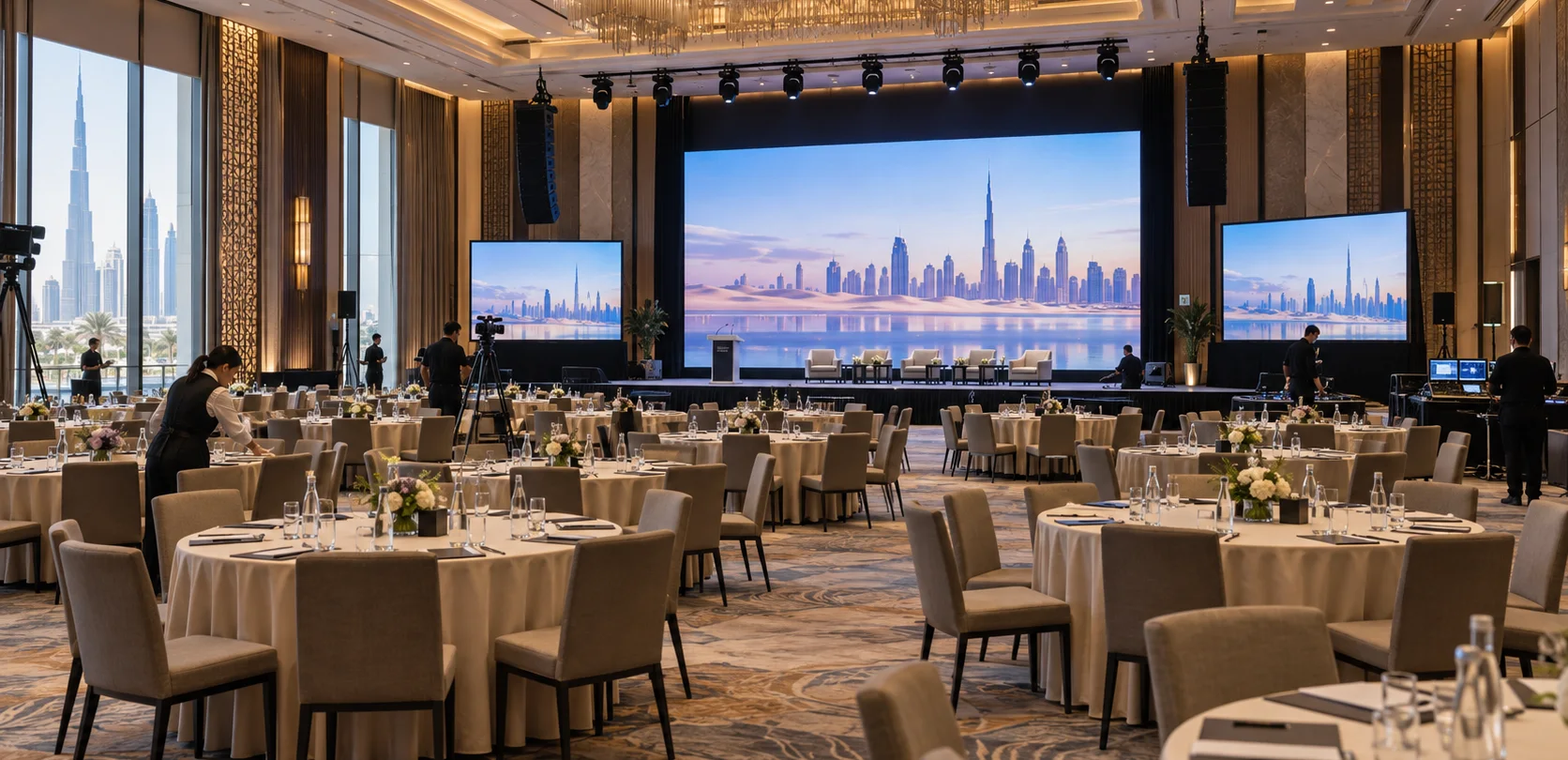

Concept visualisation of a Dubai hotel ballroom prepared with conference audiovisual systems
Solution 05 / 10

AV systems integration

Hotels, restaurants & clubsin Dubai & the UAE

Set the room for the moment.

Coordinate sound, displays and controls around daily service and events.

  • Acceptance on your scenarios
  • Documentation and training
  • 12-month workmanship warranty
  • Part of the servicePlan around guests and daily operation.

  • Sound by zoneAgree sources, levels and room boundaries.

  • Ready for eventsDefine the change from service to programme.

  • Controls for staffKeep agreed operating choices clear.

01 What we deliver

Three operating tasks, three system designs.

A restaurant needs music that suits each zone and time of day. A hotel needs independent rooms that can become one event space. A club needs stage sound, video and lighting, while the lounge keeps its own programme and level.

We define the sources, zones, staff roles and guest connections before selecting equipment. Interior coordination, access for maintenance and installation windows form part of the design, including work in an operating hotel where phasing is agreed with the operator.

These three reference configurations describe intended functions and example quantities. They are starting points for project design, not fixed packages or evidence of completed installations. Final equipment, room coverage and integration behaviour require project selection and acceptance tests.

Explore meeting and conference rooms for two-way calls and digital signage for event listings and managed content.

Where it is used

Real spaces, the people in them and what matters.

Who works in each kind of hotels, restaurants & clubs space, what they work with, and which typical configuration it usually starts from.

Application register
No.EnvironmentWho uses itWork and contentWhat matters mostTypical systems
A01Restaurants and barsF&B teamsDay and evening service, local announcementsIndependent sources and bounded volume by zoneHS-01: four indoor background audio zones
A02Divisible hotel function roomsBanquet team and event techniciansTwo simultaneous events or one combined eventCorrect audio, video and permissions in every partition stateHS-02: two rooms, A and B
A03Clubs and small performance spacesDJ, stage operator and duty managerDJ sets, spoken performances and programmed light scenesStage sound and visual operation with a separate loungeHS-03; performance requirements determine the final PA
A04Lobbies and pre-function areasFront office and events teamBackground music, announcements and event listingsZone control and a clear content workflowAdapt HS-01 audio; signage is separately specified
A05Hotel meeting and conference roomsGuests and hotel support teamPresentations and remote meetingsReadable content and a tested call workflowHS-02 covers presentation and room combining; cameras and conferencing need a separate room design
A06Pool decks and terracesF&B and engineering teamsOutdoor service and eventsEnvironmental suitability and sound spillExtend the zone design with equipment selected for the actual exposure; indoor speakers are not an outdoor specification
A07Spa and wellness areasSpa operationsQuiet background musicDiscreet coverage, local limits and moisture conditionsAdapt the background audio design and finishes to the room
A08Guest roomsGuests, hotel IT and TV service providerTV and private castingRoom isolation and supported interfacesSeparate TV/casting scope with the provider; not included in HS-01–03

02 Typical configurations

Three starting points, side by side.

Choose the workflow closest to your brief. Compare its scope, interfaces and operating limits before selecting equipment.

AttributeHS-01Restaurant audio zonesSet music and announcement levels across four indoor zones.HS-02Divisible hotel roomsRun two separate presentations or one combined event.HS-03Club stage & loungeOperate stage sound, LED and light while the lounge keeps its own music.
Primary taskBackground music and everyday announcementsSeparate events or one combined eventDJ/performance sound, stage visuals and independent lounge music
Example scopeFour indoor zonesTwo adjacent rooms with one movable partitionOne stage area and one lounge
Programme sourcesTwo music players and one paging microphoneTwo guest presentation inputs, two music players and four microphonesOne guest DJ set, four microphones, one lounge player and one video player
Room soundSixteen ceiling speakers, four per zoneSixteen ceiling speakers, eight per roomTwo active tops and two active subwoofers; four lounge ceiling speakers
VideoOptional, separately specifiedTwo displays and one 4 × 2 matrix; two inputs reservedOne LED surface with processor and one player
LightingOutside base scopeBuilding lighting interface optionalOne console, one isolated DMX splitter and twelve example fixtures
ControlFour zone panels and a scheduling controllerTwo panels, a partition sensor, network contact interface and room-combine processorTwo staff panels, system controller and separate audio/video/light operator controls
Key limitBackground and speech duties; no stage PACeiling sound for speech and modest background programme; no conferencing in the base designPA coverage, sound spill, LED size and fixture selection remain project specific
StatusReference design; integration and site tests requiredReference design; every room mode must be testedReference design; acoustic and production brief required

Reference configurations. Example quantities require project selection, compatibility checks and system acceptance tests.

Starting points, not fixed packages: we confirm the room, the platform and the quantities with you, and run the acceptance checks in your space before handover. Not sure which fits? Describe your space →

03 How each option works

Every connection drawn before anything is installed.

Each option with its schematic: the devices and every link between them, the signal paths in plain words, what the system holds, what is agreed separately and how you accept it. Your project gets its own drawings from the site survey.

HS-01

Restaurant audio zones

Four indoor restaurant areas select from two shared music sources. Staff adjust only their own zone, choose day or evening settings and make an announcement to selected zones.

Reference design; integration and site tests required

  • Four restaurant sound zones
  • Two music programmes at once
  • Zone controls and selected announcements
HS-01 · system schematic

Signal flow

HS-01 signal flow: HS-01 reference diagram showing five analogue inputs, four 100 V speaker lines, four wall controls and programme mute coordination.
  • Audio

Typical architecture · not a project drawing

Connection schedule 4 links
  1. L012 music players 1 zone DSPL/R × 2
  2. L021 paging microphone set 1 zone DSP1 balanced mic
  3. L031 zone DSP 1 four-channel amplifierOUT1–4: four mono line feeds
  4. L041 four-channel amplifier 16 ceiling speakers4 separate 100 V lines

Control & status

HS-01 control & status: HS-01 reference diagram showing five analogue inputs, four 100 V speaker lines, four wall controls and programme mute coordination.
  • Control / status

Typical architecture · not a project drawing

Connection schedule 7 links
  1. L054 staff panels 1 controllerIP commands / status
  2. L061 managed 16-port switch 4 staff panelsLAN + panel PoE
  3. L071 managed 16-port switch 1 controllercontrol LAN
  4. L081 controller 1 zone DSPUDP/IP commands / status driver to verify
  5. L091 paging microphone set 1 zone DSP4 zone contacts + PTT 5 GPIO inputs
  6. L101 building signal interface 1 isolation interface setagreed contact
  7. L111 isolation interface set 1 zone DSPGPIO input 6: programme mute includes paging
Trace routes in the interactive drawing

How it works

Intended result. Staff can run day and evening service, make a local announcement and keep other zones at their own settings.

  1. Restaurant audio
    1. Music + announcementsTwo stereo players and one paging microphone.
    2. Zone processingFour independent mono zone outputs; selected paging priority.
    3. Four listening zonesOne amplifier channel and four speakers per zone.

Four zones do not create four music streams. Staff permissions and schedules need tested interfaces. Everyday paging and AV mute do not replace a certified voice-alarm system.

In the system

Two stereo music players, one paging microphone with zone selection and talk control, one 8-input/8-output audio processor, one four-channel 100 V amplifier and sixteen ceiling loudspeakers. Four wall panels and one separate scheduling/control processor provide the operating interface. A managed control switch, power, cabling and installation materials are counted once for the restaurant.

Background music players
2Audio sources
Microphone channels
1 pagingMicrophones
Zone / room-combine processor
1Audio processorsNetwork audio
Four-channel 100 V amplifier
1; four channels usedAmplifiers
Ceiling loudspeakers
16Loudspeakers
Staff panels / separate controller
4 / 1
Guest presentation connections / displays
Optional
Shared installation infrastructure
One set per restaurant

Example quantities: makes, models and compatibility are confirmed in your BOQ.

Agreed separately

  • Two players allow two different music programmes at once; four zones do not create four independent streams.
  • Announcements lower or mute music only in the selected zones, then restore the agreed setting.
  • Screens, outdoor speakers and stage sound are additional scope.
  • Staff controls and scheduling require a documented, tested device interface.

How you accept it

Independent panel operation, both sources, day/evening schedules, selected-zone paging and return to music; building mute, power recovery, access permissions and restore of saved settings.

Handover record: Zone map, tap schedule, approved levels and control results; witnessed interface record, configuration backup and handover checklist.

These are planned project checks. The reference configuration has not passed physical system acceptance.

Discuss HS-01 with an engineer

Architecture

The players occupy four analogue input channels; the microphone uses one. Stereo sources are summed inside the processor, which creates four independent mono zone outputs. Each output feeds its own amplifier channel and four loudspeakers. At an illustrative 6 W tap per speaker, each line carries 24 W. This is an electrical load calculation, not a coverage measurement.

HS-02

Divisible hotel rooms

Rooms A and B host different presentations with the partition closed. With the partition open and an authorised operator's confirmation, they share one presentation and a combined microphone mix.

Reference design; every room mode must be tested

  • Two rooms: separate or combined
  • Independent picture and sound routes
  • Staff confirm partition-related changes
HS-02 · system schematic

Signal flow

HS-02 signal flow: HS-02 reference diagram showing two displays, output audio extraction, room audio processing, separate 100 V lines and confirmed mode feedback.
  • Video / LED data
  • Audio

Typical architecture · not a project drawing

Connection schedule 8 links
  1. L012 guest sources 1 HDMI matrixHDMI IN1 / IN2 IN3 / IN4 reserved
  2. L021 HDMI matrix 2 stereo audio extractorsOUT A / OUT B
  3. L032 stereo audio extractors 2 displays2 HDMI pass-through paths
  4. L044 microphone channels 1 room-combine processor4 balanced feeds
  5. L052 background players 1 room-combine processor4 analogue L/R channels
  6. L061 room-combine processor 1 four-channel 100 V amplifierOUT1 = A / OUT2 = B balanced line
  7. L071 four-channel 100 V amplifier 16 ceiling speakers2 electrically separate lines
  8. L082 stereo audio extractors 1 room-combine processorEX-A L/R + EX-B L/R 4 analogue channels

Control & status

HS-02 control & status: HS-02 reference diagram showing two displays, output audio extraction, room audio processing, separate 100 V lines and confirmed mode feedback.
  • Control / status

Typical architecture · not a project drawing

Connection schedule 9 links
  1. L091 partition sensor assembly 1 network contact interface2 contact inputs
  2. L101 building signal interface 1 isolation interface setagreed contact
  3. L111 isolation interface set 1 network contact interfacethird input: programme mute
  4. L121 managed 16-port switch 1 network contact interfaceLAN / PoE
  5. L131 managed 16-port switch 2 room panelsLAN / PoE
  6. L141 network contact interface 1 room-combine processorIP: position + mute + link status no direct GPIO on chosen processor v2
  7. L152 room panels 1 room-combine processorIP commands / confirmed mode
  8. L161 room-combine processor 1 HDMI matrixIP route command / actual route
  9. L171 room-combine processor 2 displaysIP power command / status
Trace routes in the interactive drawing

How it works

Intended result. The banquet team can prepare separate or combined events with matching picture, sound and controls, using a documented room-mode procedure.

  1. Presentation pictures
    1. Two guest sourcesOne presentation connection in each room.
    2. Video matrixIndependent A/B outputs and audio extraction.
    3. Two room displaysDifferent pictures when separate; one agreed source when combined.
  2. Room sound
    1. Speech + presentation + musicFour microphones and separate playback inputs.
    2. Room-combine processorApply the approved separate or combined routing.
    3. Two separate speaker linesEight speakers per room; lines never join electrically.

A partition sensor reports position; staff authorise the mode change. Unknown position blocks automatic combining and shows a fault. Combining rooms does not merge conferencing calls.

In the system

Two guest presentation connections, two displays, a 4 × 2 video matrix, two output audio extractors, two music players and four microphone channels, two per room. One room-combine audio/control processor, one four-channel 100 V amplifier and sixteen ceiling loudspeakers serve the two rooms. Two staff panels, one partition sensor assembly and a separate network contact interface handle operation and partition status. The two extractors are omitted if the selected matrix already provides the required two independent stereo audio outputs.

Background music players
2Audio sources
Microphone channels
4; two per roomMicrophones
Zone / room-combine processor
1Audio processorsNetwork audio
Four-channel 100 V amplifier
1; two channels usedAmplifiers
Ceiling loudspeakers
16Loudspeakers
Staff panels / separate controller
2 / processor-integrated
Partition sensor / network contact interface
1 / 1
Guest presentation connections / displays
2 / 2
Video matrix / stereo audio extractors
1 / 2, or equivalent built-in extractionVideo matrices
Active tops / active subwoofers
Optional redesign
Shared installation infrastructure
One set per room pair

Example quantities: makes, models and compatibility are confirmed in your BOQ.

Agreed separately

  • The sensor reports position; it does not authorise an unexpected event change.
  • Unknown position blocks automatic combining, and the interface shows a fault.
  • Video routing and display status must be checked before indicating a completed mode change.
  • A room-combine function does not merge two conferencing calls.
  • Cameras, recording, hearing assistance, stage PA and additional production inputs are specified separately when required.

How you accept it

A only, B only, simultaneous separate events and A+B; source/audio matching, panel permissions, contact and restart faults; building mute, power recovery, access permissions and restore of saved settings.

Handover record: Room-mode matrix, routing results and recovery procedure; witnessed interface record, configuration backup and handover checklist.

These are planned project checks. The reference configuration has not passed physical system acceptance.

Discuss HS-02 with an engineer

Architecture

Each display output has its own extracted stereo audio feed to the audio processor. Four microphones, four presentation audio channels and four music channels require twelve analogue inputs. Separate mono outputs feed amplifier channels A and B; the other two amplifier channels are unused in the reference design. Each room has eight speakers at an illustrative 6 W tap: 48 W per line. Combining rooms changes the signal routing; the two 100 V lines remain electrically separate.

Operating modes

ModeVideoAudioStaff control
A onlyA selects its source; B is blanked or offA microphones and selected programme in A; B mutedA controls A; B cannot change A
B onlyB selects its source; A is blanked or offB microphones and selected programme in B; A mutedB controls B; A cannot change B
A and B separatelyIndependent sources on the two screensEach room hears only its own microphones and selected programmeLocal panels control their own room
A+B combinedThe chosen source reaches both screensOne programme feed plus the selected microphone mix reaches both roomsAn authorised master controls the combined event; both panels show the confirmed mode
HS-03

Club stage & lounge

An operator runs a DJ set or spoken performance with stage video and lighting. Lounge music remains on its own source and volume setting.

Reference design; acoustic and production brief required

  • Stage sound, LED and lighting
  • Lounge music remains independent
  • Operated cues; no automatic timecode show
HS-03 · system schematic

Video & data

HS-03 video & data: HS-03 reference diagram showing active stage speakers with individual power, independent lounge sound, LED data and isolated lighting branches.
  • Video / LED data

Typical architecture · not a project drawing

Connection schedule 2 links
  1. L101 video player 1 LED processorHDMI
  2. L111 LED processor 1 LED surfacematched LED data links not a general LAN switch

Audio & return paths

HS-03 audio & return paths: HS-03 reference diagram showing active stage speakers with individual power, independent lounge sound, LED data and isolated lighting branches.
  • Audio

Typical architecture · not a project drawing

Connection schedule 9 links
  1. L011 guest DJ set 1 stereo line isolationstereo line
  2. L021 stereo line isolation 1 stage mixerCH1/2
  3. L034 wired microphone channels 1 stage mixerCH3–6
  4. L041 stage mixer 1 speaker processorbalanced L/R
  5. L051 speaker processor 2 active topsOUT1/2: line L/R
  6. L061 speaker processor 2 active subwoofersOUT3/4: line
  7. L071 music player 1 zone DSPanalogue L/R
  8. L081 zone DSP 1 four-channel 100 V amplifiermono line
  9. L091 four-channel 100 V amplifier 4 ceiling speakers1 independent 100 V line

Control & status

HS-03 control & status: HS-03 reference diagram showing active stage speakers with individual power, independent lounge sound, LED data and isolated lighting branches.
  • Control / status

Typical architecture · not a project drawing

Connection schedule 12 links
  1. L121 lighting console 1 isolated splitterDMX
  2. L131 isolated splitter 8 wash fixturesbranches 1/2 addresses 1–64
  3. L141 isolated splitter 4 moving fixturesbranch 3 addresses 65–128
  4. L152 staff panels 1 system controllerIP commands / status
  5. L161 managed 16-port switch 2 staff panelsLAN / panel PoE
  6. L171 building signal interface 1 isolation interface setagreed contact
  7. L181 system controller 1 zone DSPIP source / gain / status driver to verify
  8. L191 system controller 1 speaker processorIP agreed preset / status interface to verify
  9. L201 system controller 1 LED processorIP agreed commands / status
  10. L211 system controller 1 lighting consoleIP cue commands / console state if supported by selected console
  11. L221 isolation interface set 1 speaker processorcontact: all stage outputs mute
  12. L231 isolation interface set 1 zone DSPcontact: lounge mute
Trace routes in the interactive drawing

How it works

Intended result. Technical staff can change between DJ and microphone-led operation, play stage visuals, recall tested lighting scenes and keep lounge settings independent.

  1. Stage sound
    1. DJ + microphonesIsolated stereo DJ feed and four wired microphone channels.
    2. Stage mix + processingDedicated limiting, filtering and output routing.
    3. Powered stage PATwo tops and two subs; each needs signal and mains.
  2. Lounge
    1. Lounge playerIts own music source.
    2. Zone processingIndependent mono level and presets.
    3. Lounge speakers100 V amplifier and four ceiling speakers.
  3. Stage visuals and light
    1. Separate operators / sourcesSilent video player and lighting console.
    2. Separate transportsLED processor and isolated DMX distribution.
    3. Stage lookLED surface, eight washes and four moving fixtures.

The baseline has no stage monitors, automatic timecode show, recording or broadcast. Counts are initial layouts; acoustic spill, coverage and fixture modes need design.

In the system

One guest DJ set, one stereo line isolation interface, four wired microphone channels, a stage mixer and a speaker processor feed two active tops and two active subwoofers. The active speakers each need a line-level signal and their own power feed; they have no separate external power amplifier. One music player, a zone processor, one 100 V amplifier and four ceiling speakers serve the lounge. One media player, one LED processor and one LED surface provide visuals. One lighting console, one isolated splitter, eight example wash fixtures and four example moving fixtures provide the starting lighting layout. Two staff panels and one system controller manage agreed presets and permissions.

Background music players
1 for loungeAudio sources
Microphone channels
4 wiredMicrophones
Zone / room-combine processor
1 for loungeAudio processorsNetwork audio
Four-channel 100 V amplifier
1; one channel usedAmplifiers
Ceiling loudspeakers
4 in loungeLoudspeakers
Staff panels / separate controller
2 / 1
Guest presentation connections / displays
Separate LED workflow
DJ set / stereo line isolation / stage mixer / speaker processor
1 / 1 / 1 / 1audio processing
Active tops / active subwoofers
2 / 2
Video player / LED processor / LED surface
1 / 1 / 1 setLED equipment
Lighting console / isolated splitter
1 / 1Lighting controls
Wash / moving fixtures
8 / 4 example positionsLighting equipment
Shared installation infrastructure
One set per club

Example quantities: makes, models and compatibility are confirmed in your BOQ.

Agreed separately

  • Two tops and two subs are an initial arrangement, not a capacity or sound-level guarantee.
  • Coverage, low-frequency spill and isolation from neighbouring rooms require an acoustic design.
  • The base scope has no stage monitors; performers needing them require the separately listed monitor option and additional mix outputs.
  • LED dimensions, resolution and power follow the actual surface.
  • Lighting quantities are a layout assumption, with fixture modes and addresses agreed during design.
  • Timecode shows, automatic audio/video synchronisation, recording and broadcast are outside the baseline.

How you accept it

DJ and microphone operation, separate lounge settings, every PA output, LED mapping, lighting cues and guest tie-in mute; building mute, power recovery, access permissions and restore of saved settings.

Handover record: Acoustic results, signal/power schedule, LED map, DMX patch and operator checks; witnessed interface record, configuration backup and handover checklist.

These are planned project checks. The reference configuration has not passed physical system acceptance.

Discuss HS-03 with an engineer

Architecture

Stereo stage audio reaches the speaker processor, which provides four separate line outputs for the tops and subs. Lounge audio uses a separate mono output and 100 V line, with a 24 W reference speaker load. Video travels over HDMI to the LED processor, then over the selected LED system's data links to its receiver cards. The lighting console feeds the fixtures through isolated DMX branches.

04 Project experience of our team

The working drawing, as we issue it.

Background music and announcements for the foyer, the cloakroom, the audience lobby and a 136-seat dining hall of RC‑08: one four-channel 100 V amplifier, loudspeaker zones, Dante transcoders for local players and microphones, and control panels on the network.

Structural connection diagram, background sound and announcements: a working drawing of project RC-08 with device tags, connectors and numbered cables
Sheet 4 — Background sound and announcementsRC-08 · A2 · anonymised
All 9 sheets of RC-08, PDF (303 KB)

Project cases

Rooms of this kind, photographed as installed; each had its own brief, not one of the typical configurations above.

All project cases

05 Engineering

What the design has to get right.

The checks behind every drawing. Rules of thumb are starting points; the project values are confirmed with the people named.

Design parameters
No.ParameterGuidanceRule of thumbConfirmed with
D01Zone boundariesService areas, sources and staff responsibilitiesOne controlled mix per independent zone; count simultaneous programmes separatelyF&B and operations
D02Loudspeaker loadingTransformer taps, cable lengths and lossesSum the selected taps on each 100 V channel and document the amplifier marginAV designer and installer
D03Sound coverageCeiling height, finishes, background noise and event layoutsPredict coverage and measure against agreed project targetsAcoustic designer and operator
D04Divisible roomsPartition positions, simultaneous events and operator rightsTest A, B, separate A/B and combined A+B, including fault recoveryBanquet and engineering teams
D05Screens and LEDActual content, viewing positions, light and service accessSelect screen size and pixel mapping for the approved layoutEvents team and interior designer
D06Guest connectionsSource format, connector, level and cable distanceLabel each tie-in and test the agreed guest equipmentEvent technicians
D07Stage soundProgramme, low-frequency demand and neighbouring roomsChoose PA and level limits from the acoustic briefVenue operator and acoustic designer
D08LightingFixture placement, modes, addresses and cuesIssue a patch and test each scene and loss-of-data behaviourLighting operator and fit-out team
D09Staff operationLocal volume limits, scene access and device feedbackSeparate staff and technical functions; expose unresolved faultsEach operating team
D10Building and accessibility interfacesProgramme mute, hearing assistance, environment and accessAgree interfaces and acceptance responsibilities before orderingResponsible building specialists
D11Power and mountingEvery active device, LED and lighting circuit, structural loadsUse nameplate data and approved mounting details; retain maintenance accessElectrical and structural designers
D12Hotel constraintsOperator technology standards, existing systems and access windowsConfirm deviations and phased work before installationHotel operator and contractor

Common mistakes

And how the design process prevents them.

  1. M01

    Mistake: Four zones need four different playlists but only two players are provided.

    Prevention: Count simultaneous programmes during scoping.

  2. M02

    Mistake: A speaker count is mistaken for sound coverage.

    Prevention: Calculate the electrical load and the acoustic coverage separately.

  3. M03

    Mistake: The combined room plays the same presentation audio twice.

    Prevention: Select one extracted programme feed for A+B and distribute that mix to both room outputs.

  4. M04

    Mistake: A partition contact changes while an event is running.

    Prevention: Show the requested state and require authorised confirmation; retain a defined fault procedure.

  5. M05

    Mistake: A guest mixer bypasses house sound limits or programme mute.

    Prevention: Route the agreed tie-in through house processing and test the complete path.

  6. M06

    Mistake: A lighting cue or device command is shown as confirmed without feedback.

    Prevention: Display acknowledged state where supported and require a visual check where it is not.

How a typical system fits together

Four layers, from the sources to the people operating the system, and the interfaces between them.

  1. L1

    Sources

    Where the content comes from

    • Music players over analogue L/R
    • Microphones over balanced audio
    • Guest presentations and video player over HDMI

    DJ equipment belongs to HS-03; presentation inputs belong to HS-02

  2. L2

    Processing & transport

    How signals are routed and processed

    • Zoned DSP and 100 V amplification
    • Video matrix and extraction
    • Stage speaker processing
    • LED processing
    • DMX distribution

    Stage signals go to active PA at line level; a 100 V output must never feed an active speaker input

  3. L3

    Displays & audio

    What people see and hear

    • Ceiling loudspeakers
    • Hotel displays, club active PA, LED and light fixtures

    Indoor background loudspeakers are not the club stage system or an outdoor specification

  4. L4

    Control & operation

    How the system is run every day

    • Wall panels
    • Scheduling/controller functions, room-mode logic and separate stage consoles

    IP or contact interfaces must be documented; device status must be distinguished from a command sent

Connected to the building and its IT

The systems this solution exchanges signals or data with, and why. Each interface is agreed with the system owner.

  • I01

    Music services

    Player analogue output and documented service access

    Content rights, subscriptions and recovery from a lost service are agreed with the operator

  • I02

    Partition system

    Position contacts through the specified network contact interface

    HS-02: report position; authorised room-mode logic controls audio and video

  • I03

    Visiting production

    Labelled balanced audio and agreed video inputs

    Define house processing, levels and programme mute; additional PA or broadcast routes are separate scope

  • I04

    Hotel IT

    Managed control network and agreed internet access

    Keep device control separate from guest access; specify addressing, power and support ownership

  • I05

    Signage and event booking

    Documented export/API to the selected signage service

    Optional event listings with reviewed templates and manual fallback; no booking connector is assumed

  • I06

    Building and lighting controls

    Documented IP/serial interface or isolated contacts

    Optional building presets and status; stage DMX operation remains with the lighting console

  • I07

    Fire alarm interface

    Agreed isolated signal from the responsible contractor

    Mute programme audio, including agreed guest feeds; this AV function does not replace a certified voice alarm system

  • I08

    Hearing assistance / TV and casting

    Specified audio feed / provider-supported connection

    Separate project scope, including room isolation, commissioning and accessibility checks

The references we design to

Equipment documentation, industry guides and project requirements. Applicable editions and acceptance criteria are confirmed for the site.

Equipment documentation and industry guides03

  • ANSI/AVIXA A102.01Audio Coverage UniformityDefine and measure the listening areaCheck current edition
  • ANSI/AVIXA V202.01Display Image Size for 2D ContentSize presentation displays and check viewing positionsCheck current edition
  • ANSI/AVIXA D402.02AV Systems Performance VerificationAgree verification criteria and report resultsCheck current edition

Local and project requirements01

  • Project requirements and applicable local rulesProject design referenceElectrical works, mounting, access, radio equipment, accessibility and building interfacesCheck current edition

06 From brief to handover

Six stages, with what you receive at each.

Start with the people, activities and operating conditions. You approve the design before procurement and accept the system on your own scenarios.

  1. Stage 01

    Scope and architecture

    Agree venue zones, day and evening use, event formats and staff roles. Record the partition modes, guest connections and boundaries of each subsystem.

    • Venue zones and staff roles
    • Day and event operating modes
    • Guest connection brief
  2. Stage 02

    Design and approval

    Issue zone, display and fixture layouts; audio/video/control diagrams; 100 V loading and room-mode tables. Coordinate power, mounting, interiors and building interfaces.

    • Audio, screen and fixture layouts
    • Signal and control diagrams
    • Zone loads and room-mode table
  3. Stage 03

    Selection and supply

    Confirm exact amplifier variants, speaker taps, active PA interfaces, matrix outputs, control licences and lighting modes. Resolve availability and compatibility against the approved schedule.

    • Equipment matched to each zone
    • Checked amplifier and PA interfaces
    • Control and lighting schedule
  4. Stage 04

    Installation and programming

    Install and label the system. Configure source routes, level limits, announcement priority, room combining and the included lighting scenes; expose device and mode status to staff.

    • Labelled sources and zones
    • Volume limits and staff panels
    • Programmed modes and selected cues
  5. Stage 05

    Commissioning and tests

    Test zone independence, each room combination and guest inputs. Measure the agreed sound performance, review video and lighting, and test programme mute with the responsible contractor.

    • Zone and room-mode checks
    • Guest input and scene tests
    • Sound and building-interface records
  6. Stage 06

    Handover

    Train F&B, banquet, duty-management and technical teams for their own tasks. Deliver as-built drawings, tap and patch schedules, configurations, test reports and an agreed service procedure.

    • Training for each staff role
    • As-built drawings and settings
    • Quick guides and service procedure

Ready to start? Send a plan, a brief or a BOQ — or just describe the space. AV design, programming and commissioning →

Request a project review

07 Questions

What people ask before a hotels, restaurants & clubs project.

Practical answers before the project starts. Anything else, ask an engineer.

Can every restaurant zone play different music?

Each zone has its own source selection and level. HS-01 has two music players, so it supports up to two different music programmes at a time. Four simultaneous playlists need additional sources and a revised input schedule.

How are hotel rooms combined?

The partition sensor reports position through a contact interface. An authorised operator confirms the mode, and the control system coordinates the two screens, sound mixes and panels. A+B uses one programme feed and the agreed microphones. A fault or unknown position must be visible to staff.

Does combining rooms also combine video calls?

No. HS-02 provides presentation and room audio. Conferencing needs its own camera, microphone, echo-control and platform design, tested for separate and combined room use. See our meeting and conference room solution.

Can the ceiling speakers serve a club performance?

The reference ceiling system serves background music and speech. HS-03 uses a separate active PA for the stage, selected against coverage, programme and sound-spill requirements. Live performers may also need the optional monitor system and a larger input schedule.

Are light shows and LED video synchronised automatically?

HS-03 includes operated lighting scenes and a separate LED video path. Timecode, beat synchronisation or a single show-control timeline need an additional control design and tests. The reference layout includes eight wash and four moving fixtures; exact types follow the venue brief.

Can existing hotel systems and guest production be connected?

Yes, where their interfaces and operating responsibilities are confirmed. We define labelled guest inputs, signal levels and house processing. Event listings, TV/casting, building controls and outdoor areas require their own agreed scope. Existing equipment is assessed for condition, compatibility and support.

Does this provide emergency voice announcements?

No. Everyday paging and programme muting are AV functions. The fire alarm interface is coordinated and tested with the responsible contractor, and the certified voice alarm system remains separate. Guest systems and each included audio route must be covered by the agreed interface procedure.

Can installation and staff training fit an operating venue?

Access, noisy work and room closures are planned with the operator before work starts. Training follows staff roles: local service controls for F&B, room modes for banquet staff and signal, patch and recovery procedures for technical teams. Delivery phasing depends on the agreed access windows.

What helps us reply with substance

  1. Plans, sections, ceiling heights, zone names and partition positions.
  2. Day/evening routines, event types, layouts and simultaneous source requirements.
  3. Existing sound, screens, controls, cabling and hotel technology standards.
  4. Guest/DJ connections, sample presentation and video content, and typical technical riders.
  5. Acoustic information, neighbouring uses, level limits and outdoor exposure where relevant.
  6. Staff roles, panel locations, required languages and accessibility needs.
  7. IT, power, mounting, fire alarm and building-system interface contacts.
  8. Installation windows, maintenance access, budget brief and project contact.

Request a project review

Share your venue plans.

Send venue plans, zone names, partition modes and the events you need to support. A floor plan or a short description is enough to start.

  1. 01
    We review your materials

    The system composition, links with adjacent trades and the scope of work.

  2. 02
    We come back with questions

    A preliminary approach to the system and the points that need closing.

  3. 03
    We propose the next step

    The scope of further design and the path to a commercial proposal.

Have a BOQ or tender drawings? Send an RFQ

Hotels, restaurants & clubsReply from an engineer
