DB 12

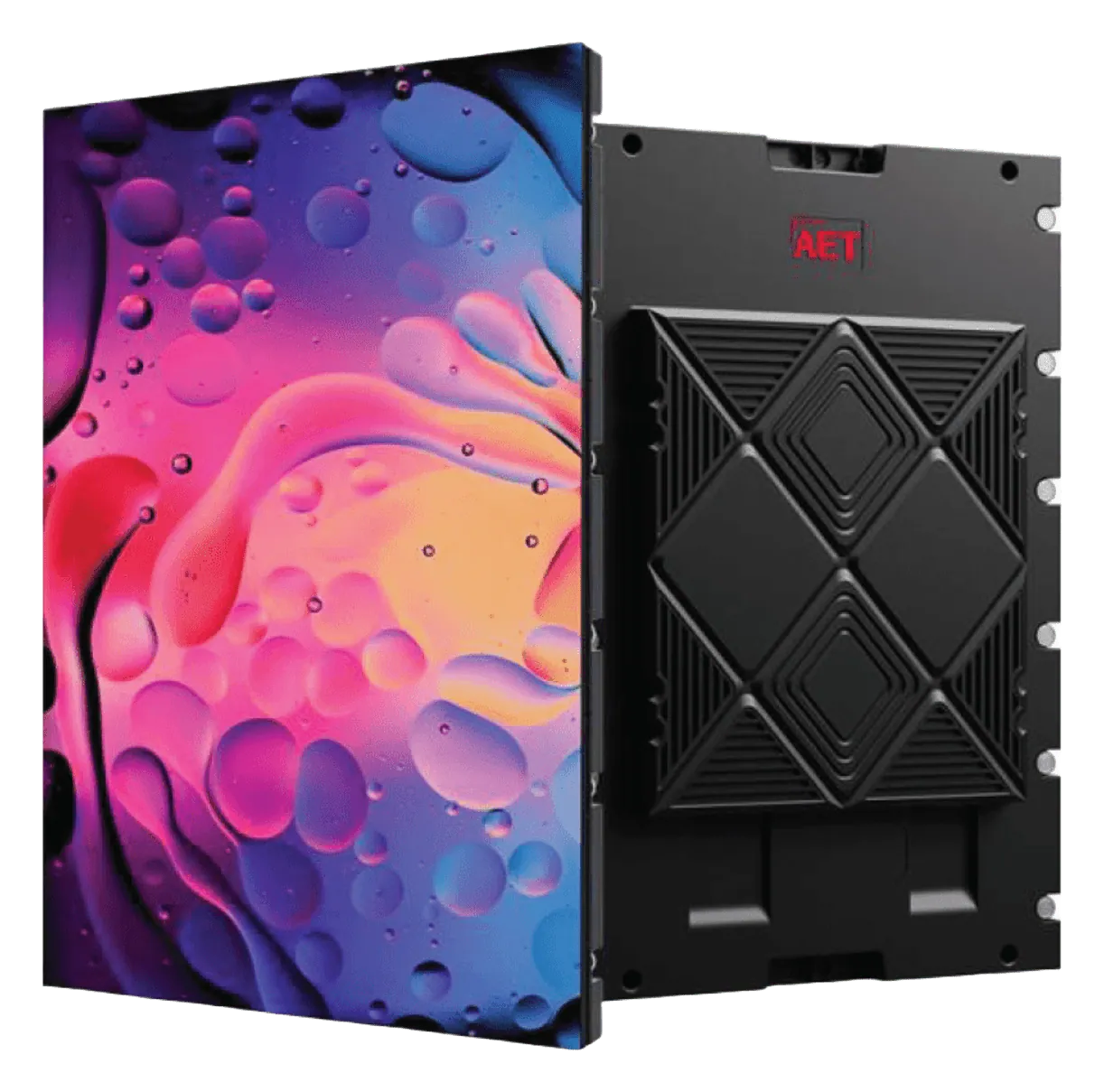

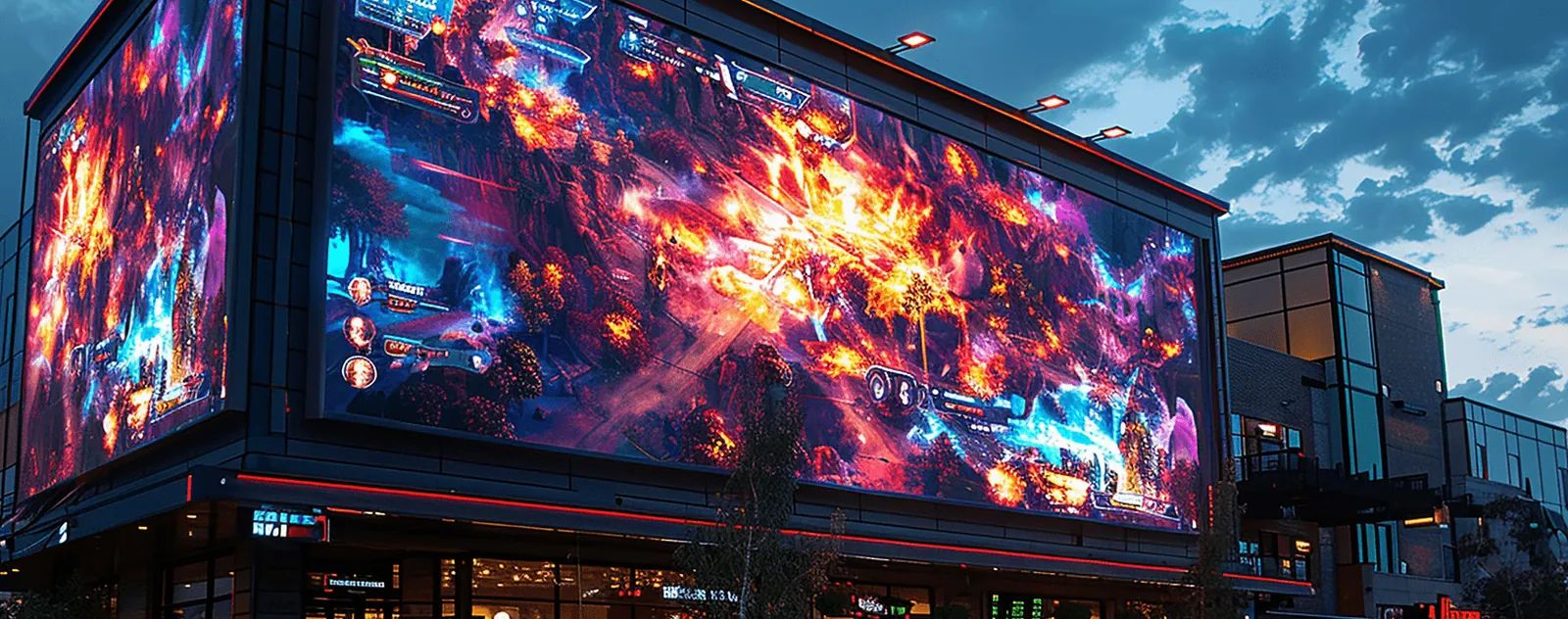

The AET DB Module Series offers versatile 320x180mm LED displays with a 16:9 aspect ratio, ideal for video walls and public displays.

Series: DB Series
Pixel pitch: 1.25 mm
Brightness: 400 nits
Module size: 320 × 180 mm
Module resolution: 256 × 144
Refresh rate: 3840 Hz
LED type: 1010
Maintenance: Front

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

Pixel Pitch: 1.25 mm
LED Type: 1010
Module Size: 320 × 180 mm
Module Resolution: 256 × 144
Maintenance: Front
Brightness: 400 nits
Viewing Angle (H/V,°): ≥140
Max Contrast Ratio: 5000:1
Refresh Rate: 3840 Hz
Color Depth: 12–14 bit
Max/AVG Power Consumption: ≤400 / ≤135 W/m²
Operating/Storage Temp (°C): -10–45 / -10–50
Operating/Storage Humidity (RH): 10%~65% / 0%~60%

02Models4 models in the family

Models compared.

Model	DB 12	DB 15	DB 18	DB 20
Pixel Pitch (mm)	1.25	1.53	1.86	2
LED Type	1010	1212	1515	1515
Module Size (W × H,mm)	320 × 180	320 × 180	320 × 180	320 × 180
Module Resolution (W × H,mm)	256 × 144	208 × 117	172 × 96	160 × 90
Maintenance	Front	Front	Front	Front
Brightness (nit)	400	400	600	600
Viewing Angle (H/V,°)	≥140	≥140	≥140	≥140
Max Contrast Ratio	5000:1	5000:1	5000:1	5000:1
Refresh Rate (Hz)	3840	3840	3840	3840
Color Depth (bit)	12–14	12–14	12–14	12–14
Max/AVG Power Consumption (W/m²)	≤400 / ≤135	≤400 / ≤135	≤400 / ≤135	≤400 / ≤135
Operating/Storage Temp (°C)	-10–45 / -10–50	-10–45 / -10–50	-10–45 / -10–50	-10–45 / -10–50
Operating/Storage Humidity (RH)	10%~65% / 0%~60%	10%~65% / 0%~60%	10%~65% / 0%~60%	10%~65% / 0%~60%

03DescriptionManufacturer's description

What it is.

The AET DB Module Series offers versatile 320x180mm LED displays with a 16:9 aspect ratio, ideal for video walls and public displays. It features high contrast, wide viewing angles, a high refresh rate, low heat, quiet operation, and front maintenance for easy servicing.

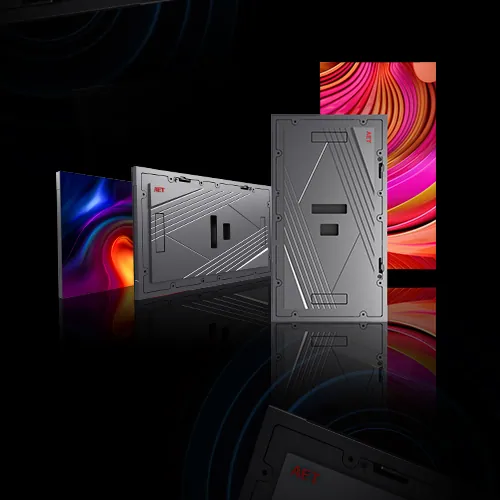

Multi-Size Cabinet Compatibility

The DB Module Series is compatible with a variety of cabinet sizes, including 640x720mm, 320x720mm, and 640x180mm. This flexibility allows you to tailor your display to specific needs, whether for expansive video walls, compact displays, or unique configurations. The ability to adapt to different cabinet sizes makes the DB Series ideal for diverse applications, from corporate environments to public spaces.

High Refresh Rate & Wide Viewing Angle

The DB Series boasts a high refresh rate and wide viewing angle, ensuring that your content is displayed smoothly and is visible from any direction. This feature is especially important for applications where clear, vibrant visuals are essential, such as in retail displays, broadcasting, and live events. The wide viewing angle ensures that the display remains bright and clear, even when viewed from the sides, making it perfect for environments where audience engagement is key.

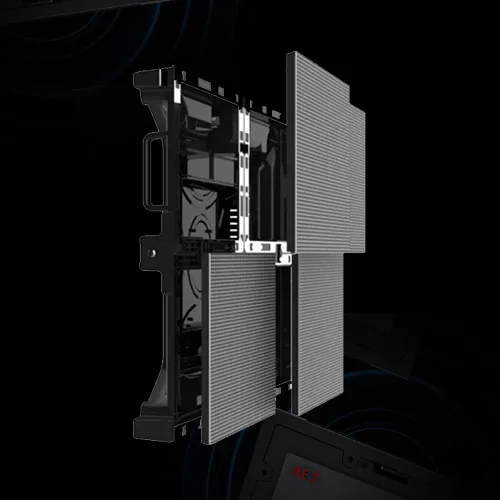

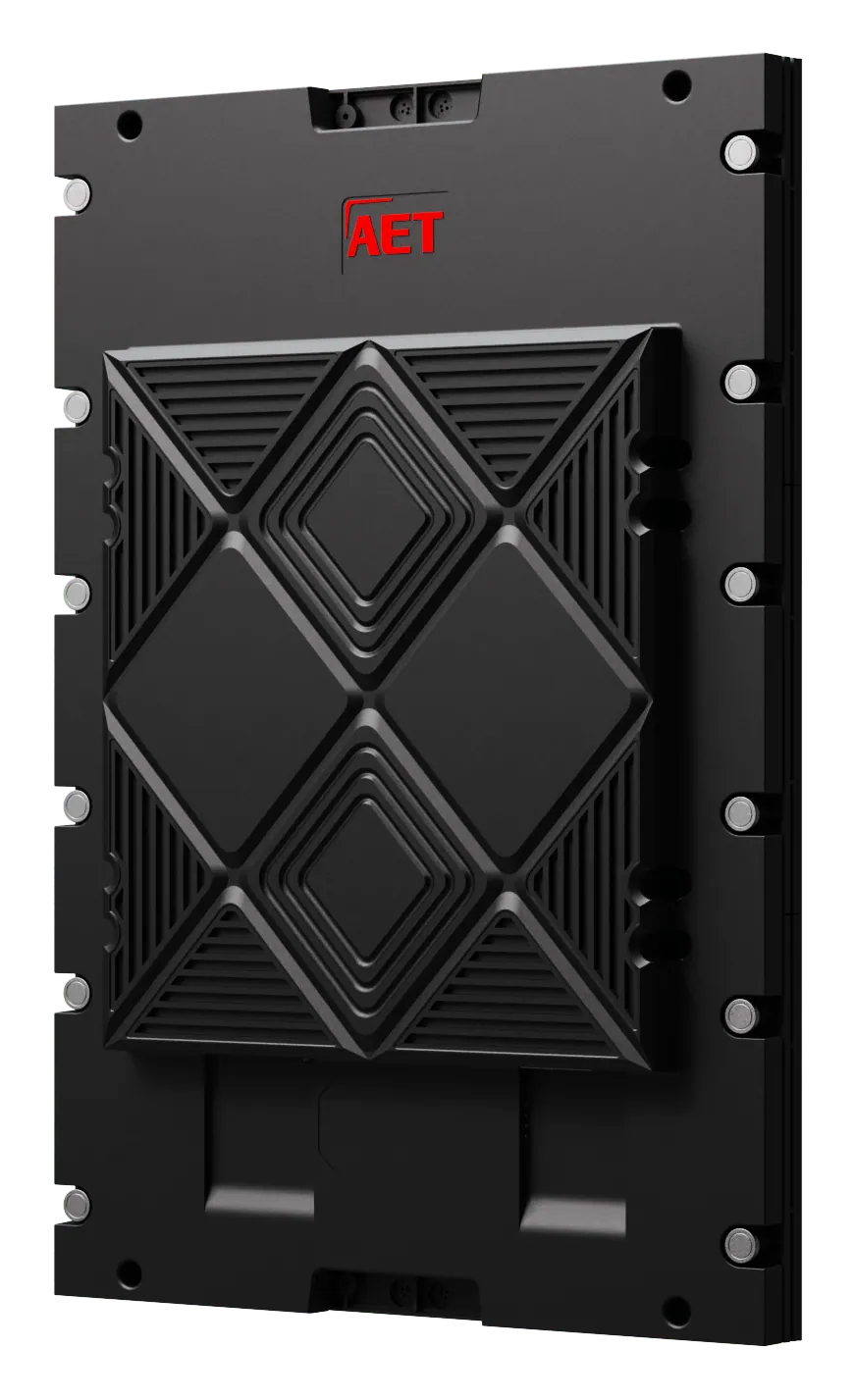

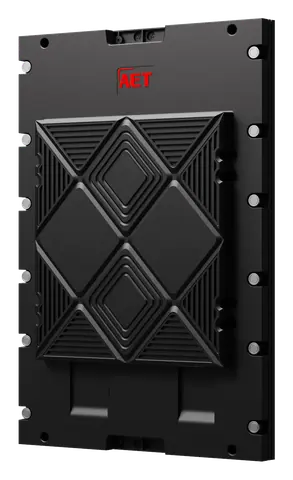

Magnetic Design for Front Installation & Maintenance

One of the standout features of the DB Series is its magnetic design, which allows for easy front installation and maintenance. This innovative design reduces the time and effort required to install and service the display, making it an efficient solution for settings where quick setup and minimal maintenance are priorities. The front access also ensures that maintenance can be performed without having to dismantle the entire display, reducing downtime and maintenance costs.

Compact & Space-Efficient

The DB Series is designed to be space-efficient, with an overall thickness of just 12 cm when wall-mounted. This slim profile makes it an ideal choice for locations where space is limited, such as retail stores, corporate lobbies, and public transport hubs. Despite its compact size, the DB Series does not compromise on performance, delivering powerful visuals that captivate and engage viewers.

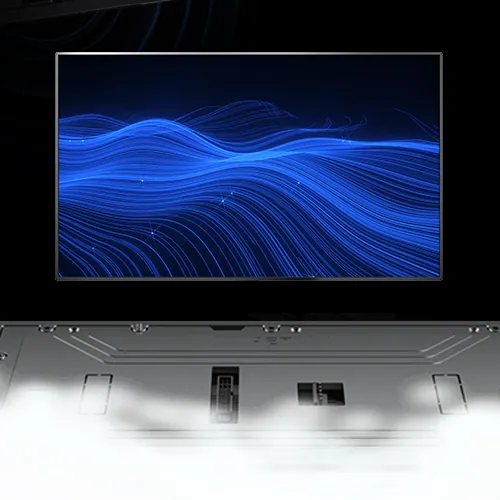

High Contrast Ratio & Efficient Heat Dissipation

The DB Series delivers high contrast ratios, providing deep blacks and vibrant colors that make your content stand out. This is complemented by efficient heat dissipation, which ensures that the display operates at optimal temperatures, reducing the risk of overheating and prolonging the lifespan of the display. Additionally, the DB Series operates ultra-quietly, making it suitable for environments where noise levels need to be kept to a minimum, such as conference rooms and studios.
