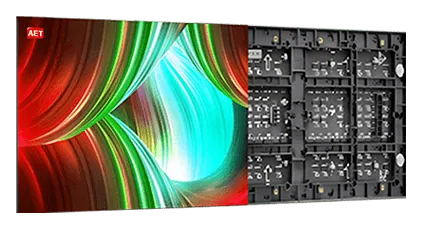

DF 30

Series: DF Series
Pixel pitch: 3 mm
Brightness: 500–550 nits
Module size: 192 × 192 mm
Module resolution: 64 × 64
Refresh rate: 1920 / 3840 Hz
Maintenance: Front

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 14 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications14

Pixel Pitch: 3 mm
Type: Indoor
LED: 2121
Module Size: 192 × 192 mm
Module Resolution: 64 × 64
Maintenance: Front
Brightness: 500–550 nits
Viewing Angle (H/V,°): 140 / 130
Contrast Ratio: 5000:1
Refresh Rate: 1920 / 3840 Hz
Color Depth: 12–14 bit
Max/AVG Power Consumption: 420 / 140 W/m²
Operating/Storage Temp (°C): -10–40 / 0–40
Operating/Storage Humidity (RH): 10%~65% / 10%~60%

02Models3 models in the family

Models compared.

Model	DF 30	DF 40	DF 60
Pixel Pitch (mm)	3	4	6
Type	Indoor	Indoor	Outdoor
LED	2121	2121	2525 / 2727
Module Size (W × H,mm)	192 × 192	256 × 256	192 × 192
Module Resolution (W × H,mm)	64 × 64	64 × 64	32 × 32
Maintenance	Front	Front	Rear
Brightness (nit)	500–550	350–400	4000–4500
Viewing Angle (H/V,°)	140 / 130	140 / 130	140 / 130
Contrast Ratio	5000:1	5000:1	5000:1
Refresh Rate (Hz)	1920 / 3840	1920	1920 / 3840
Color Depth (bit)	12–14	14–16	12–14
Max/AVG Power Consumption (W/m²)	420 / 140	275 / 92	840 / 280
Operating/Storage Temp (°C)	-10–40 / 0–40	-10–40 / 0–40	-20–50 / -10–50
Operating/Storage Humidity (RH)	10%~65% / 10%~60%	10%~65% / 10%~60%	10%~65% / 10%~60%

03DescriptionManufacturer's description

What it is.

The AET DF Series features a 1:1 square LED module, perfect for creative, symmetrical displays. With high brightness, contrast, and a wide viewing angle, it offers stunning visuals while saving space. Durable and cost-effective, it lasts up to 100,000 hours, making it ideal for artistic, public, and corporate installations.

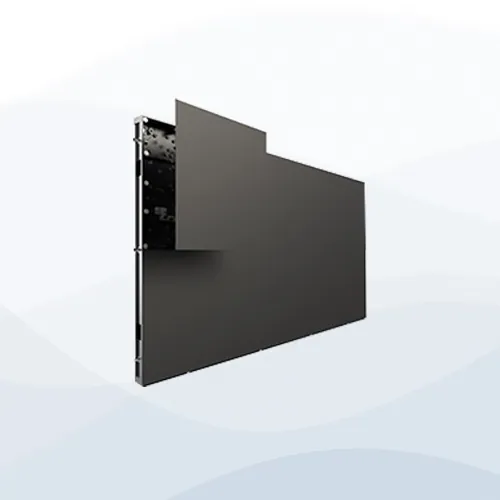

Lightweight & Easy Installation

The DF Series is designed for simplicity and efficiency. Its lightweight construction makes it easy to install and disassemble, saving time and effort during setup and maintenance. This feature is particularly valuable for projects that require frequent changes or reconfigurations, as the DF Series can be quickly adapted to new layouts.

High Refresh Rate & Resolution

The DF Series delivers outstanding visual clarity with a high refresh rate and resolution. This ensures that your content is displayed smoothly and without flicker, making it ideal for environments where visual quality is paramount, such as retail displays, digital signage, and event backdrops. The high refresh rate also reduces motion blur, providing a more immersive experience for viewers.

Wide Viewing Angle for Improved Display Effect

The DF Series offers a wide viewing angle, ensuring that your display remains vibrant and clear from multiple perspectives. This is essential for public spaces, event venues, and retail environments where the audience may be viewing the display from different angles. The wide viewing angle helps maintain consistent image quality, enhancing the overall impact of your display.

Specialized Driver Chip

The DF Series is equipped with a specialized driver chip that improves the reliability and performance of the display. This chip addresses the common issue of the “caterpillar phenomenon” caused by damaged lamp beads, ensuring that the display remains clear and visually appealing even if individual LEDs are compromised. This technology enhances the longevity and reliability of the DF Series, reducing the need for costly repairs and maintenance.

Creative Square Design

The DF Series is specifically designed for square projects, offering a unique and versatile solution for creative installations. The 1:1 module ratio allows for seamless integration into square layouts, providing a cohesive and aesthetically pleasing display. Whether used for artistic installations, architectural displays, or specialized signage, the square design of the DF Series adds a distinctive element to any project.

Long Service Life & Low Maintenance Costs

With a service life of up to 100,000 hours, the DF Series is built to last. This long lifespan, combined with its low maintenance requirements, makes the DF Series a cost-effective choice for long-term installations. The durability and reliability of the DF Series ensure that your investment continues to deliver high-quality performance for years to come.
