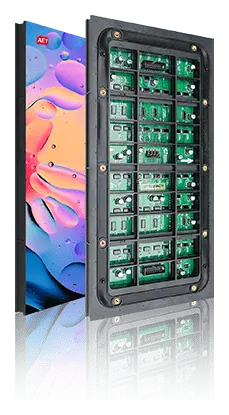

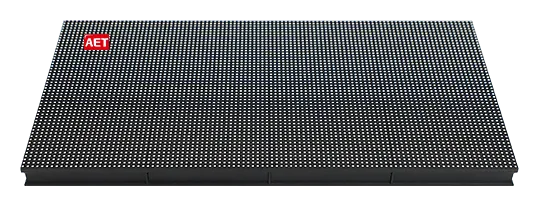

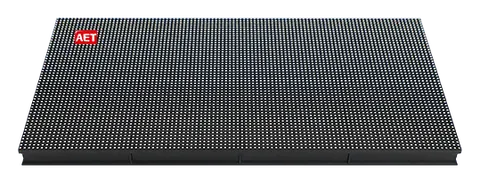

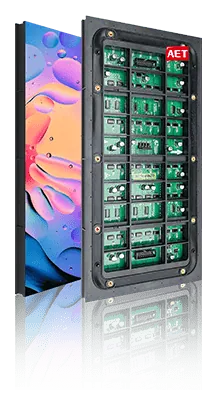

DH Outdoor P10.0

Captivate audiences in any environment. AET's DH Outdoor Series LED displays are engineered for exceptional durability and weather resistance, delivering superior visuals even in challenging conditions.

Series: DH Outdoor Series
Pixel pitch: 10.0 mm
Module resolution: 32 × 16 px
Refresh rate: 3840 Hz
LED type: Non-NS LED 3535 / NS Copper LED 3535 / NS GOLD LED 3535
Servicing: Rear

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 28 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications28

LED Type: Non-NS LED 3535 / NS Copper LED 3535 / NS GOLD LED 3535
Pixel pitch: 10.0 mm
Module Resolution: 32 × 16 px

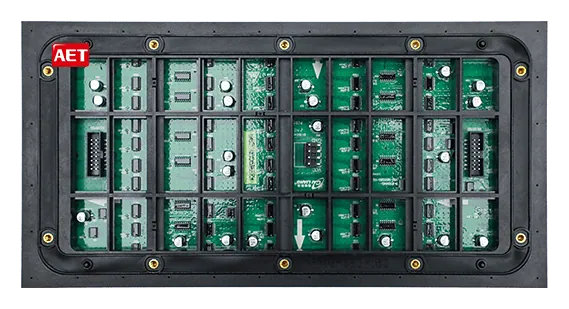

Module Dimension: 320 (W)×160 (H)×15 (D)
Module Flatness: ≤0.15 mm
Pixel/m2: 10,000

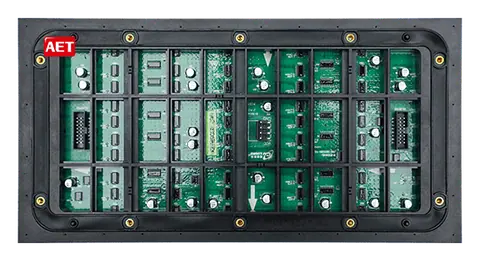

Servicing: Rear
Back Shell: Plastic
Single Dot Brightness Calibration: Depends on the individual project
Single Dot Colour Calibration: Available
Colour Temperature: 1000–9500 – Adjustable
Viewing Angle (Horizontal/Vertical): 160°
Brightness/Colour Uniformity: ≥97%
Contrast Ratio: 5000:1
Max Power Consumption (W/m2): ≤800
Average Power Consumption (W/m2): ≤235
Input Power Voltage: AC110–220V± 15%, 50 / 60 (Hz)
Drive Mode: Constant Current Drive (common anode)
Frame Rate: 50–60 Hz
Refresh Rate: 3840 Hz
Colour Depth (bits): 16 bit
Life Span, typ. (Hrs): 100,000
Operating Temp (°C): -20 – 60
Storage Temp (°C): -20 – 60
Operating Humidity (RH): 10–90%
Storage Humidity (RH): 10–90%
Encapsulation Technology — QCOB: Available
Scan Rate: 2

02Models3 models in the family

Models compared.

Model	DH Outdoor P6.0	DH Outdoor P8.0	DH Outdoor P10.0
LED Type	SDM 2525 / 2727	Non-NS LED 2525 / NS Copper LED 2525 / NS GOLD LED 2525	Non-NS LED 3535 / NS Copper LED 3535 / NS GOLD LED 3535
Pixel pitch	6.0 mm	8.0 mm	10.0 mm
Module Resolution (W × H Pixel)	32 × 32	40 × 20	32 × 16
Module Dimension (mm)	192 (W)×192 (H)×15 (D)	320 (W)×160 (H)×15 (D)	320 (W)×160 (H)×15 (D)
Module Flatness (mm)	≤0.15	≤0.15	≤0.15
Pixel/m2	27,777	15,625	10,000
Servicing	Front	Rear	Rear
Back Shell	Plastic	Plastic	Plastic
Single Dot Brightness Calibration	Available	Depends on the individual project	Depends on the individual project
Single Dot Colour Calibration	Available	Available	Available
Brightness (nits)	4000–4500	≥5000
Colour Temperature (K)	1000–10000 – Adjustable	1000–9500 – Adjustable	1000–9500 – Adjustable
Viewing Angle (Horizontal/Vertical)	120° / 120°	160°	160°
Brightness/Colour Uniformity	≥97%	≥97%	≥97%
Contrast Ratio	5000:1	5000:1	5000:1
Max Power Consumption (W/m2)	≤650	≤800	≤800
Average Power Consumption (W/m2)	≤150	≤235	≤235
Input Power Voltage	AC110–220V± 15%, 50 / 60 (Hz)	AC110–220V± 15%, 50 / 60 (Hz)	AC110–220V± 15%, 50 / 60 (Hz)
Drive Mode	Constant Current Drive (common anode)	Constant Current Drive (common anode)	Constant Current Drive (common anode)
Frame Rate (Hz)	30–120 Hz	50–60 Hz	50–60 Hz
Refresh Rate (Hz)	1920–3840 Hz	3840 Hz	3840 Hz
Colour Depth (bits)	14–16 bit	16 bit	16 bit
Life Span, typ. (Hrs)	100,000	100,000	100,000
Operating Temp (°C)	-20 – 60	-20 – 60	-20 – 60
Storage Temp (°C)	-20 – 60	-20 – 60	-20 – 60
Operating Humidity (RH)	10–90%	10–90%	10–90%
Storage Humidity (RH)	10–90%	10–90%	10–90%
Encapsulation Technology — QCOB	Available	Available	Available
Scan Rate		4	2
