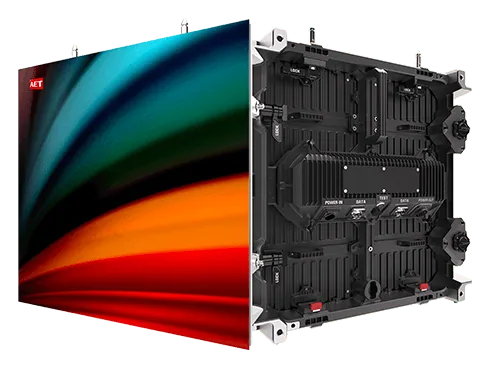

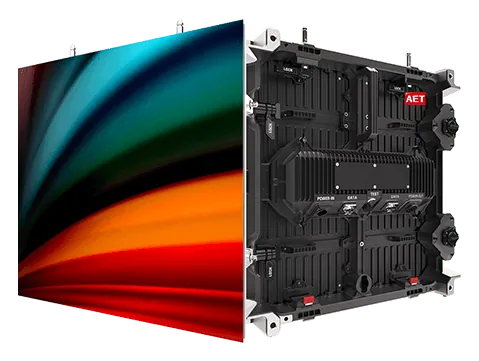

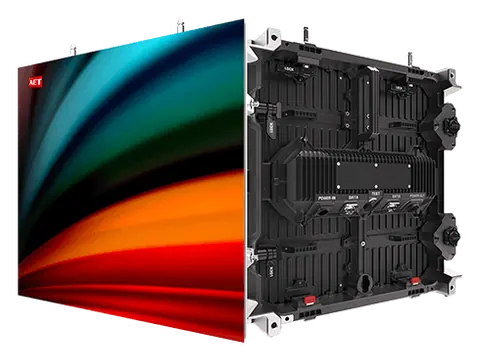

QR Indoor P2.9

Manufactured for XR Applications & Studios, QR Indoor Series provides captivating visuals, featuring superior color purity, and high refresh rates, ideal for in-camera applications like live events or xR studios.

Series: QR Series (Indoor)
Pixel pitch: 2.9 mm
Cabinet size: 500 × 500 × 93mm / 500 × 1000 × 93mm
Refresh rate: ≥3840 Hz
LED type: SMD 3-in-1 2121 mm
Weight (per cabinet): ≤7.5 kg / ≤13 kg
Servicing: Front / Rear

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 31 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications31

Pixel pitch: 2.9 mm
LED Type: SMD 3-in-1 2121 mm
Pixel Density (m2): 28,224 pixels / cabinet / 56,448 pixels / cabinet
Resolution of LED Module: 84 × 84 pixels
Resolution of Cabinet: 168 × 168 pixels / 168 × 336 pixels
LED Module Size: 250 × 250 mm

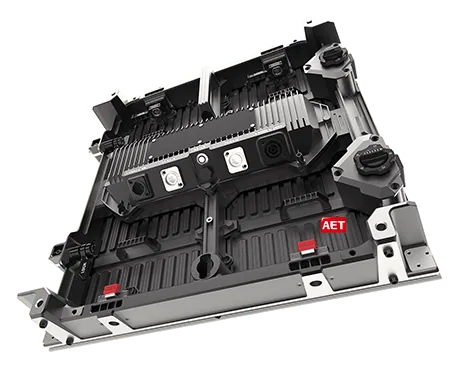

Cabinet Size: 500 × 500 × 93mm / 500 × 1000 × 93mm
No. of Modules Per Cabinet: 2 × 2 / 2 × 4
Cabinet Area: 0.25 m2 / 0.5 m2
Aspect Ratio: 16:9
Weight (per cabinet): ≤7.5 kg / ≤13 kg
Cabinet Material: Die-casting Aluminium / Aluminium-magnesium
Brightness – Adjustable: 800 nit
Contrast Ratio: 5,000:1
Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 160°
Colour Temperature – Adjustable: 2000–10000 K Adjustable
Average Power Consumption (W/m2): ≤160 W / m3
Max Power Consumption (W/m2): ≤580 W / m3
Input Power Voltage: AC 100–240V, 50 / 60 (Hz)
Drive Mode: Constant Current Drive
Frame Rate: 30–60 Hz
Refresh Rate: ≥3840 Hz
Grey Scale Processing: 14–16 bit
Operational Conditions — Operating Temp/Humidity: -12 – 50°C / 10% – 90% RH
Operational Conditions — Storage Temp/Humidity: -20 – 60°C / 10% – 90% RH
Operational Conditions — IP Rating: IP54 (Front) / IP43 ( Rear)
Operational Conditions — Life Span, typ: 100,000 Hrs
Servicing: Front / Rear
Flatness: ≤0.3 mm
Service — Servicing: Front

02Models5 models in the family

Models compared.

Model	QR Indoor P0.9	QR Indoor P1.9	QR Indoor P2.6	QR Indoor P2.9	QR Indoor P3.9
Pixel pitch	0.9 mm	1.9 mm	2.6 mm	2.9 mm	3.9 mm
LED Type	SMD 4-in-1 common cathode	SMD 3-in-1 1515 mm	SMD 3-in-1 1515 mm	SMD 3-in-1 2121 mm	SMD 3-in-1 2121 mm
Pixel Density (m2)	58,9824 pixels / cabinet	65,536 pixels / cabinet / 131,072 pixels / cabinet	36,864 pixels / cabinet / 73,728 pixels / cabinet	28,224 pixels / cabinet / 56,448 pixels / cabinet	16,384 pixels / cabinet / 32,768 pixels / cabinet
Resolution of LED Module (W × H)	256 × 288 pixels	128 × 128 pixels	96 × 96 pixels	84 × 84 pixels	64 × 64 pixels
Resolution of Cabinet (W × H)	1024 × 576 pixels	256 × 256 pixels / 256 × 512 pixels	192 × 192 pixels / 192 × 384 pixels	168 × 168 pixels / 168 × 336 pixels	128 × 128 pixels / 128 × 256 pixels
LED Module Size (W × H)	240 × 270 mm	250 × 250 mm	250 × 250 mm	250 × 250 mm	250 × 250 mm
Cabinet Size (W × H × D)	960 × 540 × 27.2mm \| 43 in	500 × 500 × 93mm / 500 × 1000 × 93mm	500 × 500 × 93mm / 500 × 1000 × 93mm	500 × 500 × 93mm / 500 × 1000 × 93mm	500 × 500 × 93mm / 500 × 1000 × 93mm
No. of Modules Per Cabinet (W × H)	8 × 3	2 × 2 / 2 × 4	2 × 2 / 2 × 4	2 × 2 / 2 × 4	2 × 2 / 2 × 4
Cabinet Area	0.5184 m2	0.25 m2 / 0.5 m2	0.25 m2 / 0.5 m2	0.25 m2 / 0.5 m2	0.25 m2 / 0.5 m2
Aspect Ratio	16:9	16:9	16:9	16:9	16:9
Weight (per cabinet)	11 kg	≤7.5 kg / ≤13 kg	≤7.5 kg / ≤13 kg	≤7.5 kg / ≤13 kg	≤7.5 kg / ≤13 kg
Cabinet Material	Die-casting Aluminium / Aluminium-magnesium alloy	Die-casting Aluminium / Aluminium-magnesium	Die-casting Aluminium / Aluminium-magnesium	Die-casting Aluminium / Aluminium-magnesium	Die-casting Aluminium / Aluminium-magnesium
Brightness – Adjustable	500–1000 nit adjustable	800 nit	800 nit	800 nit	800 nit
Contrast Ratio	7,000:1	5,000:1	5,000:1	5,000:1	5,000:1
Horizontal Viewing Angle	≥160°	160°	160°	160°	160°
Vertical Viewing Angle	≥160°	160°	160°	160°	160°
Scan Rate	48
Colour Temperature – Adjustable	3200–9300 K	2000–10000 K Adjustable	2000–10000 K Adjustable	2000–10000 K Adjustable	2000–10000 K Adjustable
Average Power Consumption (W/m2)	≤150 W / m3	≤160 W / m3	≤160 W / m3	≤160 W / m3	≤160 W / m3
Max Power Consumption (W/m2)	≤650 W / m3	≤580 W / m3	≤580 W / m3	≤580 W / m3	≤580 W / m3
Input Power Voltage	AC 100–240V, 50 / 60 (Hz)	AC 100–240V, 50 / 60 (Hz)	AC 100–240V, 50 / 60 (Hz)	AC 100–240V, 50 / 60 (Hz)	AC 100–240V, 50 / 60 (Hz)
Drive Mode	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive
Frame Rate (Hz)	30–120 Hz	30–60 Hz	30–60 Hz	30–60 Hz	30–60 Hz
Refresh Rate (Hz)	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz
Grey Scale Processing	14–18 bit	14–16 bit	14–16 bit	14–16 bit	14–16 bit
Operational Conditions — Operating Temp/Humidity	-10 – 45°C / 10% – 90% RH	-12 – 50°C / 10% – 90% RH	-12 – 50°C / 10% – 90% RH	-12 – 50°C / 10% – 90% RH	-12 – 50°C / 10% – 90% RH
Operational Conditions — Storage Temp/Humidity	-20 – 60°C / 10% – 90% RH	-20 – 60°C / 10% – 90% RH	-20 – 60°C / 10% – 90% RH	-20 – 60°C / 10% – 90% RH	-20 – 60°C / 10% – 90% RH
Operational Conditions — IP Rating	IP5X	IP54 (Front) / IP43 ( Rear)	IP54 (Front) / IP43 ( Rear)	IP54 (Front) / IP43 ( Rear)	IP54 (Front) / IP43 ( Rear)
Operational Conditions — Life Span, typ	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Operational Conditions — Service	Servicing / Front
Servicing		Front / Rear	Front / Rear	Front / Rear	Front / Rear
Flatness		≤0.3 mm	≤0.3 mm	≤0.3 mm	≤0.3 mm
Service — Servicing		Front	Front	Front	Front
