Infinite Possibilities, Unmatched Performance

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
| Model | QV 18 | QV 19 | QV 25 | QV 26 | QV 29 | QV 39 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.8mm | 1.95mm | 2.5mm | 2.60mm | 2.97mm | 3.91mm |
| LED Packaging Structure | SMD1515 | SMD1515 | SMD1415 | SMD1415 | SMD1415 | SMD1415 |
| Cabinet Size (mm) | 500 × 500 | 500 × 500 | 500 × 500 | 500 × 500 | 500 × 500 | 500 × 500 |
| Module Resolution | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Brightness (cd/m²) | Regular: 800 | XR:1200 | Regular: 800 | XR:1200 | Regular: 800 | XR:1200 | Regular: 800 | XR:1200 | Regular: 800 | XR:1200 | Regular: 800 | XR:1200 |
| Contrast Ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 |
| Refresh Rate (Hz) | Regular: 3840 | XR: 7680 | Regular: 3840 | XR: 7680 | Regular: 3840 | XR: 7680 | Regular: 3840 | XR: 7680 | Regular: 3840 | XR: 7680 | Regular: 3840 | XR: 7680 |
| Avg./Peak Power Consumption (w/m²) | 180 / 520 | 180 / 520 | 180 / 520 | 180 / 520 | 180 / 520 | 180 / 520 |
| Jointed Arc | Straight edge 180° / Right angle 90° polyhedron / 0, 2.5°, 5°, 7.5°, 10° | Straight edge 180° / Right angle 90° polyhedron / 0, 2.5°, 5°, 7.5°, 10° | Straight edge 180° / Right angle 90° polyhedron / 0, 2.5°, 5°, 7.5°, 10° | Straight edge 180° / Right angle 90° polyhedron / 0, 2.5°, 5°, 7.5°, 10° | Straight edge 180° / Right angle 90° polyhedron / 0, 2.5°, 5°, 7.5°, 10° | Straight edge 180° / Right angle 90° polyhedron / 0, 2.5°, 5°, 7.5°, 10° |
| Operating Temp. + Humidity | 0 to 40°C / 10%-90% Condensation Free | 0 to 40°C / 10%-90% Condensation Free | 0 to 40°C / 10%-90% Condensation Free | 0 to 40°C / 10%-90% Condensation Free | 0 to 40°C / 10%-90% Condensation Free | 0 to 40°C / 10%-90% Condensation Free |
| Chromaticity Uniformity | within 0.003 Cx, Cy | within 0.003 Cx, Cy | within 0.003 Cx, Cy | within 0.003 Cx, Cy | within 0.003 Cx, Cy | within 0.003 Cx, Cy |

Features
180 degree straight edge, 90 degree double sided or polyhedron, or 0 to 10 degree left/right or up/down inner/outdoor arc.

Features

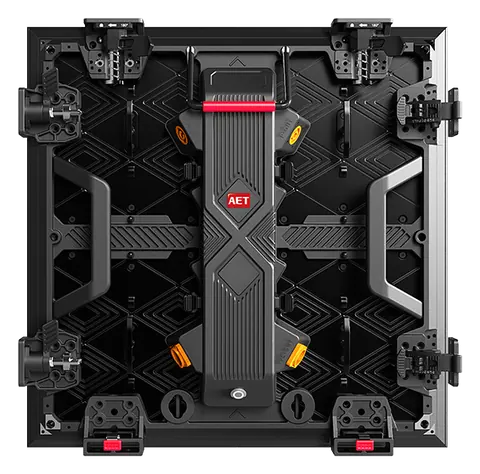

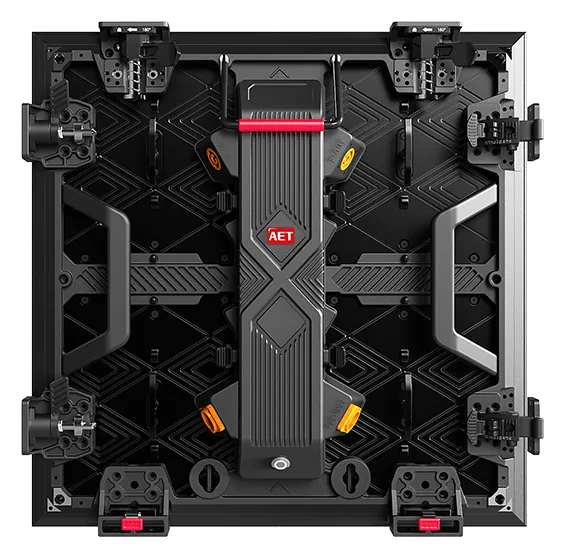

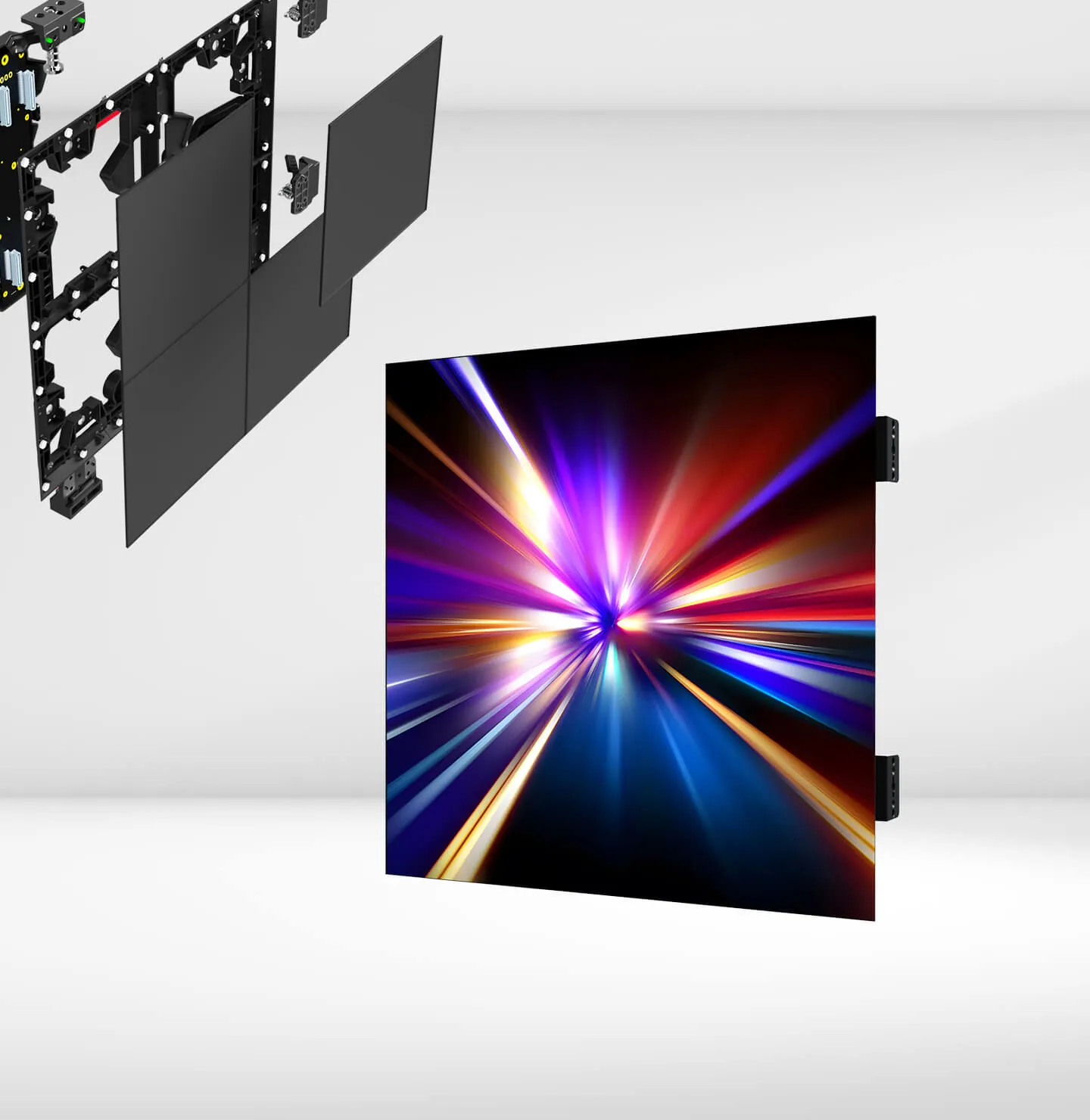

Die casting aluminium box & display unit module design, unenchantable structure platform, fast installation & maintenance.

Features

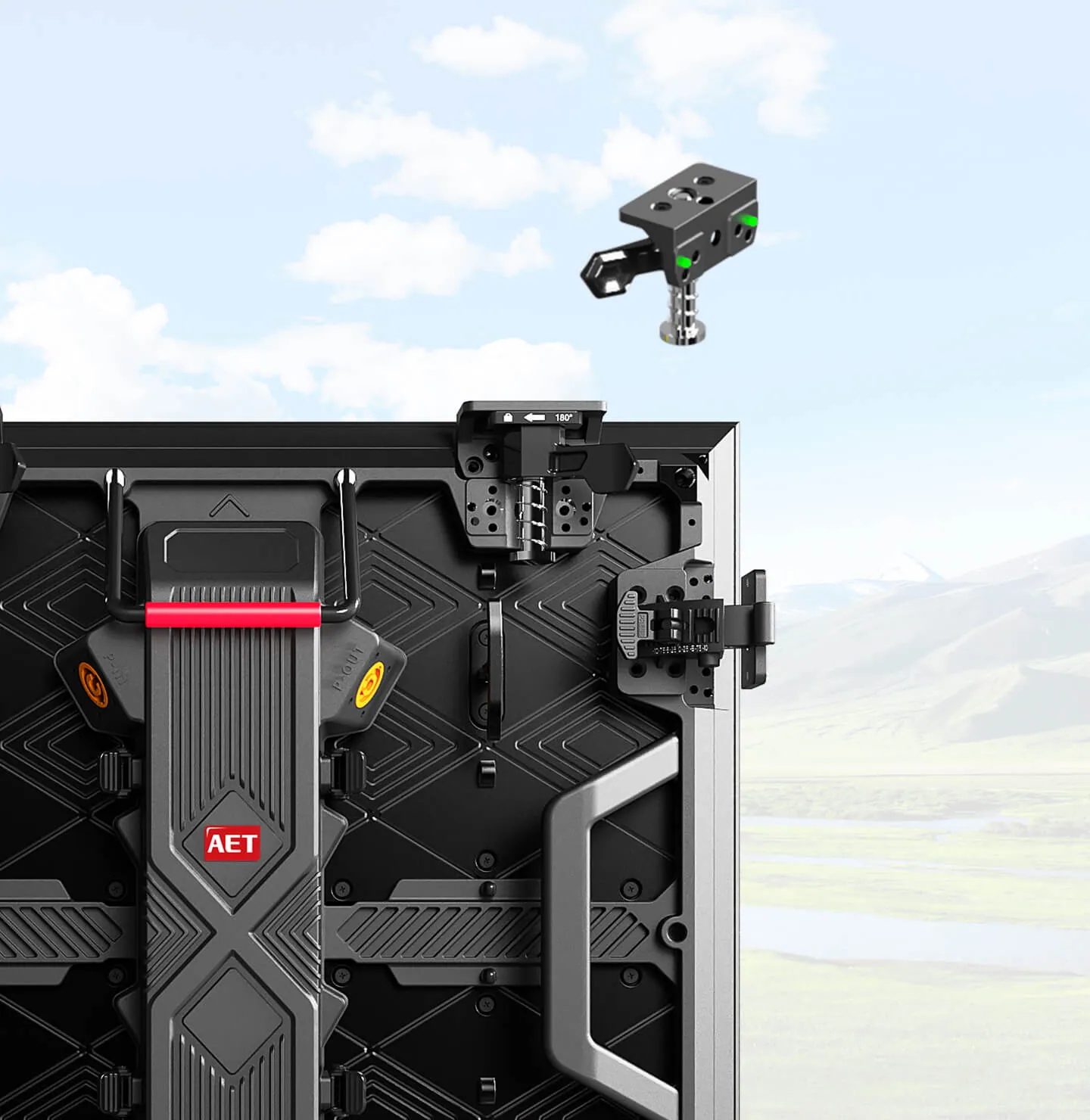

One box, endless possibilities, user can choose the straight, right angle, or arc locks to customised their platform for a perfect fit. all budget friendly with a variety of splicing need.

Features

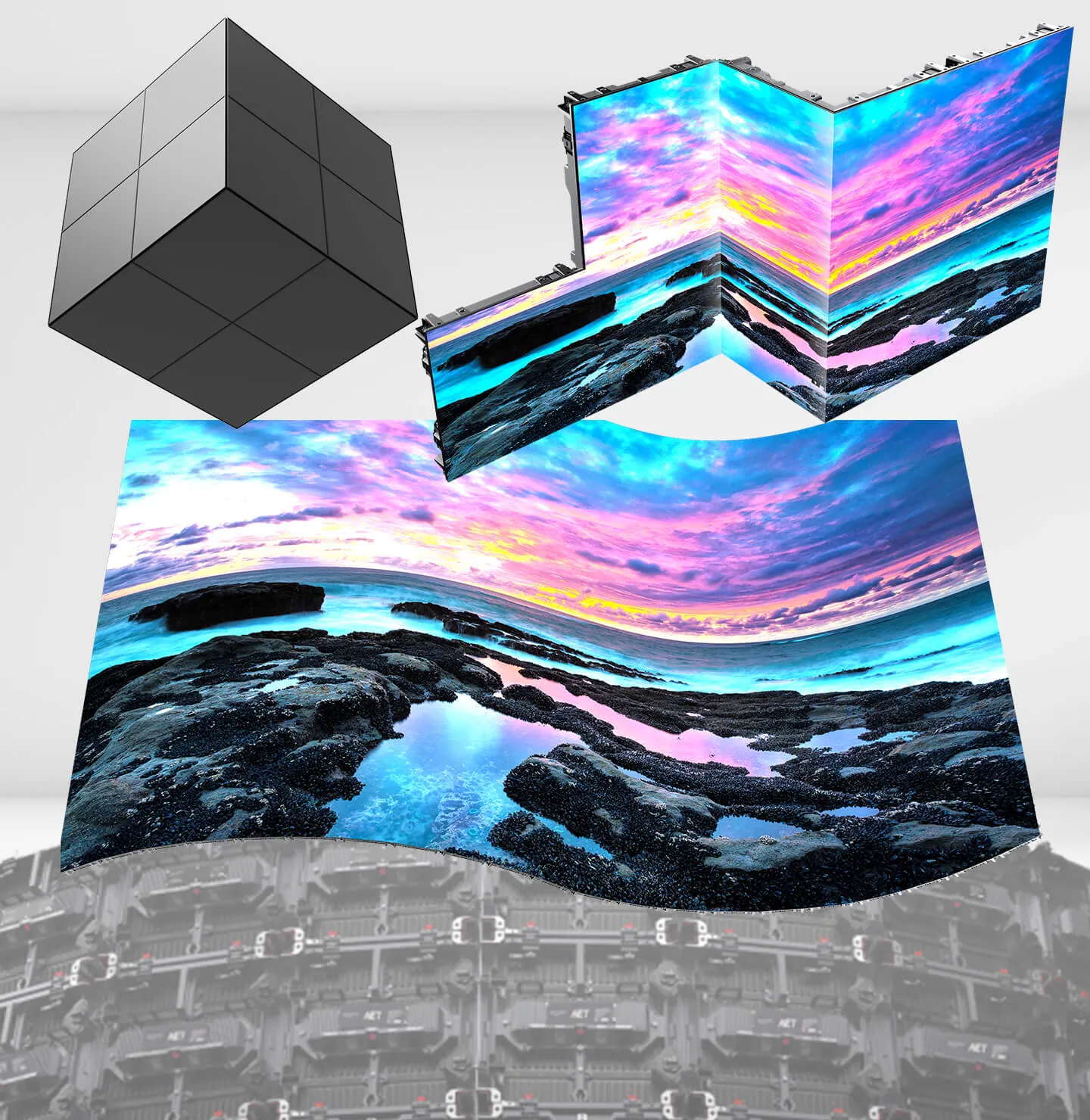

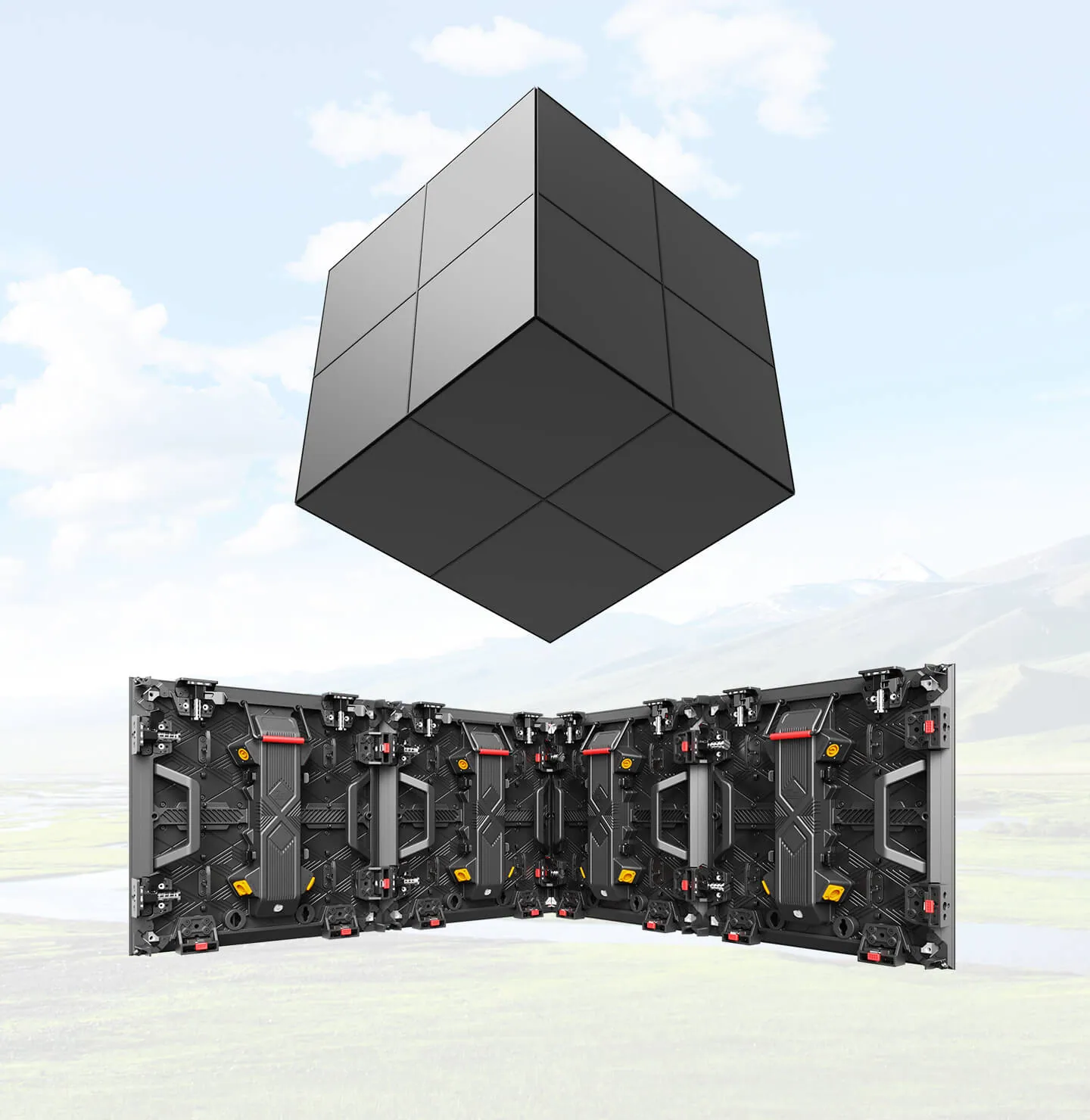

Available in multiple shapes, S-shape, cylindrical, straight & Curved. Gives the utmost creativity and freedom 2.5degree curved screen, pediment screen, 180degree flat screen, cubical screen.

Features

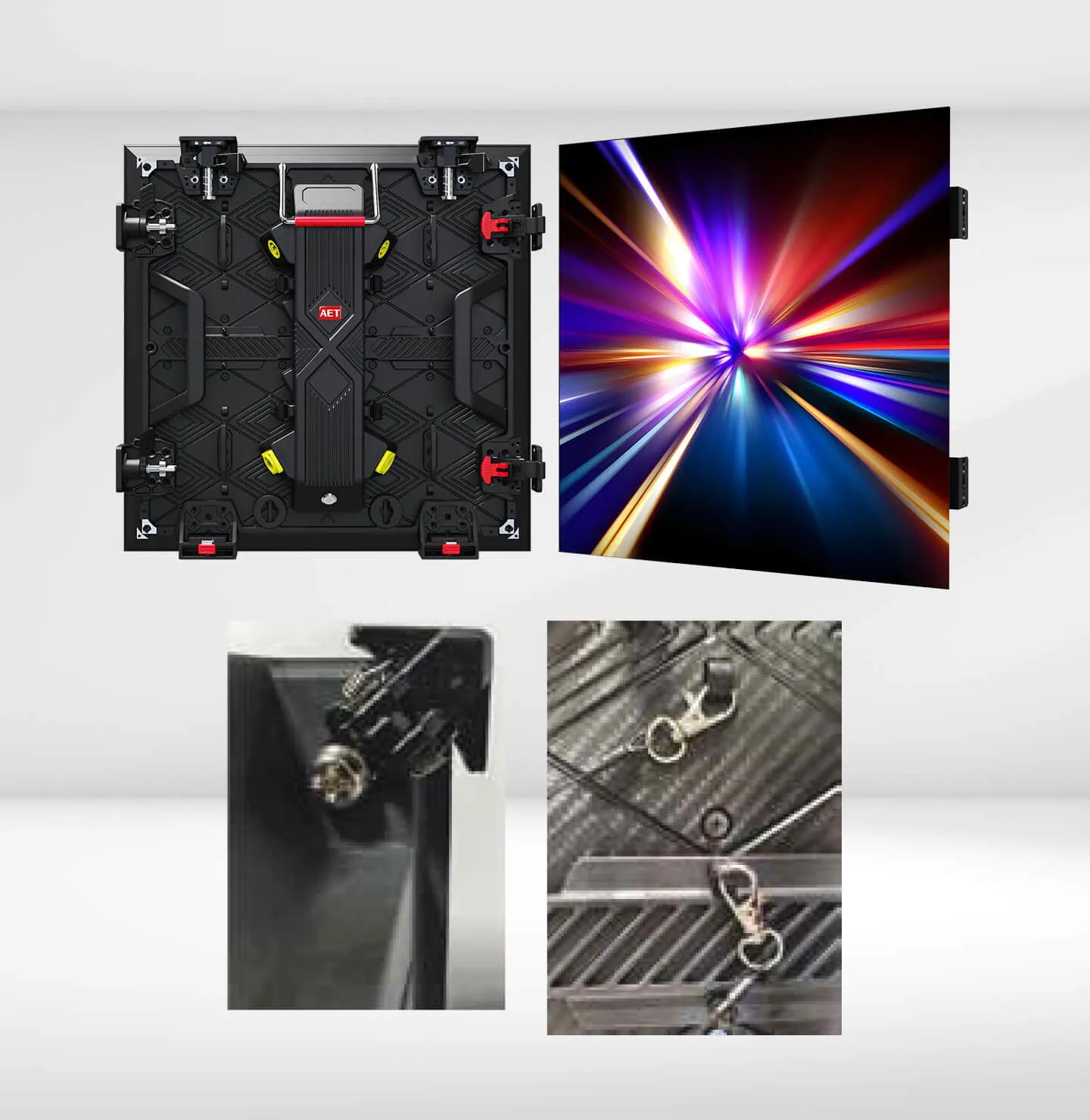

Moisture, dust & Scratch resistant, ANTI-Bump corners & sides and modular safety rope protection. Detailed view of semi-automatic corner protection, detailed view of modular safety rope protection.

Features

Features

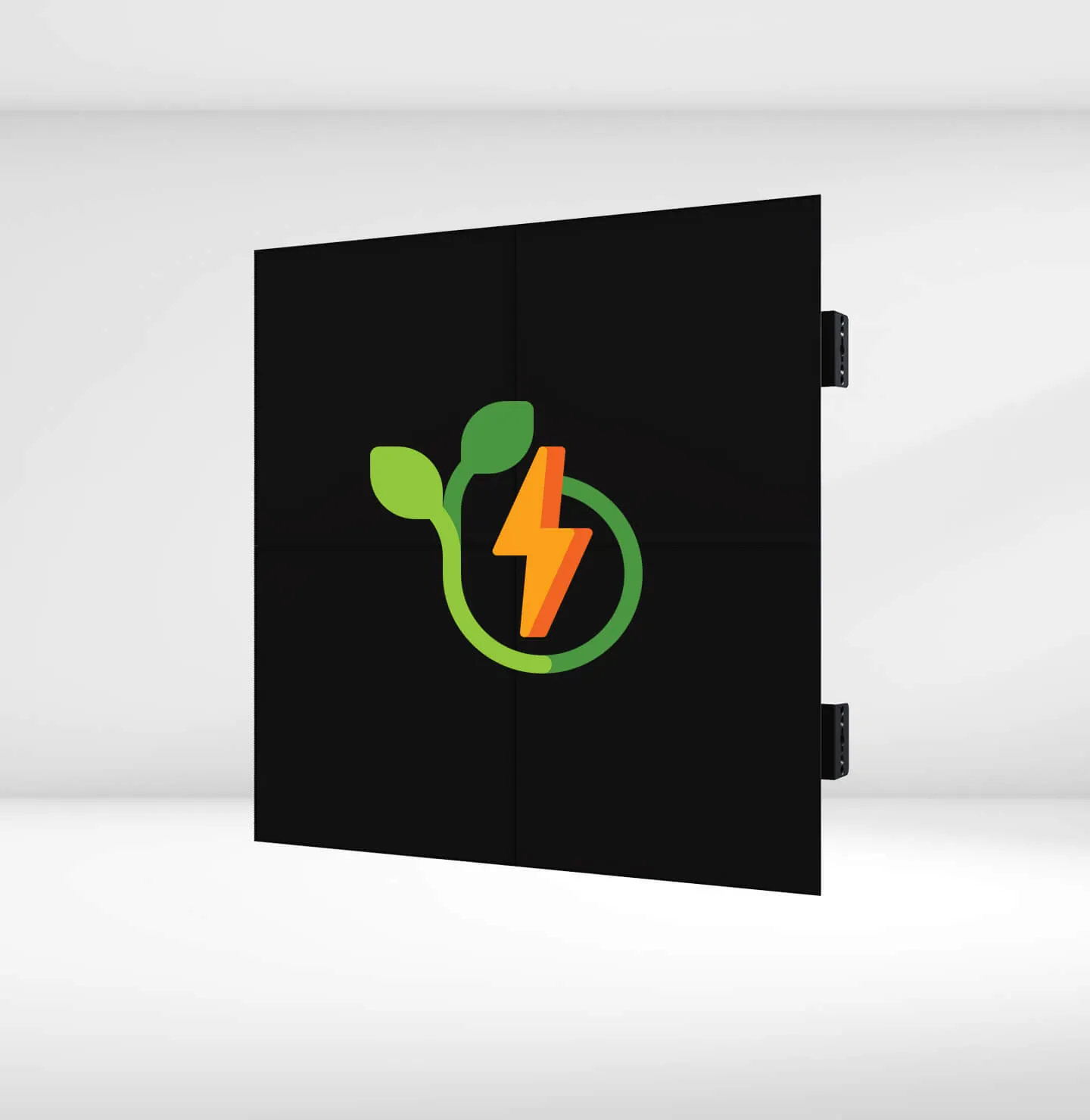

AET’s unique high-integration common cathode technology enables low power consumption with low temperature rise. LED’s lifespan improves dramatically which is high in energy efficiency and highly reliable.

Features
Designed with dual redundancy to ensure stable performance, even in the most critical situations. This feature is essential for applications where downtime is not an option, such as live broadcasts or critical XR applications.
