Video Controller

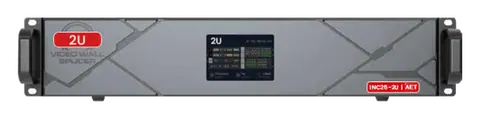

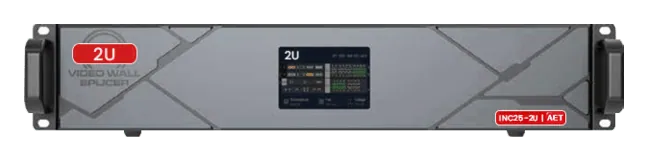

The INC25-2U is AET’s next-generation modular video wall splicer, combining military-grade reliability with unmatched flexibility for fine-pitch LED control.

Series
Video Controller
Model
2U
Max. Input Cards
4
Max. Input Channels
16
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 23 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications23
Model
2U
Max. Input Cards
4
Max. Input Channels
16
Max. Output Cards
2
Max. Output Channels
8
Max. Loading Capacity — H_20×RJ45+2xfiber sendingcard
26 million pixels
Max. Loading Capacity — H_4×fiber sending card
41.6 million pixels
Max. Layers
32
Electrical Specifications — Power connector
100–240V~, 50 / 60Hz, 4.0A
Electrical Specifications — Power consumption
210 W
Operating Environment — Temperature
0°C to 45°C
Operating Environment — Humidity
0% RH to 80% RH, non-condensing
Storage Environment — Temperature
-10°C to +60°C
Storage Environment — Humidity
0% RH to 95% RH, non-condensing
Physical Specifications — Dimensions
482.6 mm × 529.8 mm × 88.1 mm
Physical Specifications — Net weight
11 kg (chassis)
Physical Specifications — Gross weight
12.2 kg (chassis)
Noise Level (typical at 25°C / 77°F)
<45 dB (A)
Packing Information — Packagin Box
660 mm × 570 mm × 210 mm
Packing Information — Accessories
1x Power cord / 1x Quick Start Guide
1x RJ45 Ethernet cable
1x Certificate of Approval
1x Grounding cable
1x Safety Manual
1x HDMI cable
1x Custom Letter
02DescriptionManufacturer's description

What it is.

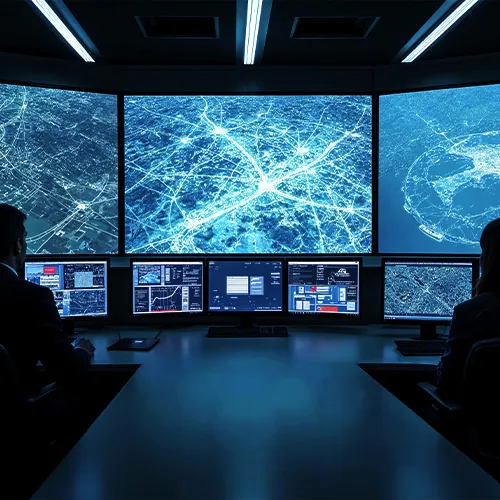

The INC25-2U is AET’s next-generation modular video wall splicer, combining military-grade reliability with unmatched flexibility for fine-pitch LED control. Built on a pure hardware FPGA architecture, it delivers 4K HDR processing, 32-layer compositing, and ultra-low latency—all through a web-based interface accessible from any OS (Windows, Mac, iOS, Android, Linux). Its hot-swappable I/O cards (HDMI 2.0, DP 1.2, 3G-SDI, IP) and dual-OPT fiber backups simplify integration, while 10-bit color and decimal frame rates (23.98–59.94Hz) ensure broadcast-ready performance. Whether powering a corporate boardroom, broadcast studio, or 24/7 command center, the INC25-2U scales seamlessly from single displays to complex video walls—with zero downtime and future-proof firmware updates.

Next-Generation Video Wall Splicer

Core Features

  • AET Video Controller: 41.6M Pixel Capacity

    41.6M Pixel Capacity

    Ultra-High Resolution

  • AET Video Controller: 32 Layers

    32 Layers

    Multi-Layer Control

  • AET Video Controller: HDCP Auto Decryption

    HDCP Auto Decryption

    Secure Signal Handling

  • AET Video Controller: HDR10 & HLG

    HDR10 & HLG

    Dynamic HDR Output

  • AET Video Controller: Decimal Frame Rate Support

    Decimal Frame Rate Support

    Broadcast-Ready

  • AET Video Controller: LCD Status Display

    LCD Status Display

    Real-Time Monitoring

  • AET Video Controller: Light Sensor Input

    Light Sensor Input

    Auto Brightness Control

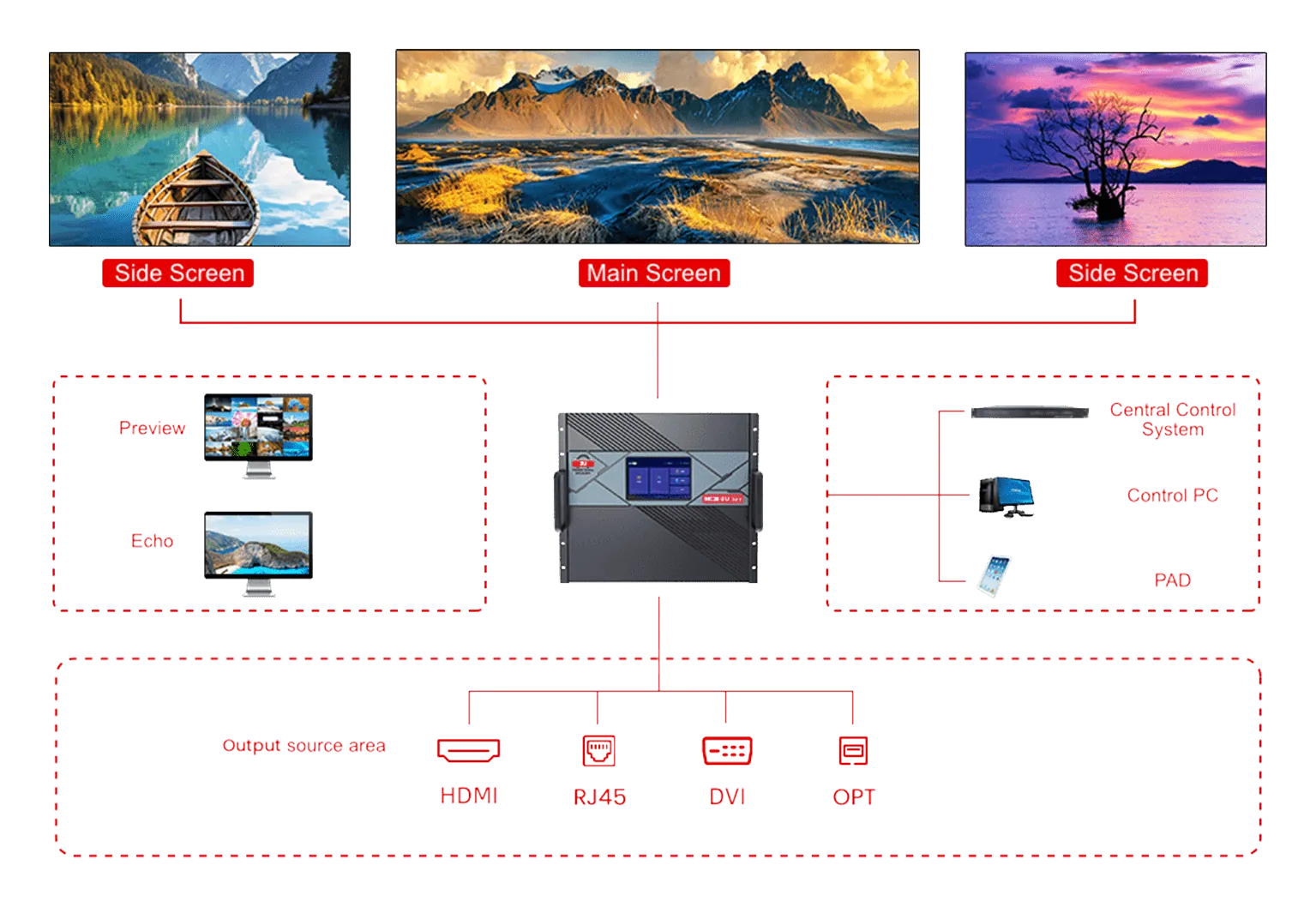

Designed for Scale & Simplicity

  • Supports multi-layer layouts with main + PIP configurations
  • USB & Ethernet cascading for large system deployments
  • Seamlessly integrates into AET’s LED ecosystem
  • Engineered for 24/7 performance in mission-critical or high-traffic zones
AET Video Controller: Designed for Scale & Simplicity

Flexible Input/Output Integration

  • AET Video Controller: INC25 2U Input

    INC25 2U Input

  • AET Video Controller: INC25 2U Output

    INC25 2U Output

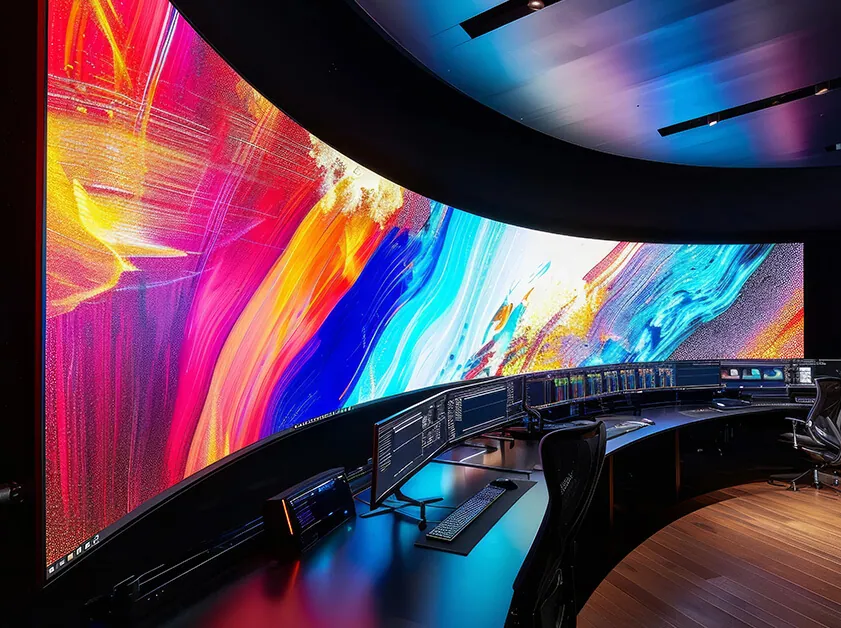

Why Choose INC25-2U

  • Scalable Architecture for large video walls and dynamic environments
  • HDR & Frame Rate Support for modern broadcast and content workflows
  • Modular Input/Output Design for easy configuration
  • Real-Time System Monitoring with front LCD screen
  • Trusted by AET integrators across sectors
AET Video Controller: Why Choose INC25-2U
