Sheet 05.880
Color Imagination · Theatre lighting
FRESNEL 200AS
ModelFR200AS

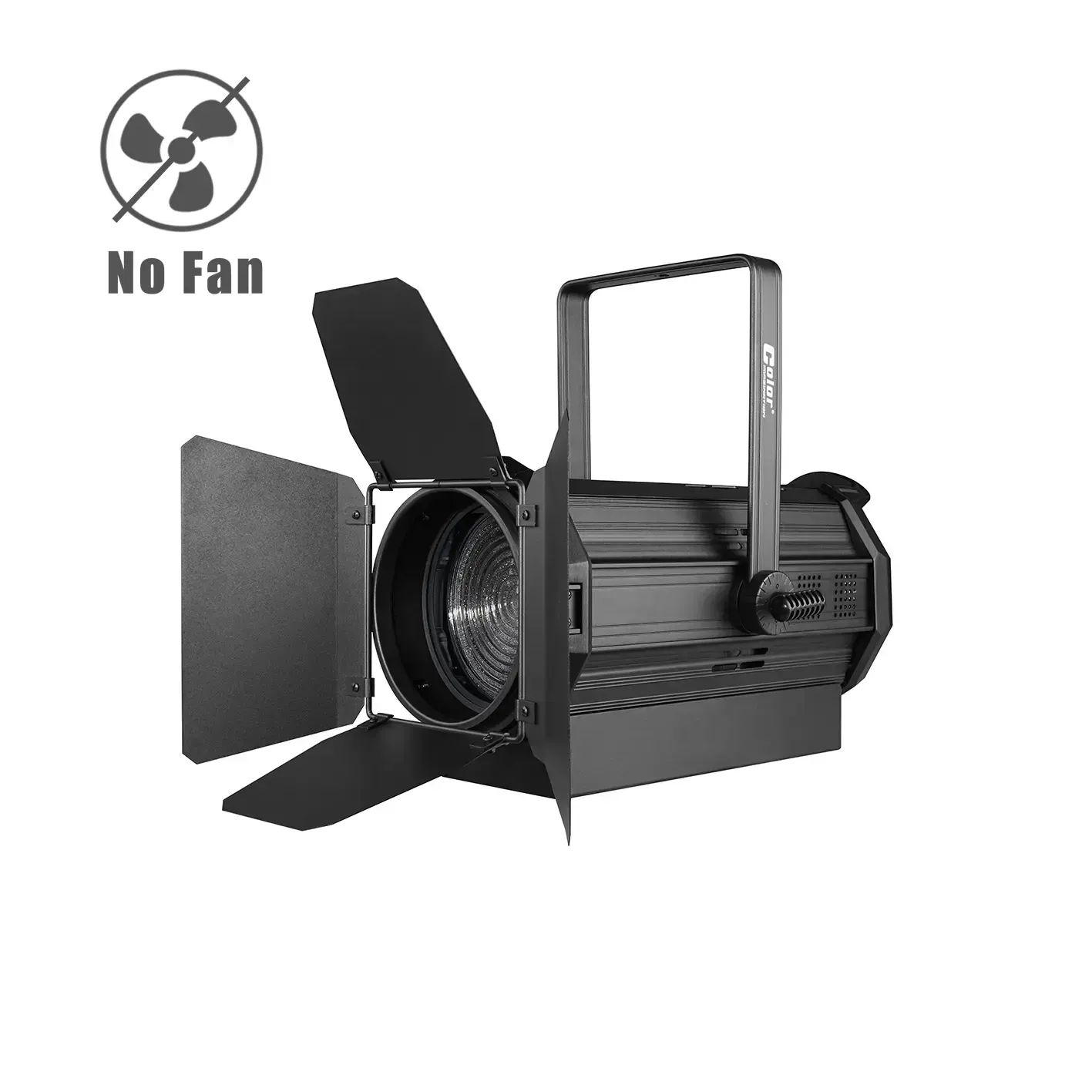

The FRESNEL 200AS is a high definition and NO-FAN designed LED studio wash light integrated into a die-cast aluminum alloy housing. It features a 200W 5-IN-1 LED (RGBAL), which delivers brightest output and the boldest rendering of the colors.
- Light source
- 1*200W 5-IN-1 LED (RGBAL)
- Power consumption
- 220W Power consumption
- Power supply
- AC100-240V 50/60Hz
- Ingress protection
- IP20 protection rating
- Net weight
- 10.9kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
FRESNEL 200ASPrice on requestRequest a quotation
01SpecificationManufacturer's data · 17 groups · 55 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source6
- Source
- 1*200W 5-IN-1 LED (RGBAL)
- CRI
- ≥90
- Flicker free operation for broadcast TV and FILM
- 2-25KHz Frequency adjustable
- Life Span
- 50000H
- The life span may vary depending on several following factors but not limited to
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
02Optics2
- A set of high resolution and precise optics
- Motorized zoom range
- 12°-65°
03Barn Door System1
- 4-Leaf rotating barn doors included
04Color System4
- RGBAL color mixing
- Pure and even coverage
- 2000K-8000K Linear color temperature adjustment
- Color frame included
05Strobe Effect1
- 0-25Hz LED shutter/strobe effect with variable speed
06Dimming System3
- 0-100% Smooth linear LED dimming
- 4 Dimming curves
- 2 Dimming modes
Show the full specificationHide the rest of the specification11 more groups · 38 values
07Control System6
- 3/8/11 DMX channels
- RDM available (Remote Device Management)
- DMX512, master-slave, or auto operation
- DMX recorder and edit function integrated
- Shielded input signal protection for stable signal without interference

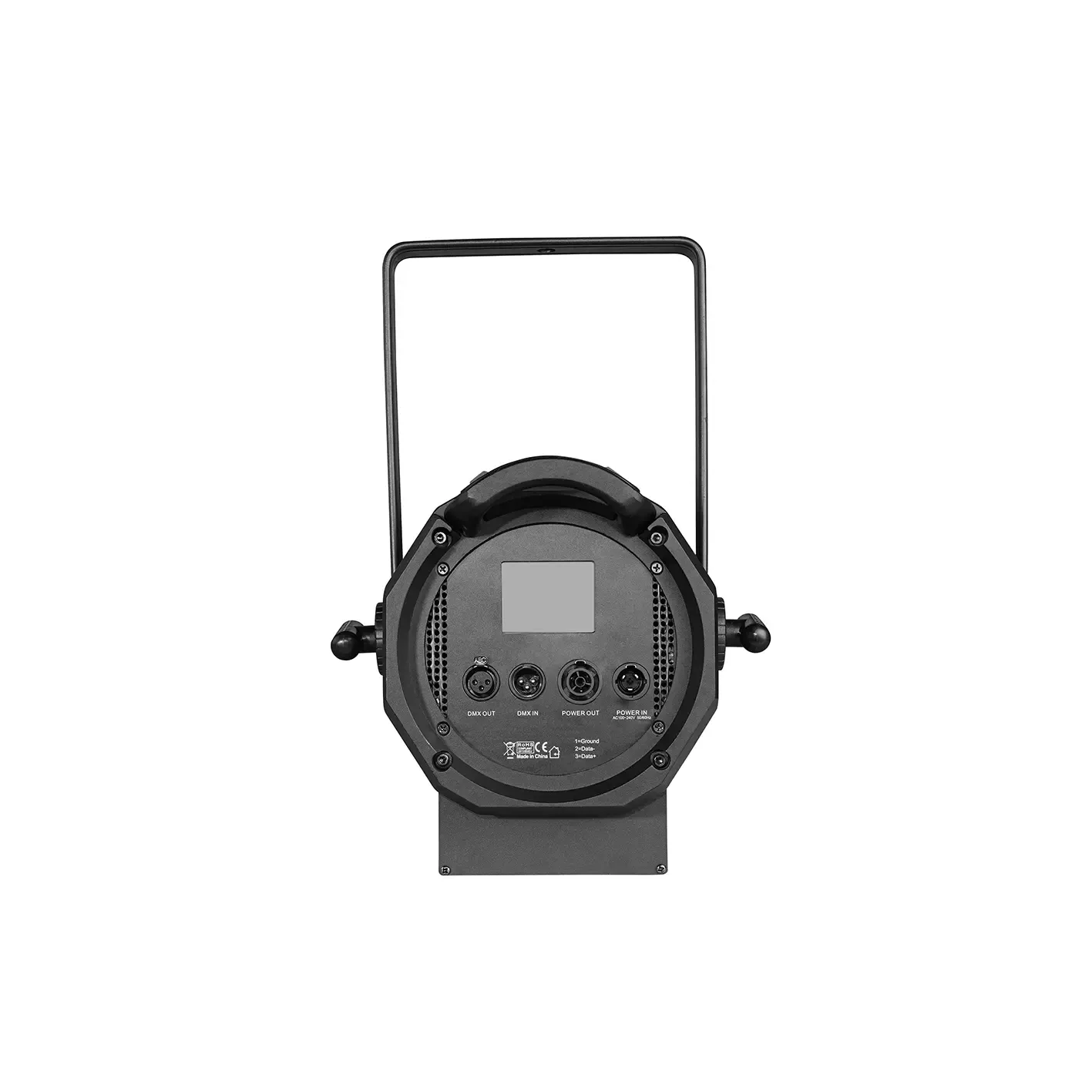

- 3-Pin XLR DMX connectors IN/OUT
08Display System3
- 2.8″ Touch TFT LCD display
- 180°Reversible for LCD display
- Display Auto OFF
09Cooling System4
- Advanced cooling system integrated aluminum and copper with liquid
- Ultra silent performance (No fan designed)
- Constant temperature readout and management function
- Over temperature protection management
10Power Supply4
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- TRUE-1 PowerCON IN/ OUT with fuse
- 220W Power consumption
11Housing2
- Skeleton made of aluminum and steel metal plates
- Exterior finish
- Black
12Installation2
- Single hanging bracket
- 1*Safety attachment point
13Operating Condition3
- Operating positions
- all
- -25°C to 45°C ambient temperature
- IP20 protection rating
14Compliance4
- CE
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
15Weight2
- N.W.
- 10.9kg
- G.W.
- 12.9kg
16Dimensions2
- Product Dimensions
- 540(D)*370(W)*281(H)mm
- Packing Dimensions
- 410(D)*660(W)*360(H)mm
17Accessories6
- Power Cable STANDARD code: QTY: 1PCS
- Signal Cable STANDARD code: QTY: 1PCS
- Omega STANDARD code: QTY: 2PCS
- Safety Cable STANDARD code: QTY: 1PCS
- Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions
- Clamps OPTIONAL code: QTY: 2PCS
02DescriptionManufacturer's description
What it is.
FRESNEL 200AS
The FRESNEL 200AS is a high definition and NO-FAN designed LED studio wash light integrated into a die-cast aluminum alloy housing. It features a 200W 5-IN-1 LED (RGBAL), which delivers brightest output and the boldest rendering of the colors. The 12°-65° linear motorized zoom range and a beautifully soft/even wash with high CRI make the fixture an ideal LED replacement for aging incandescent fresnel.
The fixture is equipped with a very versatile dimming system and reasonable LED driving frequency. The CRI is ≥90. It’s controllable by DMX512 or RDM.
The fixture comes with 4-leaf barn door system by which the users could adjust the projection coverage into smaller spot.
The FRESNEL is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.
03Documents1 file · 720 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

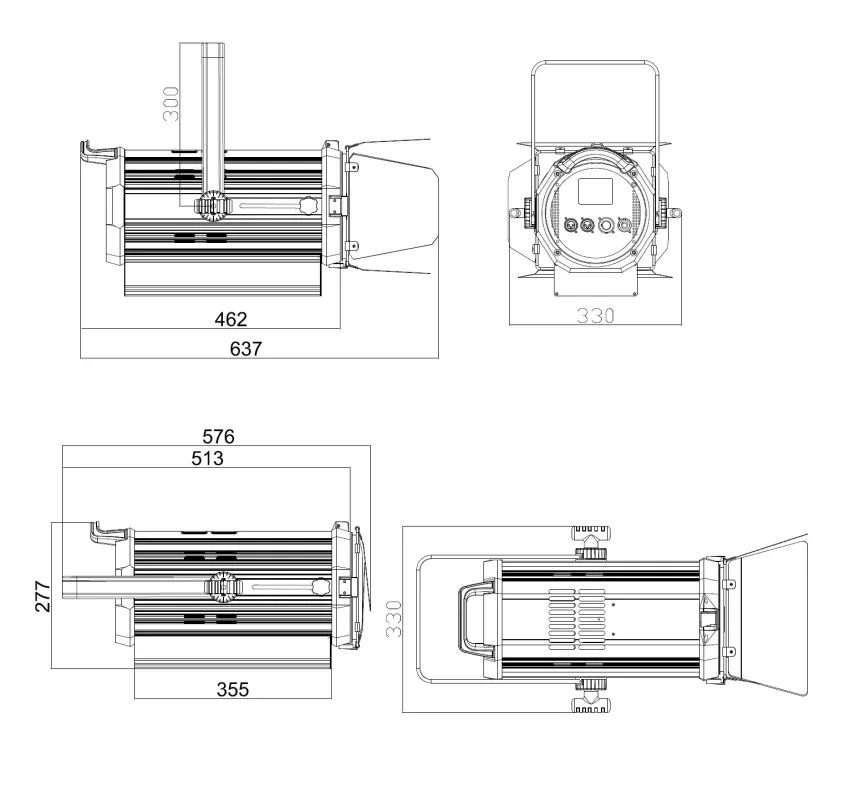

Drawings01
