Sheet 05.890

Color Imagination · Theatre lighting

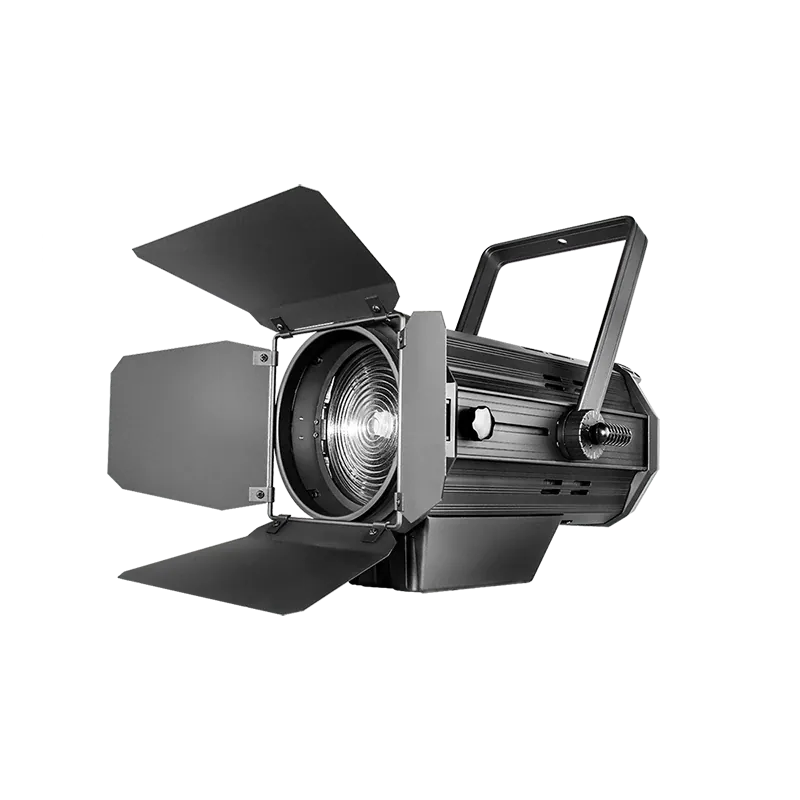

FRESNEL 300MW

ModelFR300MW

Light source: 1*CITIZEN 300W warm white LED (3200K)
Power consumption: 300W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 10.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 53 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 1*CITIZEN 300W warm white LED (3200K)
CRI: ≥90; Flicker free operation for broadcast TV and FILM; 2-25KHz Frequency adjustable
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics2

A set of high resolution and precise optics
Manual zoom range: 12°-65°

03Barn Door System1

4-Leaf rotating barn doors included

04Color System2

Pure and even 3200K coverage

Color frame included

05Strobe Effect1

0-25Hz LED shutter/strobe effect with variable speed

06Dimming System3

0-100% Smooth linear LED dimming

4 Dimming curves

2 Dimming modes

Show the full specificationHide the rest of the specification11 more groups · 38 values

07Control System6

4 DMX channels

RDM available (Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin XLR DMX connectors IN/OUT

08Display System3

2.8″ Touch TFT LCD display

180°Reversible for LCD display

Display Auto OFF

09Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Ultra silent performance (No fan designed)

Constant temperature readout and management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

TRUE-1 PowerCON IN/ OUT with fuse

300W Power consumption

11Housing2

Skeleton made of aluminum and steel metal plates
Exterior finish: Black

12Installation2

Single hanging bracket

1*Safety attachment point

13Operating Condition3

Operating positions: all; -25°C to 45°C ambient temperature; IP20 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 10.3kg
G.W.: 12.4kg

16Dimensions2

Product Dimensions: 540(D)*370(W)*281(H)mm
Packing Dimensions: 410(D)*660(W)*360(H)mm

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

FRESNEL 300MW

The FRESNEL 300AC is a high definition and ultra quiet LED studio wash light integrated into a die-cast aluminum alloy housing. It features a CITIZEN 300W cold white LED (5600K), which delivers brightest output and the boldest rendering of the colors. The 12°-65° linear motorized zoom range and a beautifully soft/even wash with high CRI make the fixture an ideal LED replacement for aging incandescent fresnel.

The fixture is equipped with a very versatile dimming system and reasonable LED driving frequency. The CRI is ≥90. It’s controllable by DMX512 or RDM.

The fixture comes with 4-leaf barn door system by which the users could adjust the projection coverage into smaller spot.

The FRESNEL is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.
