Sheet 05.560

Color Imagination · Spot and profile

GRAND 150L

ModelGL150

Light source: 1*150W White LED module
Power consumption: 171W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 6.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 20 groups · 73 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source5

Source: 1*150W White LED module
Color Temperature: 7500K(±500K); Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics3

A set of high resolution and precise optics

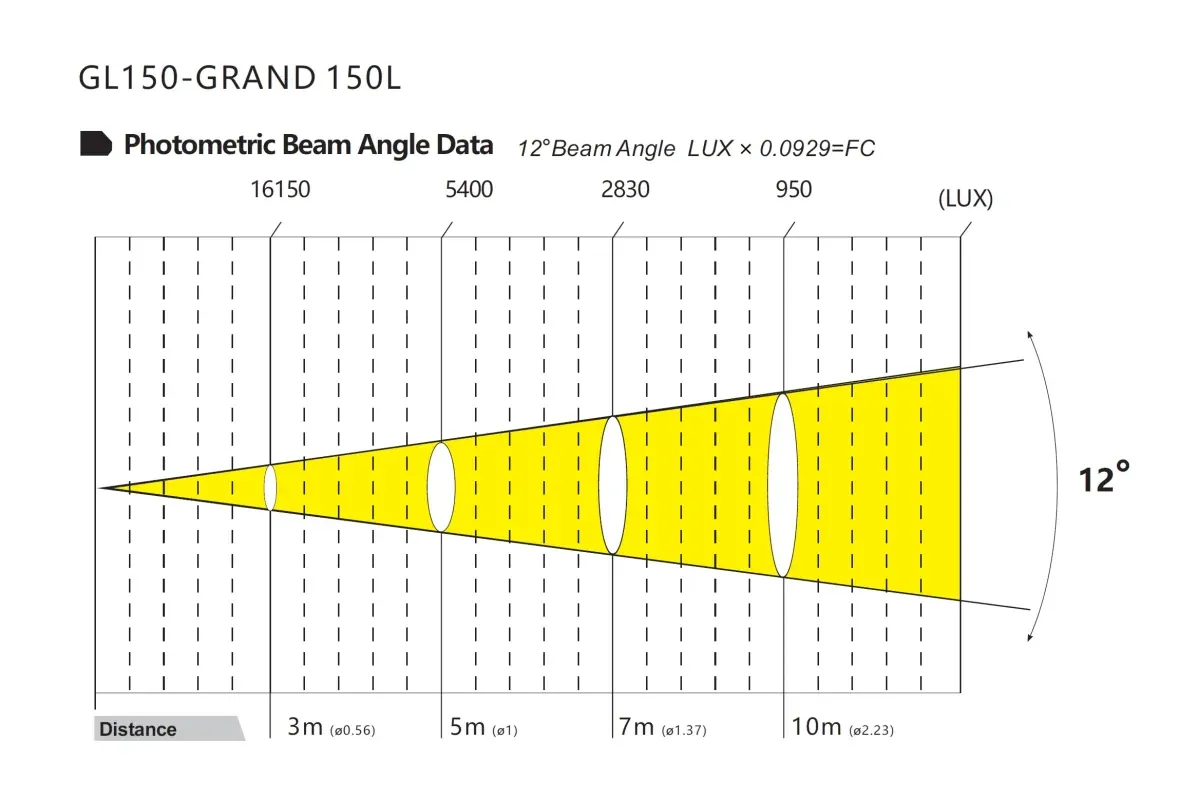

12°Projection angle

Linear electric focus with fine control

03Movement6

PAN: 540°(8/16 bit)
TILT: 270°(8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Color System2

1 Color wheel with 7 dichroic colors plus open (half color mode available)

Variable direction rainbow effect with speed adjustable

05Gobo System6

1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise

Gobo indexing

Gobo size 22mm (external)/16mm (inner)

1 Static gobo wheel with 7 gobos plus open with dithering effect

Fine control for rotating/static gobo wheels

Gobo overlay (gobo morphing)

06Prism System1

3-Facet prism with variable speed and direction

Show the full specificationHide the rest of the specification14 more groups · 50 values

07Strobe Effect2

0-25Hz LED shutter/strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect

08Dimming System1

0-100% Smooth linear LED dimming

09Control System9

15/18 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

LUMEN-RADIO wireless receiver built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin/5-pin XLR connectors IN/OUT

10Software Update2

Software up-datable through DMX connectors

Multi units up-datable in daisy chain

11Display System5

1.44″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

12Cooling System4

Advanced cooling system integrated aluminum

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

13Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

171W Power consumption

14Housing4

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

15Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

16Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

17Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

18Weight2

N.W.: 6.6kg
G.W.: 8.9kg

19Dimensions2

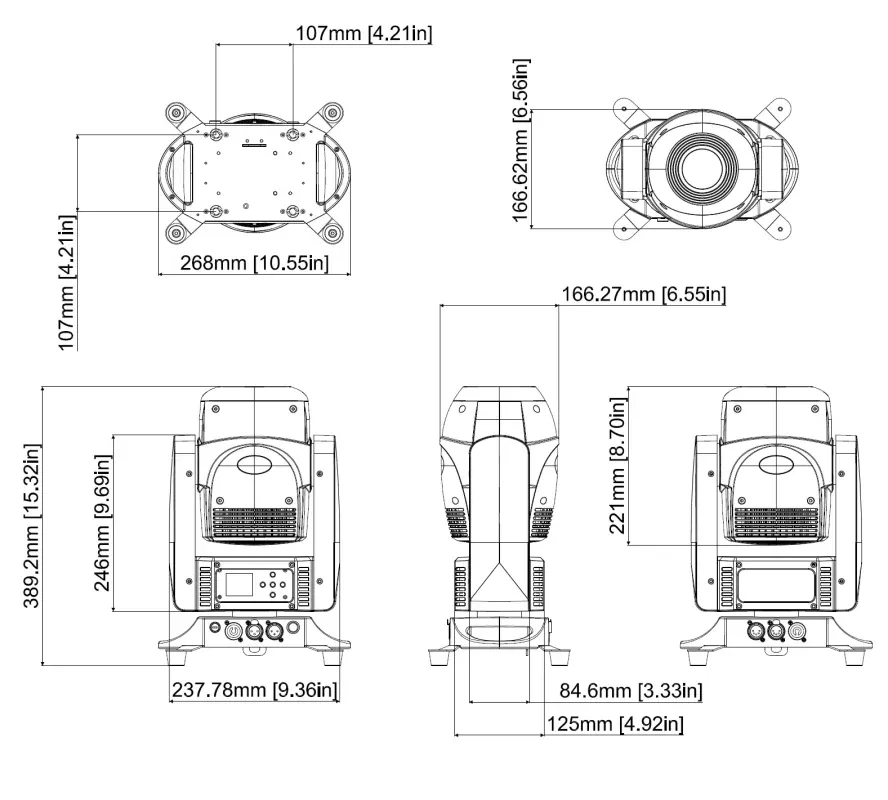

Product Dimensions: 166.3(D)*268(W)*389.2(H)mm
Packing Dimensions: 300(D)*485(W)*365(H)mm

20Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

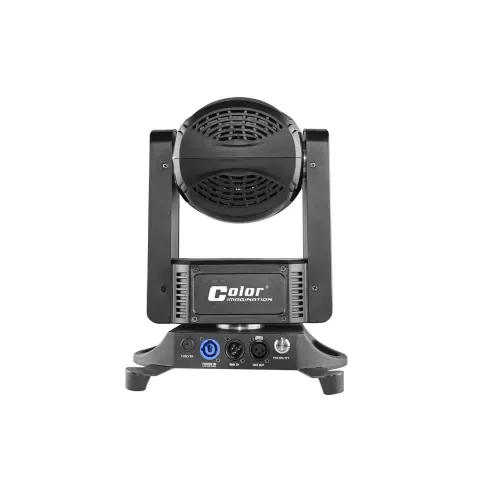

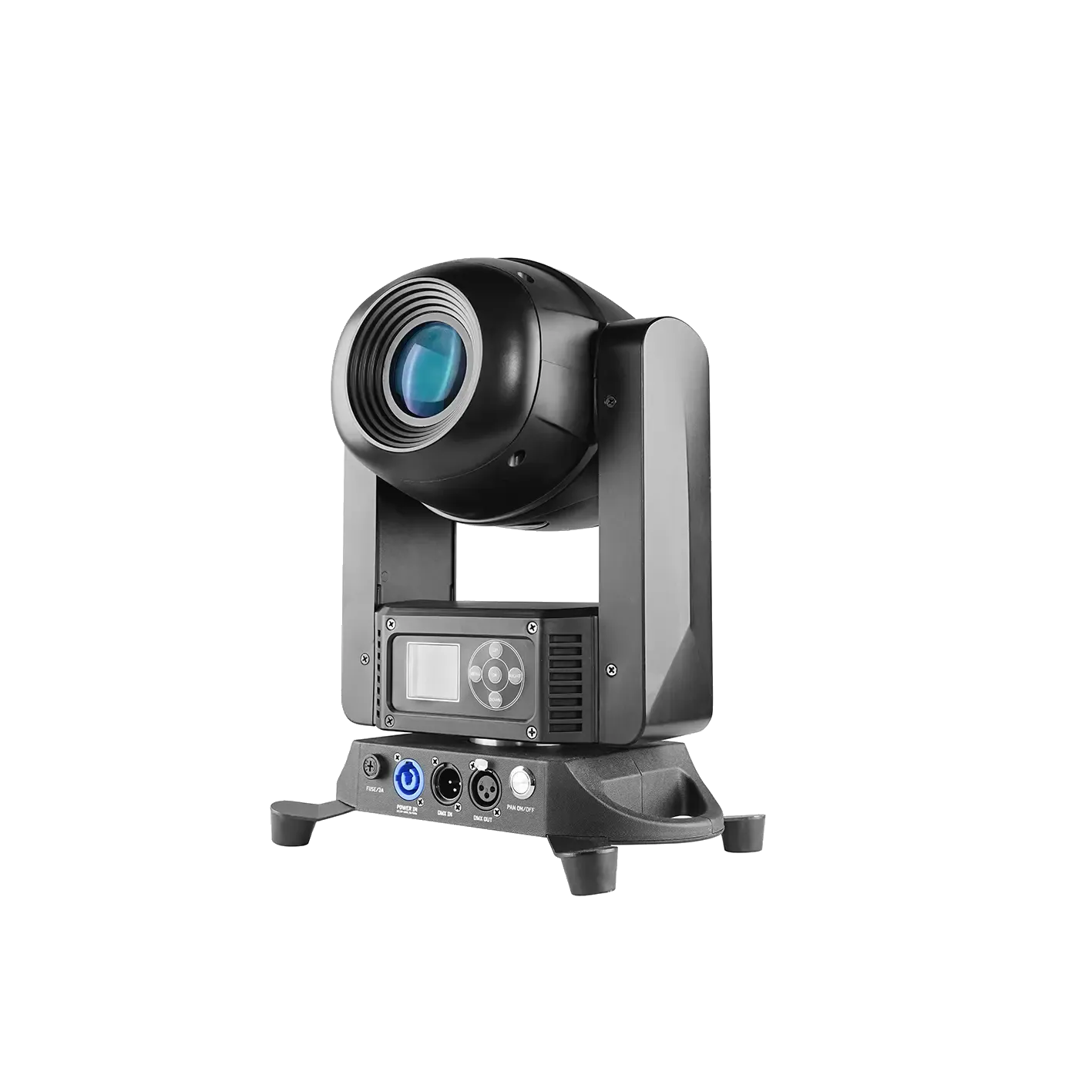

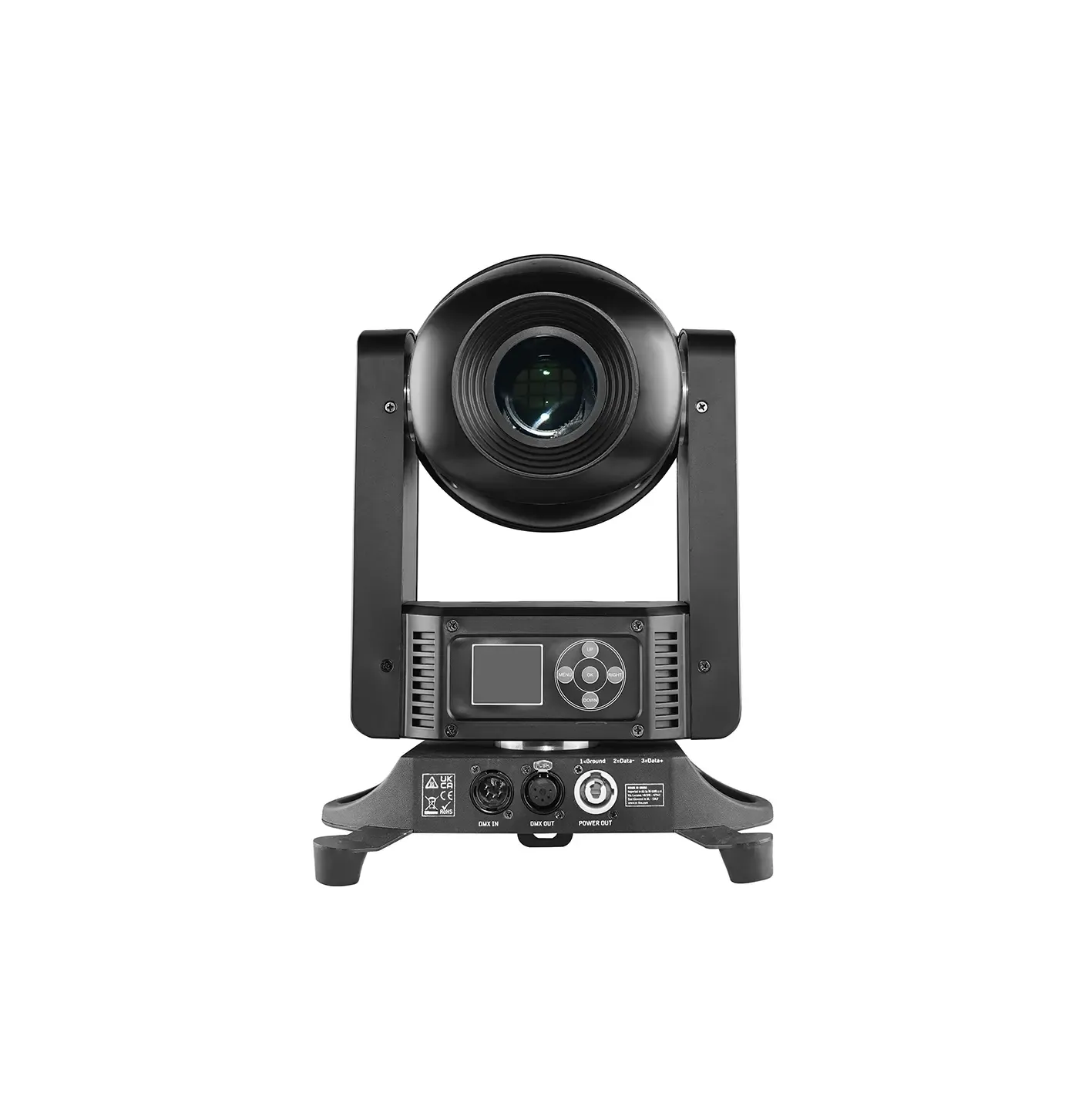

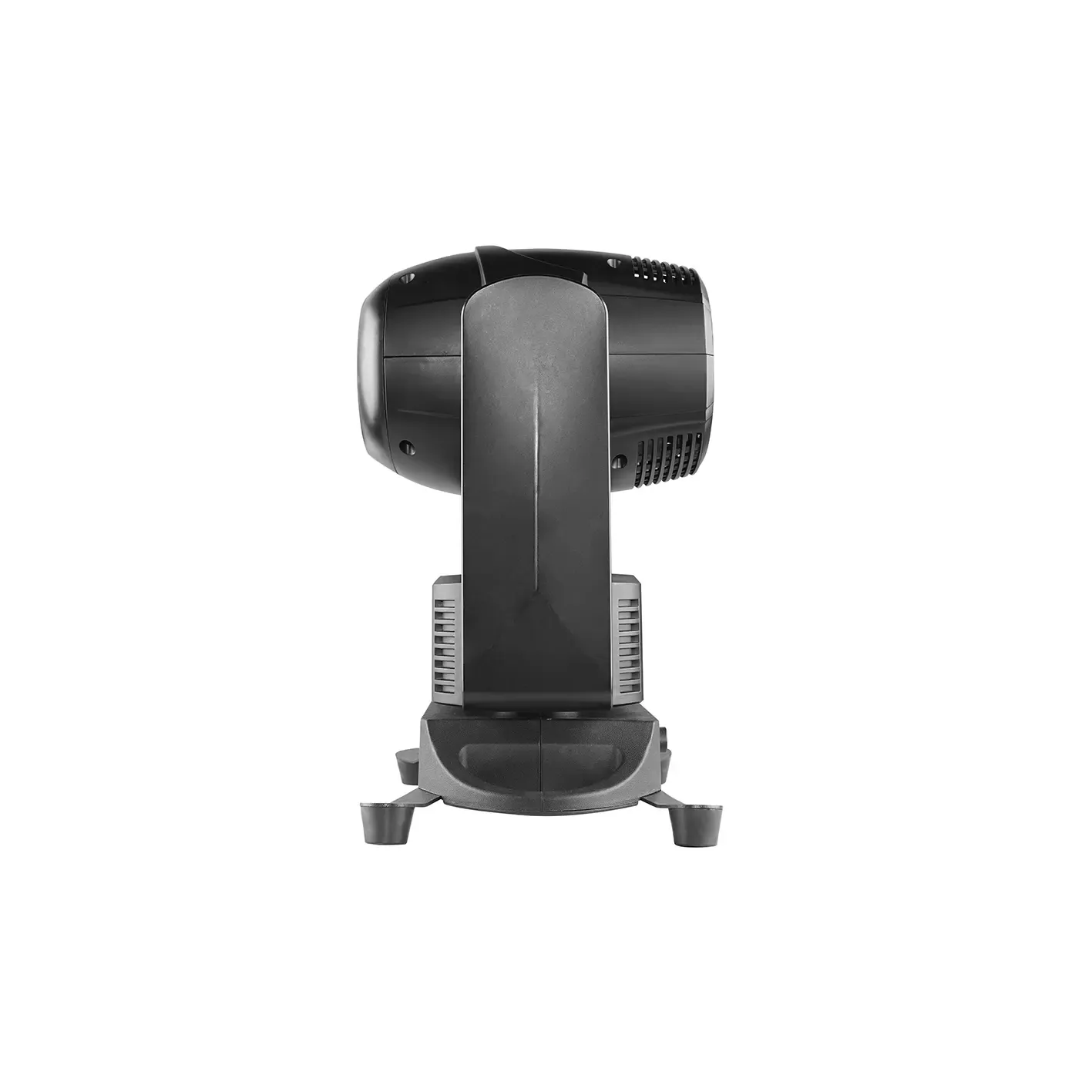

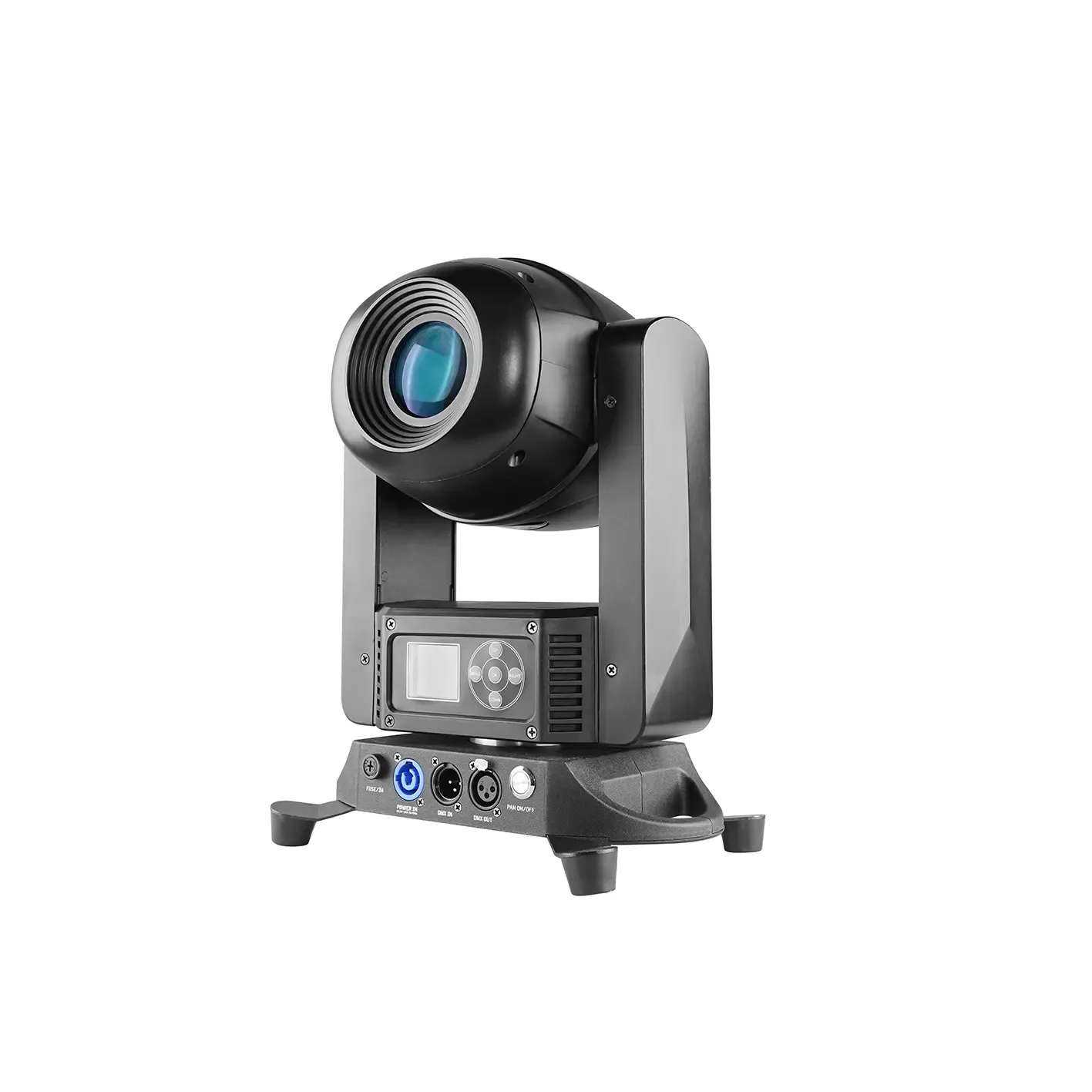

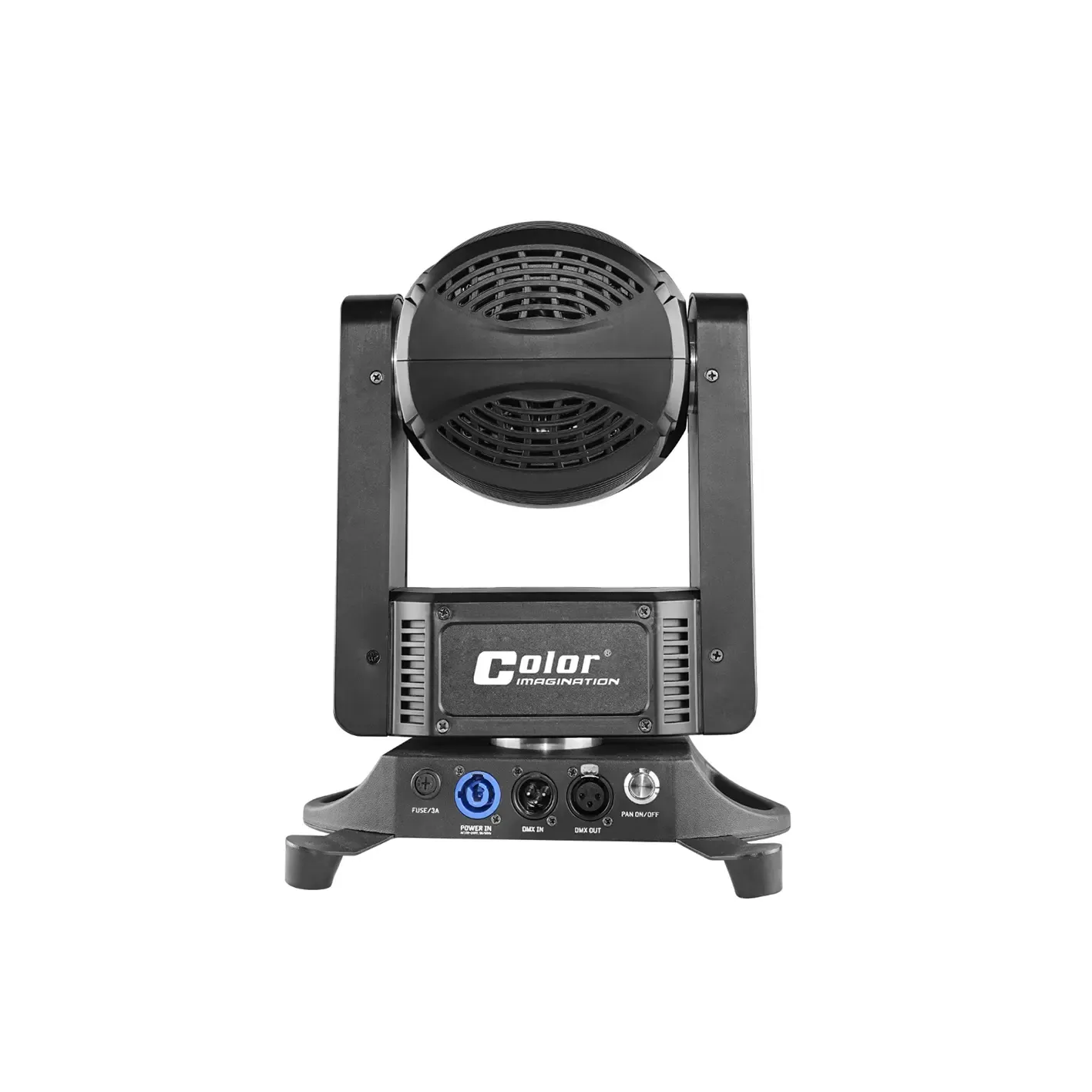

GRAND 150L

The GRAND 150L is an intelligent moving head spot light designed aiming at providing users LOW-COST, COMPACT-SIZE, LIGHT-WEIGHT and UNIQUE-STYLE benefit. This helps to make this head much novel and differentiated than traditional moving lights. It’s designed with a high intensity and efficiency 150W 7500K LED module delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage.

It offers a full complement of other professional characteristics, rotating gobo wheel, static gobo wheel, color wheel, prism, motorized focus, linear dimmer, strobe, etc. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the GRAND 150L achieves more than just a striking look.

It’s fast and quiet operation LED moving head spot. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for indoor application like small concerts, conference hall, DJ shows, club&bar, etc.
