Sheet 05.970

Color Imagination · Other fixtures

GRAND 360

ModelGL360

SPOT+BEAM+WASH, 3-Ring Strip Effect, 2 Prism Wheels, Animation Wheel, Continuous PAN/TILT

Light source: 1*Appotronics 320W White LED module
Power consumption: 395W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 14.27kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 22 groups · 86 values

What this product is, in numbers.

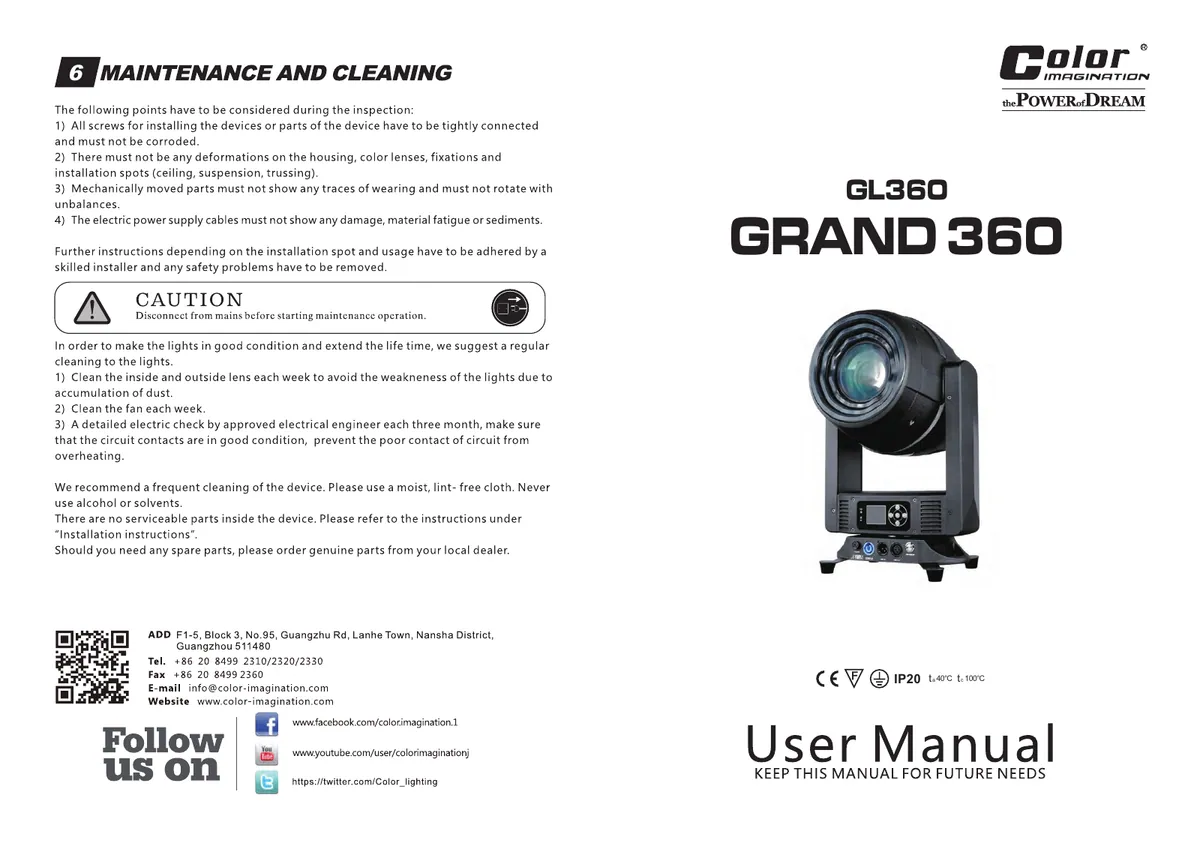

PDFUser manual3.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source8

Source: 1*Appotronics 320W White LED module; (30+36+42)*0.2W 3-IN-1 SMD RGB LEDs
Color Temperature: 9500K(±500K)
CRI: ≥70; 16000 Lumen (Source); Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics5

A set of high resolution and precise optics; Smooth and quiet linear motorized zoom
SPOT Mode: 4°-32°
Beam Mode: 3°-18°; Smooth and precise linear focus

03Movement10

PAN: 2 modes; 1. 360°Continuous movement; 2. 540°(8/16 bit)
TILT: 2 modes; 1. 360°Continuous movement; 2. 270°(8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Color System3

1 Color wheel with 13 dichroic colors plus open (half color mode available)

Variable direction rainbow effect with speed adjustable

6-Color effect wheel

Show the full specificationHide the rest of the specification18 more groups · 60 values

05Gobo System3

1 Rotating gobo wheel with 8 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise

1 Static gobo wheel with 13 gobos plus open

Gobo overlay (gobo morphing)

06Animation System1

Special dynamic flame or water effect, etc

07Prism System4

2 Prism wheel design
Prism 1: 4 different prisms, 4-Facet linearprism/3-Facet circular prism/4-Facet circularprism/6-facet circular prism with variablespeed and direction
Prism 2: 4 different prisms, 6-Facet linearprism/6+12-facet circular prism/8-facetcircular prism/16-facet circular prism withvariable speed and direction Prism indexing; Prism overlay (prism morphing)

08Wash System2

Linear frost filter (Hybrid effect for wash)

Even and soft coverage

09Strobe Effect2

0-25Hz LED shutter/strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect

10Dimming System1

0-100% Smooth linear LED dimming

11Control System9

27 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin and 5-pin XLR DMX connectors IN/OUT

12Software Update2

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

13Display System5

1.44″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

14Cooling System4

Advanced cooling system integrated aluminum

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

15Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

395W Power consumption

16Housing4

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

17Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

18Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

19Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

20Weight2

N.W.: 14.27kg
G.W.: 16.2kg

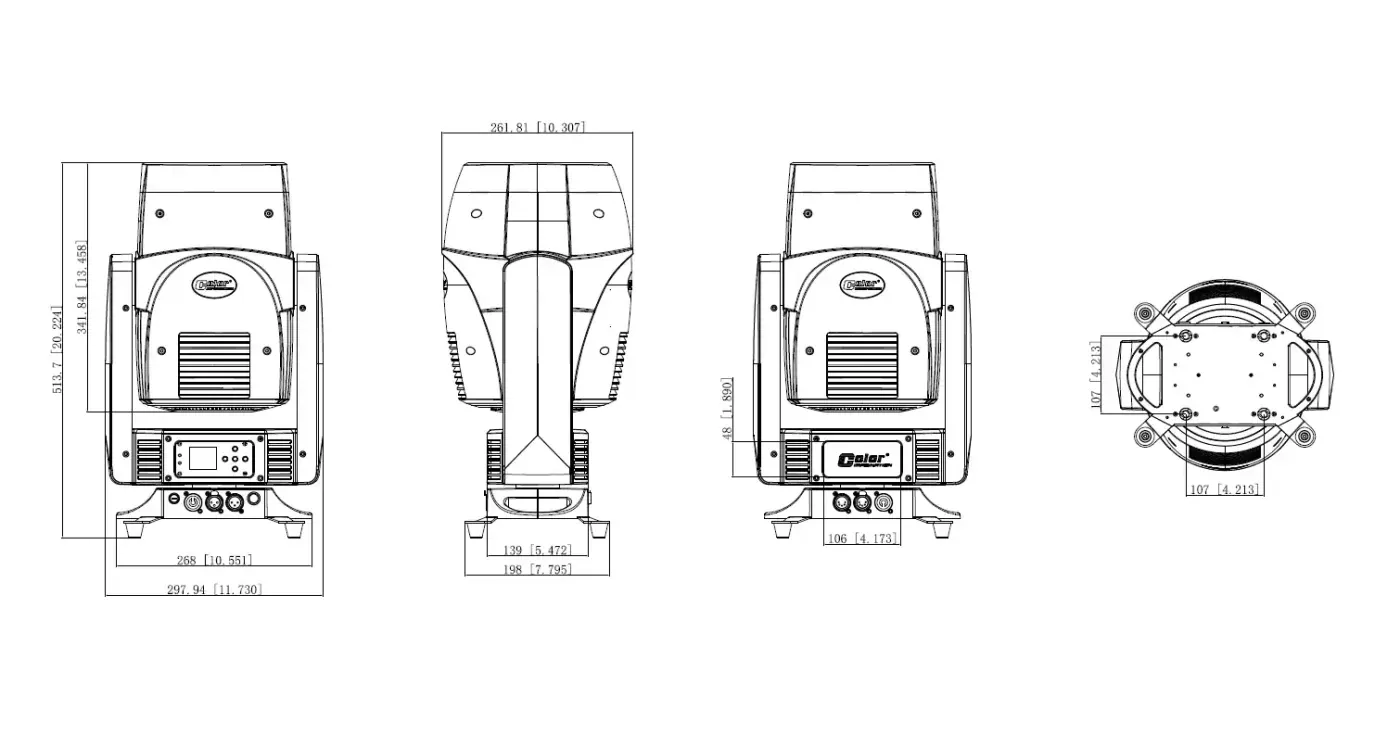

21Dimensions2

Product Dimensions: 261.8(D)*297.9(W)*513.7(H)mm
Packing Dimensions: 655(D)*380(W)*355(H)mm

22Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

Omega STANDARD code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

GRAND 360

The GRAND 360 is a new generation professional and intelligent compact LED BSW moving head light designed with smooth and linear zoom from 4°-32°. The SPOT features a new high intensity and efficiency Appotronics 320W 9500K LED module delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. The 3-ring strip light in the front head delivers magic and vivid dynamic lighting effect created by 108*0.2W 3-IN-1 SMD RGB LEDs.

It offers a full complement of other professional characteristics, rotating gobo wheel, static gobo wheel, color wheel, 6-color effect wheel, animation wheel, 2 prism wheels, frost filter, motorized focus, linear dimmer, strobe, etc. It provides 360°continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the GRAND 360 achieves more than just a striking look.

It’s fast and quiet operation LED BSW moving head. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for live concerts, TV productions, road shows, theatre, conference halls, club/bars, etc.

03Documents3 files · 5.1 MB
