Sheet 05.618

Color Imagination · Beam

MASTER 100LI

ModelML100I

Light source: 1*100W LED module (ultra bright)
Power consumption: 128W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 9.5kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 74 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 1*100W LED module (ultra bright)
Color Temperature: 8000K
CRI (Ra): ≥70; Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics3

A set of high resolution and precise optics

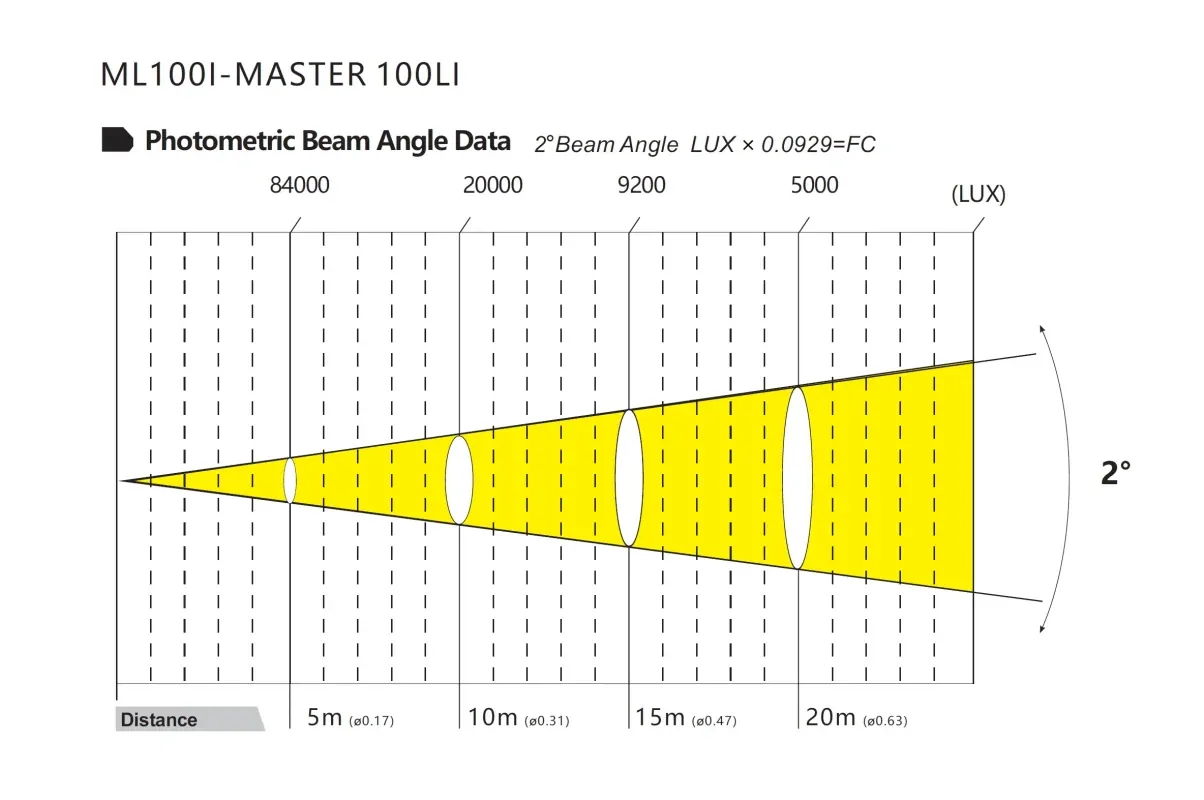

2°Beam angle

Smooth and precise linear focus

03Movement6

PAN: 540°(8/16 bit)
TILT: 270°(8/16 bit); Fast, quiet, smooth and precise 2-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Color System3

1 Color wheel with 17 dichroic colors plus open

Variable direction rainbow effect with speed adjustable

6-Color wheel with variable direction and speed control

05Gobo System1

1 Static gobo wheel with 19 gobos plus open

06Prism System5

2 Prism wheels design
Prism 1: 5-Facet linear prism with variable speed and direction
Prism 2: 8-Facet circular prism with variable speed and direction; Prism indexing; Prism overlay (prism morphing)

Show the full specificationHide the rest of the specification15 more groups · 50 values

07Strobe Effect2

0-25Hz shutter/strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect

08Wash System1

Even and soft coverage

09Dimming System1

0-100% Smooth linear dimming

10Control System9

16/19 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

LUMEN-RADIO wireless receiver built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin/5-pin XLR connectors IN/OUT

11Software Update2

Software up-datable through DMX connectors

Multi units up-datable in daisy chain

12Display System5

1.44″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

13Cooling System3

Advanced low noise self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

14Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

128W Power consumption

15Housing4

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

16Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

17Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

18Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

19Weight2

N.W.: 9.5kg
G.W.: 12kg

20Dimensions2

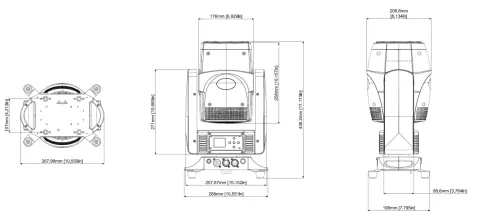

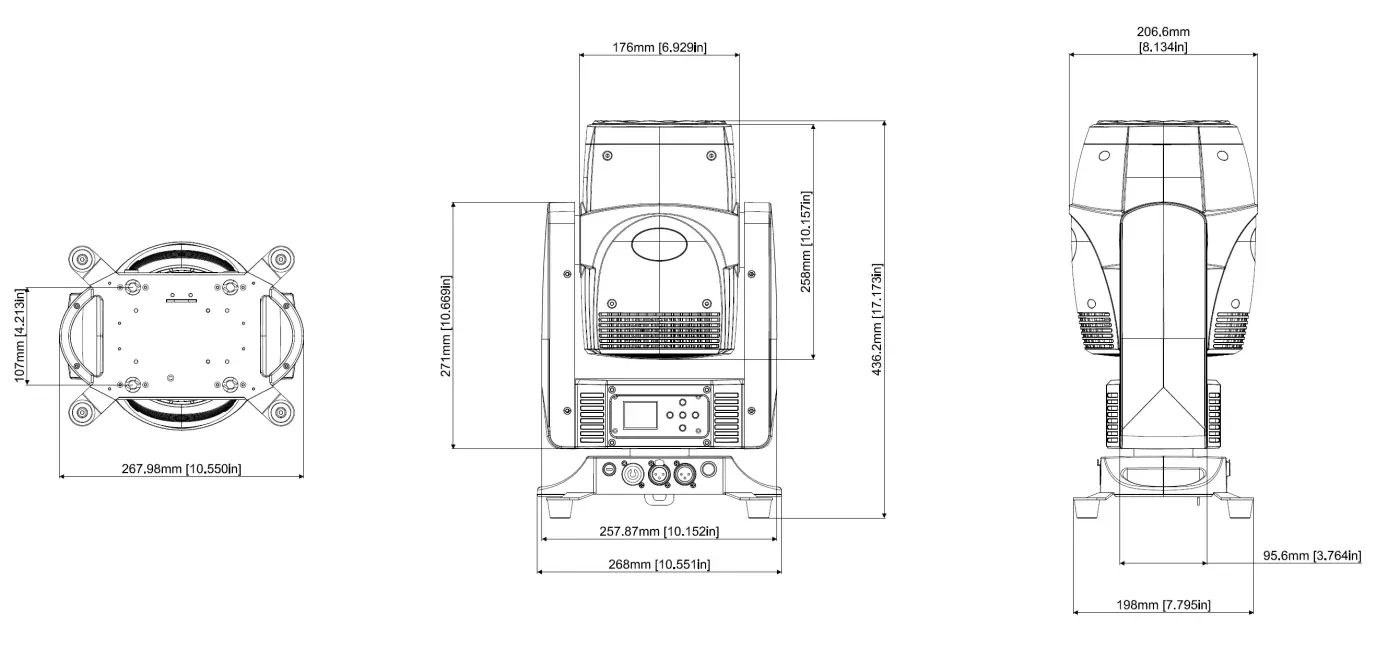

Product Dimensions: 206.6(D)*268(W)*436.2(H)mm
Packing Dimensions: 365(D)*515(W)*310(H)mm

21Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

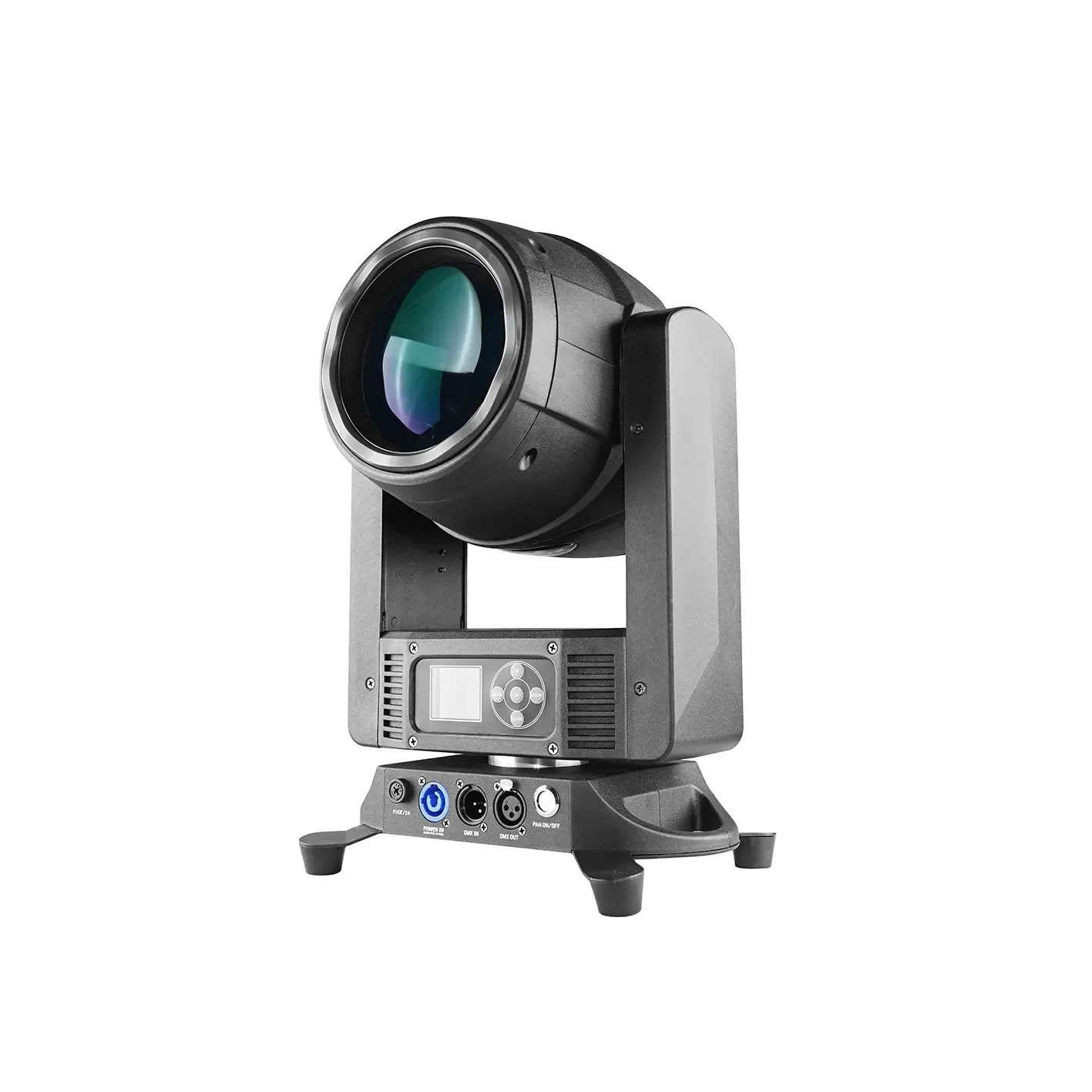

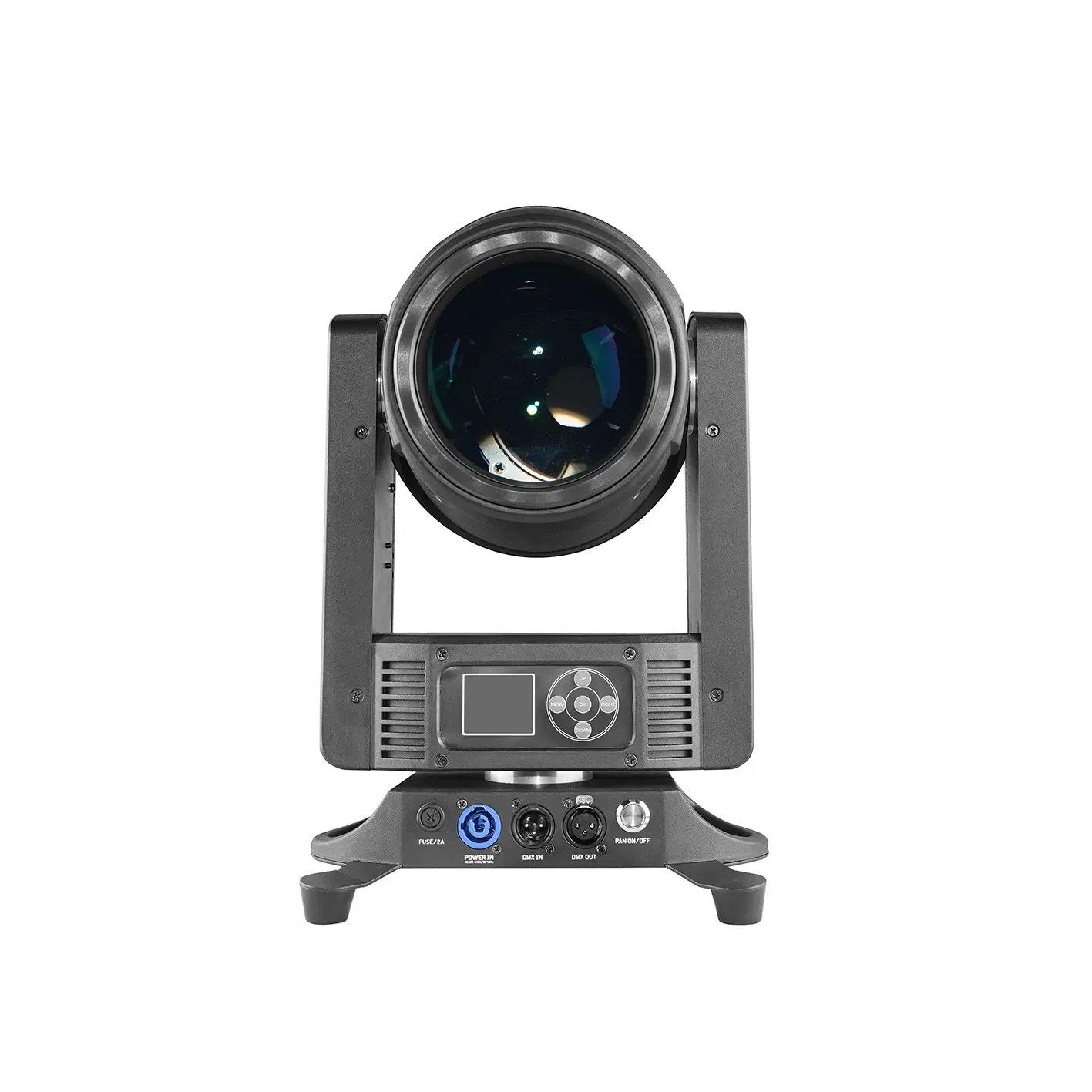

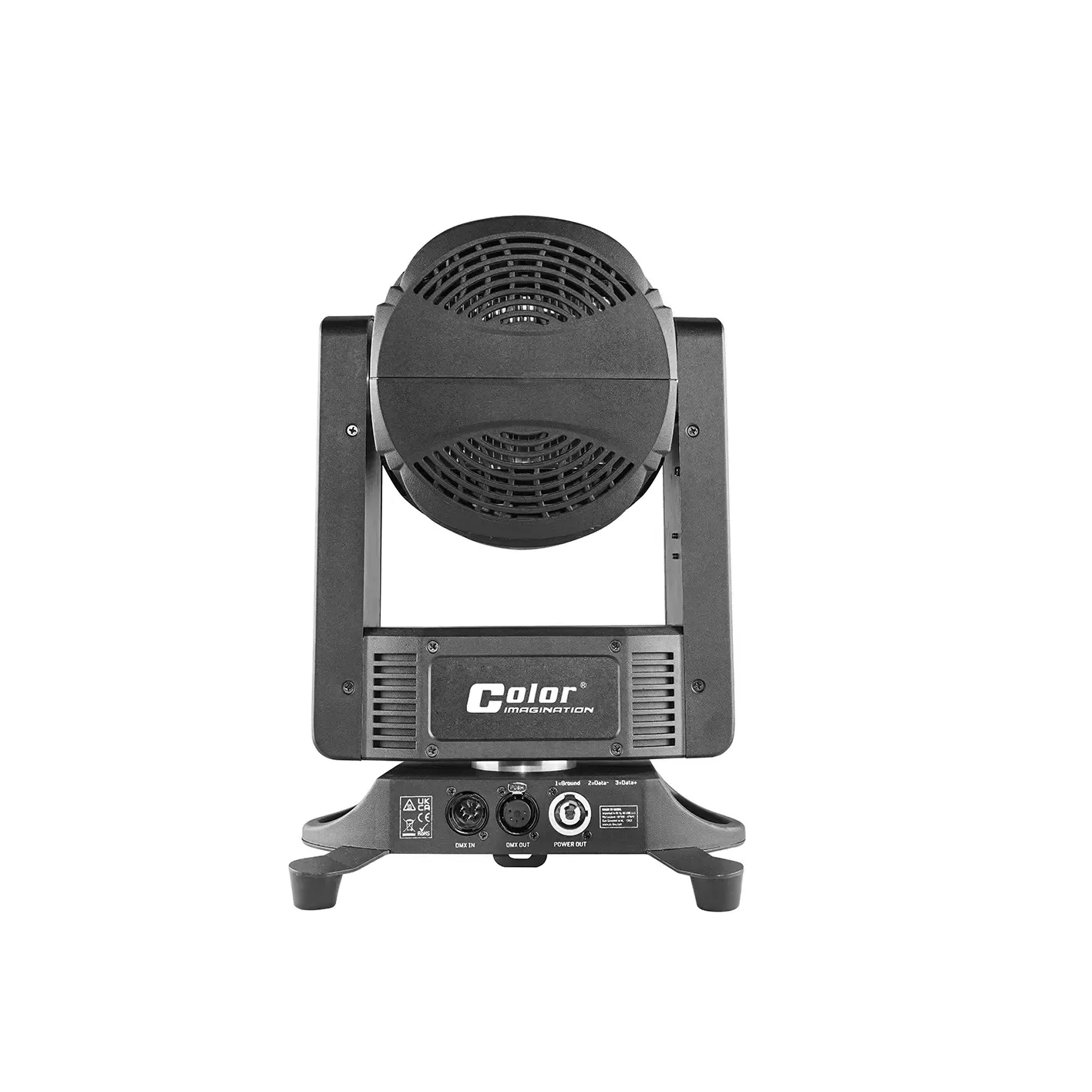

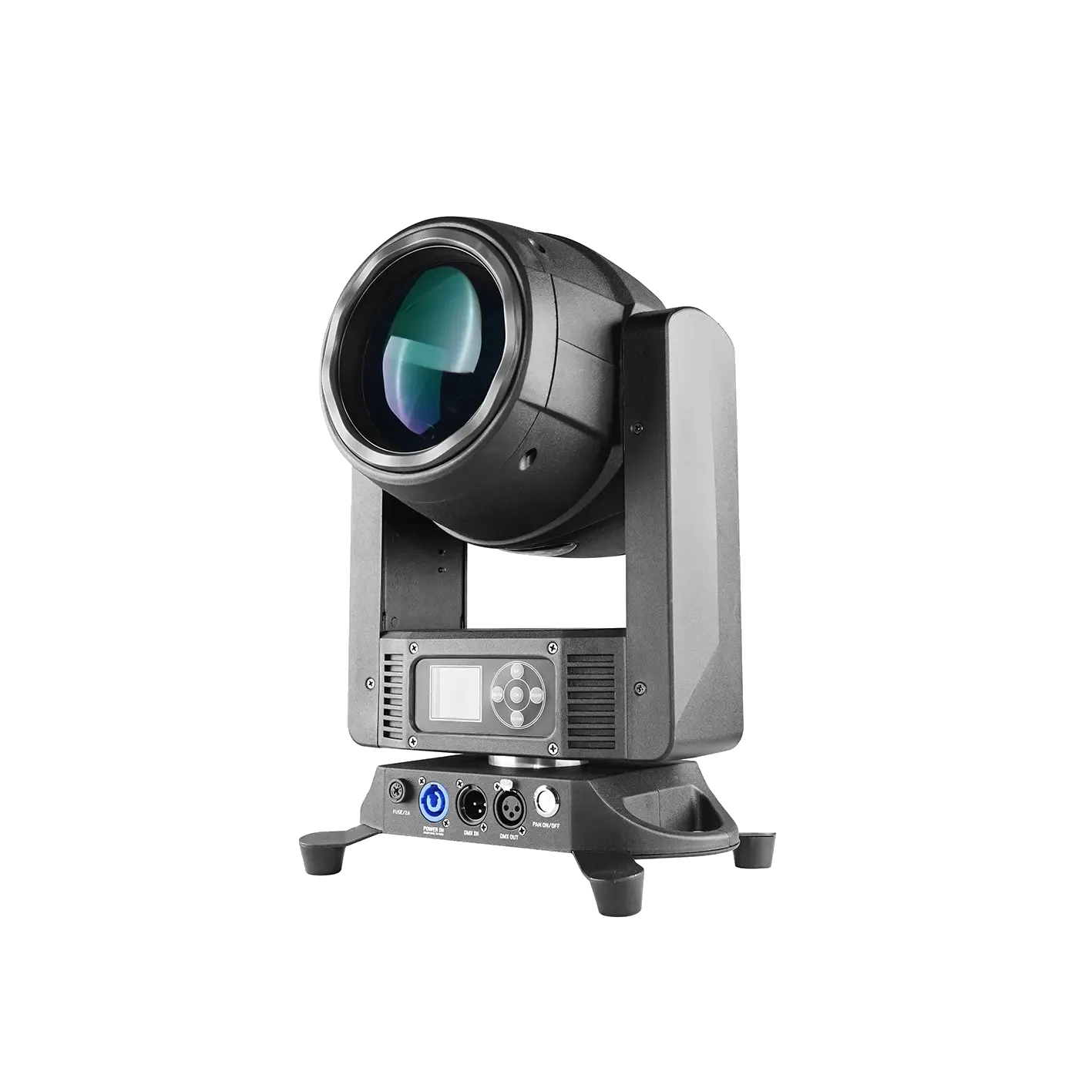

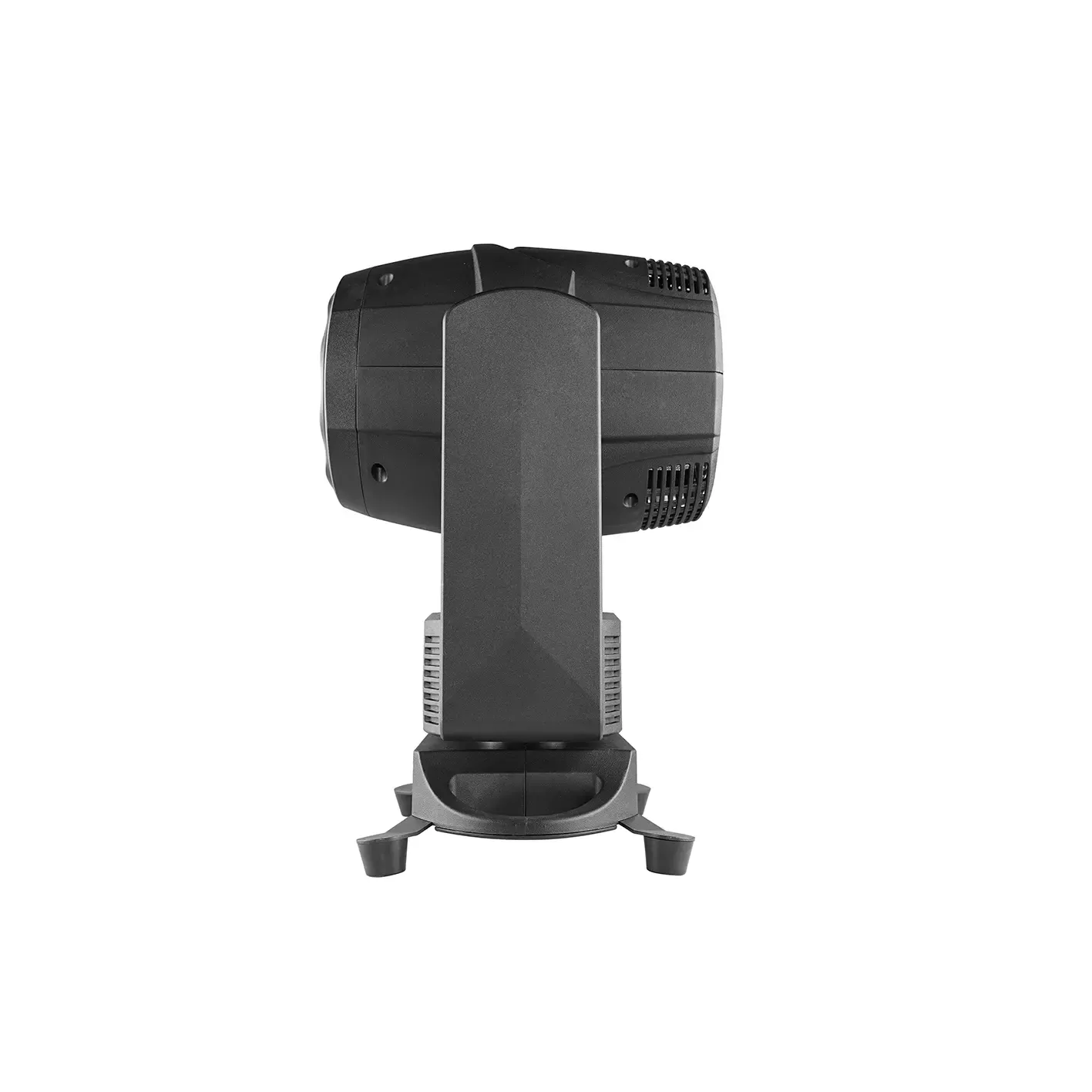

MASTER 100LI

The MASTER 100LI is an intelligent moving head beam light designed aiming at providing users LOW-COST, COMPACT-SIZE, LIGHT-WEIGHT and UNIQUE-STYLE benefit. This helps to make this head much novel and differentiated than traditional moving lights. It’s designed with an ultra high intensity 100W white LED source in a reliable, sage and fully sealed module, integrated with a set of unique high resolution optical system. The fixture features super bright and sharp beam effects at this power with low power consumption.

The fixture features 2°beam angle which helps to provide ultra long throw solid beam effect. The MASTER 100LI comes with a range of effects: 19 static gobos, 17 dichroic colors, 6-Color Wheel, 2 prisms, frost, focus, front circular strip light effect, etc. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the MASTER 100LI achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

It’s fast and quiet operation LED source moving head beam. It’s a perfect option for indoor application like small concerts, conference hall, DJ shows, club&bar, etc.

03Documents1 file · 5.1 MB
