Sheet 05.929

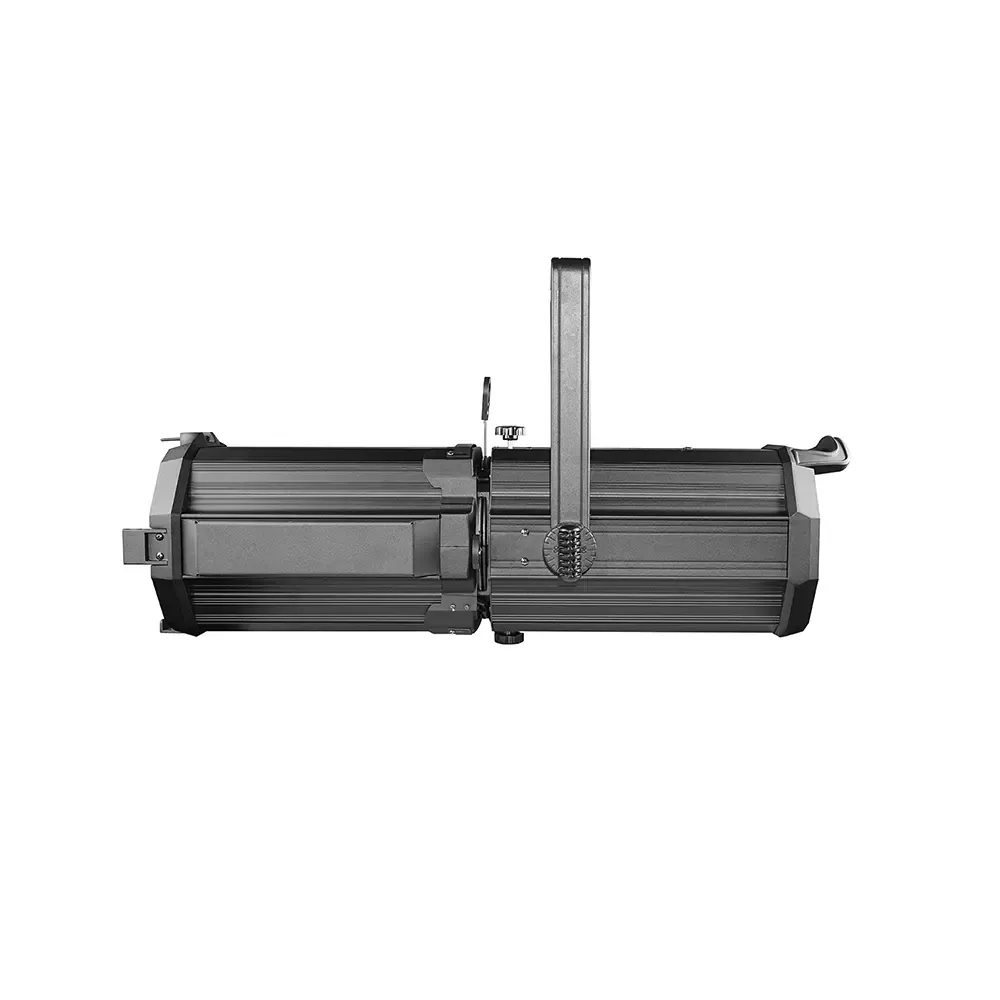

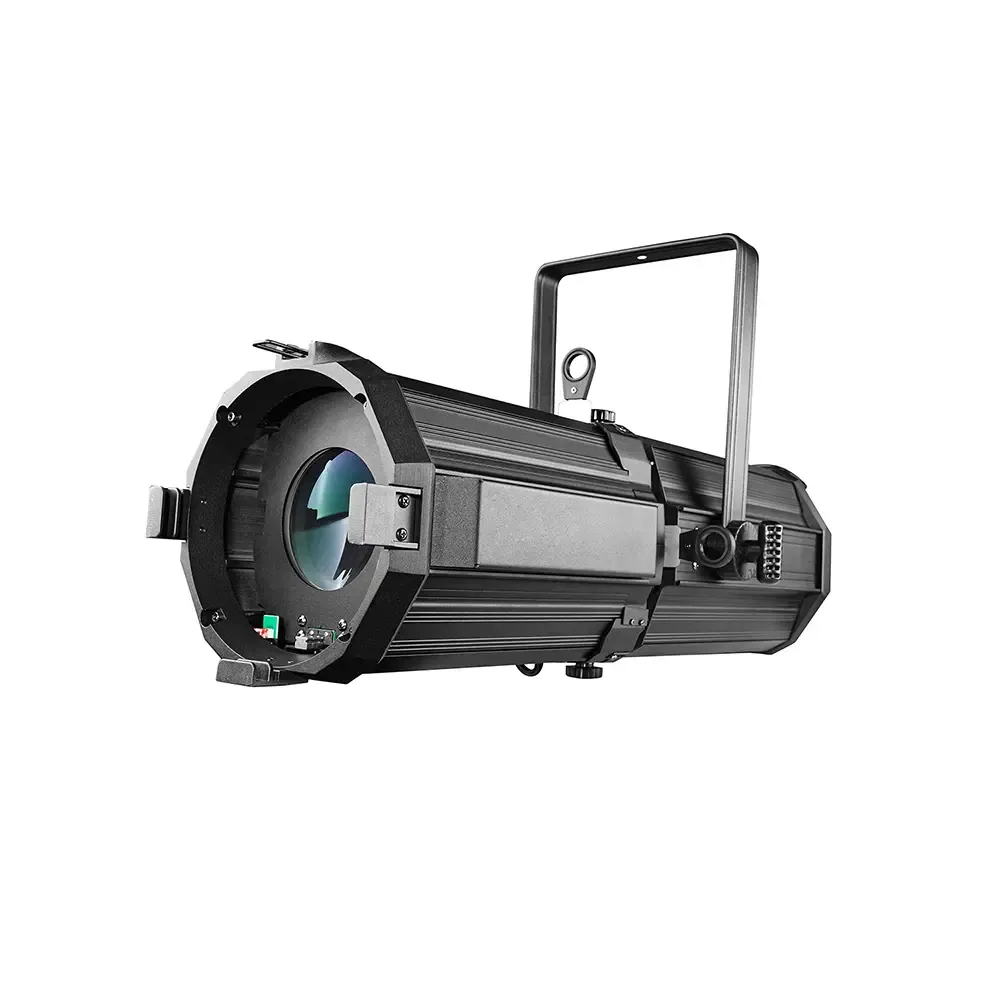

Fig. 01 / 05 · manufacturer’s images

Color Imagination · Theatre lighting

PROFILE 300AC

ModelPF300AC

Light source: 1*300W CITIZEN cold white LED (5600K)
Power consumption: 320W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 13.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 18 groups · 56 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 1*300W CITIZEN cold white LED (5600K)
CRI: ≥90; Flicker free operation for broadcast TV and FILM; 2-25KHz Frequency adjustable
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics4

A set of high resolution and precise optics

15°-40°Motorized zoom range

Lens tube 45°rotatable

Motorized focus

03Framing System1

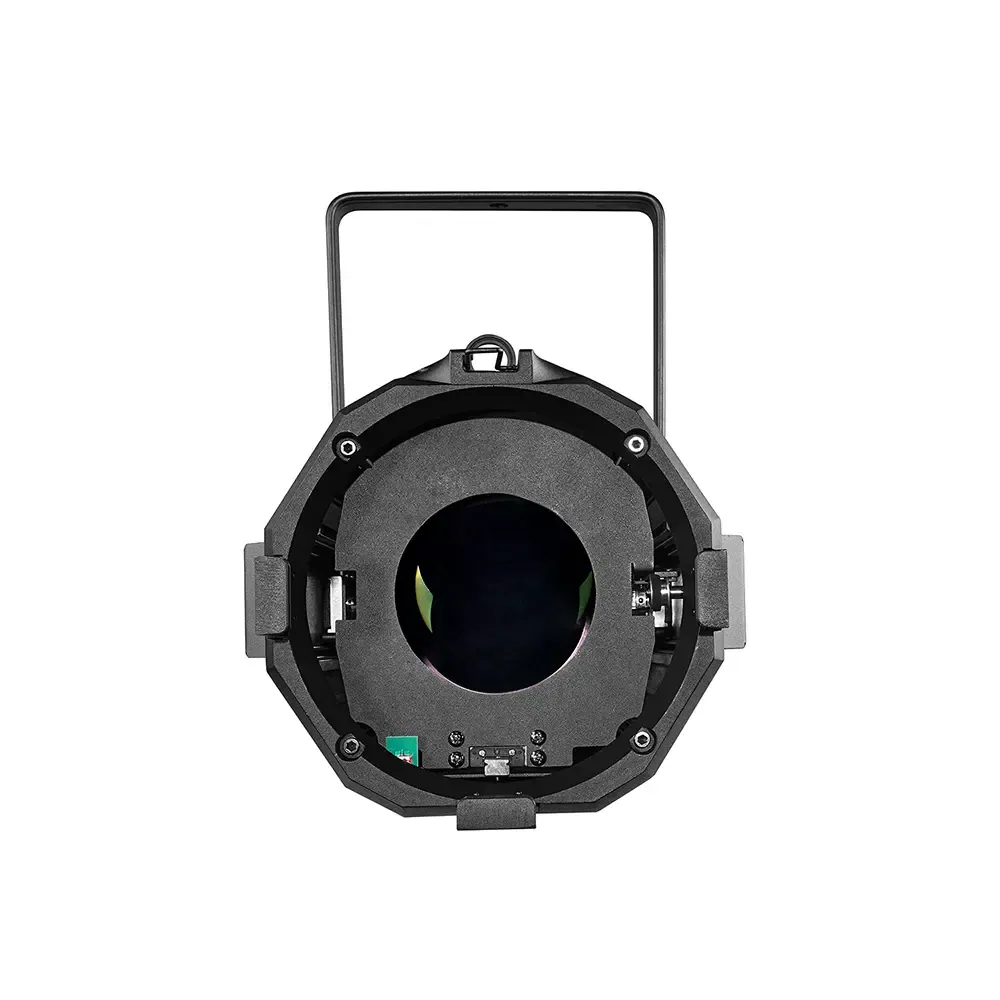

4 Metal spot cutting slots

04Color System2

Pure and even coverage

Color frame included

05Gobo System1

Gobo holder as optional

06IRIS System1

Manual IRIS system as optional

Show the full specificationHide the rest of the specification12 more groups · 41 values

07Dimming System3

0-100% Smooth linear LED dimming

4 Dimming curves

2 Dimming modes

08Control System6

5 DMX channels

RDM available (Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin XLR DMX connectors IN/OUT

09Display System3

2.8″ Touch TFT LCD display

180°Reversible for LCD display

Display Auto OFF

10Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Efficient ultra lower fan cooling system

Constant temperature readout and management function

Over temperature protection management

11Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

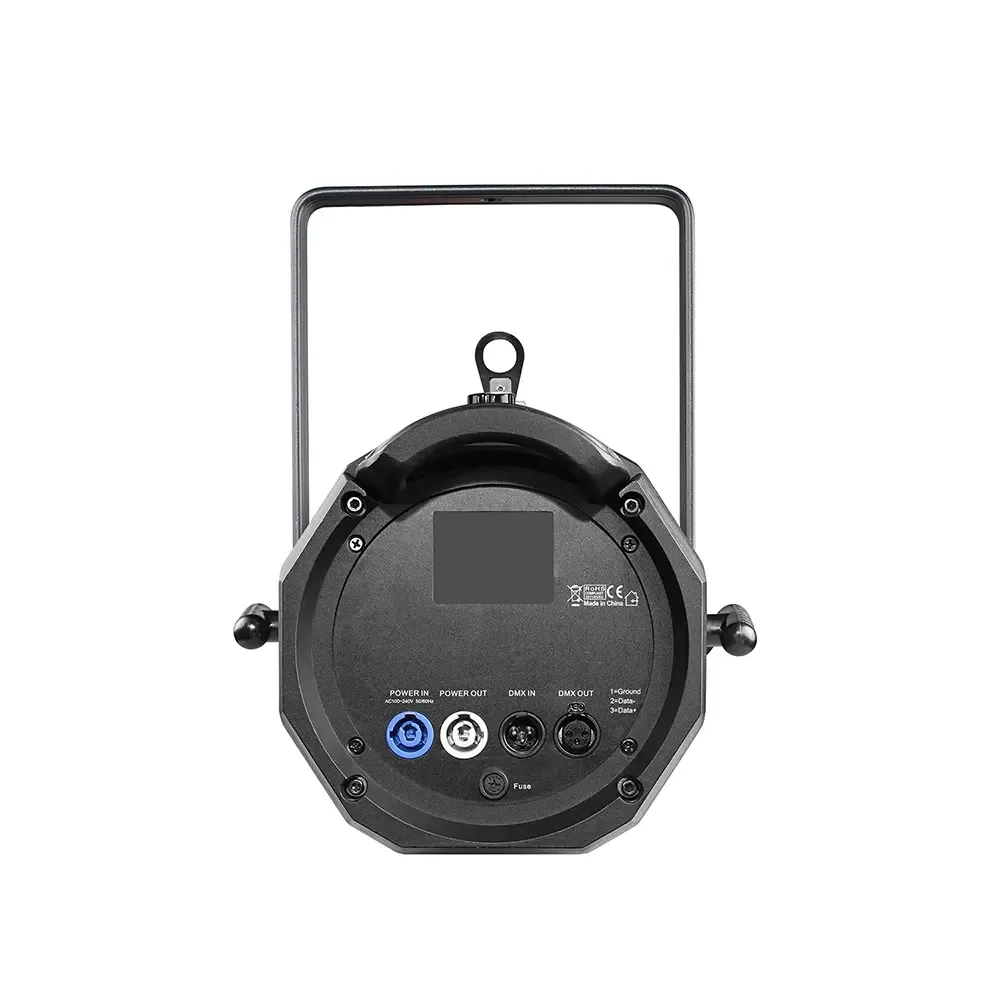

PowerCON IN/ OUT with fuse

320W Power consumption

12Housing2

Skeleton made of aluminum and steel metal plates
Exterior finish: Black

13Installation2

Single hanging bracket

1*Safety attachment point

14Operating Condition3

Operating positions: all; -25°C to 45°C ambient temperature; IP20 protection rating

15Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

16Weight2

N.W.: 13.2kg
G.W.: 15kg

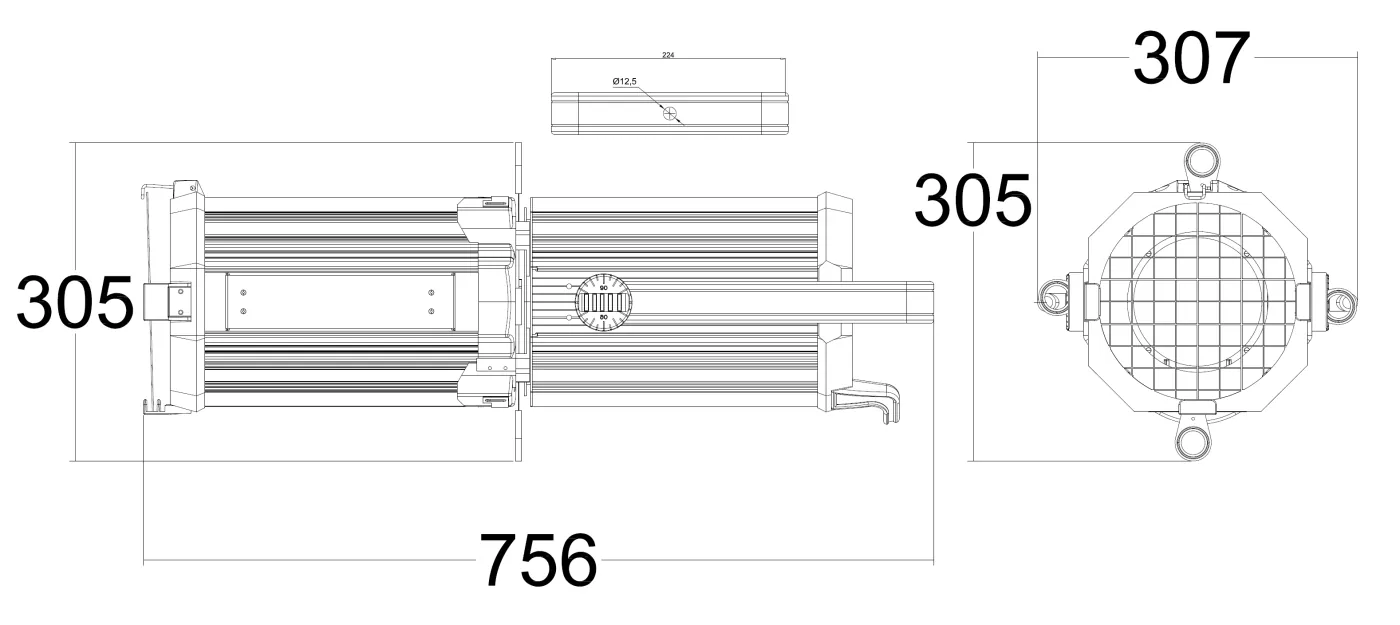

17Dimensions2

Product Dimensions: 243(D)*765(W)*303(H)mm
Packing Dimensions: 305(D)*825(W)*355(H)mm

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

PROFILE 300AC

This profile is a high definition and ultra low noise LED studio light integrated into a die-cast aluminum alloy housing. It features a 300W cold white LED, which delivers brightest output and the boldest rendering of the colors. The fixture is a professional SPOT lighting system with motorized zoom range from 15°-40°for on-site application need.

The PROFILE is equipped with a very versatile dimming system and reasonable LED driving frequency. The CRI is ≥90. It’s controllable by DMX512 or RDM.

The fixture comes with 4 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame is included kit and gobo slot/manual IRIS system are optional kits.

The PROFILE is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.
