Color Imagination · PAR and static light

SMARTPAR 1212

ModelP1212

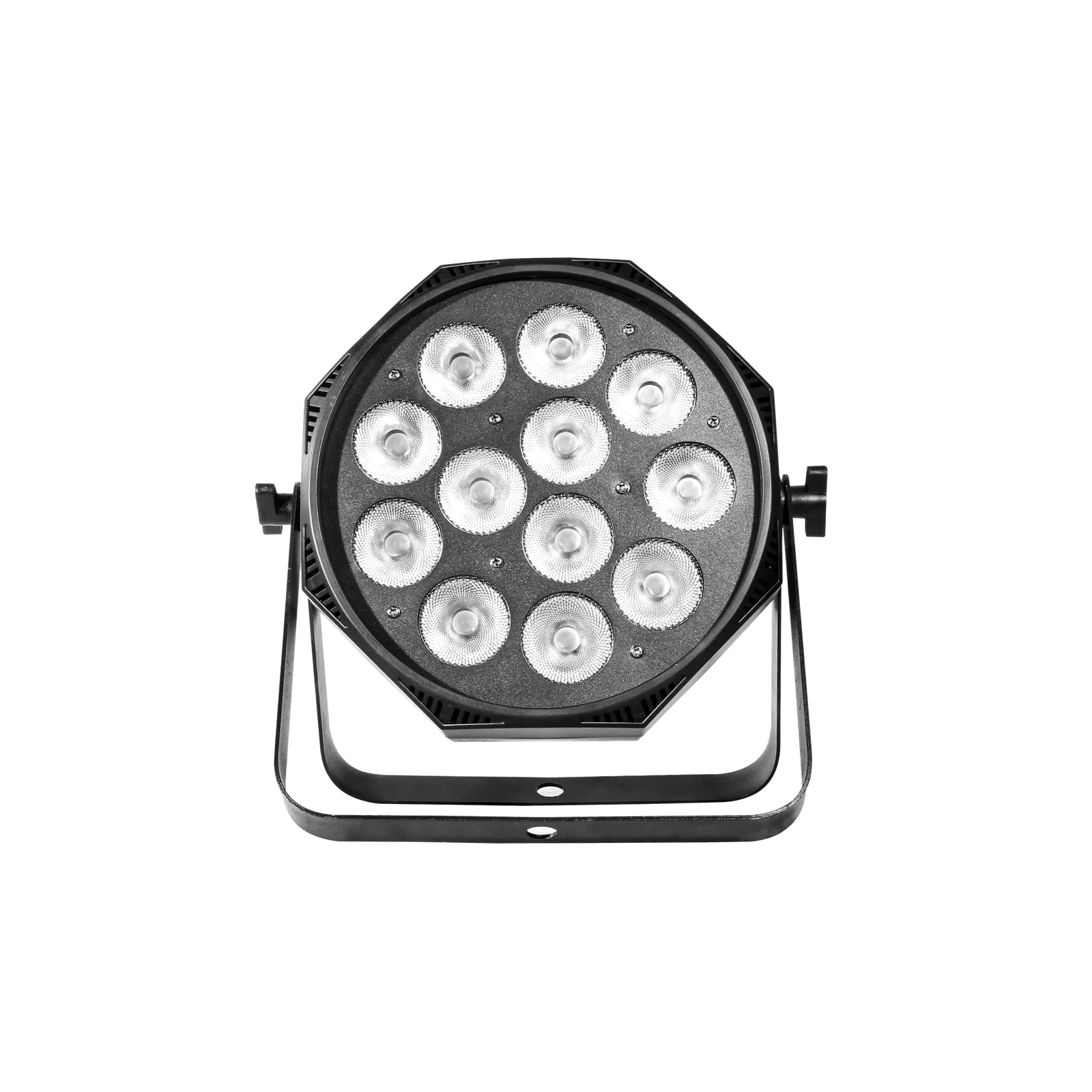

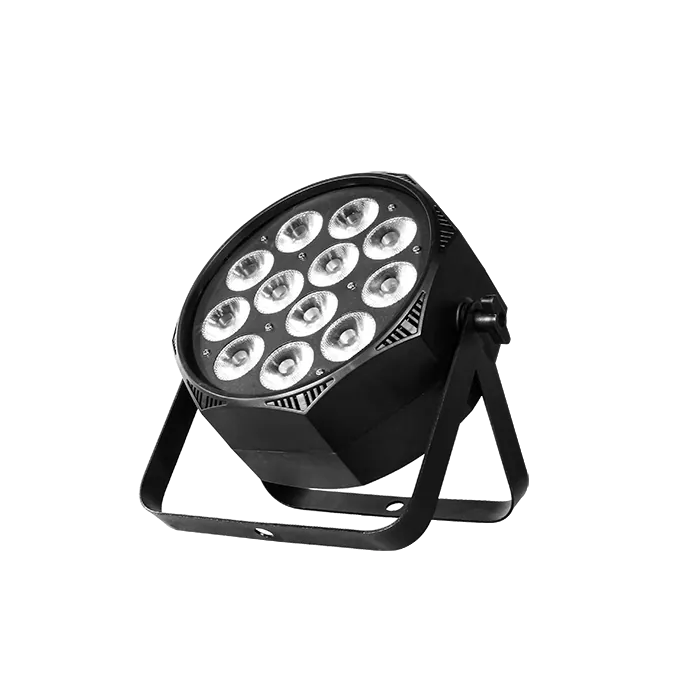

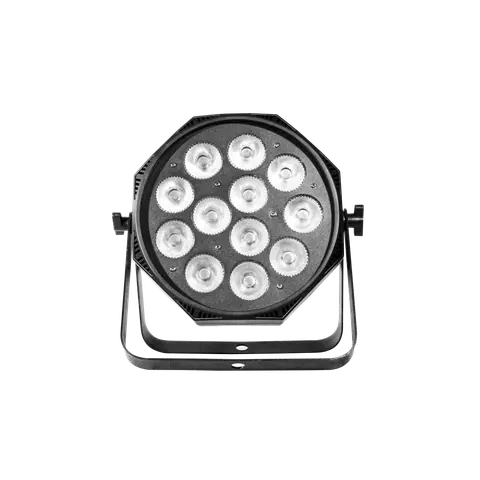

The SMARTPAR 1212 is a high power indoor LED flat par light using 12*12W 4-IN-1 RGBW LEDs which is designed with 2 individual rings. It’s available for 2500K-6500K color temperature adjustment.

Light source: 12*12W 4-IN-1 LEDs (RGBW)
Power consumption: 157.6W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 2.21kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 58 values

What this product is, in numbers.

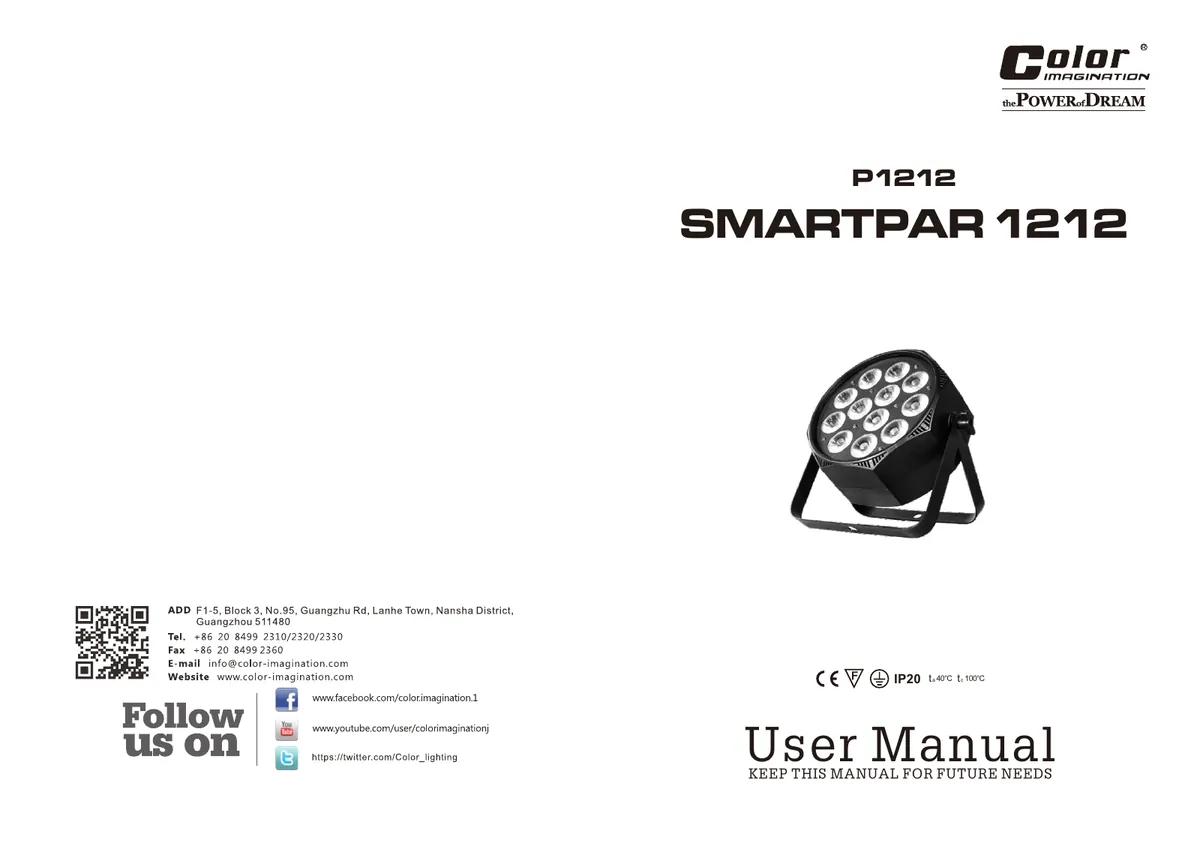

PDFUser manual1.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source5

Source: 12*12W 4-IN-1 LEDs (RGBW); 2 Individual control rings; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics4

High efficiency optic system

25°Beam angle (other angles optional)

35°Field angle

High output

03Color System3

RGBW

Smooth and pure color mixing capability

CTO, 2500K-6500K color temperature adjustment

04Built-in Programs2

Different built-in dynamic effects with variable speed

Different preset colors

05Strobe Effect1

0-25Hz LED shutter/strobe effect with variable speed

06Dimming System1

0-100% Smooth linear LED dimming

Show the full specificationHide the rest of the specification11 more groups · 42 values

07Control System8

4/5/7/8/9 DMX channels USITT DMX-512

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

IR Remote control as optional

RDM available (Remote Device Management)

Wireless system as optional

Shielded input signal protection for stable signal without interference

3-pin XLR connectors IN/OUT

08Display System5

1.44” TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal and error monitoring indicators

09Cooling System3

Efficient low noise self adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN&OUT

157.6W Power consumption

11Housing3

High tension molded fire proof ABS PC; 2 Hanging brackets
Exterior finish: Black

12Installation1

1*Safety attachment point

13Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 2.21kg
G.W.: 3.06kg(1PCS)/14.69kg(4PCS)

16Dimensions3

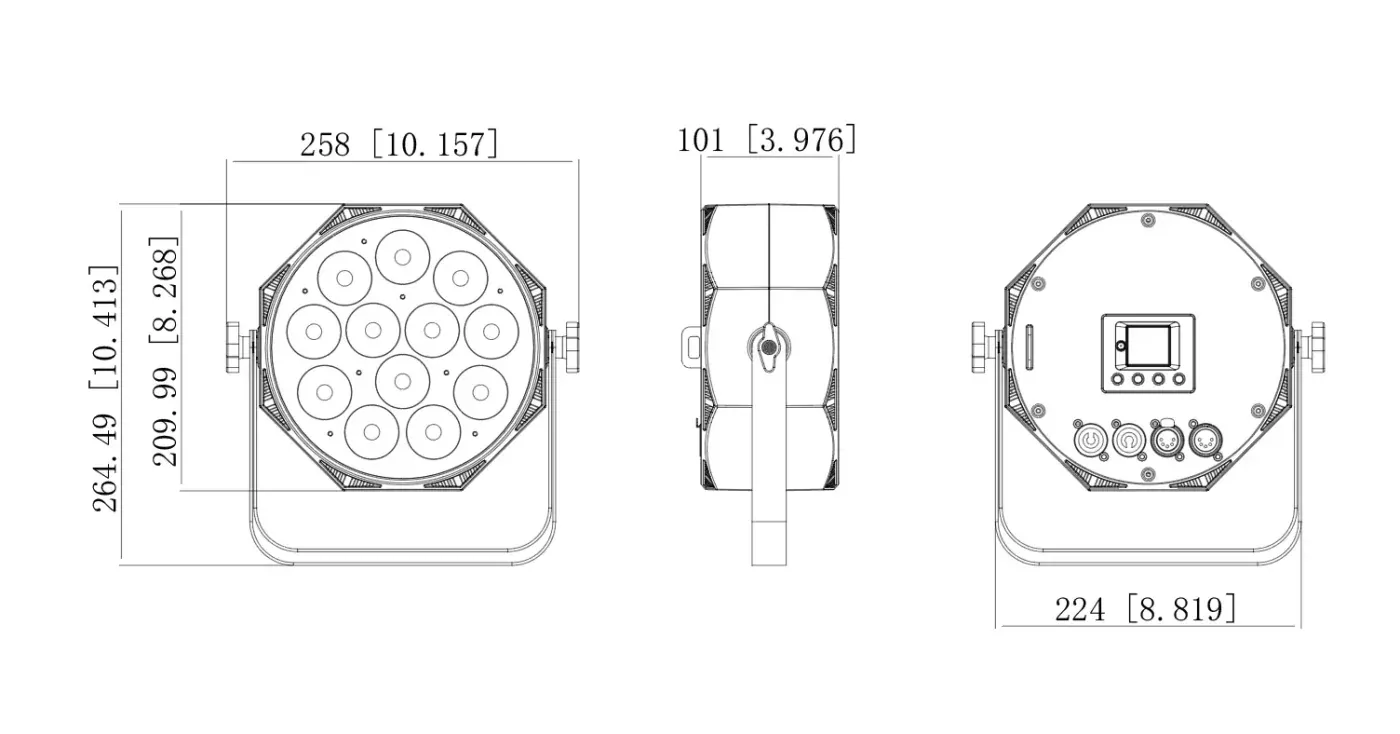

Product Dimensions: 101(D)*258(W)*264.5(H)mm
Packing Dimensions: 300(D)*315(W)*185(H)mm(1PCS); 330(D)*620(W)*380(H)mm(4PCS)

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 6-IN-1 or 8-IN-1 versions

Clamps OPTIONAL code: QTY: 1PCS

IR Remote Controller OPTIONAL code: QTY: 1PCS

02DescriptionManufacturer's description

What it is.

SMARTPAR 1212

It features excellent color mixing, quiet running and flicker free control. The fixture is built in with internal dynamic effects with variable speed. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.

The SMARTPAR 1212 is designed for applications as concerts, TV studios, conference halls, bars, pubs, DJ entertainment, etc.
