Sheet 05.840
Color Imagination · PAR and static light
SMARTPAR 712E
ModelP712E

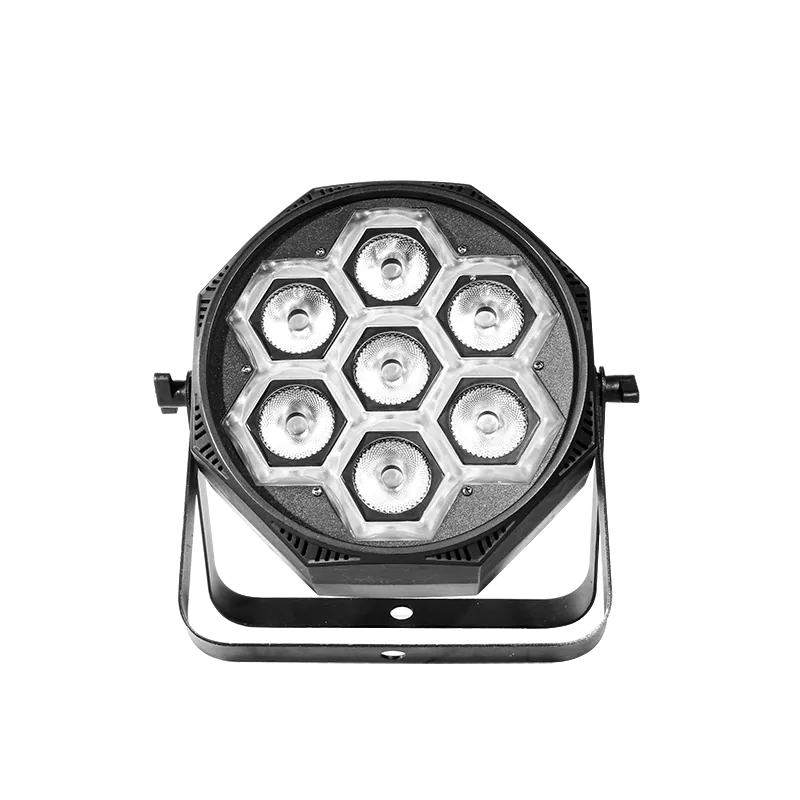

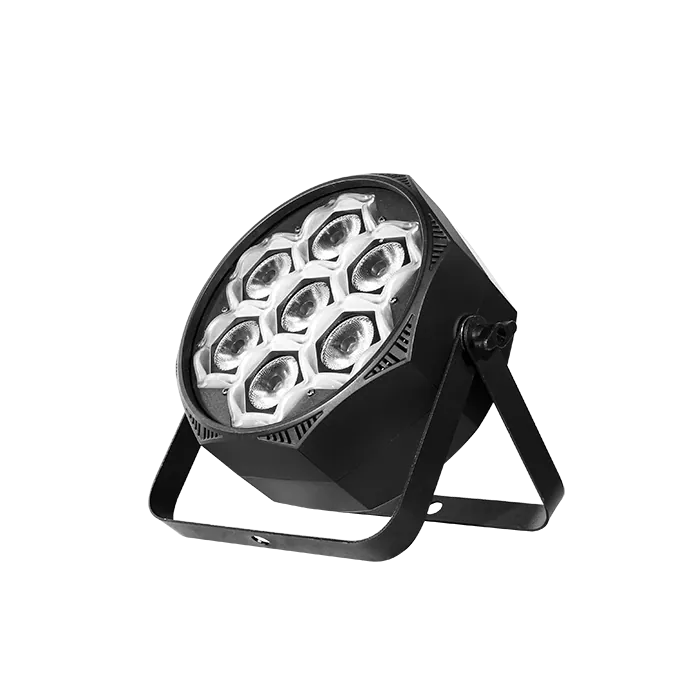

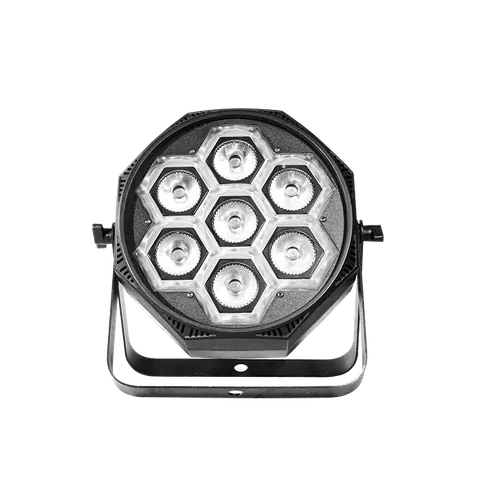

The SMARTPAR 712E is a high power indoor LED flat par light with auxiliary effects using 7*12W 4-IN-1 RGBW LEDs+60*0.2W 3-IN-1 RGB LEDs. It’s available for 2500K-6500K color temperature adjustment.
- Light source
- 7*12W 4-IN-1 LEDs (RGBW)
- Power consumption
- 76.1W Power consumption
- Power supply
- AC100-240V 50/60Hz
- Ingress protection
- IP20 protection rating
- Net weight
- 2.34kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SMARTPAR 712EPrice on requestRequest a quotation
01SpecificationManufacturer's data · 17 groups · 60 values
What this product is, in numbers.

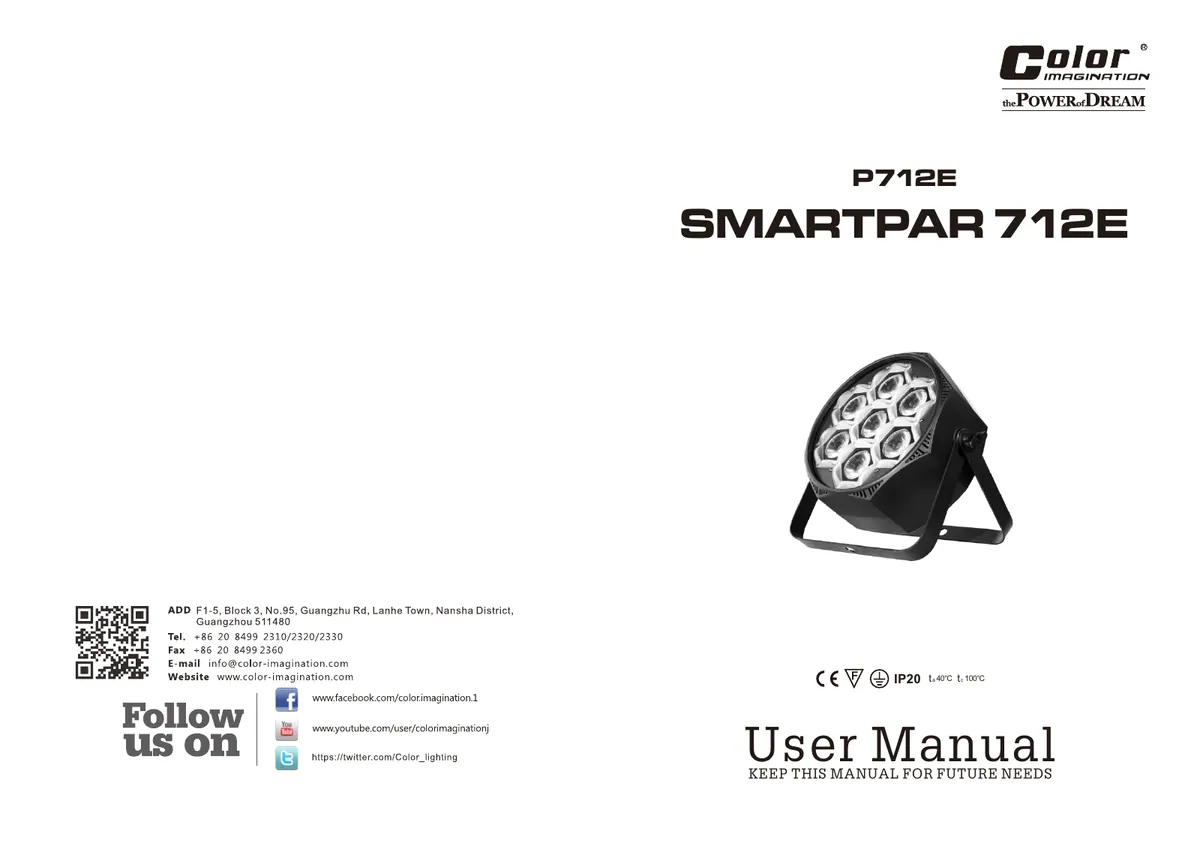

PDFUser manual14 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source5
- Source
- 7*12W 4-IN-1 LEDs (RGBW)
- 60*0.2W 3-IN-1 LEDs (RGB )
- Flicker free operation for broadcast TV and FILM
- Life Span
- 50000H
- The life span may vary depending on several following factors but not limited to
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
02Optics4
- High efficiency optic system
- 25°Beam angle (other angles optional)
- 35°Field angle
- High output
03Color System5
- RGBW for main light
- Smooth and pure color mixing capability
- CTO, 2500K-6500K color temperature adjustment
- RGB for auxiliary light
- Background colors adjustable for auxiliary light
04Built-in Programs2
- Different built-in dynamic effect with variable speed
- Different preset colors
05Strobe Effect1
- 0-25Hz LED shutter/strobe effect with variable speed
06Dimming System1
- 0-100% Smooth linear LED dimming
Show the full specificationHide the rest of the specification11 more groups · 42 values
07Control System8
- 8/10/15 DMX channels USITT DMX-512
- DMX512, master-slave, sound or auto operation
- DMX recorder and edit function integrated
- IR Remote control as optional
- RDM available (Remote Device Management)
- Wireless system as optional
- Shielded input signal protection for stable signal without interference

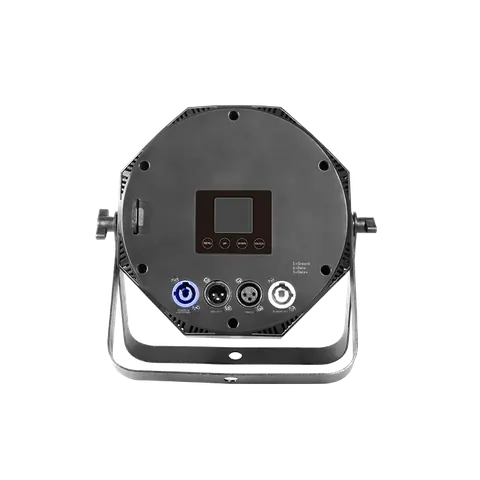

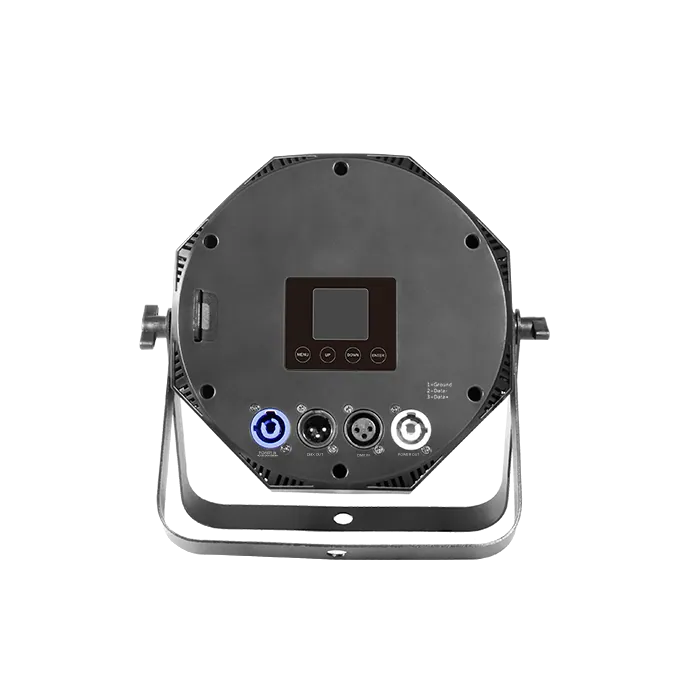

- 3-pin XLR connectors IN/OUT
08Display System5
- 1.44” TFT LCD display
- 4 Control buttons
- 180°Reversible for LCD display
- Display auto OFF
- DMX signal and error monitoring indicators
09Cooling System3
- Efficient low noise self adjusting fan cooling system integrated aluminum
- Constant temperature readout and management function
- Over temperature protection management
10Power Supply4
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- PowerCON connectors IN&OUT
- 76.1W Power consumption
11Housing3
- High tension molded fire proof ABS PC

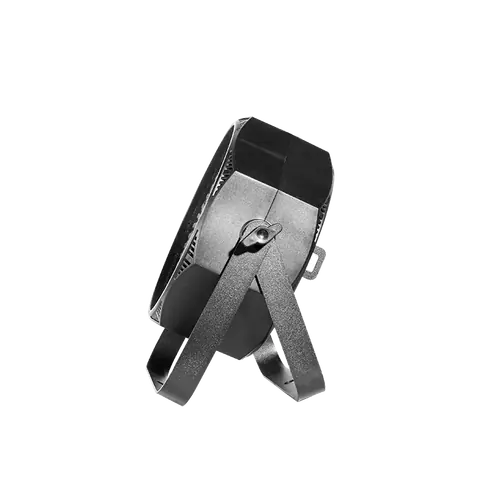

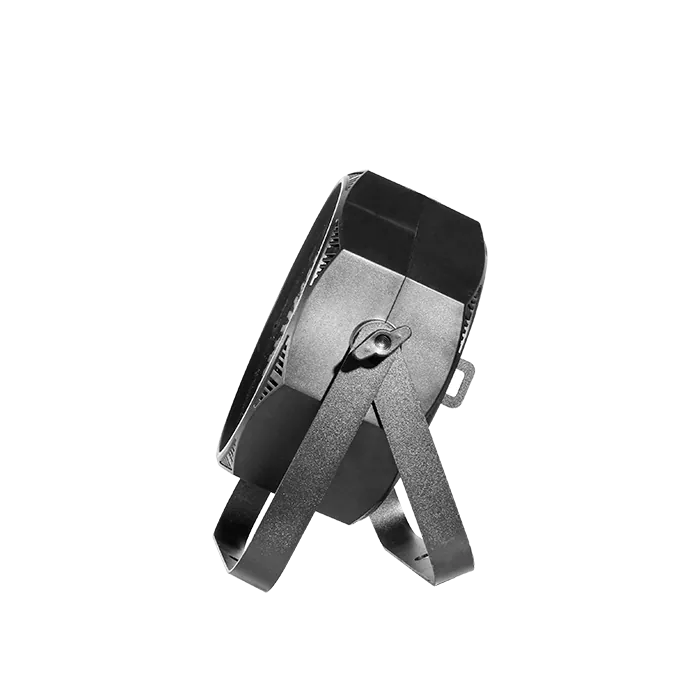

- 2 Hanging brackets
- Exterior finish
- Black
12Installation1
- 1*Safety attachment point
13Operating Condition3
- Operating positions
- all (device on floor or fixed to a support)
- -25°C to 45°C ambient temperature
- IP20 protection rating
14Compliance4
- CE
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
15Weight2
- N.W.
- 2.34kg
- G.W.
- 3.19kg(1PCS)/15.21kg(4PCS)
16Dimensions3
- Product Dimensions
- 101(D)*258(W)*264.5(H)mm
- Packing Dimensions
- 300(D)*315(W)*185(H)mm(1PCS)
- 330(D)*620(W)*380(H)mm(4PCS)
17Accessories6
- Power Cable STANDARD code: QTY: 1PCS
- Signal Cable STANDARD code: QTY: 1PCS
- Safety Cable STANDARD code: QTY: 1PCS
- Road Case OPTIONAL code: Available for 6-IN-1 or 8-IN-1 versions
- Clamps OPTIONAL code: QTY: 1PCS
- IR Remote Controller OPTIONAL code: QTY: 1PCS
02DescriptionManufacturer's description
What it is.
SMARTPAR 712E
It features excellent color mixing, quiet running and flicker free control. The fixture is built in with internal dynamic effects with variable speed. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.
The SMARTPAR 712E is designed for applications as concerts, TV studios, conference halls, bars, pubs, DJ entertainment, etc.
03Documents3 files · 15 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
Software and data files01
