Sheet 05.1368
DESAY · Rental displays
M16

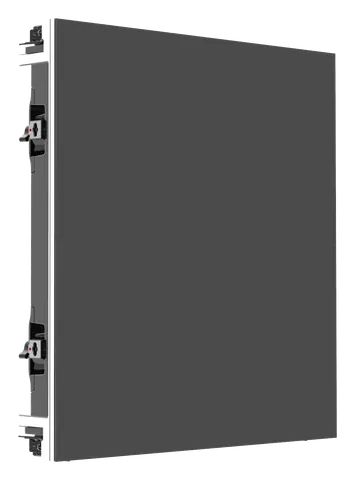

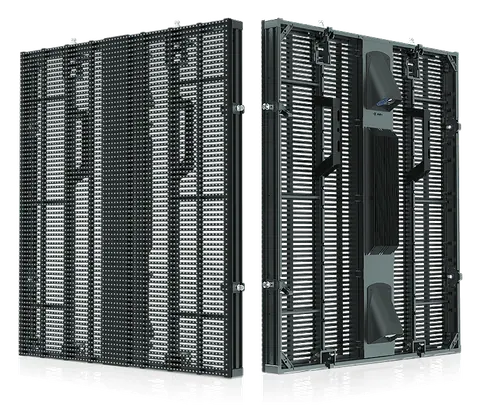

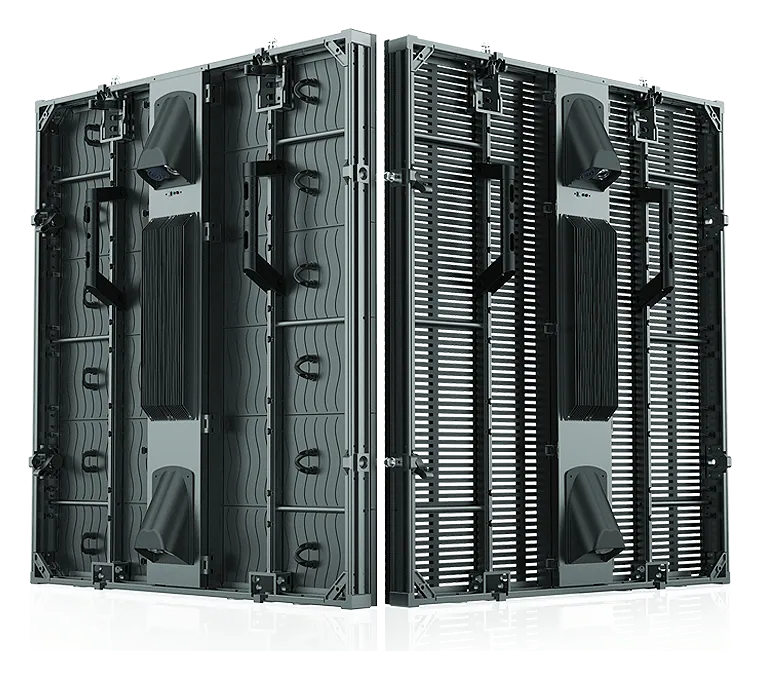

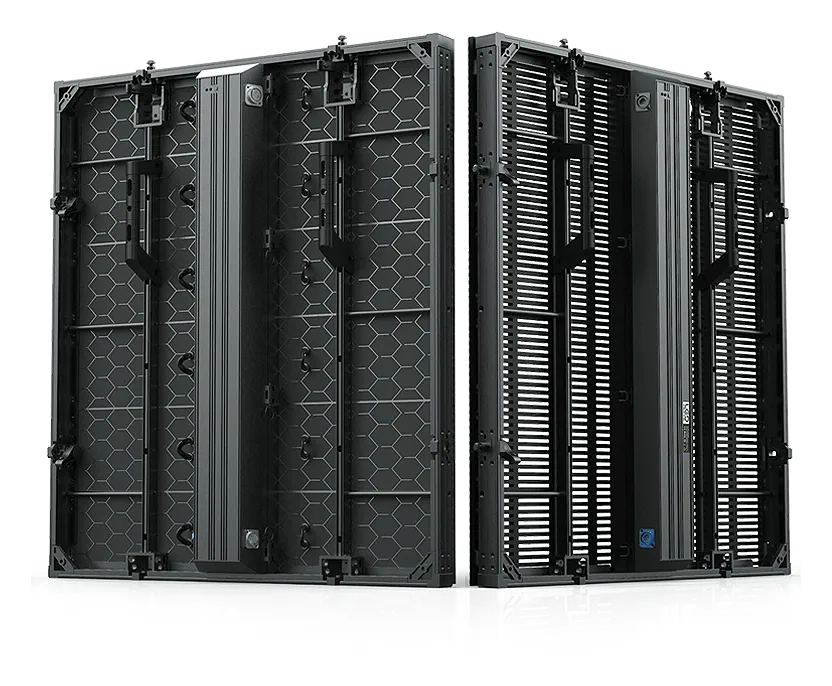

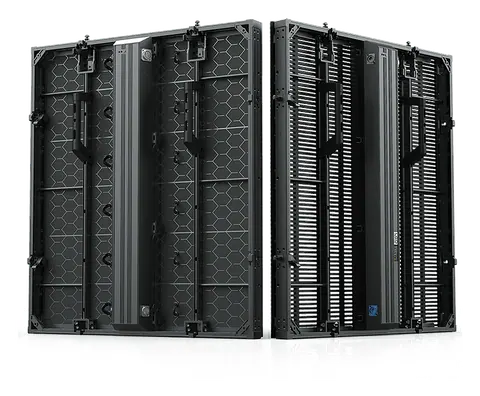

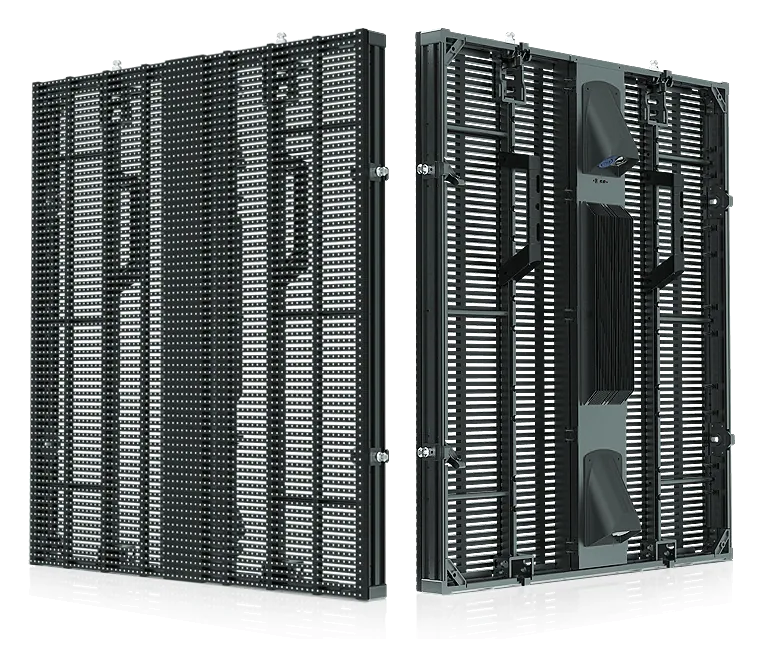

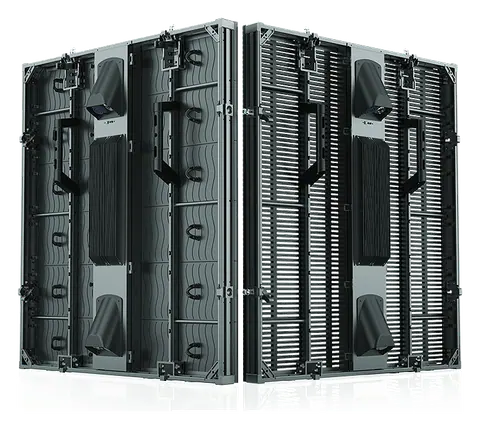

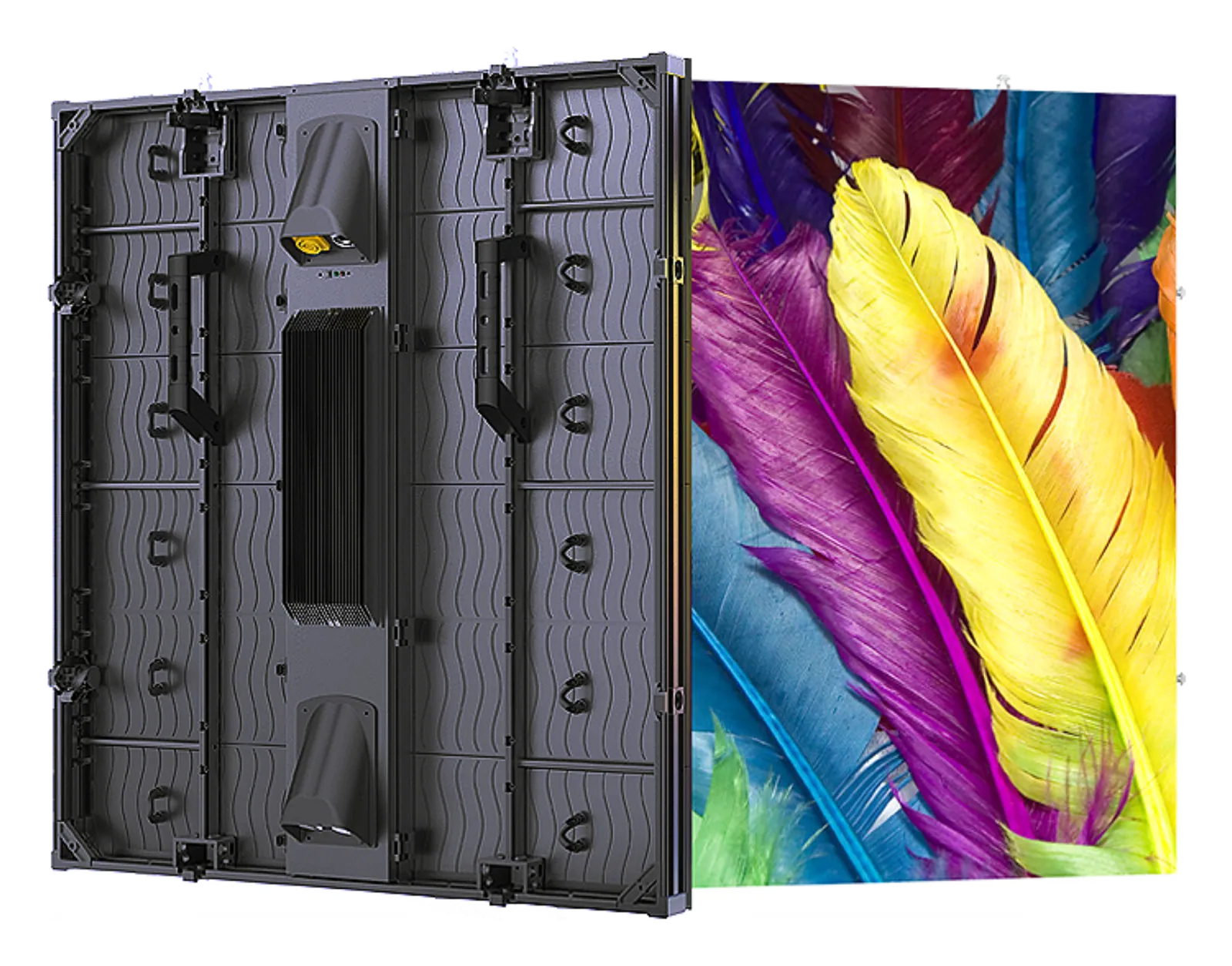

Optional LED panel (solid panel/mesh panel)
- Series
- M Series
- Pixel pitch
- 16.667 mm
- Brightness
- 5000 nits
- Panel size
- 800 × 900 × 65 mm
- Pixel matrix per panel
- 48 × 54
- Panel weight
- 16 kg
- Maintenance
- Front access / rear access
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
M16Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 3.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- Pixel pitch
- 16.667 mm
- Brightness
- 5000 nits
- Panel size
- 800 × 900 × 65 mm
- Pixel matrix per panel
- 48 × 54
- Transparency rate (%)
- 0 / 22
- Panel material
- Aluminum
- Panel weight
- 16 kg
- Ingress protection (front/rear) (IP)
- 65 / 54
- Maintenance
- Front access / rear access
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models8 models in the family
Models compared.
| Model | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
|---|---|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 3.846 | H4.762 / V4.688 | 5.556 | 6.25 | 8.333 | 10 | 12.5 | 16.667 |
| Brightness (nits) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 / 4000 | 5000 |
| Panel size (mm) | 800 × 900 × 65 | 800 × 900 × 65 | 800 × 900 × 65 | 800 × 900 × 65 | 800 × 900 × 65 | 800 × 900 × 65 | 800 × 900 × 65 | 800 × 900 × 65 |
| Pixel matrix per panel | 208 × 234 | 168 × 192 | 144 × 162 | 128 × 144 | 96 × 108 | 80 × 90 | 64 × 72 | 48 × 54 |
| Transparency rate (%) | 0 | 0 | 0 | 0 | 0 | 0 | 0 / 18 / 33 | 0 / 22 |
| Panel material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Panel weight (Kg) | 19.8 | 19.8 | 19.5 | 17.2 | 17.2 | 16.5 | 16 | 16 |
| Ingress protection (front/rear) (IP) | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 |
| Maintenance | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access |
03DescriptionManufacturer's description
What it is.

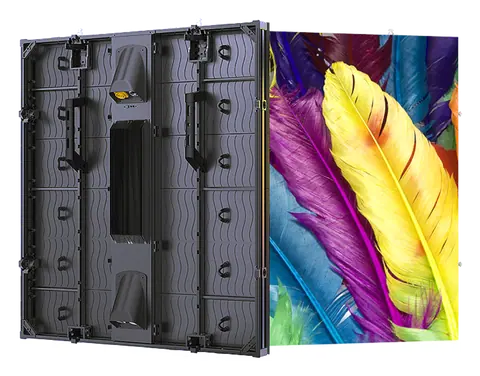

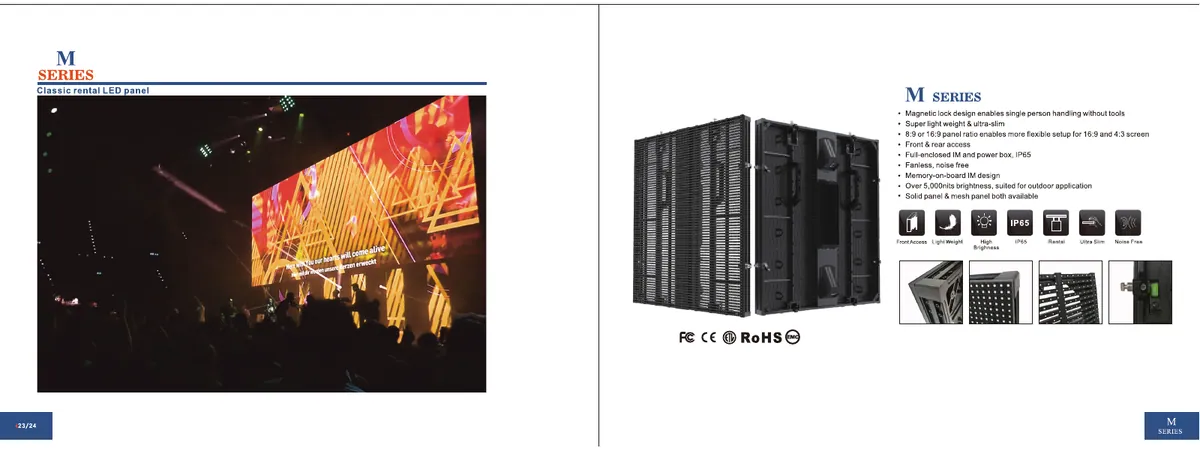

Classic rental LED panel.
Key points

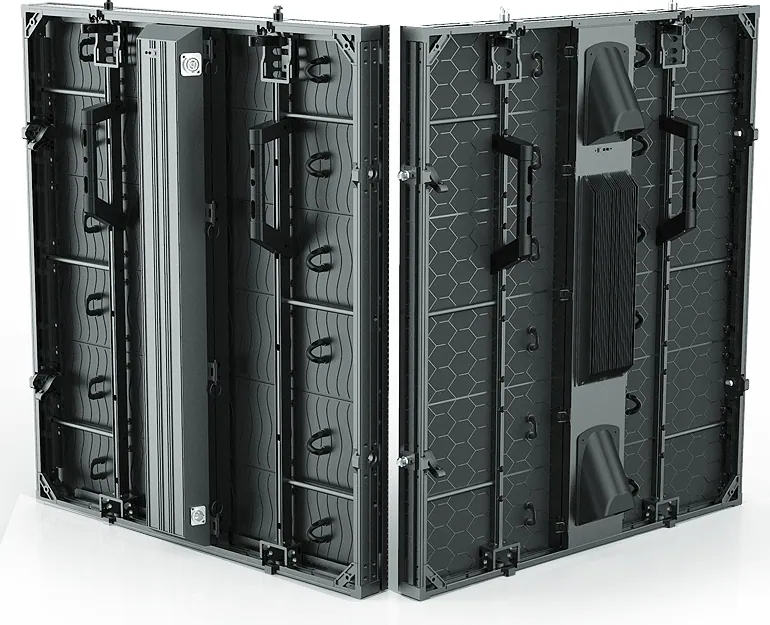

Modular design
- Front & rear access
- Optional PSU design available
- Tensile aluminium material
- Perimeter LED display available (with bracket)
- Certification:CE/FCC/UL/ROHS
Refresh rate:3840HZ
Quickly assemble and disassemble,one man installation

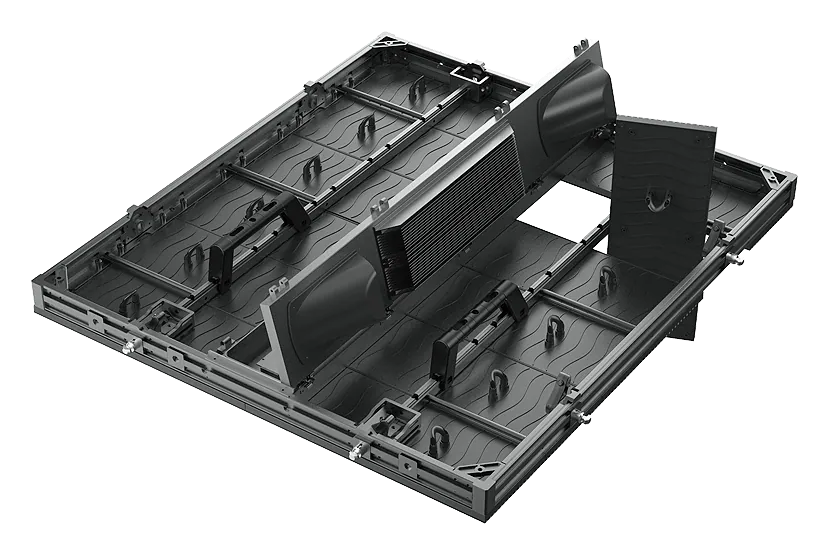

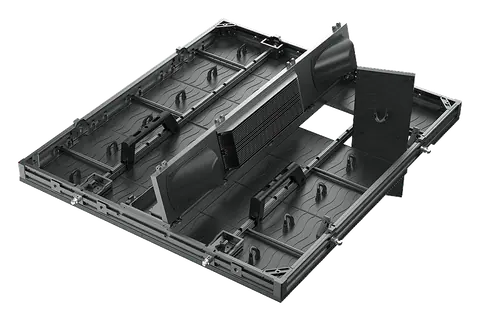

Cabinet Features
- Magnetic lock design on four sides, better flatness
- Cooling fin on PSU for fast heat dissipation
- Big handlebar, easy to handle

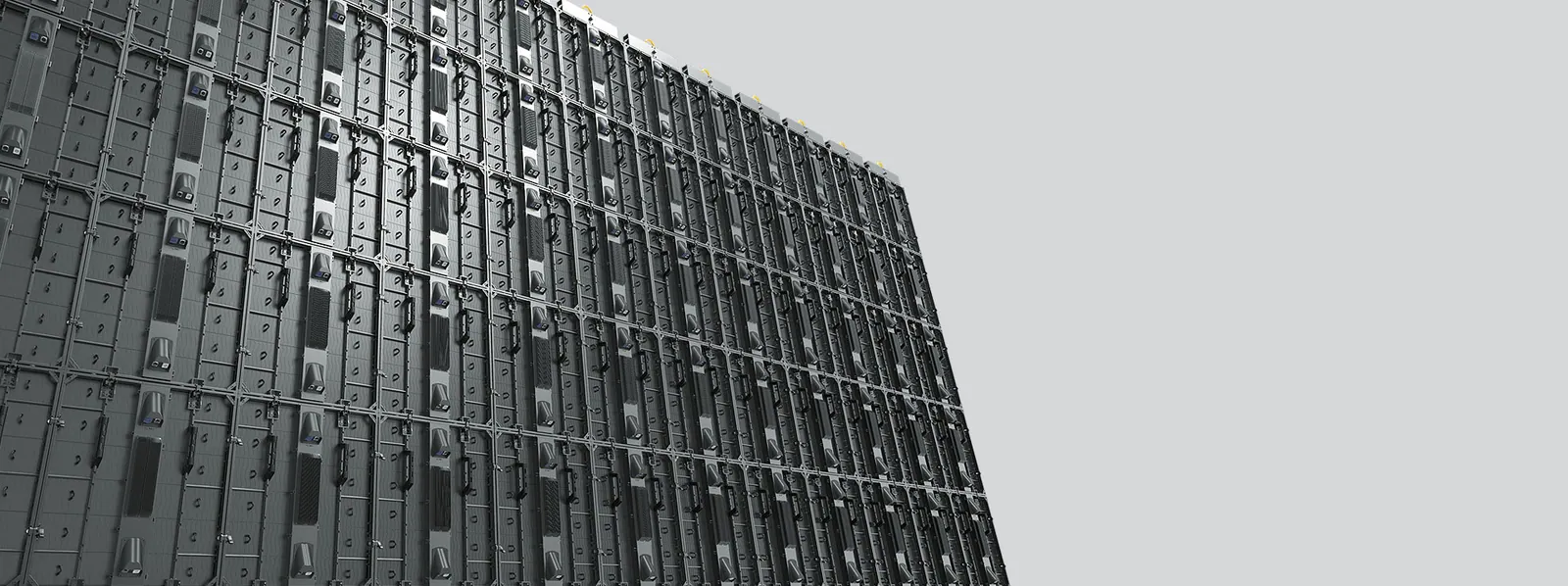

Magnet-assisted assembly

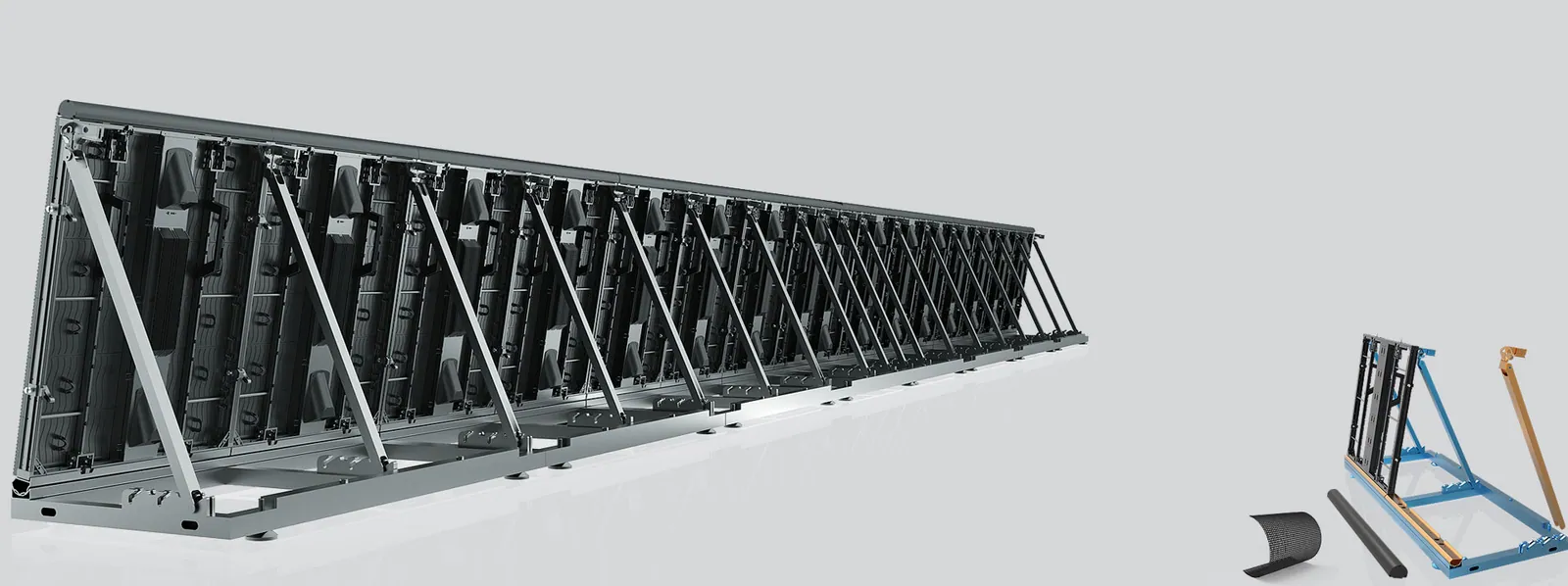

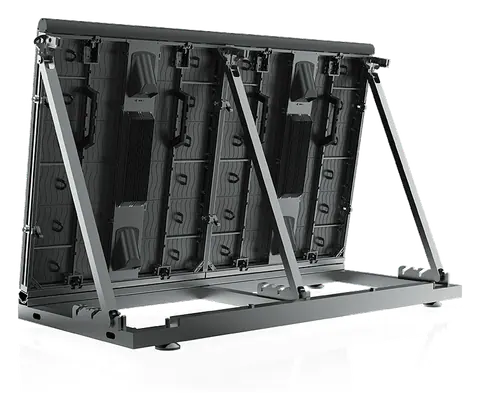

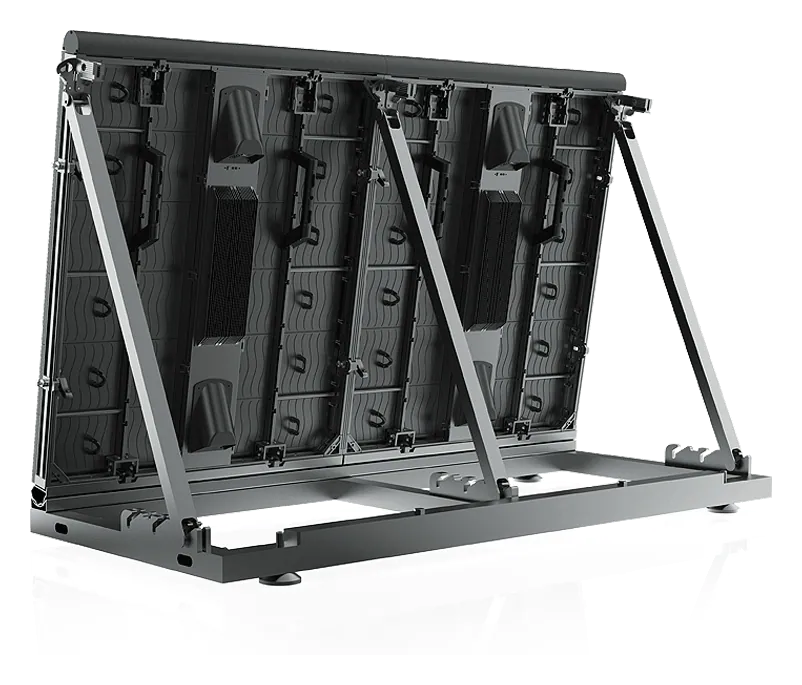

Perimeter LED Display
- Available for perimeter LED display
- Bracket with adjustable angle
- Anti-crash mask available
- Customized top R curve

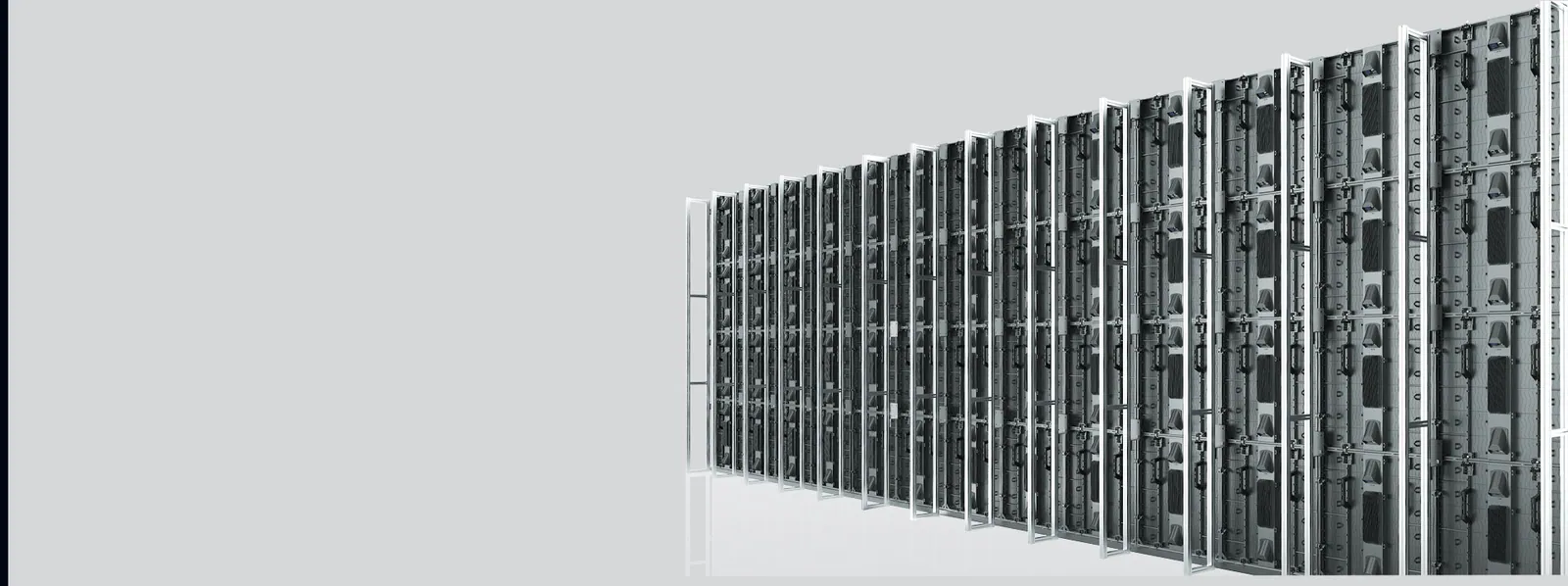

- Cabinet stacking, easily and quickly assemble
- Rental, concerts and stages
- Sports venues
- Corporate and meeting rooms
