QF 2.9

Creative outdoor LED panel.

Series
QF Series
Pixel pitch
2.976 mm
Brightness
5000 nits
Power consumption
max 650 / avg 227 W/m²
Case size
1000 × 500 × 120 mm
Box pixel matrix
336 × 168
Protection level (front/rear) (IP)
66 / 66
Panel weight
28 kg
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 11 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 3.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications11
Pixel pitch
2.976 mm
Brightness
5000 nits
Case size
1000 × 500 × 120 mm
Box pixel matrix
336 × 168
Panel material
Steel
Panel weight
28 kg
Protection level (front/rear) (IP)
66 / 66
Maintenance mode
front maintenance
Input power Max
650 W/m²
Input power Avg
227 W/m²
Display refresh rate
1920 Hz
02Models3 models in the family

Models compared.

ModelQF 2.6QF 2.9QF 3.9
Pixel pitch (mm)2.6042.9763.906
Brightness (nits)450050005500
Case size (mm)1000 × 500 × 1201000 × 500 × 1201000 × 500 × 120
Box pixel matrix384 × 192336 × 168256 × 128
Panel materialSteelSteelSteel
Panel weight (Kg)282828
Protection level (front/rear) (IP)66 / 6666 / 6666 / 66
Maintenance modefront maintenancefront maintenancefront maintenance
Input power Max (W/m²)680650660
Input power Avg (W/m²)238227231
Display refresh rate (Hz)192019201920
03DescriptionManufacturer's description

What it is.

Key points

  • Outdoor fine pitch
  • Front access
  • Modularization, support creative sesign
  • Seamless right-angle corner

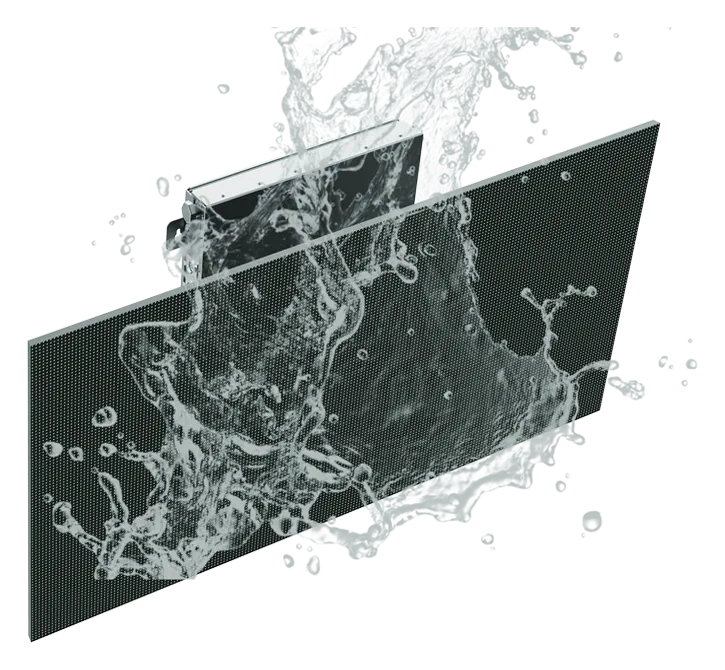

  • Waterproof module, IP65,
  • Configurable cabinet

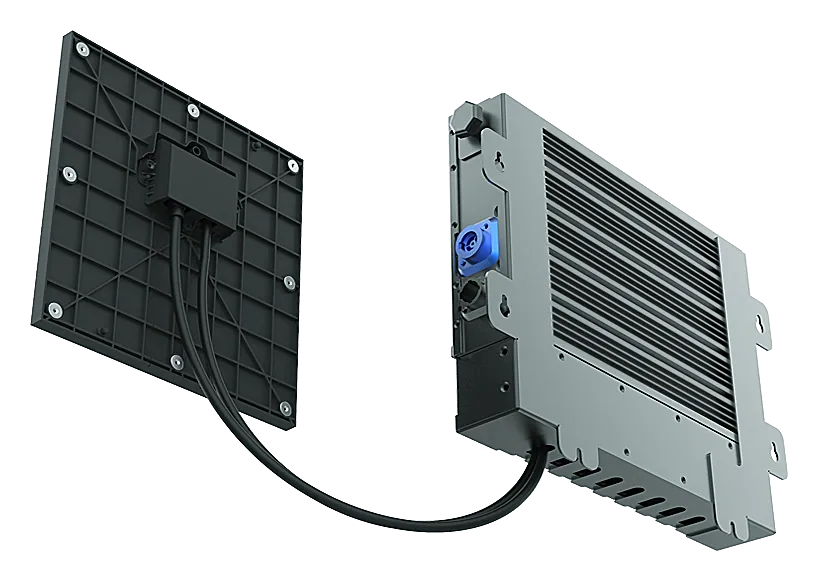

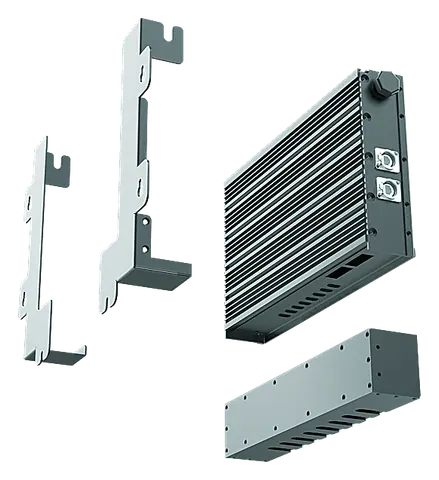

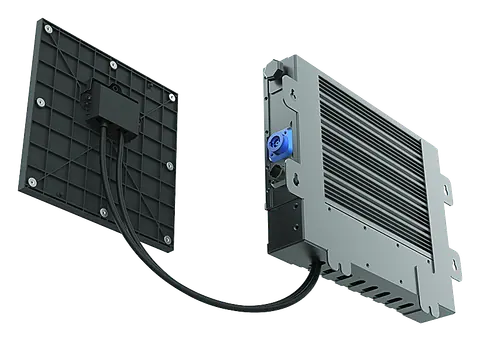

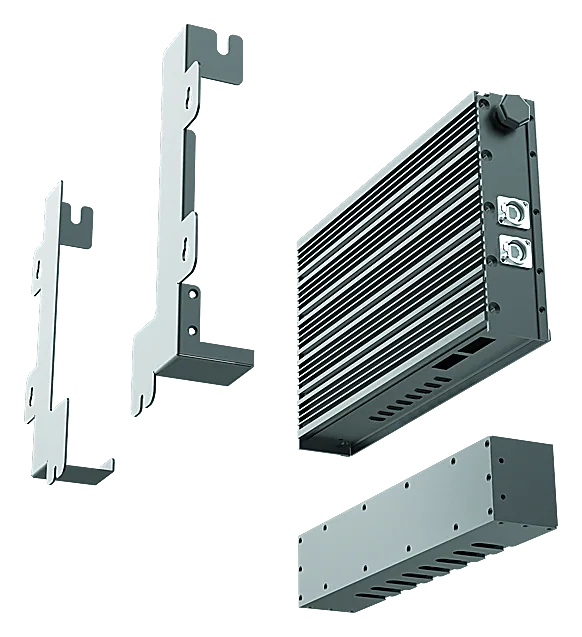

  • External power box choice
  • Certificates:CE/ETL
  • DOOH and advertising

01

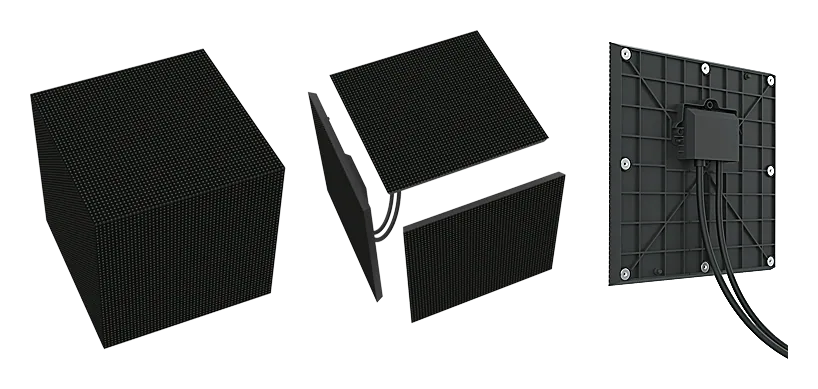

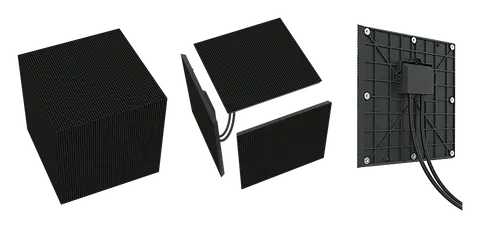

Seamless Right-corner Module

Modular Cubic Splicing

DESAY QF 2.9: Seamless Right-corner Module

02

Wireless Creative Design

Designed for Square, Hexagon, Octagon ...

Support Flat & Solid Geometry Construction

DESAY QF 2.9: Wireless Creative Design

03

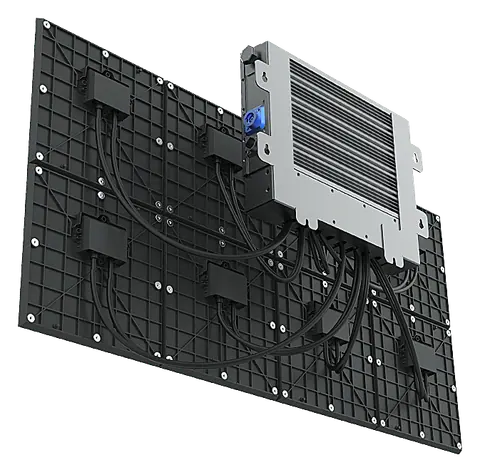

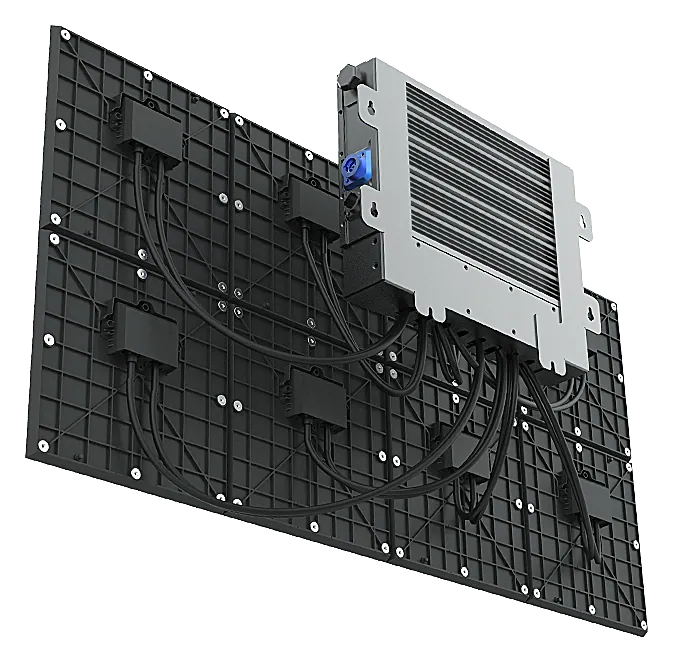

Cabinet Size Customization

The module can be configured with cabinets of different sizes

Simple Cabinet Configuration

DESAY QF 2.9: Cabinet Size Customization

04

Magnetic Module

The magnetic module makes simpler installation and labor cost saving

DESAY QF 2.9: Magnetic Module

Application

DESAY QF 2.9: Outdoor Corner Display
Outdoor Corner Display
DESAY QF 2.9: Creative Screen
Creative Screen
DESAY QF 2.9: Outdoor advertising
Outdoor advertising
04Documents1 file · 3.8 MB

Documents and files.

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
