Sheet 05.1408
DESAY · Rental displays
RS 1.2

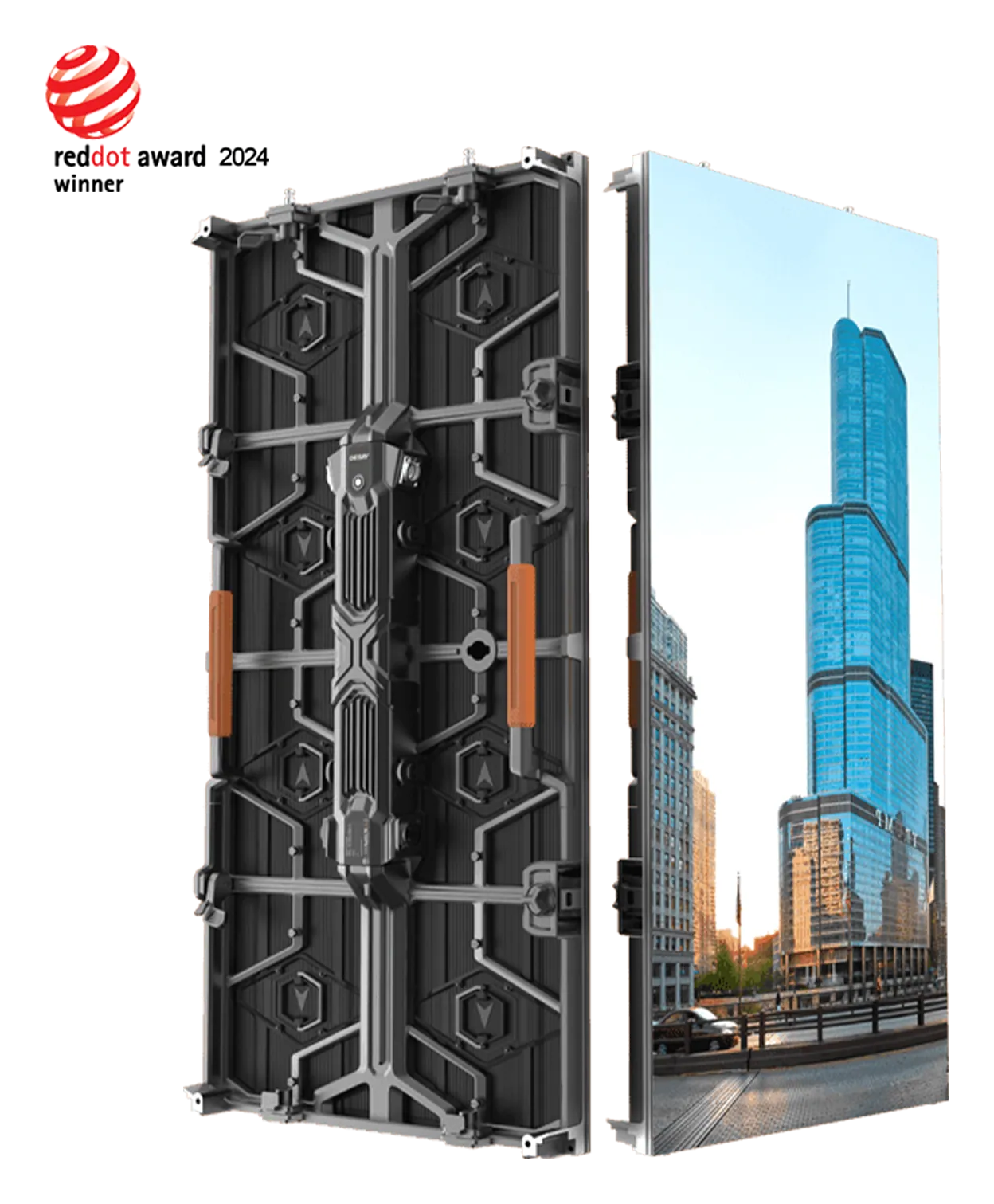

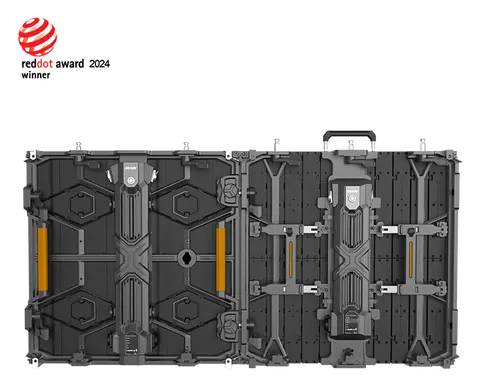

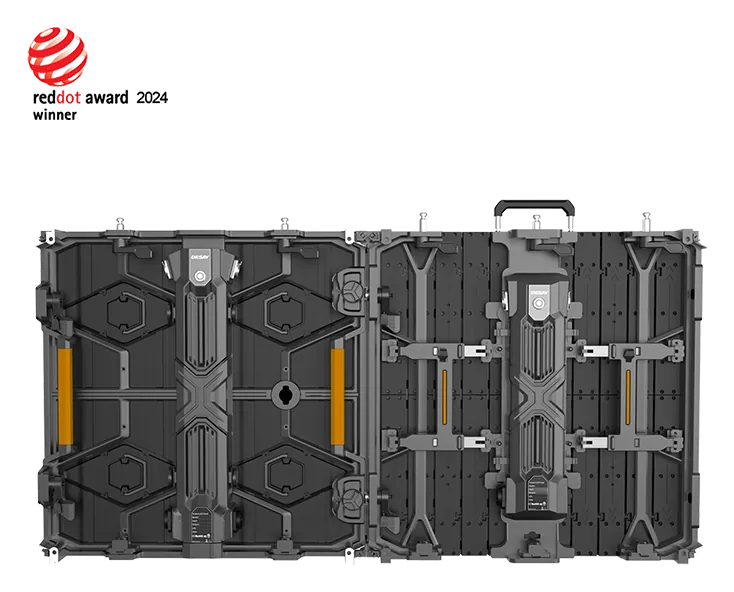

Cabinet dimensions: 500×500mm / 500×1,000mm
- Series
- RS Series
- Pixel pitch
- 1.25 mm
- Brightness
- 800 nits
- Panel size
- 500 × 500 × 68 mm
- Pixel matrix per panel
- 400 × 400
- Panel weight
- 7 kg
- Maintenance
- Front access / rear access
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
RS 1.2Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.

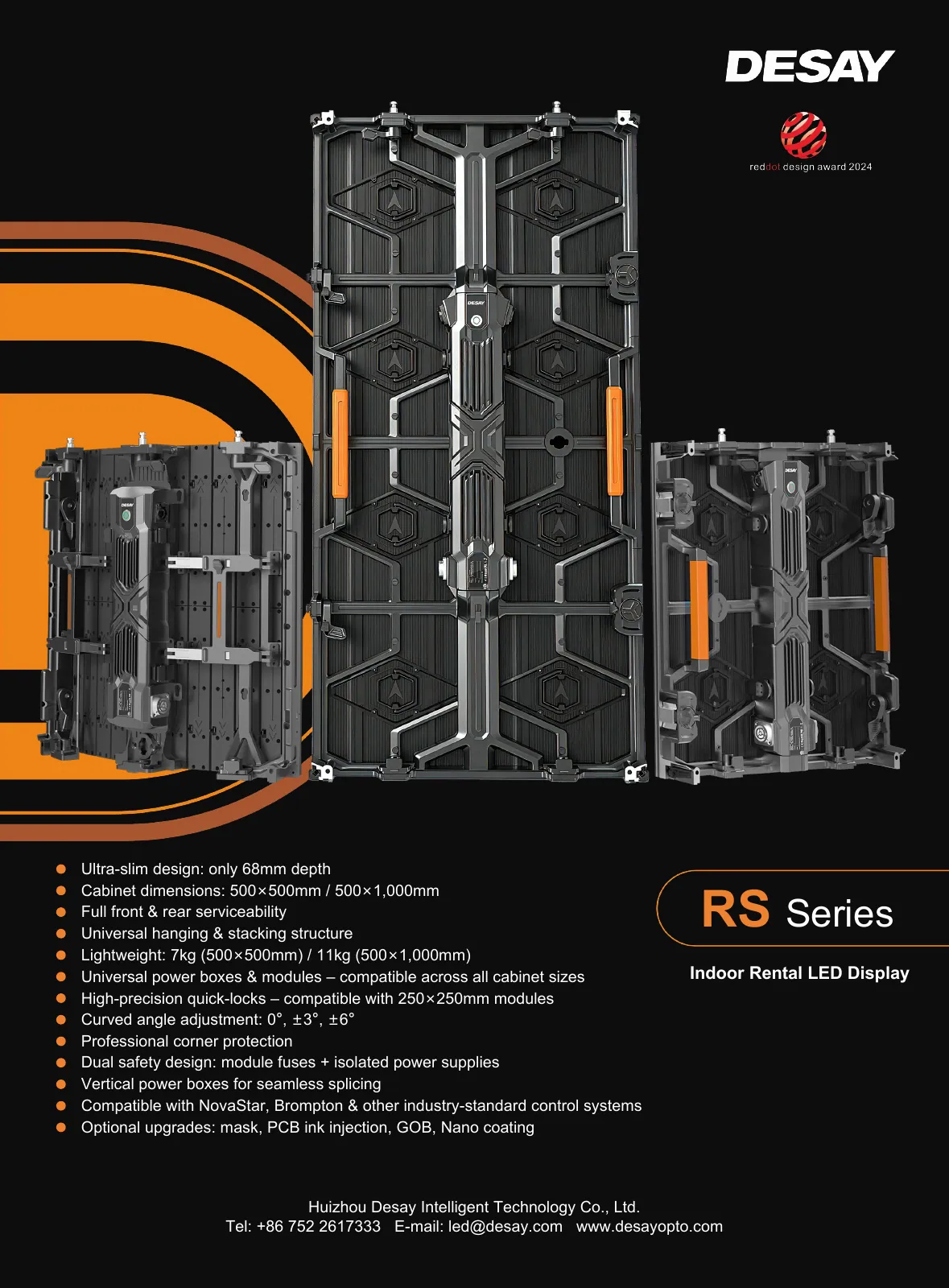

PDFDatasheetEN · 4 pages · 4.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Pixel pitch
- 1.25 mm
- Brightness
- 800 nits
- Panel size
- 500 × 500 × 68 mm
- Pixel matrix per panel
- 400 × 400
- Panel material
- Die-casting Aluminum
- Panel weight
- 7 kg
- Ingress prorection (front/back) (IP)
- 30 / 30
- Maintenance
- Front access / rear access
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models6 models in the family
Models compared.
| Model | RS 1.2 | RS 1.5 | RS 1.9 | RS 2.6 | RS 2.9 | RS 3.9 |
|---|---|---|---|---|---|---|
| Pixel pitch | 1.25 | 1.563 | 1.953 | 2.604 | 2.976 | 3.906 |
| Brightness (nits) | 800 | 600 | 800 | 1000 | 1000 | 1000 |
| Panel size (mm) | 500 × 500 × 68 | 500 × 500 × 68 | 500 × 500 × 68 | 500 × 500 × 68 / 500 × 1000 × 68 | 500 × 500 × 68 / 500 × 1000 × 68 | 500 × 500 × 68 / 500 × 1000 × 68 |
| Pixel matrix per panel | 400 × 400 | 320 × 320 | 256 × 256 | 192 × 192 / 192 × 384 | 168 × 168 / 168 × 336 | 128 × 128 / 128 × 256 |
| Panel material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel weight (Kg) | 7 | 7 | 7 | 7 / 11 | 7 / 11 | 7 / 11 |
| Ingress prorection (front/back) (IP) | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 |
| Maintenance | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access |
03DescriptionManufacturer's description
What it is.
Indoor rental LED display.
Key points
- Ultra-slim design: only 68mm depth
- Full front & rear serviceability

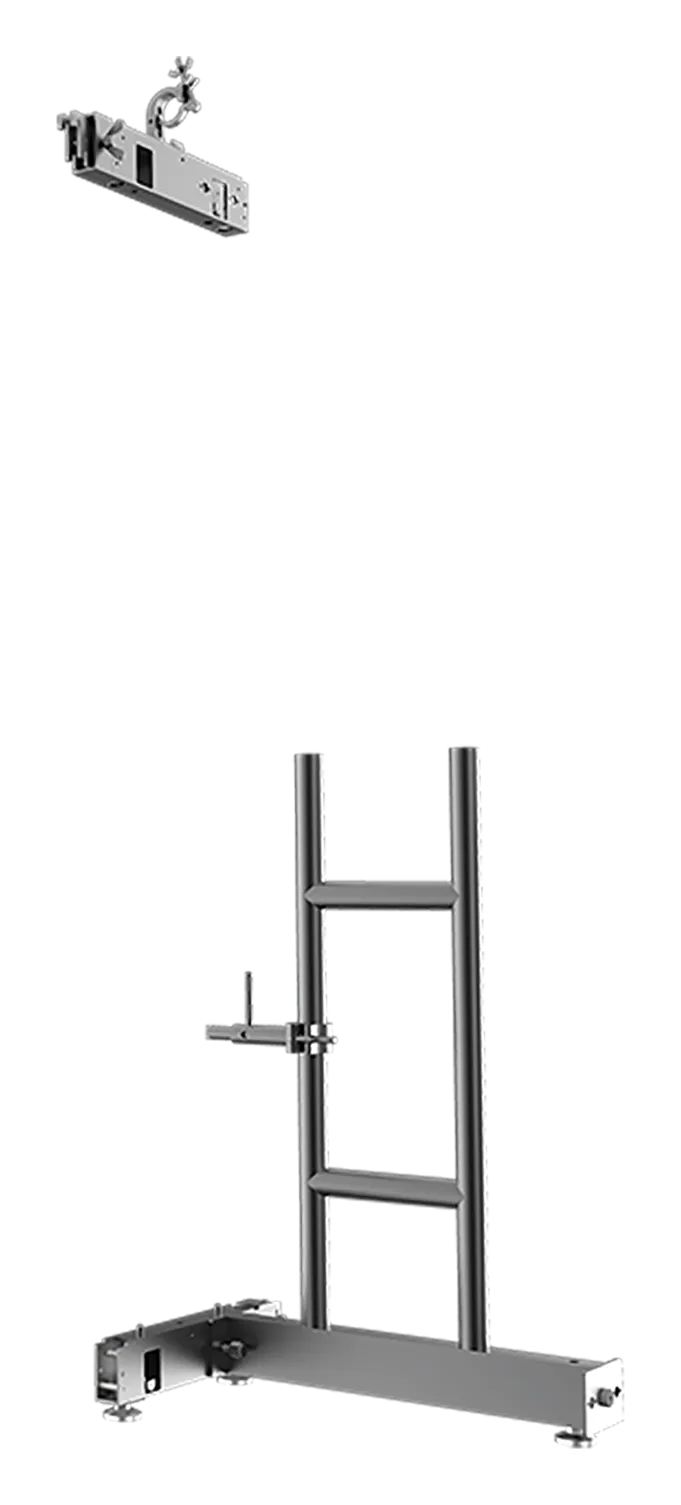

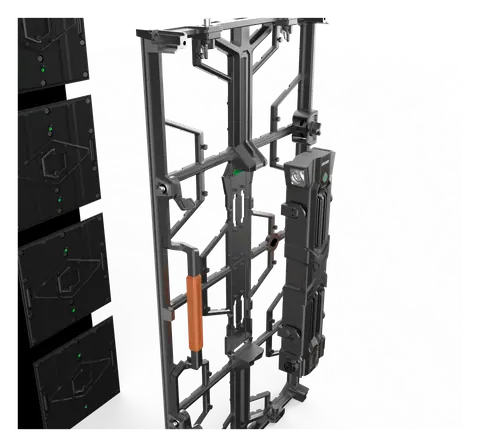

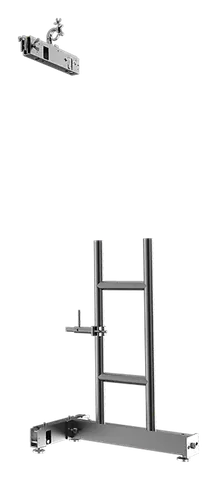

- Universal hanging & stacking structure
- Lightweight: 7kg (500×500mm) / 11kg (500×1,000mm)

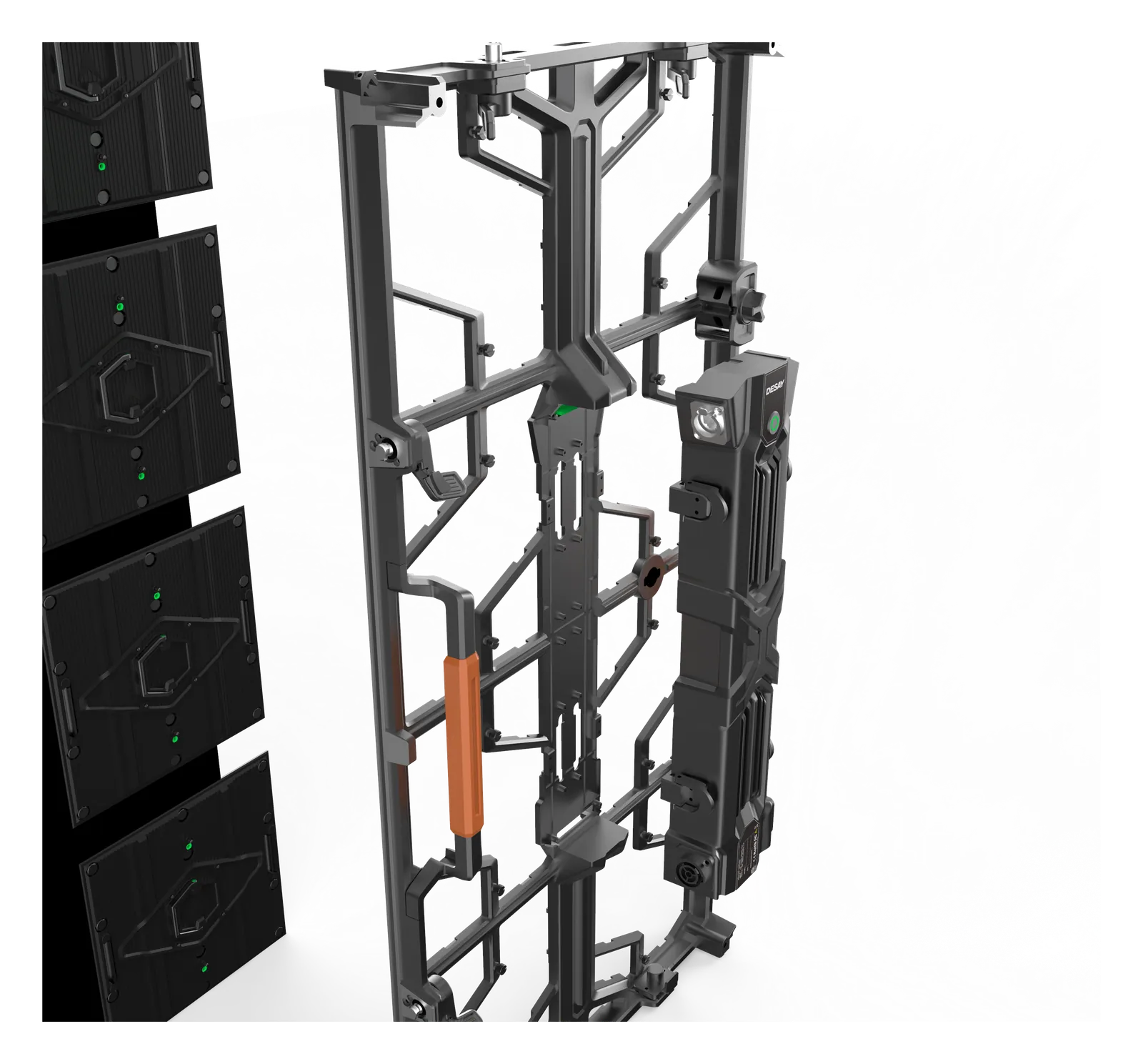

- Universal power boxes & modules – compatible across all cabinet sizes
- High-precision quick-locks – compatible with 250×250mm modules

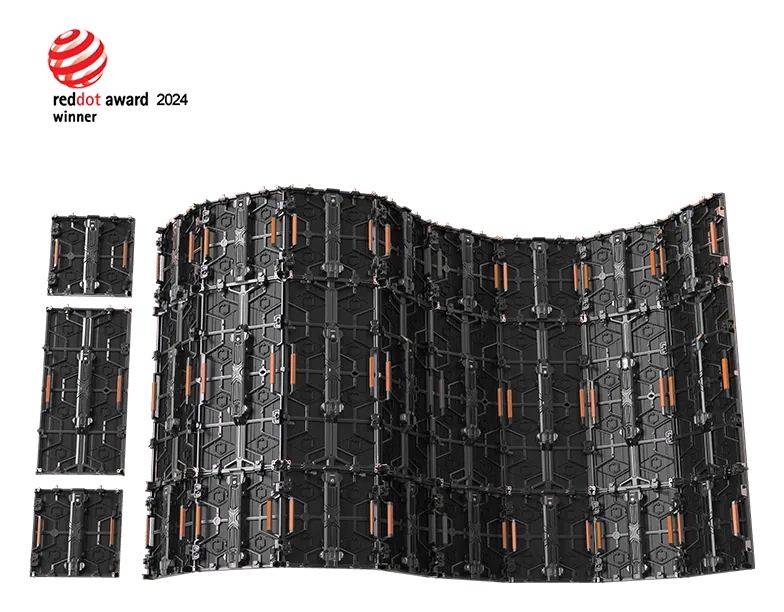

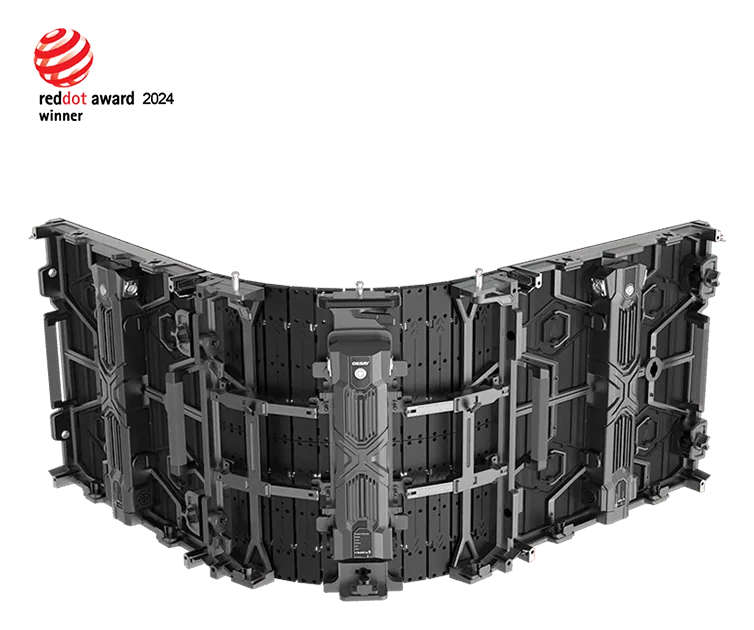

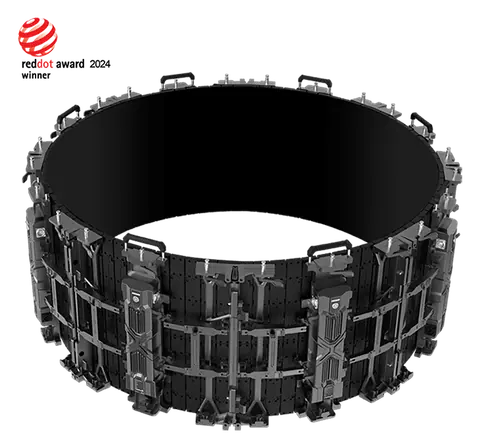

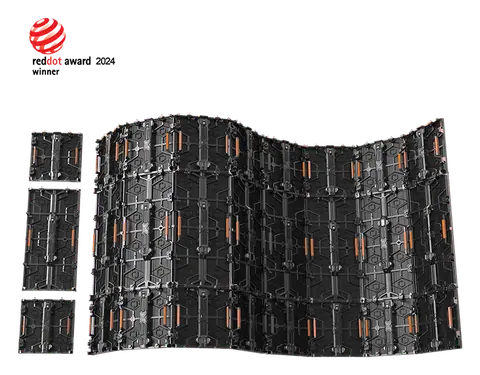

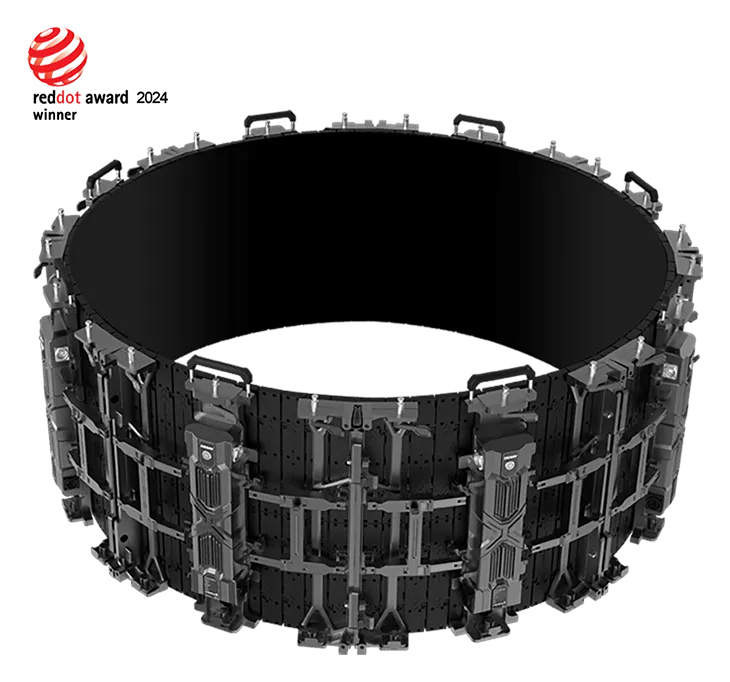

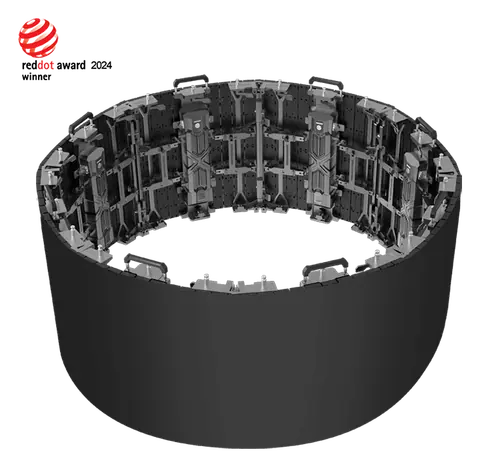

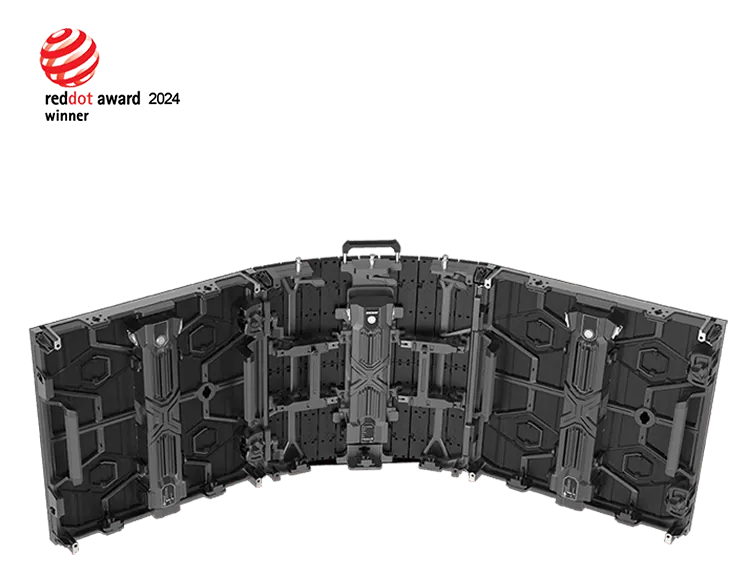

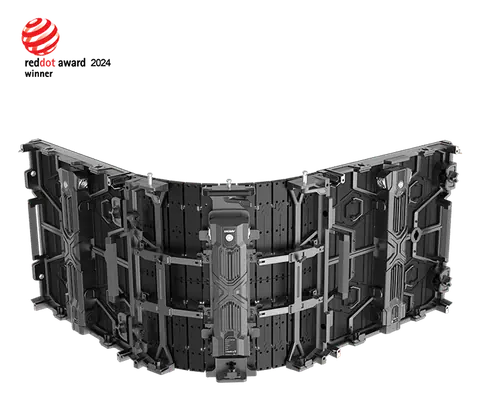

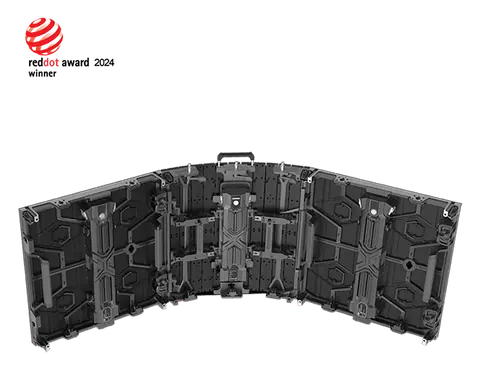

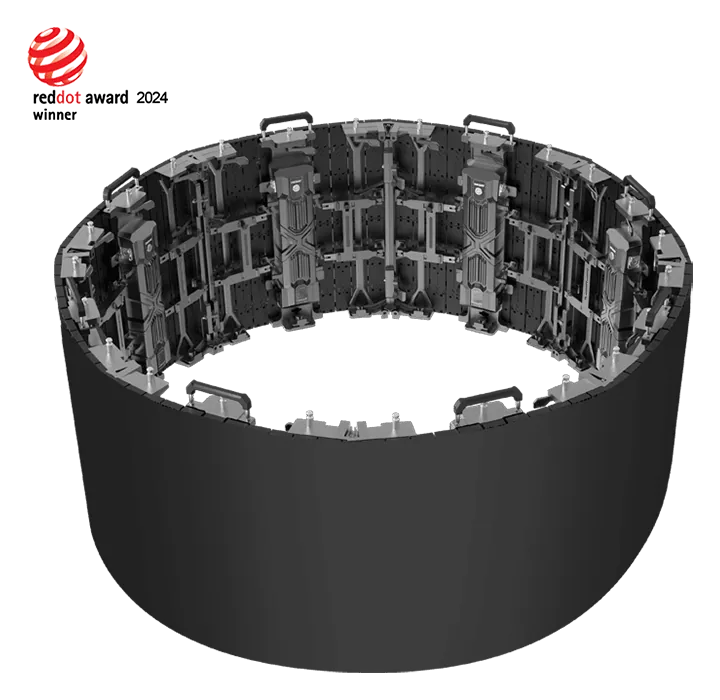

- Curved angle adjustment: 0°, ±3°, ±6°

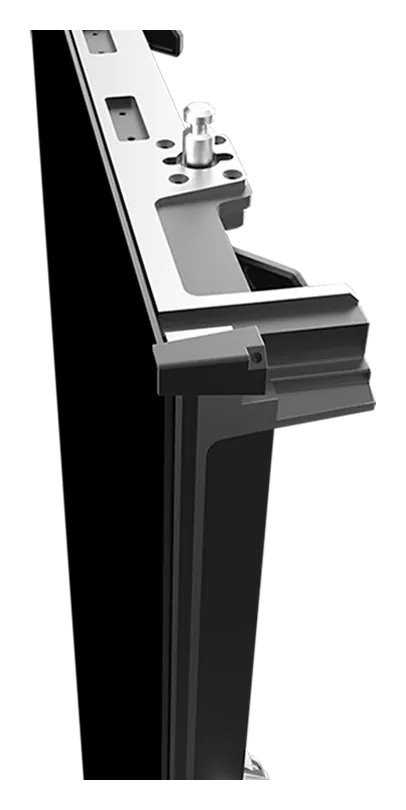

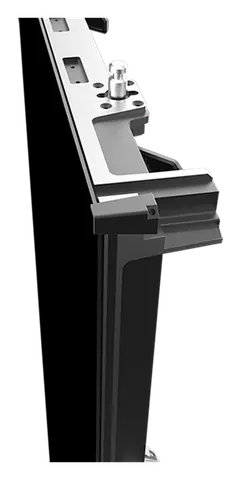

- Professional corner protection
- Dual safety design: module fuses + isolated power supplies

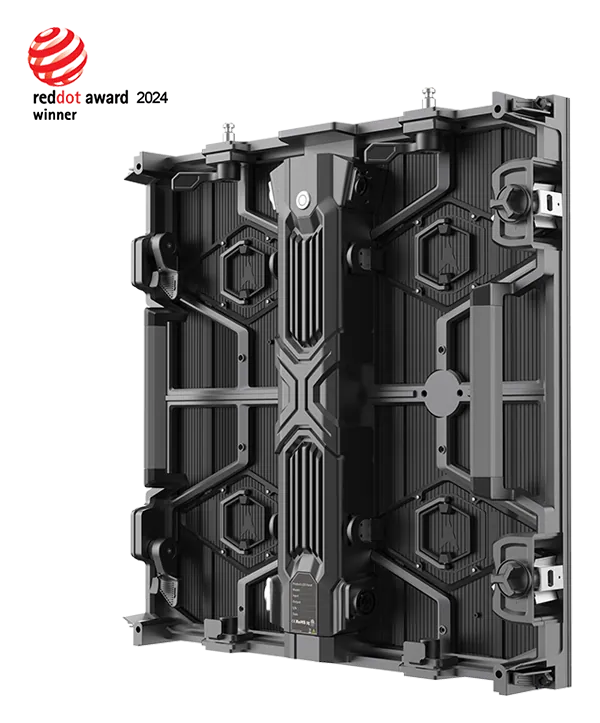

- Vertical power boxes for seamless splicing
- Compatible with NovaStar, Brompton & other industry-standard control systems
- Optional upgrades: mask, PCB ink injection, GOB, Nano coating
04Documents1 file · 4.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
