01

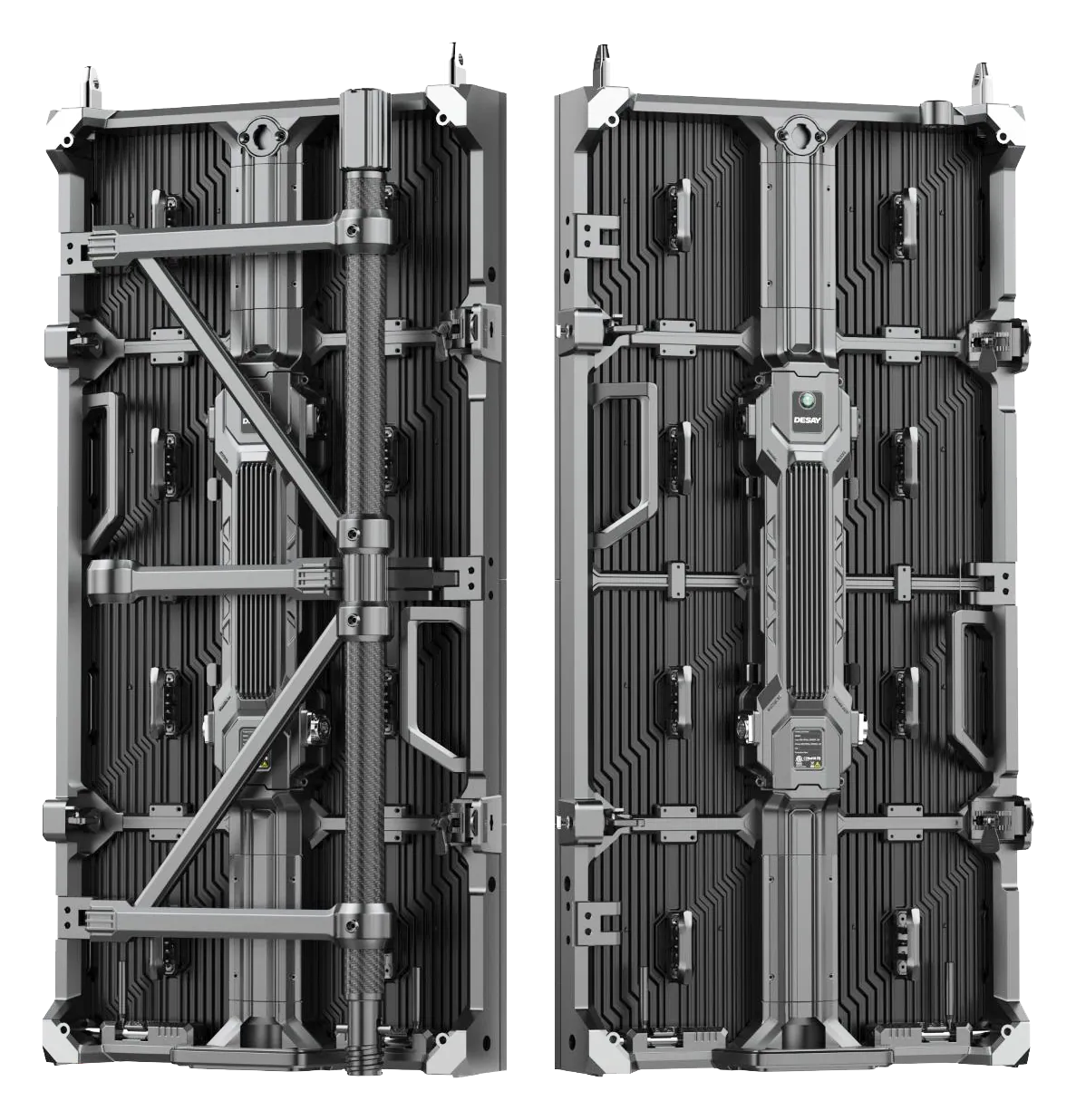

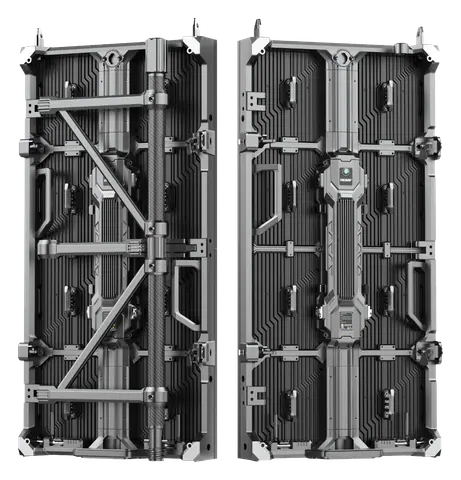

Modular structure , Full front & rear serviceability
Hot-swappable power boxes & modules

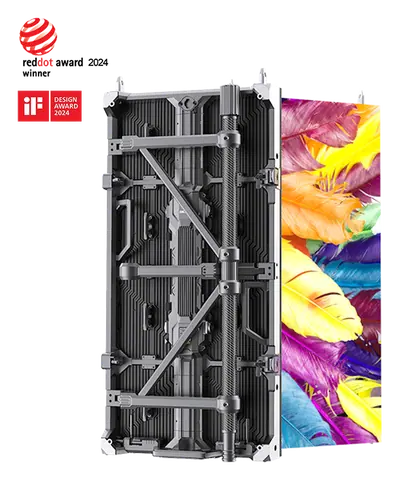

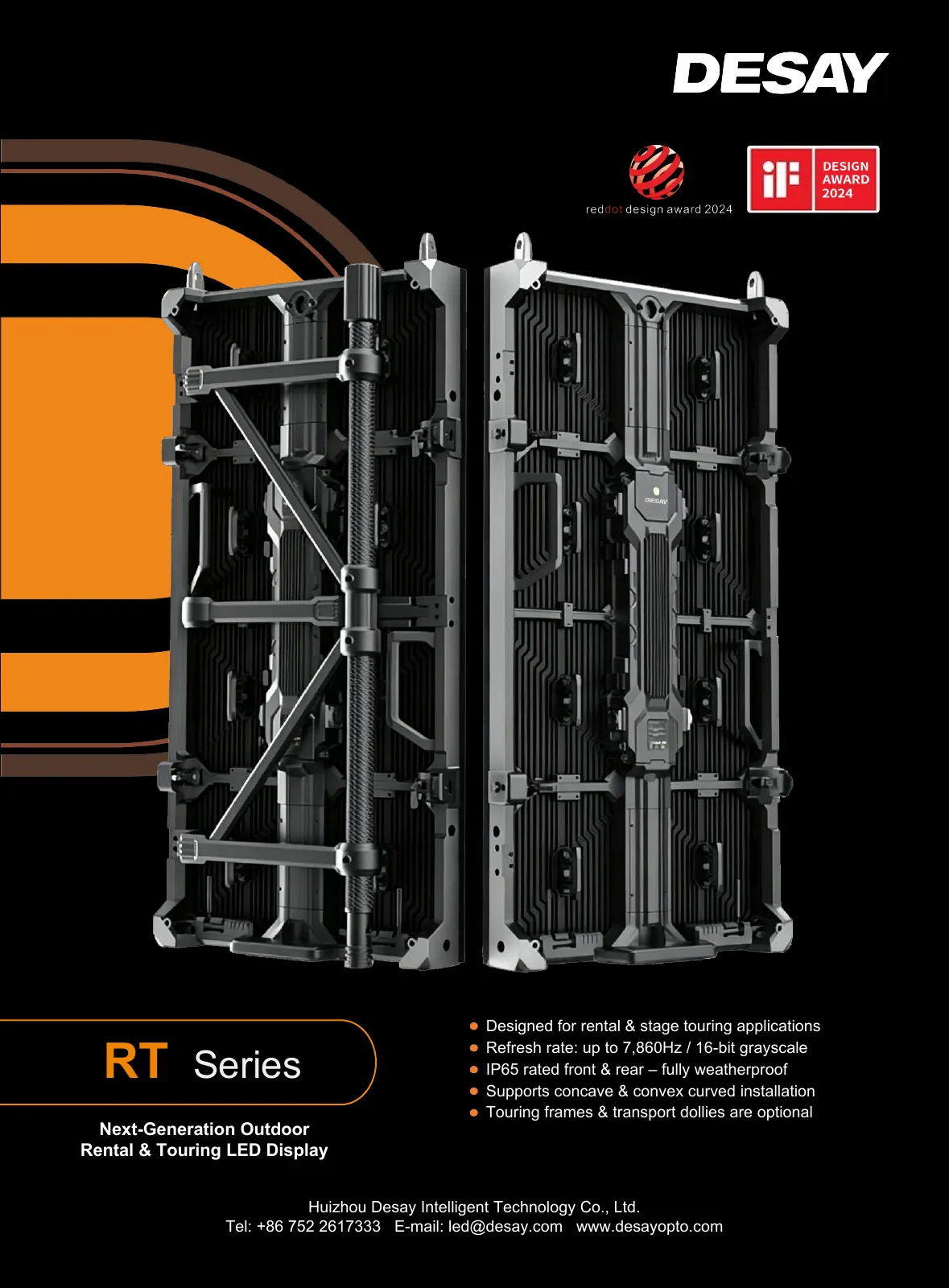

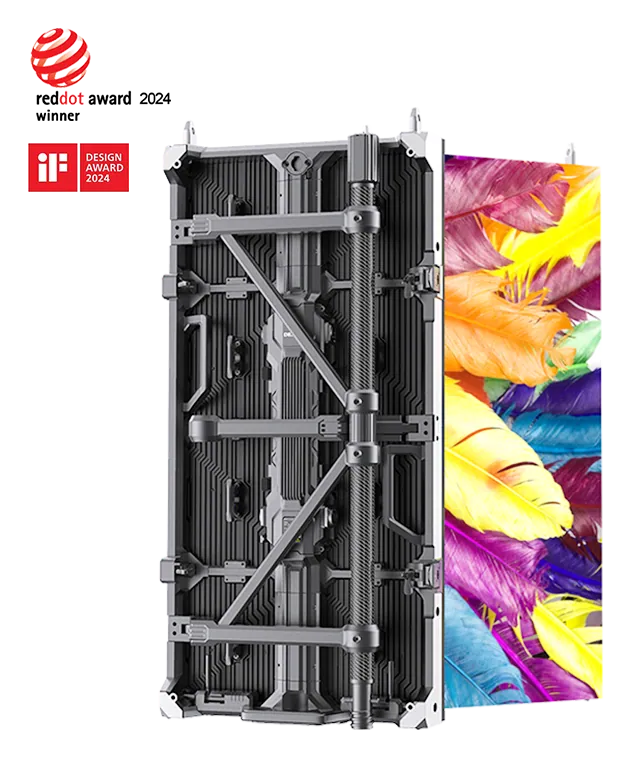

Next-generation outdoor rental & touring LED display.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
| Model | RT 2.6 | RT 2.9 | RT 3.9 | RT 4.8 | RT 8.3 |
|---|---|---|---|---|---|
| Pixel pitch (mm) | 2.604 | 2.976 | 3.906 | 4.807 | 8.333 |
| Brightness (nits) | 5000–5500 | 5000–5500 | 5000–6000 | 5000–6000 | 5000–6000 |
| Panel size (mm) | 500 × 1000 × 86 | 500 × 1000 × 86 | 500 × 1000 × 86 | 500 × 1000 × 86 | 500 × 1000 × 86 |
| Pixel matrix per panel | 192 × 384 | 168 × 336 | 128 × 256 | 104 × 208 | 60 × 120 |
| Panel material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Panel weight (Kg) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| Ingress protection (front/back) (IP) | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 |
| Maintenance | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access |
| Power Consumption (Avg.) (W/m²) | 227±10% | 227±10% | 227±10% | 227±10% | 227±10% |
01
Hot-swappable power boxes & modules

02
Max hanging load: 15 panels

03
Optional five-position curved locks: -10°, -5°, 0°, +5°, +10°


04

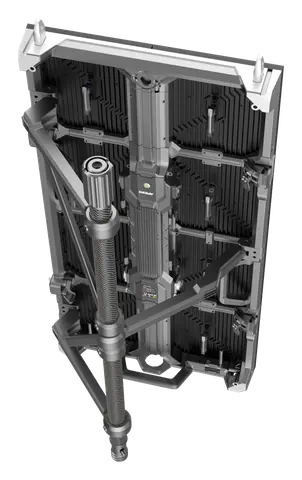

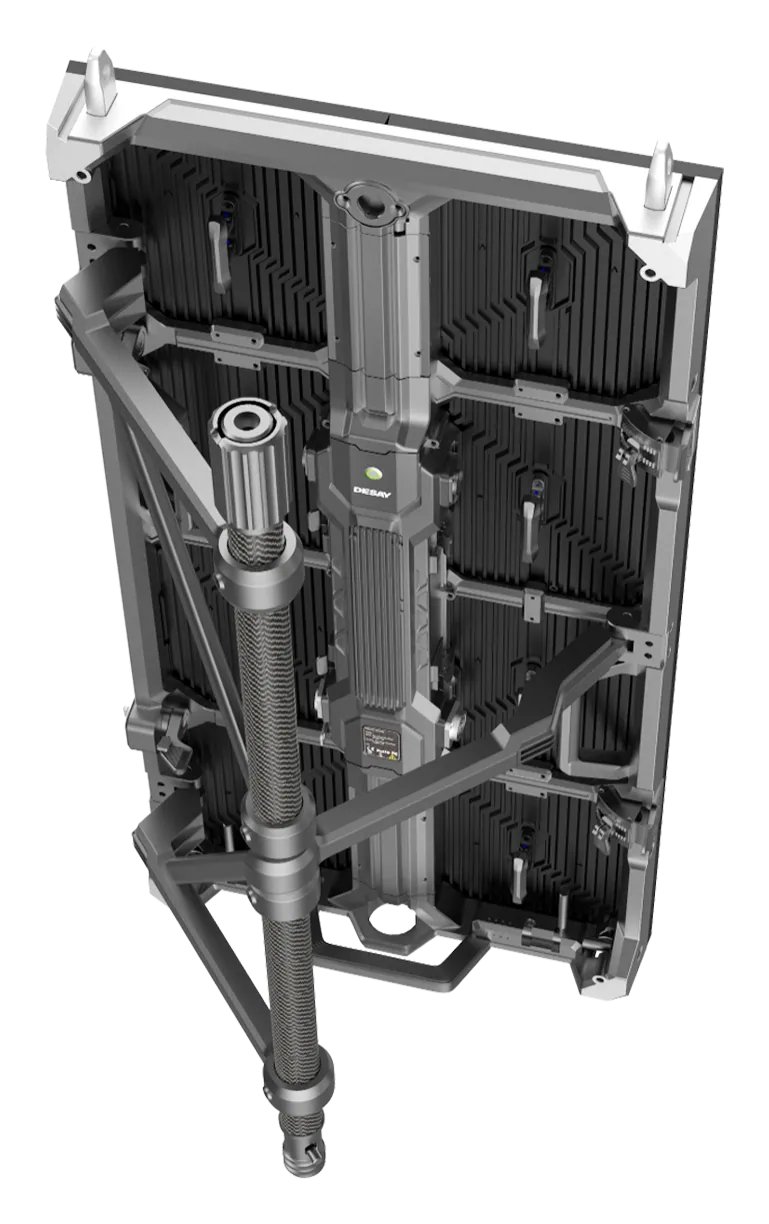

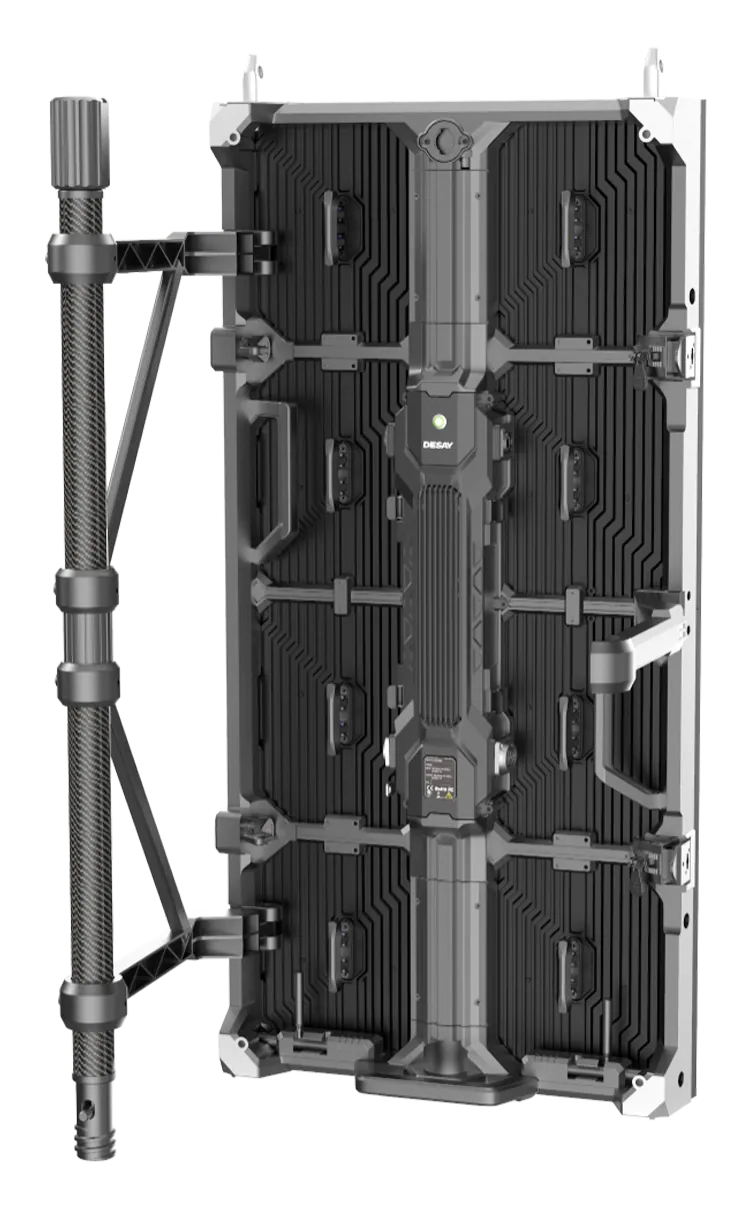

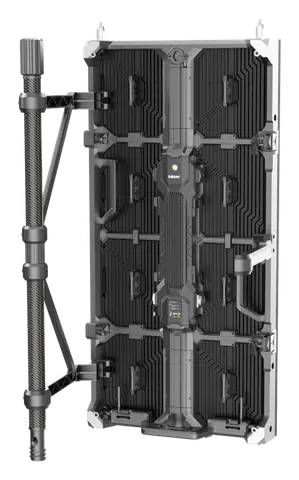

Professional rear frame, tool-free installation in 5 seconds

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
