Sheet 05.1245
Esdlumen · Indoor fixed displays
BIM Plus-X 2.5

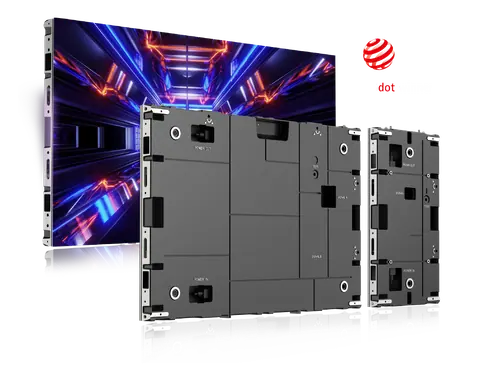

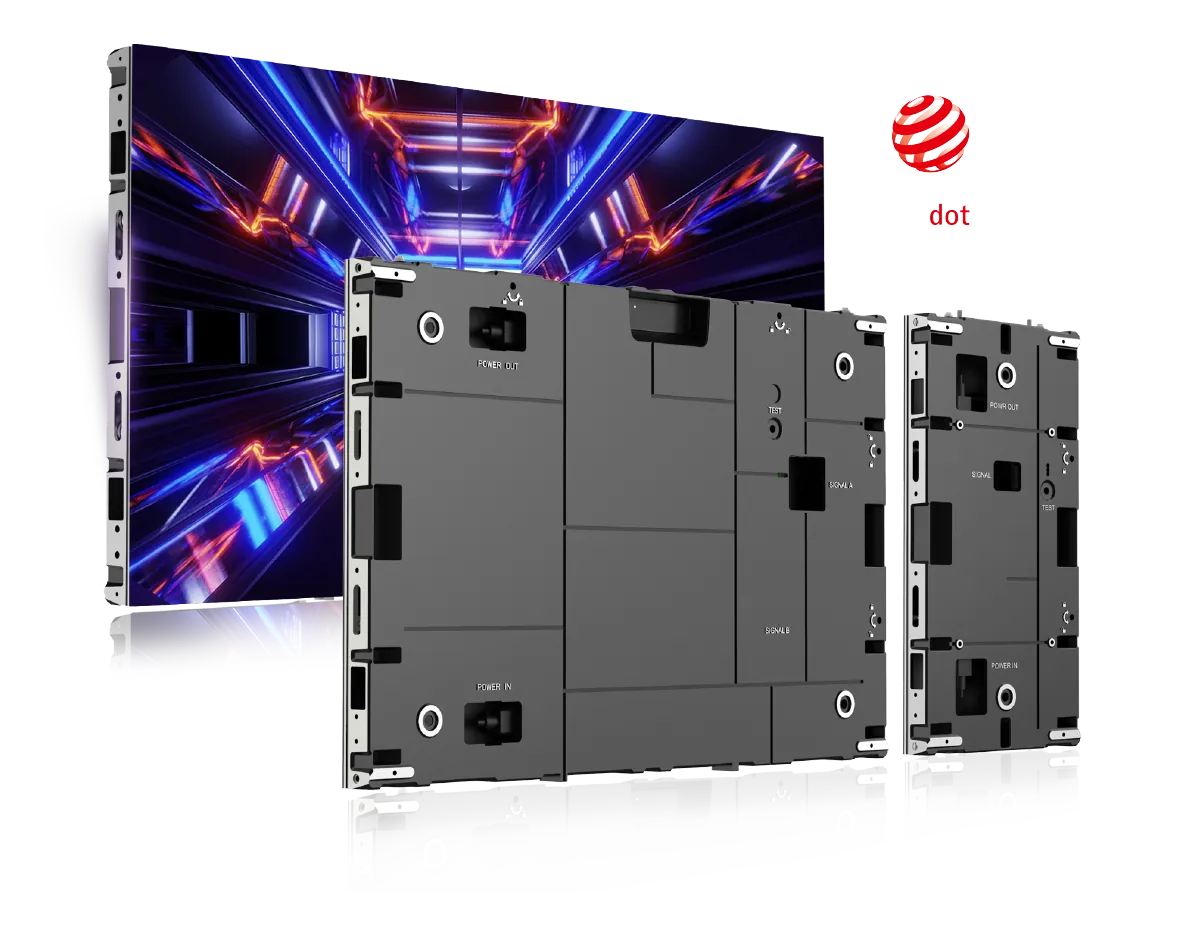

Award-winning X-Generation indoor LED display: stable operation, multiple sizes, 90° rotation, creative splicing, high brightness, award winner.
- Series
- BIM Plus-X Series
- Pixel pitch
- 2.5 mm
- Brightness
- 800 / 3000 nits
- Panel size
- 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 mm
- Panel resolution
- 400 × 200 / 300 × 200 / / 100 × 200
- Weight
- 11 / 8 / 3.5 kg
- Serviceability
- Front
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
BIM Plus-X 2.5Price on requestRequest a quotation
01VideoManufacturer's video · 1:13
Esdlumen BIM Plus-X 2.5: the manufacturer's video
02Models7 models in the family
Models compared.
| Model | BIM Plus-X 1.5 | BIM Plus-X 1.9 | BIM Plus-X 2.5 | BIM Plus-X 2.6 | BIM Plus-X 3.1 | BIM Plus-X 3.9 | BIM Plus-X 5.2 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.5 | 1.9 | 2.5 | 2.6 | 3.1 | 3.9 | 5.2 |
| Panel Size (mm) | 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 | 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 | 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 | 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 | 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 | 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 | 1000 × 500 × 42 / 750 × 500 × 42 / 250 × 500 × 42 |
| Panel Resolution | 640 × 320 / 480 × 320 / / 160 × 320 | 512 × 256 / 384 × 256 / / 128 × 256 | 400 × 200 / 300 × 200 / / 100 × 200 | 384 × 192 / 288 × 192 / / 96 × 192 | 320 × 160 / 240 × 160 / / 80 × 160 | 256 × 128 / 192 × 128 / / 64 × 128 | 192 × 96 / 144 × 96 / / 48 × 96 |
| Weight (Kg/pc) | 11 / 8 / 3.5 | 11 / 8 / 3.5 | 11 / 8 / 3.5 | 11 / 8 / 3.5 | 11 / 8 / 3.5 | 11 / 8 / 3.5 | 11 / 8 / 3.5 |
| Brightness (nits) | 600 | 800 | 800 / 3000 | 800 / 3000 | 800 / 3000 | 800 / 3000 | 800 / 3000 |
| Panel Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Serviceability | Front | Front | Front | Front | Front | Front | Front |
| Pixel Density (pixels/m²) | 409600 | 262144 | 147456 | 102400 | 65536 | 36864 | |
| LED Type | SMD (HOB Available) | SMD (HOB Available) | SMD | SMD | SMD | SMD | |
| Brightness Adjustment | Programmable / Automatic / Manual | Programmable / Automatic / Manual | Programmable / Automatic / Manual | Programmable / Automatic / Manual | Programmable / Automatic / Manual | Programmable / Automatic / Manual | |
| Viewing Angle (H/V) | 160° / 120° | 160° / 120° | 160° / 120° | 160° / 120° | 160° / 120° | 160° / 120° | |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | |
| Contrast Ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | |
| Color Temperature (K) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
03DescriptionManufacturer's description
What it is.

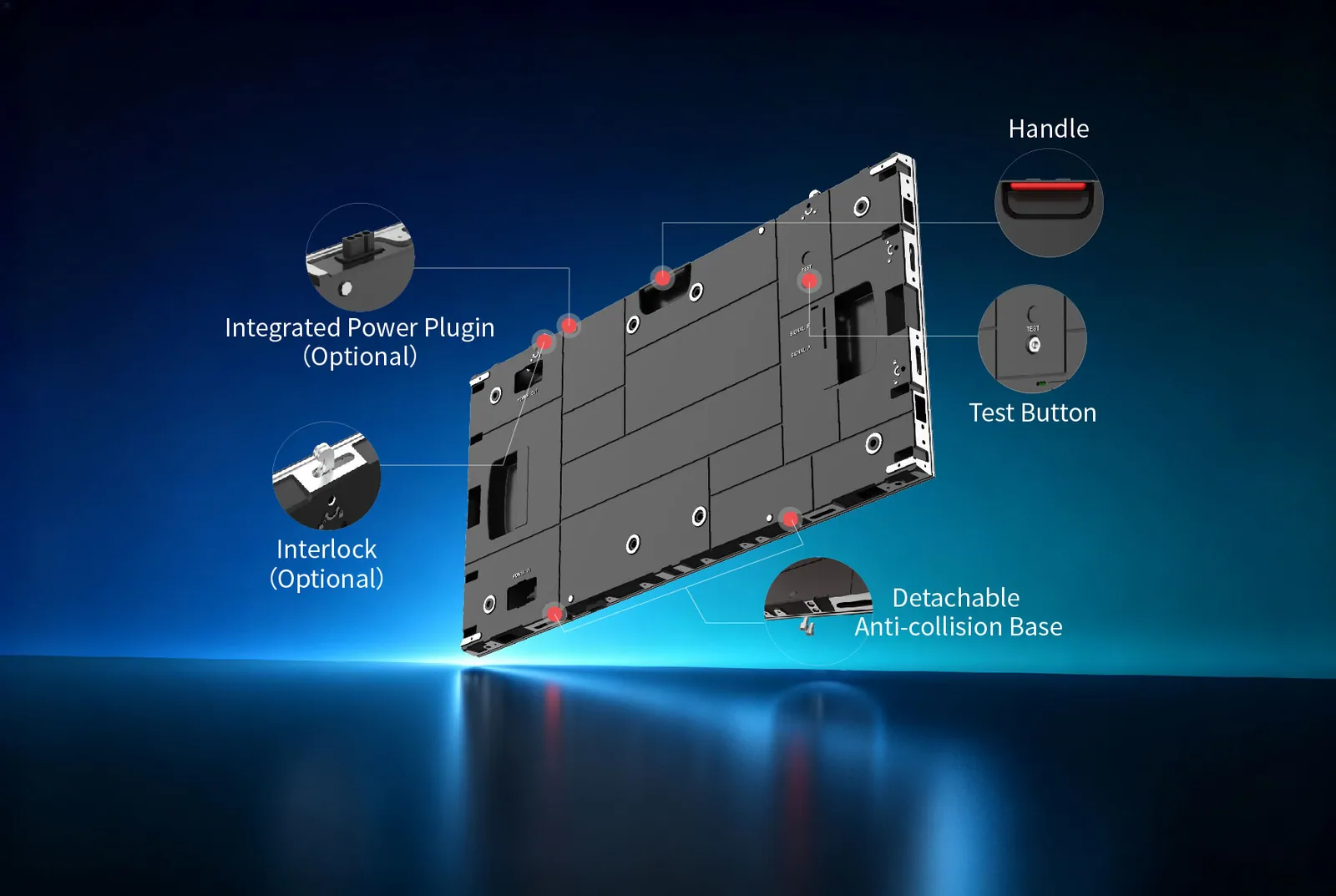

“X”tremely Considerate -- Detail Matters

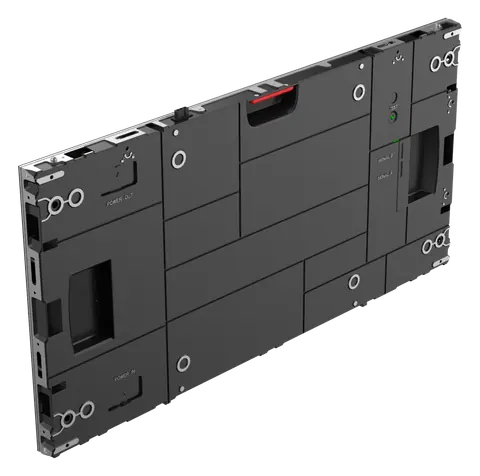

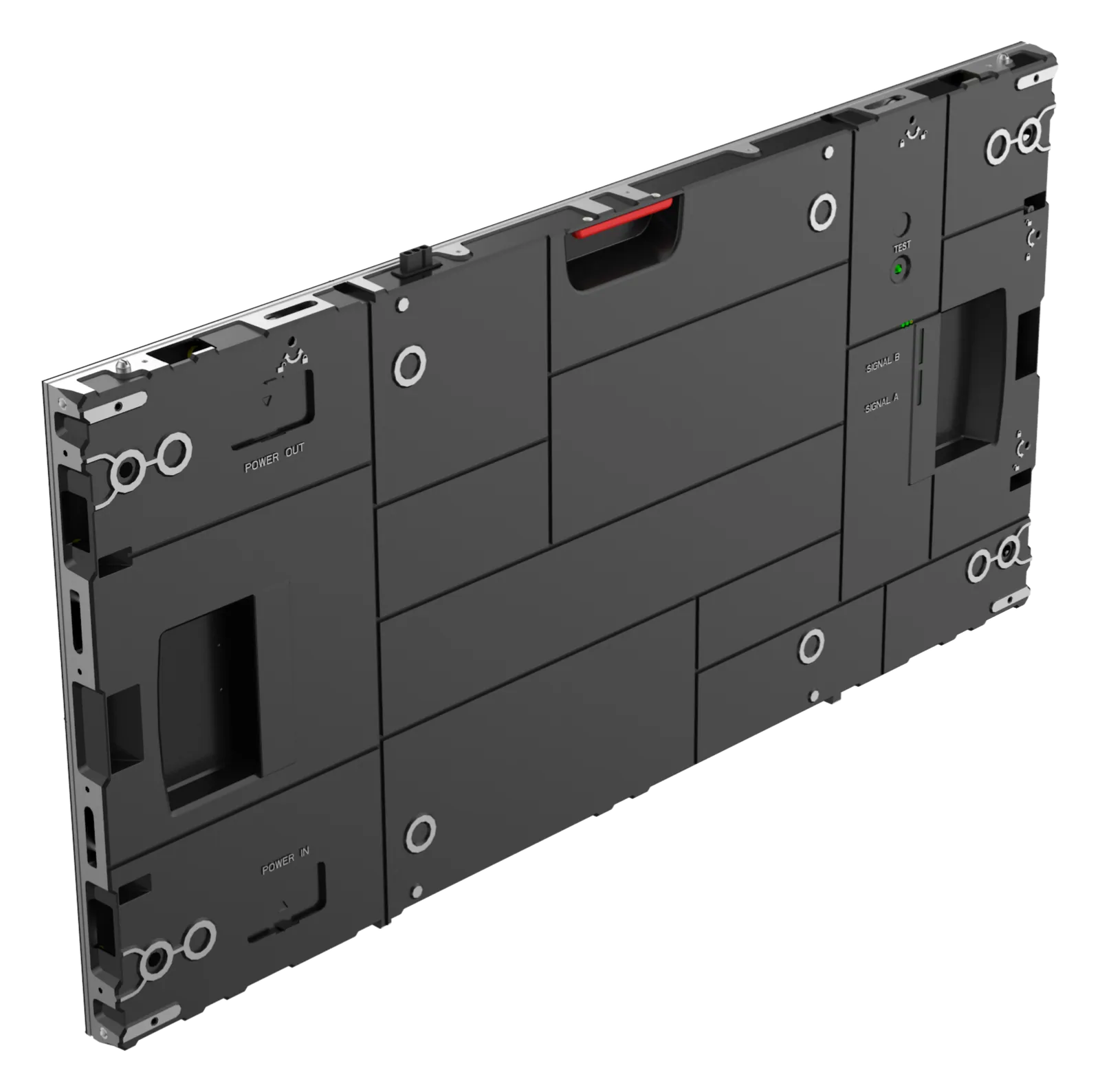

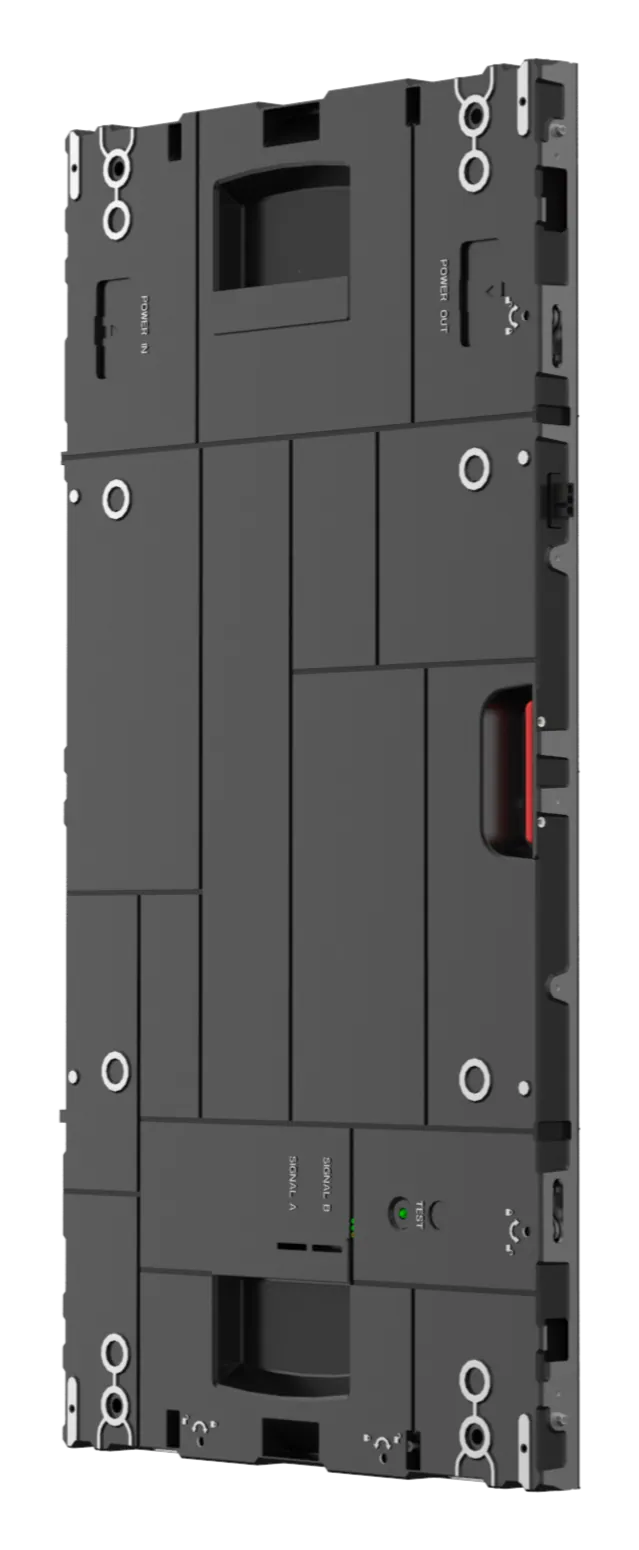

The one-piece molding die-cast panel is crafted with more ergonomic details to elevate user experience

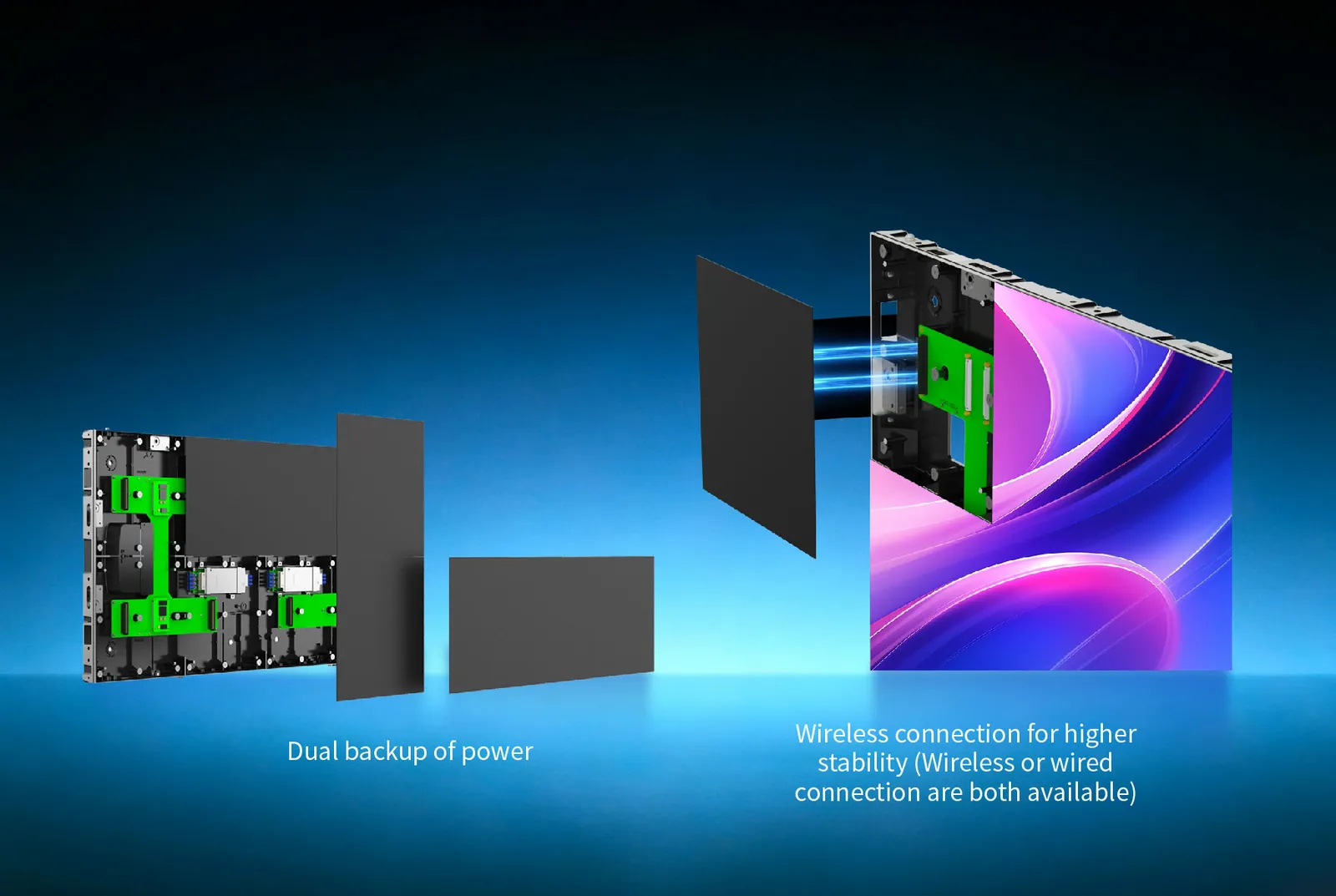

“X”tremely Stable -- Wireless Connection, Dual Backup
Wireless module connectivity grants higher stability during prolonged use; Dual backup of receiving card and power supply is optional to prevent sudden disruptions and maintain uninterrupted display.

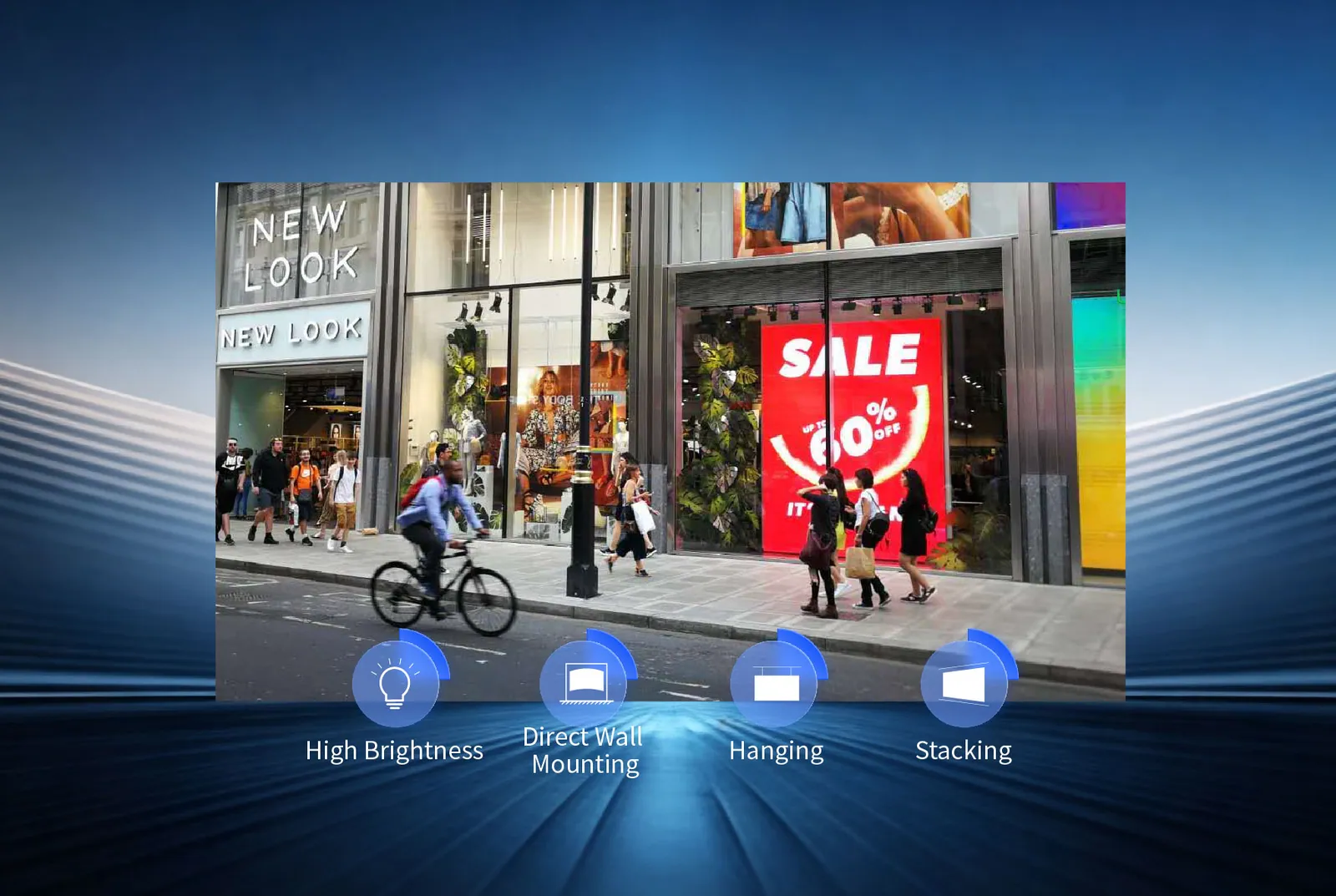

“X”tremely Versatile -- Multi-Scenario Application
Allowing diverse installation including direct wall mounting, stacking and hanging for different environments, BIM Plus-X also offers high-brightness models to fit in semi-indoor application like shop windows and storefronts.

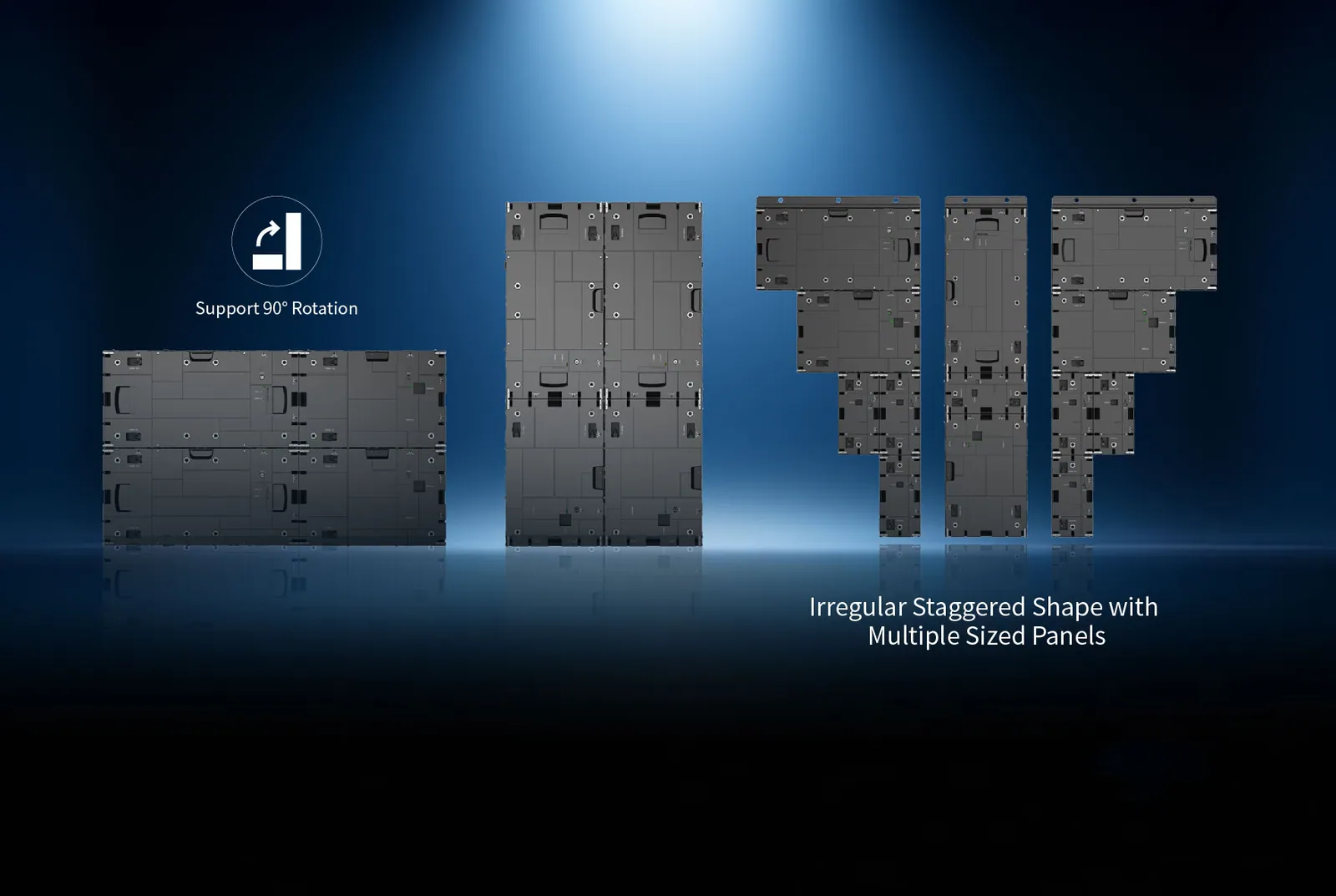

“X”tremely Flexible -- 90° Rotation

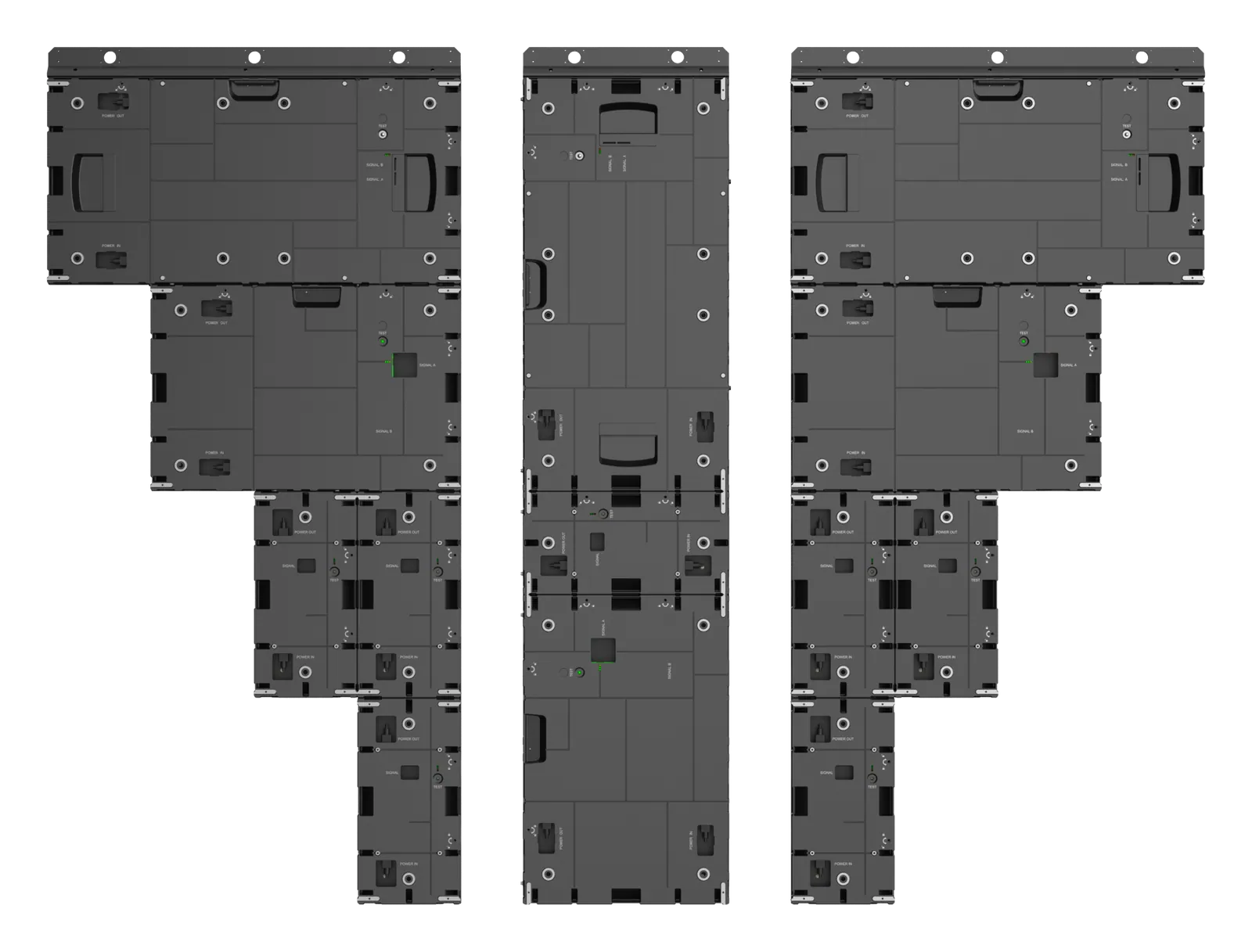

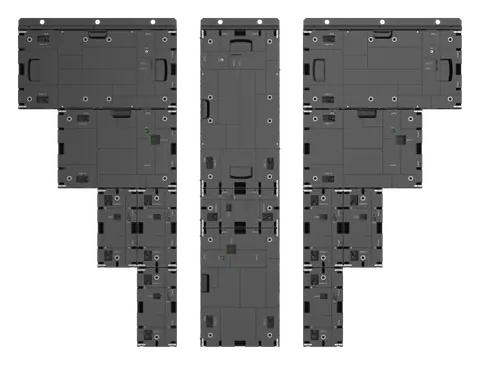

Thanks to the center-symmetrical design of modules, BIM Plus-X allows 90° rotated assembly to stagger for more installation without color test

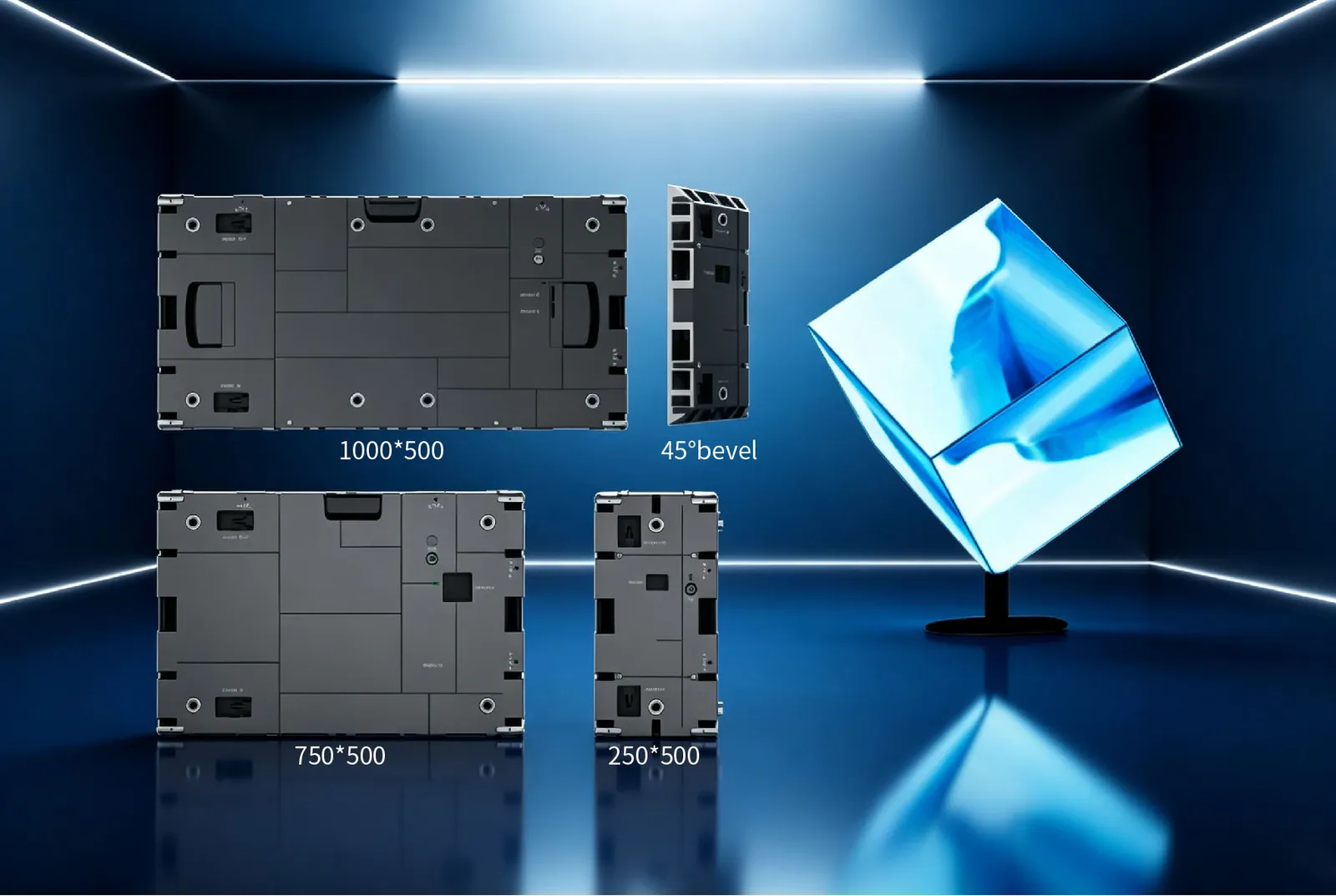

“X”tremely Creative -- 45° Bevels
Special 45° bevel-cut panels with multiple sized panels unlock more flexible installations like L-shape, pillar, hexahedron, etc
“X”tremely Ingenious -- Mixed Splicing at Will

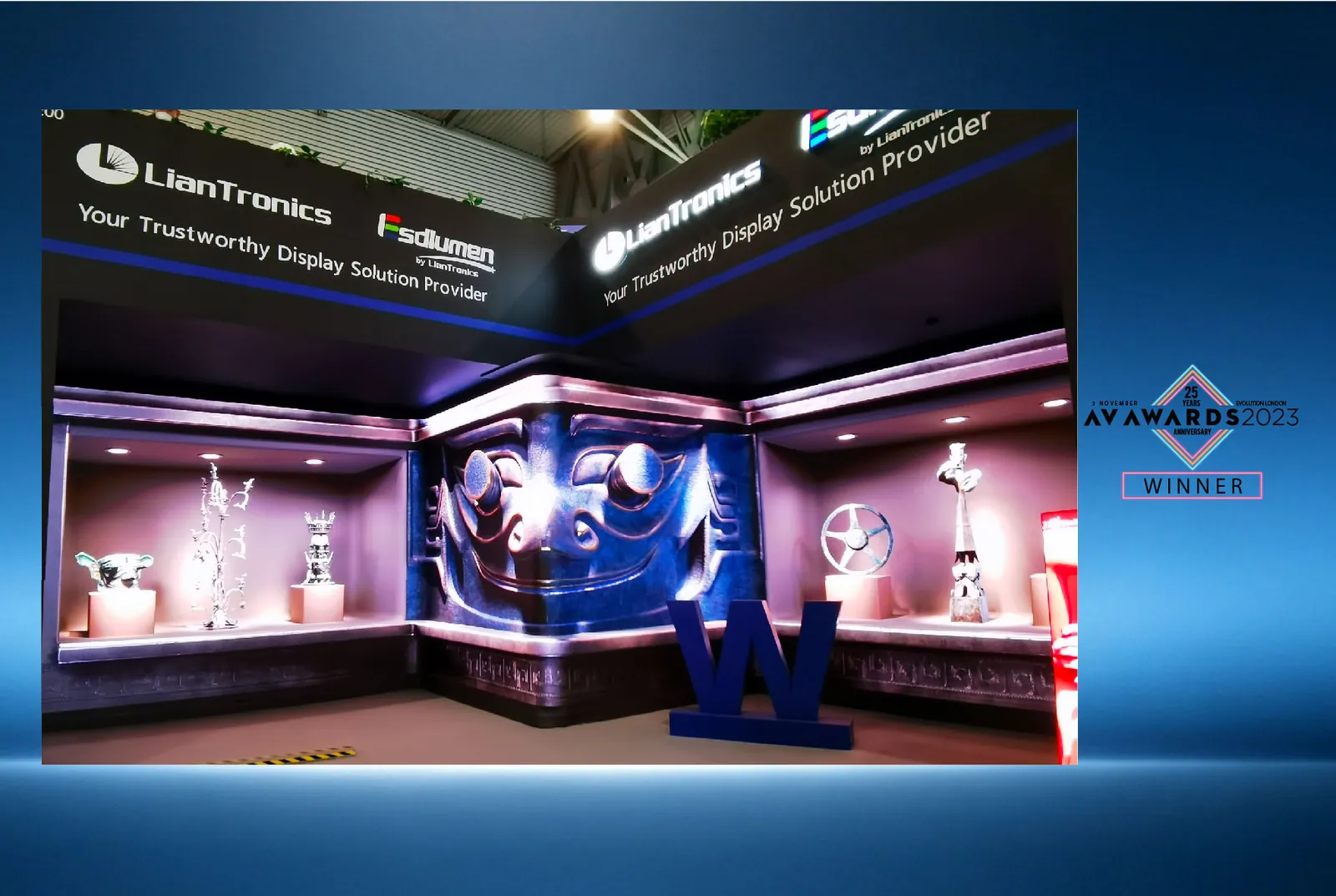

BIM Plus-X enables to splice with BIM MIN & BIM Plus and share modules with BIM Plus for creative shape splicing like AV Awards winning display -- “THE WOW” 3D display
- Retail and hospitality
- Corporate and meeting rooms
- Control rooms and command centres
- Exhibitions and museums
- Transport hubs
* All specification values given are per panel. The specifications are for reference only, actual values may vary.

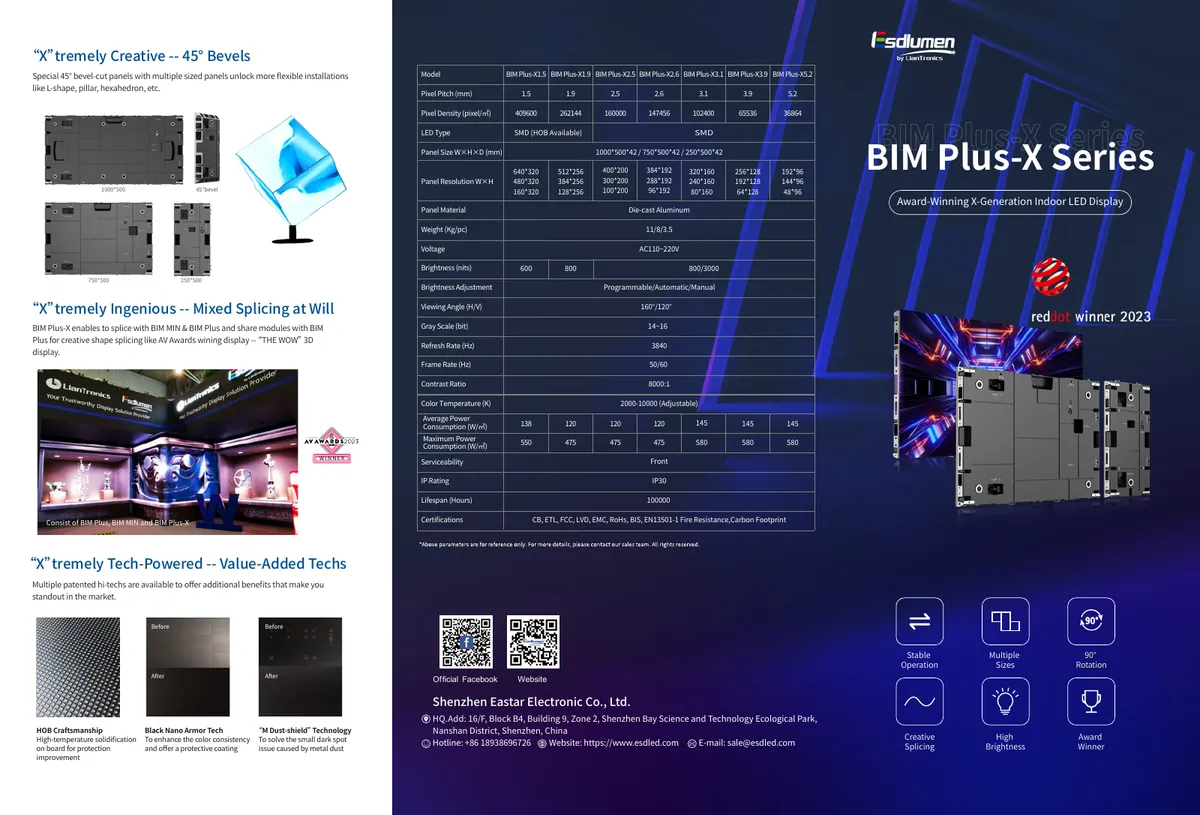

04Documents1 file · 1.5 MB
