Dazzle IV 3.9T

ModelDAIV3.9T

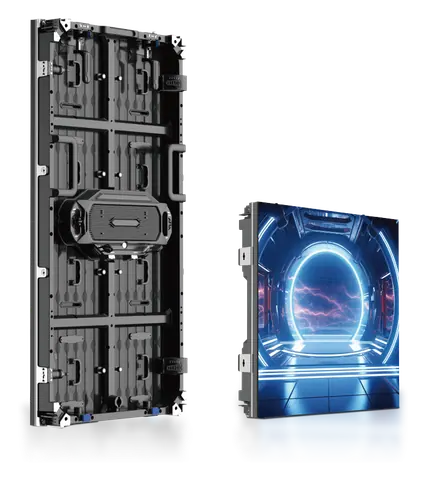

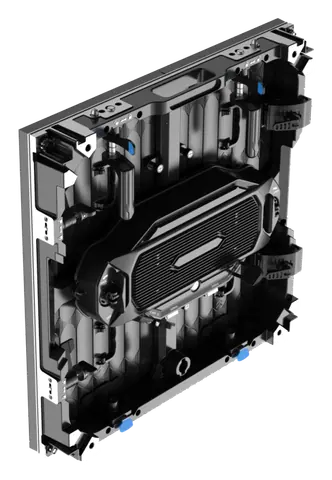

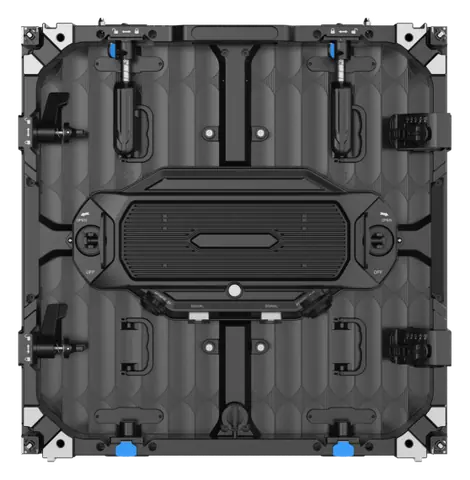

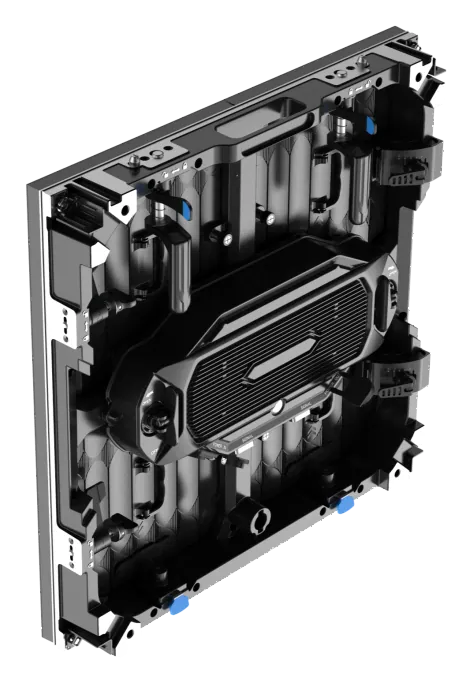

Indoor and outdoor rental LED display: high-integration design, high universality, fast installation, creative splicing, easy maintenance, multi-scenario application.

Series
Dazzle IV Series
Pixel pitch
3.9 mm
Brightness
4000 nits
Power consumption
max 700 / avg 175 W/m²
Panel size
500 × 500 × 73 / 500 × 1000 × 73 mm
Panel resolution
128 × 128 / 128 × 256
Refresh rate
3840 Hz
LED type
SMD
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:09

Esdlumen Dazzle IV 3.9T: the manufacturer's video

Esdlumen Dazzle IV 3.9T2:09
02SpecificationManufacturer's data · 1 group · 22 values

What this product is, in numbers.

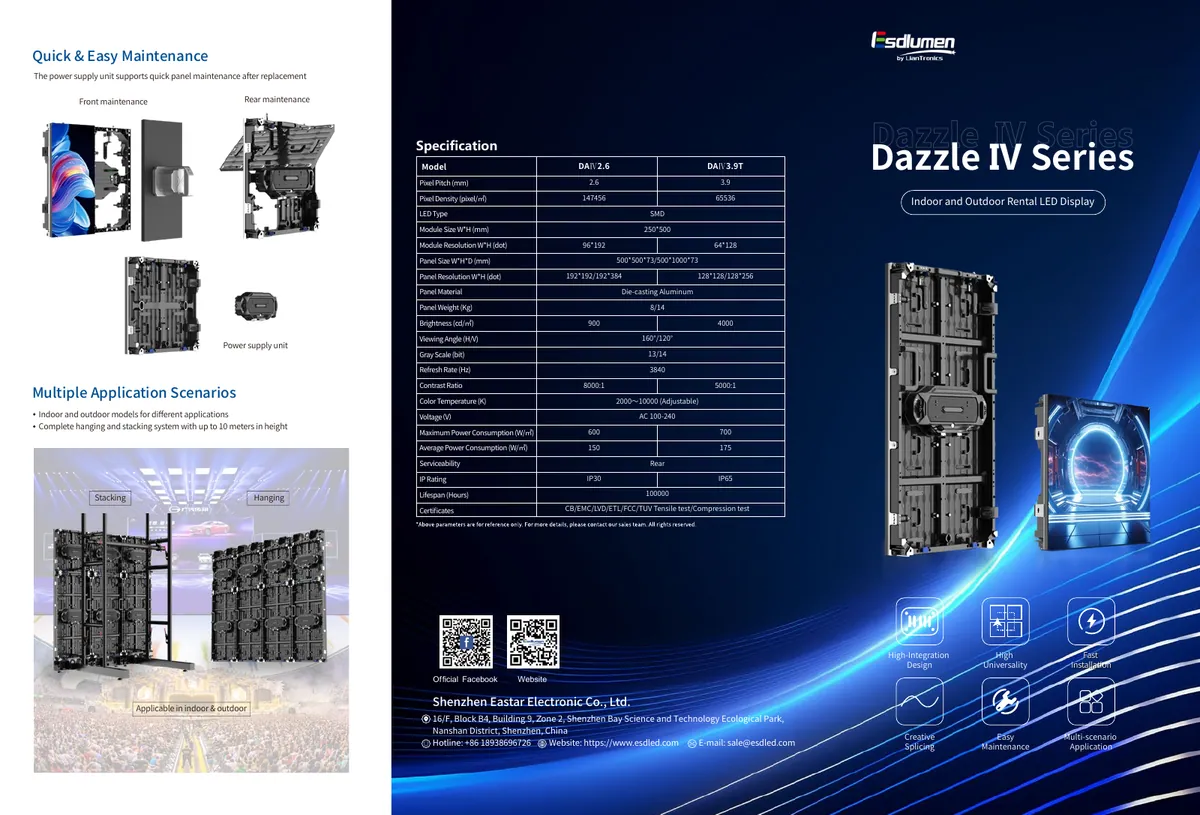

PDFDatasheetEN · 2 pages · 1.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications22
Pixel Pitch
3.9 mm
Panel Size
500 × 500 × 73 / 500 × 1000 × 73 mm
Panel Resolution
128 × 128 / 128 × 256
Weight
8 / 14 kg
Brightness
4000 nits
Panel Material
Die-casting Aluminum
Serviceability
Rear
Pixel Density
65536 px/m²
LED Type
SMD
Refresh Rate
3840 Hz
Contrast Ratio
5000:1
Color Temperature
2000–10000 (Adjustable)
IP Rating
IP65
Module Size W × H
250 × 500 mm
Module Resolution W × H (dot)
64 × 128
Viewing Angle (H/V)
160° / 120°
Gray Scale
13 / 14 bit
Voltage (V)
AC 100–240
Maximum Power Consumption
700 W/m²
Average Power Consumption
175 W/m²
Lifespan
100000 h
Certificates
CB / EMC / LVD / ETL / FCC / TUV Tensile test / Compression test
03Models2 models in the family

Models compared.

ModelDazzle IV 2.6Dazzle IV 3.9T
Pixel Pitch (mm)2.63.9
Panel Size (mm)500 × 500 × 73 / 500 × 1000 × 73500 × 500 × 73 / 500 × 1000 × 73
Panel Resolution192 × 192 / 192 × 384128 × 128 / 128 × 256
Weight (Kg/pc)8 / 148 / 14
Brightness (nits)9004000
Panel MaterialDie-casting AluminumDie-casting Aluminum
ServiceabilityRearRear
Pixel Density (pixels/m²)14745665536
LED TypeSMDSMD
Refresh Rate (Hz)38403840
Contrast Ratio8000:15000:1
Color Temperature (K)2000–10000 (Adjustable)2000–10000 (Adjustable)
IP RatingIP30IP65
Module Size W × H (mm)250 × 500250 × 500
Module Resolution W × H (dot)96 × 19264 × 128
Viewing Angle (H/V)160° / 120°160° / 120°
Gray Scale (bit)13 / 1413 / 14
Voltage (V)AC 100–240AC 100–240
Maximum Power Consumption (W/m²)600700
Average Power Consumption (W/m²)150175
Lifespan (Hours)100000100000
CertificatesCB / EMC / LVD / ETL / FCC / TUV Tensile test / Compression testCB / EMC / LVD / ETL / FCC / TUV Tensile test / Compression test
04DescriptionManufacturer's description

What it is.

  • Rental, concerts and stages

* All specification values given are per panel. The specifications are for reference only, actual values may vary.

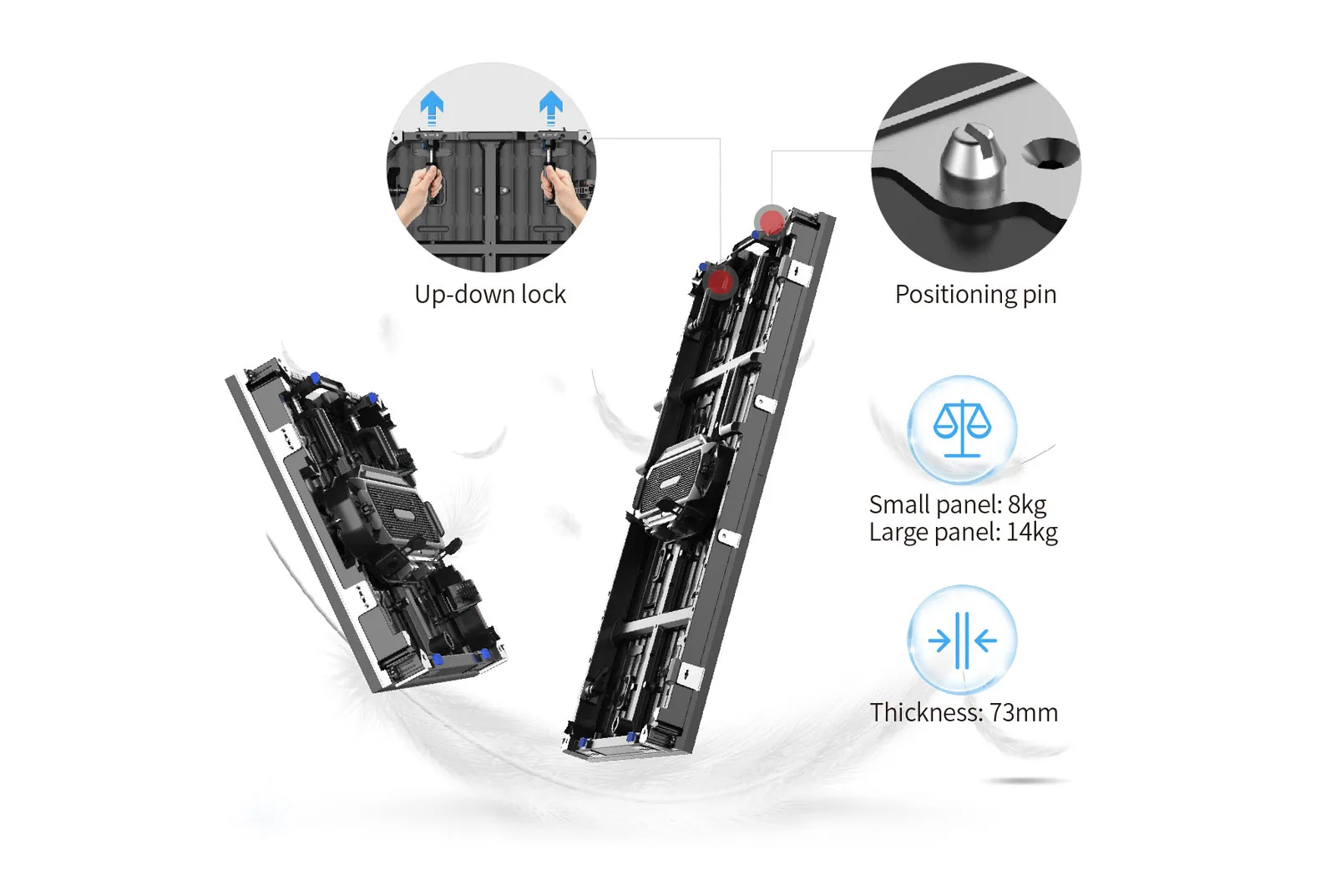

Economic Indoor & Outdoor Rental

  • High-Integration Design
  • Creative Splicing
  • High Universality

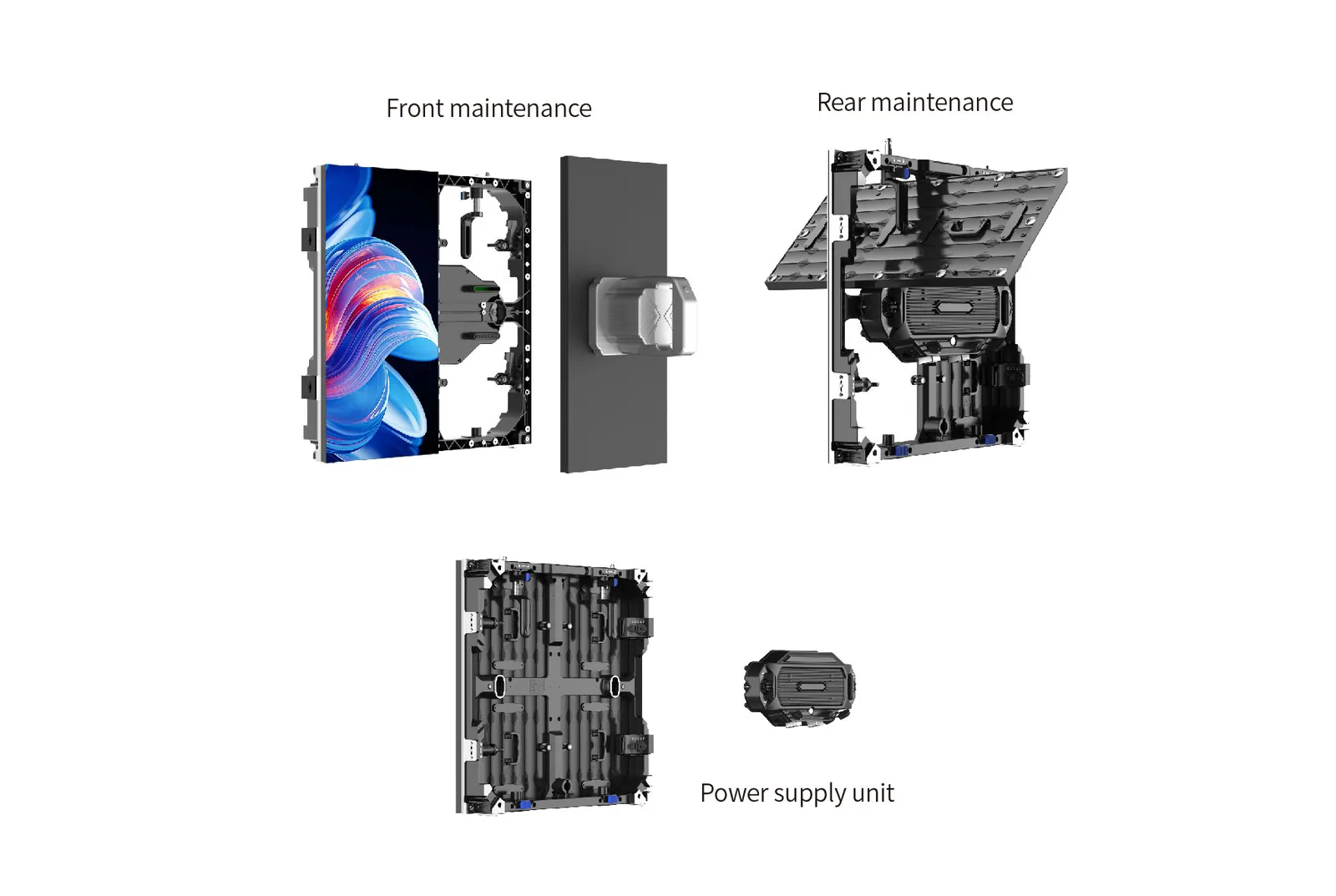

  • Easy Maintenance
  • Fast Installaton
  • Multi-scenario Application

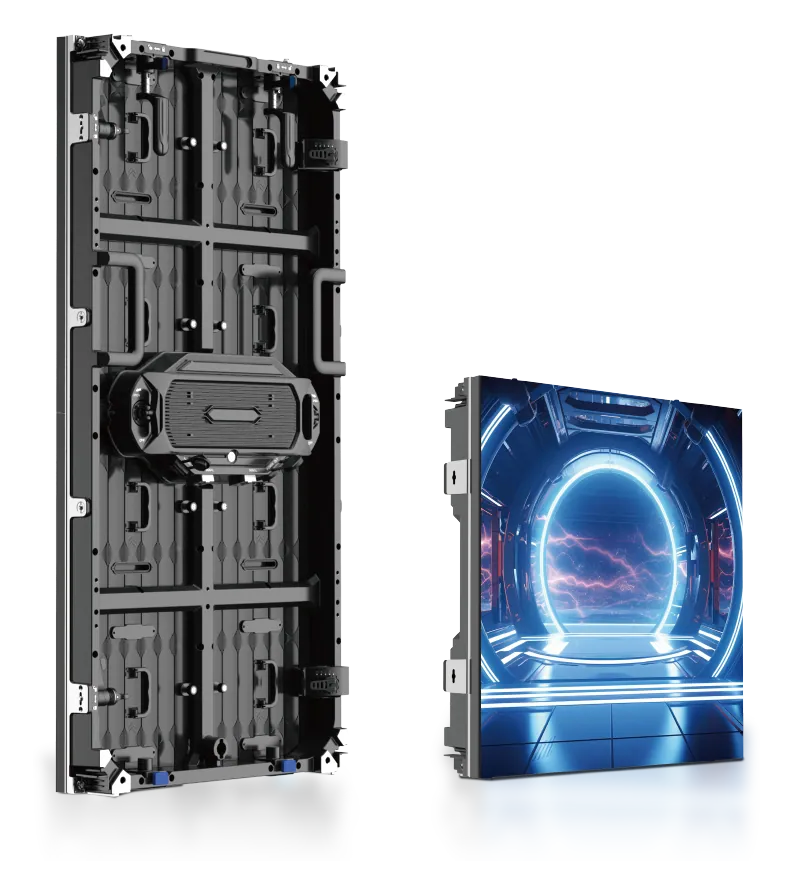

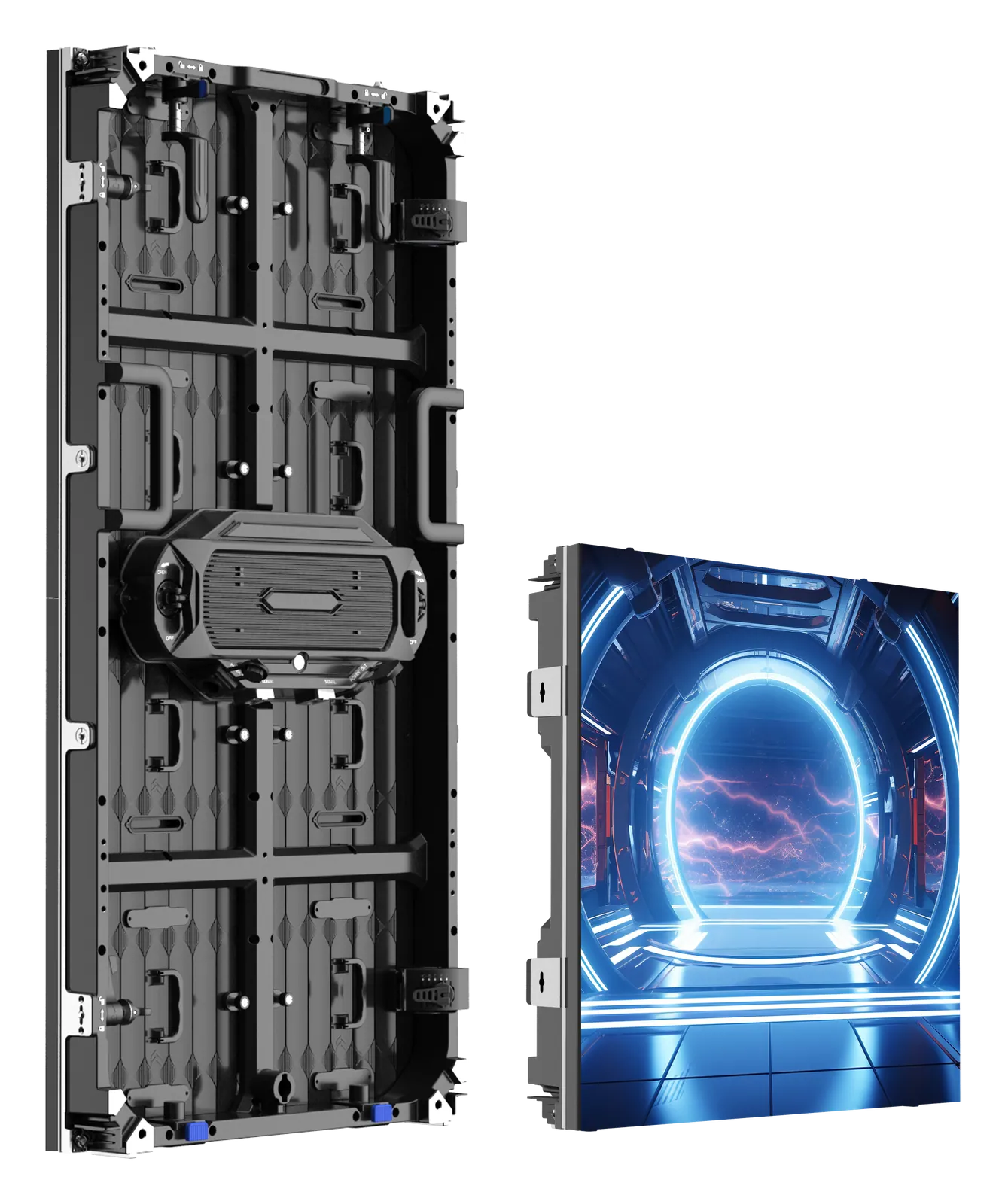

Esdlumen Dazzle IV 3.9T: Economic Indoor & Outdoor Rental

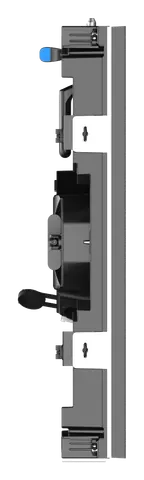

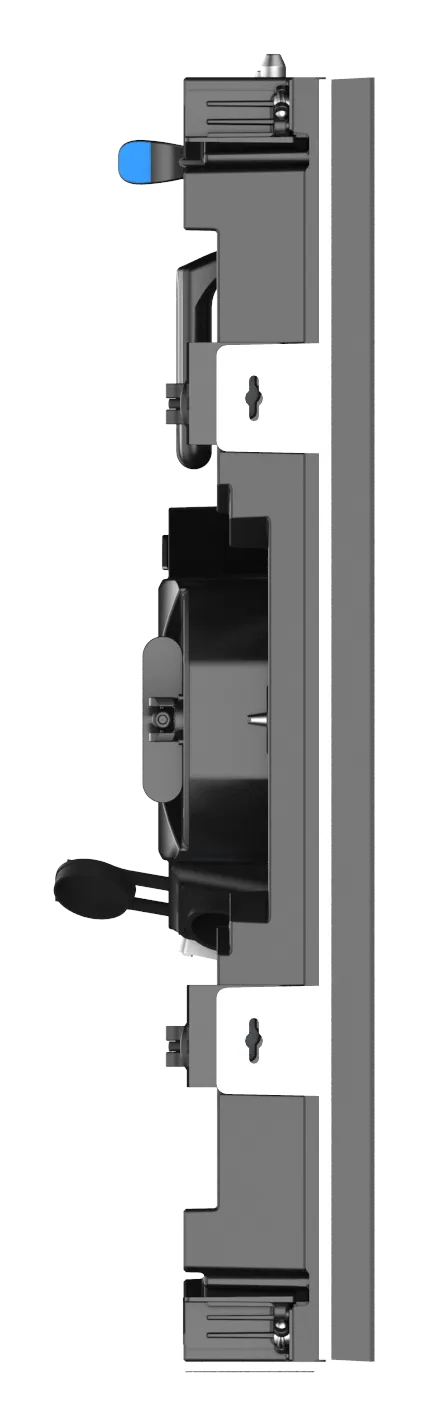

Horizontal

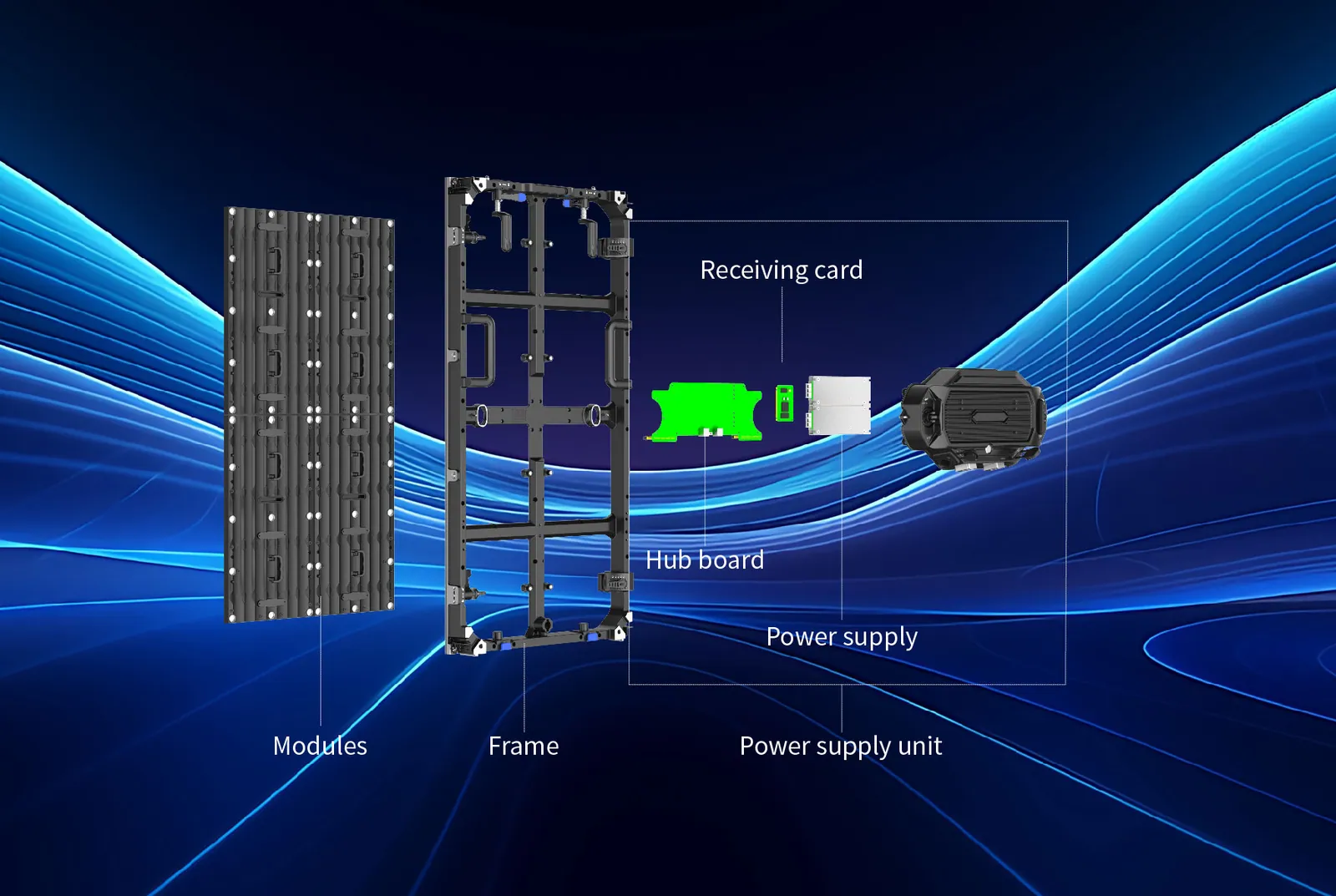

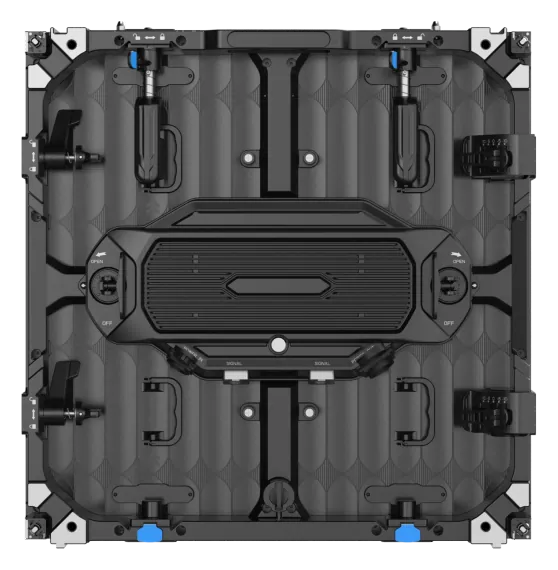

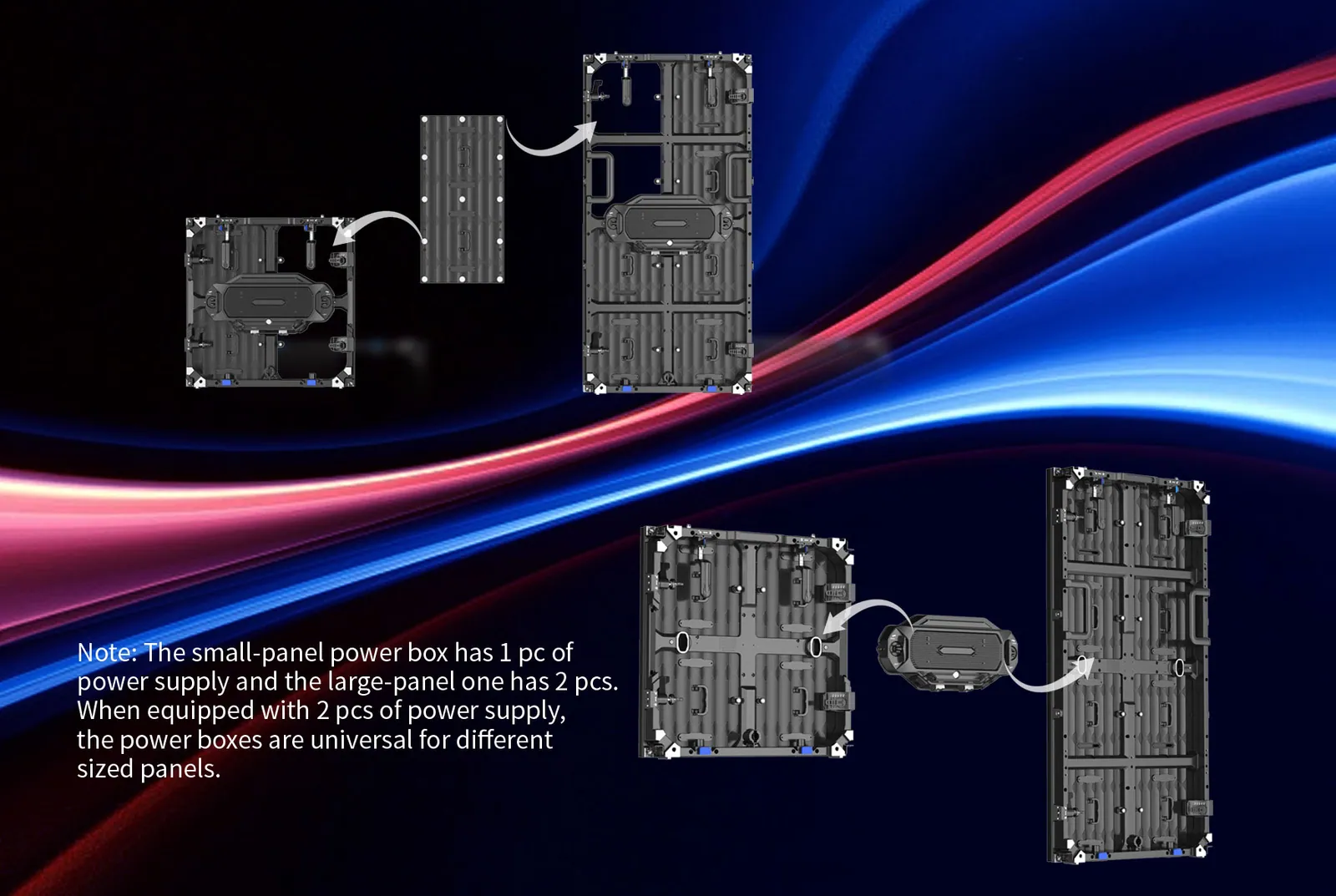

High-Integration Power Unit

  • High-integration: receiving card, hub board & power supply integrate into one
  • Horizontal design: friendly to use universally for both large and small panels
Esdlumen Dazzle IV 3.9T: High-Integration Power Unit

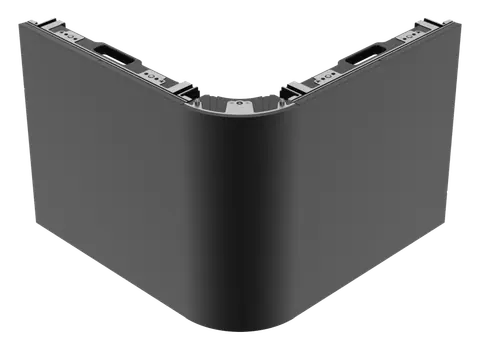

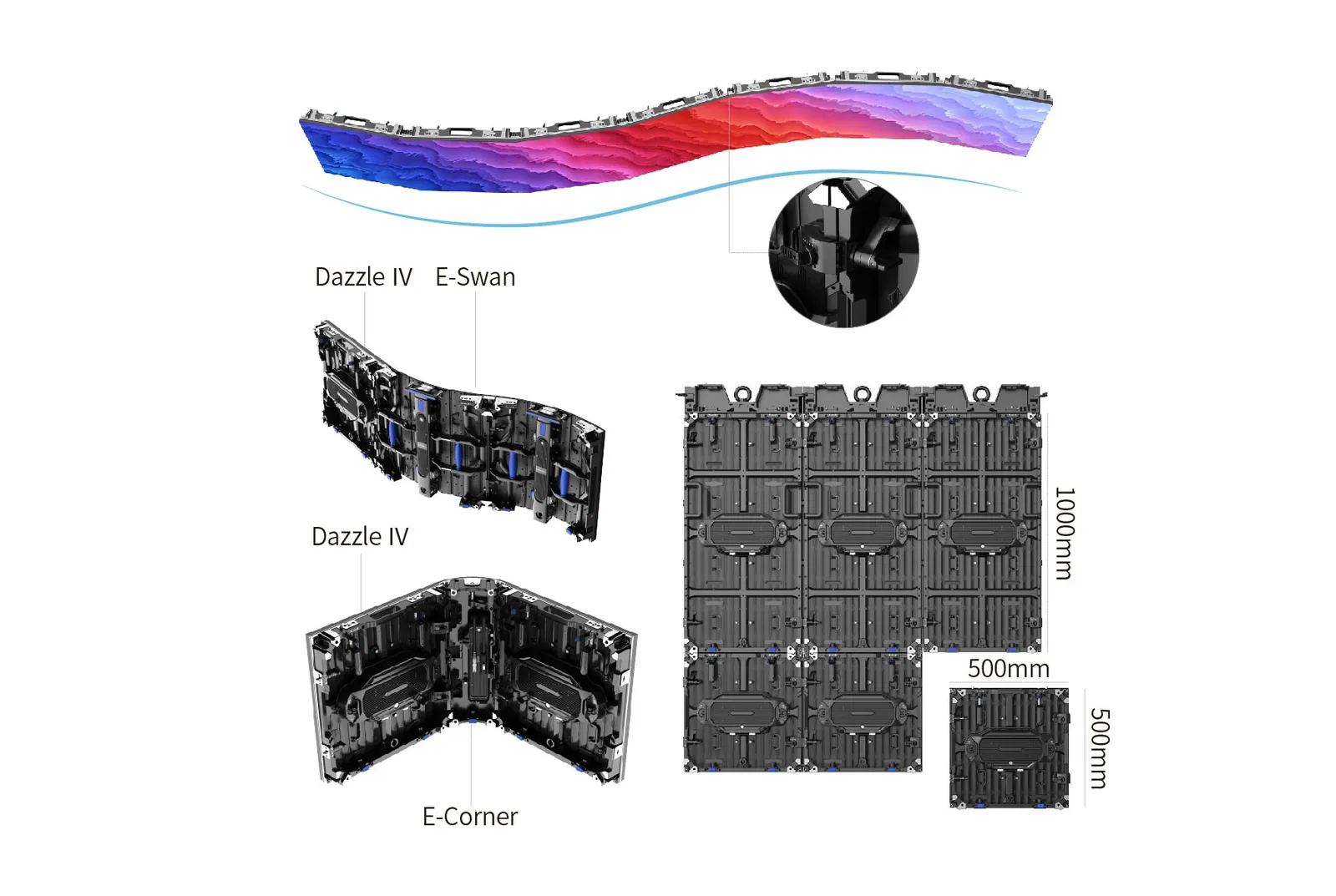

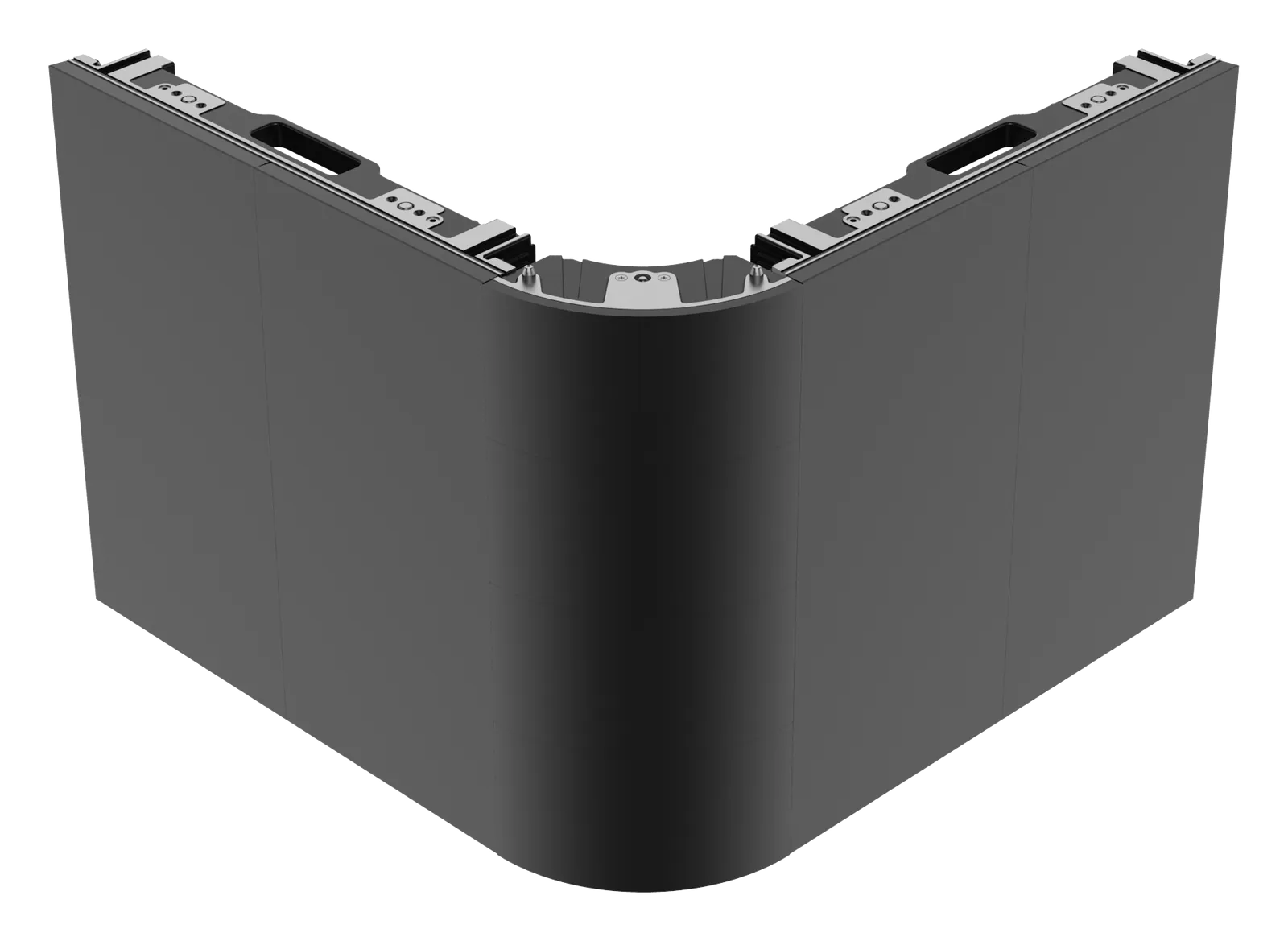

Creative Splicing

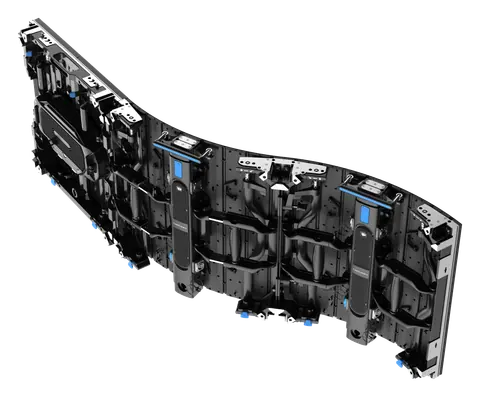

  • Esdlumen Dazzle IV 3.9T: Equipped with arc locks

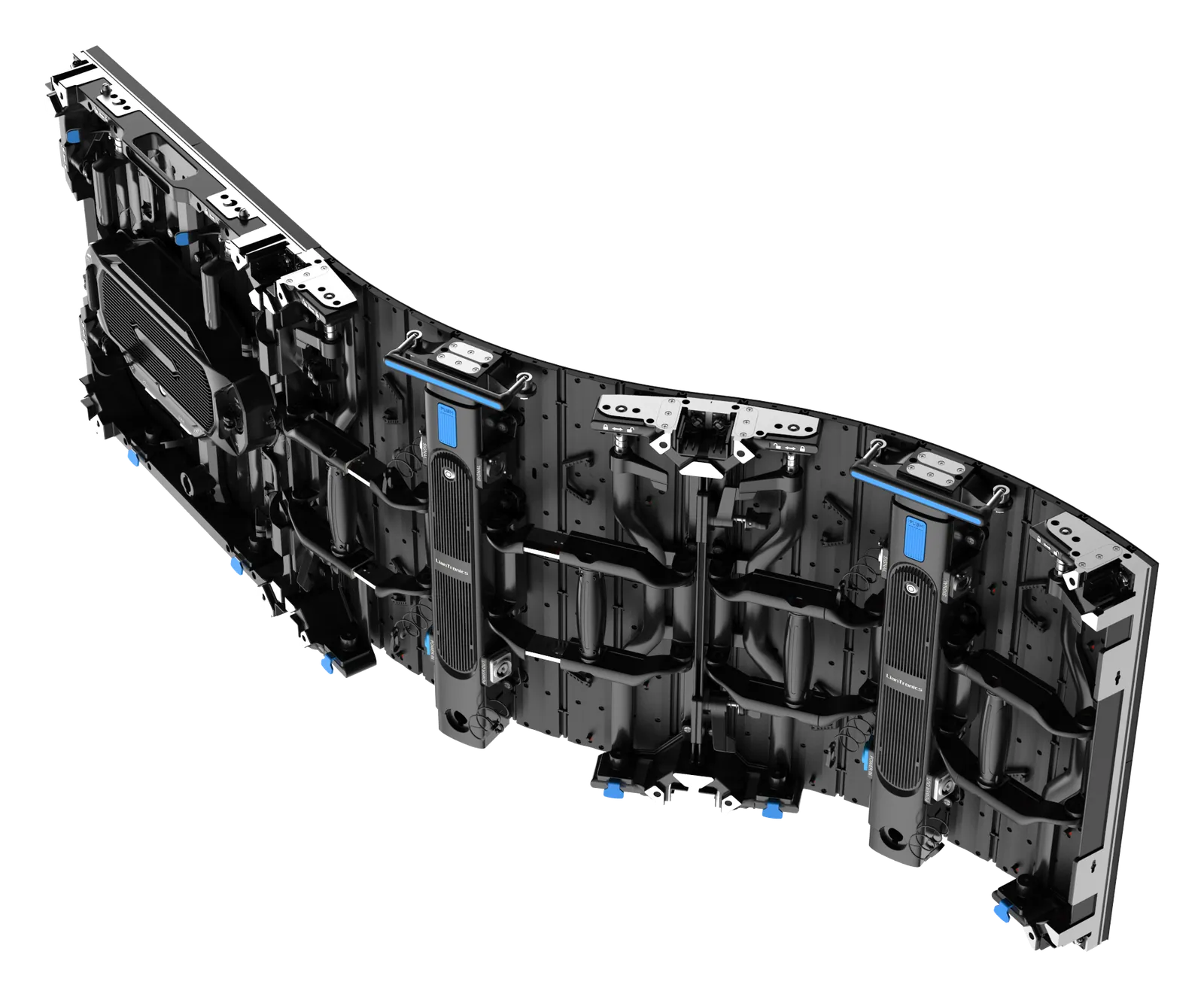

    Equipped with arc locks

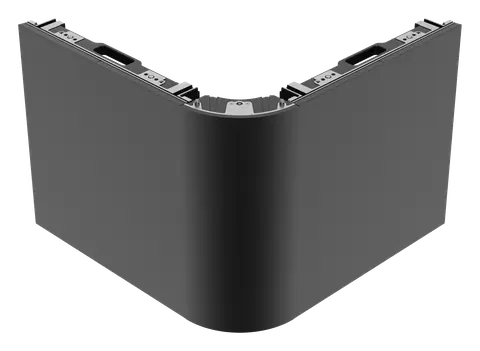

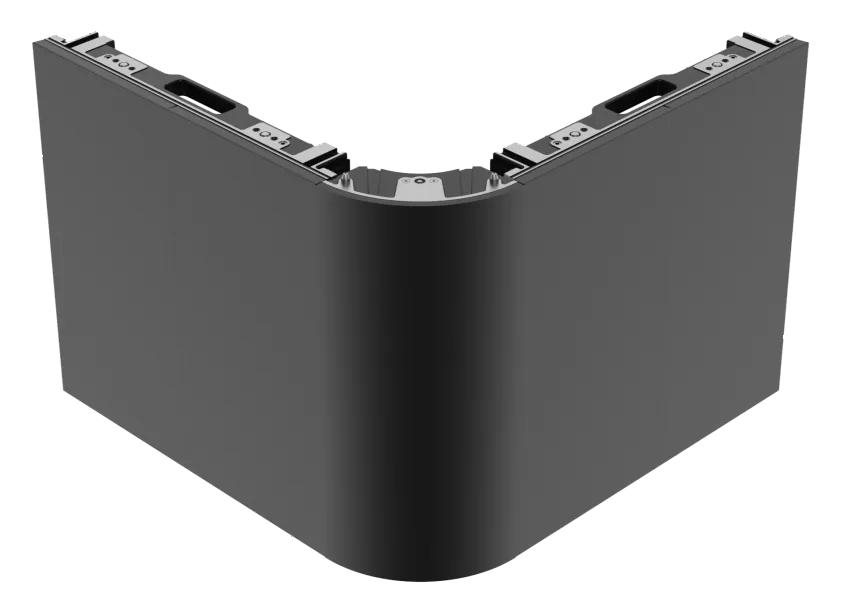

  • Esdlumen Dazzle IV 3.9T: Mixed splicing

    Mixed splicing

  • Esdlumen Dazzle IV 3.9T: Flexible up-down splicing

    Flexible up-down splicing

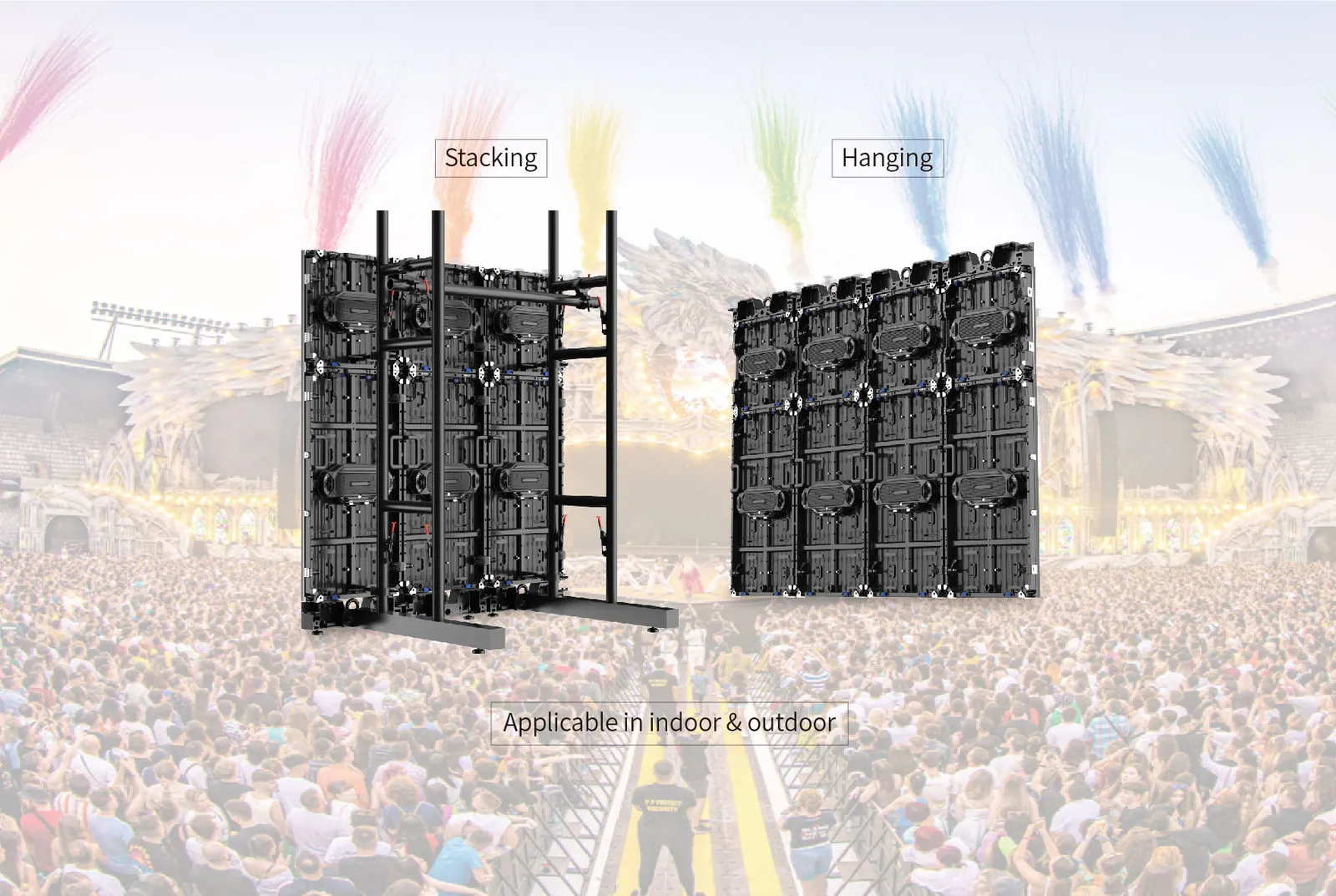

Multiple Application Scenarios

Indoor and outdoor models for different applications

Esdlumen Dazzle IV 3.9T: Multiple Application Scenarios
