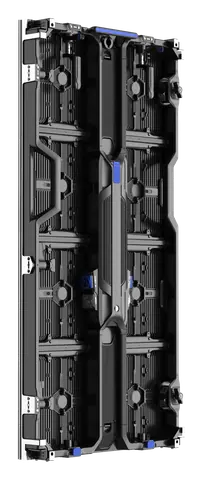

Pilot Pro 2.9

High-end fine-pitch rental LED display: fast installation, ultra-high protection, creative splicing, customizable shape, higher flatness, dual installation solution.

Series
Pilot Pro Series
Pixel pitch
2.9 mm
Brightness
900–1000 nits
Power consumption
max 500 / avg 125 W/m²
Panel size
500 × 500 × 73 / 500 × 1000 × 73 mm
Panel resolution
168 × 168 / 168 × 336
Refresh rate
7680 Hz
LED type
SMD
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:56

Esdlumen Pilot Pro 2.9: the manufacturer's video

Esdlumen Pilot Pro 2.91:56
02SpecificationManufacturer's data · 1 group · 16 values

What this product is, in numbers.

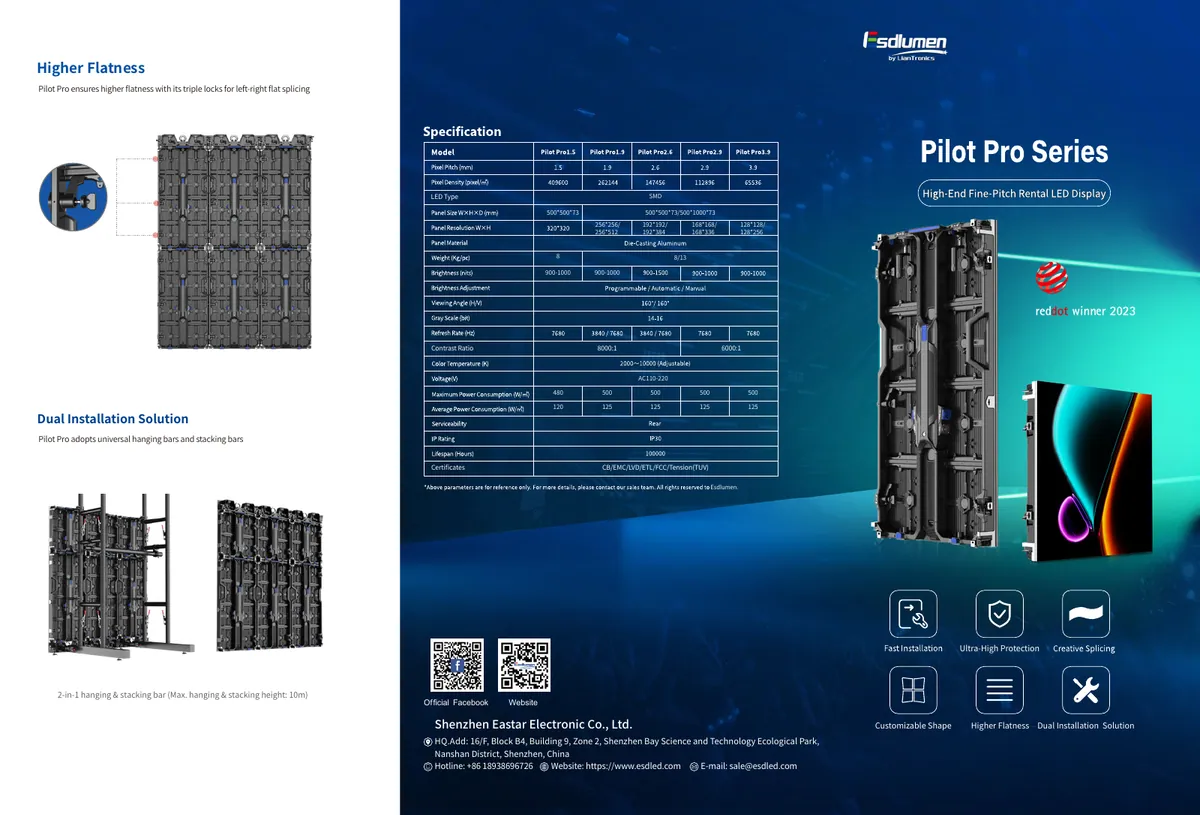

PDFDatasheetEN · 2 pages · 1.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications16
Pixel Pitch
2.9 mm
Panel Size
500 × 500 × 73 / 500 × 1000 × 73 mm
Panel Resolution
168 × 168 / 168 × 336
Weight
8 / 13 kg
Brightness
900–1000 nits
Panel Material
Die-casting Aluminum
Serviceability
Rear
Pixel Density
112896 px/m²
LED Type
SMD
Brightness Adjustment
Programmable / Automatic / Manual
Refresh Rate
7680 Hz
Contrast Ratio
6000:1
Color Temperature
2000–10000 (Adjustable)
IP Rating
IP30
Maximum Power Consumption
500 W/m²
Average Power Consumption
125 W/m²
03Models5 models in the family

Models compared.

ModelPilot Pro 1.5Pilot Pro 1.9Pilot Pro 2.6Pilot Pro 2.9Pilot Pro 3.9
Pixel Pitch (mm)1.51.92.62.93.9
Panel Size (mm)500 × 500 × 73500 × 500 × 73 / 500 × 1000 × 73500 × 500 × 73 / 500 × 1000 × 73500 × 500 × 73 / 500 × 1000 × 73500 × 500 × 73 / 500 × 1000 × 73
Panel Resolution320 × 320256 × 256 / 256 × 512192 × 192 / 192 × 384168 × 168 / 168 × 336128 × 128 / 128 × 256
Weight (Kg/pc)88 / 138 / 138 / 138 / 13
Brightness (nits)900–1000900–1000900–1500900–1000900–1000
Panel MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
ServiceabilityRearRearRearRearRear
Pixel Density (pixels/m²)40960026214414745611289665536
LED TypeSMDSMDSMDSMDSMD
Brightness AdjustmentProgrammable / Automatic / ManualProgrammable / Automatic / ManualProgrammable / Automatic / ManualProgrammable / Automatic / ManualProgrammable / Automatic / Manual
Refresh Rate (Hz)76803840 / 76803840 / 768076807680
Contrast Ratio8000:18000:18000:16000:16000:1
Color Temperature (K)2000–10000 (Adjustable)2000–10000 (Adjustable)2000–10000 (Adjustable)2000–10000 (Adjustable)2000–10000 (Adjustable)
IP RatingIP30IP30IP30IP30IP30
Maximum Power Consumption (W/m²)480500500500500
Average Power Consumption (W/m²)120125125125125
04DescriptionManufacturer's description

What it is.

  • Rental, concerts and stages
  • Virtual production and xR
  • Corporate and meeting rooms
  • Control rooms and command centres
  • Exhibitions and museums

* All specification values given are per panel. The specifications are for reference only, actual values may vary.

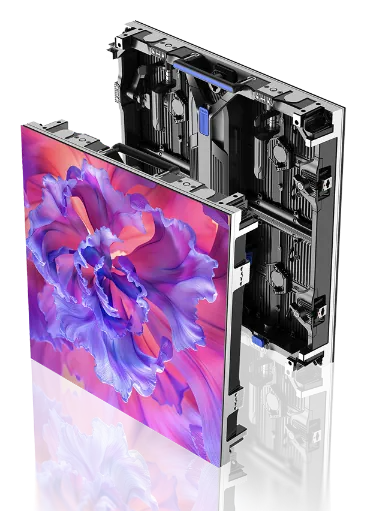

Vibrant Creativity, Supreme Visuals

Boasting all premium strengths combined, the rental LED display screen stunning visual performance and flexible application solutions for all kinds of event rental projects.

  • Fast Installation
  • Customizable Shape
  • Ultra-High Protection
  • Higher Flatness
  • Creative Splicing

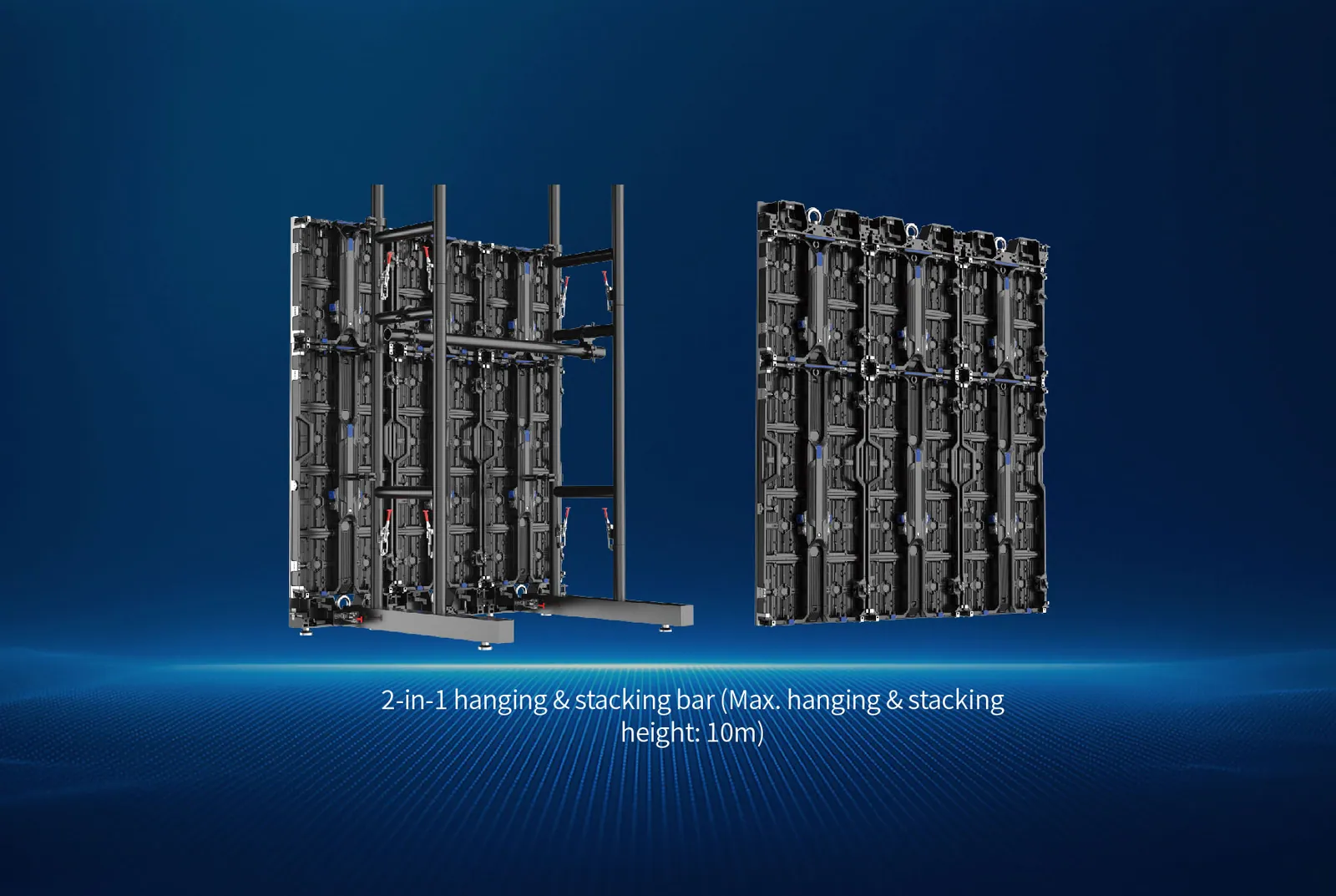

  • Dual Installation Solution
Esdlumen Pilot Pro 2.9: Vibrant Creativity, Supreme Visuals

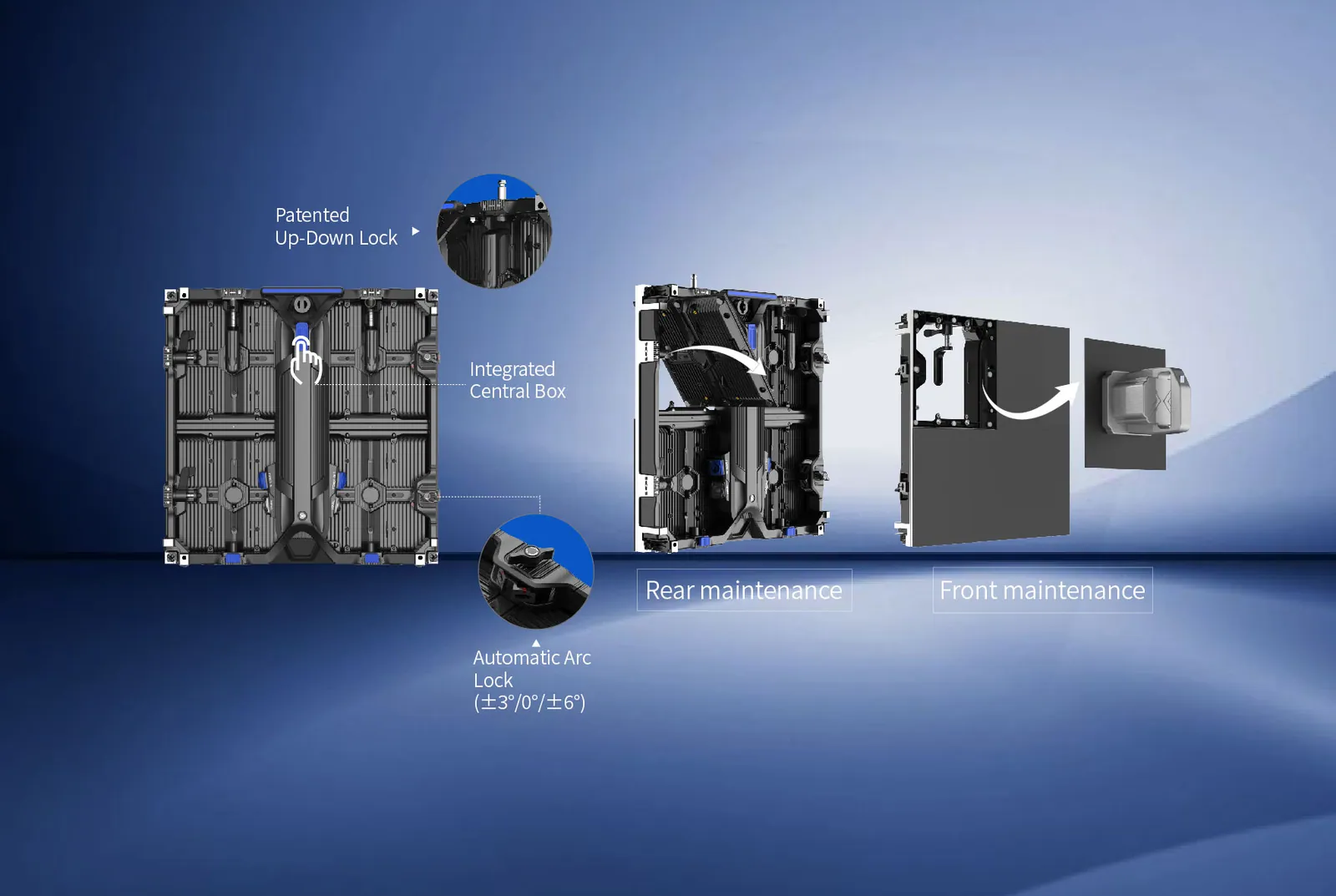

Handy & Easy Installation Ever

Intricate human-centered details support effortless single-hand control. Event crews spend far less time mounting and dismantling the indoor rental LED screen, which greatly elevates on-site efficiency.

Esdlumen Pilot Pro 2.9: Handy & Easy Installation Ever
  • Esdlumen Pilot Pro 2.9: Rear maintenance

    Rear maintenance

  • Esdlumen Pilot Pro 2.9: Front maintenance

    Front maintenance

Integrated Anti-Collision Technology

L-Armor Tech

Equipped with L-Armor integrated anti-collision technology, this fine pitch LED display effectively reduces damage risks during frequent rental transportation and repeated on-site setup.

  • 70-90% reduction in maintenance
  • 30-50% increase in profitability
  • Longer display lifespan & faster turnover
Esdlumen Pilot Pro 2.9: L-Armor Tech

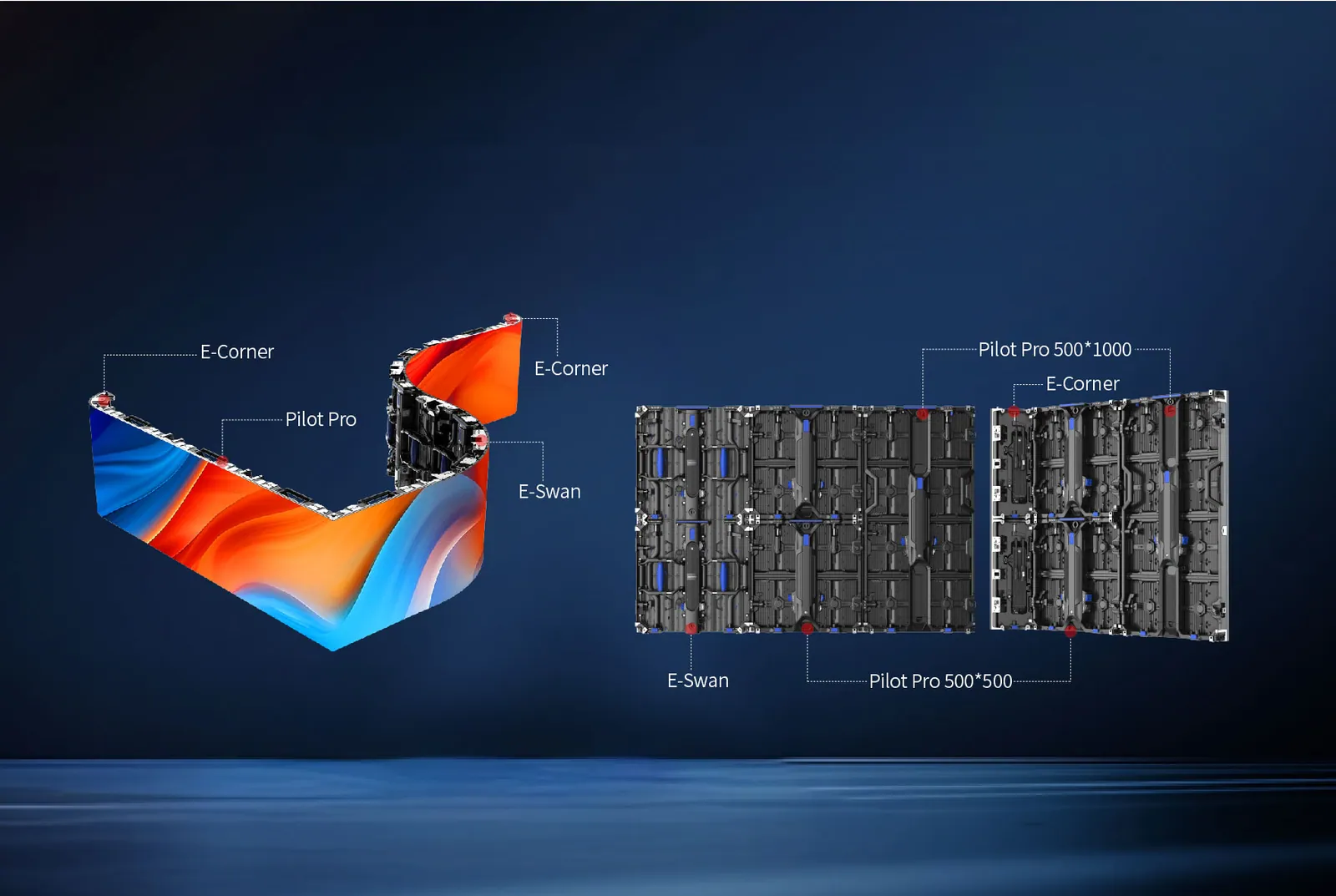

Mixed Splicing for More Possibilities

Support mixed splicing with E-Swan and E-Corner to create more incredible stage magics.

The LED screen rental supports diversified combination modes to realize distinctive stage visual designs for rental shows and events.

Esdlumen Pilot Pro 2.9: Mixed Splicing for More Possibilities

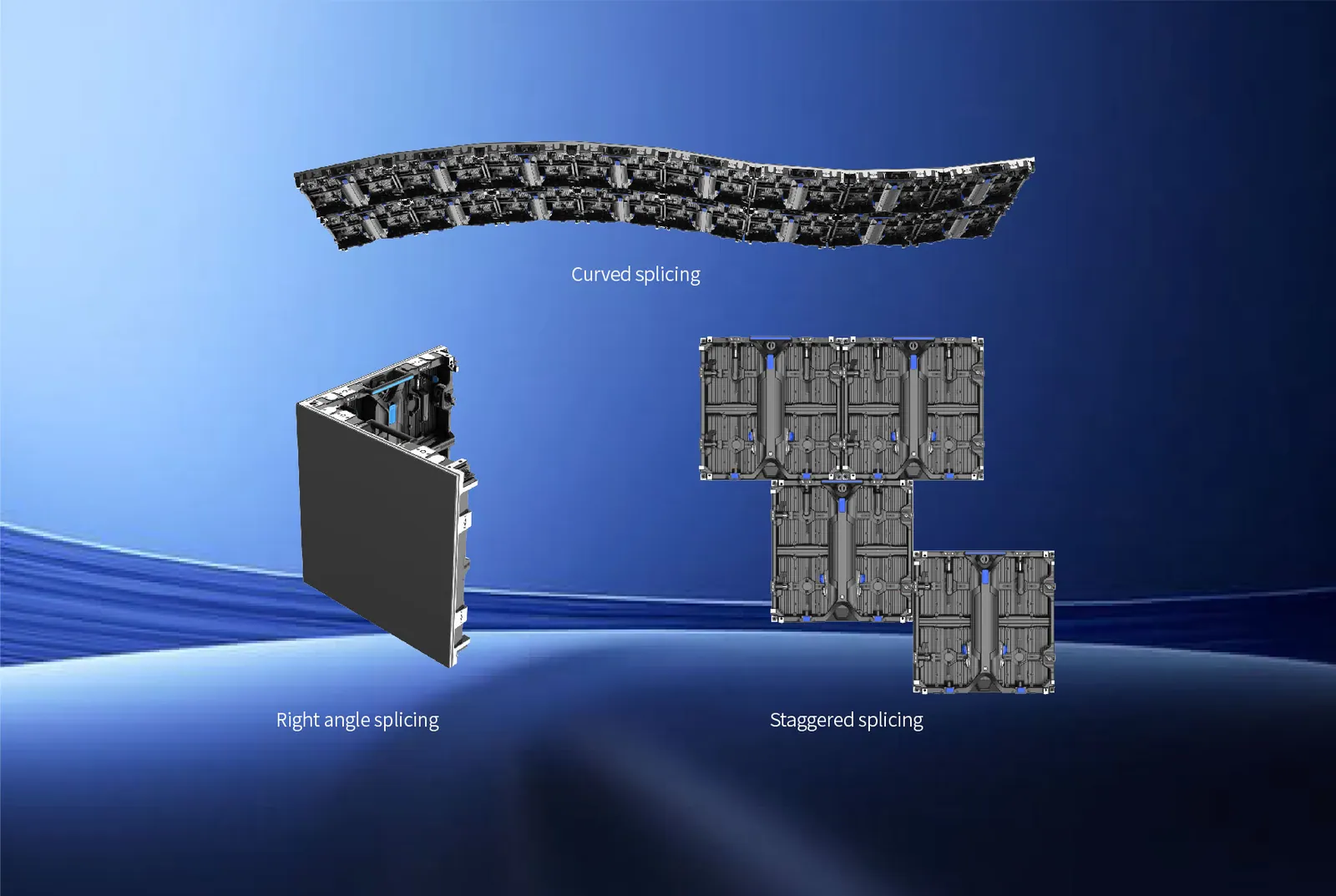

Shape Your LED Wall as You Want

Pilot Pro enables curved,90° splicing staggered and 90° splicing for more creative shapes

This rental LED display screen breaks the limitation of flat screens, allowing designers to build customized special-shaped LED walls for rental occasions.

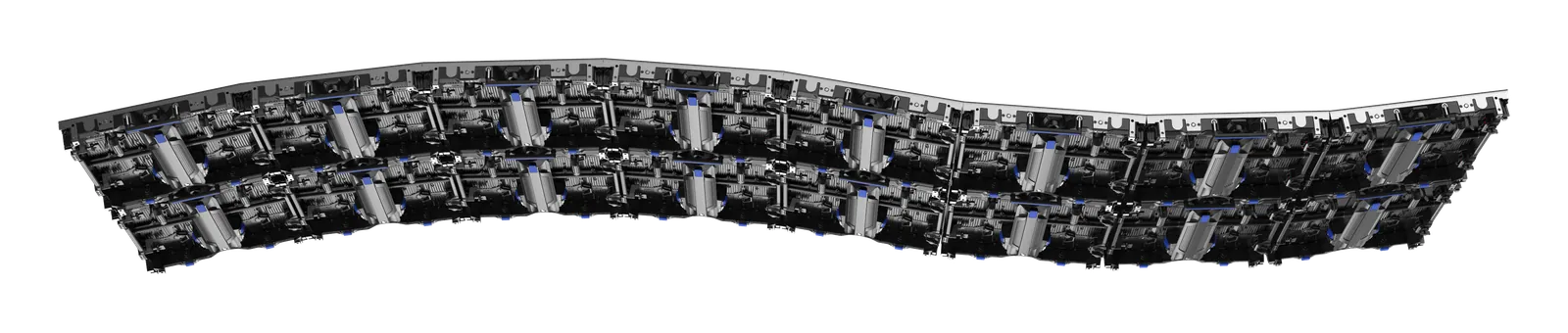

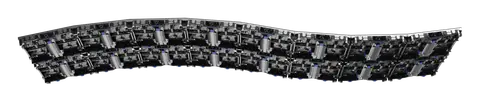

  • Esdlumen Pilot Pro 2.9: Curved splicing

    Curved splicing

  • Esdlumen Pilot Pro 2.9: Right angle splicing

    Right angle splicing

  • Esdlumen Pilot Pro 2.9: Staggered splicing

    Staggered splicing
