Sheet 05.1304
LianTronics · Outdoor displays

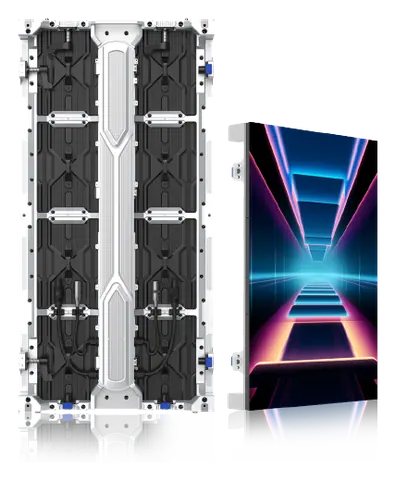

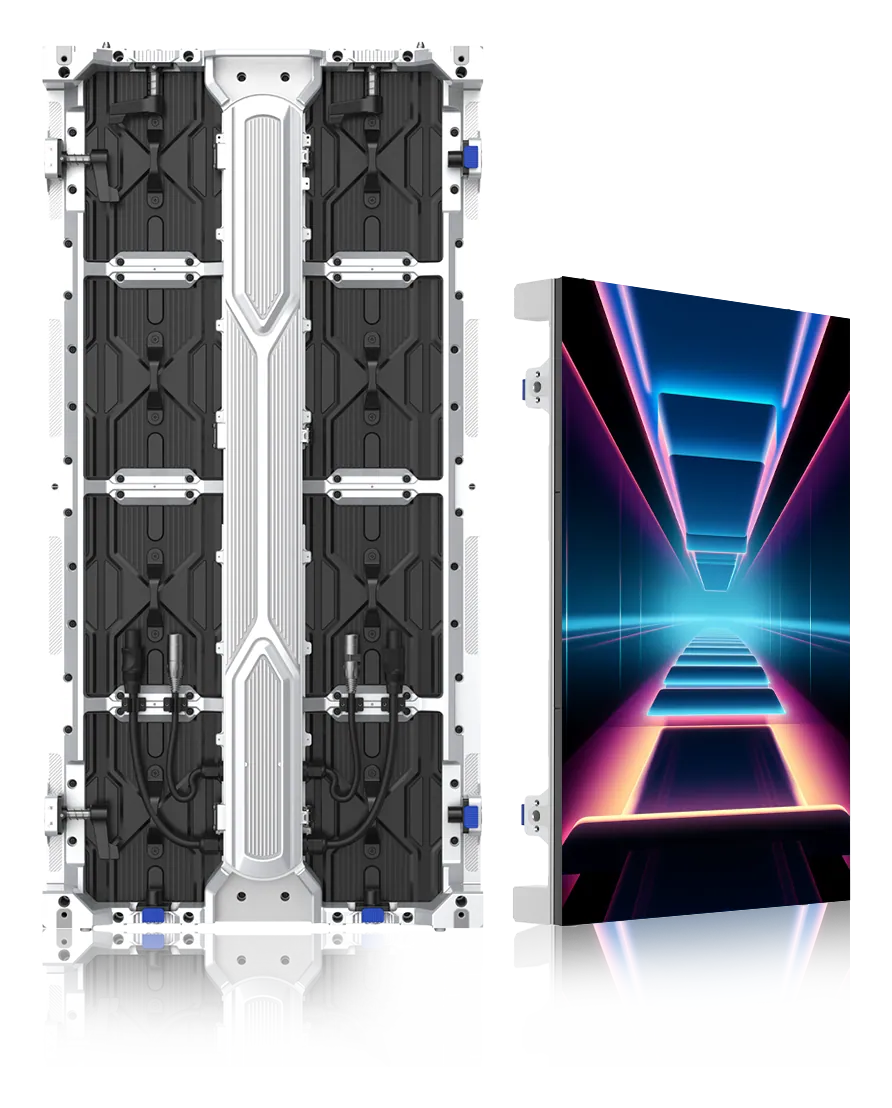

MPA ProII 2.9
Outdoor small-pitch fixed LED display: lightweight, IP65 protection, dual backups, high precision.
- Series
- MPA ProII Series
- Pixel pitch
- 2.9 mm
- Brightness
- 5000–6000 nits
- Panel size
- 500 × 1000 × 90 / 500 × 750 × 90 mm
- Panel resolution
- 168 × 336 / 168 × 252
- Refresh rate
- 3840 Hz
- LED type
- SMD
- IP rating
- IP65
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
MPA ProII 2.9Price on requestRequest a quotation
01VideoManufacturer's video · 1:25
LianTronics MPA ProII 2.9: the manufacturer's video
02SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.

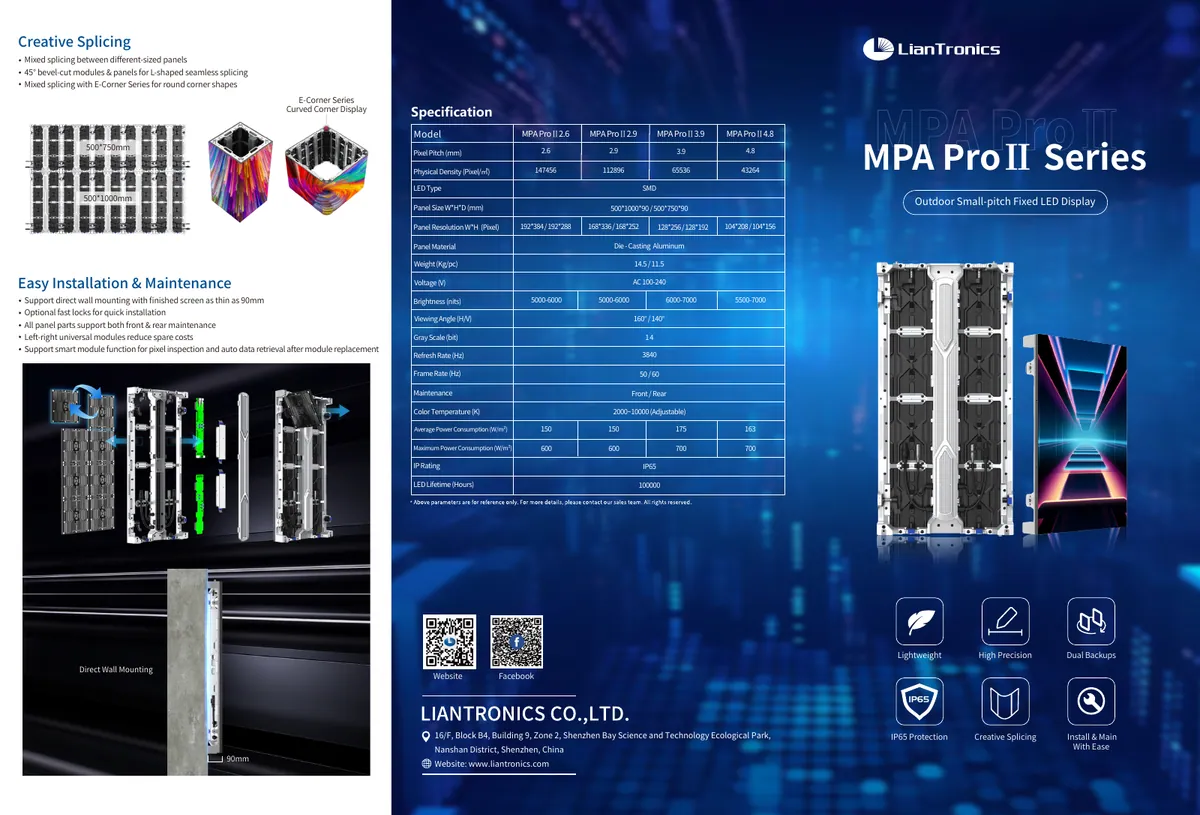

PDFBrochureEN · 2 pages · 5.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Pixel Pitch
- 2.9 mm
- Panel Size
- 500 × 1000 × 90 / 500 × 750 × 90 mm
- Panel Resolution
- 168 × 336 / 168 × 252
- Weight
- 14.5kg / 11.5kg
- Brightness
- 5000–6000 nits
- Maintenance
- Front / Rear
- Pixel Density
- 112896 px/m²
- LED Type
- SMD
- Panel Material
- Die-Casting Aluminum
- Refresh Rate
- 3840 Hz
- Color Temperature
- 2000–10000 (Adjustable)
- IP Rating
- IP65
- LED Lifetime
- 100000 h
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Models6 models in the family
Models compared.
| Model | MPA ProII 1.5 | MPA ProII 1.9 | MPA ProII 2.6 | MPA ProII 2.9 | MPA ProII 3.9 | MPA ProII 4.8 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.5 | 1.9 | 2.6 | 2.9 | 3.9 | 4.8 |
| Panel Size (mm) | 500 × 1000 × 88 / 500 × 750 × 88 | 500 × 1000 × 88 / 500 × 750 × 88 | 500 × 1000 × 90 / 500 × 750 × 90 | 500 × 1000 × 90 / 500 × 750 × 90 | 500 × 1000 × 90 / 500 × 750 × 90 | 500 × 1000 × 90 / 500 × 750 × 90 |
| Panel Resolution | 320 × 640 / 320 × 480 | 256 × 512 / 256 × 384 | 192 × 384 / 192 × 288 | 168 × 336 / 168 × 252 | 128 × 256 / 128 × 192 | 104 × 208 / 104 × 156 |
| Weight (kg/pcs) | 17.5kg / 15kg | 17.5kg / 15kg | 14.5kg / 11.5kg | 14.5kg / 11.5kg | 14.5kg / 11.5kg | 14.5kg / 11.5kg |
| Brightness (nits) | 4000 | 4000 | 5000–6000 | 5000–6000 | 6000–7000 | 5500–7000 |
| Maintenance | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Pixel Density (pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 | 43264 |
| LED Type | MIP | MIP | SMD | SMD | SMD | SMD |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Refresh Rate (Hz) | 3840 / 7680 | 3840 / 7680 | 3840 | 3840 | 3840 | 3840 |
| Color Temperature (K) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) |
| IP Rating | Front:IP65, Rear:IP65; IP69K | Front:IP65, Rear:IP65; IP69K | IP65 | IP65 | IP65 | IP65 |
| LED Lifetime (Hours) | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 |
04DescriptionManufacturer's description
What it is.

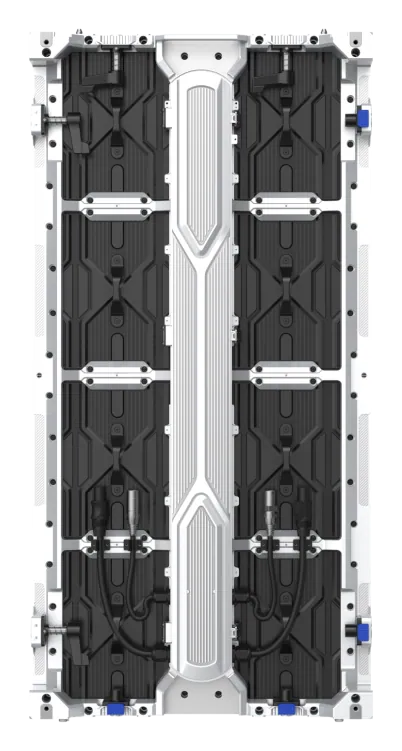

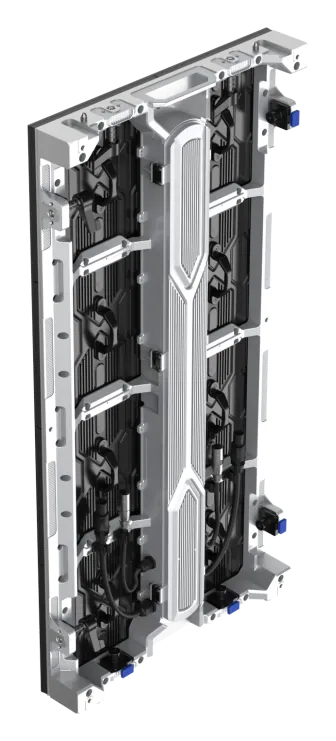

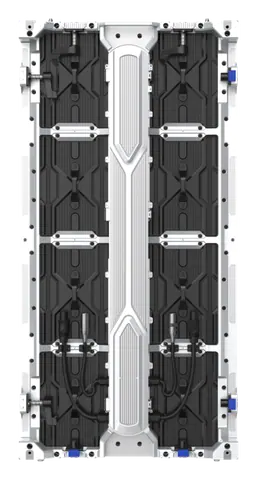

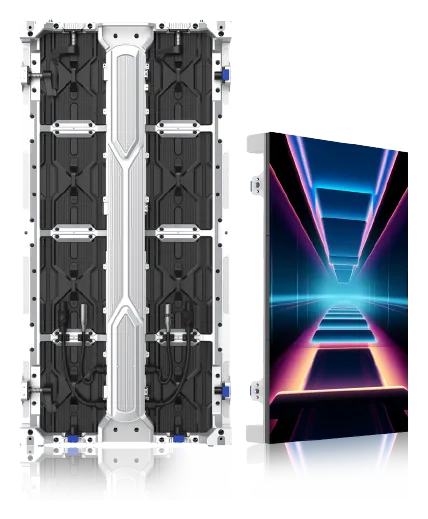

Die-casting Aluminum Panel
High-precision cutting for high flatness

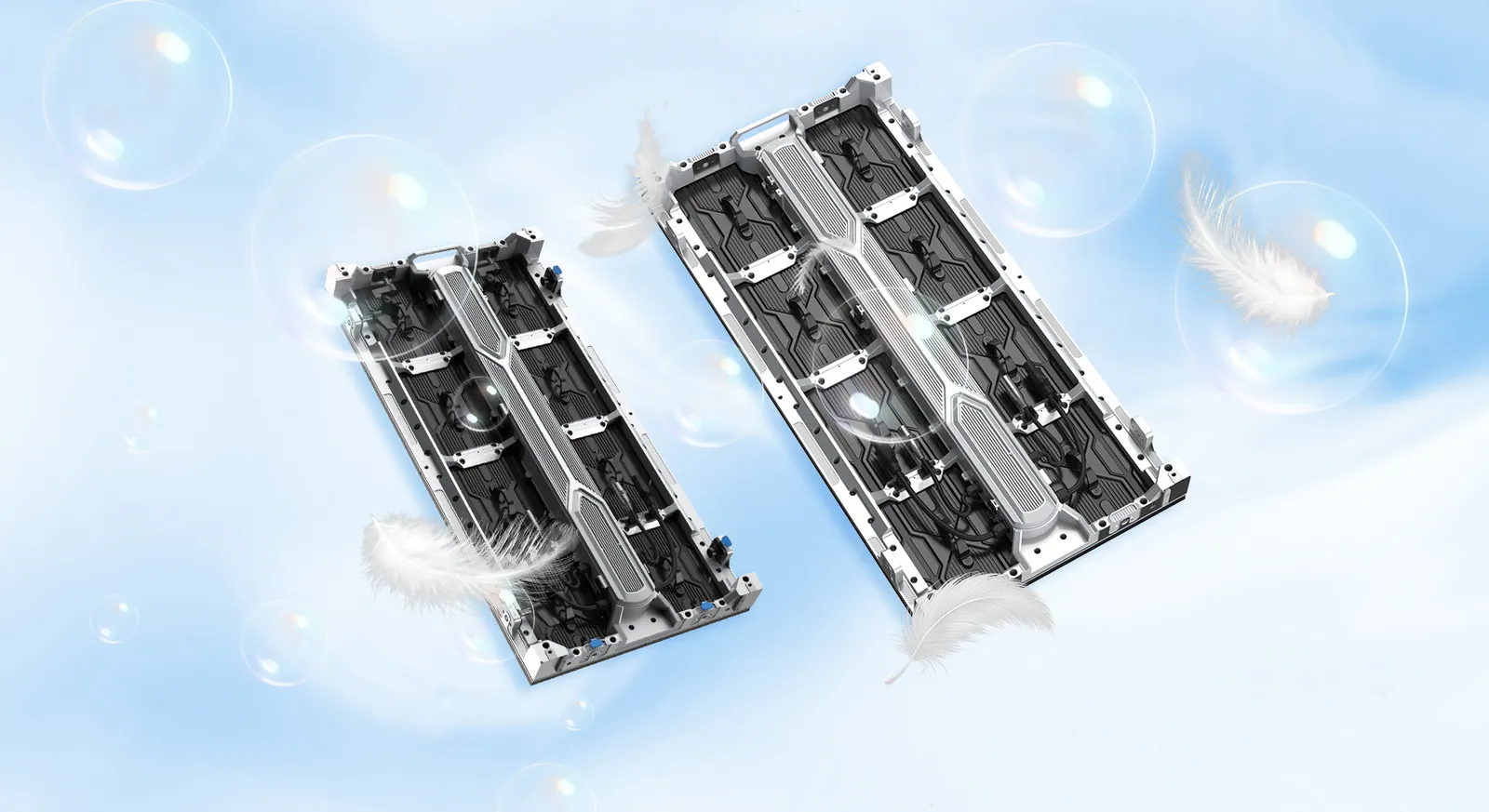

29kg/m lightweight panel design for effortless single-person handling and save transportation and labor costs

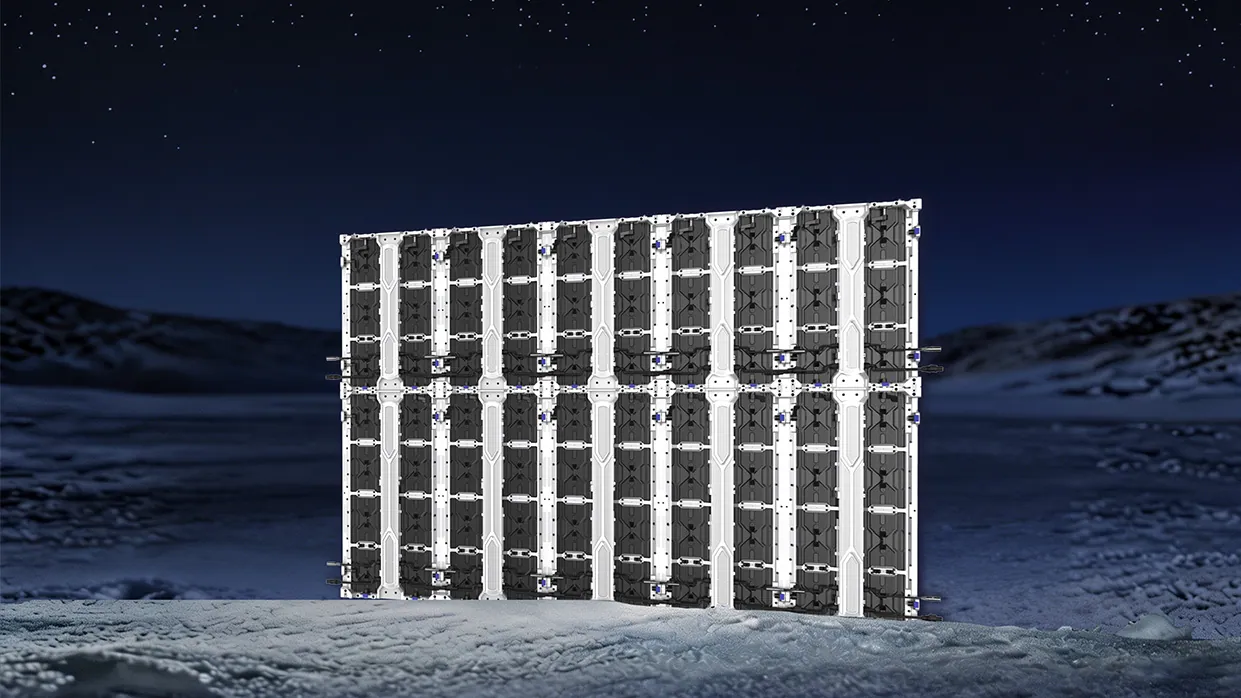

Creative Splicing
- Mixed splicing between different-sized panels

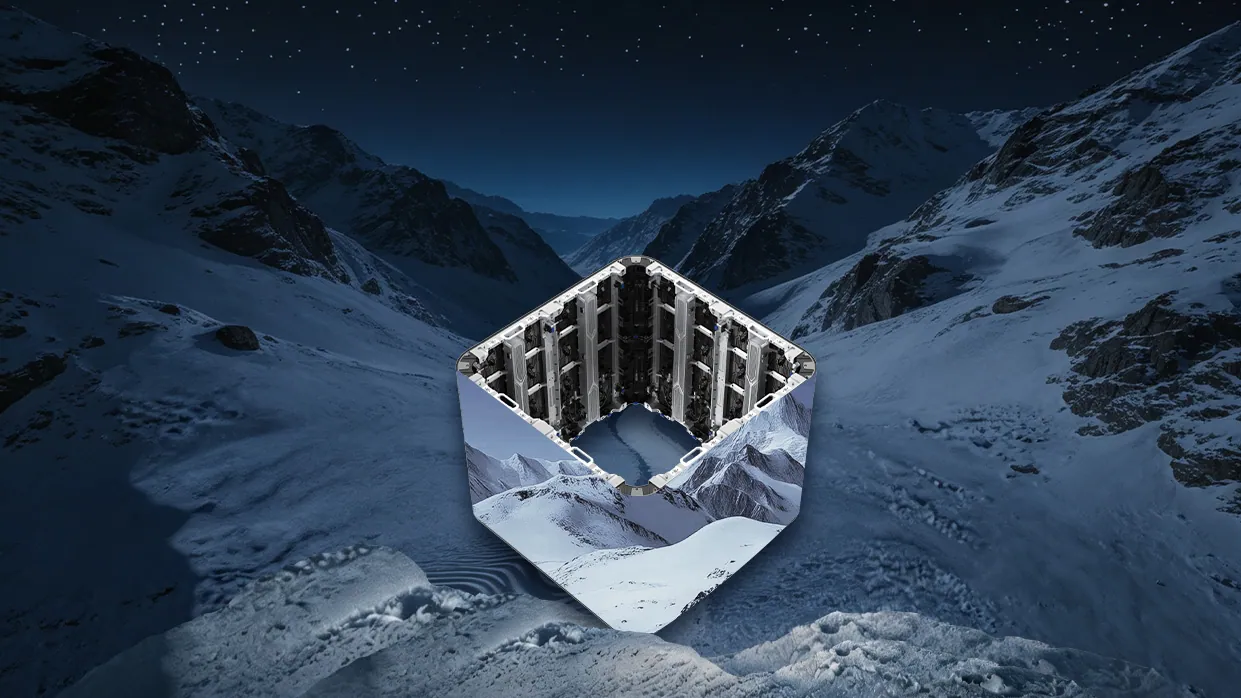

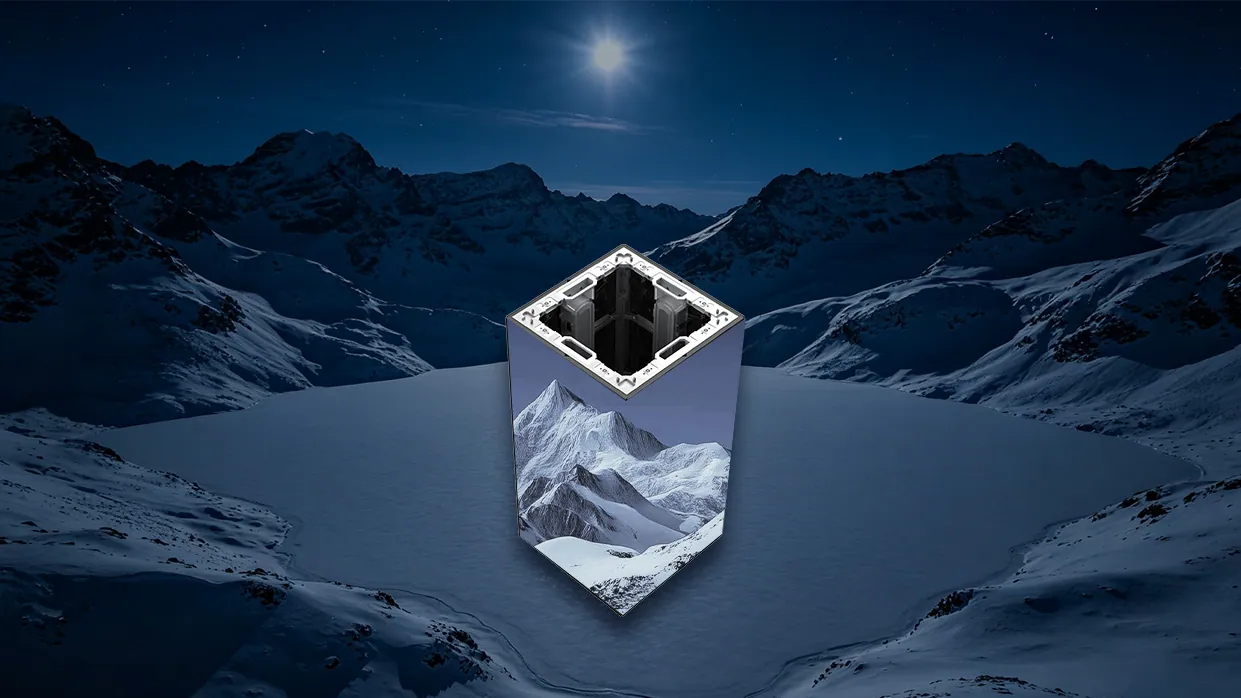

- 45° bevel-cut modules & panels for L-shaped seamless splicing
- Mixed splicing with E-Corner Series for round corner shapes
Eye-catching Visuals
Excellent heat dissipation for ultra-high color consistency
Support black LEDs for ultra-high contrast ratio

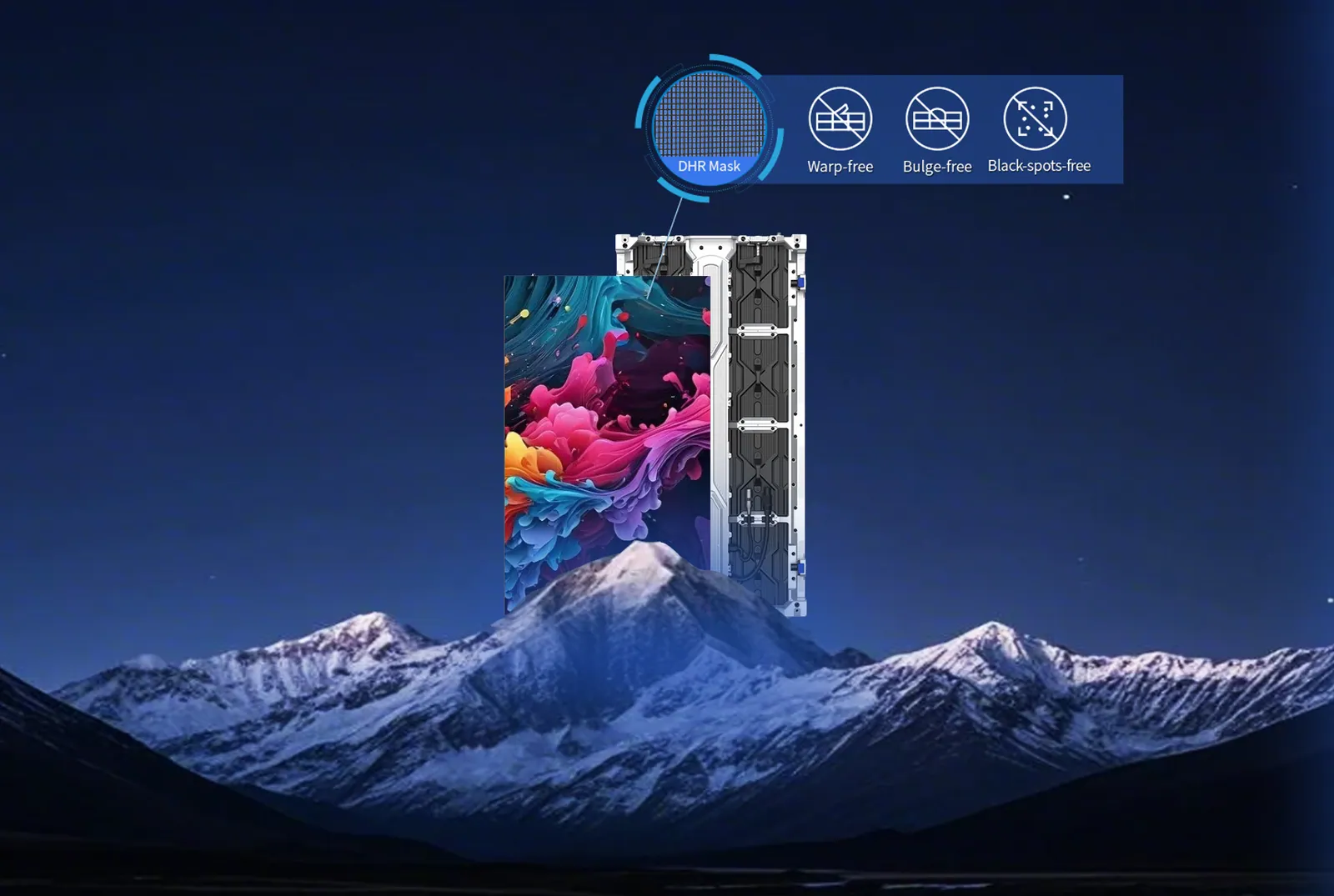

DHR (Deformation and High-temperature Resistance) masks (for P2.6 & P2.9 models) eliminate warped and bulged masks and side-view black spots

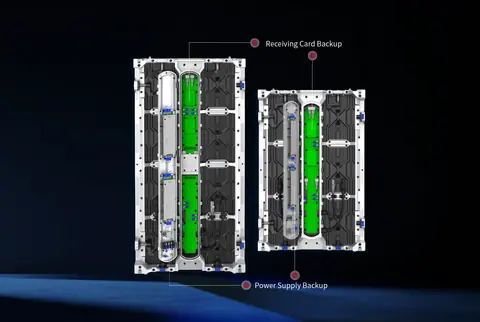

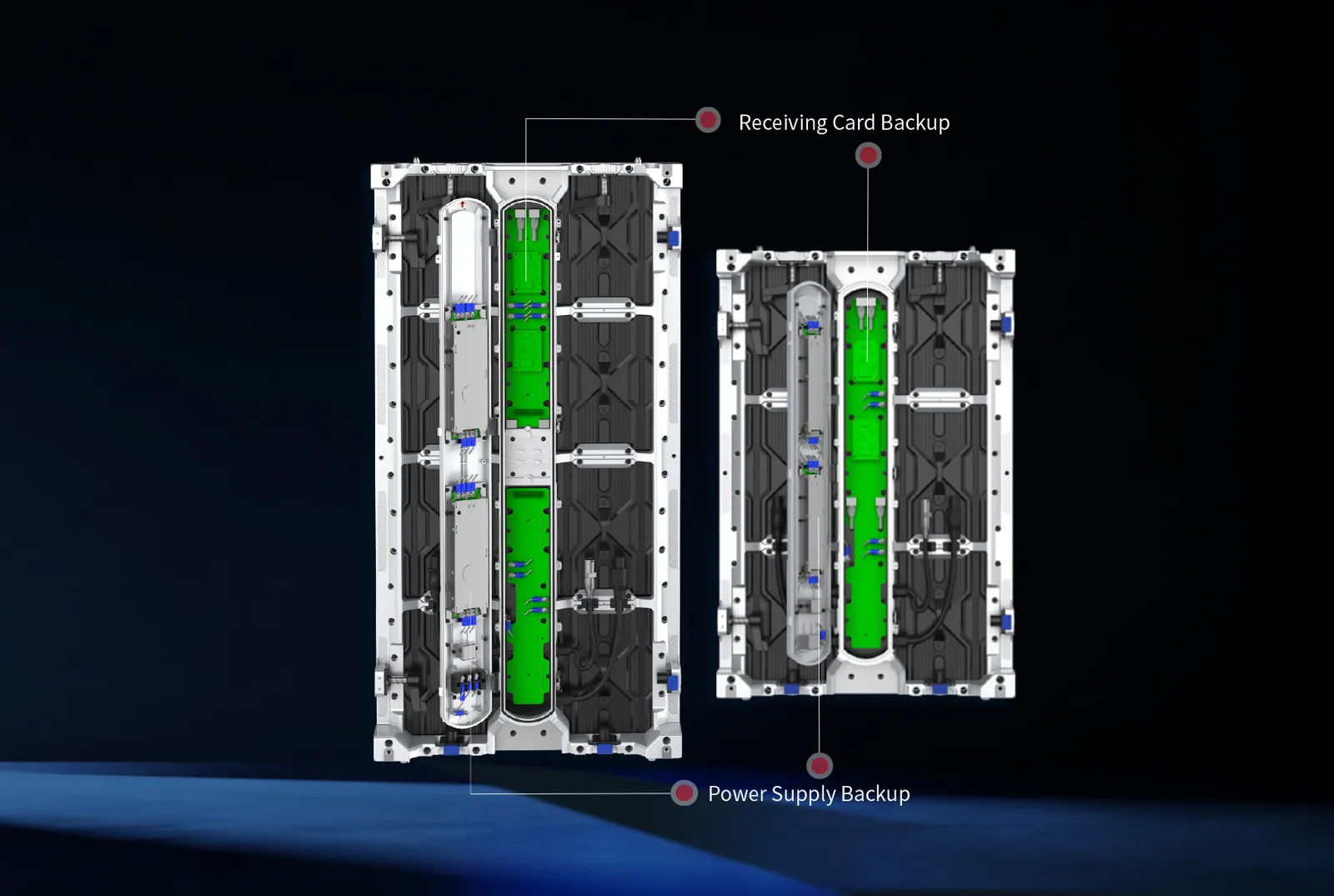

Dual Backups with High Brightness as Ever
Support backups of power supply and receiving cards to ensure high stability, and yet without compromising brightness
- 29kg/m² lightweight panel
- IP65 protection rating

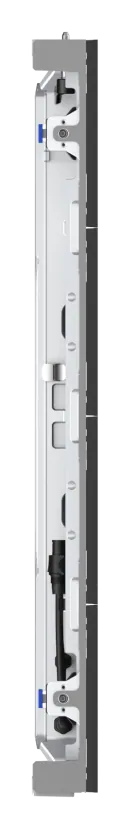

- 45° beveled edge design
- DOOH and advertising
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
