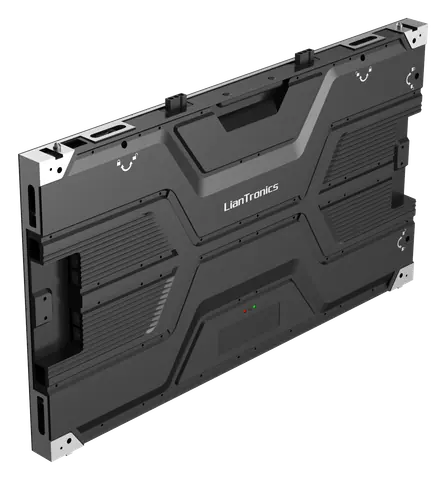

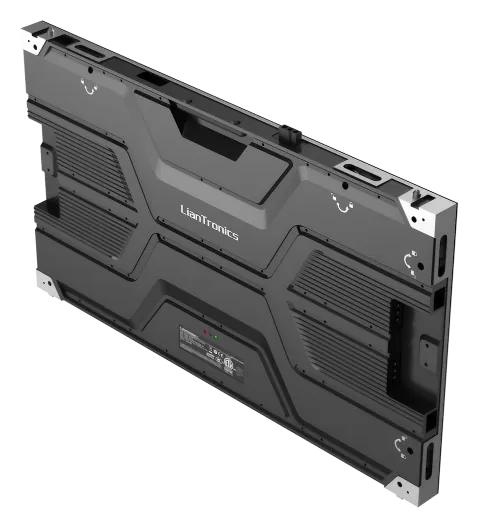

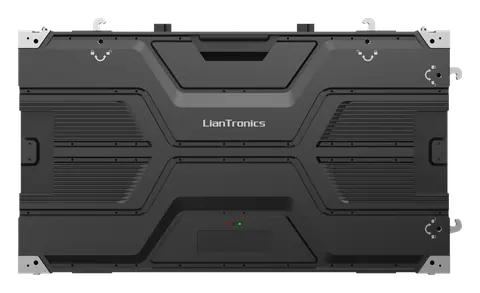

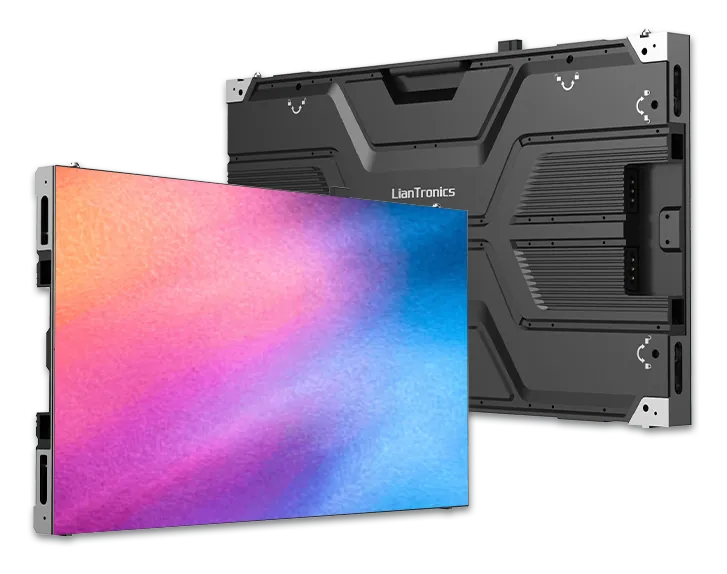

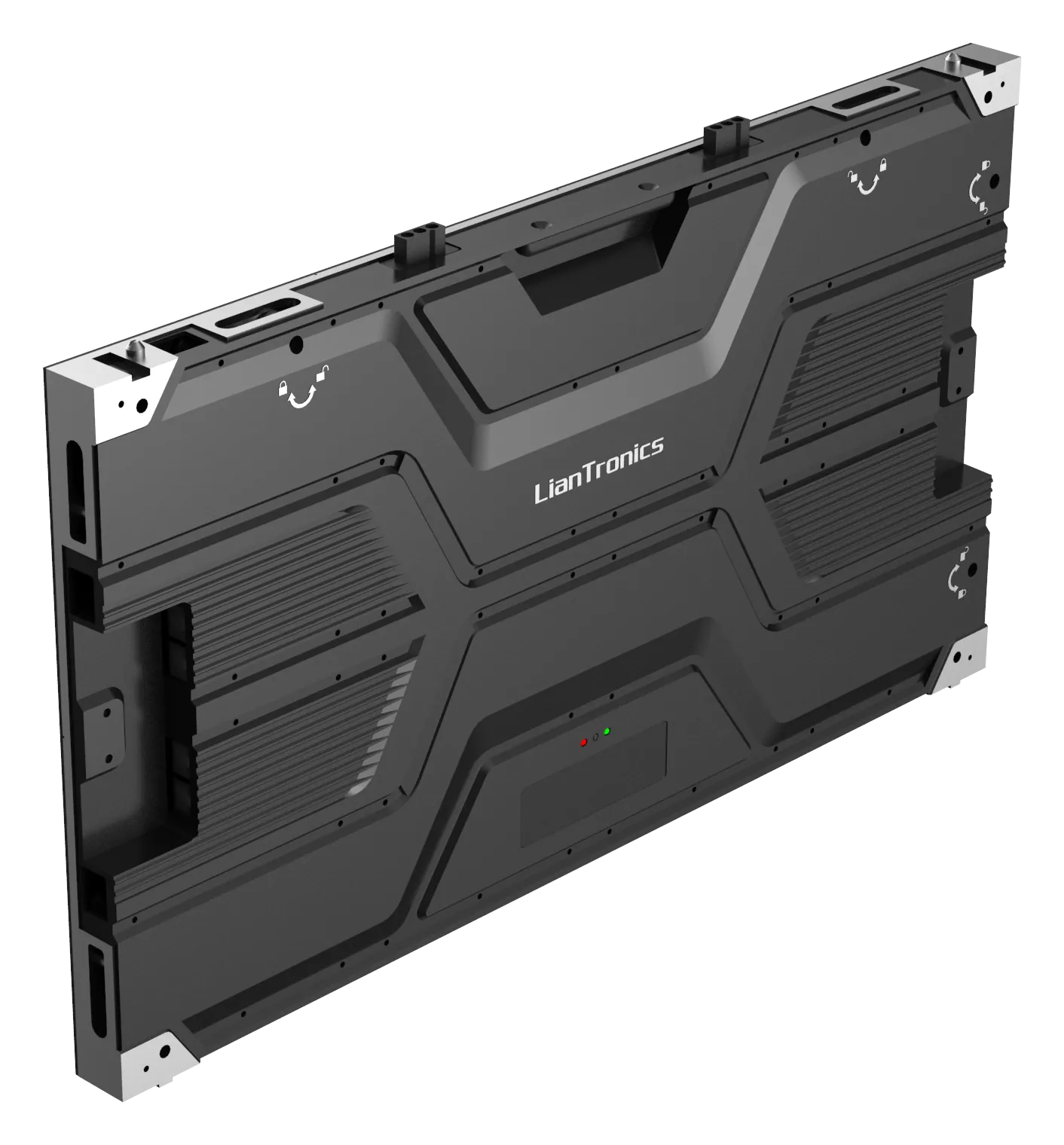

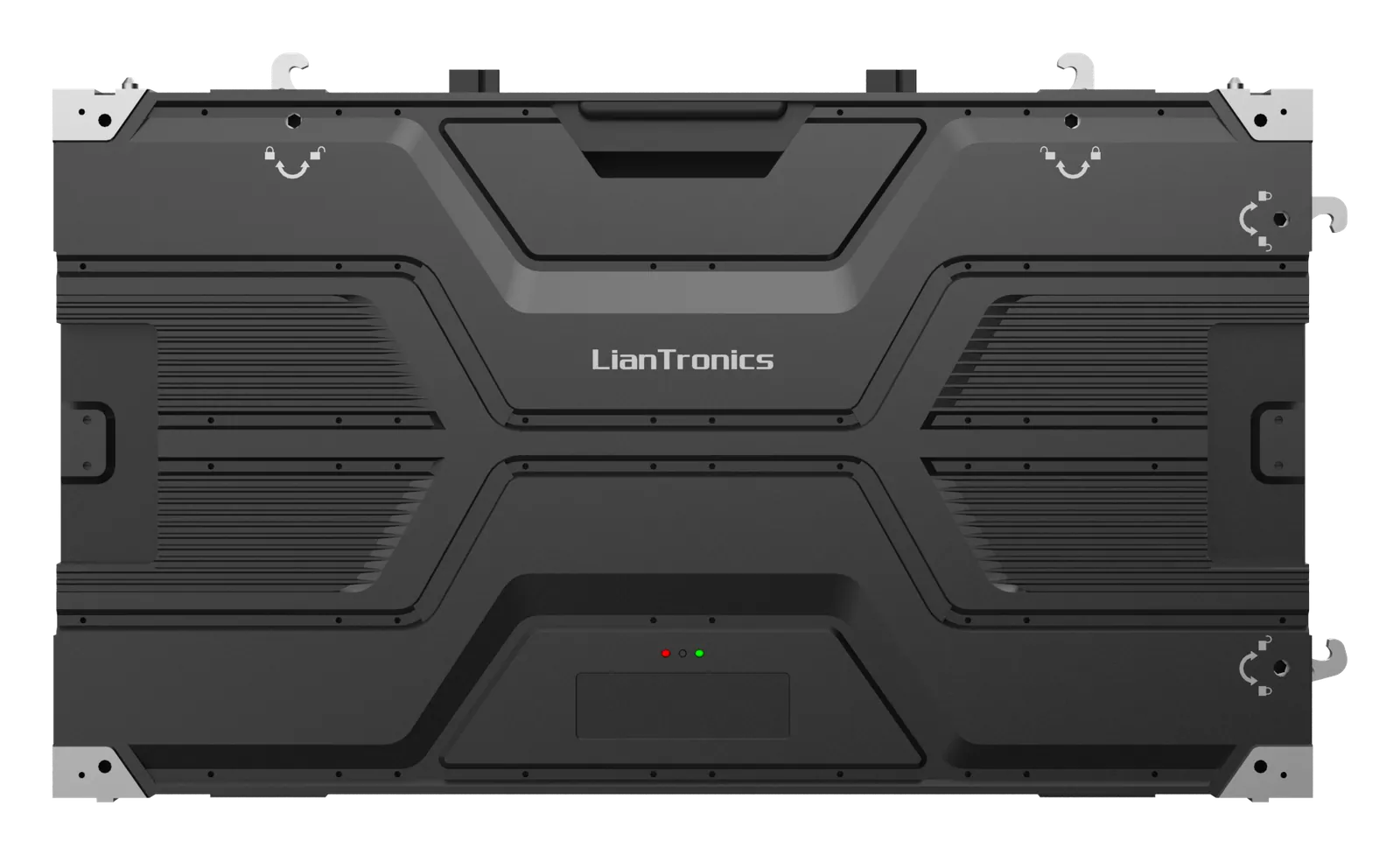

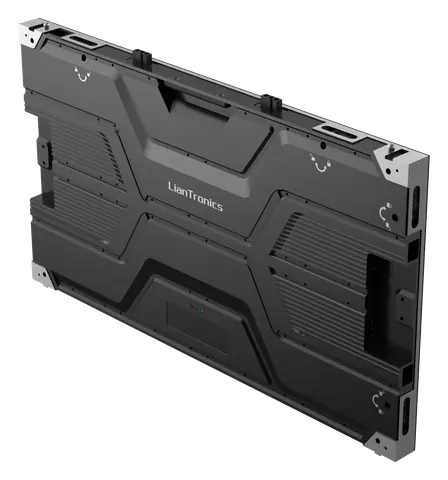

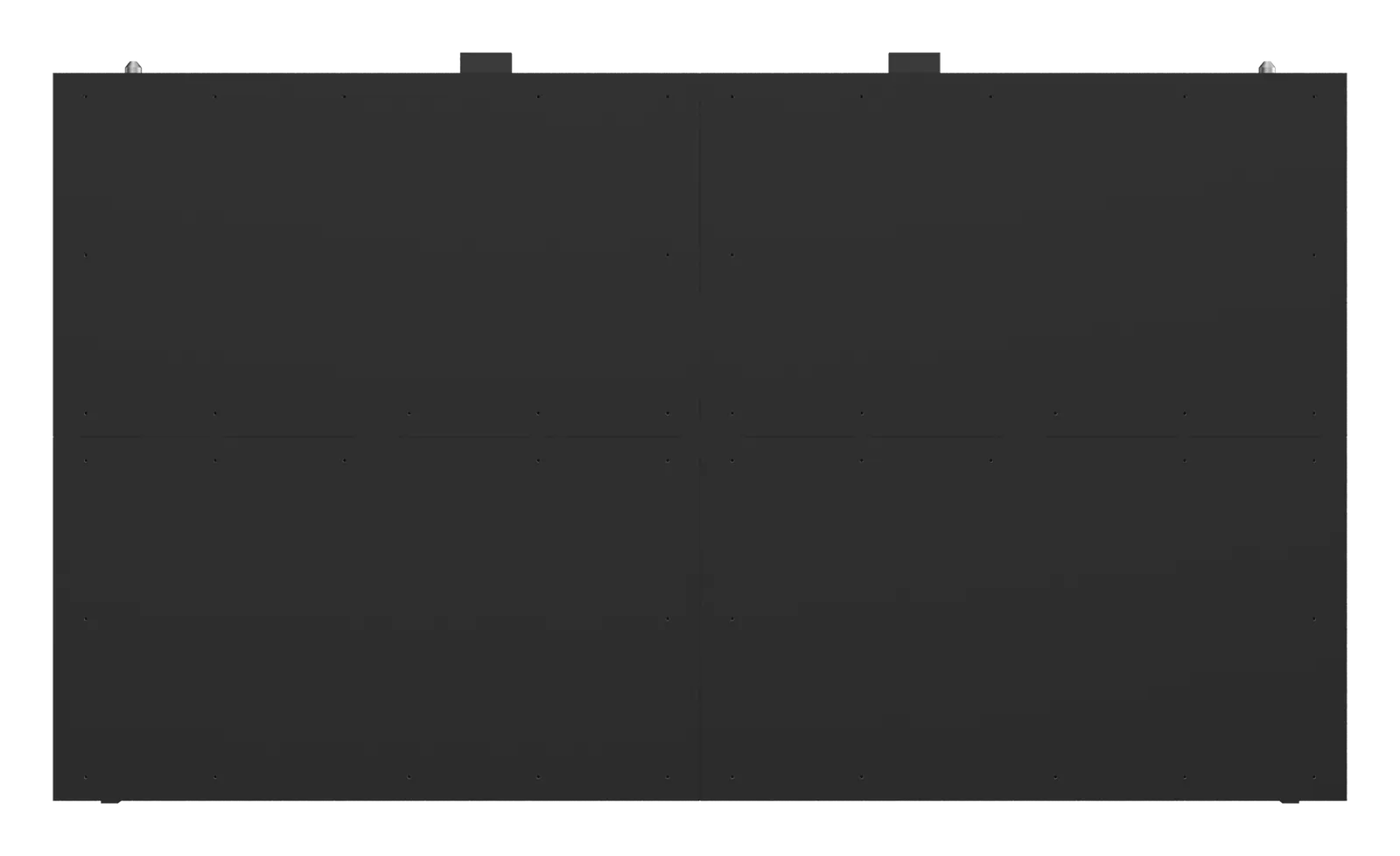

VAIII 1.2

5G high-end fine-pitch LED display: extreme-thin & light, 5G transmission, fast interlock.

Series: VAIII Series
Pixel pitch: 1.2 mm
Brightness: 600 nits
Panel size: 600 × 337.5 × 33 mm
Panel resolution: 480 × 270
Refresh rate: 3840 Hz
LED type: SMD
IP rating: Front IP30 / Rear IP60

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 14 values

What this product is, in numbers.

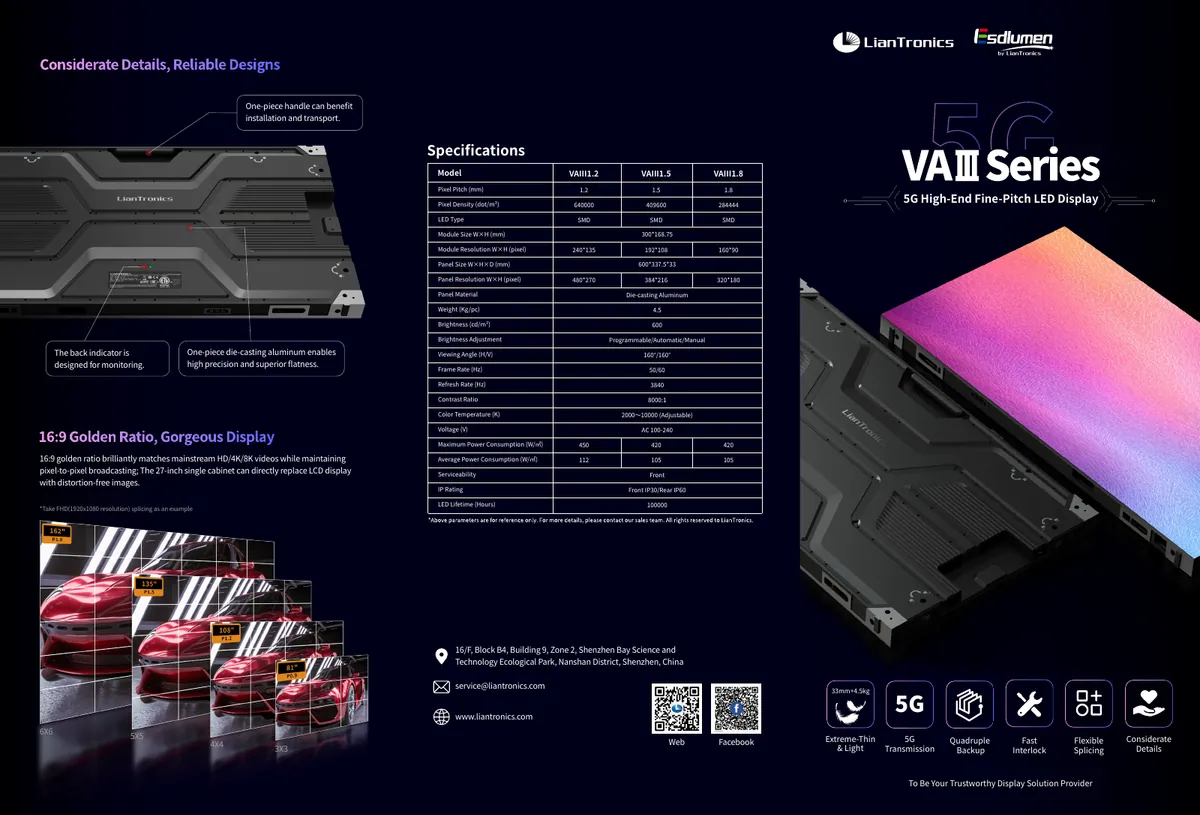

PDFBrochureEN · 2 pages · 6.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications14

Pixel Pitch: 1.2 mm
Panel Size W × H: 600 × 337.5 × 33 mm
Panel Resolution: 480 × 270
Panel Material: Die-casting Aluminum
Weight: 4.5 kg
Brightness: 600 nits
Serviceability: Front
Pixel Density: 640000 px/m²
LED Type: SMD
Brightness Adjustment: Programmable / Automatic / Manual
Refresh Rate: 3840 Hz
Contrast Ratio: 8000:1
Color Temperature: 2000–10000 (Adjustable)
IP Rating: Front IP30 / Rear IP60

02Models3 models in the family

Models compared.

Model	VAIII 1.2	VAIII 1.5	VAIII 1.8
Pixel Pitch (mm)	1.2	1.5	1.8
Panel Size W × H (mm)	600 × 337.5 × 33	600 × 337.5 × 33	600 × 337.5 × 33
Panel Resolution (W × H)	480 × 270	384 × 216	320 × 180
Panel Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Weight (Kg/pc)	4.5	4.5	4.5
Brightness (nits)	600	600	600
Serviceability	Front	Front	Front
Pixel Density (pixels/m²)	640000	409600	284444
LED Type	SMD	SMD	SMD
Brightness Adjustment	Programmable / Automatic / Manual	Programmable / Automatic / Manual	Programmable / Automatic / Manual
Refresh Rate (Hz)	3840	3840	3840
Contrast Ratio	8000:1	8000:1	8000:1
Color Temperature (K)	2000–10000 (Adjustable)	2000–10000 (Adjustable)	2000–10000 (Adjustable)
IP Rating	Front IP30 / Rear IP60	Front IP30 / Rear IP60	Front IP30 / Rear IP60

03DescriptionManufacturer's description

What it is.

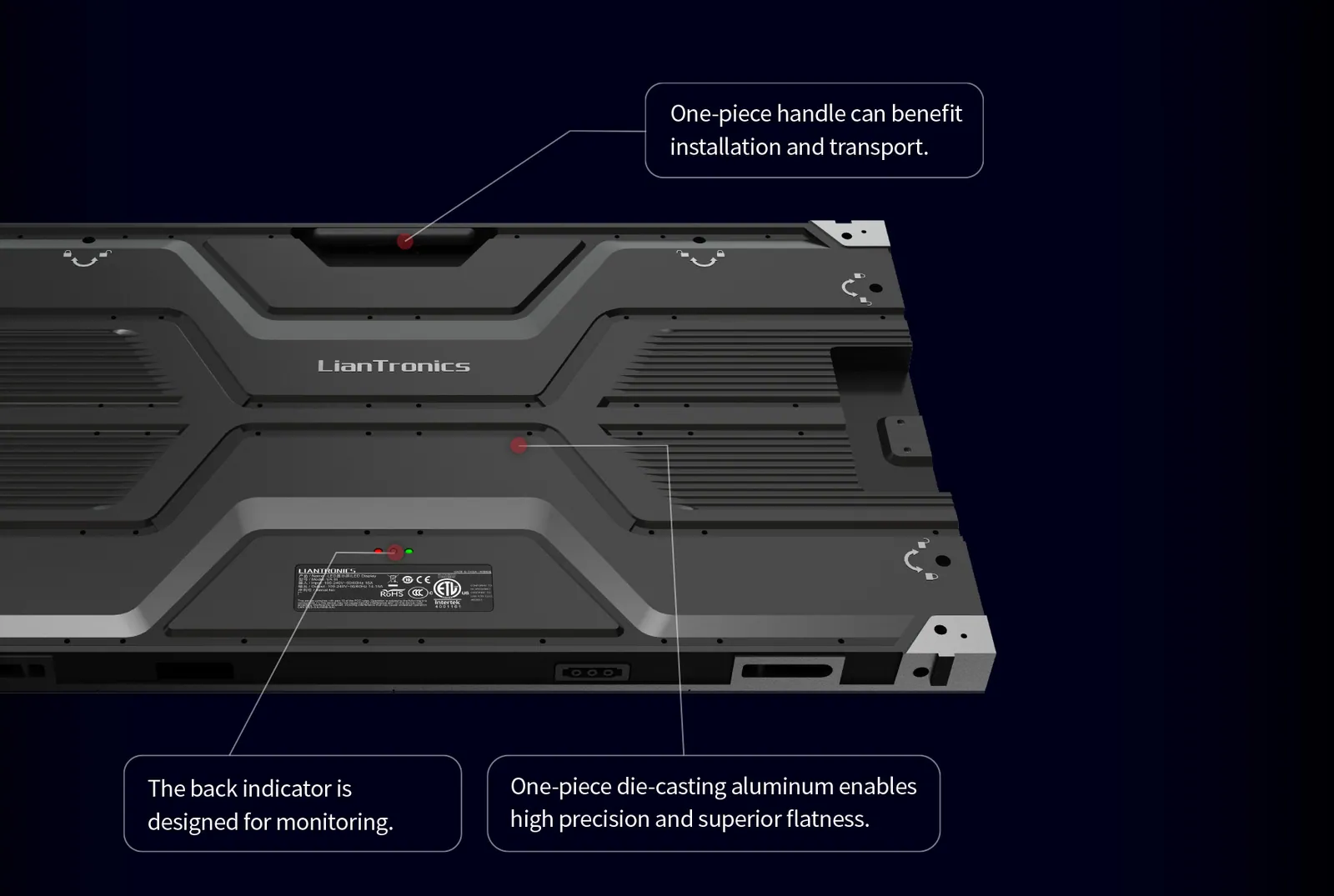

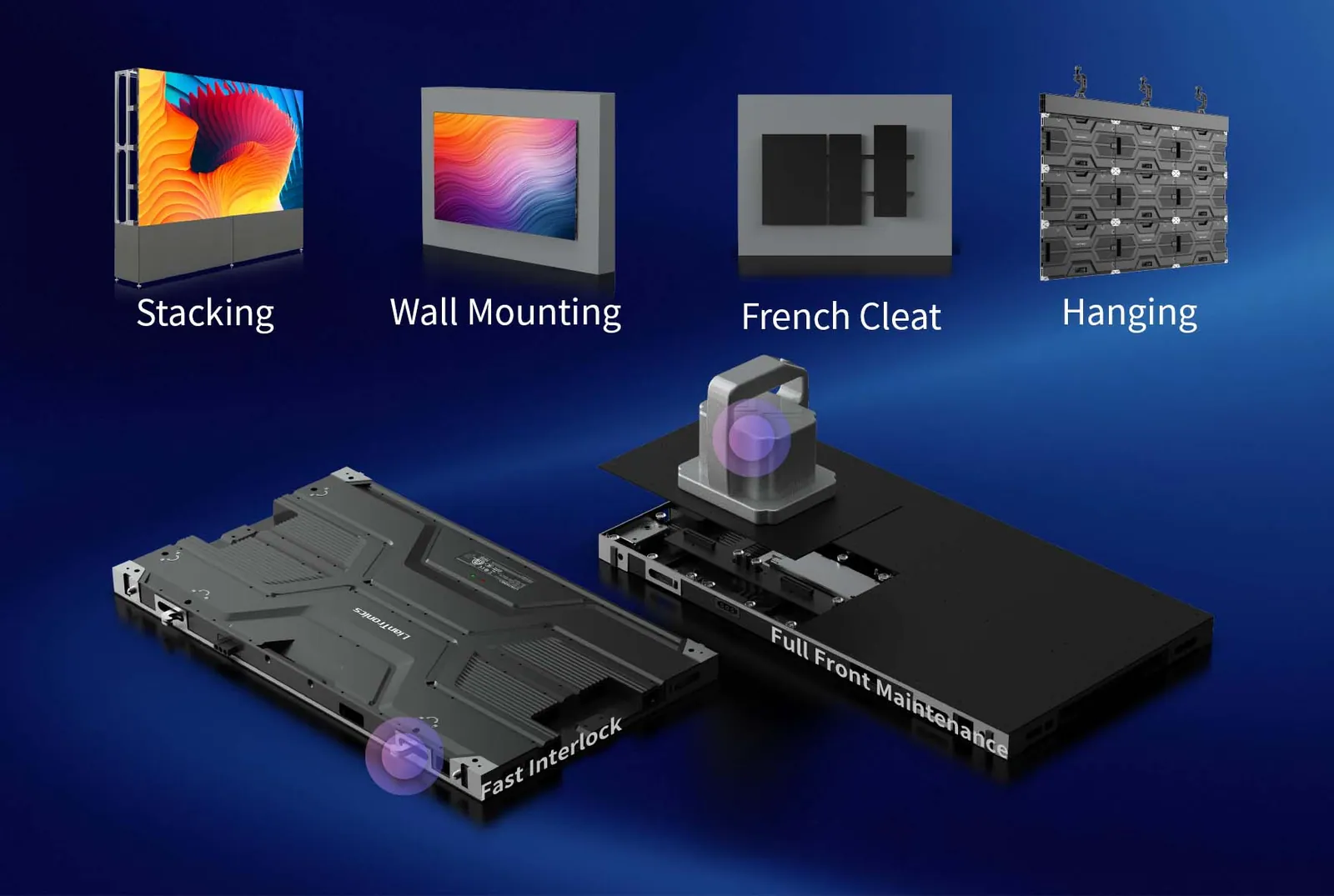

Fast & Easy Installation & Maintenance

Fast interlock enables 1-second quick installation including wall-mounting, hanging, and stacking. Full front maintenance saves space & time.

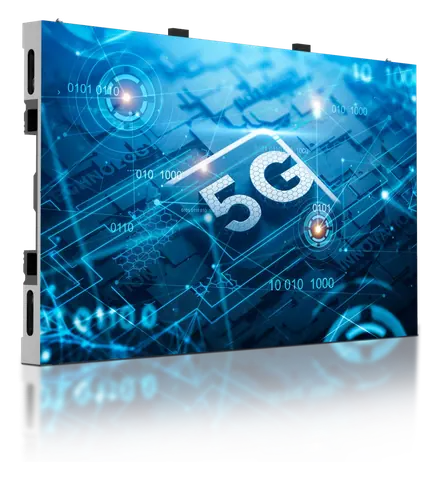

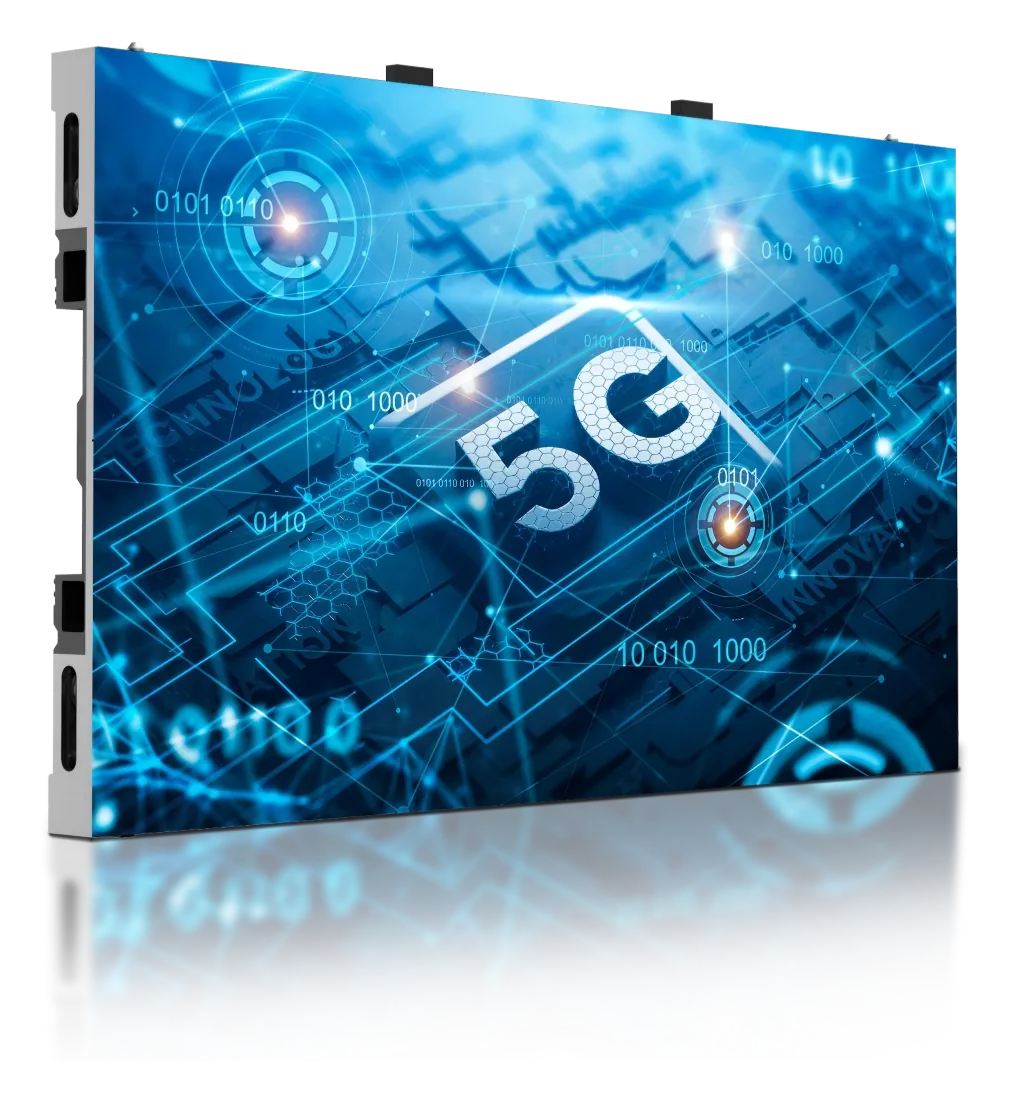

5G Transmission, Easier & More Stable

5G transmission enables 5G+8K display to enhance system efficiency, and meanwhile lower down the wiring difficulty by reducing the number of cables and devices to improve display stability.

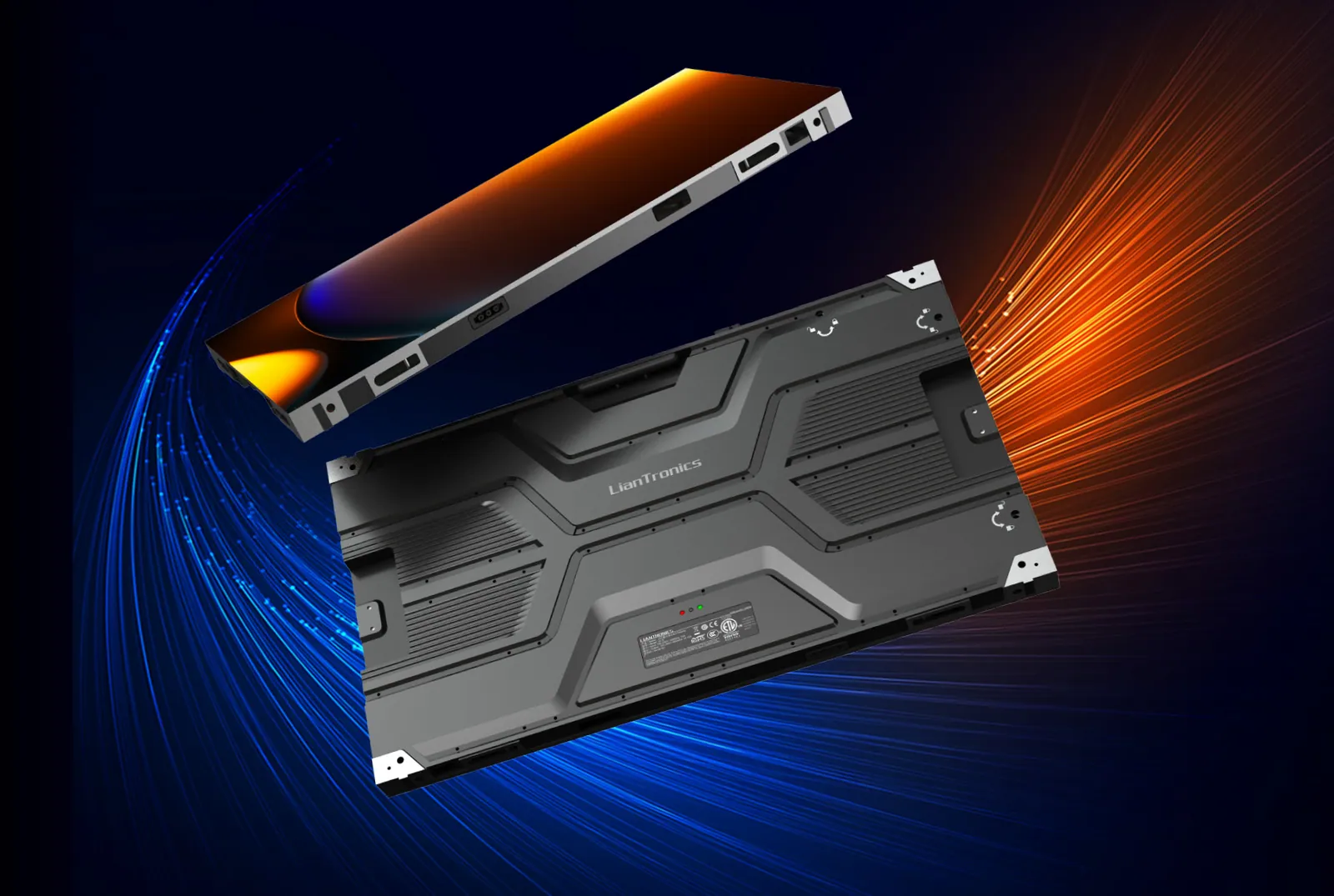

Light & Slim Ever

33mm-extreme-thin cabinet with 4.5kg/pc lightweight only greatly saves steel structure, transport expenses, and installation costs.

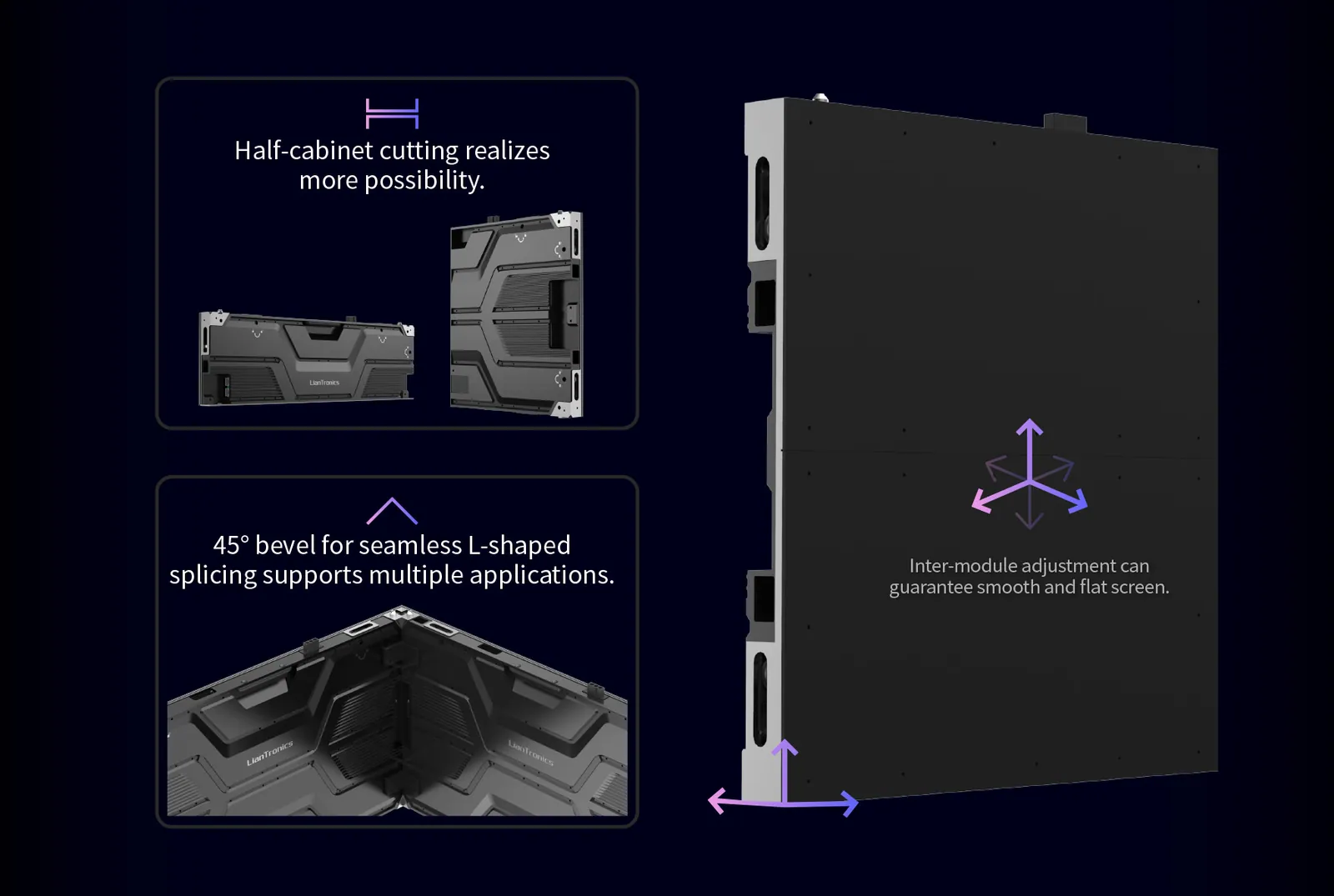

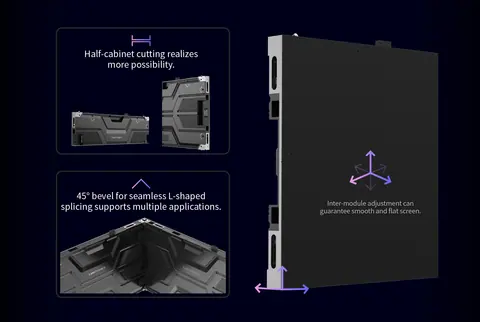

Flexible Splicing with High Flatness

VAIII Series enables half-cabinet cutting, 45° bevel for seamless L-shaped splicing & curved splicing flexibly. Unique module-level adjustment technology guarantees high flatness to achieve superior display.

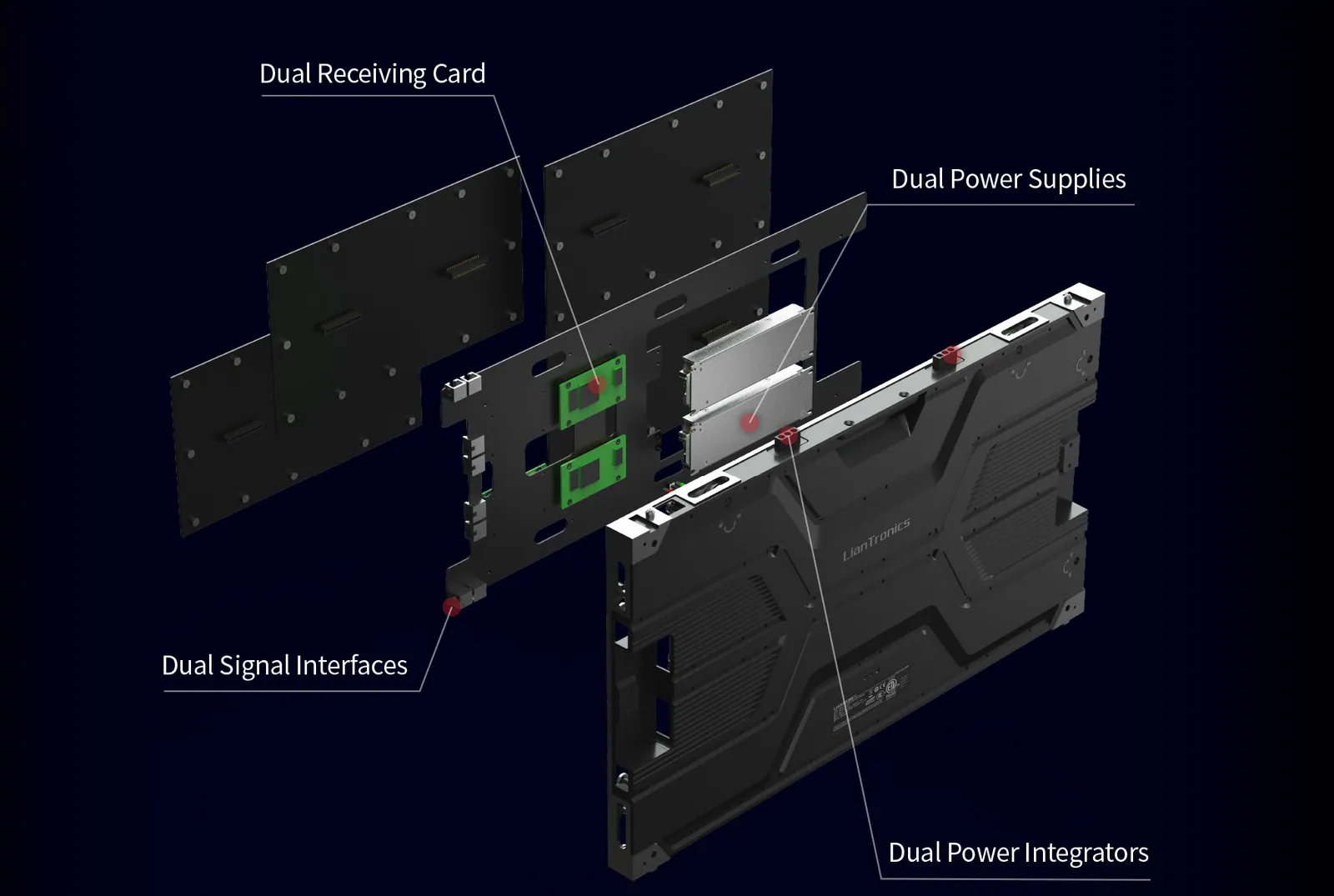

Quadruple Backup, Never Blackout

VAIII Series allows multiple backup including power, receiving cards, power connectors, & signal connectors. The quadruple backup ensures never a blackout in the normal case.
