VMQ 2.0

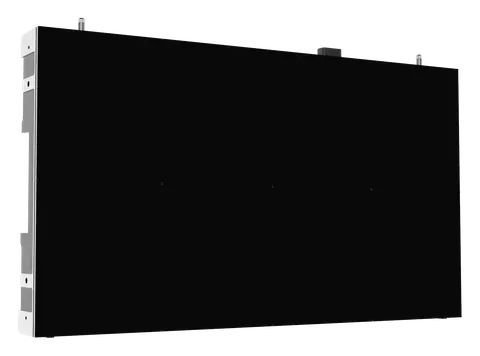

Upgraded proven fine-pitch LED display: high-end industrial design, high practicality, high appearance.

Series
VMQ Series
Pixel pitch
2 mm
Brightness
500 nits
Power consumption
max 469 / avg 118 W/m²
Panel size
640 × 480 × 64 mm
Panel resolution
320 × 240
Refresh rate
3840 Hz
LED type
SMD1515
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 20 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications20
Pixel Pitch
2 mm
Panel Size W × H × D
640 × 480 × 64 mm
Panel Resolution
320 × 240
Panel Material
Die-casting Aluminum
Panel Weight
7.5 kg
Brightness
500 nits
Serviceability
Front
Pixel Density (dot/m²)
250000
LED Type
SMD1515
Brightness Adjustment
Automatic / Manual / Programmable
Viewing Angle (H/V)
160° / 140°
Refresh Rate
3840 Hz
Frame Rate
50 / 60 Hz
Color Temperature
2000–10000 (Adjustable)
Voltage (V)
AC 100–240
Average Power Consumption
118 W/m²
Maximum Power Consumption
469 W/m²
IP Rating
Front IP30 / Rear IP60
LED Lifetime
100000 h
Gray Scale
13 bit
02Models5 models in the family

Models compared.

ModelVMQ 1.2VMQ 1.5VMQ 1.8VMQ 2.0VMQ 2.5
Pixel Pitch (mm)1.21.51.822.5
Panel Size W × H × D (mm)640 × 480 × 64640 × 480 × 64640 × 480 × 64640 × 480 × 64640 × 480 × 64
Panel Resolution (W × H)512 × 384416 × 312344 × 258320 × 240256 × 192
Panel MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Panel Weight (Kg)7.57.57.57.57.5
Brightness (nits)500500500500400
ServiceabilityFrontFrontFrontFrontFront
Pixel Density (dot/m²)640000422500288906250000160000
LED TypeSMD1010SMD1212SMD1515SMD1515SMD1515
Brightness AdjustmentAutomatic / Manual / ProgrammableAutomatic / Manual / ProgrammableAutomatic / Manual / ProgrammableAutomatic / Manual / ProgrammableAutomatic / Manual / Programmable
Viewing Angle (H/V)160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°
Refresh Rate (Hz)38403840384038403840
Frame Rate (Hz)50 / 6050 / 6050 / 6050 / 6050 / 60
Color Temperature (K)2000–10000 (Adjustable)2000–10000 (Adjustable)2000–10000 (Adjustable)2000–10000 (Adjustable)2000–10000 (Adjustable)
Voltage (V)AC 100–240AC 100–240AC 100–240AC 100–240AC 100–240
Average Power Consumption (W/m²)159150123118106
Maximum Power Consumption (W/m²)633598492469422
IP RatingFront IP30 / Rear IP60Front IP30 / Rear IP60Front IP30 / Rear IP60Front IP30 / Rear IP60Front IP30 / Rear IP60
LED Lifetime (Hours)100000100000100000100000100000
Gray Scale (bit)1313131313
03DescriptionManufacturer's description

What it is.

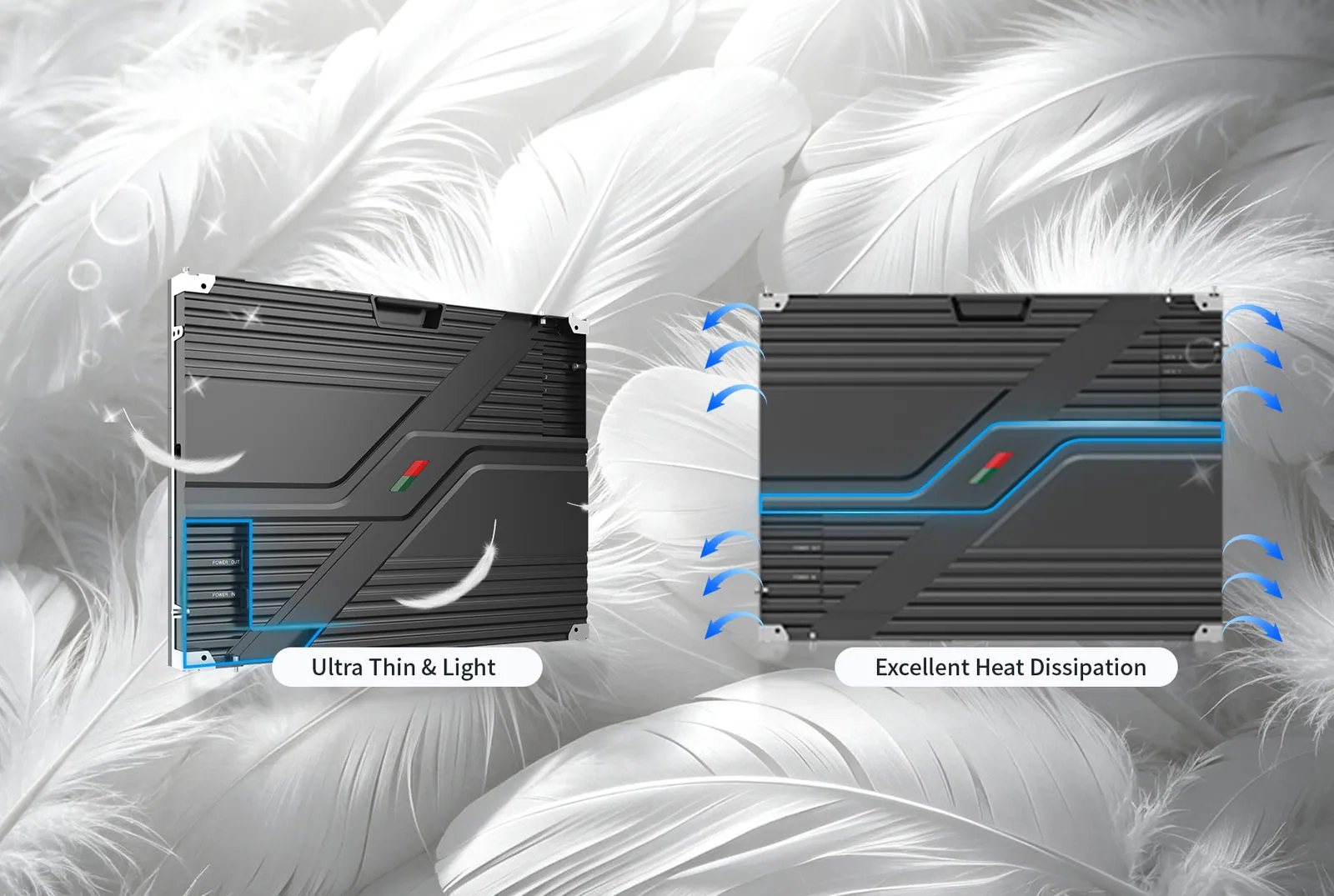

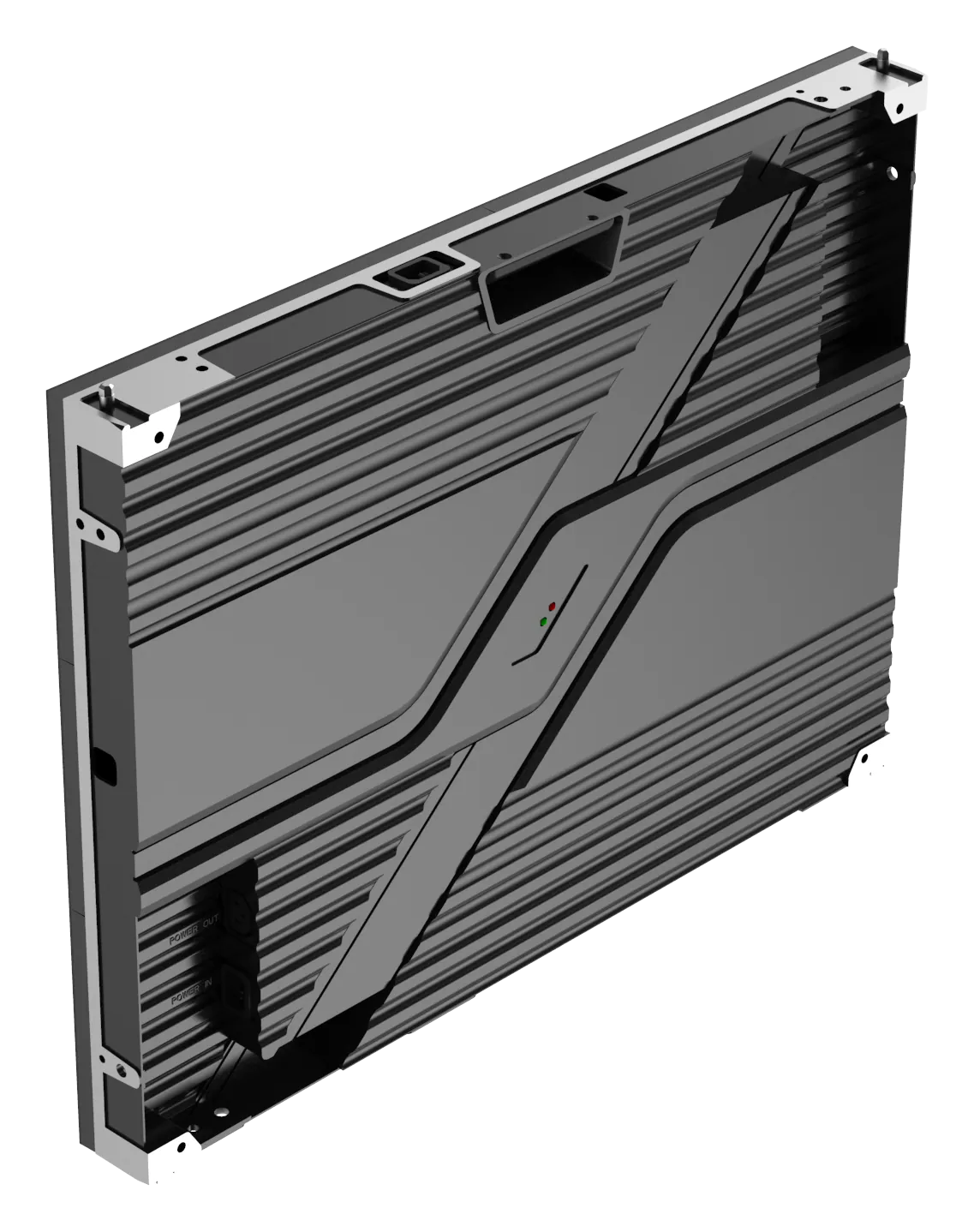

Aesthetics & Practicability into One

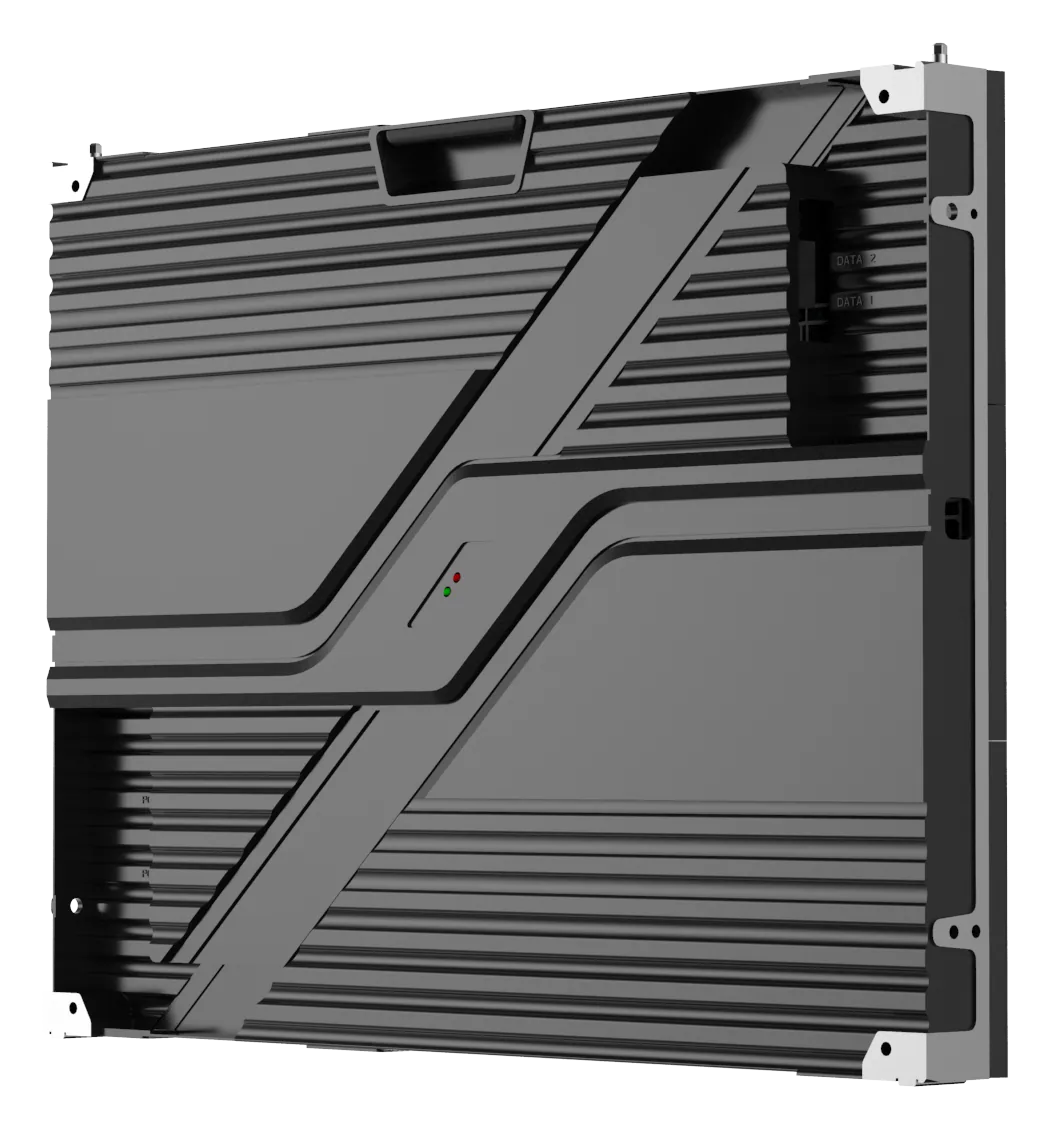

Upgraded thin & light die-cast cabinet saves your space to harmonize with the surroundings; Light beam patterned back shell with “L” alphabetical aesthetics expands the cooling area for excellent heat dissipation.

LianTronics VMQ 2.0: Aesthetics & Practicability into One

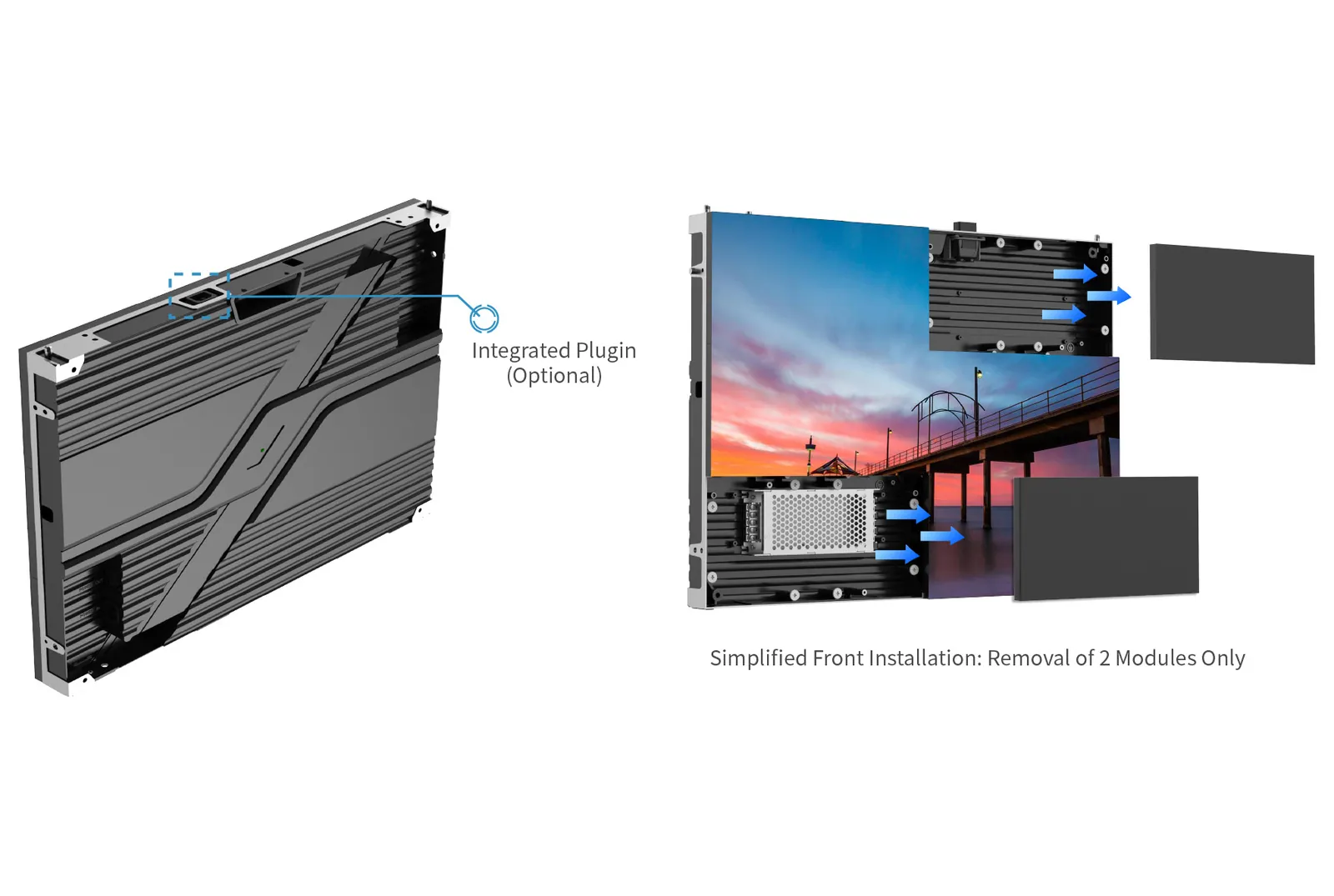

Simplified Assembly, Fast Installation

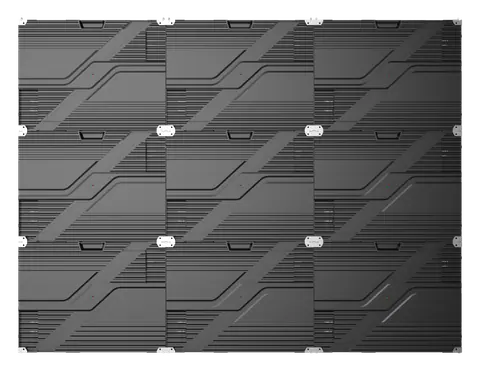

Optional integrated plugin connection between cabinets speeds up splicing efficiency and stabilizes transmission as well; Installation procedures are simplified for easy and quick setup of the LED screen.

LianTronics VMQ 2.0: Simplified Assembly, Fast Installation

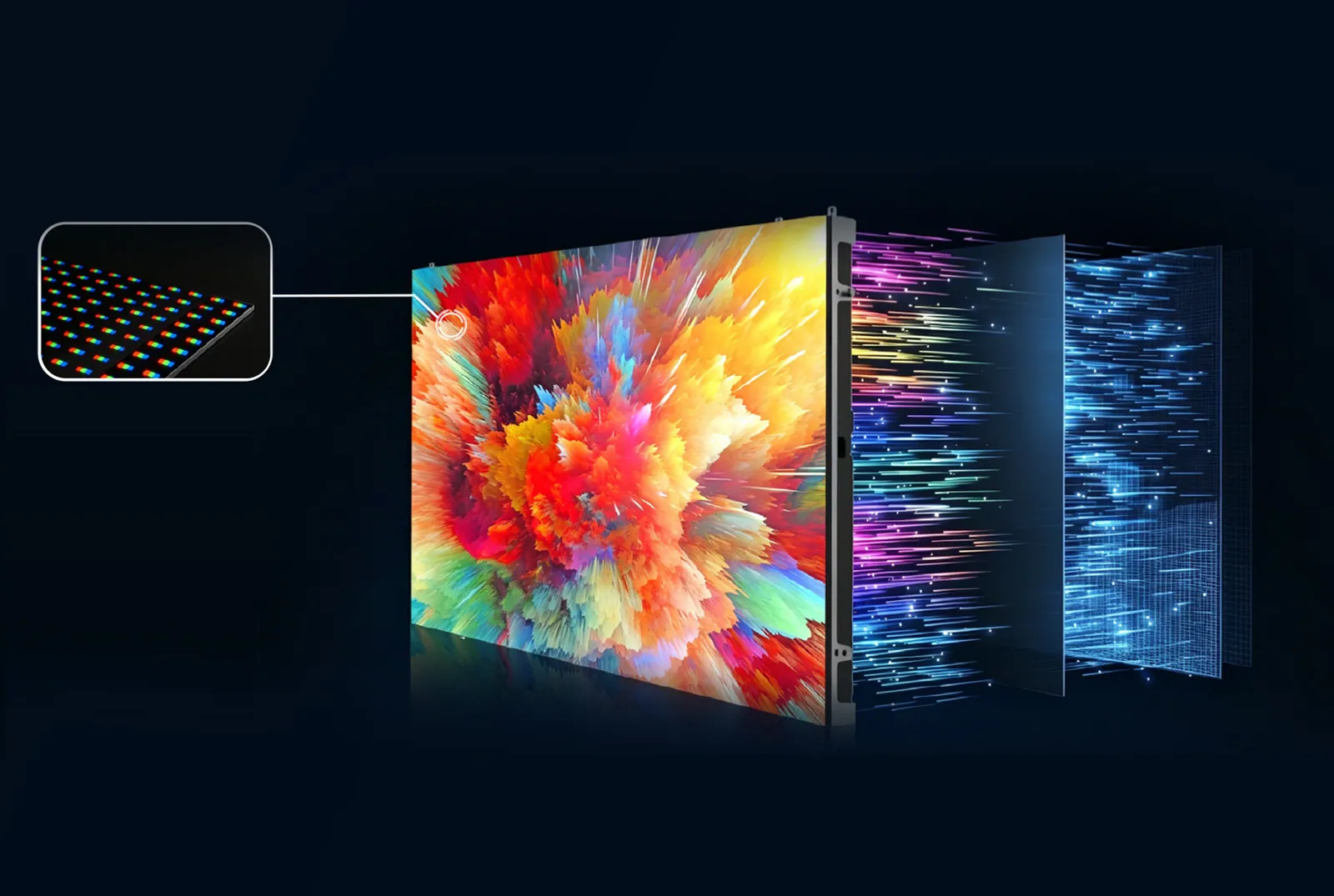

3840Hz High Refresh Rate

flip-chip COB technology with MiniLED chips, it delivers higher contrast, lifelike image quality, and enhanced overall reliability.

LianTronics VMQ 2.0: 3840Hz High Refresh Rate

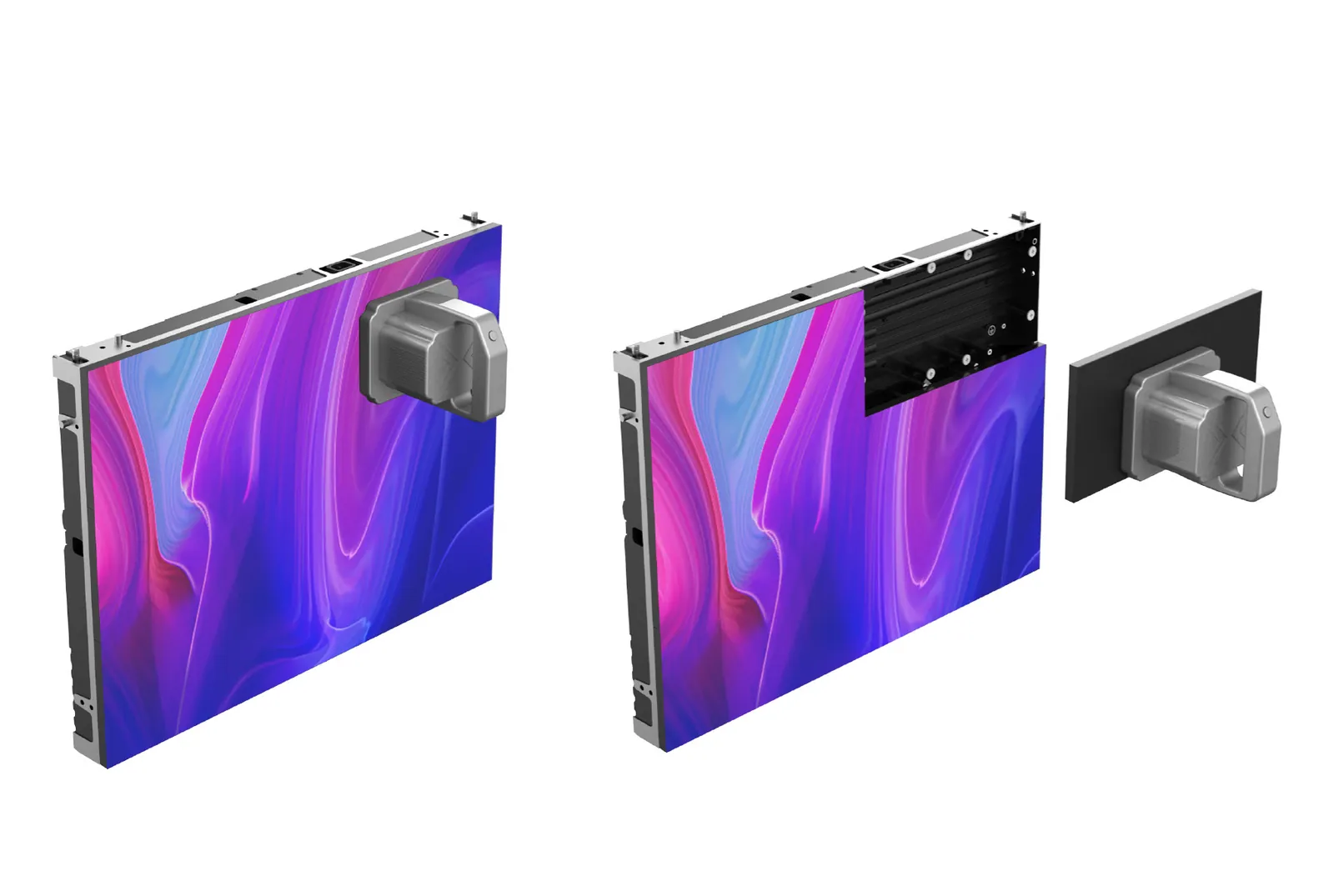

Friendly Full Front Maintenance

Modules, receiving card & power supply support full front maintenance for higher spatial utilization.

LianTronics VMQ 2.0: Friendly Full Front Maintenance

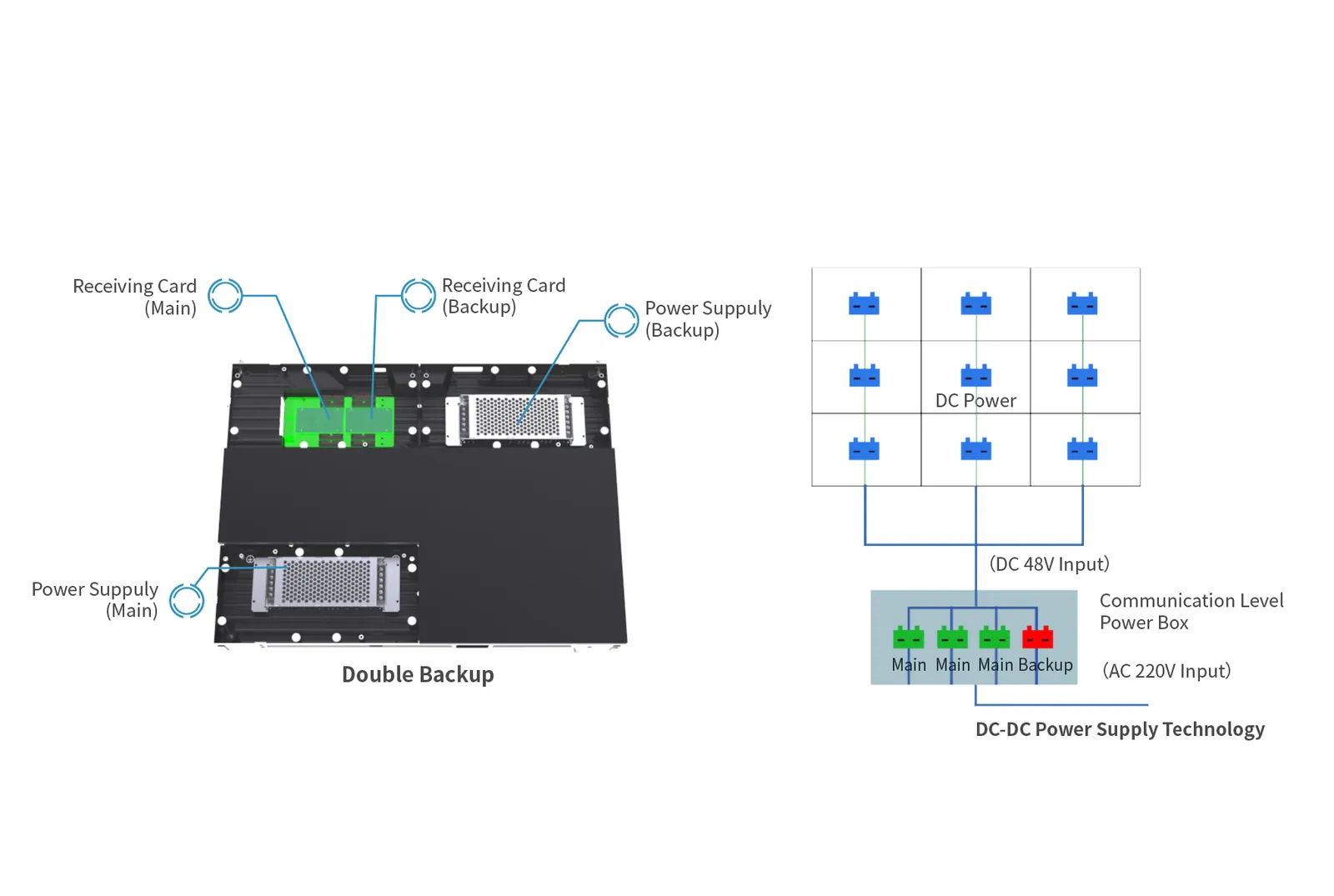

Advanced Technologies, Higher Stability

Backups of power supply and receiving card are optional to stabilize long-time transmission; Support DC-DC power supply technology to smoothen operation with high reliability and lower power consumption.

LianTronics VMQ 2.0: Advanced Technologies, Higher Stability

COB Technology for Ultra-HD Visual Excellence

LianTronics VMQ 2.0: COB Technology for Ultra-HD Visual Excellence
