Sheet 05.947
LIGHT SKY · Theatre lighting
9800 T48

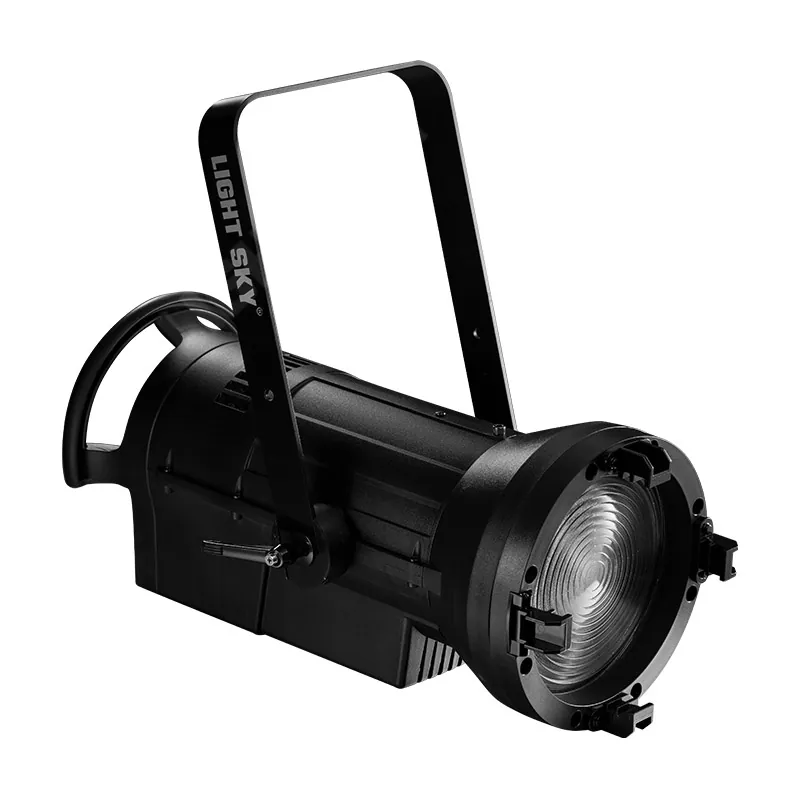

T48 is a LED Fresnel, it is energy-saving and environmentally friendly, long service life, good mute effect.
- Light source
- OSRAM LEDs
- Power supply
- AC 100-240V 50/60Hz
- Protocols
- DMX512
- Net weight
- 7.6 kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
9800 T48Price on requestRequest a quotation
01VideoManufacturer's video · 1:41
LIGHT SKY 9800 T48: the manufacturer's video
02SpecificationManufacturer's data · 3 groups · 25 values
What this product is, in numbers.

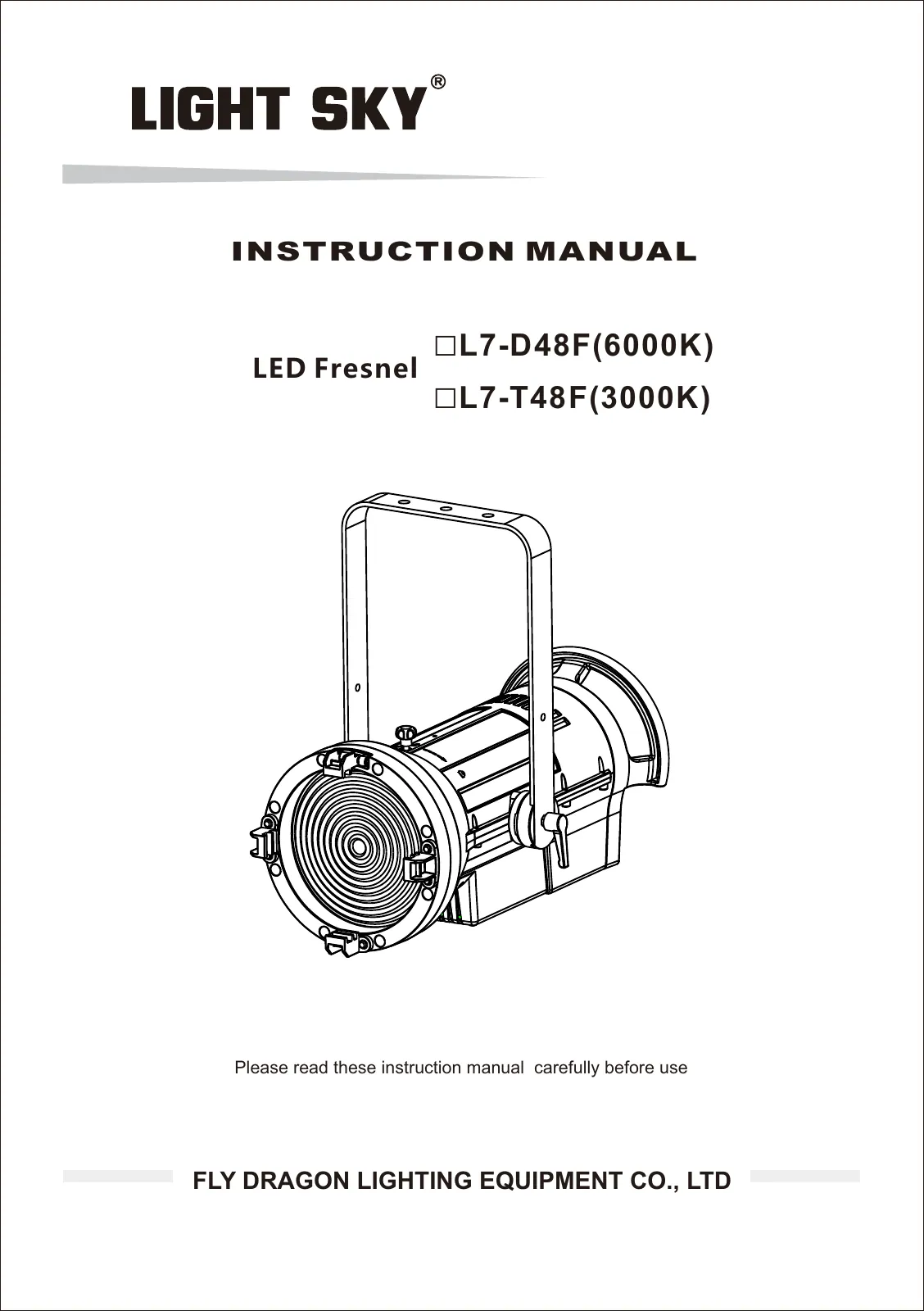

PDFUser manualEN · 17 pages · 1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source / Power System15
- Input Voltage Range
- AC 100-240V 50/60Hz
- Max Power Consumption
- 210W
- LED Source
- OSRAM LEDs
- LED Quantity
- 42 x 6W
- Light Source Power
- 200W light source module
- Light Source Theory Life Span
- 50,000 h
- Colour Temperature Output
- 3000K
- CRI (Color Rendering Index)
- Ra≥91
- TLCI Index
- ≥90
- Dimming
- 65,536 levels, flicker-free dimming
- Strobe
- 1-30 times/second
- Lens
- Glass Fresnel lens

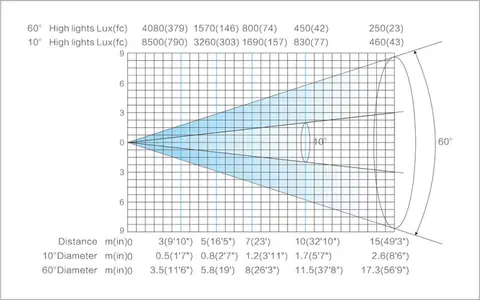

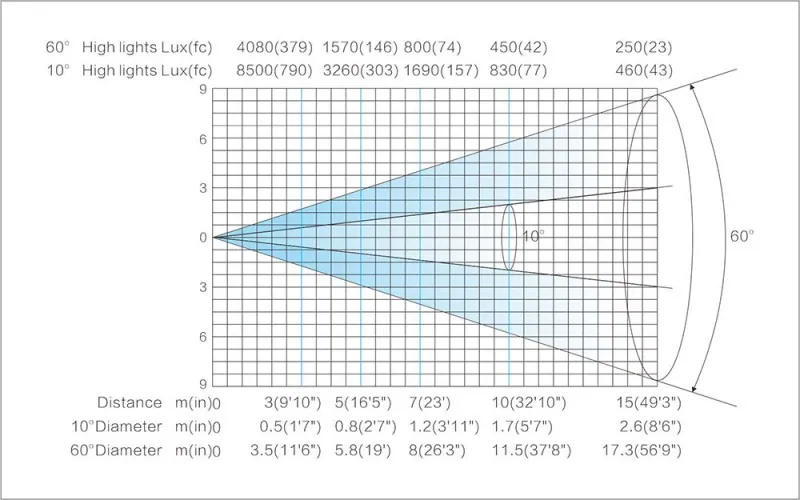

- Zoom Angle
- 10-60 degrees, motorized zoom adjustment
- Protocols
- DMX512
- Control Mode
- 4CH
02SIZE AND WEIGHT6

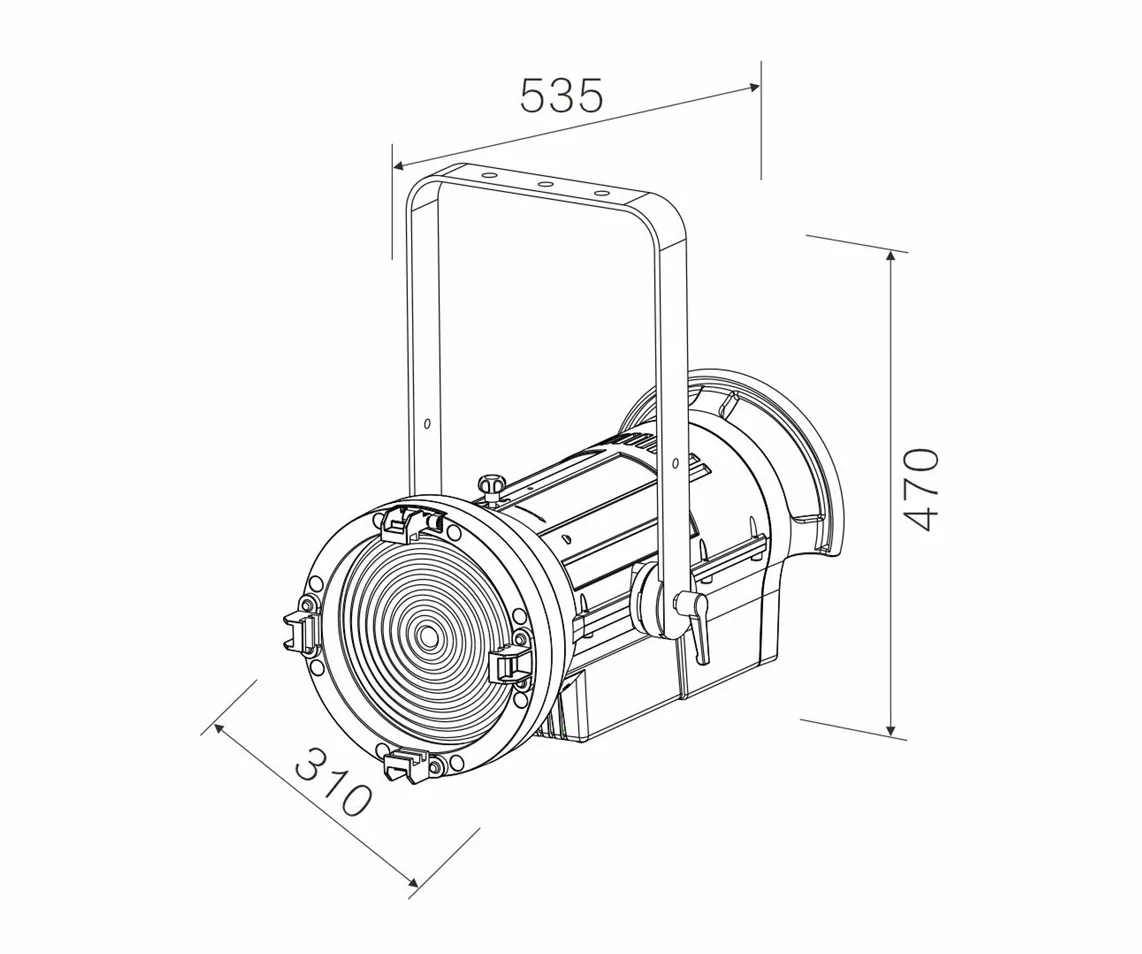

- Product Dimensions
- 535mm x 310mm x 470mm
- Net Weight
- 7.6 kg
- Carton Dimensions
- 340mm x 290mm x 745mm
- Gross Weight
- 9.6 kg
- Carton Dimensions (4 in 1)
- 710mm x 610mm x 775mm
- Gross Weight (4 in1)
- 41.2 kg
03Optional Accessories/Packaging4
- Flycase Dimensions(4 in 1)
- 720mm × 600mm × 930mm
- Flycase Gross Weight(4 in 1)
- 70.5kg
- Flycase Dimensions(6 in 1)
- 1120mm × 600mm × 800mm
- Flycase Gross Weight(6 in 1)
- 91.0kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.

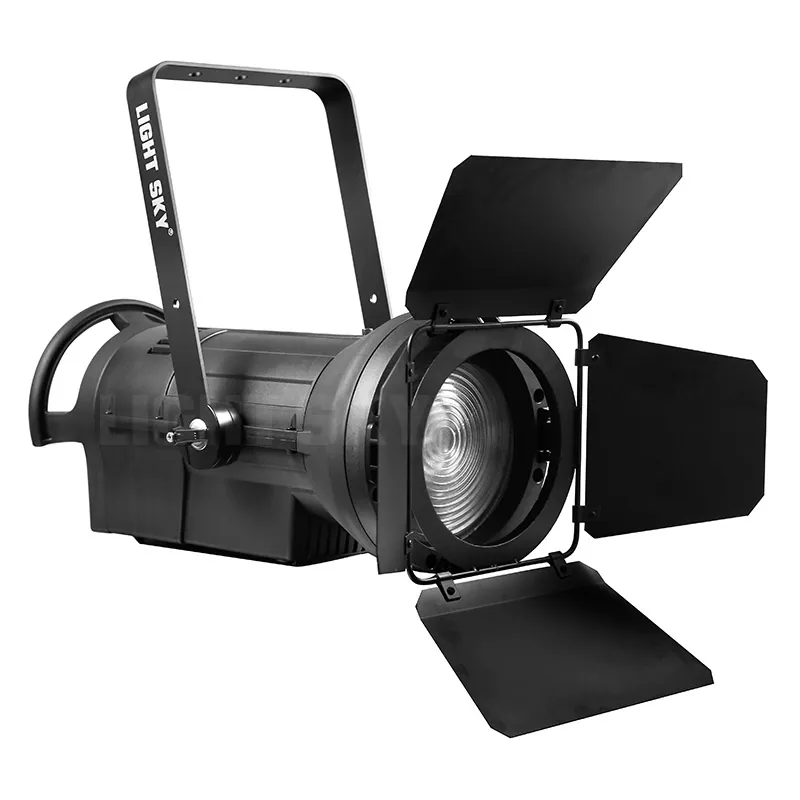

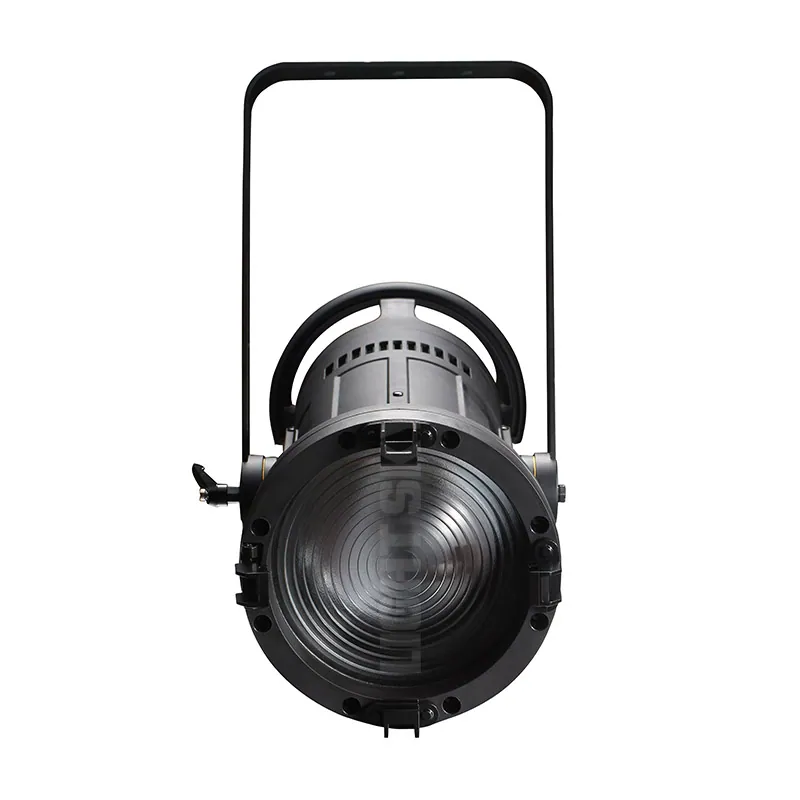

T48 is a LED Fresnel, it is energy-saving and environmentally friendly, long service life, good mute effect. Good colour temperature, high brightness, long range, professional for the theatre, television, large-scale performances and entertainment venues to create services to provide the most professional stage film and television lighting solutions. If you need to purchase stage lighting experts teachers and friends are welcome to LiGHT SKY official access to information.
FEATURES
- High CRI &TLCI : TLCI≥90,CRI≥91
- Super Brightness : Lumen: 9800lm Efficiency : 48lm/w
- Zoom : 10 to 60 degree electronic zoom
- Long life span : only 30% weaker after 50000h
- Flicker-free dimmer : 16bit dimmer technique , 0.8MHz refresh frequency
- Noiseless : 28dB , Super quiet design
- High cooling system : Heat Pipe Cooling system , the outer cover is always touchable .
- Compact : anti-fire and anti-pressure composite material , N.W only 7.6kg , easy-installation
- Clear-edge ,bright, beam even .
04Documents7 files · 1.8 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
