RDM860

RDM860 is a RDM-DMX512 signal distributor product with built-in international standard RDM (Remote Device Management) lighting protocol for two-way communication.

Power supply: AC90-240V / 50-60Hz
Net weight: 0.86KG

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 17 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Technical Parameters17

Voltage: AC90-240V / 50-60Hz
Input and output Agreement: International RDM Agreement
transmission capacity: Supporting 512channels’s real time transmission

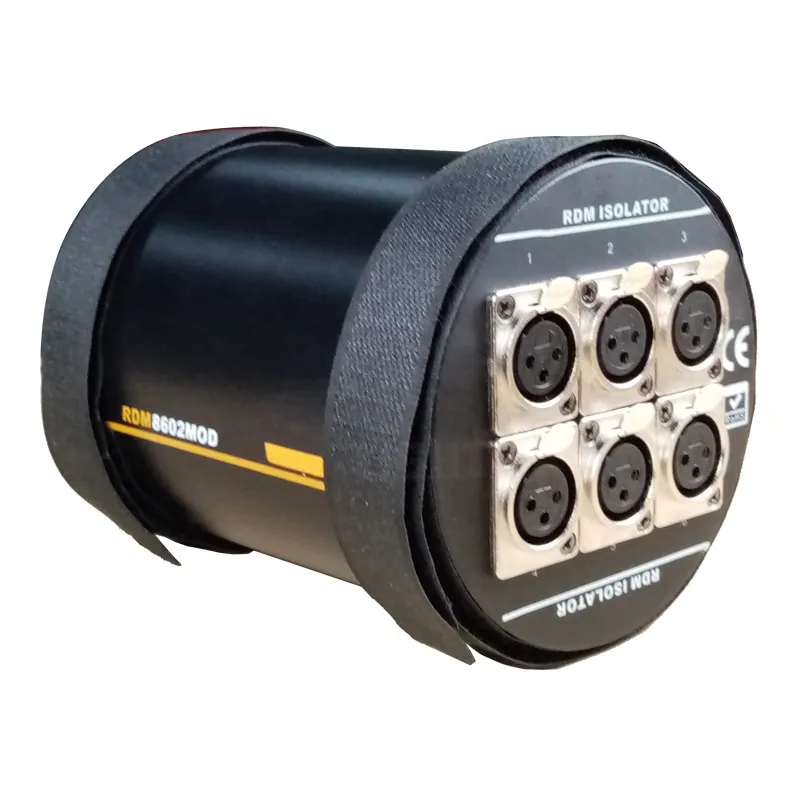

Signal output: Distribute and output 6channels DMX signal in electrical isolation

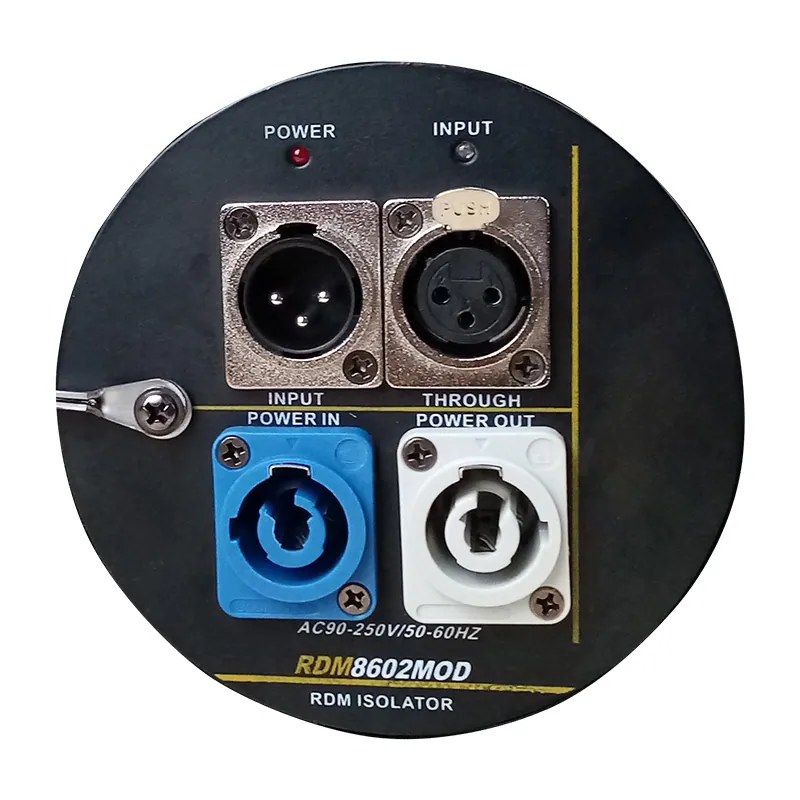

The canon of Signal connection: Input XLR-3-M, output XLR-3-F
The mode of port: RS-485
Political isolation of the input to the output: >AC300V
Appearance size: 11.5*17CM
Weight: 0.86KG; 1、Adopt international DMX512-RDM two-waycommunication protocol; It allows your controller toeasily and accessibly read and set the parameters of lightover long distances. For example: Set the light addressread library parameter and find light) Also connect more; 2、1in6out; 3、Each in-out processing circuit both adopt modulardesign, and user can willfully match the assembly 3 pinsor 5 pins in-out modular according to your needs; 4、When the output module was broken caused by stronglyattack from the external current, then the user can fix itat once. So it has another protection method for the liveshows; 5、Each in-out has independent power supply, and eachmodular board is isolated with the independent protection circuit and photoelectric isolation. The measures realized the absolutely isolation between the signal andthe electricity; 6、The 3 Pin(XLR-3)or 5 Pin(XLR-5)are more durable withthe silver metal
7、N.W: 0.86KG11.5*17CM; 8、Possess bidirectional DMX512-RDM protocol functionCan feedback the light data to MA and other RDM lightcontroller

02DescriptionManufacturer's description

What it is.

FEATURES

RDM860 is a RDM-DMX512 signal distributor product with built-in international standard RDM (Remote Device Management) lighting protocol for two-way communication. It offer the way of two-way communication for RDM, sharp and amplify RDM and DMX data also can expand input signals into multiple outputs. So that it strength the transmit distance of signal, increase the number of fixtures that can be connected to the controller, guarantee the stability of signal.

RDM860 is suitable for

Achieve long distance transmission of RDM-DMX512 signal;
Expand the number of fixtures;
Need to strength signal,and filter out signal interference;
The signal ports need to be electrically isolated from each other;

Need to implement the RDM console to remotely set parameters or read parameter applications of RDM lamps (such as: setting lamp address, reading lamp library, etc.);
