Sheet 05.507
Lucky Tone · Bluetooth, Wi-Fi and smart home

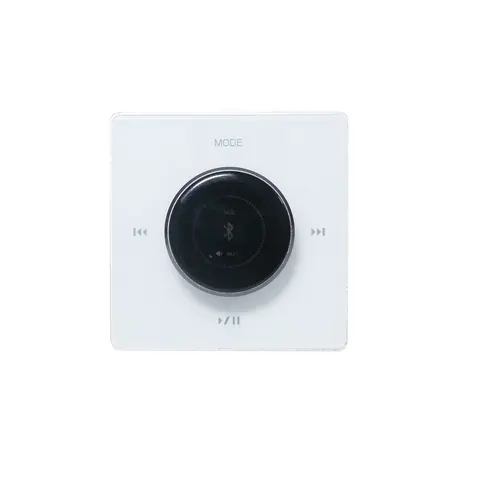

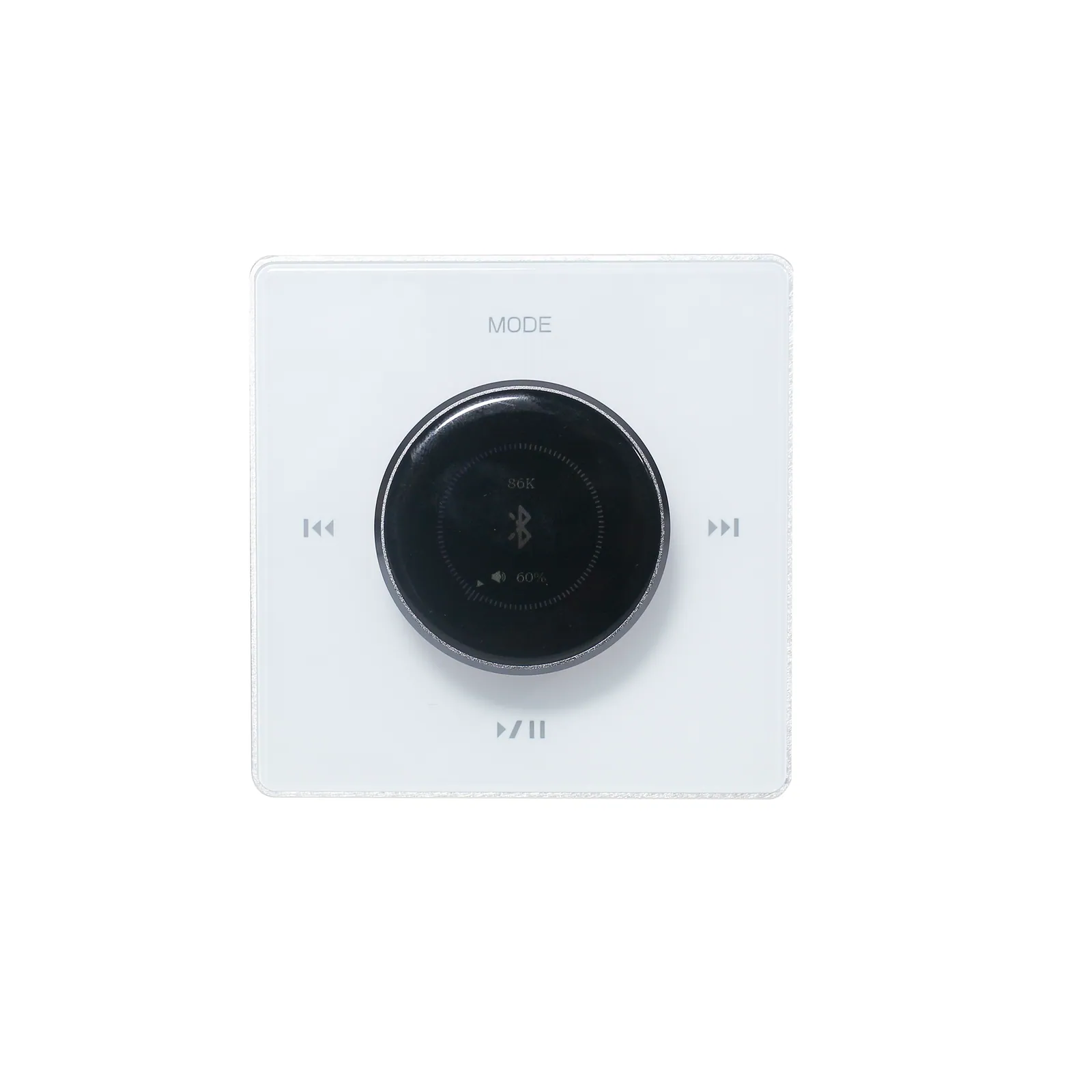

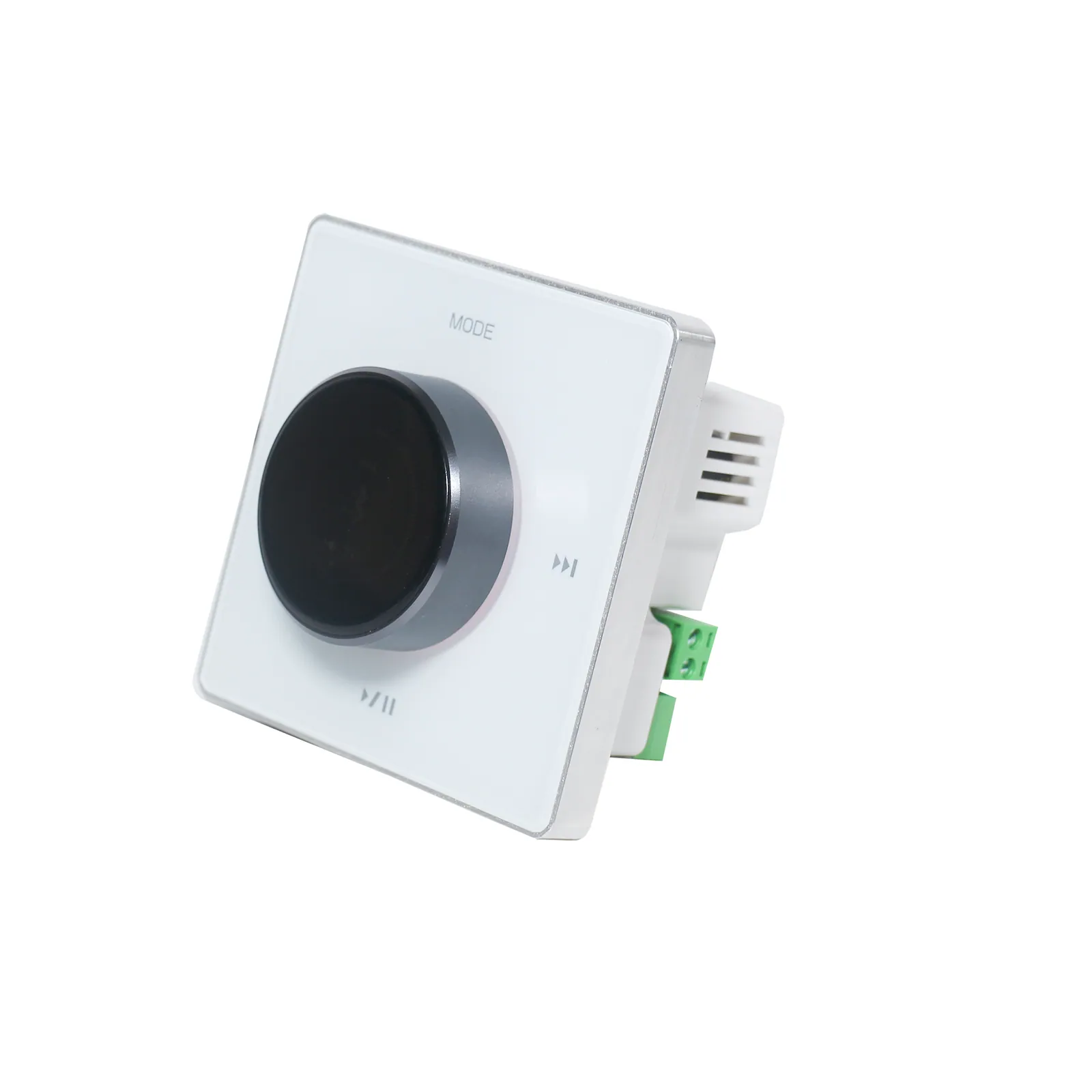

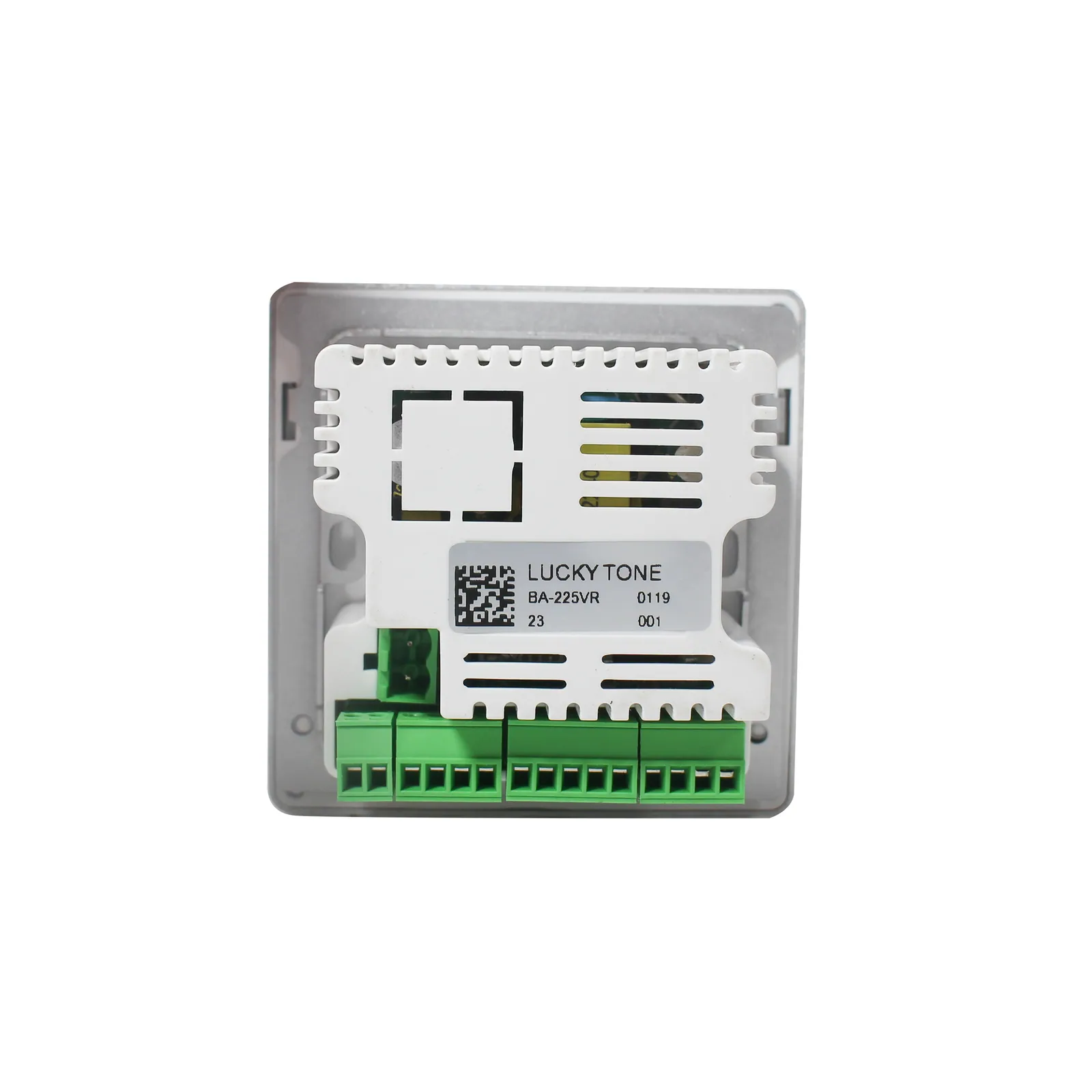

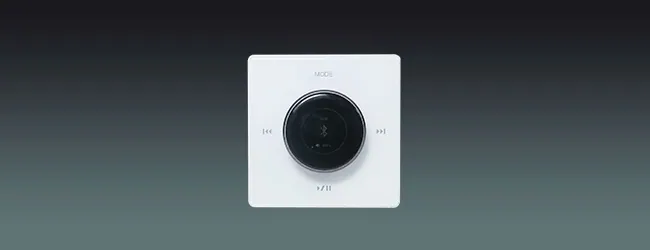

Lucky Tone Volume Control with Amplifier & Color Screen BA-225VR/BA-425VR
ModelBA-225VR/BA-425VR
This 2-4 channel small Bluetooth multi-home audio system equipped with micro USB/TF can power 2 to 8 pieces of speakers in your home or small commercial area.
- Output power
- 2*25W/4*25W
- Frequency response
- 20 Hz-20 kHz (+/-2dB)
- Dimensions
- 86*86*11mm
- Weight
- 0.42kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Volume Control with Amplifier & Color ScreenPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 17 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications17
- Model
- BA-225VR/BA-425VR
- Output Power
- 2*25W/4*25W
- Speaker Impedance
- 4-8ohm
- Expand TF Card Memory
- 32GB
- Display
- 1.28 inch LCD display
- Resolution
- 240*240 IPS
- Bluetooth Wireless Range
- ≤10M
- USB
- OTG USB, 32G can be read
- THD
- 0.03% (1W.1KHZ)
- Frequency Response
- 20 Hz-20 kHz (+/-2dB)
- SNR
- 98db
- Music Format
- Mp3, WMA, WAV, AAC, WAW, APE, etc
- Video Format
- MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
- Photo Format
- JPGE, BMP, GIF, PNG, etc.
- Power Requirements
- 110-250VAC
- Dimension
- 86*86*11mm
- Weight
- 0.42kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
This 2-4 channel small Bluetooth multi-home audio system equipped with micro USB/TF can power 2 to 8 pieces of speakers in your home or small commercial area. It uses a high- efficiency class-D amplifier for a maximum output of 2*25or 4*25 watts, low-impedance speakers. The cool display shows relevant track music info. Plus, you can control everything – seek, change tracks, and adjust the volume – using the included wireless infrared remote controller.
- Adopt Bluetooth wireless connection technology
- Support play songs automatically when power on
- Standard 86 Mounted on the wall for easy control
- With wireless remote control
- Support linkage trigger doorbell
- Support USB and SD card storage

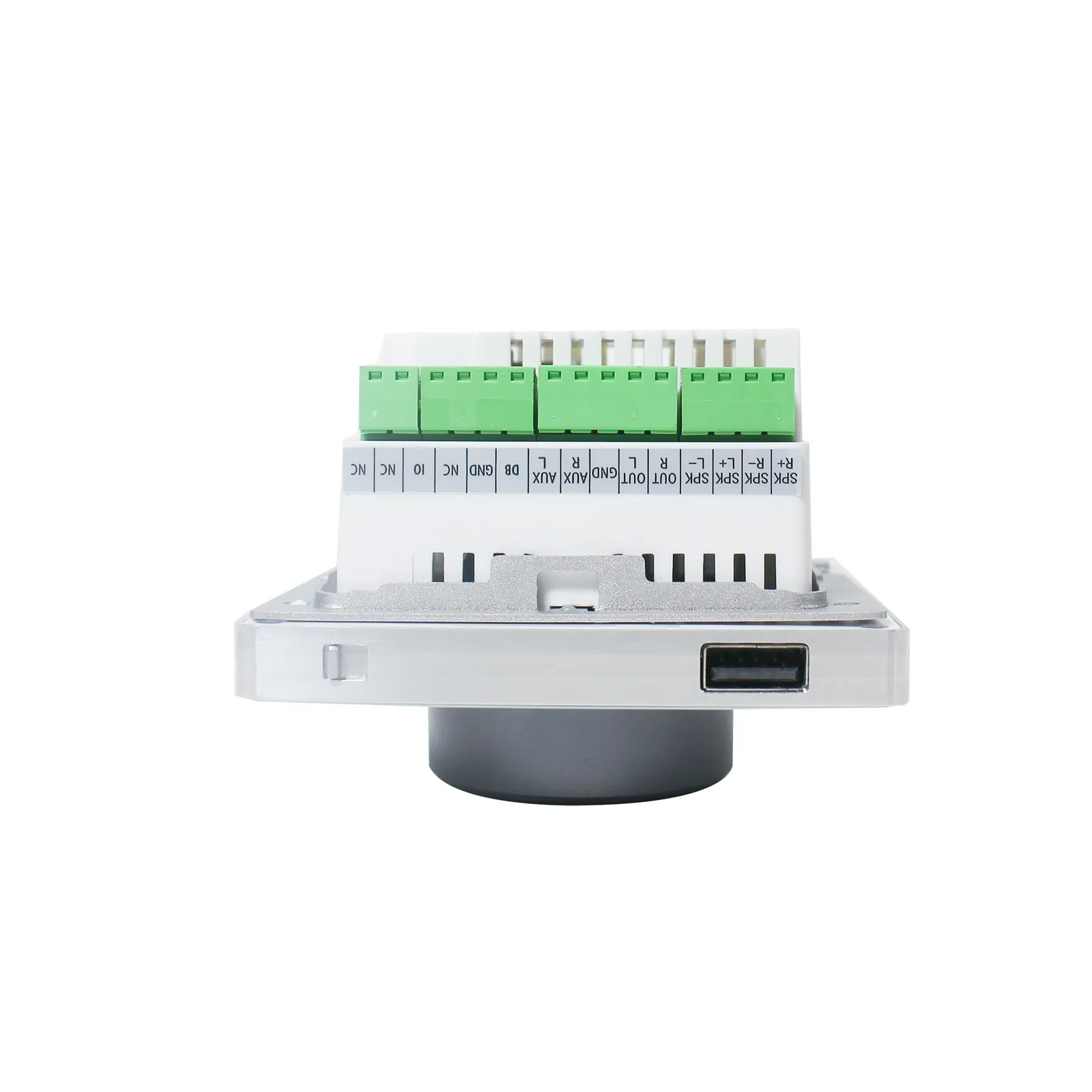

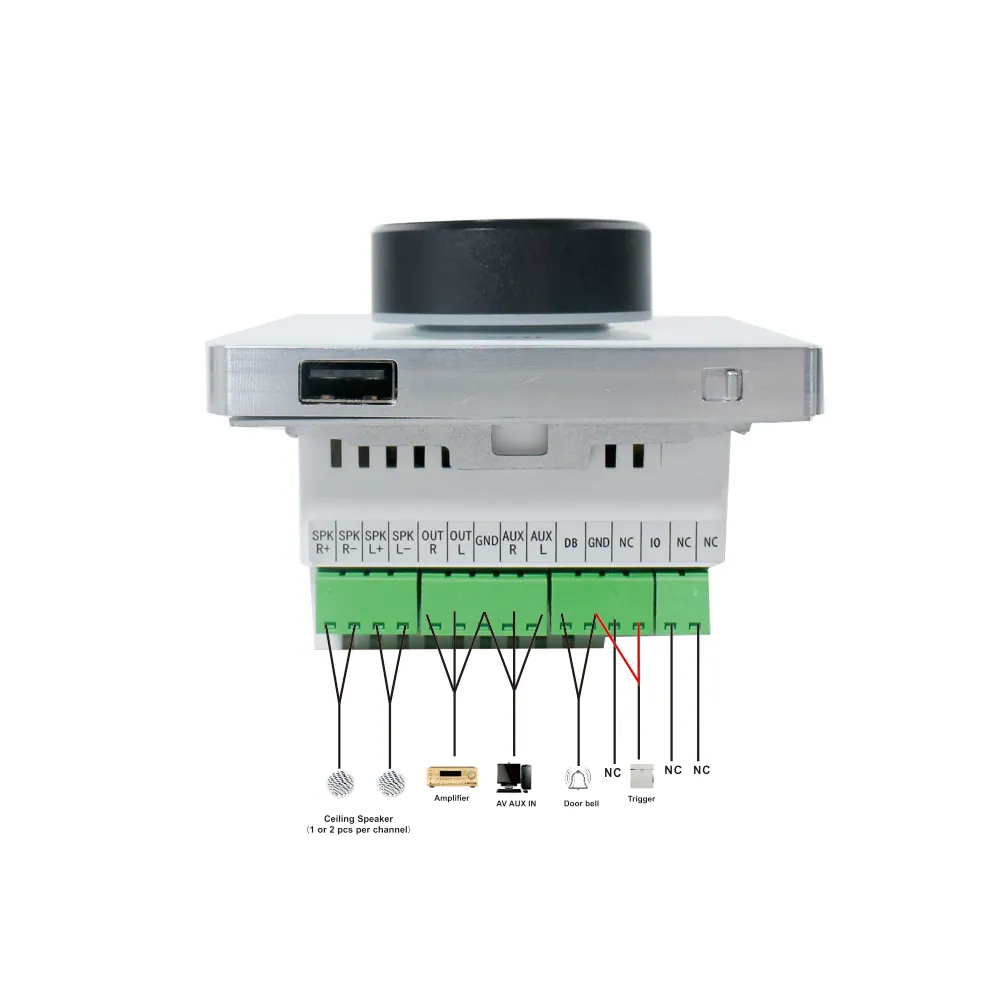

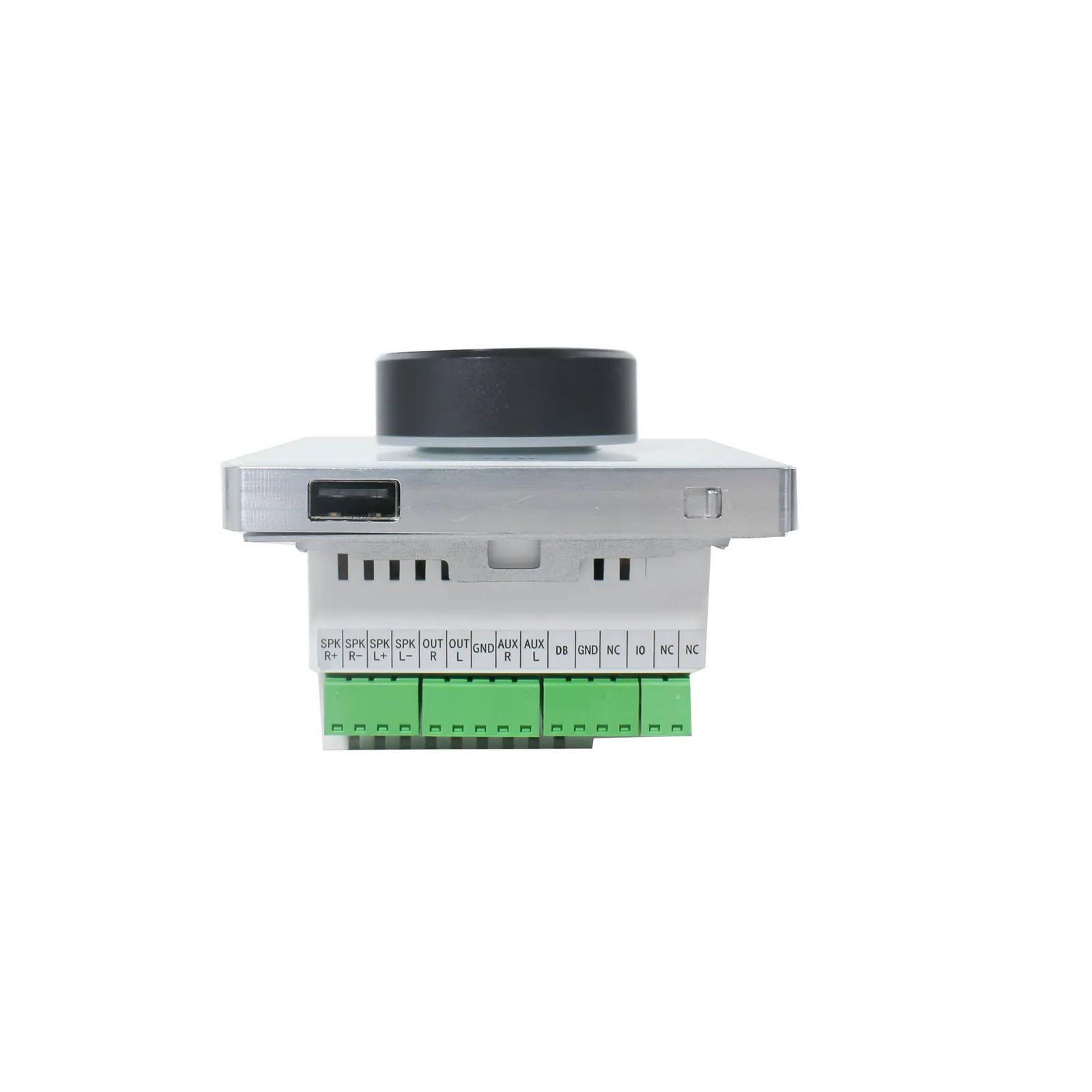

- Support audio input and output function with secure and fast connect phoenix connectors
- Color LCD display, and light touch button rim for easy control of the music system
- Suitable for homes, commercial areas, kid’s room, etc.
