Sheet 05.503
Lucky Tone · Bluetooth, Wi-Fi and smart home

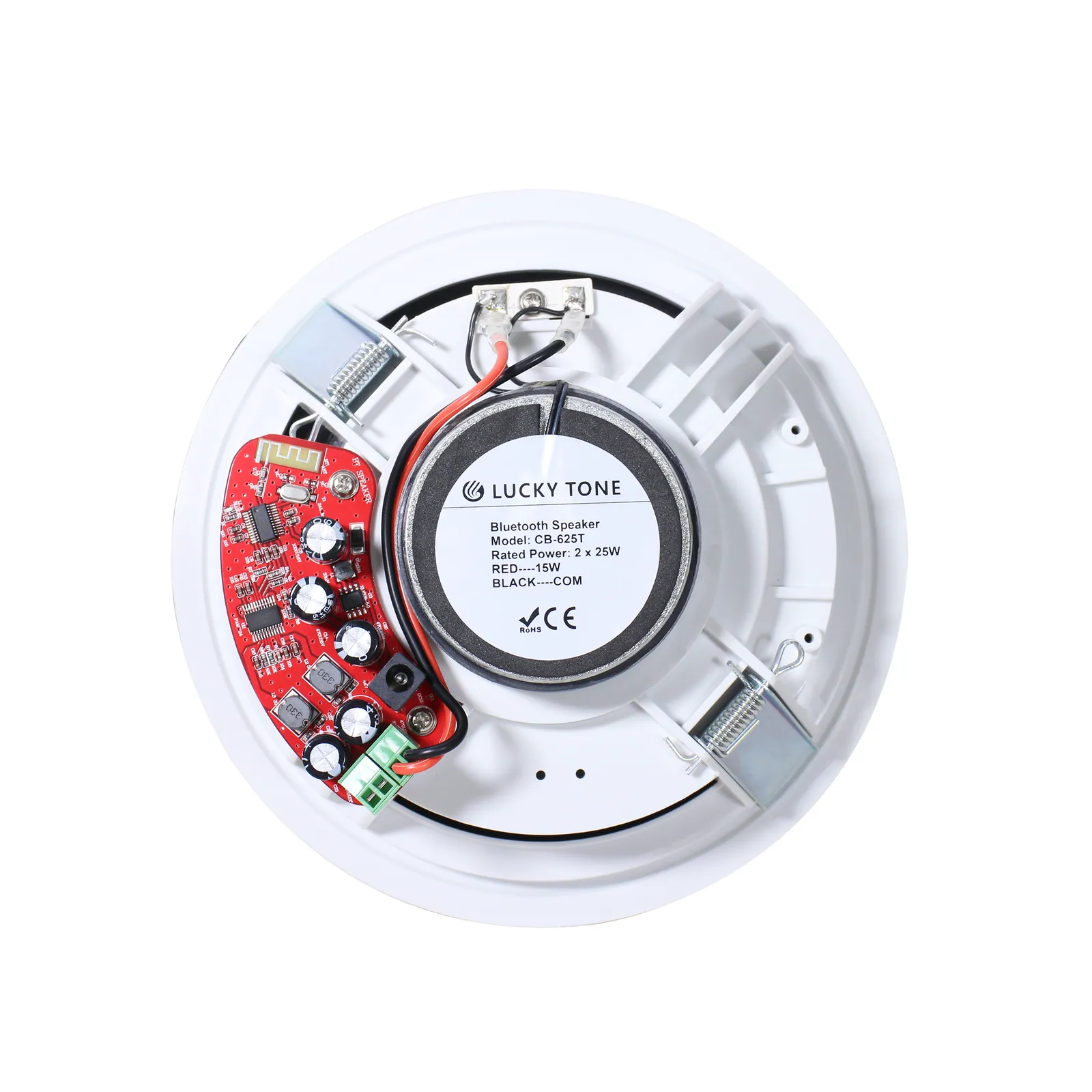

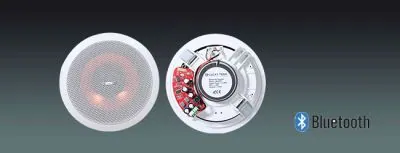

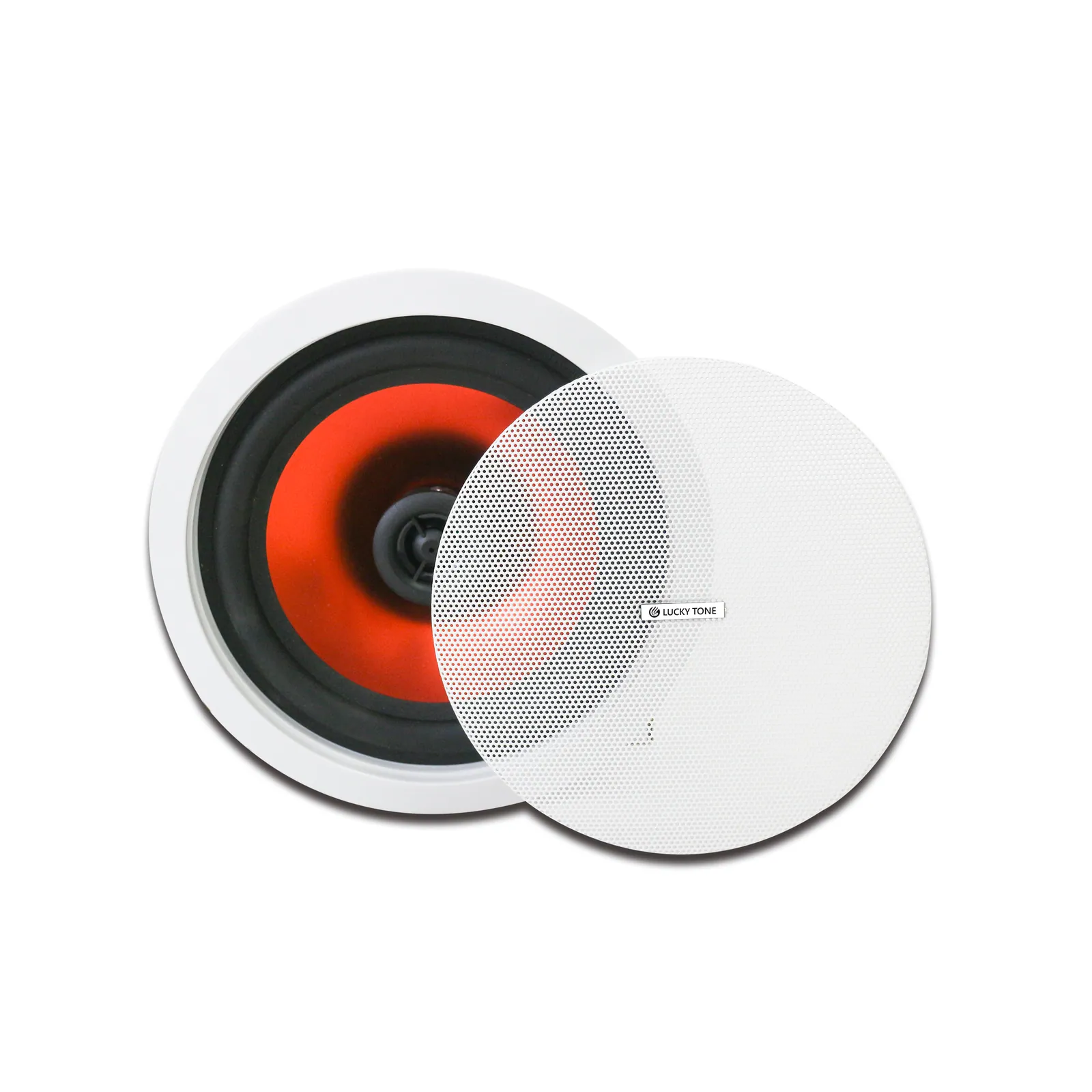

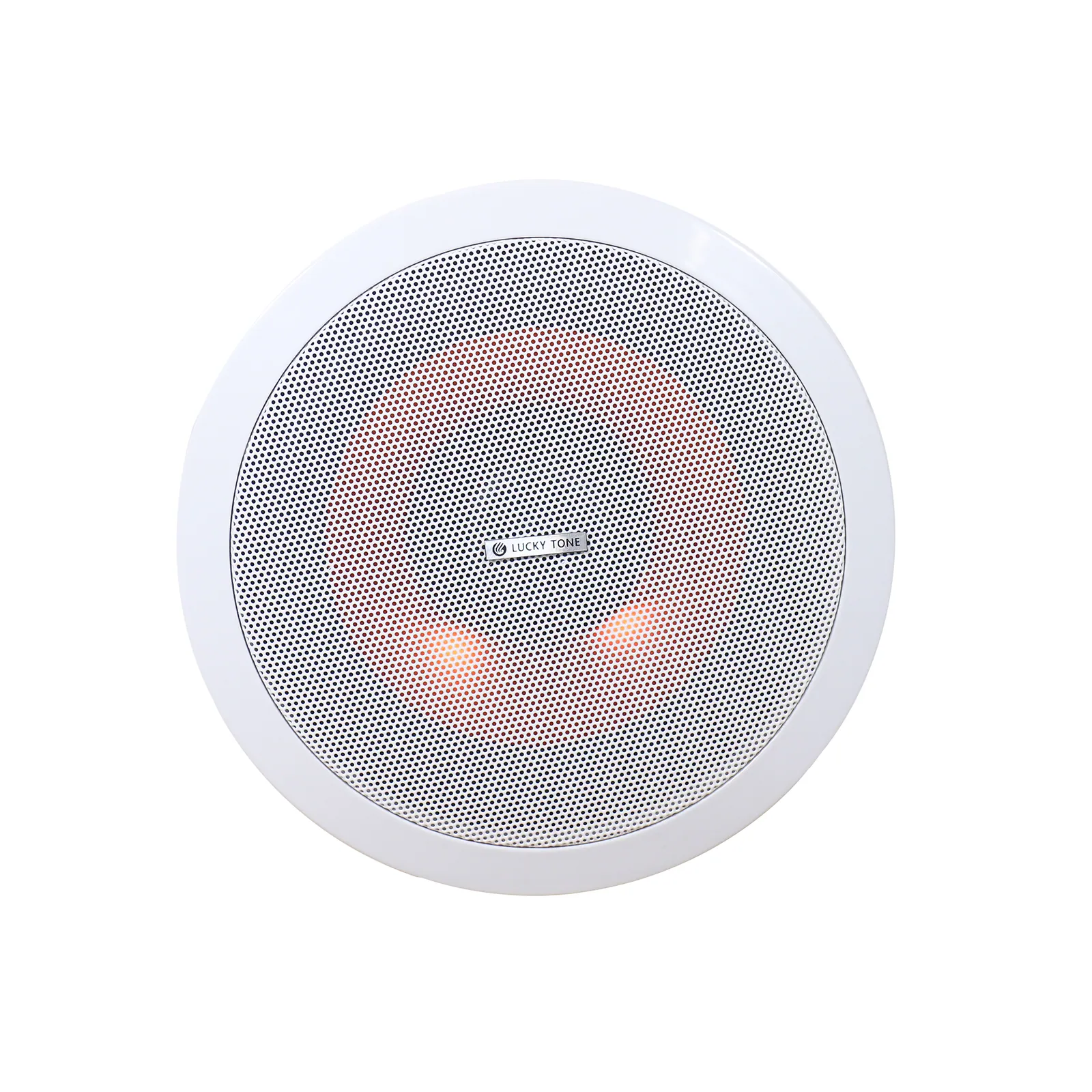

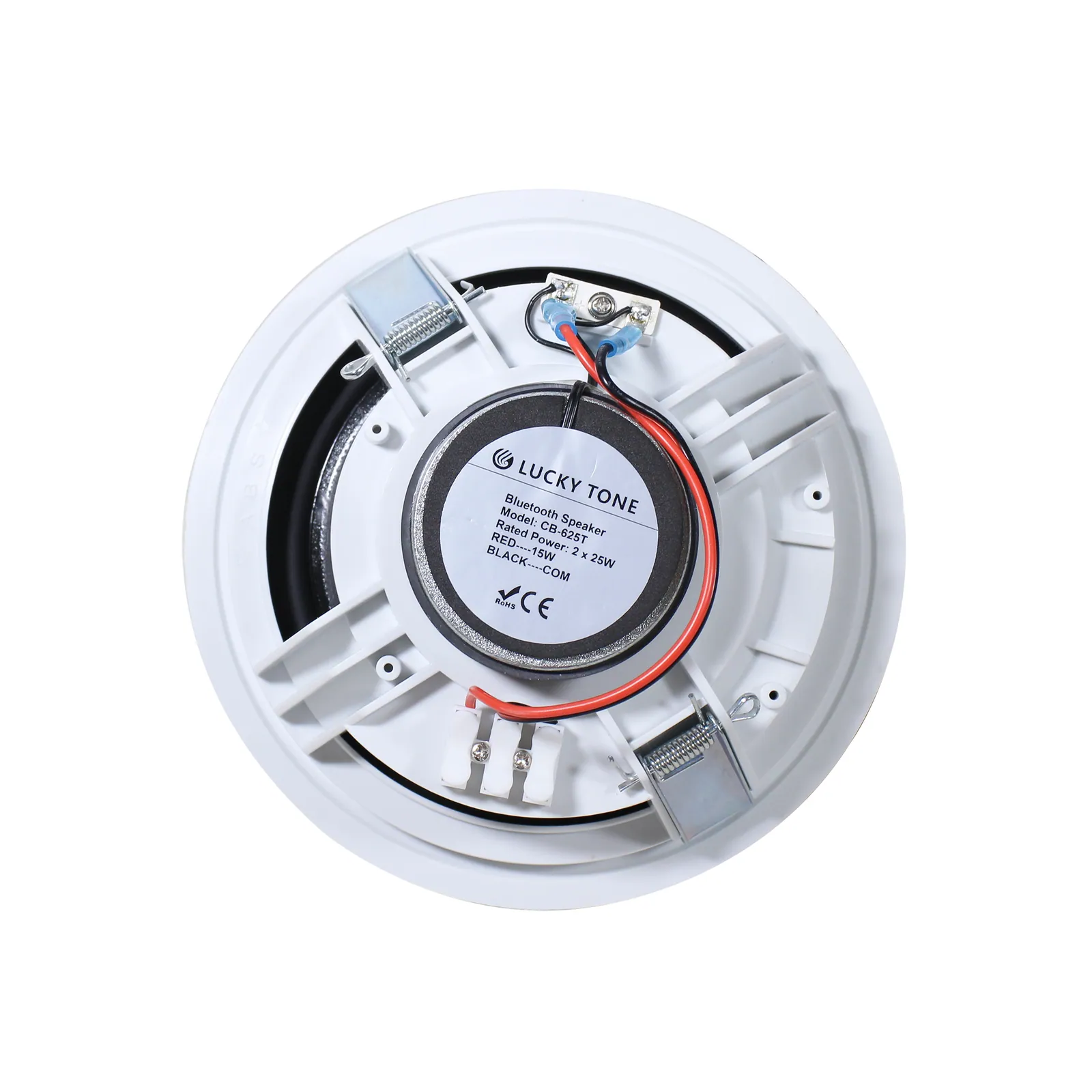

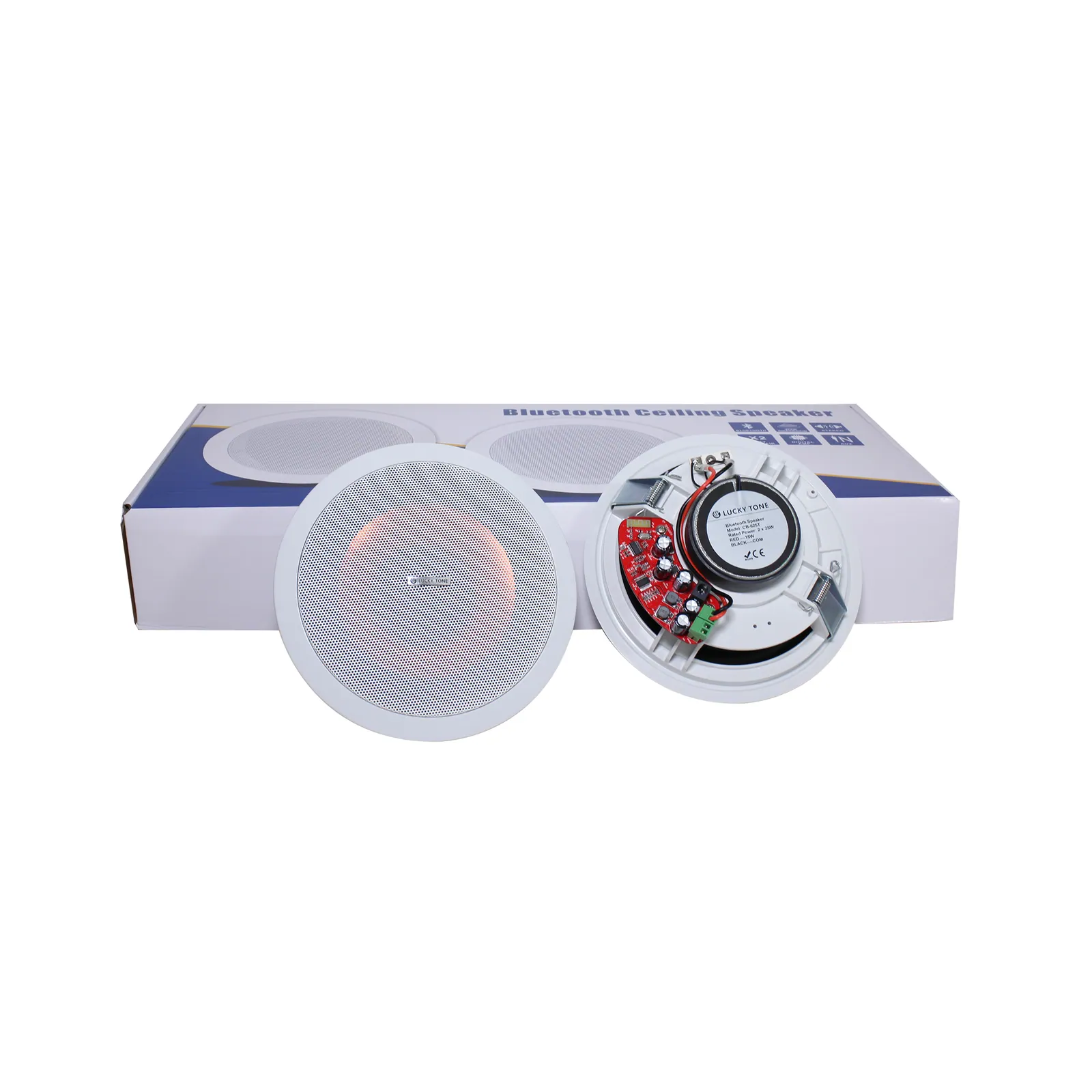

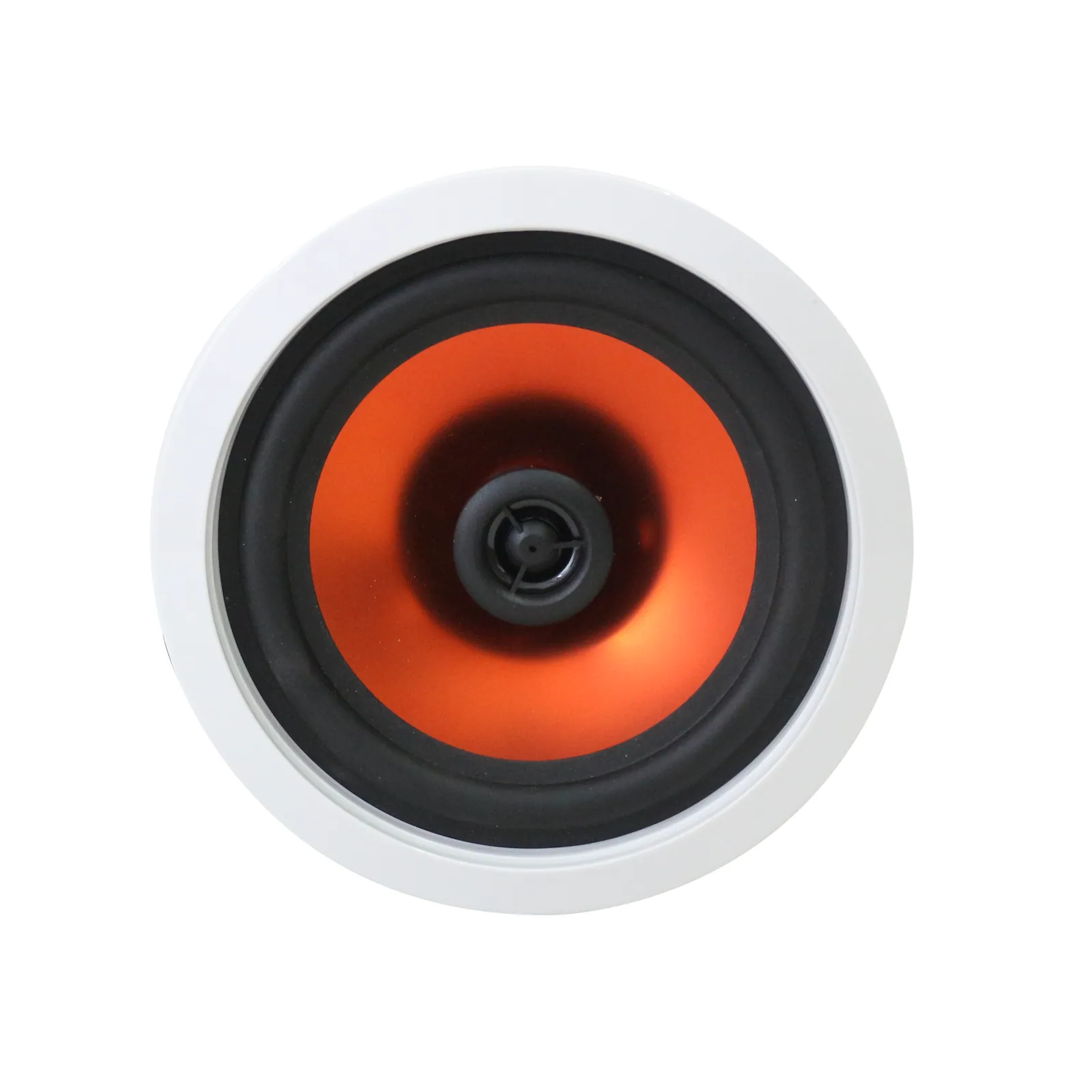

Rimless Bluetooth Ceiling Speakers
ModelCB-625T
Adopt 4.2 +BR+EDR+BLE Bluetooth technology
- Output power
- 2*25W
- Frequency response
- 65~20KHz
- Dimensions
- Dia 186.5x95mm(H)
- Weight
- 0.9 Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Rimless Bluetooth Ceiling SpeakersPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.

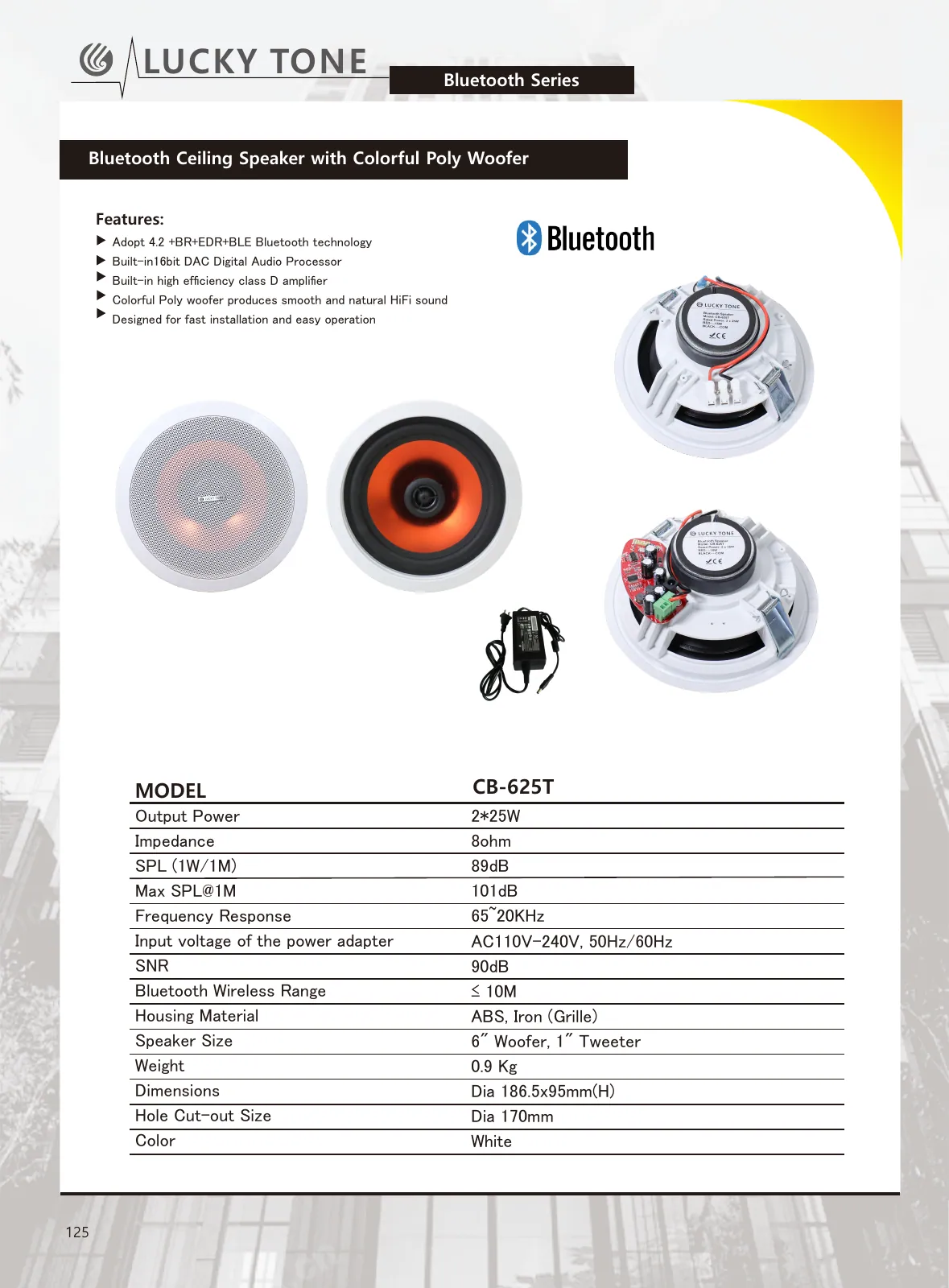

PDFSpecifications4.0 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- MODEL
- CB-625T
- Output Power
- 2*25W
- Impedance
- 8ohm
- SPL (1W/1M)
- 89dB
- Max SPL@1M
- 101dB
- Frequency Response
- 65~20KHz
- Input voltage of the power adapter
- AC110V-240V, 50Hz/60Hz
- SNR
- 90dB
- Bluetooth Wireless Range
- ≤ 10M
- Housing Material
- ABS, Iron (Grille)
- Speaker Size
- 6″ Woofer, 1″ Tweeter
- Weight
- 0.9 Kg
- Dimensions
- Dia 186.5x95mm(H)
- Hole Cut-out Size
- Dia 170mm
- Color
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Built-in16bit DAC Digital Audio Processor
- Built-in high efficiency class D amplifier
- Colorful Poly woofer produces smooth and natural HiFi sound
- Designed for fast installation and easy operation
