Sheet 05.283

Lucky Tone · Dante

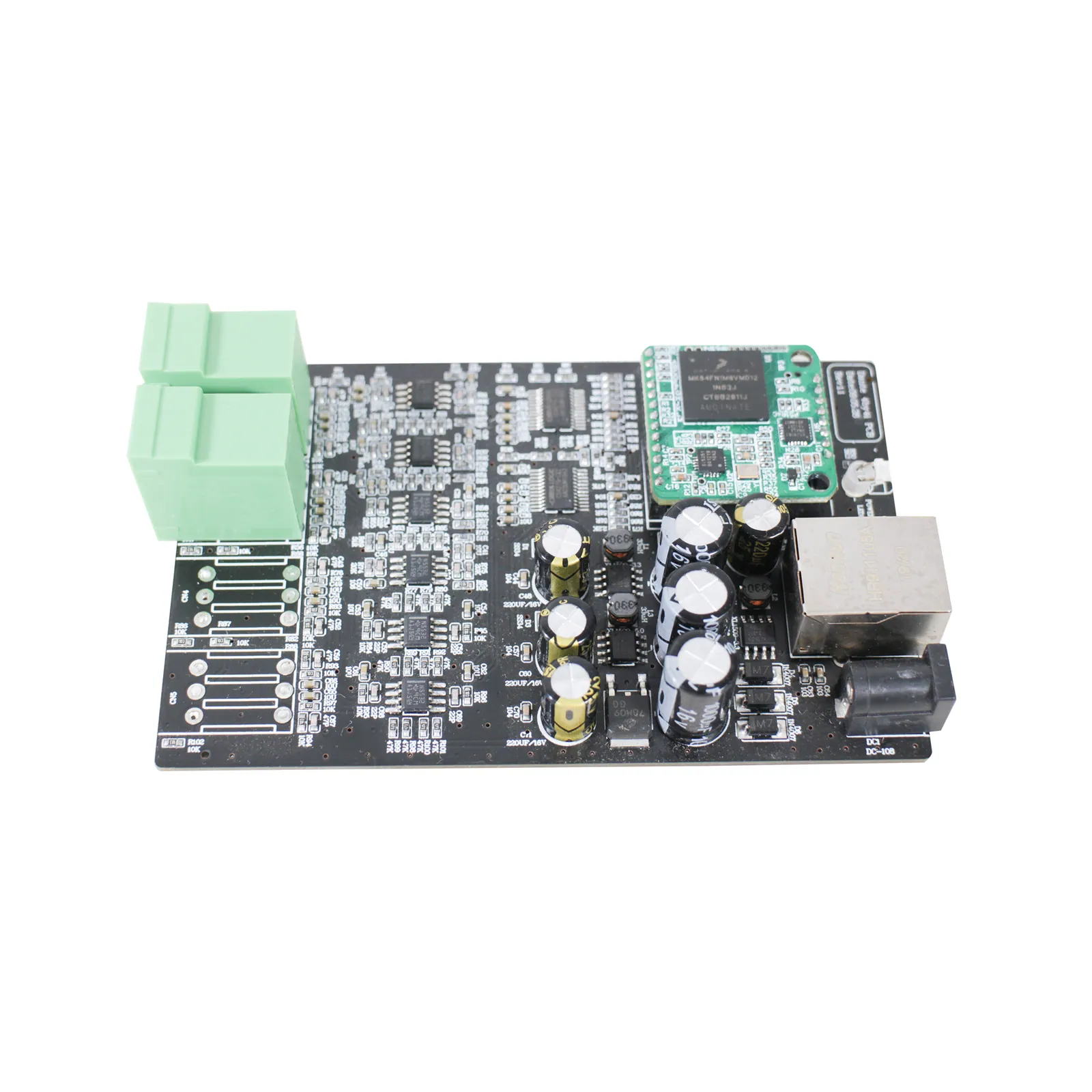

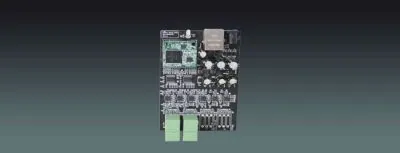

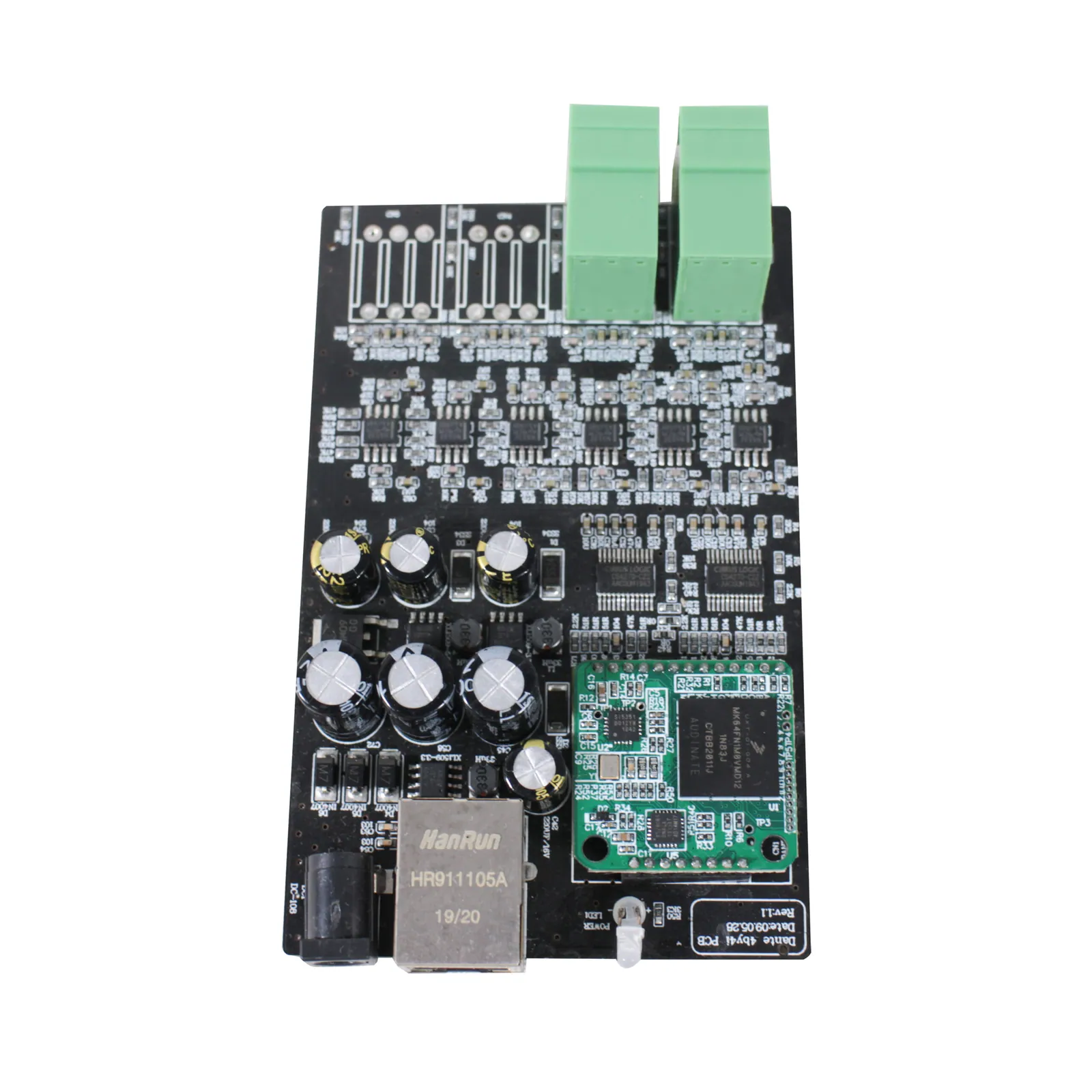

Dante 2 In 2 Out PCB Board

ModelDante 2 PCB

Ideal interface to increase the number of microphones or AUX inputs

Dimensions: 115x70x26 mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 11 values

What this product is, in numbers.

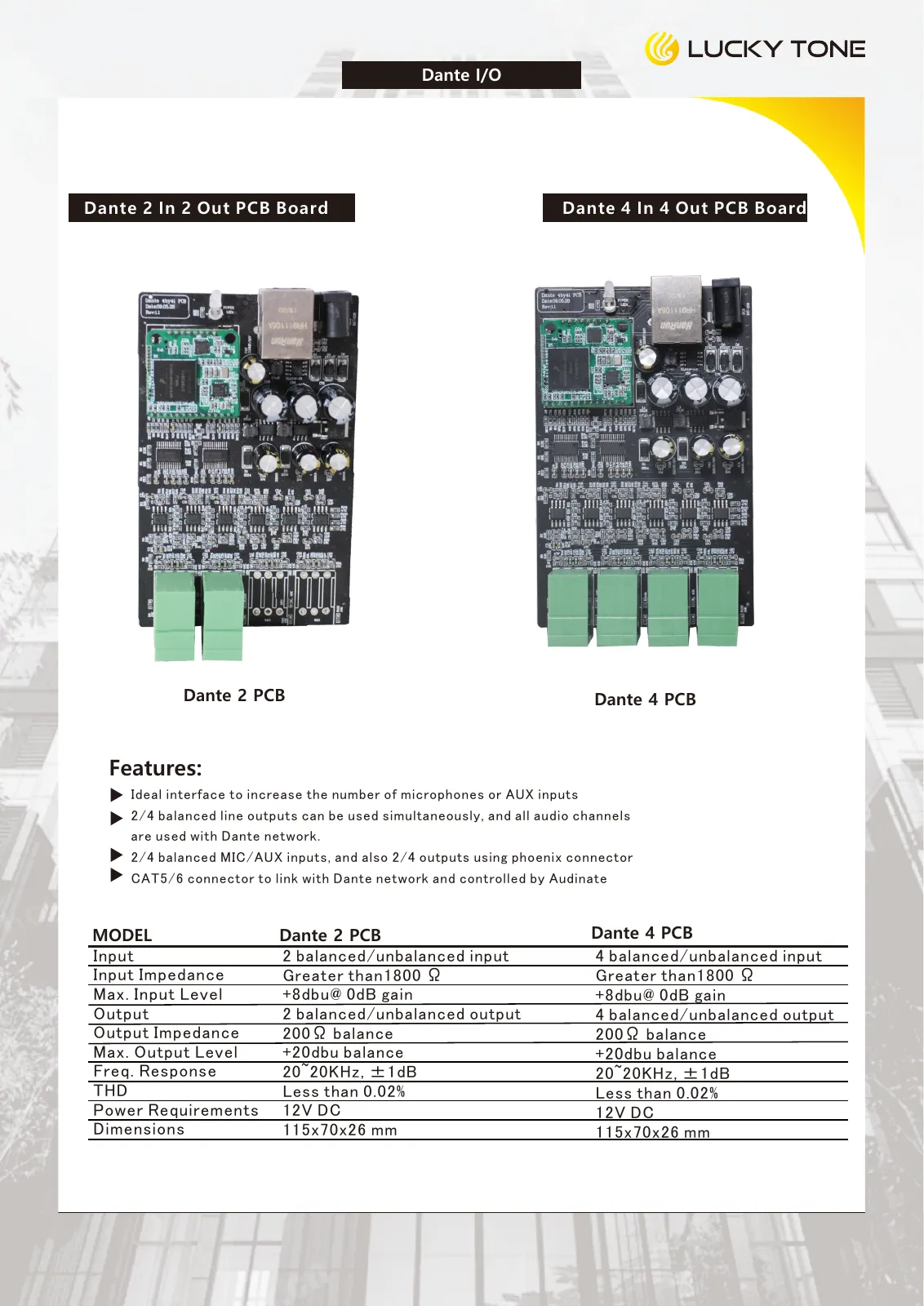

PDFSpecifications3.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications11

MODEL: Dante 2 PCB
Input: 2 balanced/unbalanced input
Input Impedance: Greater than1800 Ω
Max. Input Level: +8dbu@ 0dB gain
Output: 2 balanced/unbalanced output
Output Impedance: 200Ω balance
Max. Output Level: +20dbu balance
Freq. Response: 20~20KHz, ±1dB
THD: Less than 0.02%
Power Requirements: 12V DC
Dimensions: 115x70x26 mm

02DescriptionManufacturer's description

What it is.

Feature

2/4 balanced line outputs can be used simultaneously, and all audio channels
are used with Dante network.
2/4 balanced MIC/AUX inputs, and also 2/4 outputs using phoenix connector
CAT5/6 connector to link with Dante network and controlled by Audinate

03Documents1 file · 3.9 MB

Documents and files.

Main document

Specifications

PDF · 3.9 MB

Download specifications
