Sheet 05.286
Lucky Tone · Dante

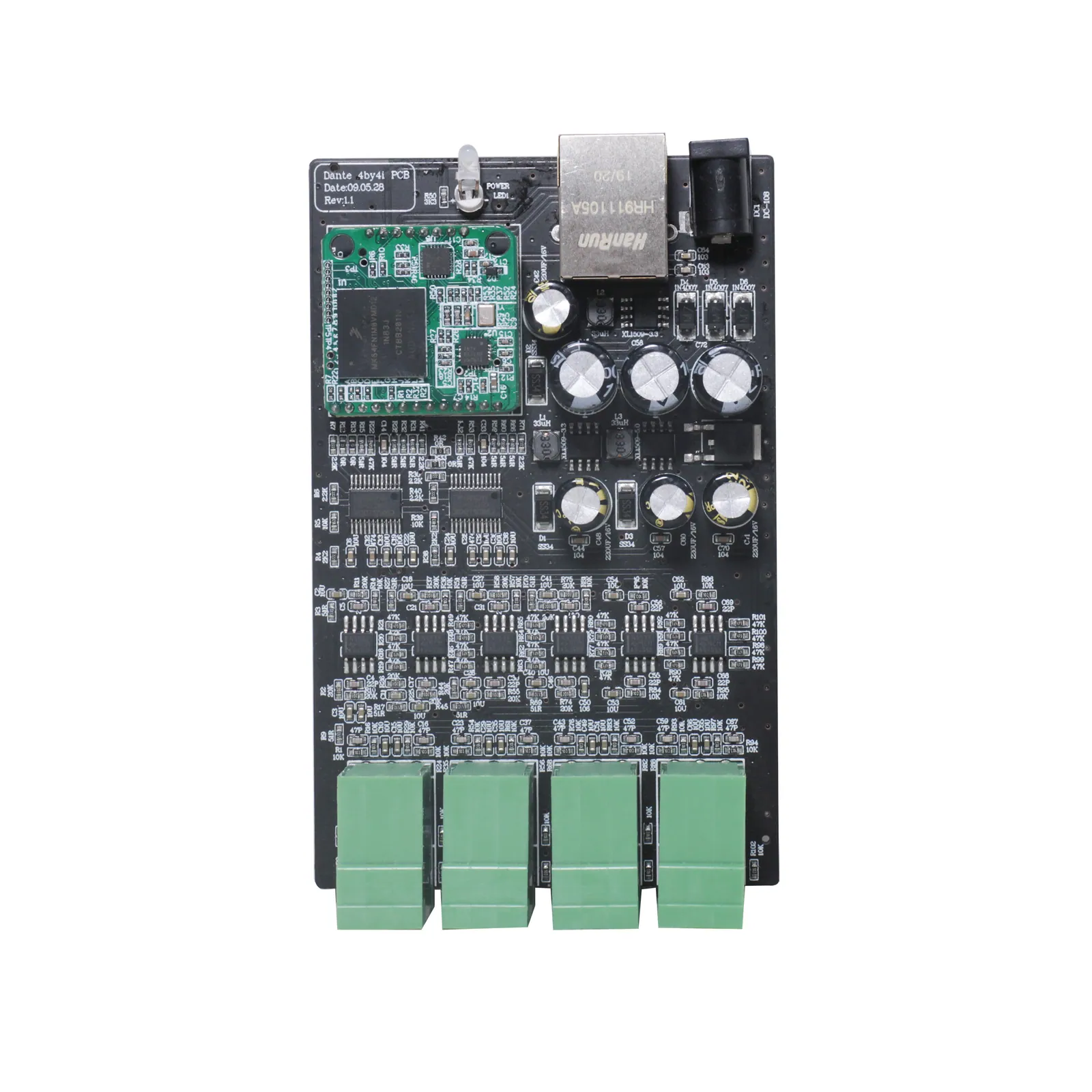

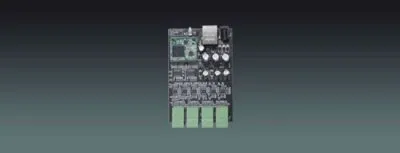

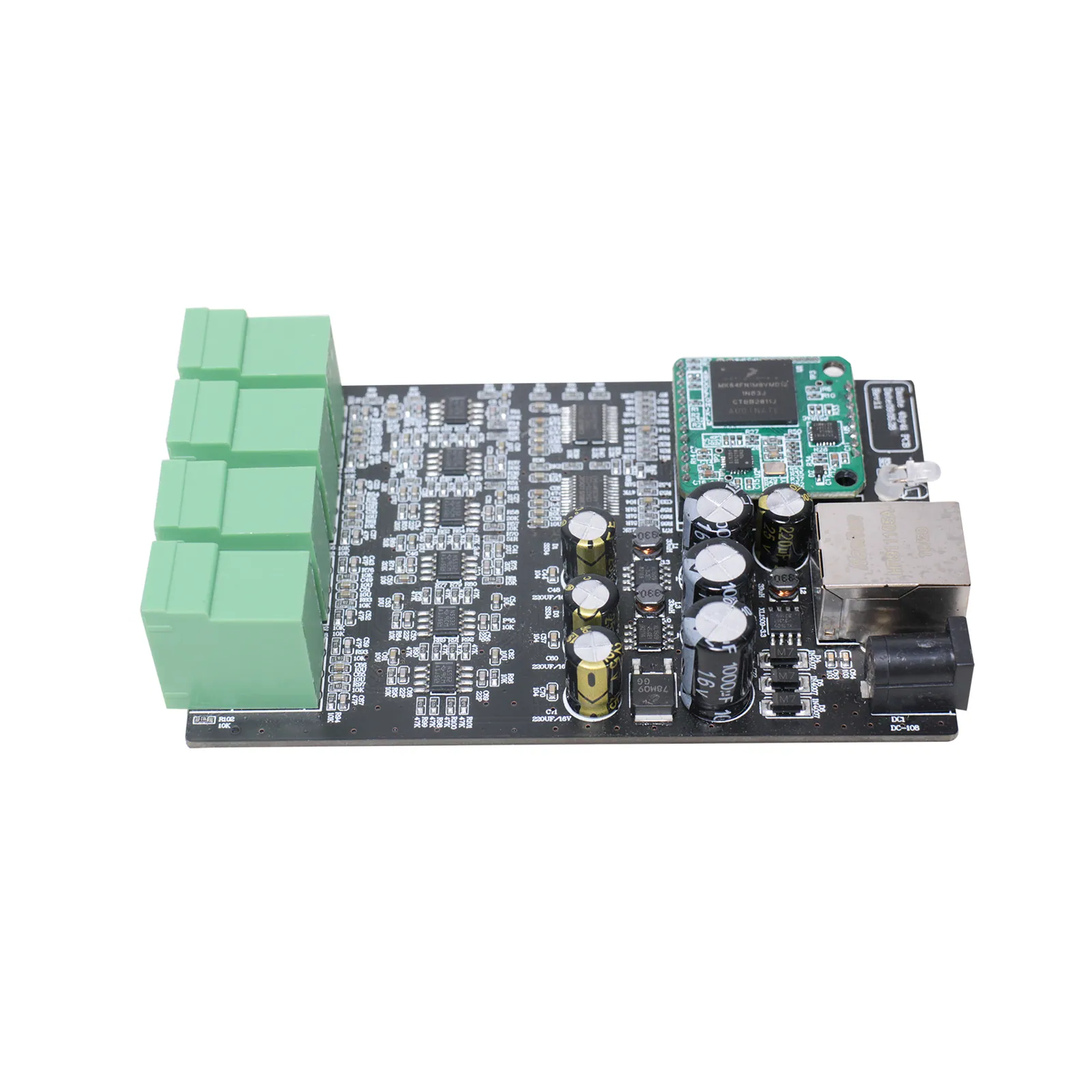

Dante 4 In 4 Out PCB Board
ModelDante 4 PCB
Ideal interface to increase the number of microphones or AUX inputs
- Dimensions
- 115x70x26 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dante 4 In 4 Out PCB BoardPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 11 values
What this product is, in numbers.
PDFSpecifications3.9 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- MODEL
- Dante 4 PCB
- Input
- 4 balanced/unbalanced input
- Input Impedance
- Greater than1800 Ω
- Max. Input Level
- +8dbu@ 0dB gain
- Output
- 4 balanced/unbalanced output
- Output Impedance
- 200Ω balance
- Max. Output Level
- +20dbu balance
- Freq. Response
- 20~20KHz, ±1dB
- THD
- Less than 0.02%
- Power Requirements
- 12V DC
- Dimensions
- 115x70x26 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Feature
- 2/4 balanced line outputs can be used simultaneously, and all audio channels
- are used with Dante network.
- 2/4 balanced MIC/AUX inputs, and also 2/4 outputs using phoenix connector
- CAT5/6 connector to link with Dante network and controlled by Audinate
