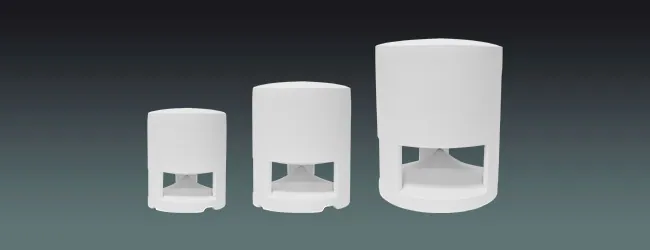

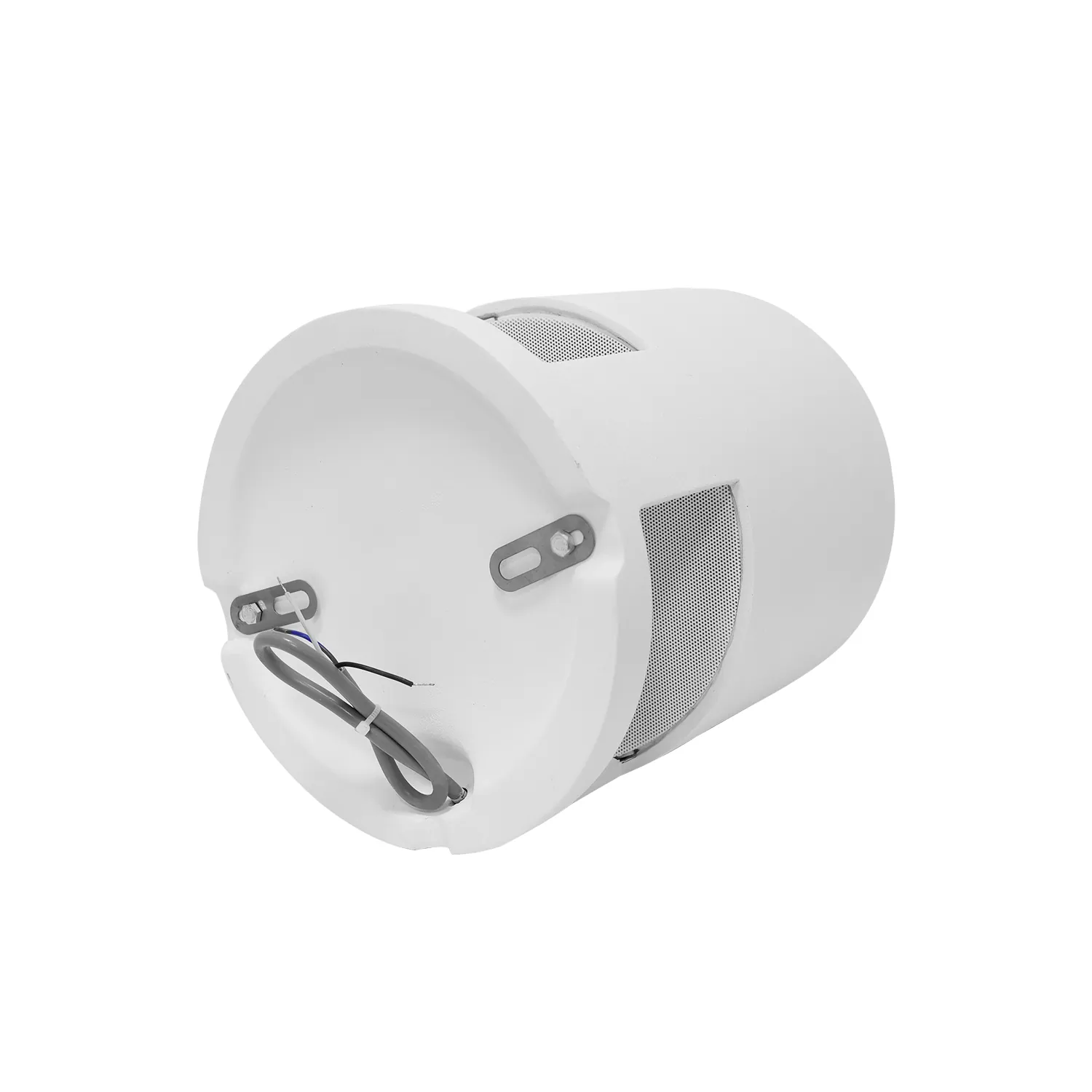

Lucky Tone Ground Mounted Garden Speaker, product photo 1 of 8
Fig. 01 / 08 · manufacturer’s images

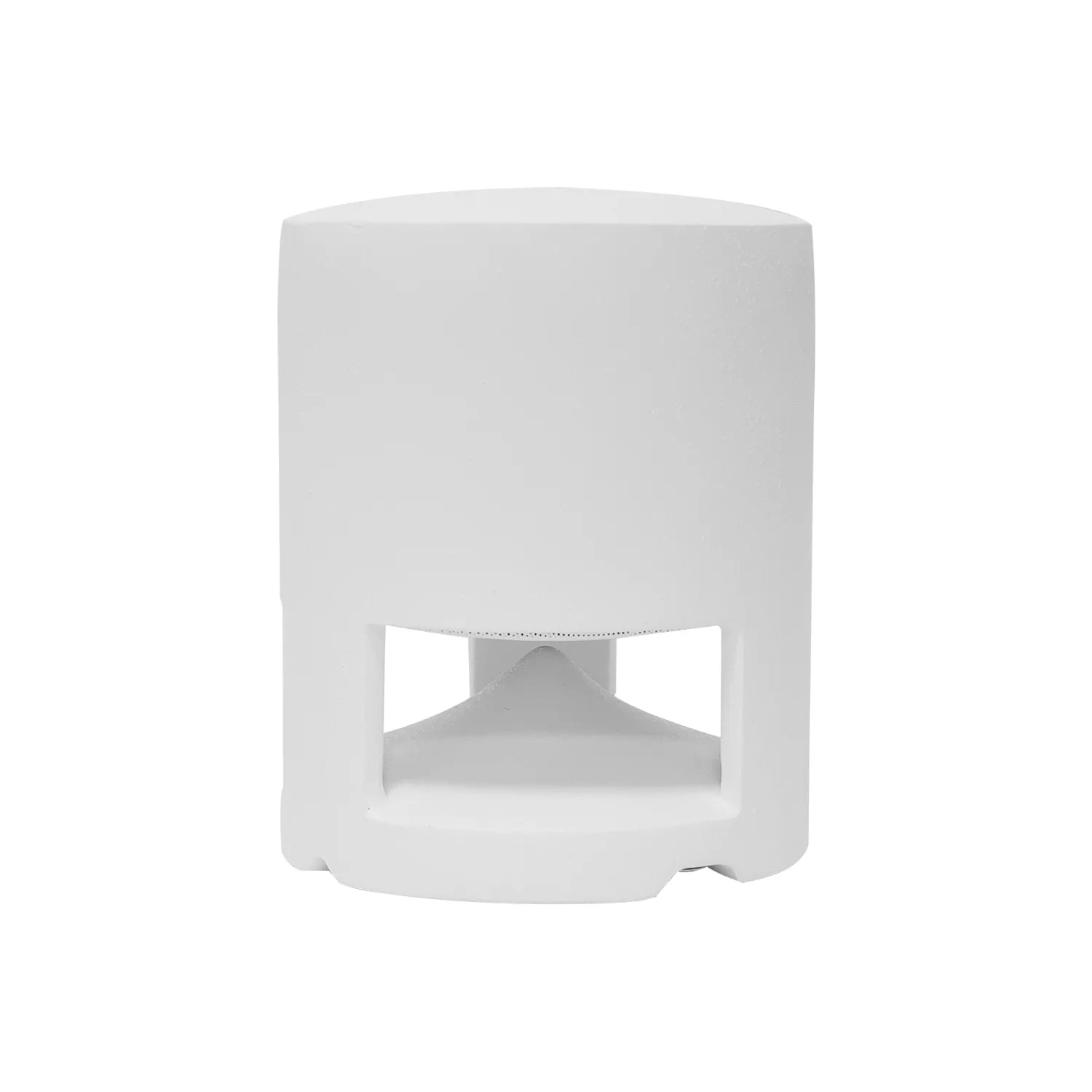

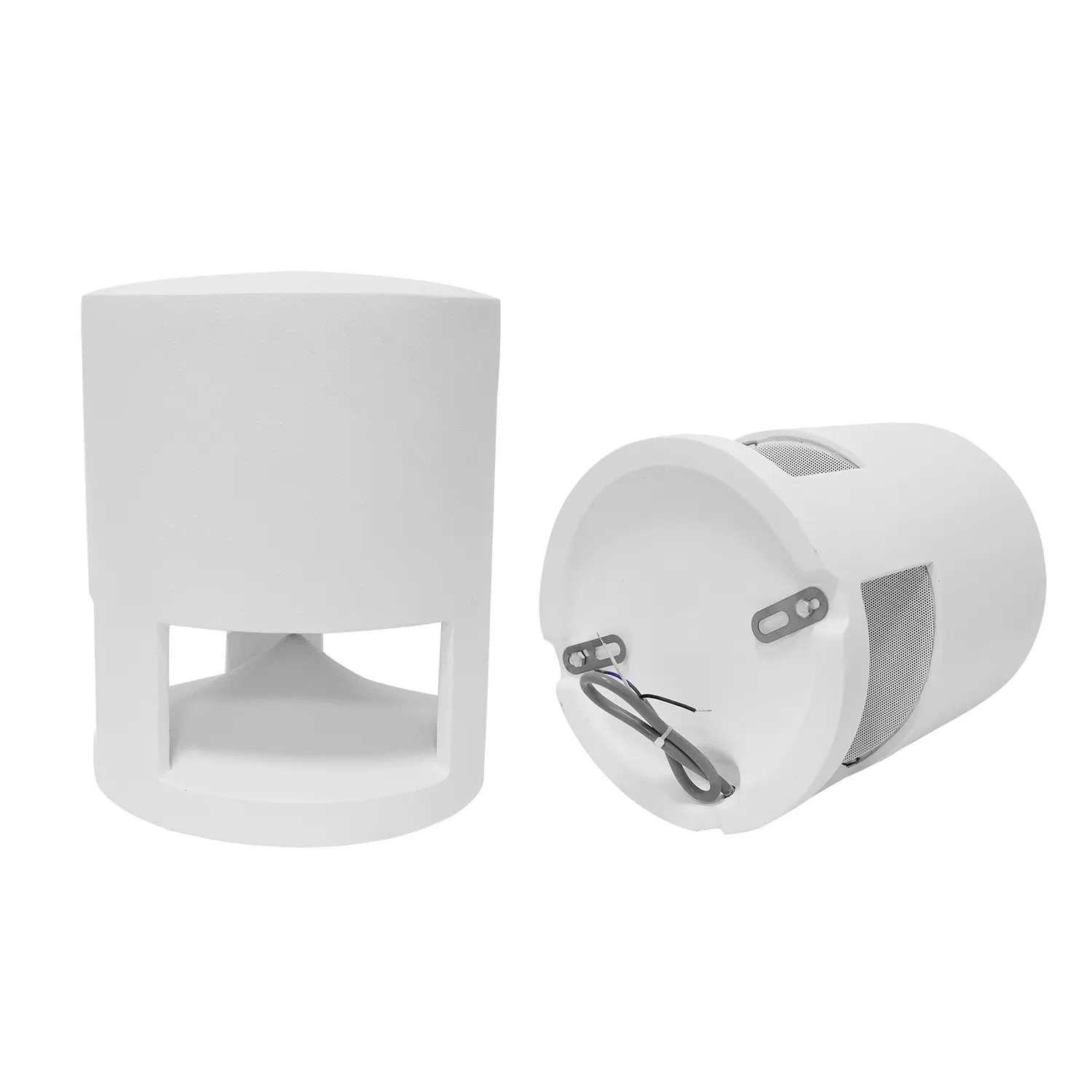

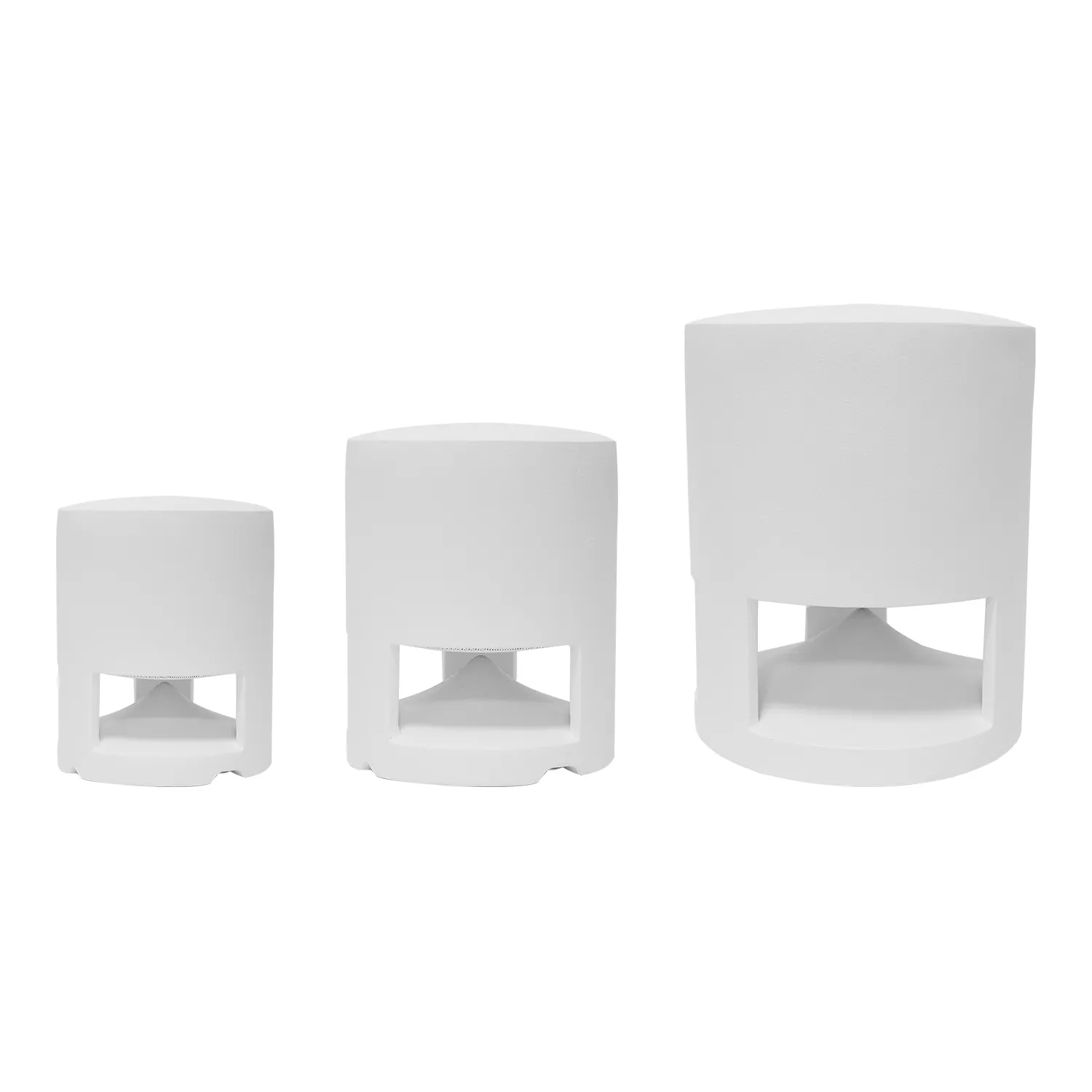

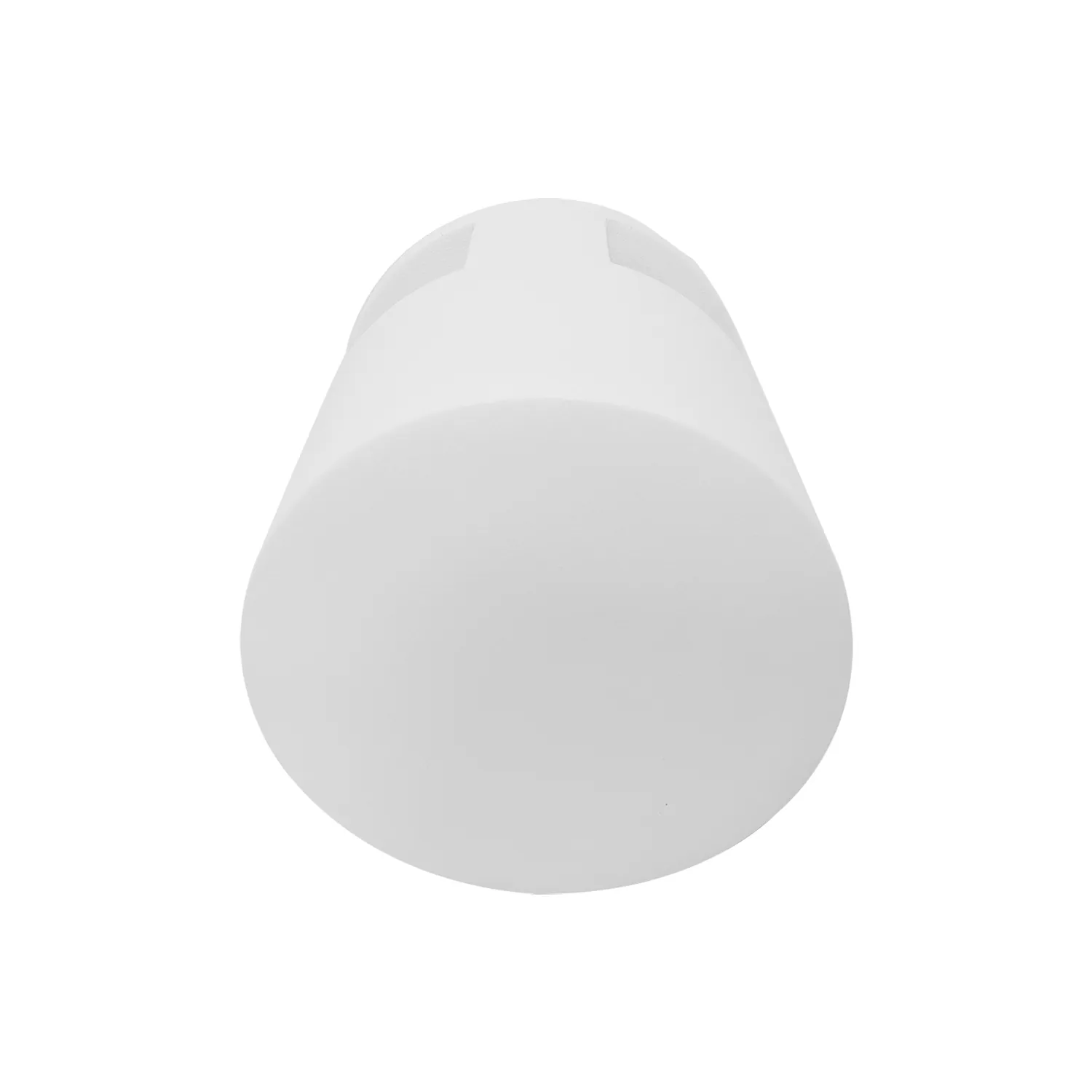

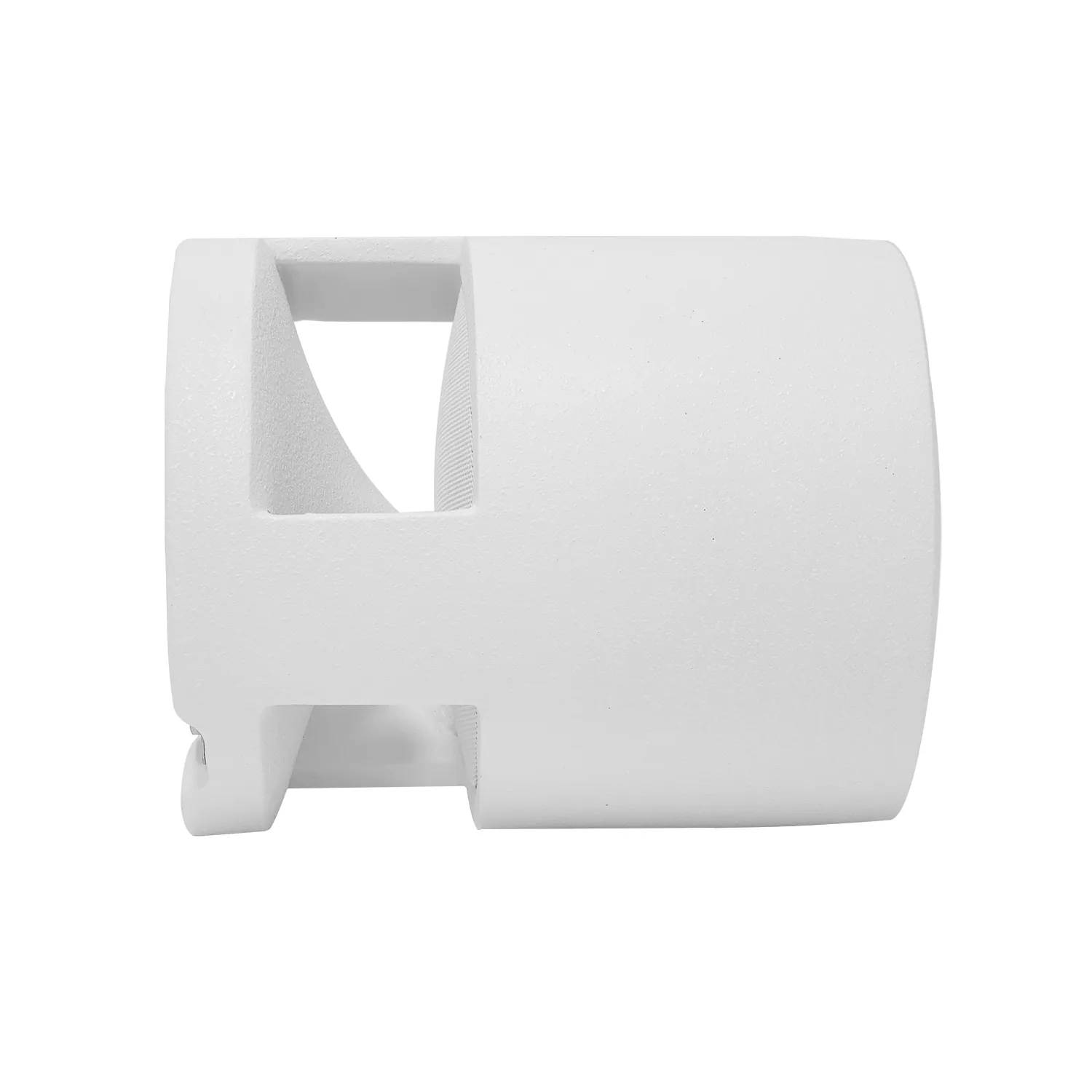

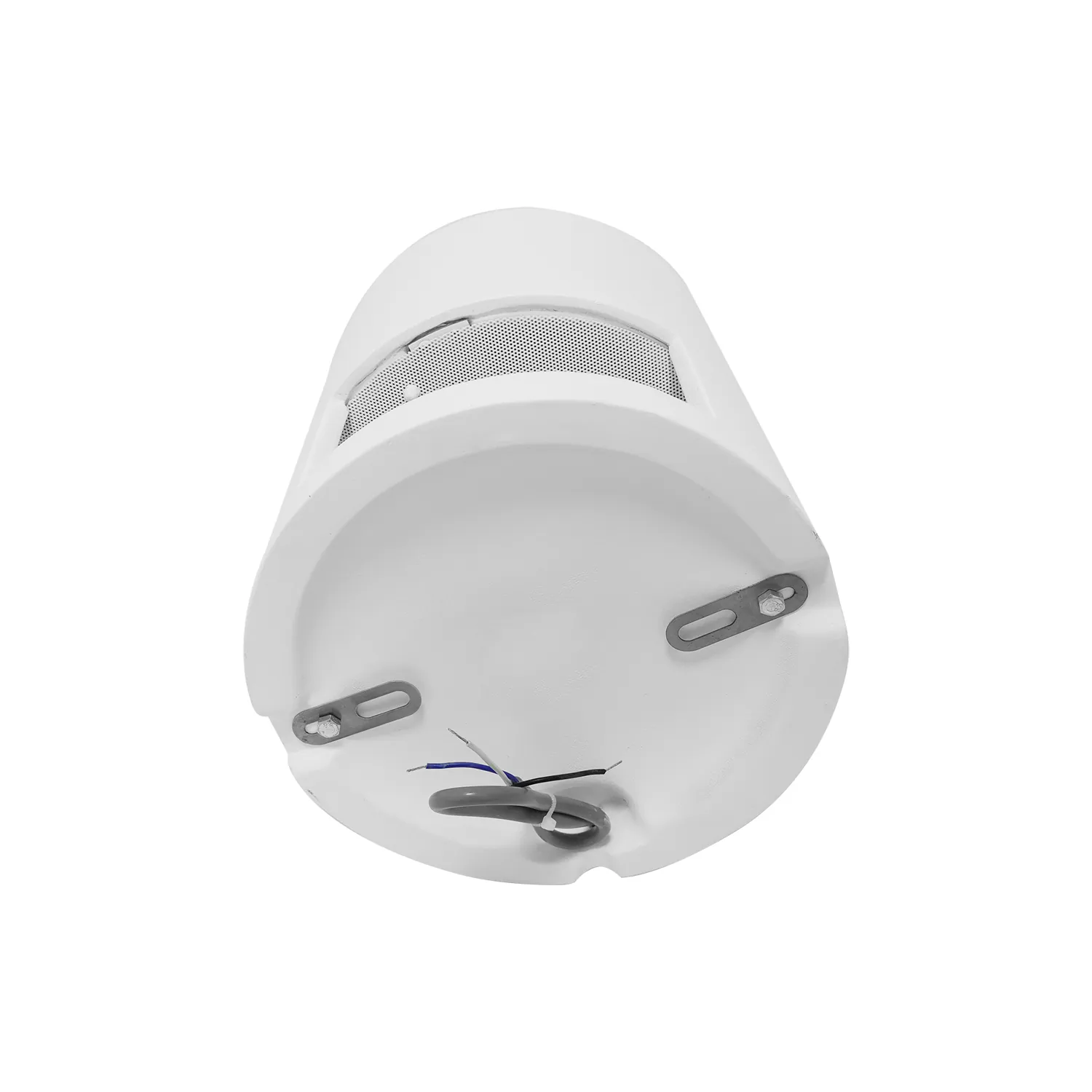

  • Lucky Tone Ground Mounted Garden Speaker, product photo 1 of 8
  • Lucky Tone Ground Mounted Garden Speaker, product photo 2 of 8
  • Lucky Tone Ground Mounted Garden Speaker, product photo 3 of 8
  • Lucky Tone Ground Mounted Garden Speaker, product photo 4 of 8
  • Lucky Tone Ground Mounted Garden Speaker, product photo 5 of 8
  • Lucky Tone Ground Mounted Garden Speaker, product photo 6 of 8
  • Lucky Tone Ground Mounted Garden Speaker, product photo 7 of 8
  • Lucky Tone Ground Mounted Garden Speaker, product photo 8 of 8
Lucky Tone · Other equipment

Lucky Tone Ground Mounted Garden Speaker GS-515TW / GS-515LW / GS-640TW / GS-640LW / GS-850FW / GS-850LW

ModelGS-515TW / GS-515LW / GS-640TW / GS-640LW / GS-850FW / GS-850LW

Weatherproof design for reliable outdoor use

Output power
GS-515TW: 15W@100V 7.5W@70V 15W@8ohm; GS-515LW: 15W@80hm; GS-640TW: 40W/20W@100V 20W/10W@70V 40W@8ohm; GS-640LW: 40W@80hm; GS-850FW: 50W/25W@100V 25W/12.5W@70V 50W@8ohm; GS-850LW: 50W@80hm
Weight
GS-515TW: 2.2kg; GS-515LW: 2kg; GS-640TW: 3.3kg; GS-640LW: 3.1kg; GS-850FW: 4.6kg; GS-850LW: 4.3kg
PriceOn request
Request a quotationDiscuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models6 models in the family

Models compared.

ModelGS-515TWGS-515LWGS-640TWGS-640LWGS-850FWGS-850LW
Rated Power15W@100V 7.5W@70V 15W@8ohm15W@80hm40W/20W@100V 20W/10W@70V 40W@8ohm40W@80hm50W/25W@100V 25W/12.5W@70V 50W@8ohm50W@80hm
Sensitivity88±3dB88dB±3dB87dB±387dB±390dB±390dB±3
Freq. Response100~18kHz100~18kHz100~18kHz100~1kHz100~18kHz100~18kHz
Product SizeDia 160x220mmDia 160x220mmDia 200x250mmDia 200x250mmDia 250x315mmDia 250x315mm
InstallationGround FixGround FixGround FixGround FixGround FixGround Mix
MaterialFiberglassFiberglassFiberglassFiberglassFiberglassFiberglas
IP RatingIP66IP66IP66IP66IP66IP65
Net Weight2.2kg2kg3.3kg3.1kg4.6kg4.3kg
ColorWhiteWhiteWhiteWhiteWhiteWhite
Speaker Driver5.25″ Full Range5.25″ Full Range6.5″ Coaxial6.5″ Coaxial8″ Coaxial8″ Coaxial
02DescriptionManufacturer's description

What it is.

Features

Sleek appearance with powerful sound performance

Support 100V/70V input

03Documents1 file · 1.0 MB

Documents and files.

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
