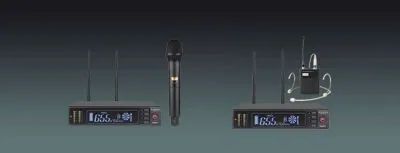

Single Channel Wireless Microphone

ModelMPRO-11H/MPRO-11B

One-channel true diversity performance wireless microphone

Output power: High power 30mW; low power 3mW

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 24 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications24

Model: MPRO-11H/MPRO-11B
System
Carrier frequency: UHF520-950MHz
Modulation mode: Wideband FM
Adjustable range: 50MHz
Channel: 200 selectable
Channel interval: 250KHz
Frequency stability: ±0.005%
Dynamic range: 100dB
Max frequency offset: ±45KHZ
Audio frequency response: 80Hz-18KHz (±3dB)
SNR: >105 dB
Distortion: ≤0.5%
Operating temperature: -10°C ~+40°C
Receiver
Receiver mode: 4-frequency conversion superheterodyne
Intermediate frequency: First Intermediate frequency 110MHz,10.7MHz
Wireless interface: BNC/50Ω
Sensitivity: 12dBμV(80DbS/N)
Sensitivity adjustment range: 12-32 dBμV
Spurious suppression: >75dB
MAX output level: +10dBv
Transmitter
Output power: High power 30mW; low power 3mW
Spurious suppression: -60dB
Power source: 2 AA batteries
Service time: >8H at 30mW, >12H at 3mW

02DescriptionManufacturer's description

What it is.

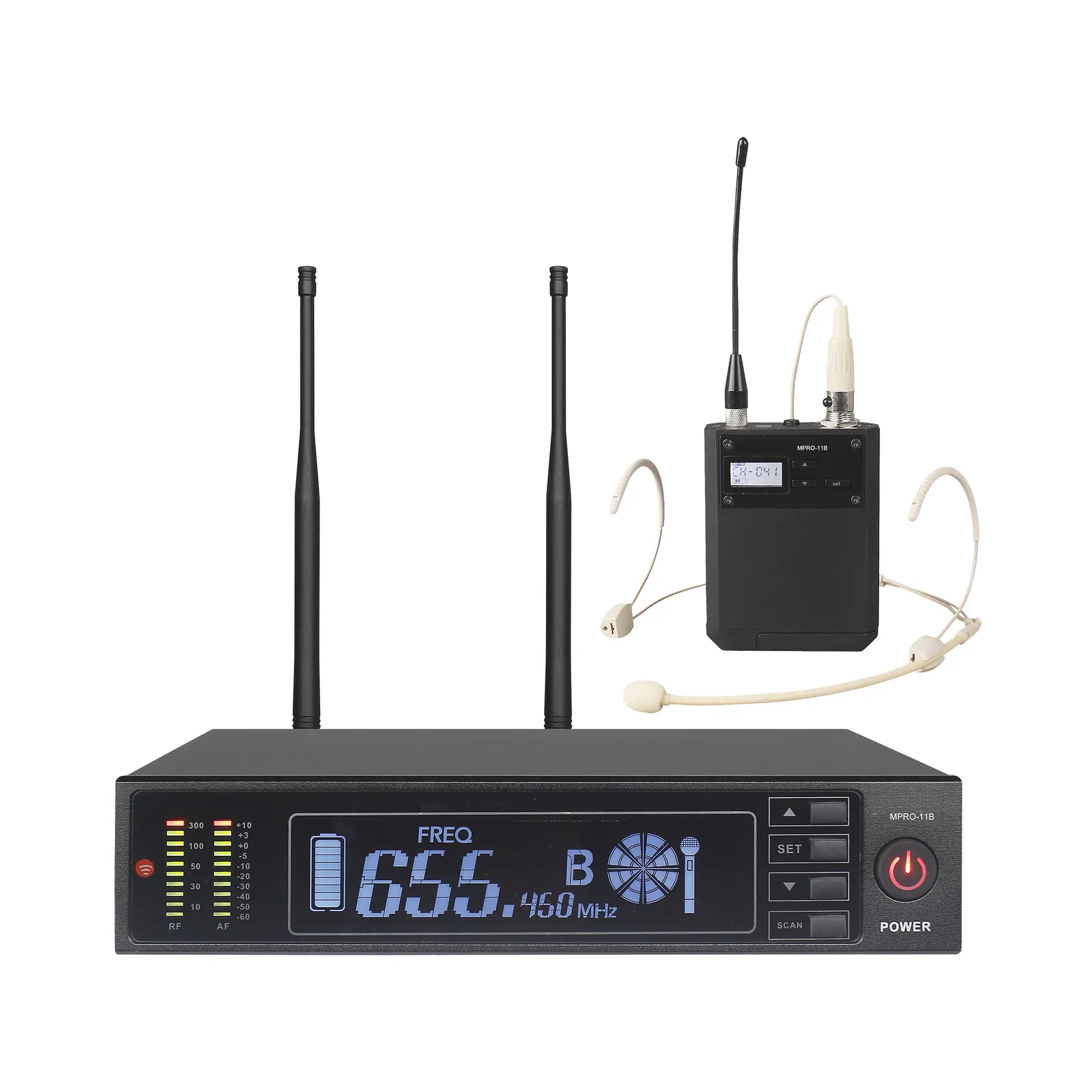

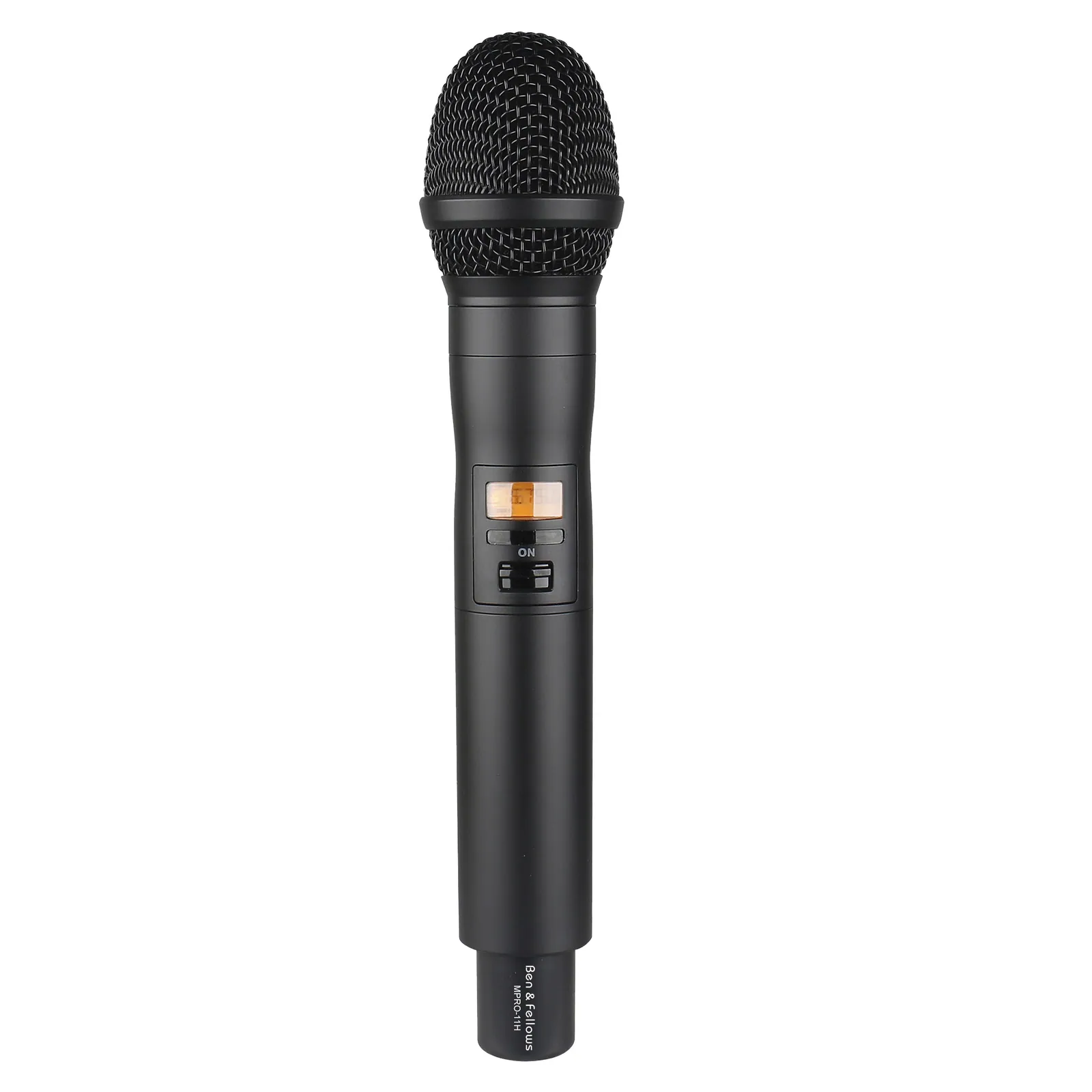

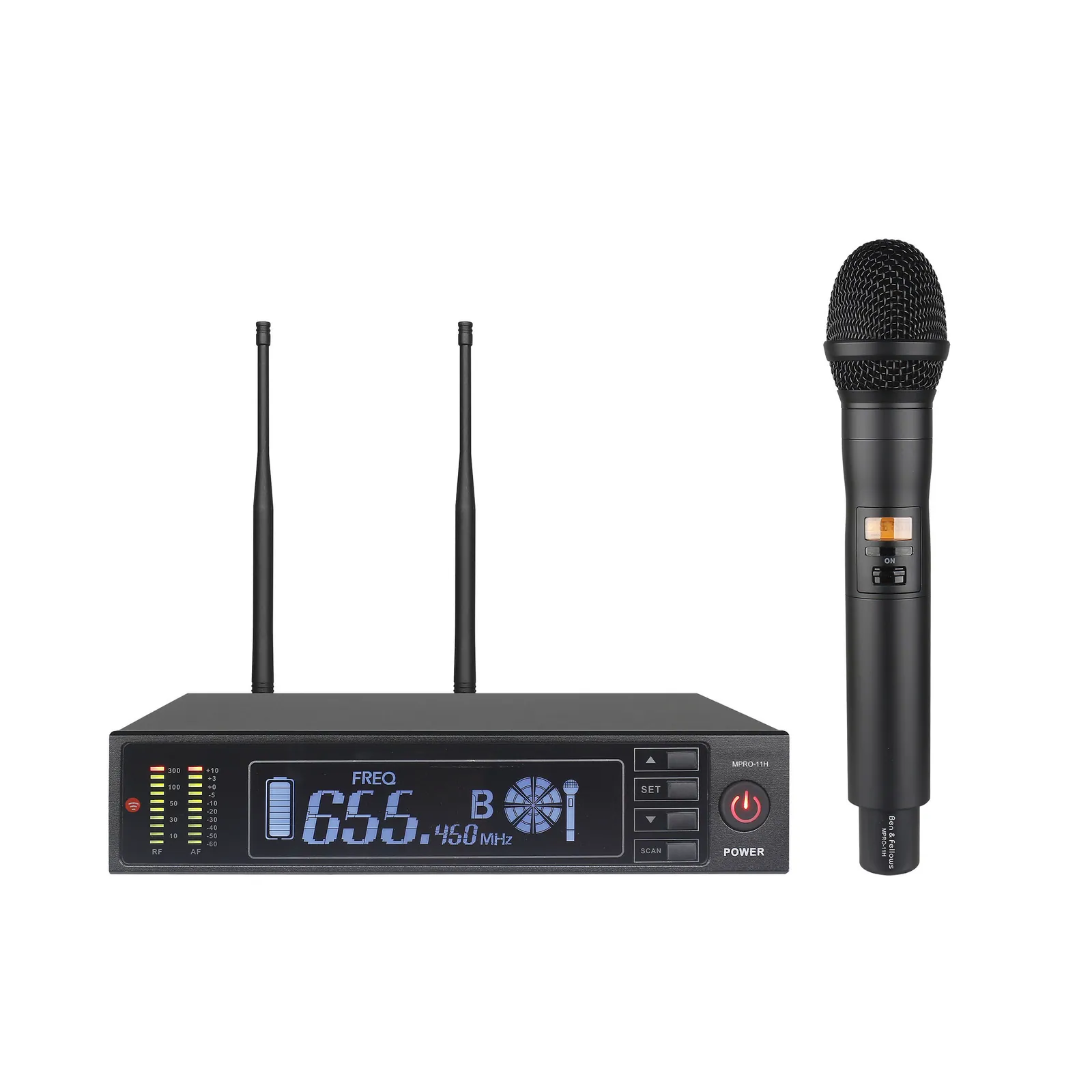

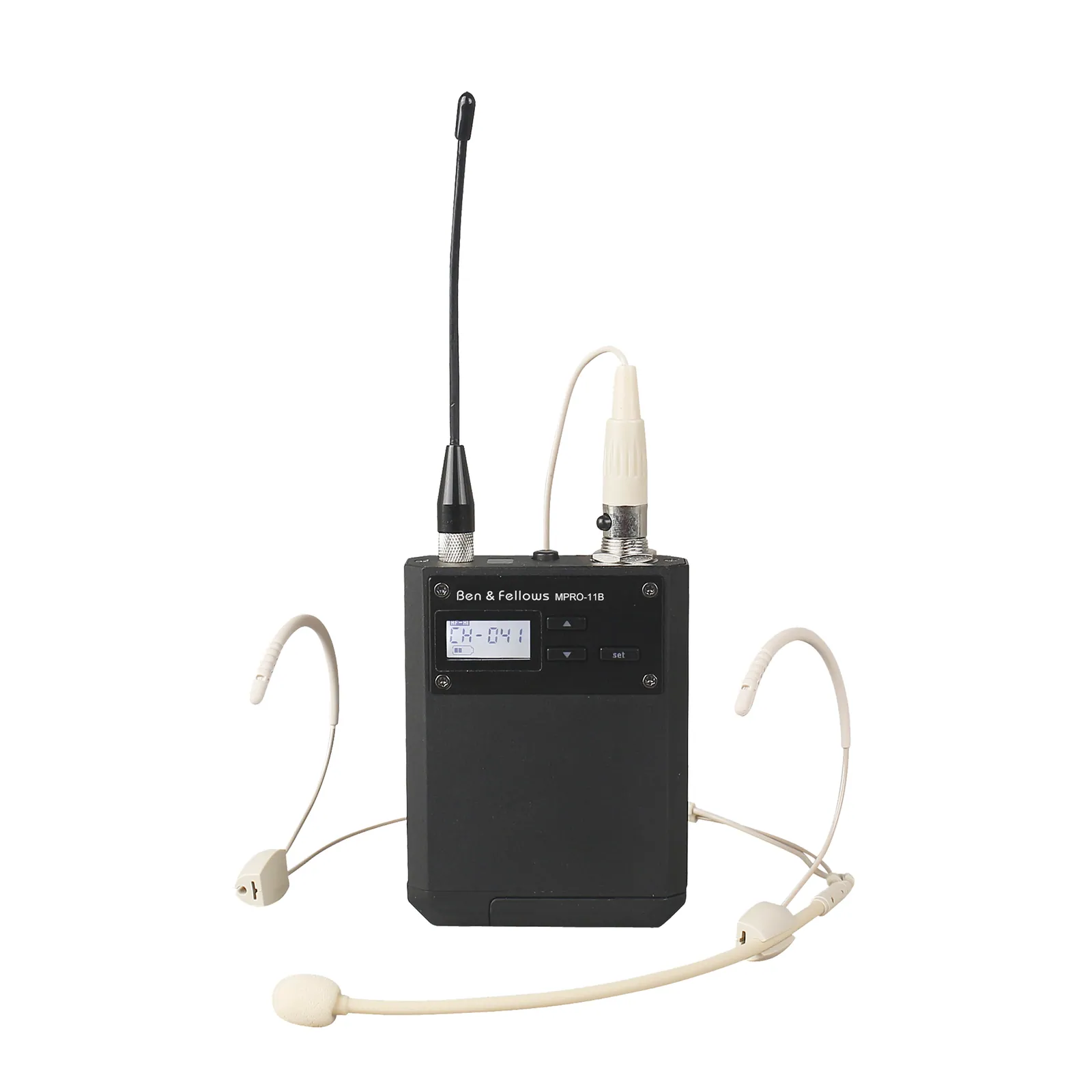

MPRO-11H/MPRO-11B

One-touch QuickScan frequency selection quickly locates the best frequency
Handheld power monitoring receiver
Controllable receiving distance
Up to 10 sets can be used simultaneously without worrying about interferences

With professional cardioid dynamic capsule, the system can reproduce more excellent, clear, pure and full sound and eliminate background noise and howling

Ideal for Karaoke, home KTV, big party, DJ, wedding, class use.
