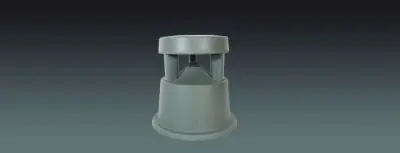

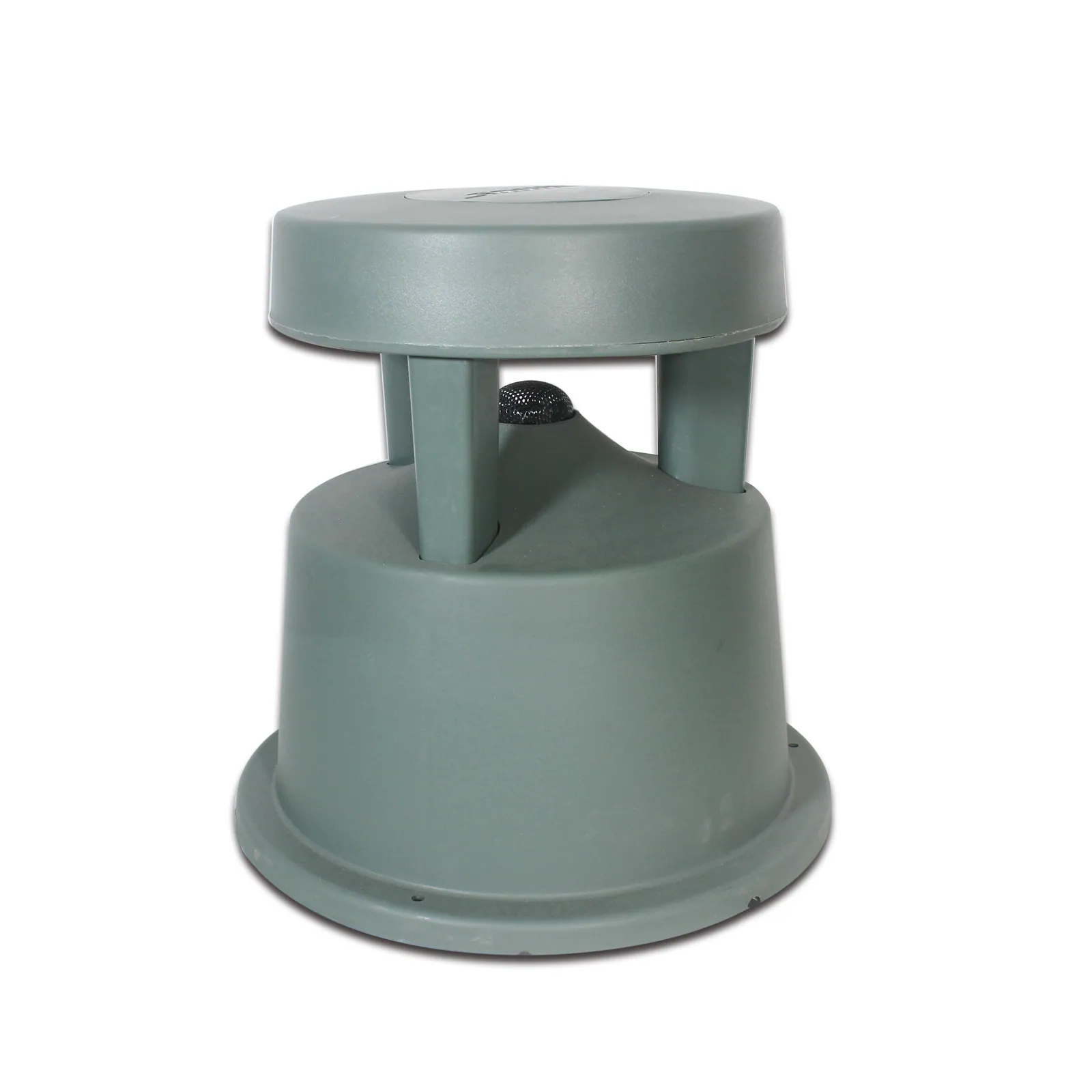

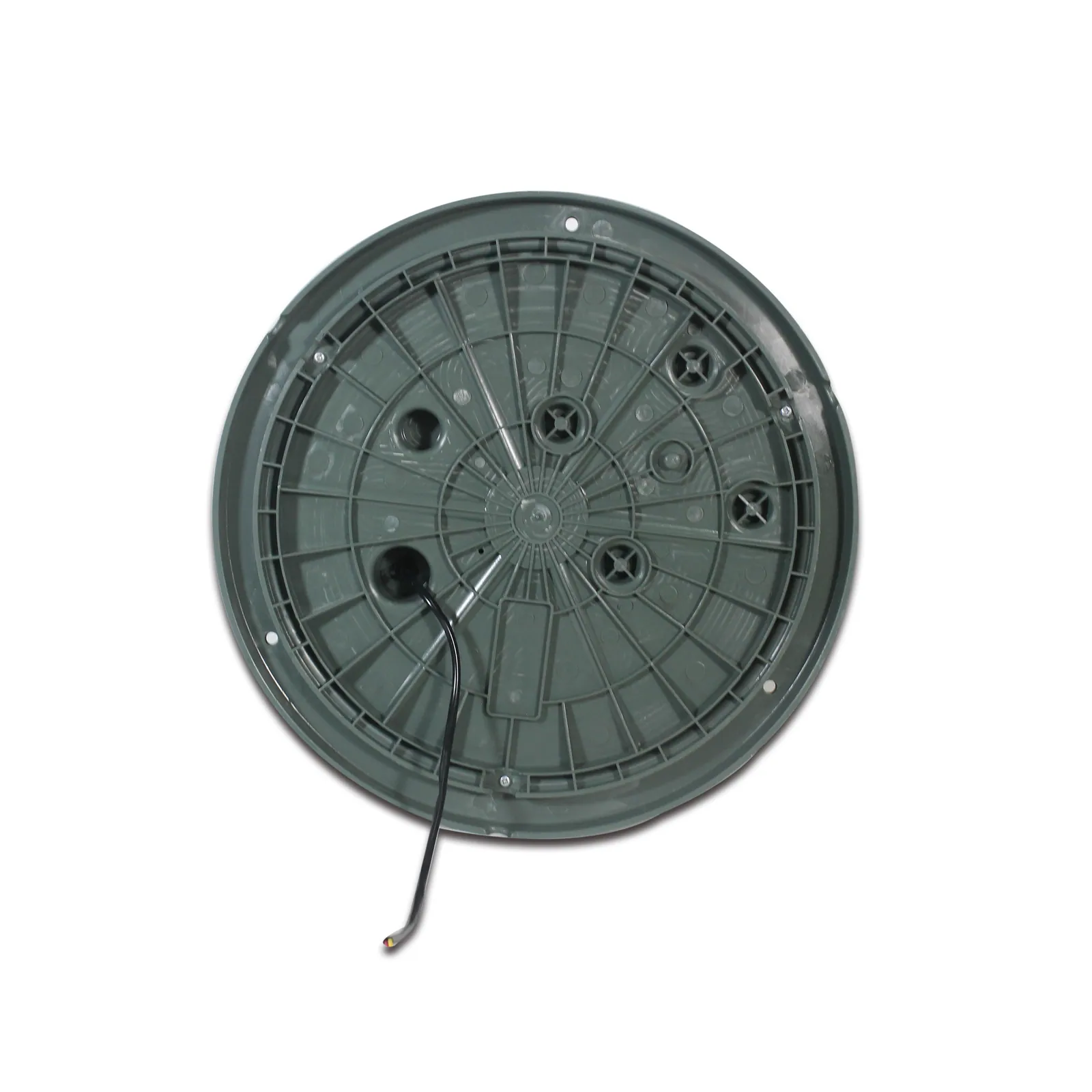

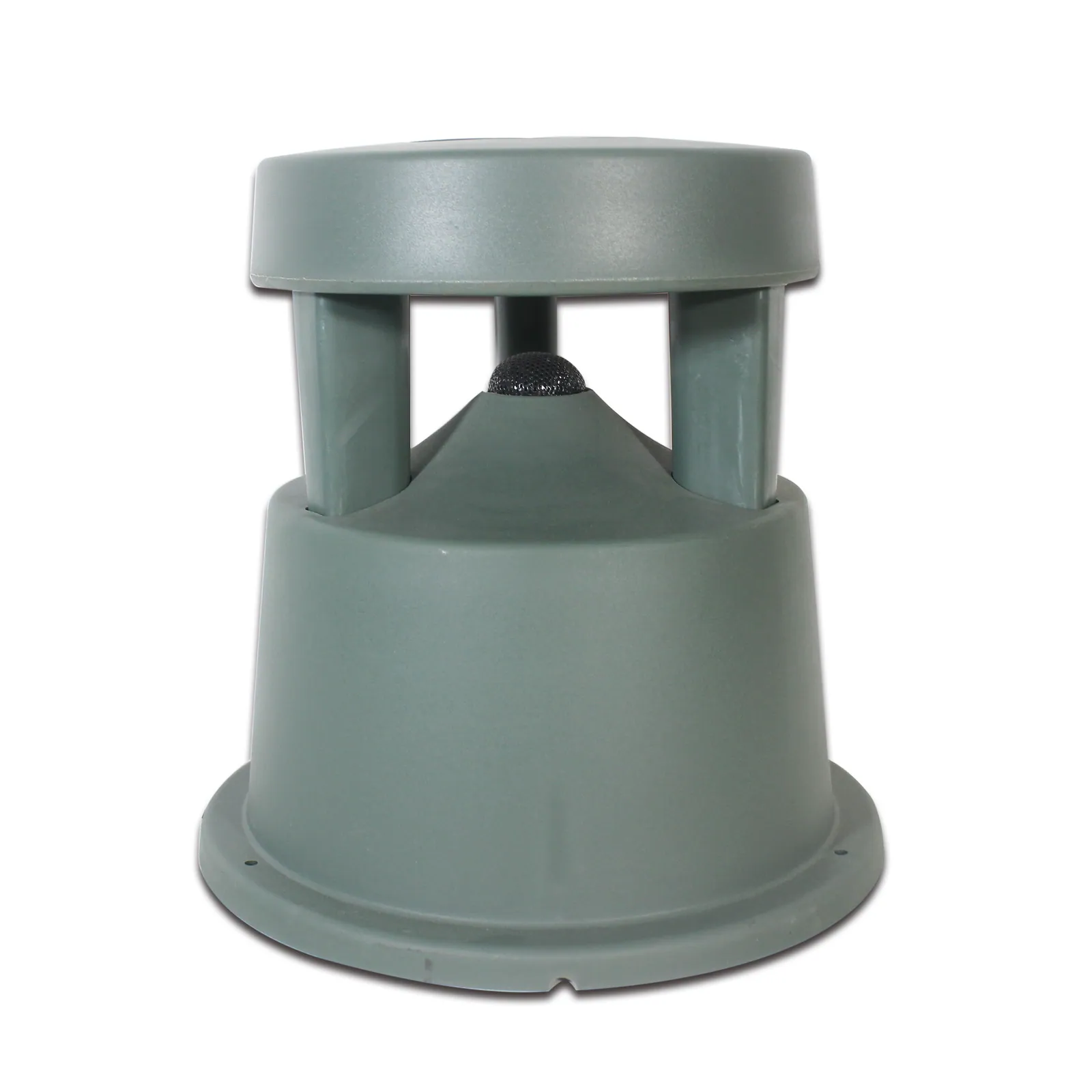

Lucky Tone Garden Speaker OD-501P
ModelOD-501P

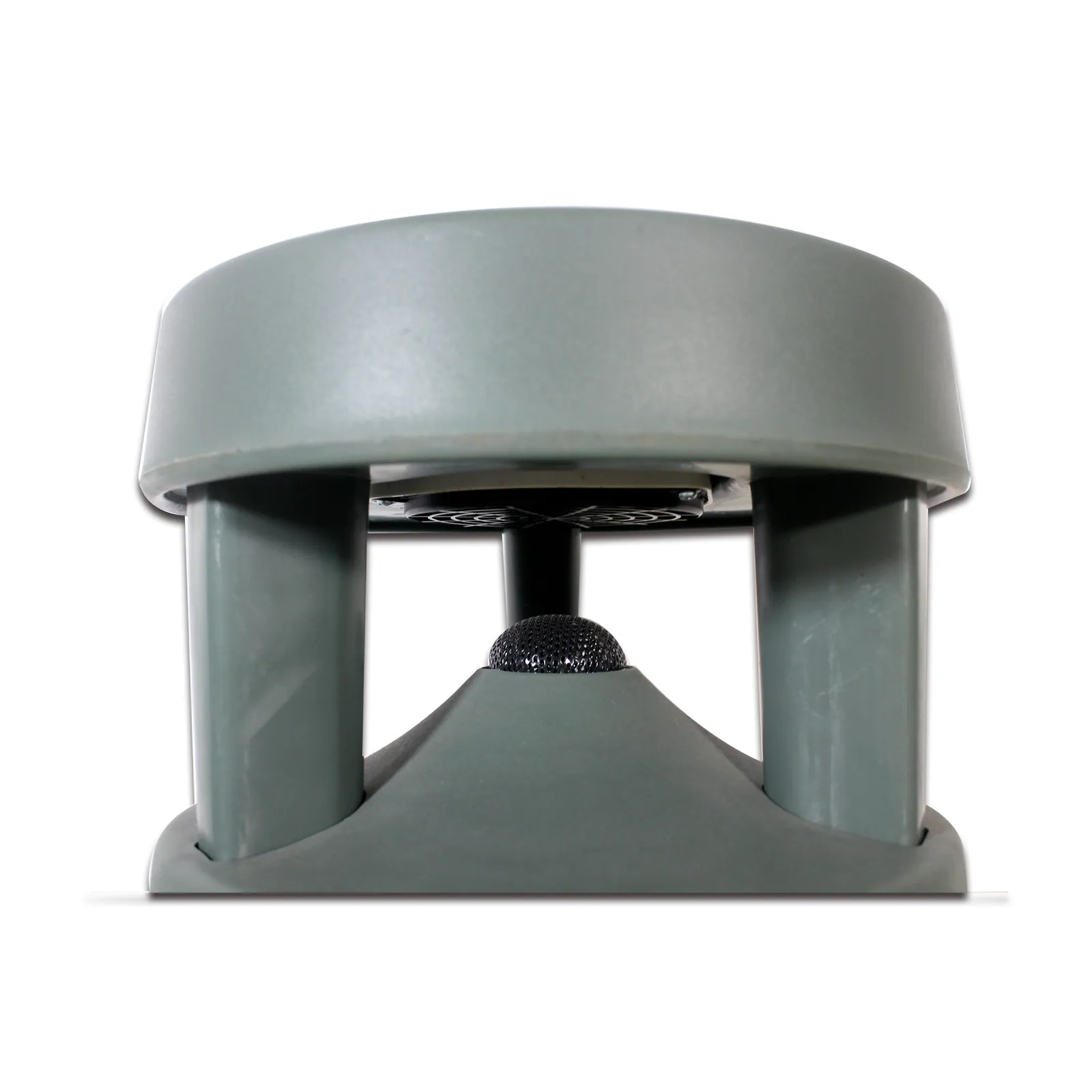

Radial design enable 360 degree sound dispersion
- Weight
- 3.0Kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- OD-501P
- Power at 100V
- 30W
- Power at 70V
- 15W
- SPL( 1W/1M)
- 95dB
- Max SPL@ 1M
- 110dB
- Freq. Response
- 100Hz-16KHz
- Cutout Size
- 360 degree
- Product Size
- Dia 360x365mm
- Installation
- Ground fix
- Enclosure Material
- ABS
- Weight
- 3.0Kg
- Finish
- Sage Green
- Speakers
- 4.5″ x1 full range
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
- Outdoor high power speaker
- Low frequency delivering depth sound
- IP 66
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

In the same range.

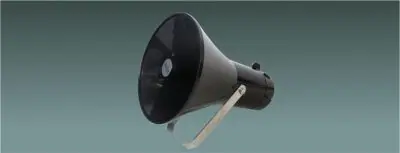

EQ-1627Lucky ToneExplosive Proof Horn SpeakerHE-30T · Loudspeakers
