Sheet 05.438

Lucky Tone · Microphones

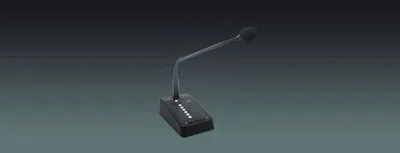

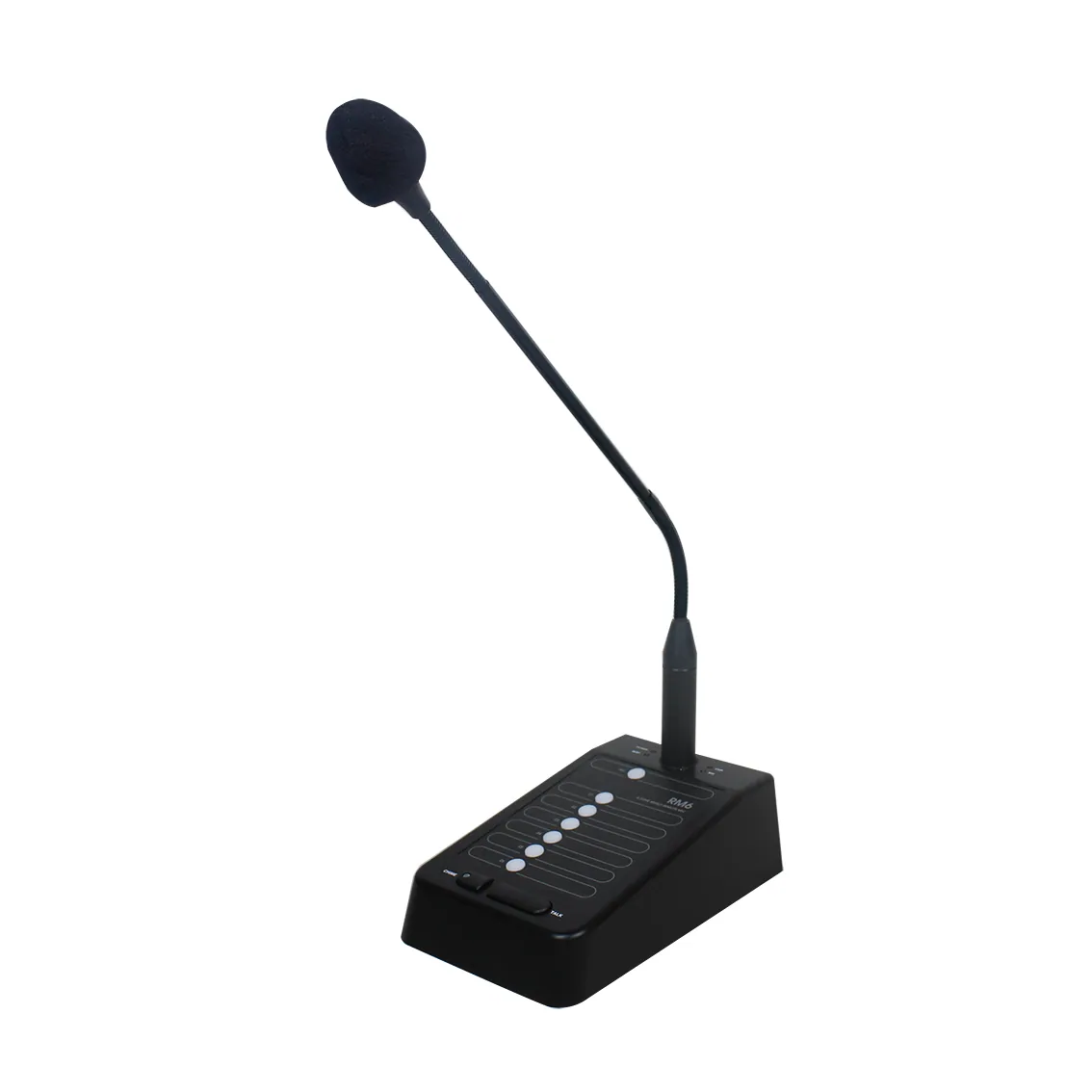

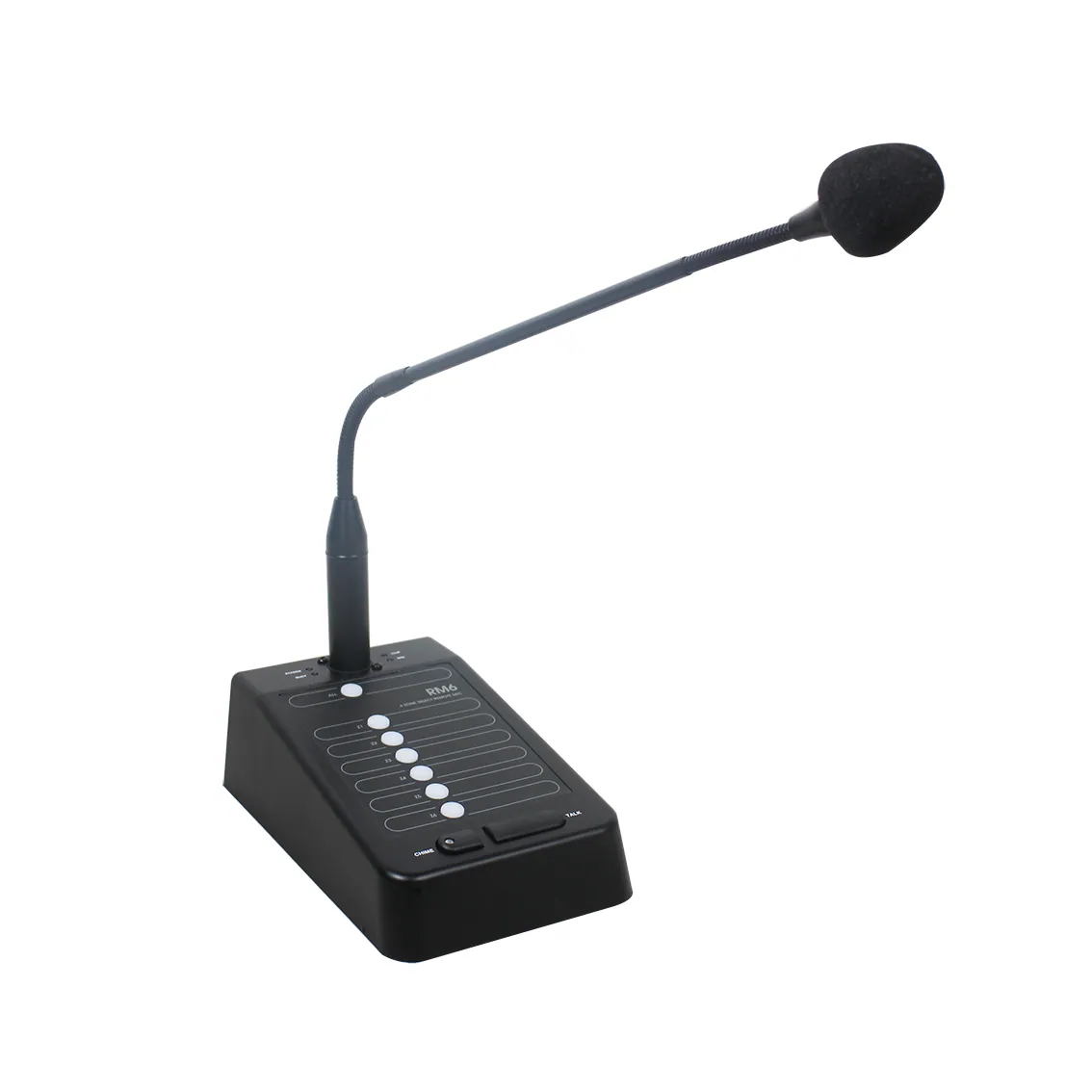

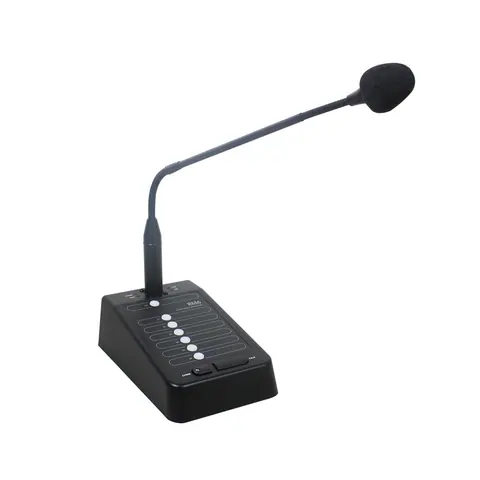

6 Zone Paging Microphone for MPRO Series

ModelRM-6

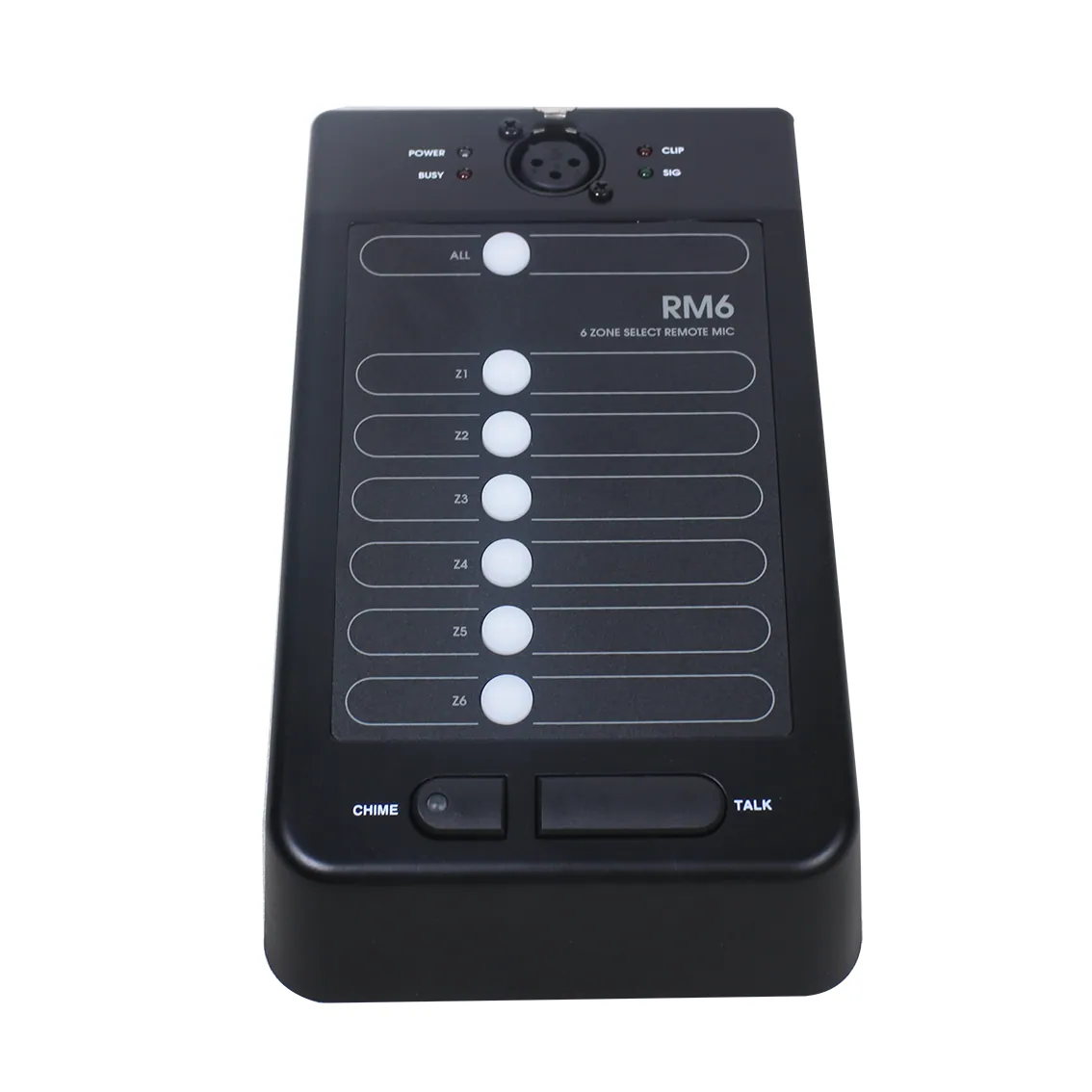

Zone selector switch, All & 6 Zone. Talk & Chime switch.

Dimensions: 140 x 60 x 205mm (only body)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 9 values

What this product is, in numbers.

PDFSpecifications1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications9

MODEL: RM-6
Rated Output Level / Impedance: 0dB / 600 Ω Balanced
Input sensitivity / Impedance: -36dB / 20kΩ Balanced
Frequency Response (-1dB): 80Hz – 15kHz
T.H.D: < 0.1%
Hum & Noise: > 90 dB
Number of Zone: 6 Zone
Weight (Net): 1.2 kg
Dimensions (W x H x D): 140 x 60 x 205mm (only body)

02DescriptionManufacturer's description

What it is.

RM-6

Controls

Level control volume. Slide switch for Lock.

Connectors

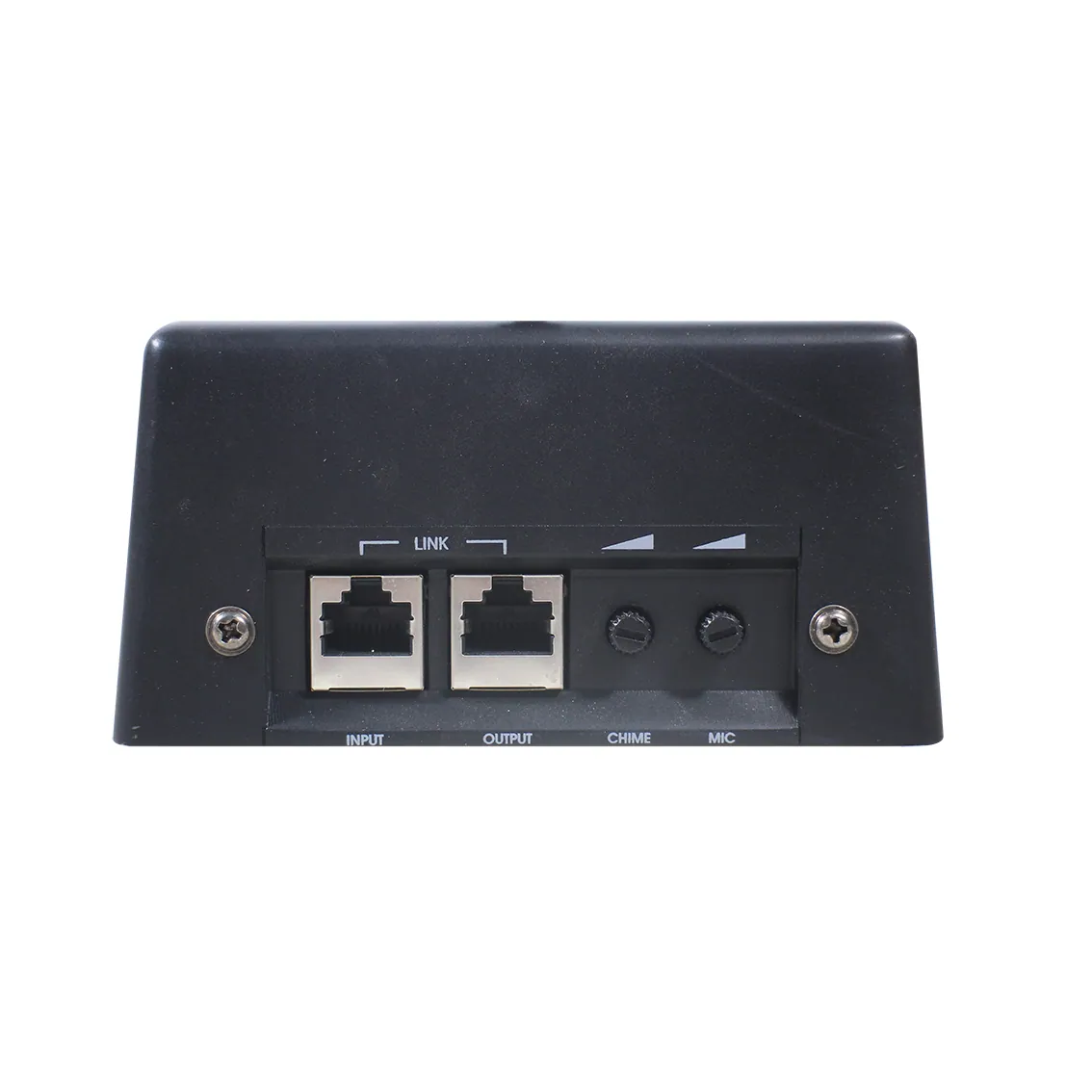

RJ45 to connect with Model MPro-120 / 240 / 360.

Indicators: Power, Signal , Clip.

03Documents1 file · 1.1 MB

Documents and files.

Main document

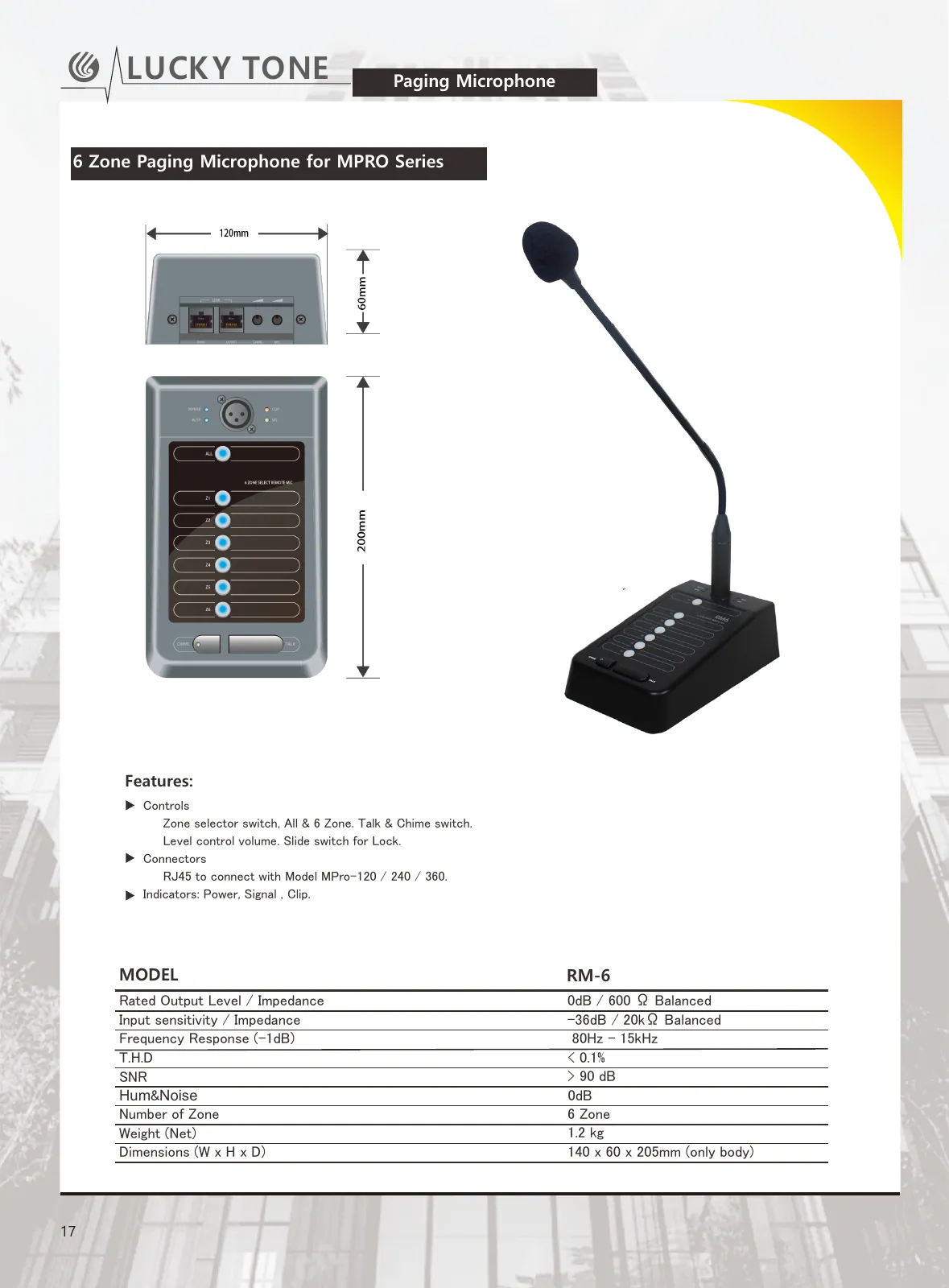

Specifications

PDF · 1.1 MB

Download specifications
