Sheet 05.237
Lucky Tone · Loudspeakers

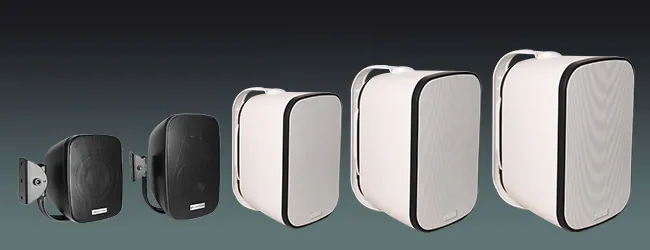

Lucky Tone Waterproof Wall Mount Speaker WIP-310W/ WIP-310B / WIP-420W/ WIP-420B / WIP-540R W/ WIP-540R B / WIP-660R W/ WIP-660R B / WIP-880R W/ WIP-880R B
ModelWIP-310W/ WIP-310B / WIP-420W/ WIP-420B / WIP-540R W/ WIP-540R B / WIP-660R W/ WIP-660R B / WIP-880R W/ WIP-880R B

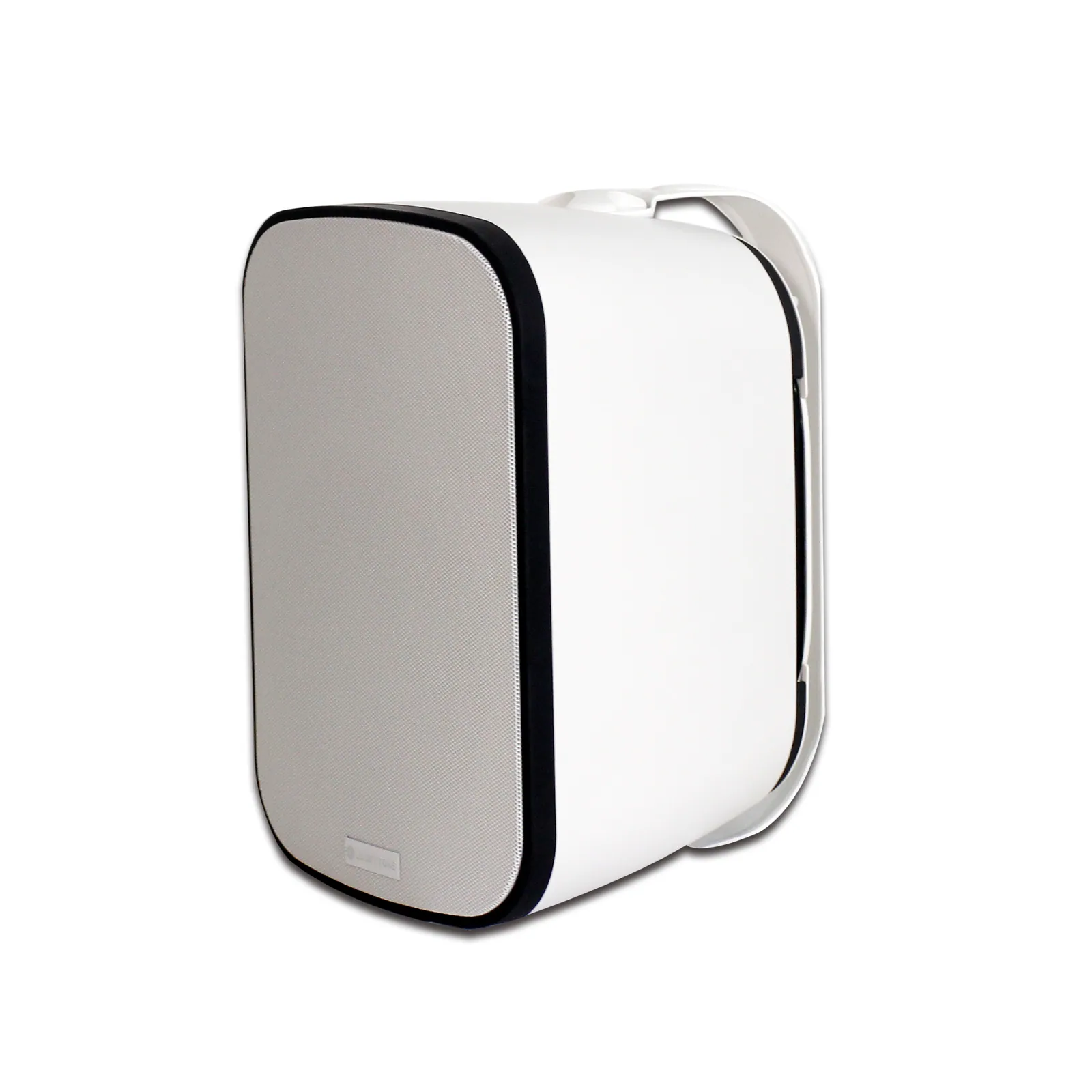

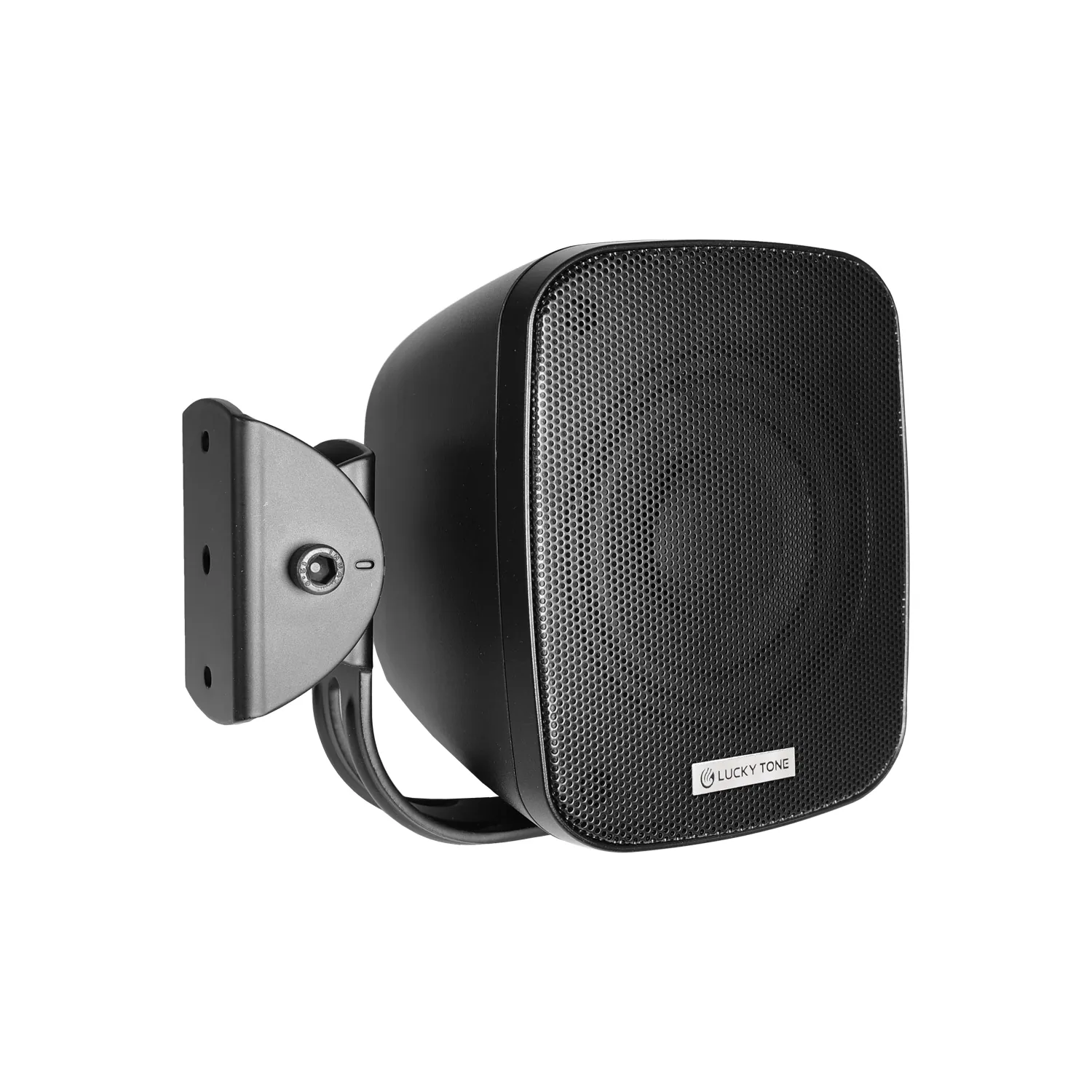

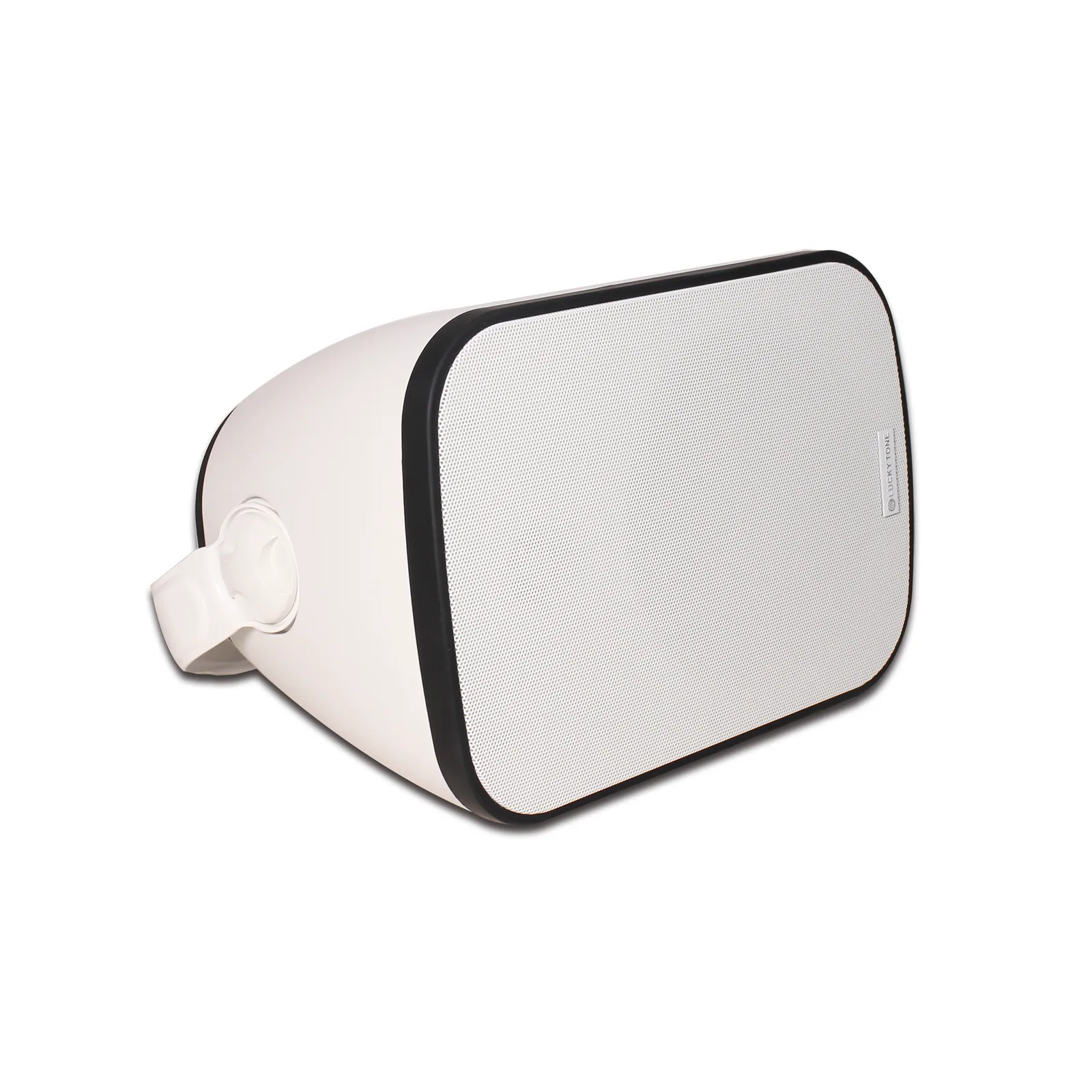

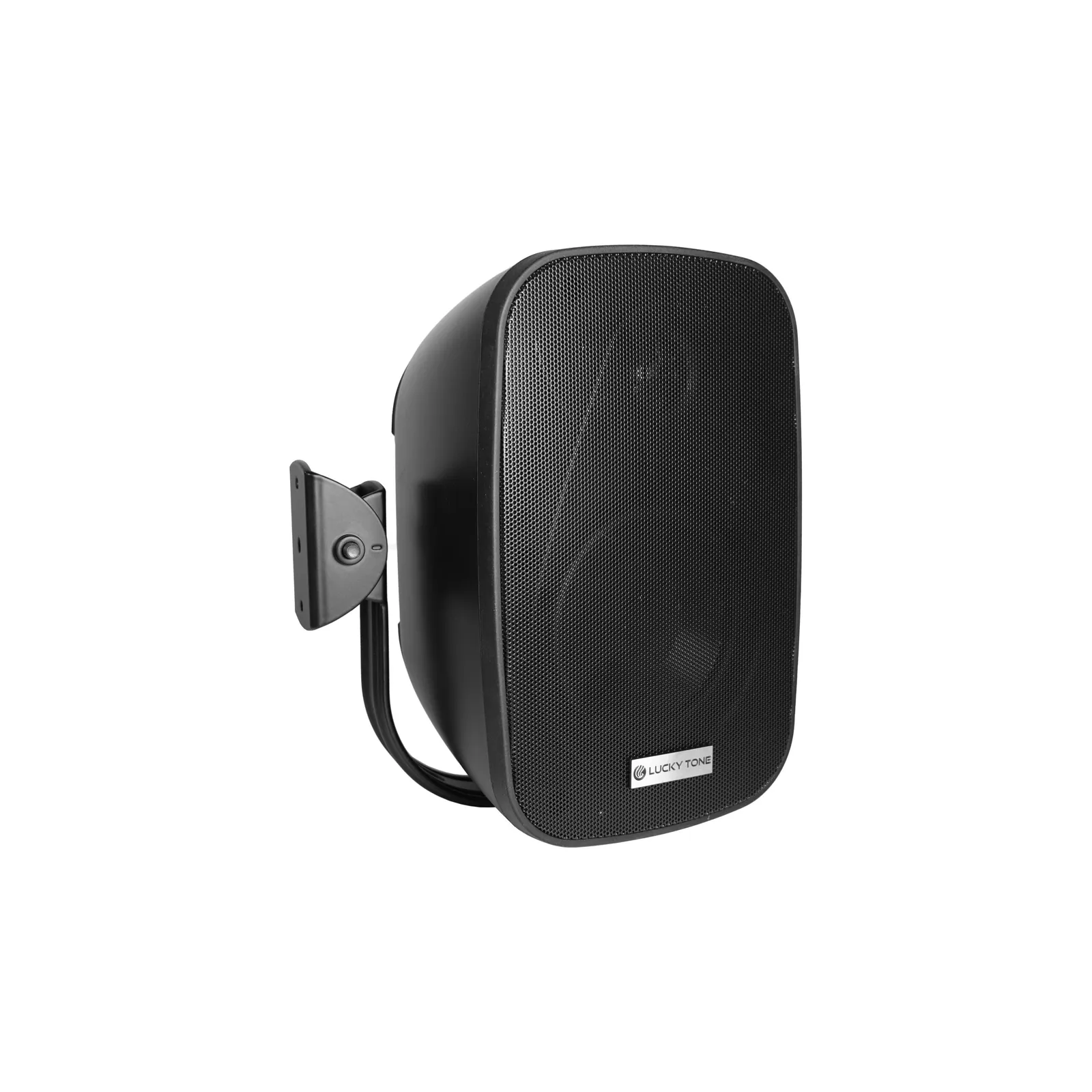

It is a new design IP66 Waterproof outdoor Wall Mount Speaker, which is Beauty, Durability,
- Weight
- WIP-310W/ WIP-310B: 0.7kg; WIP-420W/ WIP-420B: 2.1kg; WIP-540R W/ WIP-540R B: 3kg; WIP-660R W/ WIP-660R B: 3.5kg; WIP-880R W/ WIP-880R B: 4.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Waterproof Wall Mount SpeakerPrice on requestRequest a quotation
01Models5 models in the family
Models compared.
| Model | WIP-310W/ WIP-310B | WIP-420W/ WIP-420B | WIP-540R W/ WIP-540R B | WIP-660R W/ WIP-660R B | WIP-880R W/ WIP-880R B |
|---|---|---|---|---|---|

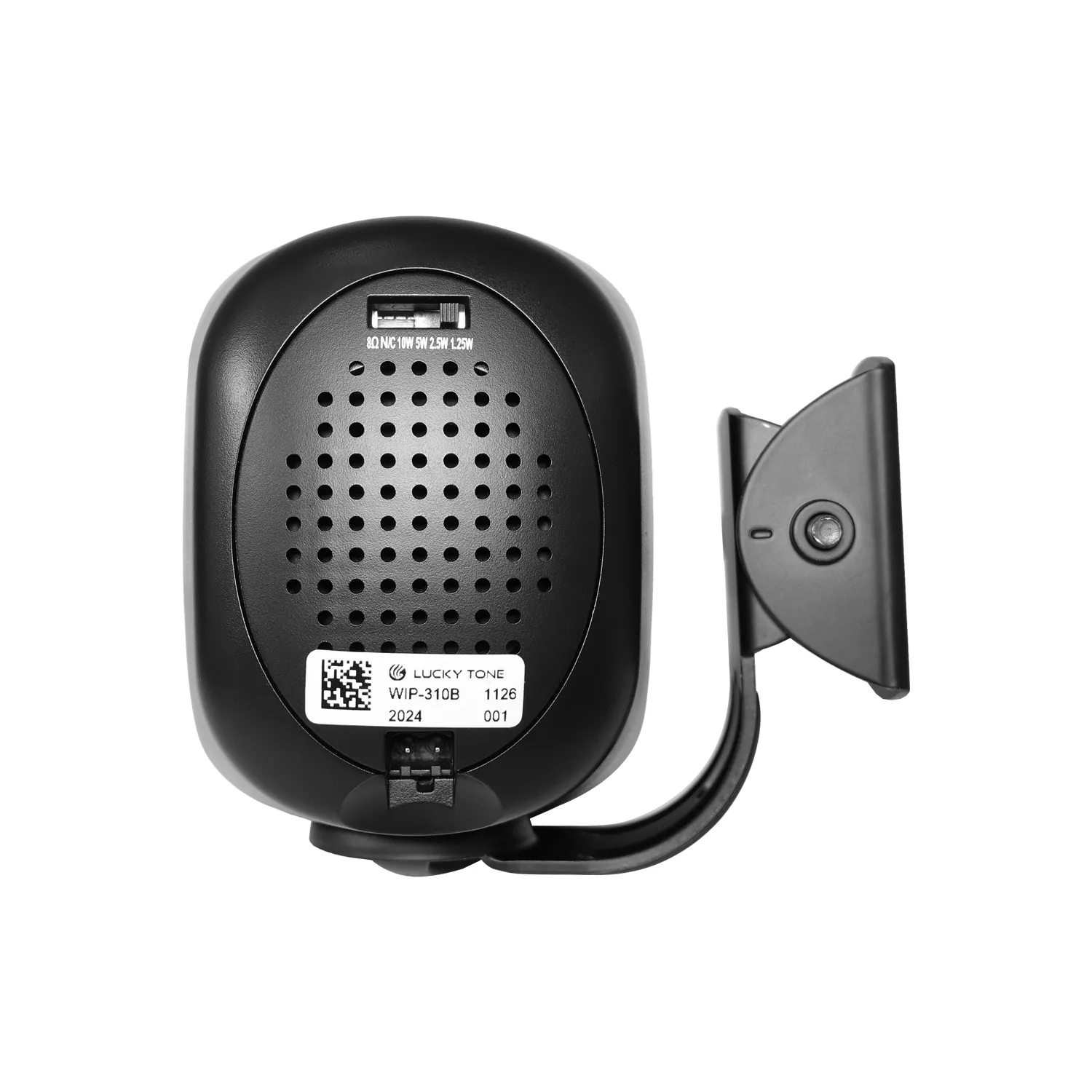

| Power at 100V | 10W@8ohm/OFF/10/5/2.5/1.25W | 20W@8ohm/OFF/20/10/5/2.5W | 2.5W/5W/10W/20W, 40W@8ohm | 5W/10W/20W/40W, 60W@8ohm | 6.25W/12.5W/25W/50W, 80W@8ohm |
| Power at 70V | 10W@8ohm/OFF/5/2.5/1.25/0.75W | 20W@8ohm/OFF/10/5/2.5/1.25W | 1.25W/2.5W/5W/10W, 40W@8ohm | 2.5W/5W/10W/20W, 60W@8ohm | 3.125W/6.25W/12.5W/25W, 80W@8ohm |
| Max SPL@ 1M | 92dB | 96dB | 98dB | 102dB | 105dB |
| Freq. Response | 200Hz-20kHz(+/-3dB) | 100Hz-20kHz | 75Hz-20KHz | 60Hz-20KHz | 50Hz-20KHZ |
| Dispersion Angel | / | / | 90×80 degree | 90×80 degree | 90×80 degree |
| Product Size | 121x101x107mm | 217x142x140mm | 260x170x160mm | 285x200x195mm | 380x253x240mm |
| Installation | Wall mount | Wall mount | Wall mount | Wall mount | Wall mount |
| Enclosure Material | ABS | ABS | ABS | ABS | ABS |
| Net Weight | 0.7kg | 2.1kg | 3kg | 3.5kg | 4.5kg |
| Color | White/Black | White/Black | White/Black | White/Black | White/Black |
| Speakers | 3″ Paper Dual Cone, Rubber Surround | 0.75” Silk soft dome, 4” Rubber Surround | 5” woofer, 1” tweeter | 6.5” woofer, 1” tweeter | 8”woofer, 1” tweeter |
02DescriptionManufacturer's description
What it is.
- Performance and User Friendliness. It delivers high quality audio as well as clean and clear

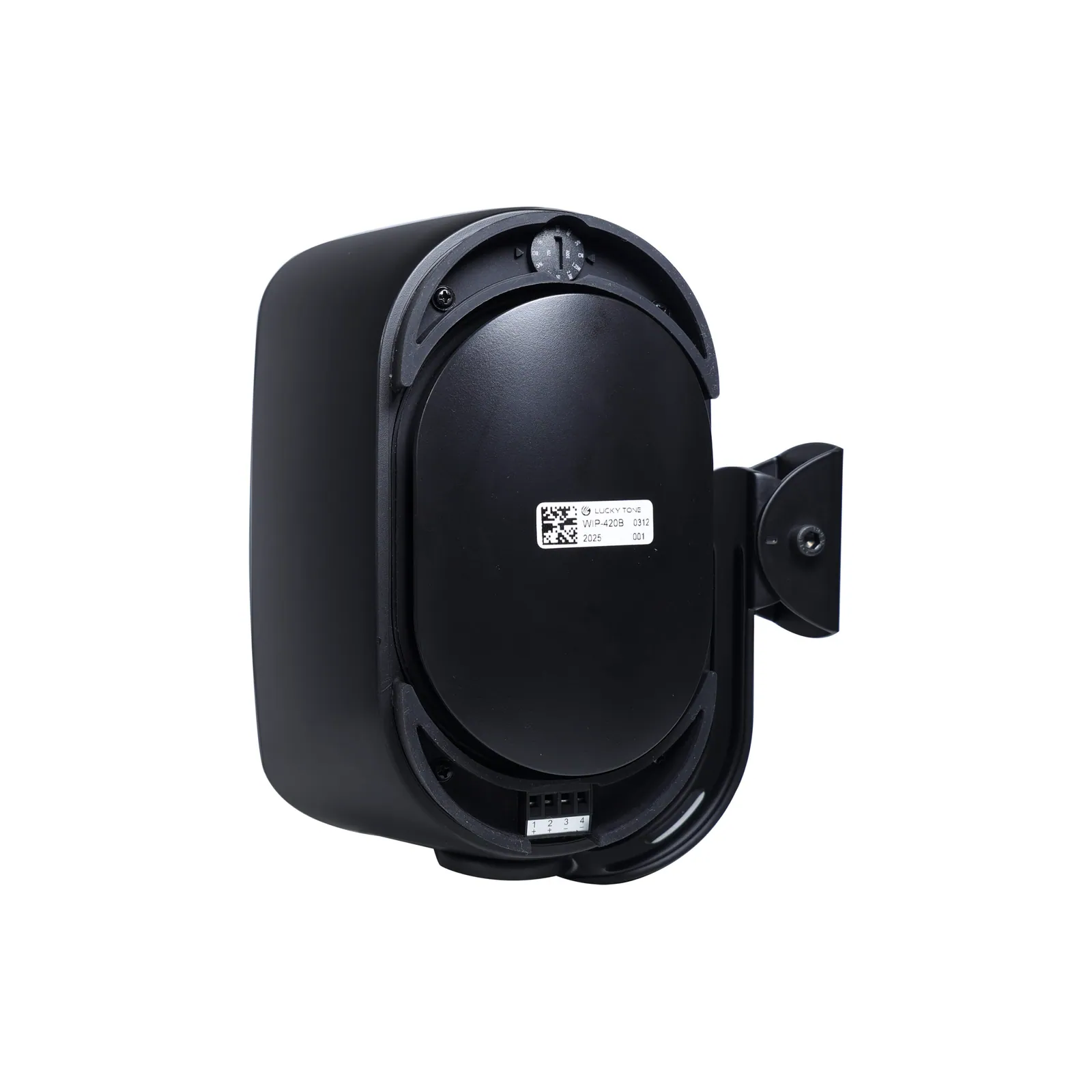

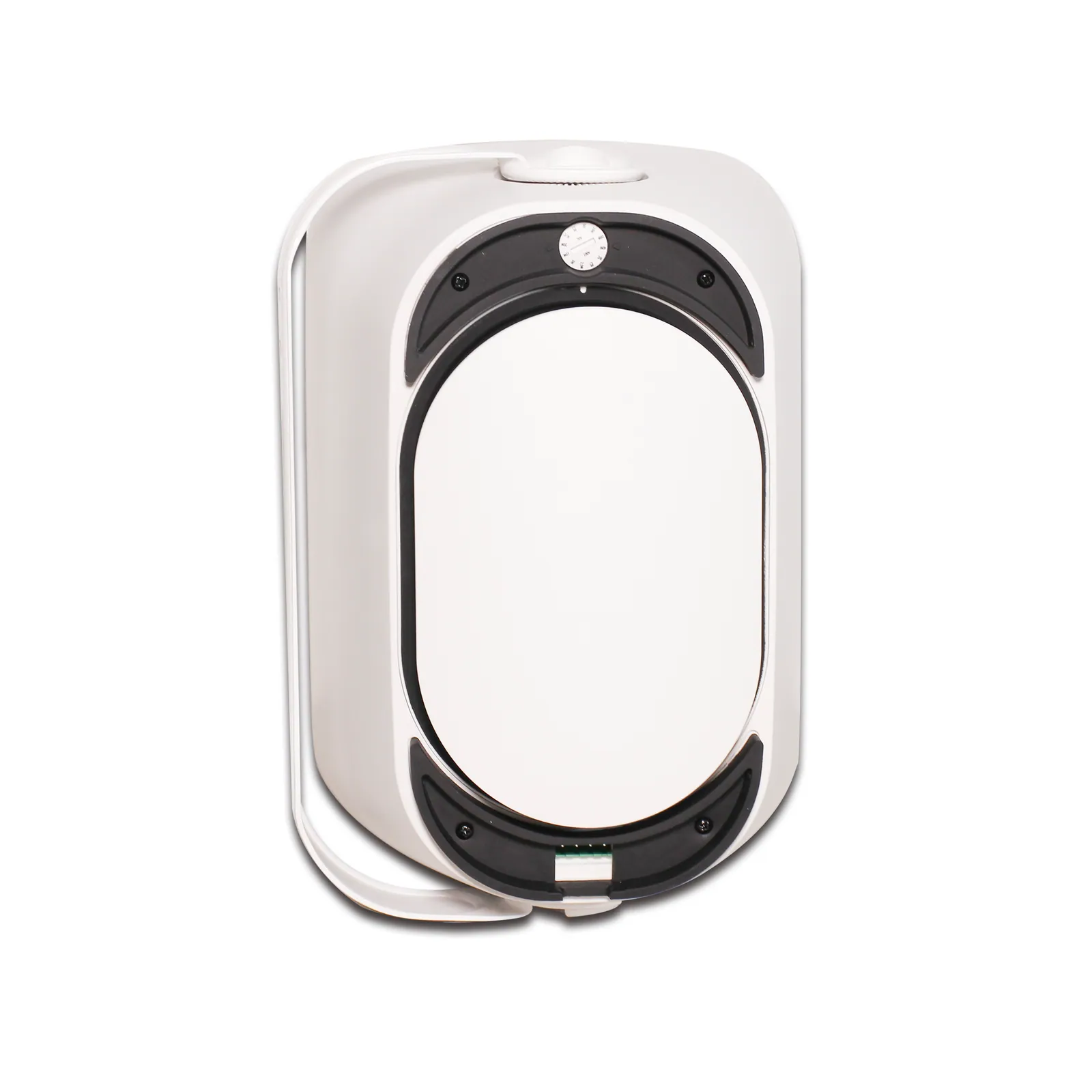

- announcements for public address systems. The Unique Rear Covers not only helped to cover
- the Euroblock Connector and Bypass Selector (PA Transformer) in the rear of the speaker, but
- also designed to merge seamlessly with the OBE Bass Radiator and the overall design of
- Speakers. Default white color, black color optional.
Features
- IP66, all weather wall mount speaker for indoor and outdoor use
- With power tap for 70V/100V and 8Ω
- Available in 5 inch, 6 inch and 8 inch

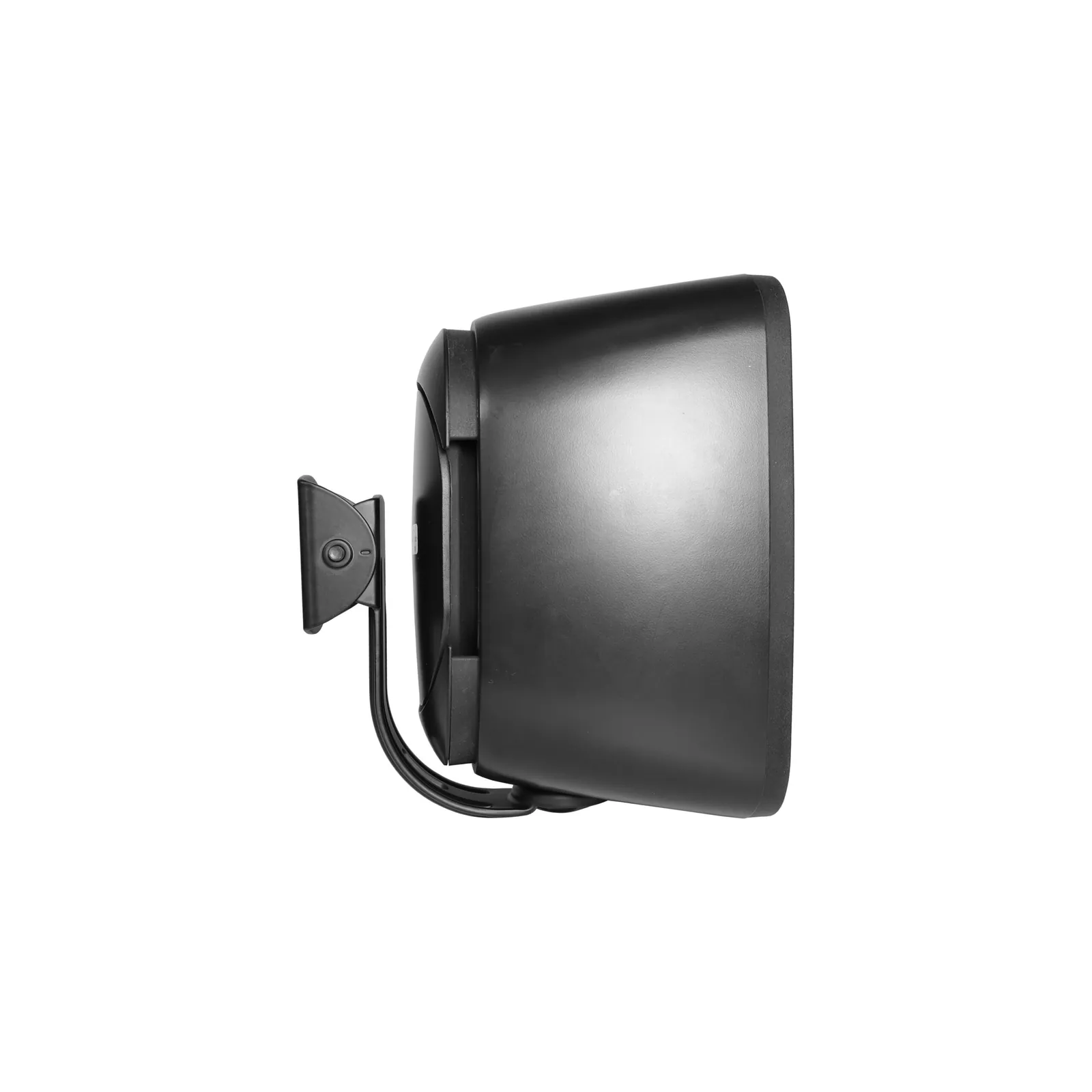

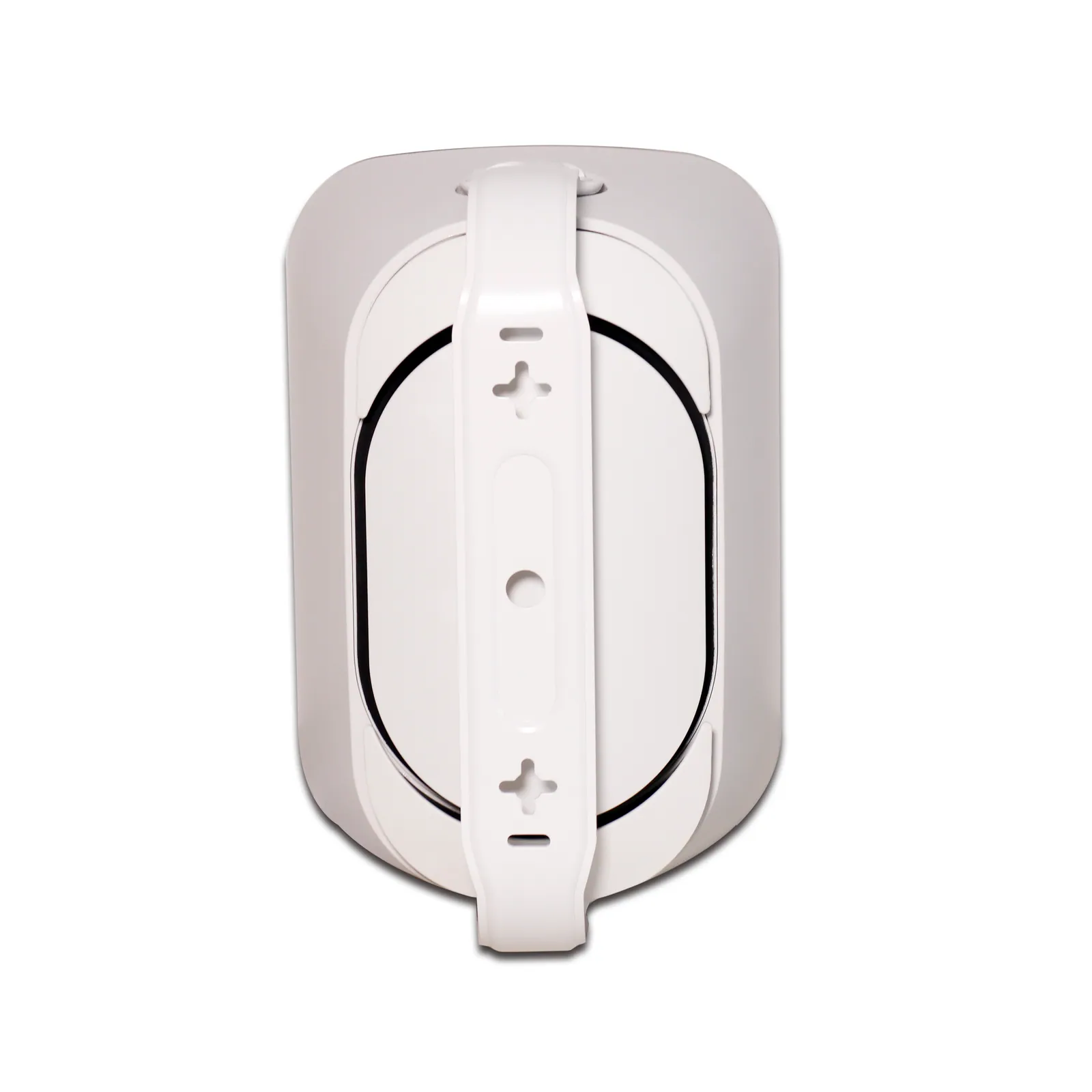

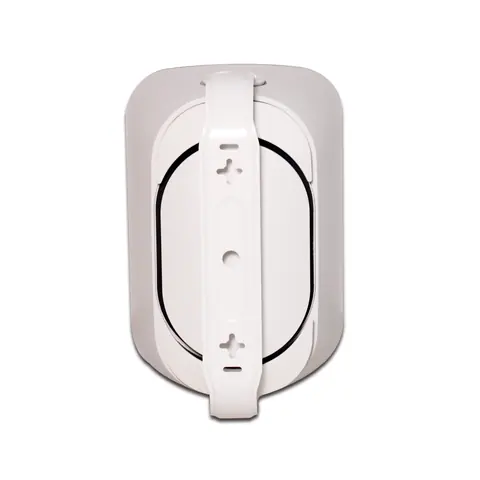

- Quick installation with water-proof brackets
- Fashionable appearance with high quality sound
03Documents1 file · 3.4 MB
Documents and files.

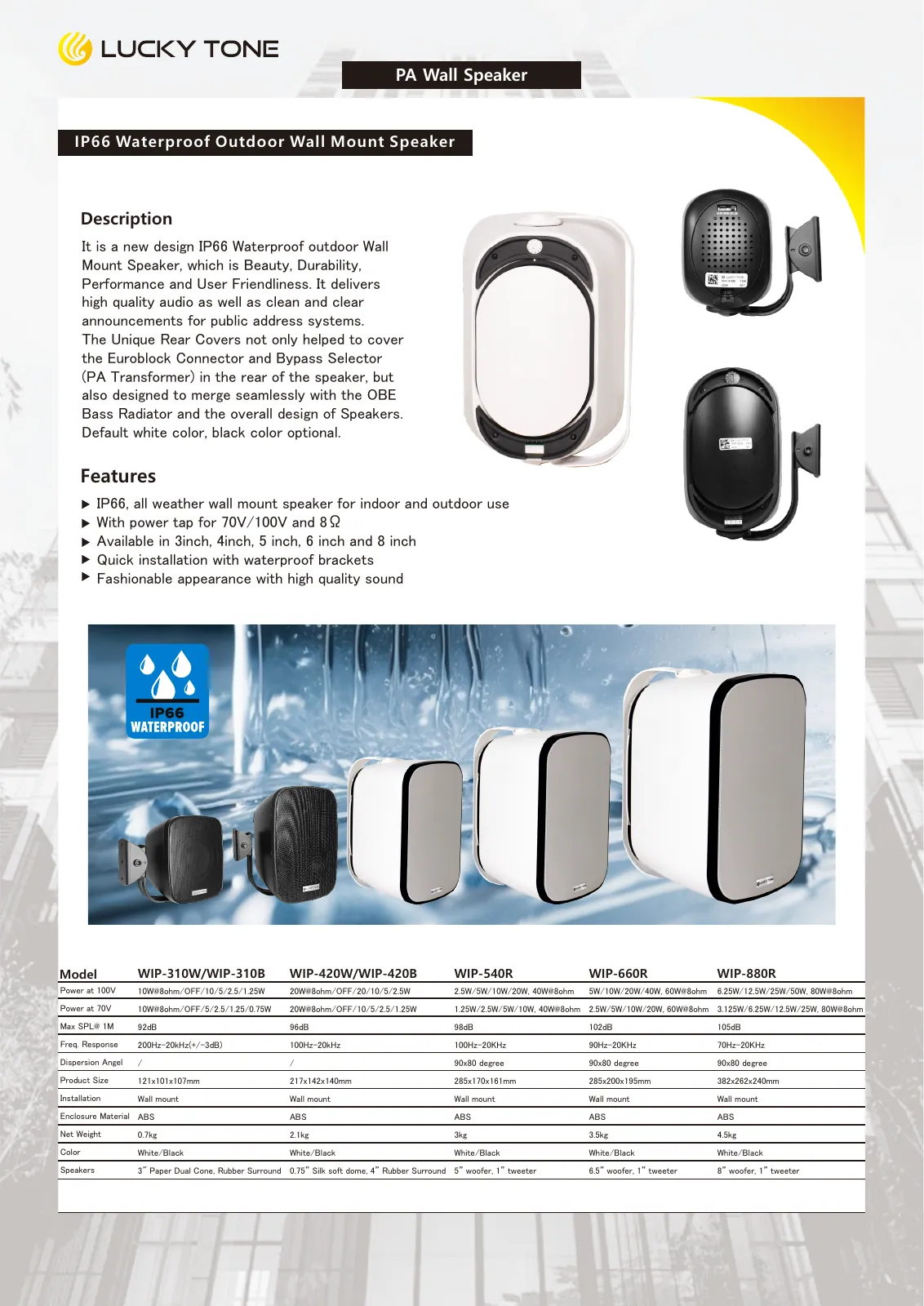

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
04Related products
In the same range.

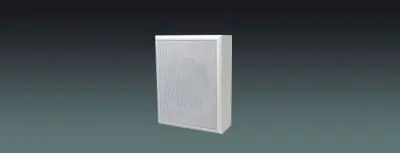

EQ-236Lucky ToneWall-mounted SpeakersWP-610 · LoudspeakersWeight1.40Kg
