Sheet 05.434
Lucky Tone · Microphones

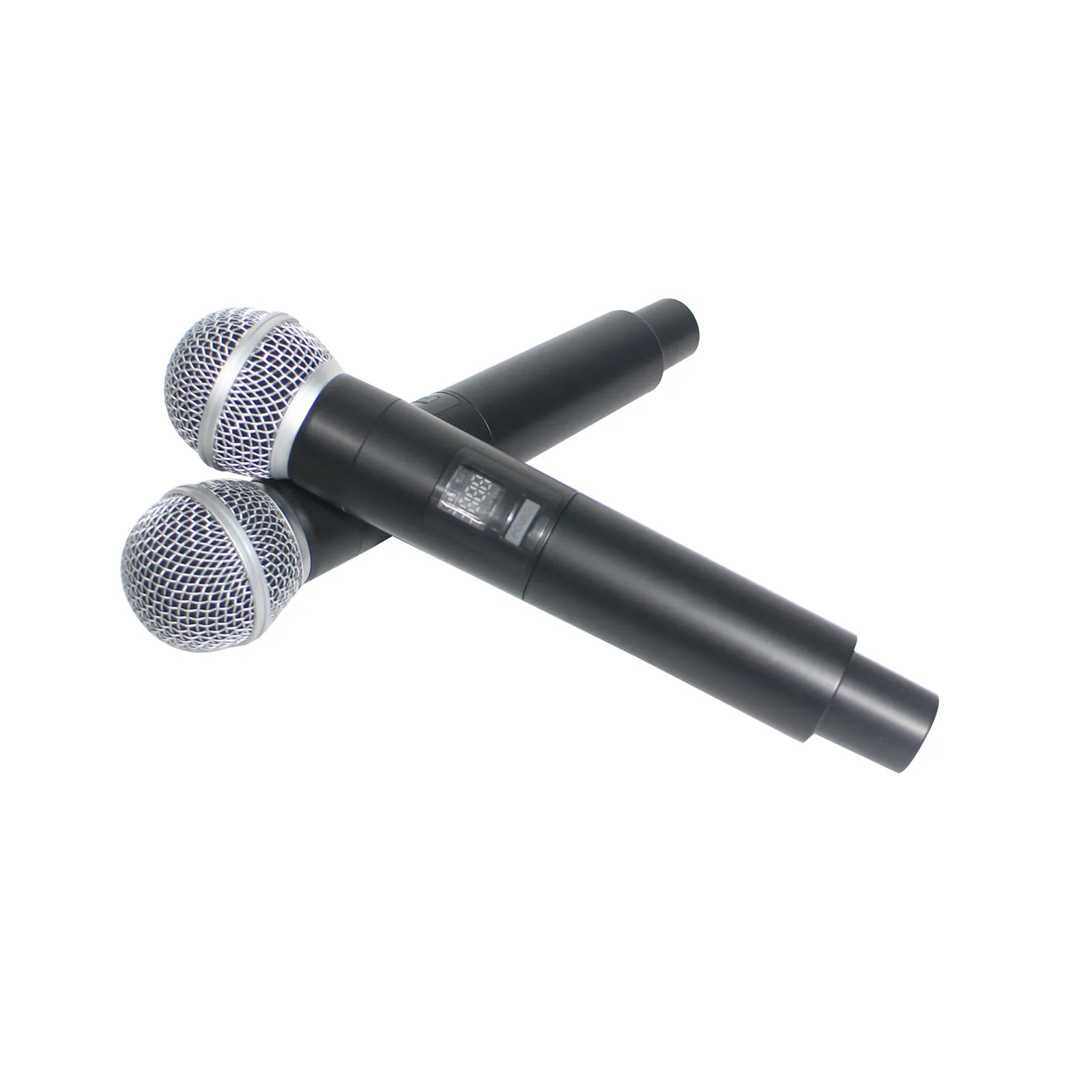

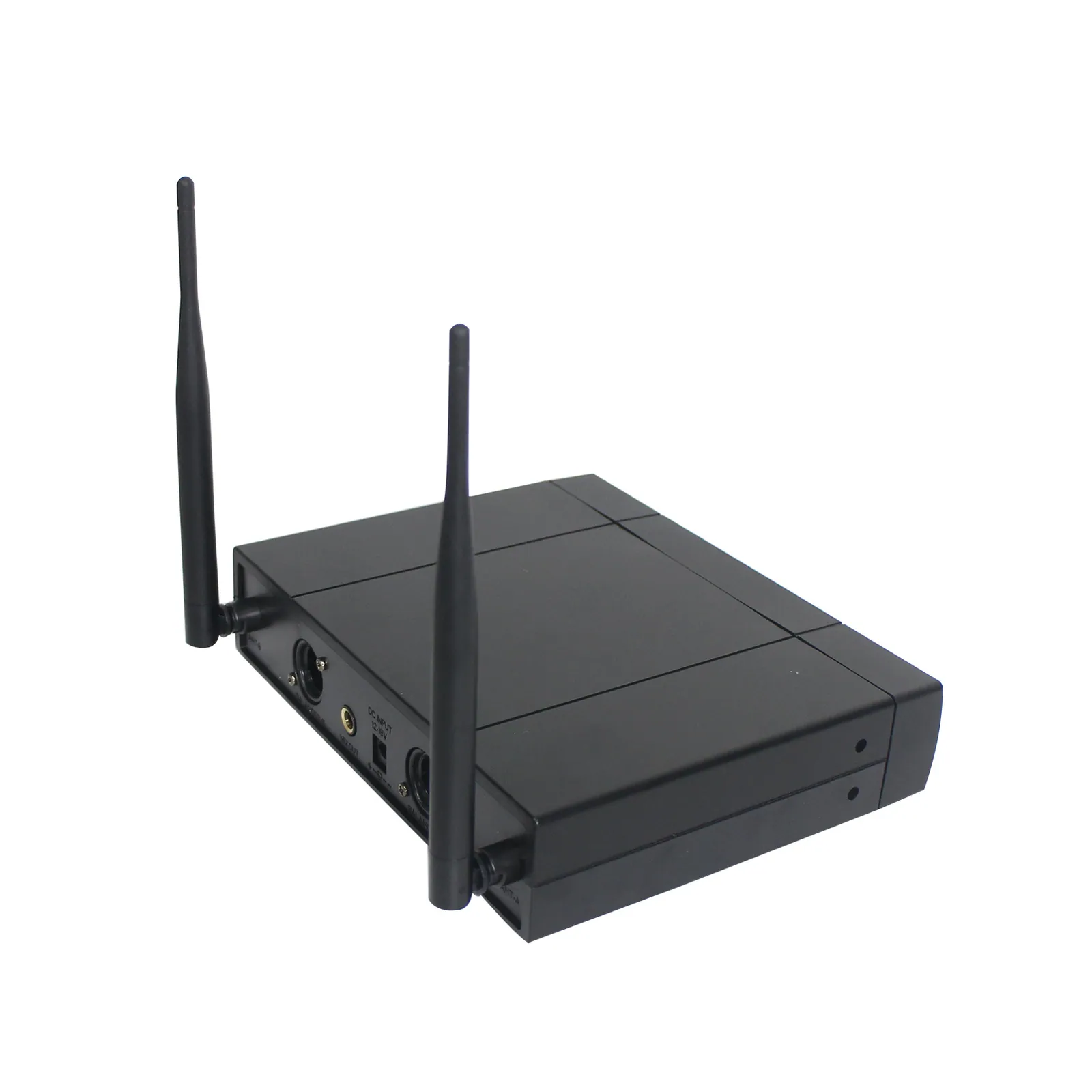

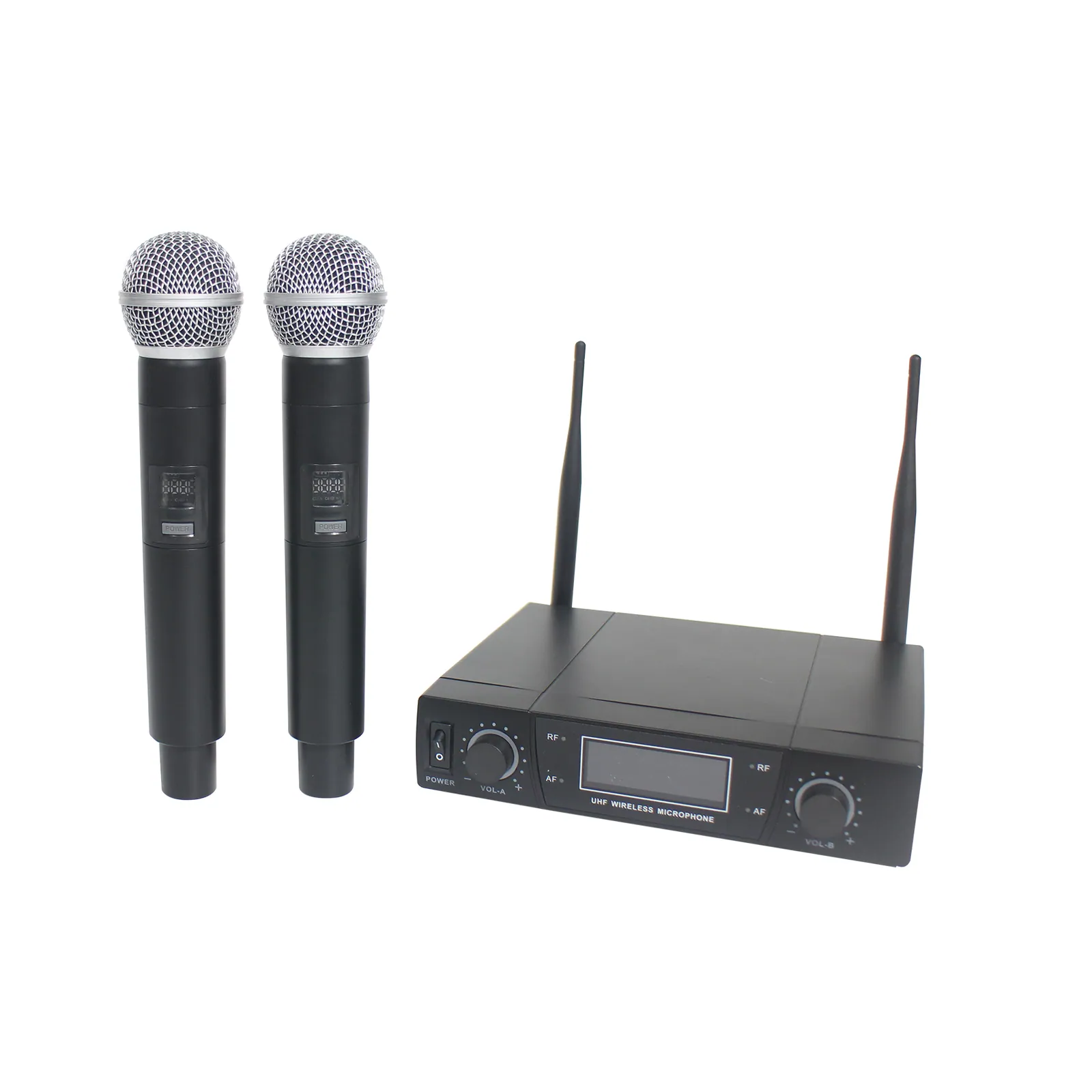

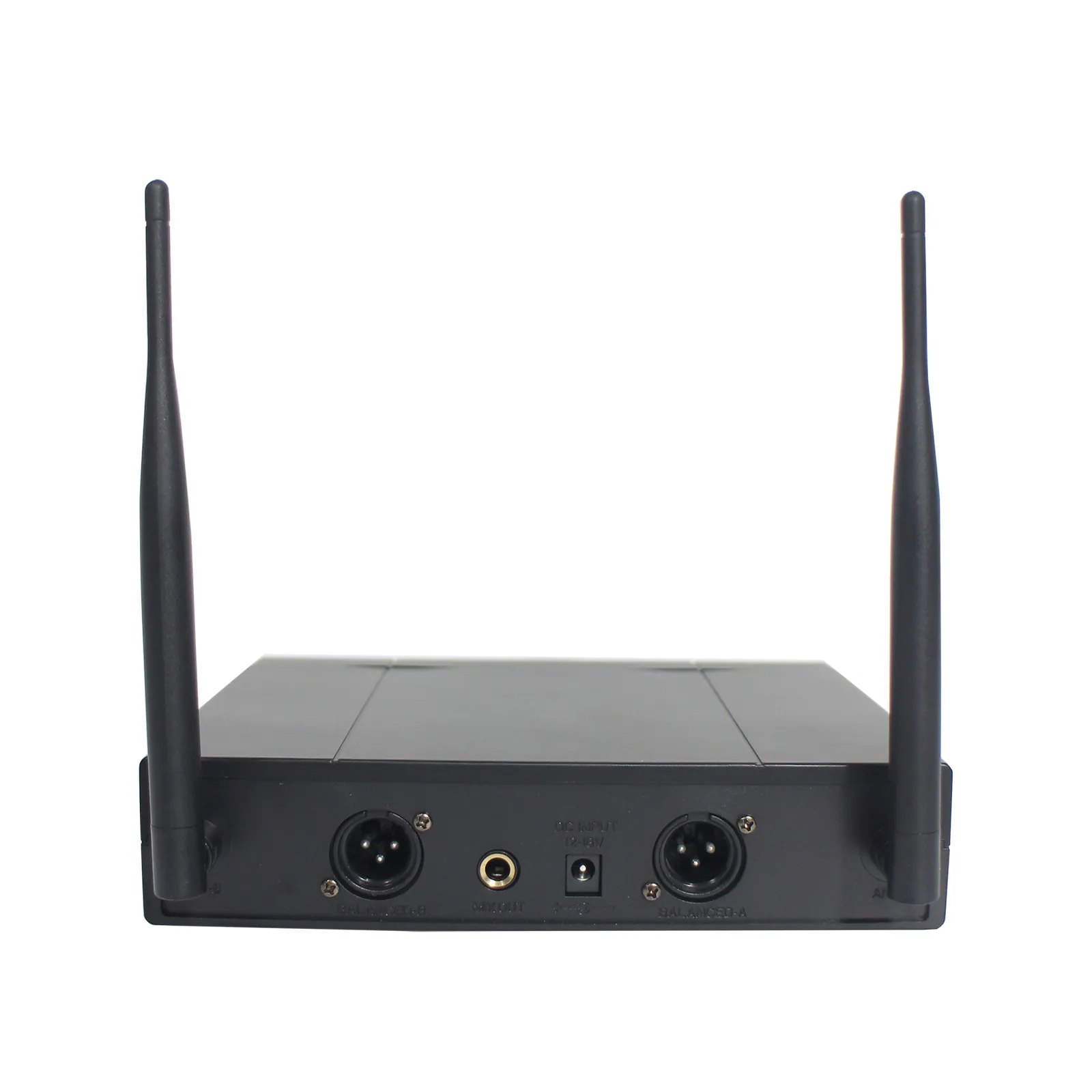

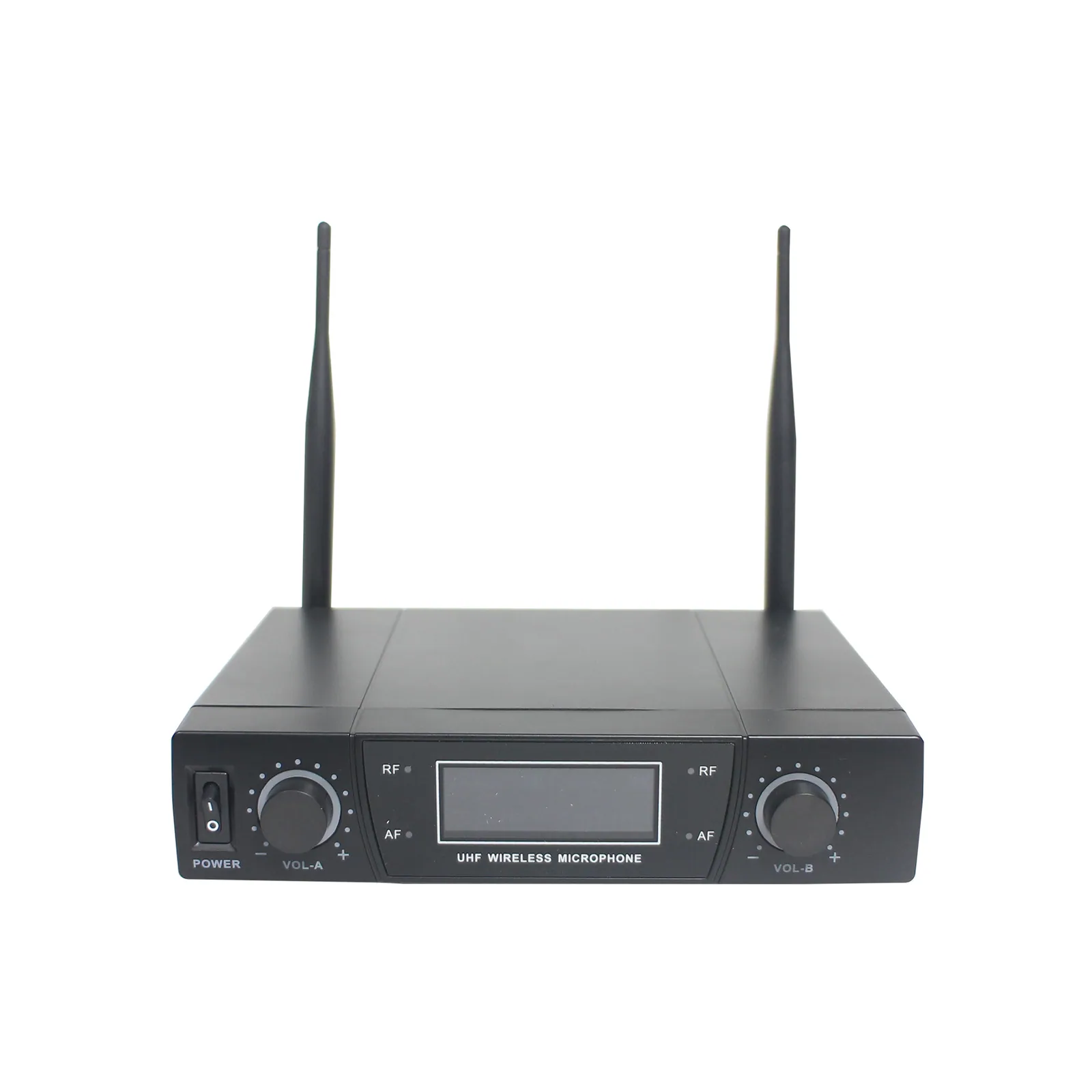

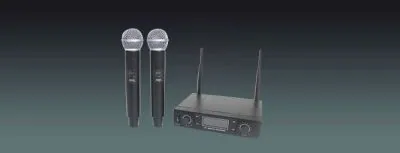

2-Channel UHF Wireless Microphones
ModelWM-88U
This WM Dual Channel Handheld Wireless System features efficient RF performance, diversified frequency range, and high S/N ratio. Thus, it is suitable for wireless professional sound reinforcement, such as, KTV, education,and live performance.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2-Channel UHF Wireless MicrophonesPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
PDFSpecifications1.6 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- WM-88U
- Channel
- 2Ch(100 channel optional)
- Carrier Frequency
- UHF600-900MHz
- Frequency Steadying
- ±0.005%
- Modulation Mode
- UHF
- Maximum Deviation
- ±20KHz
- Audio Frequency Response
- 40Hz-20KHz
- S/N Ratio
- >80dB
- Audio Dynamic Range
- >80dB
- T.H.D.
- <0.2%
- Cover Range
- 80M
- Size
- 21x18x4.4cm
- Operating Temperature
- -10°C-50°C
Show the full specificationHide the rest of the specification0 more groups · 0 values
