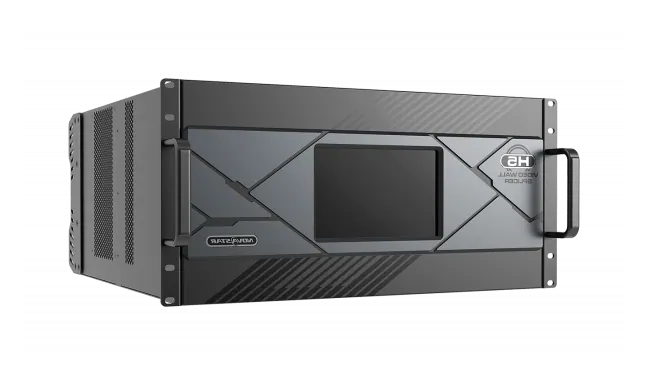

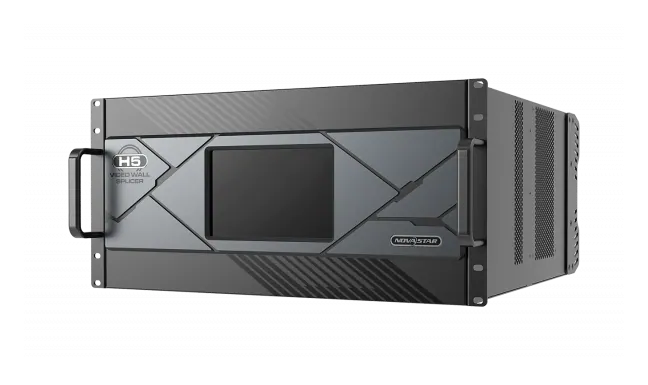

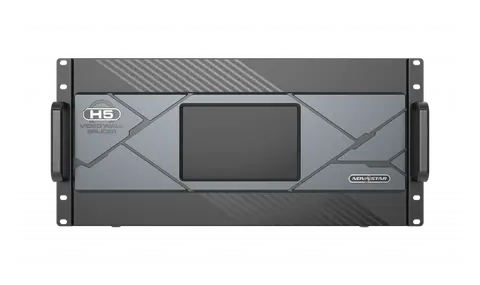

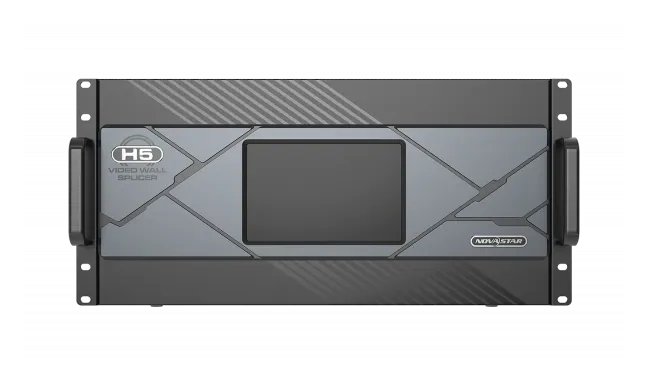

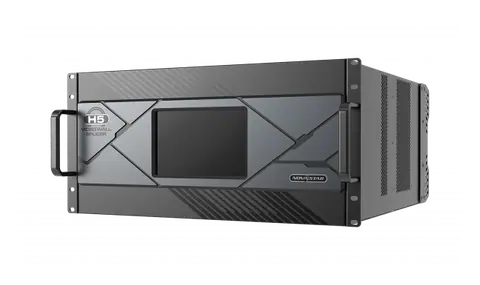

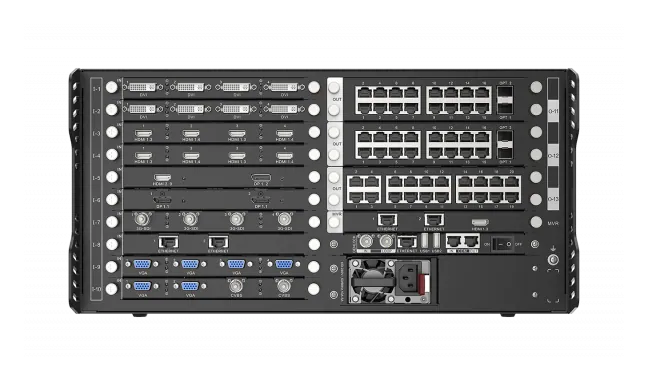

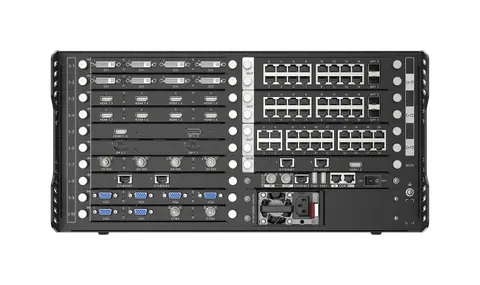

H5
Video Splicing Processor.
- Rack Unit
- 5U
- Max. Loading Capacity / (H_20xRJ45 sending card)
- 39 million pixels
- Max. Loading Capacity / (H_4 OPT Output Card Enhanced)
- 78 million pixels
- Max.Output
- Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector) / Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port) / Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications17
- Rack Unit
- 5U
- Max. Loading Capacity / (H_20xRJ45 sending card)
- 39 million pixels
- Max. Loading Capacity / (H_4 OPT Output Card Enhanced)
- 78 million pixels
- Max.Output
- Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector) / Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port) / Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
- Max. Input Cards
- 10
- Max. Output Cards
- 3
- Irregular Mosaic
- √
- Max. Layers
- 48 Layers
- Max. Presets
- 2000 (Preset playlist playback supported)
- Permission Management
- √
- 10bit and HDR
- √
- Input and Output Monitoring / (H_2xRJ45+1xHDMI1.3 / preview card required)
- √
- Optional Power Supply
- √
- Central Control
- TCP/IP and RS232
- OSD
- √
- BKG
- √
- Touch Panel Control
- √
Show the full specificationHide the rest of the specification0 more groups · 0 values
