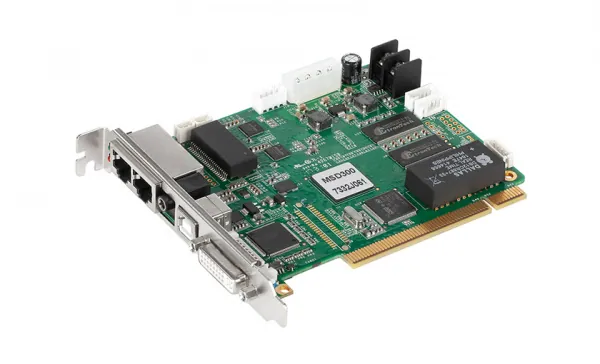

MSD300

Controller.

Indicator — Red: Device operating indicator. Working status: / ● On: The power supply is normal. / ● Off: The power is not supplied or the power supply is abnormal.
Indicator — Green: Device status indicator. Working status: / ● Slow flashing: Video input unavailable / ● Normal flashing: Video input available / ● Fast flashing: The screen is displaying the startup image. / ● Breathing: The Ethernet port redundancy has taken effect.
Input — DVI×1: ● Single-link DVI input connector / ● Supported maximum resolution: 1920×1200@60Hz, downward compatible / ● Resolution customizable / ○ Maximum width: 3840 pixels / ○ Maximum height: 1920 pixels
Input — AUDIO: Audio input connector

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 9 values

What this product is, in numbers.

PDFSpecificationsEN · 6 pages · 661 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications9

Indicator — Red: Device operating indicator. Working status: / ● On: The power supply is normal. / ● Off: The power is not supplied or the power supply is abnormal.
Indicator — Green: Device status indicator. Working status: / ● Slow flashing: Video input unavailable / ● Normal flashing: Video input available / ● Fast flashing: The screen is displaying the startup image. / ● Breathing: The Ethernet port redundancy has taken effect.
Input — DVI×1: ● Single-link DVI input connector / ● Supported maximum resolution: 1920×1200@60Hz, downward compatible / ● Resolution customizable / ○ Maximum width: 3840 pixels / ○ Maximum height: 1920 pixels
Input — AUDIO: Audio input connector
Output — RJ45×2: ● 2 Gigabit Ethernet ports / ● Maximum loading capacity of a single port: 650,000 pixels / ● Supports redundancy between Ethernet ports.
Control — USB (Type-B): Connects to the PC.
Control — UART IN/OUT: Input/Output connector for cascading devices
Function Connector — LIGHT SENSOR: Connects to a light sensor to monitor ambient brightness, allowing for automatic brightness adjustment of LED display.
Power Supply — DC 3.3V~5.5V: DC power connector
