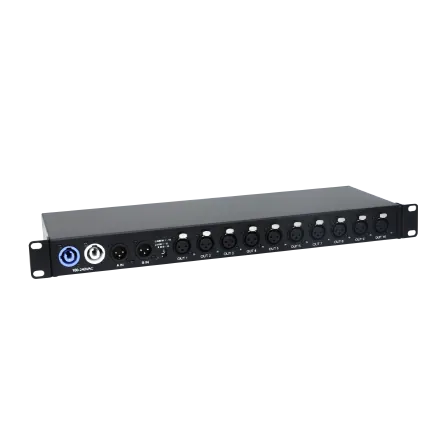

SIGNAL AMPLIFIER

ModelPR-4602

Power consumption: 8W@ 220V(Max)
Power supply: 100V~240V AC,50/60Hz

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 8 groups · 18 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS3

Input voltage: 100V~240V AC,50/60Hz
Power consumption: 8W@ 220V(Max)
Current: 0.04A@220V(Max)

02THE TYPES OF DIGITAL SIGNAL2

DMX512: DMX512(1990), DMX512-A
RDM: V1.0 (E1.20-2010 ESTA Standard)

03MAIN FUNCTIONS6

1 channel input with 10-channel optoelectronic isolation signal outputs, or 2 channel inputs with their respective 5 channel optoelectronic isolation signal ouputs(selected by the switch)

Each signal output can be connected to 32 devices

Each input and output is with independent optoelectronic isolation technology with highest withstanding voltage 3KV

Each signal output is with independent LED indication for the status of the signal

Standard DMX 512 signal with 3-pin interface(optional 5-pin interface)

RDMfunction

04AMBIENT TEMPERATURE1

45°C at maximum

05INGRESS PROTECTION1

IP20

06WEIGHT1

1.8Kg

07INSTALLATION1
