Sheet 05.45
VTRIX · Air traffic control

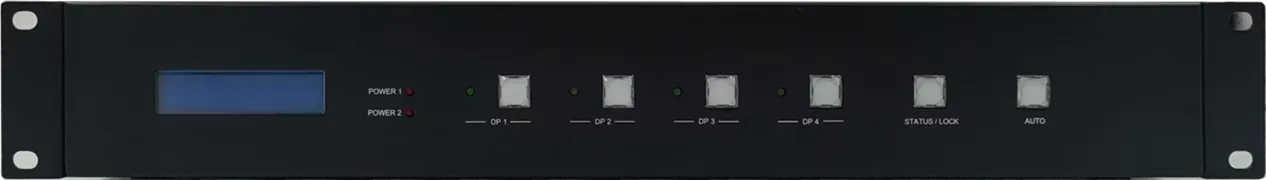

ATC18G412DP
Processor for an air traffic controller's workstation with 0 ms seamless switching and predefined window layouts.
- Video format
- 4K 4:4:4 / 60 Hz
- Bandwidth
- 18 Gbps
- Switching
- 0 ms, seamless
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ATC18G412DPPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- Video format
- 4K 4:4:4 / 60 Hz
- Bandwidth
- 18 Gbps
- Switching
- 0 ms, seamless
- MultiViewer
- Predefined window layouts
- Video interface
- DisplayPort 1.4

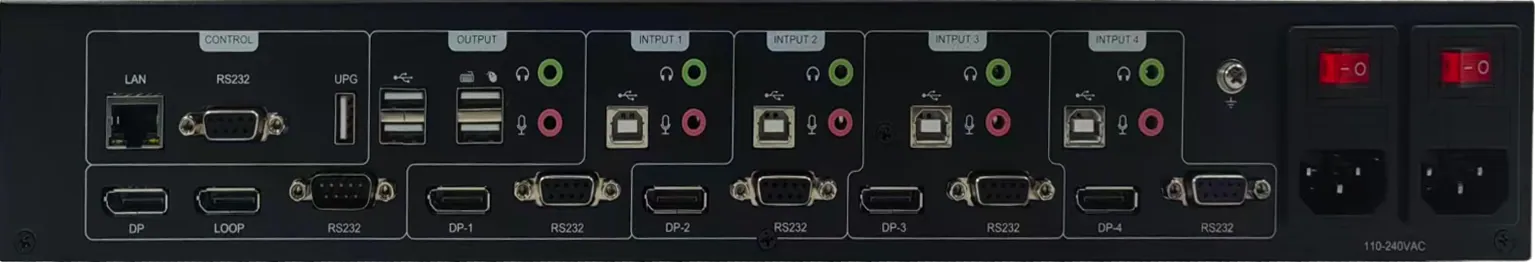

- Inputs
- 4 × (DP 1.4 + USB 2.0 + RS-232 + L/R + Mic)
- Outputs
- 2 DP 1.4 + USB 2.0 + RS-232 + L/R + Mic
- Control
- LAN + RS-232
- Configuration
- 4 × 1 × 2
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- ATC
- 4K / 60 Hz
- 0 ms
