Sheet 05.03
VTRIX · Modular matrices

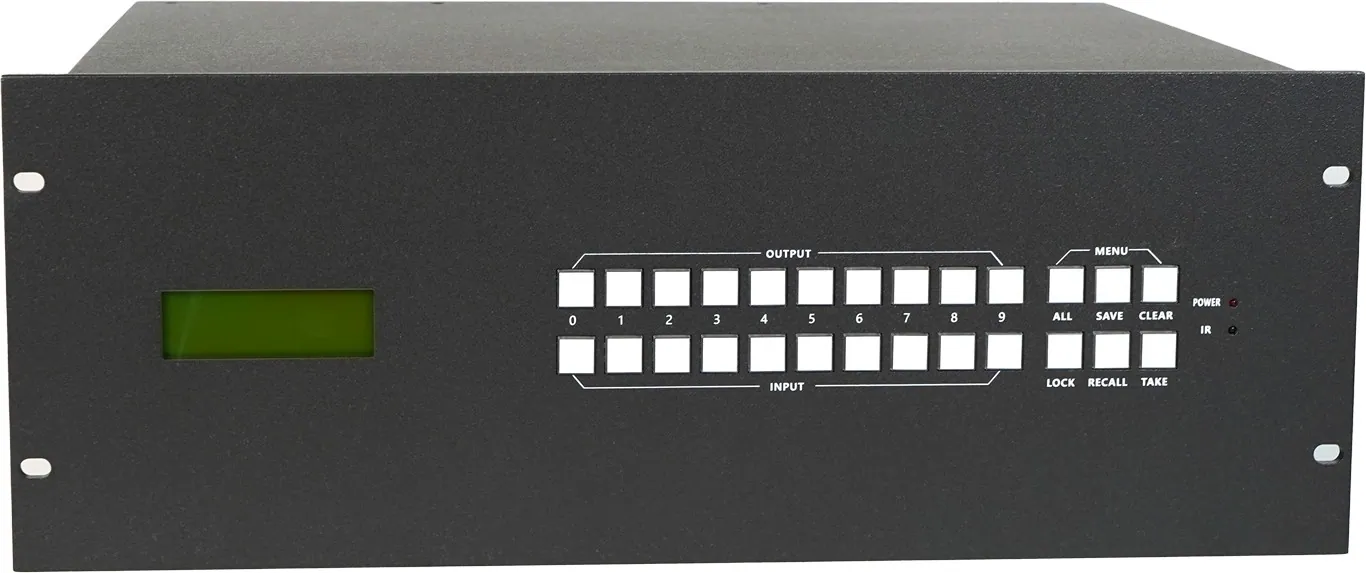

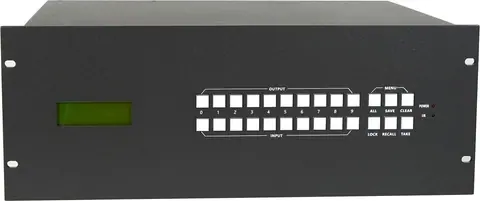

DM1616
16 × 16 modular matrix with seamless switching and image processing for video walls. It supports Dual-Ch cards and configurations with 2K or 4K signals.
- Matrix
- 16 inputs × 16 outputs
- Input / output card
- 2 channels
- Dimensions
- 483 × 365 × 178 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
DM1616Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 6 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications6
- Matrix
- 16 inputs × 16 outputs
- Input / output card
- 2 channels
- Dimensions
- 483 × 365 × 178 mm
- Catalogue weight
- 13 kg
- Carton
- 61 × 29 × 50 cm
- Card interfaces
- HDMI, DVI-U, VGA, SDI, HDBaseT, fibre
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Seamless switching of sources.
- Bezel compensation for video wall panels.
- Control over LAN, through the web interface and RS-232.
- EDID management, scene save and recall.
- Redundant power supply.
- 16 × 16
- Dual-Ch
- Seamless
