Sheet 05.50
VTRIX · Cards and modules

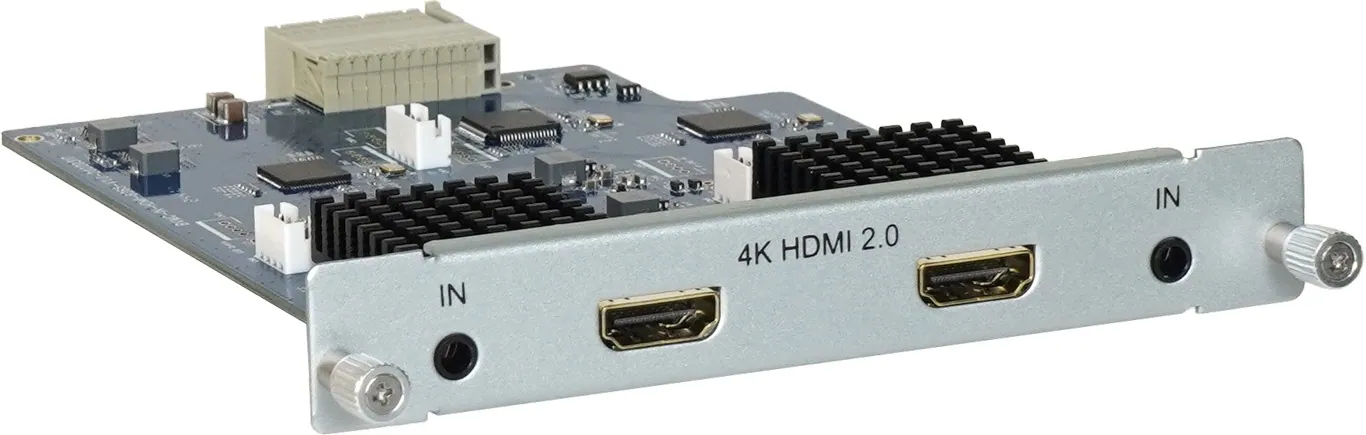

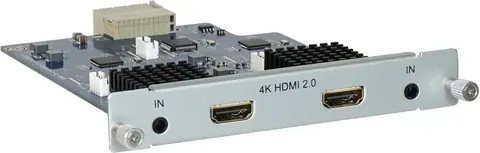

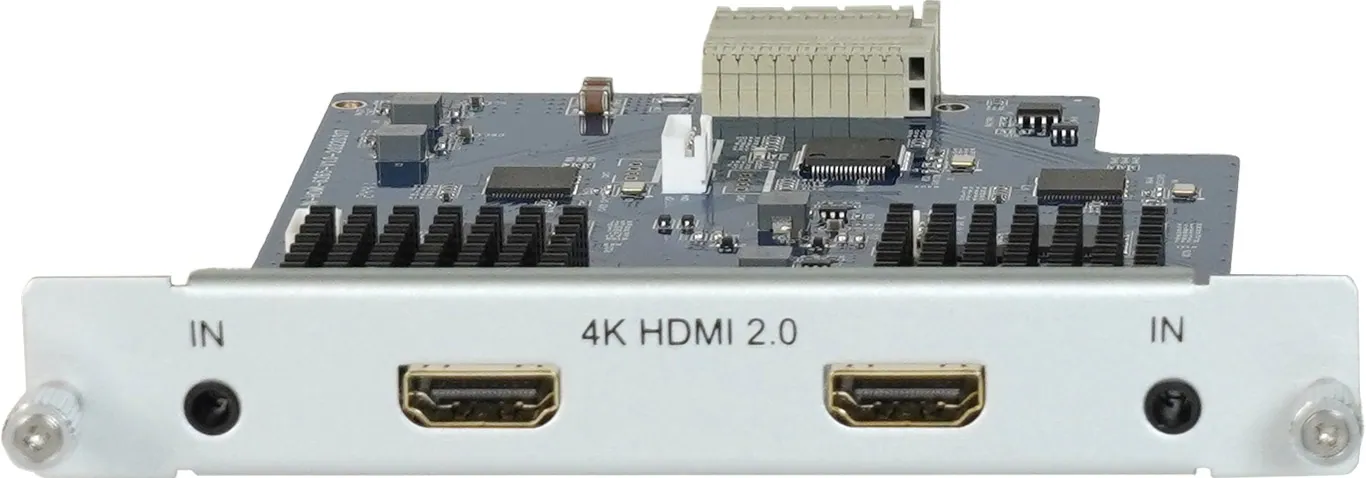

PCBA_DM3-IN-HDMI
Dual-Ch HDMI input card for the DM3 modular platform. It lets the interface mix be matched to the sources and displays of the AV system.
- Platform
- DM3
- Channels
- 2
- Direction
- Input
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PCBA_DM3-IN-HDMIPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Platform
- DM3
- Channels
- 2
- Direction
- Input
- Video format
- 4K 4:4:4 / 60 Hz
- HDMI version
- HDMI 2.0/DVI1.0
- Input connector
- HDMI Type A, 19-pin (female)
- Bandwidth
- 18 Gbps
- Colour depth
- 8 & 10 & 12 bit
- Audio format
- PCM
- Power consumption
- <5 W
- Operating temperature
- 0…+40 °C
- Storage temperature
- −20…+70 °C
- Relative humidity
- 10–90 %
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Supports 4K 4:4:4 / 60 Hz.
- EDID management.
- Analogue 3.5 mm audio jack.
- DM3
- HDMI
- Dual-Ch
