Sheet 05.57
VTRIX · Cards and modules

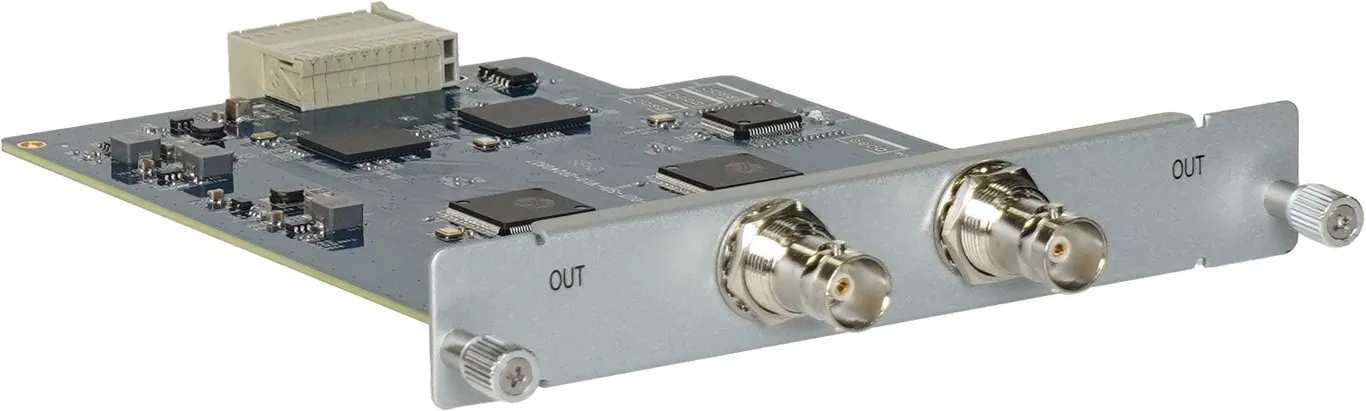

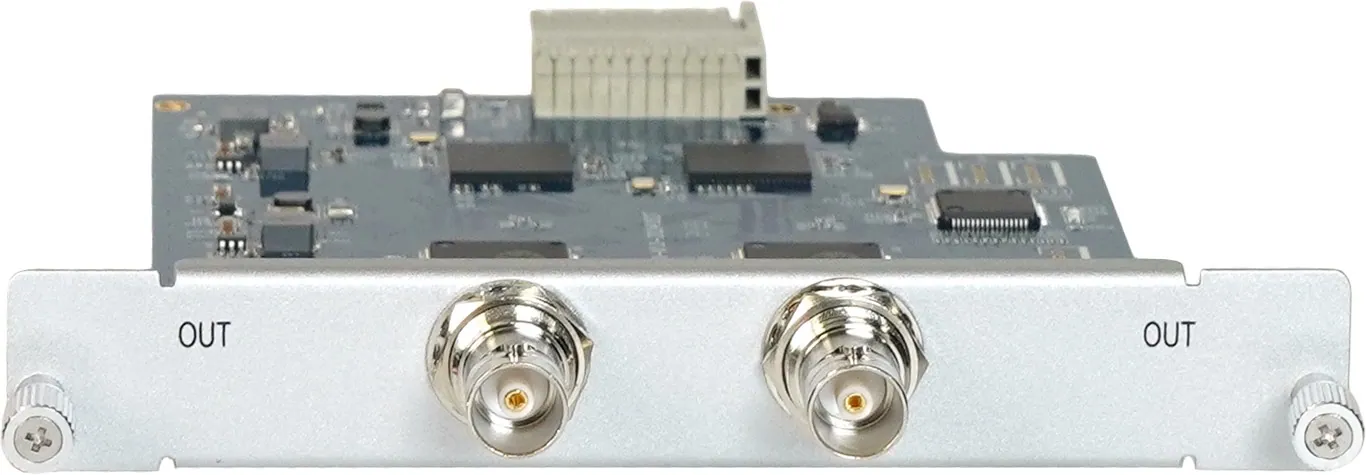

PCBA_DM3-OUT-SDI
Dual-Ch 3G-SDI output card for the DM3 modular platform. It lets the interface mix be matched to the sources and displays of the AV system.
- Platform
- DM3
- Channels
- 2
- Direction
- Output
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PCBA_DM3-OUT-SDIPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- Platform
- DM3
- Channels
- 2
- Direction
- Output
- Standards
- SD-SDI, HD-SDI, 3G-SDI
- Output connector
- BNC (female)
- Power consumption
- <5 W
- Operating temperature
- 0…+40 °C
- Storage temperature
- −20…+70 °C
- Relative humidity
- 10–90 %
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Analogue 3.5 mm audio jack.
- DM3
- 3G-SDI
- Dual-Ch
