Sheet 05.63
VTRIX · Cards and modules
PCBA_QVM-IN-DP

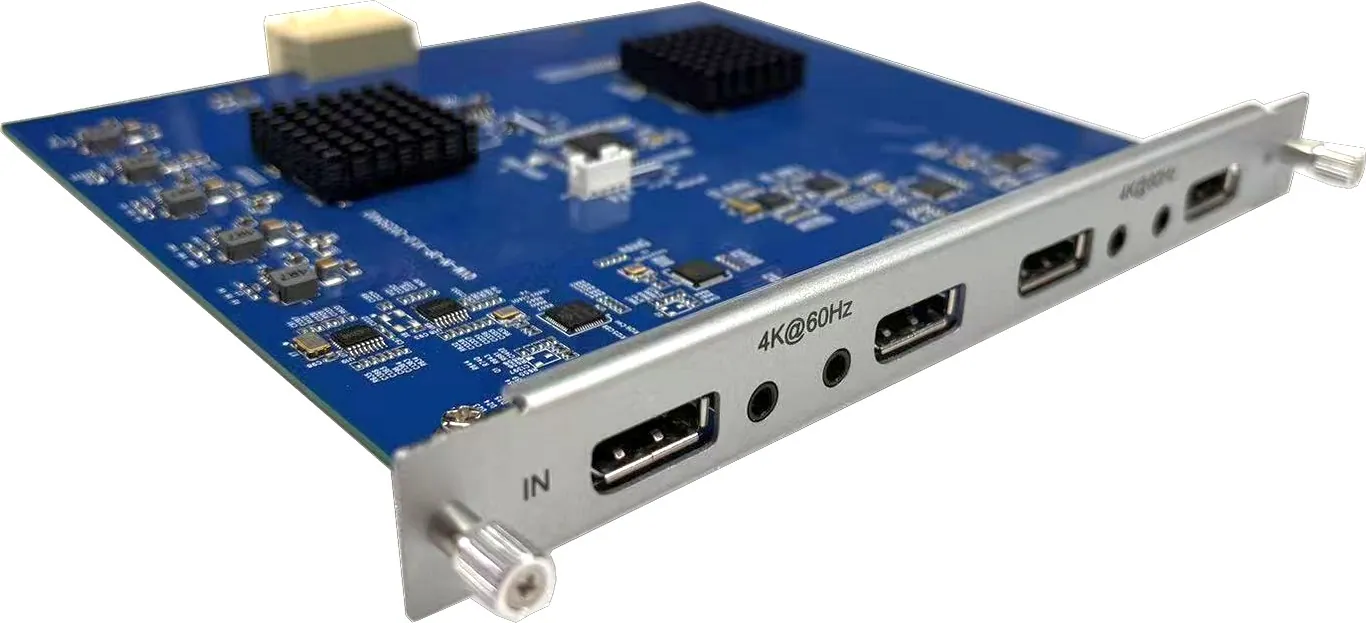

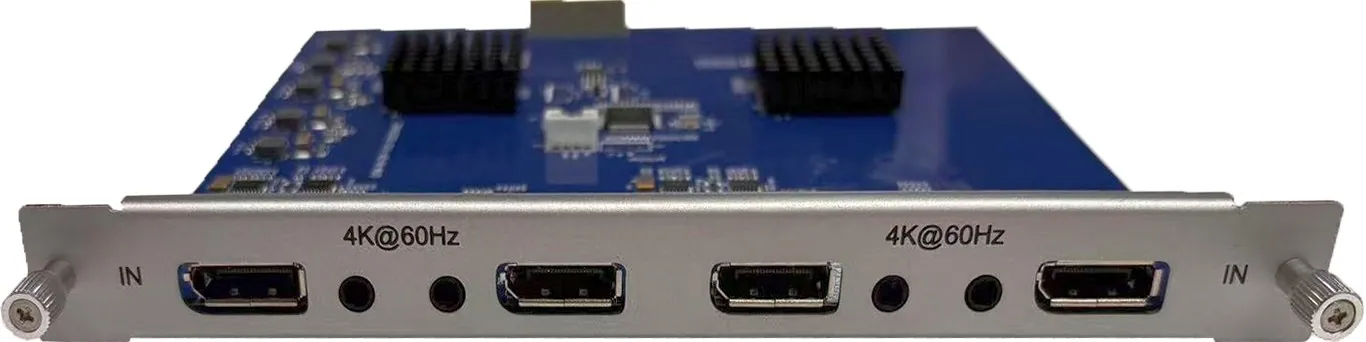

4-channel DisplayPort input card for the QVM modular platform. It lets you match the set of interfaces to the sources and displays of an AV system.
- Platform
- QVM
- Channels
- 4
- Direction
- Input
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PCBA_QVM-IN-DPPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Platform
- QVM
- Channels
- 4
- Direction
- Input
- Video format
- 4K 4:4:4 / 60 Hz
- DisplayPort version
- DP 1.2
- Input connector
- DP (female)
- Signal bandwidth
- 18 Gbps
- Colour depth
- 8 & 10 & 12 bit
- Audio format
- PCM
- Power consumption
- <10 W
- Operating temperature
- 0…+40 °C
- Storage temperature
- −20…+70 °C
- Relative humidity
- 10–90 %
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Supports 4K 4:4:4 / 60 Hz.
- EDID management.
- 3.5 mm analogue audio jack.
- QVM
- DisplayPort
- 4 channels
