Sheet 05.75
VTRIX · Cards and modules

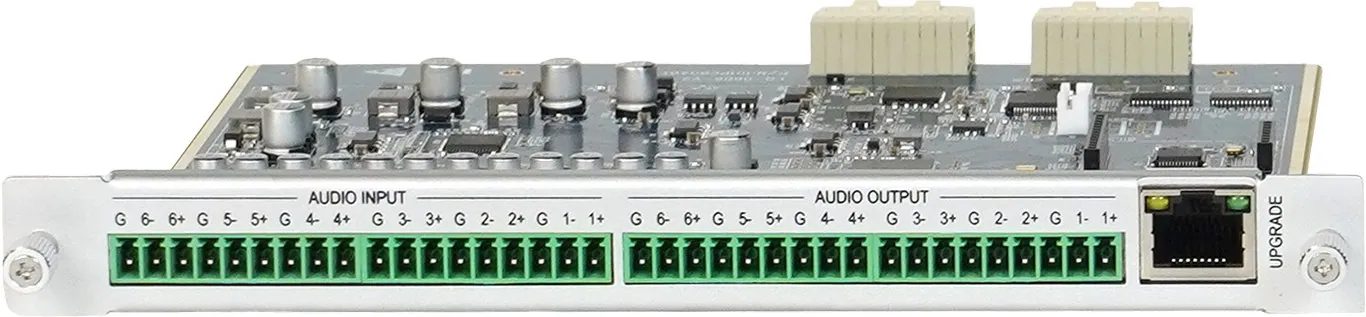

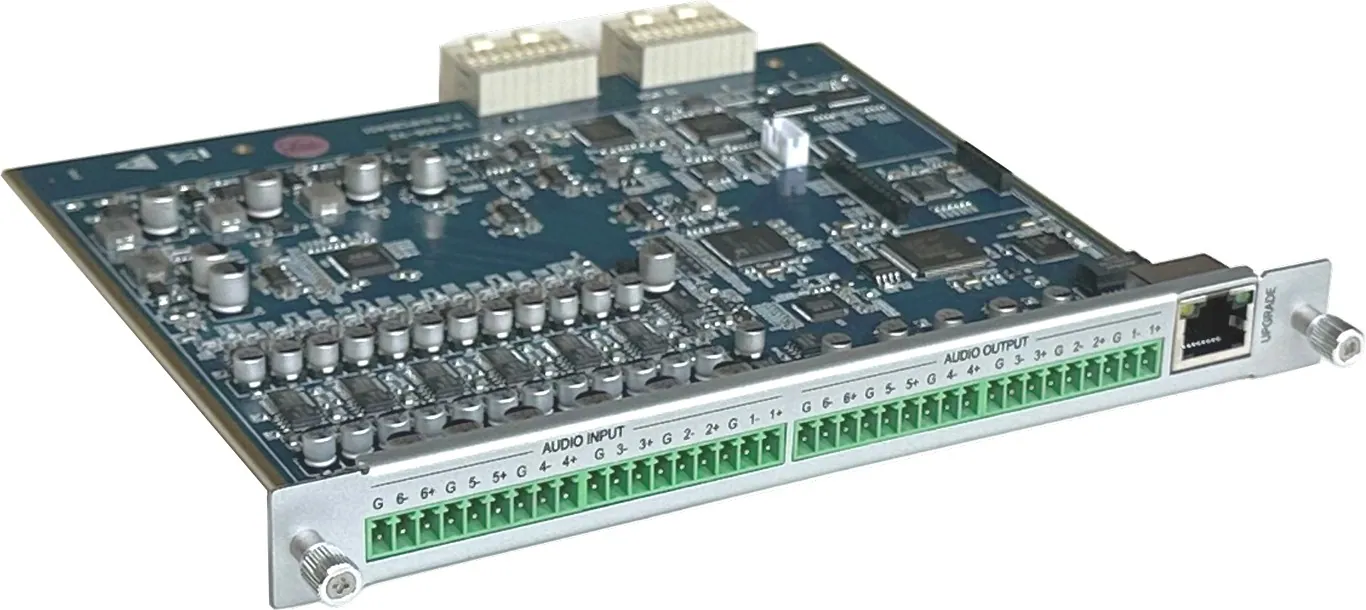

PCBA_QVM-OUT-AudioProcessor
Audio processor for QVM matrices with balanced analogue inputs and outputs. It combines switching, mixing and processing of audio signals.
- Analogue inputs
- 6 balanced
- Internal input
- HDMI audio from the matrix motherboard
- Analogue outputs
- 6 balanced
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PCBA_QVM-OUT-AudioProcessorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 5 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications5
- Analogue inputs
- 6 balanced
- Internal input
- HDMI audio from the matrix motherboard
- Analogue outputs
- 6 balanced
- Compatibility
- QVM1616, QVM3232, QVM8080
- Installation
- Occupies the last 4 output channels
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Switching, mixing and volume control.
- Auto mixer, AGC, AFC, ANC and phantom power.
- Control from PC software and by ASCII RS-232 commands.
- QVM
- DSP
- 6 × 6
Not available for QVM0808. Compatibility with QVM160 is to be confirmed.
