VTRIX · Cards and modules

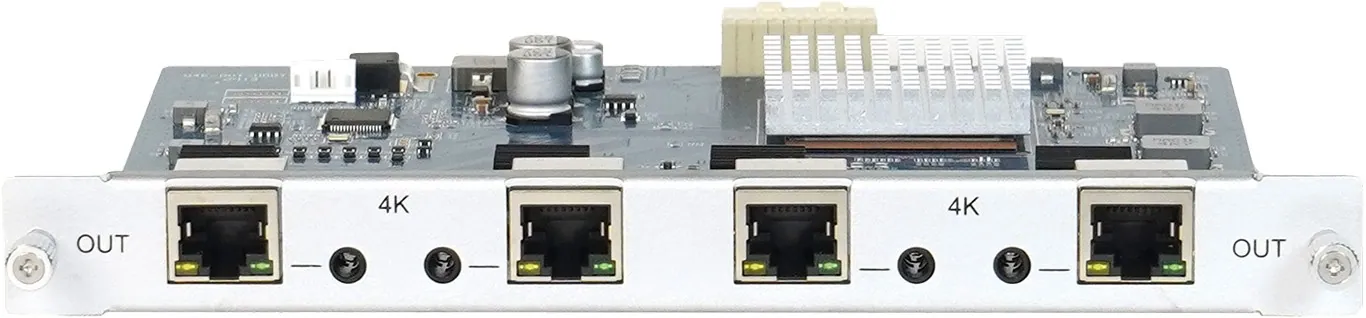

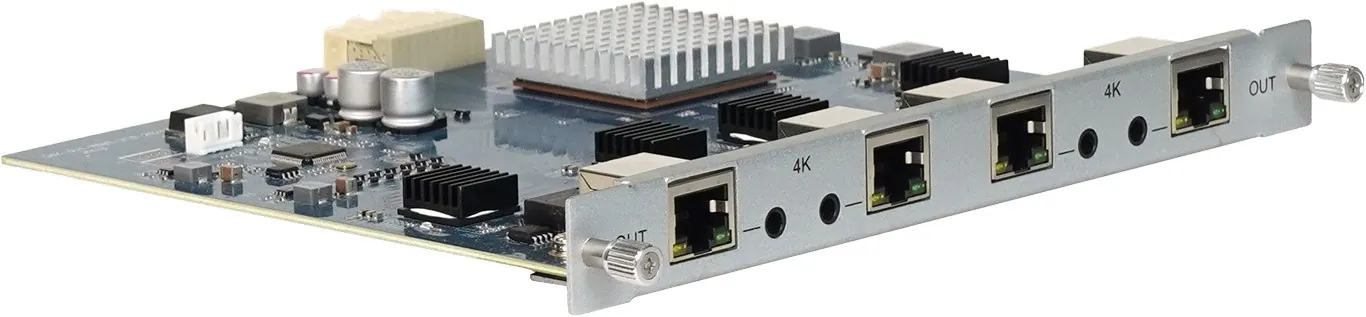

PCBA_QVM-OUT-HDBT-4K60-40m
4-channel HDBaseT output card for the QVM modular platform. It lets you match the set of interfaces to the sources and displays of an AV system.
- Platform
- QVM
- Channels
- 4
- Direction
- Output
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PCBA_QVM-OUT-HDBT-4K60-40mPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- Platform
- QVM
- Channels
- 4
- Direction
- Output
- Video format
- 4K 4:2:0 / 60 Hz
- Technology
- HDBaseT 1.0
- 4K range
- 40 m
- Paired device
- SSH70-RX
- HDBaseT version
- HDBaseT 1.0
- HDMI version
- HDMI 1.4/DVI1.0
- Output connector
- RJ45 (female)
- PoC power
- 24 V / 1 A
- Power consumption
- <30 W
- Operating temperature
- 0…+40 °C
- Storage temperature
- −20…+70 °C
- Relative humidity
- 10–90 %
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Supports 4K 4:2:0 / 60 Hz.
- EDID management.
- 3.5 mm analogue audio jack.
- Matrix mode or four freely positioned windows (Free-Windows).
- QVM
- HDBaseT
- 4 channels
