Sheet 05.10
VTRIX · Modular matrices

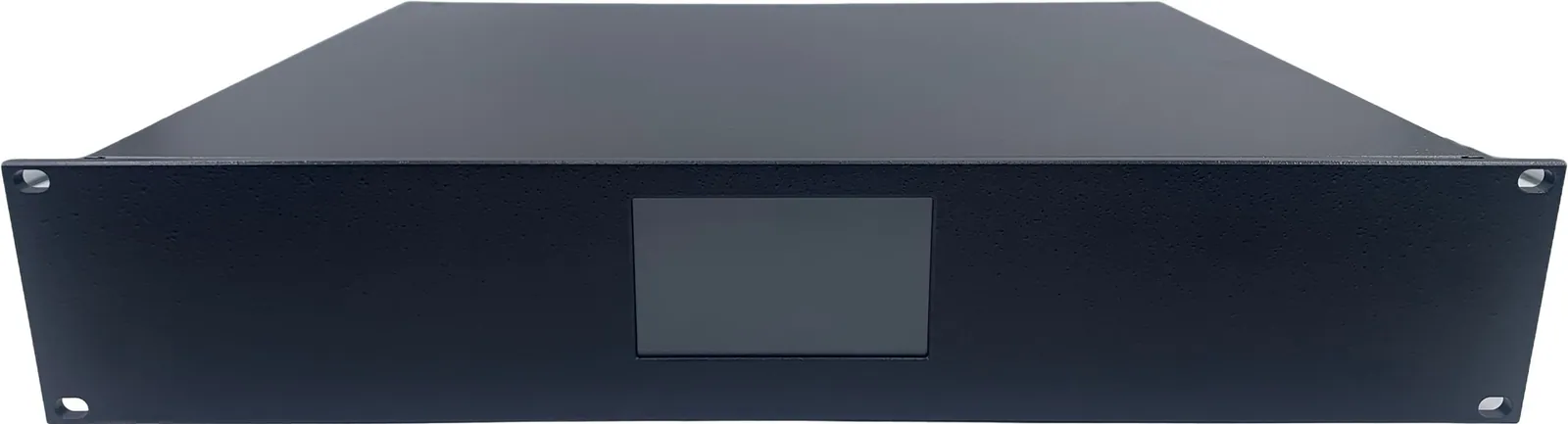

QVM0808-2U-TP
8 × 8 modular matrix with seamless switching and image processing for video walls. Quad-Ch cards allow systems to be built with different interfaces.
- Matrix
- 8 inputs × 8 outputs
- Input / output card
- 4 channels
- Crosspoint bandwidth
- 18 Gbps
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
QVM0808-2U-TPPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- Matrix
- 8 inputs × 8 outputs
- Input / output card
- 4 channels
- Crosspoint bandwidth
- 18 Gbps
- Dimensions
- 483 × 365 × 89 mm
- Catalogue weight
- 9 kg
- Carton
- 60 × 20.5 × 50 cm
- Chassis
- 2U
- Touch screen
- 4.3″
- Card interfaces
- HDMI, DVI-U, VGA, SDI, HDBaseT, fibre, IP
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Seamless source switching.
- Video wall bezel compensation.
- Control over LAN, via a web interface and over RS-232.
- EDID management, scene save and recall.
- Redundant power supply.
- Four freely positioned windows (Free-Windows).
- Custom resolutions for LED screens.
- 8 × 8
- Quad-Ch
- Seamless
The available interfaces and their capabilities depend on the cards installed.
IP Preview and Audio Processor cards are not supported.
